Vous trouverez ici toutes les pièces et dessins disponibles du 'Dewalt D25603K Type 1'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

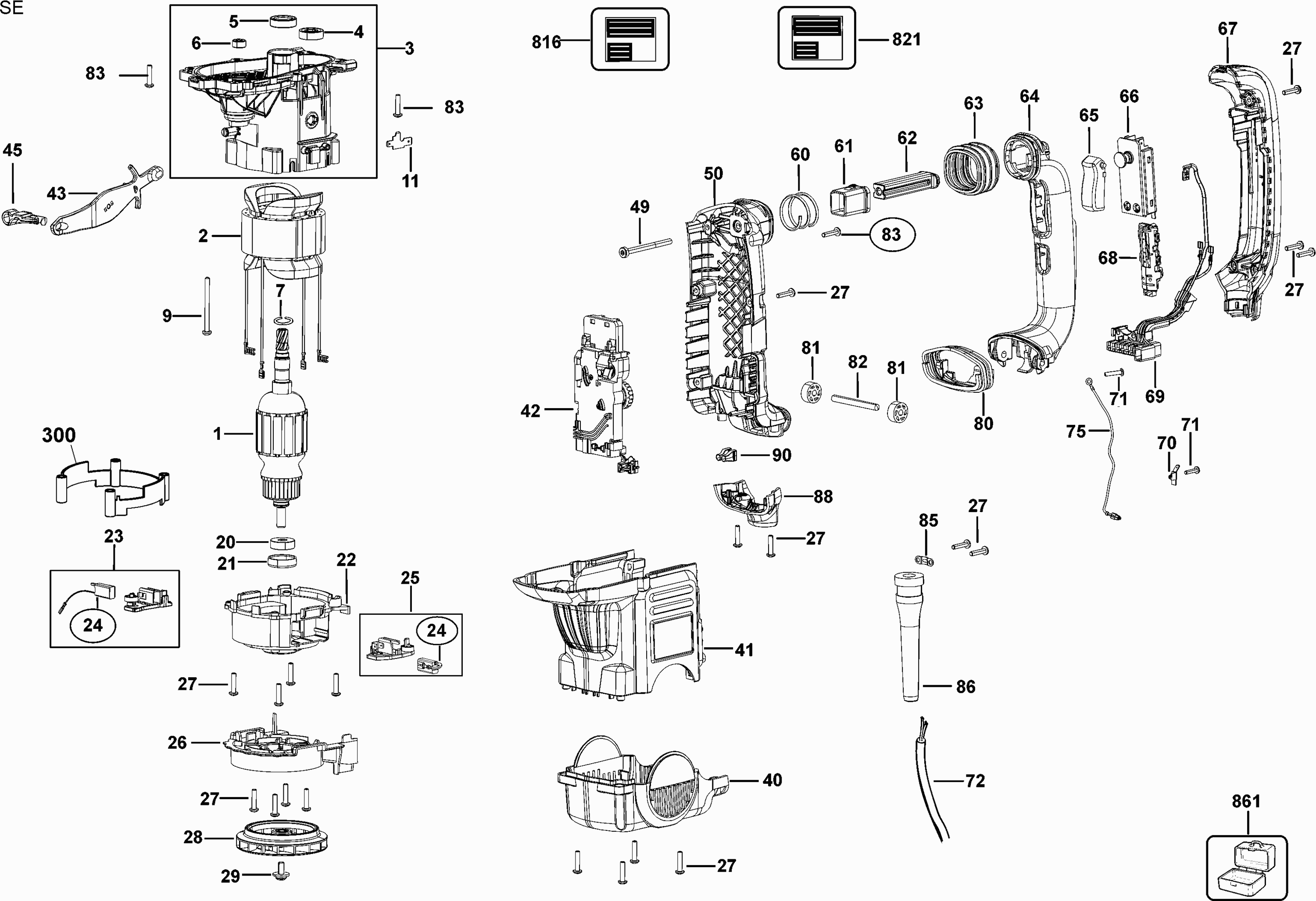

Dessins des Dewalt D25603K Type 1
Liste de pièces de rechange des Dewalt D25603K Type 1
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| ARMATURE 120V | ||||
| 1 | N046419@18 | 87.91 | 105.49 | |
| ARMATURE 230V | ||||
| 1 | N046420@18 | 63.25 | 75.90 | |
| FIELD 120V | ||||
| 2 | N041826@18 | 45.21 | 54.25 | |
| FIELD 230V | ||||
| 2 | N041827@18 | 45.21 | 54.25 | |
| S/E CARTER DE MOTEUR | ||||
| 3 | N041825@18 | 24.65 | 29.58 | |
| PALIER | ||||
| 4 | 330003-39@18 | 5.68 | 6.82 | |
| joint | ||||
| 5 | 327141-03@18 | 8.12 | 9.74 | |
| JOINT | ||||
| 6 | 586403-00@18 | 3.29 | 3.95 | |
| ANNEAU | ||||
| 7 | 577746-00@18 | 1.55 | 1.86 | |
| VIS | ||||
| 9 | 330065-21@18 | 1.30 | 1.56 | |
| CONNECTEUR | ||||
| 11 | 1007970-00@18 | 1.55 | 1.86 | |
| CABLE | ||||
| 12 | N020117@18 | 2.32 | 2.78 | |
| PALIER | ||||
| 20 | N110359@18 | 5.02 | 6.02 | |
| PALIER | ||||
| 20 | 330003-60@18 | 4.49 | 5.39 | |
| MANCHON | ||||
| 21 | 1007732-00@18 | 1.55 | 1.86 | |
| PONT | ||||
| 22 | 1007798-00@18 | 8.12 | 9.74 | |
| BRUSH & HOLDER 115V | ||||
| 23 | N047304@18 | 18.84 | 22.61 | |
| BRUSH & HOLDER 230V | ||||
| 23 | N047446@18 | 11.72 | 14.06 | |
| BRUSH PAIR 120V | ||||
| 24 | N047286@18 | 15.50 | 18.60 | |
| BRUSH PAIR 230V | ||||
| 24 | N047424@18 | 14.56 | 17.47 | |
| BRUSH & HOLDER 230V | ||||
| 25 | N047444@18 | 17.24 | 20.69 | |
| BRUSH & HOLDER 115V | ||||
| 25 | N047445@18 | 11.72 | 14.06 | |
| BAFFLE FAN | ||||
| 26 | 1007799-00@18 | 5.68 | 6.82 | |
| VIS | ||||
| 27 | 330065-08@18 | 1.30 | 1.56 | |
| Plus disponible, pas de remplacement | ||||
| 28 | 1006592-01@18 | |||
| VIS | ||||
| 29 | 324119-02@18 | 2.51 | 3.01 | |
| BOUCHON D'EXTREMITE | ||||
| 40 | 1006577-00@18 | 9.49 | 11.39 | |
| CAPOT MOTEUR | ||||
| 41 | 1006576-00@18 | 10.36 | 12.43 | |
| GACC MODULE 230V | ||||
| 42 | N041744@18 | 201.61 | 241.93 | |
| GACC MODULE 115V | ||||
| 42 | N041745@18 | 159.70 | 191.64 | |
| LEVIER | ||||
| 43 | 1006589-00@18 | 4.22 | 5.06 | |
| AXE | ||||
| 45 | 1006588-00@18 | 1.55 | 1.86 | |
| VIS | ||||
| 49 | 1005672-00@18 | 4.22 | 5.06 | |
| POIGNEE | ||||
| 50 | 1006578-00@18 | 10.36 | 12.43 | |
| RESSORT | ||||
| 60 | 1007569-00@18 | 2.32 | 2.78 | |
| COUSSINET | ||||
| 61 | 1007567-00@18 | 3.29 | 3.95 | |
| SÉCURITÉ | ||||
| 62 | 1007566-00@18 | 8.63 | 10.36 | |
| SOUFFLETS | ||||
| 63 | 1007565-00@18 | 3.86 | 4.63 | |
| POIGNEE A INTERRUPTEUR | ||||
| 64 | 1006579-00@18 | 8.63 | 10.36 | |
| GACHETTE | ||||
| 65 | 587114-01@18 | 2.32 | 2.78 | |
| INTERRUPTEUR | ||||
| 66 | 587274-00@18 | 17.24 | 20.69 | |
| COUVERCLE DE POIGNEE | ||||
| 67 | 1006580-00@18 | 11.72 | 14.06 | |
| GACHETTE DE VERROUILLAGE | ||||
| 68 | N019514@18 | 15.50 | 18.60 | |
| SET OF LEAD WIRES | ||||
| 69 | N041833@18 | 14.56 | 17.47 | |
| CONNECTEUR | ||||
| 70 | N015311@18 | 1.55 | 1.86 | |
| VIS | ||||
| 71 | 326619-00@18 | 1.55 | 1.86 | |
| CORDSET (EURO) | ||||
| 72 | 582319-41@18 | 20.56 | 24.67 | |
| JEU DE CORDONS | ||||
| 72 | 330100-04@18 | 17.24 | 20.69 | |
| FIL DE RACCORDEMENT | ||||
| 75 | N020040@18 | 3.44 | 4.13 | |
| SOUFFLETS | ||||
| 80 | 1008678-00@18 | 4.49 | 5.39 | |
| COUSSINET | ||||
| 81 | N038214@18 | 1.30 | 1.56 | |
| AXE | ||||
| 82 | N062047@18 | 1.30 | 1.56 | |
| VIS | ||||
| 83 | 324007-11@18 | 1.30 | 1.56 | |
| COLLIER DE CORDON | ||||
| 85 | 821070@18 | 1.30 | 1.56 | |
| PROTECTEUR DE CORDON | ||||
| 86 | 323091-01@18 | 5.02 | 6.02 | |
| COUVERCLE | ||||
| 88 | 1008391-00@18 | 3.44 | 4.13 | |
| GUIDE | ||||
| 90 | 1007896-00@18 | 1.55 | 1.86 | |
| JOINT A LEVRE | ||||
| 100 | 329816-00@18 | 6.19 | 7.43 | |
| COLLIER | ||||
| 101 | 326575-01@18 | 4.49 | 5.39 | |
| S/E MANCHON | ||||
| 102 | 479247-00@18 | 8.63 | 10.36 | |
| VIS | ||||
| 103 | 918825-02@18 | 1.55 | 1.86 | |
| COUVERCLE | ||||
| 104 | 1006572-00@18 | 6.19 | 7.43 | |
| ROULEAU | ||||
| 105 | 325878-00@18 | 3.44 | 4.13 | |
| DEMI-RONDELLE | ||||
| 106 | 325929-00@18 | 2.32 | 2.78 | |
| GUIDE | ||||
| 107 | 327208-00@18 | 1.30 | 1.56 | |
| RESSORT | ||||
| 108 | 323395-06@18 | 1.30 | 1.56 | |
| RESSORT | ||||
| 109 | 487118-00@18 | 2.51 | 3.01 | |
| GUIDE | ||||
| 110 | N313860@18 | 6.19 | 7.43 | |
| GUIDE DE RESSORT | ||||
| 110 | 325930-00@18 | 3.44 | 4.13 | |
| BANDE | ||||
| 112 | 1008196-00@18 | 8.12 | 9.74 | |
| COLLIER | ||||
| 113 | N048371@18 | 8.12 | 9.74 | |
| POIGNEE LATERALE | ||||
| 115 | N501145@18 | 49.35 | 59.22 | |
| S/E POIGNEE LATERALE | ||||
| 115 | N073110@18 | 42.70 | 51.24 | |
| TIGE DE PROFONDEUR | ||||
| 116 | N040996@18 | 6.89 | 8.27 | |
| FEUTRE | ||||
| 119 | N038151@18 | 2.75 | 3.30 | |
| COUSSINET | ||||
| 120 | N045793@18 | 2.75 | 3.30 | |
| JOINT | ||||
| 122 | 1007828-00@18 | 11.72 | 14.06 | |
| CARTER | ||||
| 123 | N041835@18 | 37.82 | 45.38 | |
| RONDELLE AVANT | ||||
| 126 | 1005982-00@18 | 1.30 | 1.56 | |
| AMORTISSEUR | ||||
| 127 | 496191-00@18 | 3.44 | 4.13 | |
| AXE | ||||
| 128 | N041834@18 | 95.67 | 114.80 | |
| POUSSOIR | ||||
| 129 | N041847@18 | 37.82 | 45.38 | |
| JOINT | ||||
| 130 | 577484-00@18 | 15.50 | 18.60 | |
| JOINT | ||||
| 130 | N244259@18 | 15.50 | 18.60 | |
| JOINT TORIQUE | ||||
| 131 | 323711-10@18 | 2.75 | 3.30 | |
| RONDELLE AVANT | ||||
| 135 | N064329@18 | 1.55 | 1.86 | |
| COUSSINET | ||||
| 140 | 494857-00@18 | 4.22 | 5.06 | |
| JOINT STATIQUE | ||||
| 141 | 1006283-00@18 | 4.49 | 5.39 | |
| RESSORT | ||||
| 142 | 1005748-00@18 | 2.75 | 3.30 | |
| JOINT TORIQUE | ||||
| 143 | N210233@18 | 3.86 | 4.63 | |
| COUSSINET | ||||
| 144 | 1006778-00@18 | 2.75 | 3.30 | |
| CYLINDRE | ||||
| 145 | N041846@18 | 24.65 | 29.58 | |
| JOINT TORIQUE | ||||
| 146 | 577744-00@18 | 4.22 | 5.06 | |
| VERIN | ||||
| 147 | N041845@18 | 22.16 | 26.59 | |
| JOINT TORIQUE | ||||
| 148 | 576232-01@18 | 6.89 | 8.27 | |
| MANCHON | ||||
| 149 | N041844@18 | 14.56 | 17.47 | |
| FOURCHETTE DE SELECTEUR | ||||
| 150 | 1005749-00@18 | 2.75 | 3.30 | |
| Pas d'informations disponibles, non commandable | ||||
| 160 | N041842@18 | |||
| PIECE DE RETENUE | ||||
| 161 | 325905-00@18 | 2.32 | 2.78 | |
| AXE | ||||
| 162 | 330041-22@18 | 3.44 | 4.13 | |
| PISTON | ||||
| 163 | N041843@18 | 8.63 | 10.36 | |
| TIGE CONIQUE | ||||
| 164 | 494724-00@18 | 6.19 | 7.43 | |
| COUVERCLE DE CARTER D'ENGRENAGES C. DROIT | ||||
| 165 | 1006721-00@18 | 10.36 | 12.43 | |
| SELECTEUR | ||||
| 166 | 1006786-00@18 | 3.44 | 4.13 | |
| CRAN DE VERROUILLAGE | ||||
| 167 | 326467-00@18 | 1.08 | 1.30 | |
| COUVERCLE SUPERIEUR | ||||
| 168 | 1006575-00@18 | 8.12 | 9.74 | |
| JOINT TORIQUE | ||||
| 169 | 323711-57@18 | 1.30 | 1.56 | |
| MICRORUPTEUR | ||||
| 170 | N019533@18 | 11.54 | 13.85 | |
| EXCENTRIQUE | ||||
| 172 | 496856-00@18 | 1.30 | 1.56 | |
| GLISSIERE | ||||
| 180 | 1006784-00@18 | 2.75 | 3.30 | |
| RESSORT | ||||
| 181 | 323395-32@18 | 1.30 | 1.56 | |
| CONNECTEUR | ||||
| 182 | 1006783-00@18 | 1.55 | 1.86 | |
| COUVERCLE | ||||
| 183 | 496857-00@18 | 5.68 | 6.82 | |
| JOINT TORIQUE | ||||
| 184 | 323711-59@18 | 1.55 | 1.86 | |
| PLAQUE | ||||
| 185 | 1006785-00@18 | 3.29 | 3.95 | |
| VILEBREQUIN | ||||
| 186 | N041841@18 | 49.35 | 59.22 | |
| JOINT TORIQUE | ||||
| 187 | 323711-26@18 | 1.30 | 1.56 | |
| S/E CARTER | ||||
| 188 | N041840@18 | 68.00 | 81.60 | |
| BEARING,BALL | ||||
| 190 | 577745-01@18 | 8.63 | 10.36 | |
| BEARING,NEEDLE | ||||
| 191 | 586301-00@18 | 9.49 | 11.39 | |
| JOINT TORIQUE | ||||
| 192 | 323711-57@18 | 1.30 | 1.56 | |
| SCREW.SPECIAL | ||||
| 193 | 1008427-00@18 | 3.29 | 3.95 | |
| COUVERCLE DE CARTER D'ENGRENAGES C. GAUCHE | ||||
| 201 | 1006720-00@18 | 10.36 | 12.43 | |
| CHAINE | ||||
| 202 | N041839@18 | 10.36 | 12.43 | |
| PIGNON | ||||
| 203 | N041837@18 | 5.68 | 6.82 | |
| GUIDE | ||||
| 204 | 1006280-00@18 | 3.86 | 4.63 | |
| S/E EMBRAYAGE | ||||
| 205 | N551767@18 | 108.47 | 130.16 | |
| S/ENS EMBRAYAGE | ||||
| 205 | N041836@18 | 91.70 | 110.04 | |
| JOINT STATIQUE | ||||
| 206 | 1006282-00@18 | 5.68 | 6.82 | |
| AXE | ||||
| 209 | 586392-00@18 | 3.86 | 4.63 | |
| SEGMENT DE VERROUILLAGE | ||||
| 263 | 326553-00@18 | 6.89 | 8.27 | |
| COUSSINET | ||||
| 265 | 326552-00@18 | 5.68 | 6.82 | |
| AXE | ||||
| 266 | N079374@18 | 1.30 | 1.56 | |
| CACHE BALAI | ||||
| 300 | N454223@18 | 4.49 | 5.39 | |
| Plus disponible, pas de remplacement | ||||
| 800 | 870889-02@18 | |||
| TUBE D'HUILE | ||||
| 810 | N040237@18 | 18.84 | 22.61 | |
| ETIQUETTE MARQUE | ||||
| 816 | N064908@18 | 1.30 | 1.56 | |
| ETIQUETTE | ||||
| 817 | 487395-01@18 | 1.55 | 1.86 | |
| PLAQUE SIGNALETI | ||||
| 821 | N190151@18 | 4.49 | 5.39 | |
| OUTIL D'ENTRETIEN | ||||
| 836 | 1003938-99@18 | 154.97 | 185.96 | |
| OUTIL DE POSE DE JOINT S.T. | ||||
| 836 | 559645-99@18 | 117.01 | 140.41 | |
| OUTIL DE POSE DE JOINT S.T. | ||||
| 837 | 559645-99@18 | 117.01 | 140.41 | |
| SERVICE KIT 120V | ||||
| 847 | N095947@18 | 87.91 | 105.49 | |
| SERVICE KIT 230V | ||||
| 847 | N095940@18 | 58.51 | 70.21 | |
| SERVICE KIT 230V | ||||
| 847 | N081427@18 | 40.34 | 48.41 | |
| BOITE DE KIT | ||||
| 861 | 574931-22@18 | 56.91 | 68.29 | |
