Vous trouverez ici toutes les pièces et dessins disponibles du 'Dewalt DW722KN Type 1'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

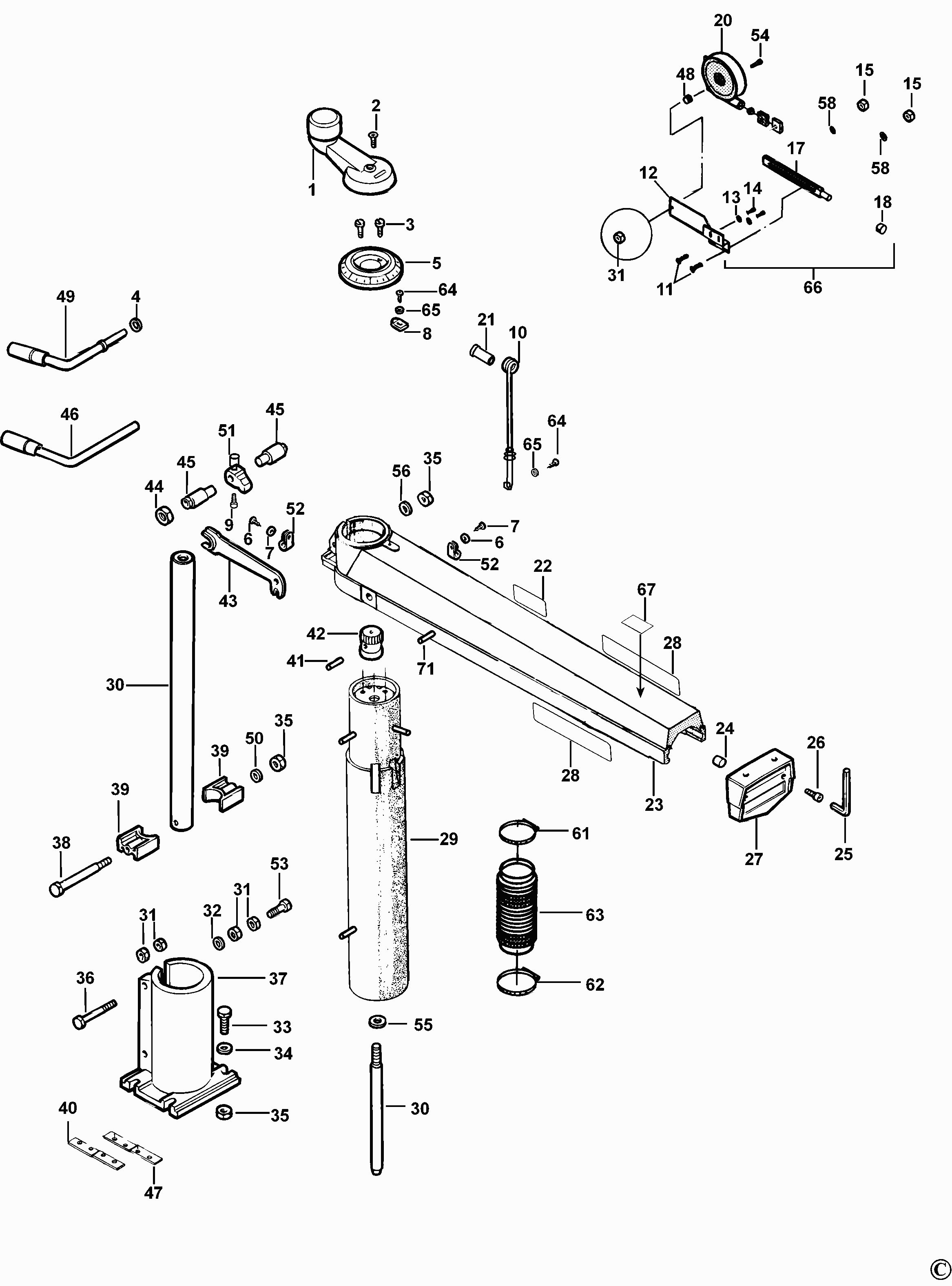

Dessins des Dewalt DW722KN Type 1
Liste de pièces de rechange des Dewalt DW722KN Type 1
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| S/E BOUTON | ||||
| 1 | 860792-00@18 | 8.63 | 10.36 | |
| VIS | ||||
| 2 | 934401-00@18 | 1.30 | 1.56 | |
| vis | ||||
| 3 | 860093-06@18 | 1.30 | 1.56 | |
| RONDELLE ENTRETOISE | ||||
| 4 | 860073-06@18 | 1.30 | 1.56 | |
| BOUCHON | ||||
| 5 | 860784-00@18 | 8.12 | 9.74 | |
| VIS | ||||
| 6 | 860531-00@18 | 1.55 | 1.86 | |
| RONDELLE AVANT | ||||
| 7 | 860073-00@18 | 1.30 | 1.56 | |
| POINTEUR | ||||
| 8 | 860237-00@18 | 4.49 | 5.39 | |
| VIS | ||||
| 9 | 860085-11@18 | 1.30 | 1.56 | |
| SUPPORT | ||||
| 10 | 863912-00@18 | 8.12 | 9.74 | |
| VIS | ||||
| 11 | 860301-16@18 | 1.30 | 1.56 | |
| SUPPORT | ||||
| 12 | 863724-00@18 | 11.72 | 14.06 | |
| RONDELLE AVANT | ||||
| 13 | 860074-03@18 | 1.30 | 1.56 | |
| vis | ||||
| 14 | 860093-14@18 | 1.55 | 1.86 | |
| ECROU | ||||
| 15 | 860083-03@18 | 1.30 | 1.56 | |
| Pas d'informations disponibles, non commandable | ||||
| 17 | 864080-00@18 | |||
| POINTE | ||||
| 18 | 864081-00@18 | 2.51 | 3.01 | |
| AUTO SAFETY RETURN | ||||
| 20 | 863929-00@18 | 113.54 | 136.25 | |
| PROTECTEUR | ||||
| 21 | 863259-00@18 | 4.49 | 5.39 | |
| PLAQUE SIGNALETIQUE | ||||
| 22 | N031067@18 | 6.89 | 8.27 | |
| BRAS | ||||
| 23 | N045681@18 | 332.07 | 398.48 | |
| PARE-CHOCS | ||||
| 24 | 860429-00@18 | 2.51 | 3.01 | |
| HEX KEY 5 MM | ||||
| 25 | 930574-00@18 | 2.32 | 2.78 | |
| SCREW.TEMP | ||||
| 26 | 860093-05@18 | 1.30 | 1.56 | |
| BOUCHON | ||||
| 27 | 861111-01@18 | 11.72 | 14.06 | |
| ETIQUETTE MARQUE | ||||
| 28 | 861738-05@18 | 10.36 | 12.43 | |
| S/E COLONNE | ||||
| 29 | N045682@18 | 226.12 | 271.34 | |
| S/E TUBE DE LEVAGE | ||||
| 30 | 860791-00@18 | 61.67 | 74.00 | |
| ECROU | ||||
| 31 | 860083-04@18 | 1.30 | 1.56 | |
| WASHER M8 | ||||
| 32 | 860073-03@18 | 1.30 | 1.56 | |
| VIS | ||||
| 33 | 860085-05@18 | 2.51 | 3.01 | |
| RONDELLE AVANT | ||||
| 34 | 860073-04@18 | 1.30 | 1.56 | |
| NUT RH | ||||
| 35 | 860083-05@18 | 1.30 | 1.56 | |
| VIS | ||||
| 36 | 860085-02@18 | 2.51 | 3.01 | |
| S/E BASE | ||||
| 37 | 860909-03@18 | 117.01 | 140.41 | |
| VIS | ||||
| 38 | 860086-00@18 | 4.49 | 5.39 | |
| ENTRETOISE | ||||
| 39 | 860065-00@18 | 4.49 | 5.39 | |
| ENTRETOISE C. GAUCHE | ||||
| 40 | 860273-00@18 | 6.89 | 8.27 | |
| AXE | ||||
| 41 | 860096-06@18 | 1.55 | 1.86 | |
| PIGNON | ||||
| 42 | 860831-90@18 | 32.90 | 39.48 | |
| WRENCH | ||||
| 43 | 860423-00@18 | 10.36 | 12.43 | |
| ECROU | ||||
| 44 | 860232-00@18 | 4.49 | 5.39 | |
| VIS | ||||
| 45 | 860231-00@18 | 9.49 | 11.39 | |
| LEVIER | ||||
| 46 | 864723-01@18 | 14.56 | 17.47 | |
| ENTRETOISE C. DROIT | ||||
| 47 | 860273-02@18 | 6.89 | 8.27 | |
| ENTRETOISE | ||||
| 48 | 867190-01@18 | 4.49 | 5.39 | |
| LEVIER | ||||
| 49 | 860795-00@18 | 14.56 | 17.47 | |
| RONDELLE AVANT | ||||
| 50 | 860074-04@18 | 1.30 | 1.56 | |
| LOQUET | ||||
| 51 | 861240-00@18 | 12.78 | 15.34 | |
| SUPPORT | ||||
| 52 | 860843-02@18 | 1.30 | 1.56 | |
| VIS | ||||
| 53 | 949853-11@18 | 18.84 | 22.61 | |
| VIS | ||||
| 54 | 860093-00@18 | 1.55 | 1.86 | |
| RONDELLE AVANT | ||||
| 55 | 860226-01@18 | 1.55 | 1.86 | |
| RONDELLE AVANT | ||||
| 56 | 860802-90@18 | 2.75 | 3.30 | |
| RONDELLE AVANT | ||||
| 58 | 720959-00@18 | 1.30 | 1.56 | |
| ATTACHE | ||||
| 61 | 949700-06@18 | 6.89 | 8.27 | |
| BANDE | ||||
| 62 | 949700-07@18 | 10.36 | 12.43 | |
| PROTECTEUR | ||||
| 63 | 863324-00@18 | 24.65 | 29.58 | |
| VIS | ||||
| 64 | 860238-03@18 | 1.55 | 1.86 | |
| RONDELLE AVANT | ||||
| 65 | 860074-01@18 | 1.30 | 1.56 | |
| SÉCURITÉ | ||||
| 66 | 869356-09@18 | 117.01 | 140.41 | |
| ETIQUETTE D'AVERTISSEMENT | ||||
| 67 | N034454@18 | 5.68 | 6.82 | |
| COLLECTEUR DE POUSSIERE | ||||
| 68 | N032402@18 | 108.47 | 130.16 | |
| RONDELLE AVANT | ||||
| 69 | 941602-00@18 | 1.30 | 1.56 | |
| VIS | ||||
| 70 | 860085-04@18 | 1.30 | 1.56 | |
| AXE | ||||
| 71 | 330036-08@18 | 1.30 | 1.56 | |
| ELEMENT | ||||
| 75 | N027622@18 | 40.34 | 48.41 | |
| ELEMENT | ||||
| 76 | N030449@18 | 53.76 | 64.51 | |
| GUIDE | ||||
| 77 | N027624@18 | 22.16 | 26.59 | |
| WASHER M8 | ||||
| 78 | 860073-03@18 | 1.30 | 1.56 | |
| GUIDE | ||||
| 79 | N029923@18 | 22.16 | 26.59 | |
| TABLE | ||||
| 80 | N027626@18 | 32.90 | 39.48 | |
| TABLE | ||||
| 81 | N027625@18 | 91.70 | 110.04 | |
| AXE | ||||
| 82 | N032917@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 83 | 860083-14@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 84 | 860083-04@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 85 | 860074-03@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 89 | 864078-00@18 | 6.19 | 7.43 | |
| BASE | ||||
| 90 | 869320-00@18 | 175.52 | 210.62 | |
| VIS | ||||
| 95 | N035392@18 | 6.89 | 8.27 | |
| VIS | ||||
| 96 | 949703-09@18 | 2.32 | 2.78 | |
| SUPPORT | ||||
| 97 | N030068@18 | 28.80 | 34.56 | |
| RALLONGE | ||||
| 98 | N027627@18 | 28.80 | 34.56 | |
| protecteur de surcharge | ||||
| 99 | 868878-02@18 | 22.16 | 26.59 | |
| SCREW.SPECIAL | ||||
| 100 | 868459-00@18 | 6.19 | 7.43 | |
| TABLE DE SUPPORT | ||||
| 101 | N034713@18 | 20.56 | 24.67 | |
| SUPPORT | ||||
| 102 | 863130-04@18 | 8.63 | 10.36 | |
| SUPPORT C. GAUCHE | ||||
| 109 | N033664@18 | 28.80 | 34.56 | |
| S/E CABLE | ||||
| 110 | 861276-00@18 | 78.29 | 93.95 | |
| VIS | ||||
| 111 | 949701-03@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 112 | 860083-02@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 113 | 860073-01@18 | 1.30 | 1.56 | |
| SWITCHBOX SA | ||||
| 114 | N036521@18 | 163.68 | 196.42 | |
| S/E CABLE | ||||
| 115 | 861275-00@18 | 9.49 | 11.39 | |
| ARBRE | ||||
| 120 | 760421-00@18 | 8.12 | 9.74 | |
| AXE | ||||
| 121 | N045683@18 | 12.78 | 15.34 | |
| PALIER | ||||
| 122 | 860154-00@18 | 34.79 | 41.75 | |
| ARBRE | ||||
| 123 | 760417-00@18 | 9.49 | 11.39 | |
| SCREW.TEMP | ||||
| 124 | 860085-26@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 125 | 860074-02@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 126 | 860083-03@18 | 1.30 | 1.56 | |
| CLE | ||||
| 129 | 938539-00@18 | 1.30 | 1.56 | |
| VIS | ||||
| 130 | 941880-00@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 131 | 860074-03@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 132 | 860083-08@18 | 1.30 | 1.56 | |
| WRENCH 4 MM | ||||
| 134 | 949882-01@18 | 1.55 | 1.86 | |
| AXE | ||||
| 135 | 863977-00@18 | 11.72 | 14.06 | |
| RESSORT | ||||
| 136 | 860112-11@18 | 1.30 | 1.56 | |
| SUPPORT | ||||
| 137 | 860835-00@18 | 14.56 | 17.47 | |
| WRENCH 6 MM | ||||
| 138 | 860098-04@18 | 2.51 | 3.01 | |
| BOUTON | ||||
| 139 | 942453-00@18 | 4.22 | 5.06 | |
| VIS | ||||
| 140 | 860093-00@18 | 1.55 | 1.86 | |
| TOURILLON AVANT | ||||
| 141 | 860119-01@18 | 18.84 | 22.61 | |
| PLAQUE | ||||
| 142 | 860120-00@18 | 3.29 | 3.95 | |
| VIS | ||||
| 143 | 860093-00@18 | 1.55 | 1.86 | |
| VIS | ||||
| 144 | 860531-00@18 | 1.55 | 1.86 | |
| POINTEUR | ||||
| 145 | 862721-01@18 | 5.02 | 6.02 | |
| PLAQUE | ||||
| 146 | N032399@18 | 6.89 | 8.27 | |
| ECRAN PROTECTEUR | ||||
| 147 | 860827-00@18 | 24.65 | 29.58 | |
| ECROU | ||||
| 151 | N032397@18 | 4.22 | 5.06 | |
| RONDELLE AVANT | ||||
| 152 | N035393@18 | 3.29 | 3.95 | |
| VIS | ||||
| 153 | 860086-11@18 | 2.51 | 3.01 | |
| ECROU | ||||
| 154 | 860092-00@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 155 | 720959-00@18 | 1.30 | 1.56 | |
| DISQUE | ||||
| 156 | 864160-00@18 | 2.51 | 3.01 | |
| VIS | ||||
| 158 | 864058-00@18 | 8.12 | 9.74 | |
| ETRIER | ||||
| 159 | N045684@18 | 108.47 | 130.16 | |
| S/E ANNEAU | ||||
| 160 | 860824-00@18 | 40.34 | 48.41 | |
| LEVIER | ||||
| 161 | N030650@18 | 14.56 | 17.47 | |
| BOULON | ||||
| 162 | N034670@18 | 6.89 | 8.27 | |
| RESSORT | ||||
| 163 | N032405@18 | 3.86 | 4.63 | |
| RONDELLE AVANT | ||||
| 165 | 860073-01@18 | 1.30 | 1.56 | |
| NUT M5 | ||||
| 166 | 860092-03@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 167 | 860074-03@18 | 1.30 | 1.56 | |
| LEVIER | ||||
| 168 | 861840-03@18 | 6.19 | 7.43 | |
| POINTEUR | ||||
| 169 | 860829-00@18 | 4.49 | 5.39 | |
| VIS | ||||
| 170 | 860205-06@18 | 1.30 | 1.56 | |
| TETE DE ROULEAU | ||||
| 171 | N045685@18 | 42.70 | 51.24 | |
| SUPPORT | ||||
| 172 | 863726-00@18 | 11.54 | 13.85 | |
| VIS | ||||
| 173 | 860094-02@18 | 1.30 | 1.56 | |
| VIS | ||||
| 178 | 949701-12@18 | 1.30 | 1.56 | |
| VIS | ||||
| 179 | 860089-39@18 | 1.30 | 1.56 | |
| POIGNEE | ||||
| 180 | N031178@18 | 24.65 | 29.58 | |
| ECROU | ||||
| 181 | 860083-02@18 | 1.30 | 1.56 | |
| NUT M6 | ||||
| 182 | 860083-12@18 | 1.30 | 1.56 | |
| SPANNER 10-13MM | ||||
| 186 | 949751-07@18 | 5.68 | 6.82 | |
| WASHER M8 | ||||
| 189 | 860073-03@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 190 | 860083-04@18 | 1.30 | 1.56 | |
| PALIER | ||||
| 193 | 868768-07@18 | 8.63 | 10.36 | |
| ANNEAU | ||||
| 194 | 860080-02@18 | 2.32 | 2.78 | |
| BOULON | ||||
| 195 | 860446-01@18 | 1.30 | 1.56 | |
| S/E CHAPEAU D'EXTREMITE | ||||
| 196 | 861863-00@18 | 42.70 | 51.24 | |
| STATOR | ||||
| 197 | 868401-00@18 | 201.61 | 241.93 | |
| ROTOR 3 PH | ||||
| 198 | N037013@18 | 85.38 | 102.46 | |
| PALIER | ||||
| 200 | 868768-10@18 | 11.72 | 14.06 | |
| CARTER | ||||
| 201 | 862162-00@18 | 20.56 | 24.67 | |
| BRIDE | ||||
| 202 | N026918@18 | 17.24 | 20.69 | |
| BRIDE EXTERNE | ||||
| 203 | N071377@18 | 24.65 | 29.58 | |
| VIS | ||||
| 204 | 869245-00@18 | 2.32 | 2.78 | |
| WRENCH 6 MM | ||||
| 205 | 860098-04@18 | 2.51 | 3.01 | |
| MOTOR SA 3PH | ||||
| 206 | N037011@18 | 300.44 | 360.53 | |
| VENTILATEUR | ||||
| 207 | 945841-00@18 | 4.49 | 5.39 | |
| BOUCHON D'EXTREMITE | ||||
| 208 | N027614@18 | 8.12 | 9.74 | |
| VIS | ||||
| 209 | 860538-00@18 | 1.30 | 1.56 | |
| JOINT | ||||
| 210 | 860718-00@18 | 3.29 | 3.95 | |
| VIS | ||||
| 211 | 860088-25@18 | 1.30 | 1.56 | |
| VIS | ||||
| 212 | 860094-01@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 213 | 933652-00@18 | 1.30 | 1.56 | |
| BOUCHON | ||||
| 214 | 123302-01@18 | 6.19 | 7.43 | |
| JOINT STATIQUE | ||||
| 215 | 863878-00@18 | 15.50 | 18.60 | |
| PLAQUE | ||||
| 216 | 864085-01@18 | 6.19 | 7.43 | |
| COLLIER | ||||
| 217 | 860843-01@18 | 1.30 | 1.56 | |
| RESSORT | ||||
| 219 | 869246-00@18 | 1.55 | 1.86 | |
| CIRCLIP | ||||
| 220 | 949727-06@18 | 1.30 | 1.56 | |
| ADAPTATEUR DE FREIN | ||||
| 221 | 861336-05@18 | 10.36 | 12.43 | |
| RESSORT | ||||
| 222 | 861338-05@18 | 1.55 | 1.86 | |
| VIS | ||||
| 231 | 860094-03@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 233 | N033752@18 | 1.55 | 1.86 | |
| COUVERCLE | ||||
| 234 | 868961-00@18 | 5.68 | 6.82 | |
| PRESSE-ETOUPE | ||||
| 235 | 949747-07@18 | 2.32 | 2.78 | |
| BOUCHON | ||||
| 236 | 949747-18@18 | 4.22 | 5.06 | |
| ecrou | ||||
| 237 | 944590-00@18 | 2.32 | 2.78 | |
| CONDUCTEUR | ||||
| 238 | N032403@18 | 6.89 | 8.27 | |
| PASSE FIL | ||||
| 240 | 868963-00@18 | 1.55 | 1.86 | |
| PASSE FIL | ||||
| 241 | 944652-00@18 | 2.75 | 3.30 | |
| PIECE DE RETENUE | ||||
| 242 | 868964-00@18 | 1.30 | 1.56 | |
| CARTER | ||||
| 243 | N036361@18 | 8.12 | 9.74 | |
| CONNECTEUR | ||||
| 245 | 861257-00@18 | 2.32 | 2.78 | |
| JOINT STATIQUE | ||||
| 246 | 868962-00@18 | 2.32 | 2.78 | |
| PIECE DE RETENUE | ||||
| 247 | 868965-01@18 | 1.30 | 1.56 | |
| SCREW.TEMP | ||||
| 248 | 860094-00@18 | 1.30 | 1.56 | |
| VIS | ||||
| 249 | 860094-02@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 250 | 933652-00@18 | 1.30 | 1.56 | |
| CONNECTEUR | ||||
| 251 | 946085-00@18 | 8.12 | 9.74 | |
| VIS | ||||
| 252 | 860094-05@18 | 1.30 | 1.56 | |
| VIS | ||||
| 253 | 860084-04@18 | 1.30 | 1.56 | |
| ENTREE | ||||
| 254 | 947322-01@18 | 8.63 | 10.36 | |
| ETIQUETTE | ||||
| 256 | N032401@18 | 4.22 | 5.06 | |
| BOUTON DE DEMARRAGE | ||||
| 257 | N031511@18 | 30.36 | 36.43 | |
| CONTACT | ||||
| 258 | N031510@18 | 27.21 | 32.65 | |
| ETIQUETTE | ||||
| 272 | 869125-00@18 | 5.68 | 6.82 | |
| TUBE D'EXTRACTION | ||||
| 274 | 864095-00@18 | 8.63 | 10.36 | |
| SUPPORT | ||||
| 275 | N032220@18 | 8.12 | 9.74 | |
| RONDELLE AVANT | ||||
| 276 | 860074-01@18 | 1.30 | 1.56 | |
| VIS | ||||
| 279 | 943023-00@18 | 1.30 | 1.56 | |
| SUPPORT | ||||
| 280 | 863707-01@18 | 8.12 | 9.74 | |
| VIS | ||||
| 281 | 760998-00@18 | 1.30 | 1.56 | |
| VIS | ||||
| 282 | 249412-20@18 | 1.30 | 1.56 | |
| RONDELLE AVANT | ||||
| 283 | 864053-00@18 | 5.02 | 6.02 | |
| VIS | ||||
| 284 | 860301-16@18 | 1.30 | 1.56 | |
| ECROU | ||||
| 287 | 860083-03@18 | 1.30 | 1.56 | |
| SCREW.TEMP | ||||
| 290 | 860085-09@18 | 1.30 | 1.56 | |
| COUSSINET | ||||
| 292 | 863705-00@18 | 2.51 | 3.01 | |
| ROULEAU | ||||
| 293 | 864054-00@18 | 3.44 | 4.13 | |
| SCREW.TEMP | ||||
| 303 | 949891-01@18 | 1.55 | 1.86 | |
| RESSORT | ||||
| 304 | 861221-00@18 | 3.29 | 3.95 | |
| RESSORT | ||||
| 306 | 861239-00@18 | 6.89 | 8.27 | |
| RONDELLE AVANT | ||||
| 307 | 860076-04@18 | 1.30 | 1.56 | |
| PROTECTION | ||||
| 309 | N032412@18 | 42.70 | 51.24 | |
| Plus disponible, pas de remplacement | ||||
| 310 | 863773-02@18 | |||
| PROTECTION | ||||
| 311 | 862426-00@18 | 14.56 | 17.47 | |
| LEVIER | ||||
| 312 | 862082-01@18 | 9.49 | 11.39 | |
| SUPPORT | ||||
| 315 | 863205-02@18 | 9.49 | 11.39 | |
| SUPPORT | ||||
| 316 | 863437-00@18 | 8.12 | 9.74 | |
| CLE A DOUILLE | ||||
| 319 | 869235-00@18 | 6.19 | 7.43 | |
| RONDELLE AVANT | ||||
| 320 | 860073-01@18 | 1.30 | 1.56 | |
| CROSSBAR LONG | ||||
| 401 | 860009-09@18 | 24.65 | 29.58 | |
| PIED | ||||
| 402 | 860008-00@18 | 32.90 | 39.48 | |
| ECROU | ||||
| 403 | 860083-04@18 | 1.30 | 1.56 | |
| WASHER M8 | ||||
| 404 | 860073-03@18 | 1.30 | 1.56 | |
| VIS | ||||
| 405 | 860085-04@18 | 1.30 | 1.56 | |
| PROTECTION | ||||
| 846 | N045264@18 | 154.97 | 185.96 | |
