Dessins techniques et pièces de rechange Hikoki CG-GT
Type exact:
CG-GT
CG-GT

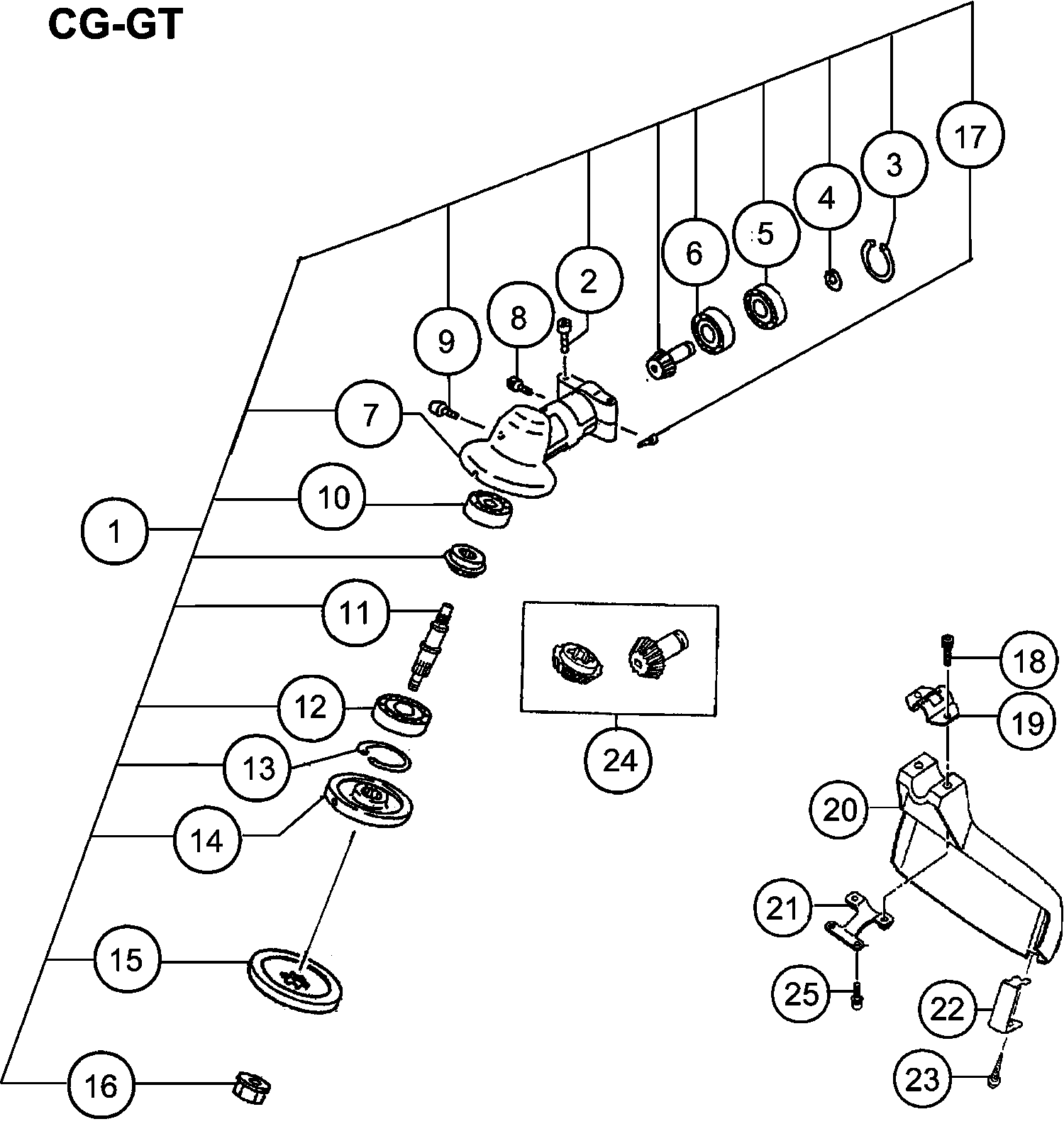

Dessins des HIKOKI CG-GT
Liste de pièces de rechange des HIKOKI CG-GT
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Carter | ||||
| 1 | 6688797 | Carter | € 86.83 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 2 | 6684709 | Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | € 2.06 | |
| STOP RING C-22, INNER (OLD 993-51022-002) | ||||
| 3 | 6695293 | STOP RING C-22, INNER (OLD 993-51022-002) | € 1.10 | |
| Stop Ring Outer 10 (old 993-57010-002) | ||||
| 4 | 6695315 | Stop Ring Outer 10 (old 993-57010-002) | € 1.10 | |
| Roulement à billes | ||||
| 5 | 6695579 | Roulement à billes | € 5.54 | |
| Roulement à billes | ||||
| 6 | 6695577 | Roulement à billes | € 6.34 | |
| Gear Case 24 (old 300-38150-21) | ||||
| 7 | 6688808 | Gear Case 24 (old 300-38150-21) | € 15.24 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 8 | 6684667 | Hex. Hole Bolt M5x12/s (old 994-61050-124) | € 2.06 | |
| Oiling Bolt (old 316-38150-20) | ||||
| 9 | 6689109 | Oiling Bolt (old 316-38150-20) | € 1.10 | |
| Roulement à billes | ||||
| 10 | 6684734 | Roulement à billes | € 8.23 | |
| Gear Shaft (old 304-3338r-20) | ||||
| 11 | 6688924 | Gear Shaft (old 304-3338r-20) | € 17.42 | |
| Roulement à billes | ||||
| 12 | 6695554 | Roulement à billes | € 5.70 | |
| Stop Ring C-32, Inner (old 993-51032-002/791058) | ||||
| 13 | 6695295 | Stop Ring C-32, Inner (old 993-51032-002/791058) | € 1.10 | |
| Cutter Holder (old 310-38150-20) | ||||
| 14 | 6689032 | Cutter Holder (old 310-38150-20) | € 11.24 | |
| Cutter Holder Cap (old 311-38150-20) | ||||
| 15 | 6689055 | Cutter Holder Cap (old 311-38150-20) | € 4.91 | |
| Fixing Nut L M10x1.25 (oud 313-38150-20) | ||||
| 16 | 6689073 | Fixing Nut L M10x1.25 (oud 313-38150-20) | € 4.44 | |
| Bague | ||||
| 17 | 6689159 | Bague | € 1.10 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 18 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.06 | |
| SAFETY GUARD BRACKET (OLD 442-37417-20) | ||||
| 19 | 6685065 | SAFETY GUARD BRACKET (OLD 442-37417-20) | € 2.22 | |
| Safety Cover, 24 Dia. (old 441-38150-20) | ||||
| 20 | 6690272 | Safety Cover, 24 Dia. (old 441-38150-20) | € 12.67 | |
| Safety Guard Holder (old 445-38150-20) | ||||
| 21 | 6690343 | Safety Guard Holder (old 445-38150-20) | € 3.17 | |
| Mesje (oud 797-38150-20) | ||||
| 22 | 6693388 | Mesje (oud 797-38150-20) | € 6.02 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 23 | 6684753 | Tapping Screw 5x20 (old 993-17052-002) | € 2.06 | |
| Gear Pinion Set Spare (old 301-38150-00) | ||||
| 24 | 6688882 | Gear Pinion Set Spare (old 301-38150-00) | € 17.42 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 25 | 6684667 | Hex. Hole Bolt M5x12/s (old 994-61050-124) | € 2.06 | |
| Drive Shaft Comp. (old 6684830) | ||||
| 31 | 6697838 | Drive Shaft Comp. (old 6684830) | € 19.31 | |
| Bush Ass'y (old 6684831) | ||||
| 32 | 6697839 | Bush Ass'y (old 6684831) | € 4.12 | |
| Drive Shaft B 783l (old 036-38190-20) | ||||
| 33 | 6684832 | Drive Shaft B 783l (old 036-38190-20) | € 19.90 | |
| Bushing (old 347-38466-20) | ||||
| 34 | 6684833 | Bushing (old 347-38466-20) | € 2.06 | |
| Épuisé | ||||
| 501 | 6695784 | Épuisé | ||
| Mounting Nut L-m8x1.25 (old 356-3383e-20) | ||||
| 502 | 6689624 | Mounting Nut L-m8x1.25 (old 356-3383e-20) | € 7.44 | |
| Mounting Nut L-m10x1.25 (old 356-3383b-20) | ||||
| 503 | 6684756 | Mounting Nut L-m10x1.25 (old 356-3383b-20) | € 8.71 | |
| Cutting Body (old 786-33830-20) | ||||
| 504 | 6684757 | Cutting Body (old 786-33830-20) | € 21.78 | |
| Special Nut (old 315-33830-20) | ||||
| 505 | 6684758 | Special Nut (old 315-33830-20) | € 9.02 | |
| Reel Spring (old 793-33830-20) | ||||
| 506 | 6684759 | Reel Spring (old 793-33830-20) | € 4.12 | |
| Spool (old 787-33830-20) | ||||
| 507 | 6684760 | Spool (old 787-33830-20) | € 14.95 | |
| Cutting Body Cap (old 789-33830-20) | ||||
| 508 | 6684761 | Cutting Body Cap (old 789-33830-20) | € 34.70 | |
| Eyelet (old 788-33830-20) | ||||
| 509 | 6684762 | Eyelet (old 788-33830-20) | € 4.12 | |
| Winding Protector (old 307-37307-20) | ||||
| 510 | 6684763 | Winding Protector (old 307-37307-20) | € 4.12 | |
| Sure-tap Manual P/l 9 | ||||
| 511 | 6697805 | Sure-tap Manual P/l 9 | € 1.90 | |
| Nylon Cord Cutter | ||||
| 521 | 6601148 | Nylon Cord Cutter | € 18.44 | |
| Case | ||||
| 522 | 6601149 | Case | € 10.30 | |
| Ecrou (1) | ||||
| 523 | 6601150 | Ecrou (1) | € 6.65 | |
| Reel Spring (old 793-38454-20) | ||||
| 524 | 6693380 | Reel Spring (old 793-38454-20) | € 3.17 | |
| Line Holder | ||||
| 525 | 6601151 | Line Holder | € 7.28 | |
| Couvercle (1) | ||||
| 526 | 6601152 | Couvercle (1) | € 7.44 | |
| Eyelet (old 788-37770-20) | ||||
| 527 | 6684810 | Eyelet (old 788-37770-20) | € 2.06 | |
