Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CG24EAS'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

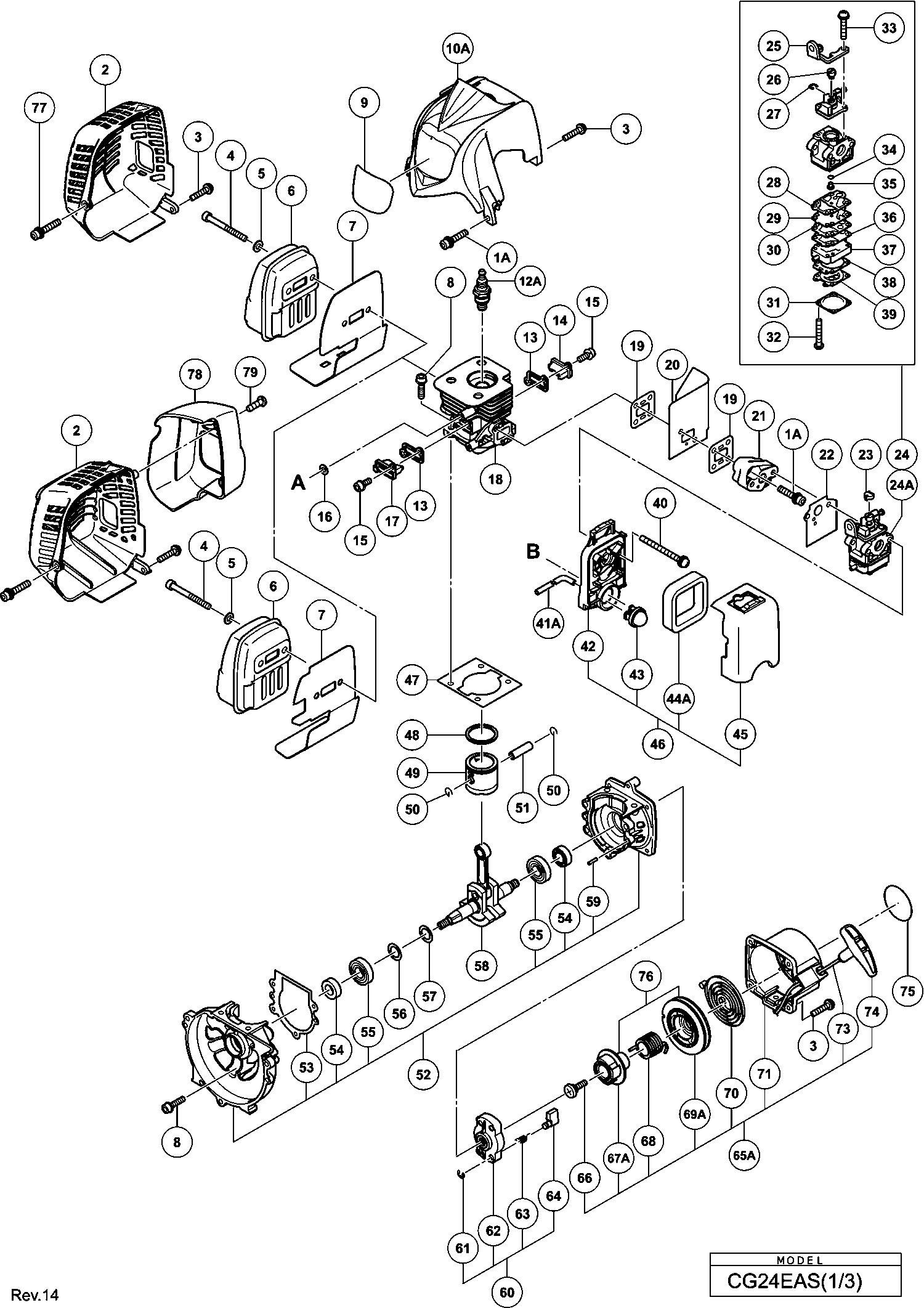

Dessins des Hikoki CG24EAS
Liste de pièces de rechange des Hikoki CG24EAS
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 1A | 6698844@1417 | 1.20 | 1.44 | |
| Muffler Cover Since 11 2013 | ||||
| 2 | 6600334@1417 | 5.85 | 7.02 | |
| Knaldemper Afdekkap | ||||
| 2 | 6698478@1417 | 4.58 | 5.49 | |
| Vis Ø 4*20 | ||||
| 3 | 307606@1417 | 1.05 | 1.26 | |
| Hex. Hole Bolt M6x55 (old 990-51060-553/6696819) | ||||
| 4 | 6684638@1417 | 2.15 | 2.58 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 4 | 6698384@1417 | 1.05 | 1.26 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 5 | 949432@1417 | 1.05 | 1.26 | |
| Uitlaat | ||||
| 6 | 6698477@1417 | 11.85 | 14.22 | |
| Uitlaat (b) | ||||
| 6 | 6600461@1417 | 7.50 | 9.00 | |
| Hitteschild | ||||
| 7 | 6600320@1417 | 1.35 | 1.62 | |
| Pas d'informations disponibles, non commandable | ||||
| 8 | 6698386@1417 | |||
| Cilinder Afdekkap | ||||
| 10A | 6699128@1417 | 4.35 | 5.22 | |
| Bougie Bmr7a | ||||
| 12A | 6699316@1417 | 8.91 | 10.70 | |
| Cover Packing | ||||
| 13 | 6698468@1417 | 1.05 | 1.26 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 14 | 6698469@1417 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 15 | 6698385@1417 | 1.05 | 1.26 | |
| Ring (old 182-0186a-20) | ||||
| 16 | 6684600@1417 | 2.15 | 2.58 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 17 | 6698470@1417 | 1.05 | 1.26 | |
| Cylindre | ||||
| 18 | 6698465@1417 | 32.31 | 38.78 | |
| Pas d'informations disponibles, non commandable | ||||
| 19 | 6684865@1417 | |||
| Flash Pan | ||||
| 20 | 6698516@1417 | 1.05 | 1.26 | |
| Carburetor Insulator | ||||
| 21A | 6698387@1417 | 3.15 | 3.78 | |
| Carburetor Gasket (old 402-0656a-20) | ||||
| 22 | 6684616@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 23 | 6684628@1417 | |||
| Carburetor Ass'y Wyc-28 | ||||
| 24 | 6698474@1417 | 55.14 | 66.16 | |
| Carburator Wyc-30 | ||||
| 24A | 6698728@1417 | 66.55 | 79.86 | |
| Cable Adjust Stay | ||||
| 25 | 6699287@1417 | 4.13 | 4.95 | |
| Swivel | ||||
| 26 | 6696830@1417 | 4.45 | 5.34 | |
| Stop Ring (oud 489-25100-20) | ||||
| 27 | 6684696@1417 | 2.15 | 2.58 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 28 | 6684692@1417 | 29.19 | 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 29 | 6684693@1417 | 8.58 | 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 30 | 6691242@1417 | 2.31 | 2.78 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 31 | 6685222@1417 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 32 | 6691312@1417 | 1.15 | 1.38 | |
| Set Screw M3x12 | ||||
| 33 | 6696829@1417 | 1.04 | 1.24 | |
| O-RING (OUD 550-25100-20) | ||||
| 34 | 6684695@1417 | 4.29 | 5.14 | |
| Circuit Plate (old 522-25100-20) | ||||
| 36 | 6691234@1417 | 3.30 | 3.96 | |
| Pump Body | ||||
| 37 | 6696828@1417 | 13.36 | 16.04 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 38 | 6685220@1417 | 2.31 | 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 39 | 6684690@1417 | 18.00 | 21.60 | |
| Vis M.5*60 | ||||
| 40 | 307224@1417 | 1.05 | 1.26 | |
| Brandstofleiding (oud 6696962) | ||||
| 41A | 6698720@1417 | 3.45 | 4.14 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 43 | 6685139@1417 | 5.94 | 7.12 | |
| Cleaner Sponge | ||||
| 44A | 6600704@1417 | 3.80 | 4.56 | |
| Air Cleaner Ass'y | ||||
| 46 | 6696549@1417 | 9.13 | 10.95 | |
| Cylinder Gasket (old 017-52200-20) | ||||
| 47 | 6684587@1417 | 2.15 | 2.58 | |
| Piston Ring (oud 041-01601-20) | ||||
| 48 | 6684588@1417 | 8.58 | 10.29 | |
| Piston | ||||
| 49 | 6698368@1417 | 7.28 | 8.73 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 50 | 6684590@1417 | 2.15 | 2.58 | |
| Goupille | ||||
| 51 | 6684591@1417 | 4.29 | 5.14 | |
| Crank Case Ass'y (old 072-52200-90) | ||||
| 52 | 6684606@1417 | 54.45 | 65.34 | |
| Crank Case Gasket (old 090-52200-20) | ||||
| 53 | 6684609@1417 | 2.15 | 2.58 | |
| Olie Keerring | ||||
| 54 | 6684607@1417 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 55 | 6684608@1417 | 3.80 | 4.56 | |
| Shim | ||||
| 56 | 6696946@1417 | 1.68 | 2.01 | |
| Shim | ||||
| 57 | 6696945@1417 | 1.68 | 2.01 | |
| Krukas | ||||
| 58 | 6696533@1417 | 32.31 | 38.78 | |
| Knock Pin 4x12 | ||||
| 59 | 6696947@1417 | 1.05 | 1.26 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 60 | 6684681@1417 | 13.20 | 15.84 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 61 | 6685101@1417 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 63 | 6684684@1417 | 4.29 | 5.14 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 64 | 6684685@1417 | 4.29 | 5.14 | |
| Pas d'informations disponibles, non commandable | ||||
| 65A | 6699995@1417 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 66 | 6684679@1417 | 2.15 | 2.58 | |
| Cam Plate | ||||
| 67A | 6699996@1417 | 2.55 | 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 68 | 6684677@1417 | 8.58 | 10.29 | |
| Starter Rope Reel | ||||
| 69A | 6699997@1417 | 8.41 | 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 70 | 6684675@1417 | 11.55 | 13.86 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 71 | 6684673@1417 | 19.06 | 22.88 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 73 | 6684674@1417 | 4.29 | 5.14 | |
| Starthendel | ||||
| 74 | 6684680@1417 | 2.15 | 2.58 | |
| Cam Plate Ass'y | ||||
| 76 | 6699691@1417 | 6.10 | 7.32 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 77 | 6698950@1417 | 1.20 | 1.44 | |
| Muffler Rear Cover | ||||
| 78 | 6600335@1417 | 8.55 | 10.26 | |
| Tapping Screw D4 Since 11 2013 | ||||
| 79 | 6600332@1417 | 1.04 | 1.24 | |
| Vis Ø 4*16 Noir | ||||
| 91 | 305812@1417 | 1.04 | 1.24 | |
| Handle (b) | ||||
| 92 | 6696942@1417 | 5.01 | 6.02 | |
| Lock Lever | ||||
| 93 | 6696490@1417 | 1.04 | 1.24 | |
| Levier (1) | ||||
| 94 | 6696488@1417 | 1.04 | 1.24 | |
| Spring (a) | ||||
| 95 | 6696489@1417 | 1.04 | 1.24 | |
| Stop Switch | ||||
| 96A | 6601275@1417 | 1.35 | 1.62 | |
| Stop Switch Cord | ||||
| 97 | 6696592@1417 | 2.10 | 2.52 | |
| Stop Switch Cord | ||||
| 97 | 6696491@1417 | 1.80 | 2.16 | |
| Protection Tube | ||||
| 98 | 6696594@1417 | 2.10 | 2.52 | |
| Protection Tube | ||||
| 98 | 6696967@1417 | 1.05 | 1.26 | |
| Gaskabel | ||||
| 99 | 6696593@1417 | 5.10 | 6.12 | |
| Gaskabel | ||||
| 99 | 6696560@1417 | 4.18 | 5.01 | |
| Handle (a) | ||||
| 100 | 6696941@1417 | 5.01 | 6.02 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 101 | 6684667@1417 | 2.15 | 2.58 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 102 | 6695492@1417 | 1.15 | 1.38 | |
| Anti Vibe Rubber (a) | ||||
| 103 | 6696963@1417 | 3.33 | 3.99 | |
| Pipe Holder (a) | ||||
| 104A | 6698643@1417 | 2.10 | 2.52 | |
| Pipe Holder (b) | ||||
| 106A | 6698644@1417 | 2.10 | 2.52 | |
| Anti Vibe Rubber (b) | ||||
| 107 | 6696964@1417 | 3.33 | 3.99 | |
| Circlips Ø12 (x10) paquet de 10 | ||||
| 108 | 939542@1417 | 1.50 | 1.80 | |
| Enveloppe De Ventilateur | ||||
| 109A | 6699129@1417 | 8.25 | 9.90 | |
| Clutch Shaft | ||||
| 110B | 6699400@1417 | 8.85 | 10.62 | |
| Step Bolt | ||||
| 111 | 6696469@1417 | 1.04 | 1.24 | |
| Bague | ||||
| 112 | 6684648@1417 | 2.15 | 2.58 | |
| Clutch Plate (a) | ||||
| 113 | 6696546@1417 | 1.05 | 1.26 | |
| Clutch | ||||
| 114 | 6696948@1417 | 11.64 | 13.96 | |
| Rondelle | ||||
| 115 | 6696547@1417 | 1.05 | 1.26 | |
| Ecrou | ||||
| 116 | 6685337@1417 | 1.05 | 1.26 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 117 | 323212@1417 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 118 | 6698388@1417 | 1.05 | 1.26 | |
| BOBINE | ||||
| 119B | 6699464@1417 | 17.60 | 21.12 | |
| Pas d'informations disponibles, non commandable | ||||
| 120C | 6601421@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 121A | 6699186@1417 | |||
| Cord | ||||
| 122 | 6696544@1417 | 1.05 | 1.26 | |
| Earth Cord | ||||
| 123 | 6696545@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 124 | 6696928@1417 | |||
| Vliegwiel | ||||
| 124A | 6699289@1417 | 25.71 | 30.86 | |
| Entretoise (1) | ||||
| 125 | 6698496@1417 | 1.05 | 1.26 | |
| Brandstofleiding | ||||
| 126A | 6698716@1417 | 3.45 | 4.14 | |
| Brandstofleiding L70 | ||||
| 127A | 6699014@1417 | 1.65 | 1.98 | |
| Return Grommet (old 6684627) | ||||
| 128A | 6697846@1417 | 1.04 | 1.24 | |
| Tank Dop Compleet | ||||
| 129 | 6698402@1417 | 4.20 | 5.04 | |
| Resevoir | ||||
| 131A | 6600317@1417 | 7.95 | 9.54 | |
| Tank (c) | ||||
| 131B | 6600354@1417 | 3.45 | 4.14 | |
| Pomp Filter | ||||
| 132A | 6600351@1417 | 2.70 | 3.24 | |
| Clip | ||||
| 133 | 6696949@1417 | 1.68 | 2.01 | |
| Stand (old 940-07350-20) | ||||
| 134 | 6694787@1417 | 3.30 | 3.96 | |
| Bout L27.8 | ||||
| 135A | 6698991@1417 | 1.20 | 1.44 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 136 | 6684899@1417 | 2.15 | 2.58 | |
| Vliegwiel (old 6696928) | ||||
| 137 | 6699463@1417 | 23.38 | 28.05 | |
| Tapping Screw (w/flange) D4x30 | ||||
| 151 | 323837@1417 | 1.68 | 2.01 | |
| Machine Screw M5x30 (black) | ||||
| 152 | 323041@1417 | 1.05 | 1.26 | |
| Handle Right | ||||
| 153 | 6698637@1417 | 19.11 | 22.94 | |
| Handle Right | ||||
| 153 | 6696585@1417 | 6.45 | 7.74 | |
| Handle (b) | ||||
| 154 | 6696591@1417 | 3.13 | 3.75 | |
| Handle (a) | ||||
| 155 | 6696589@1417 | 2.10 | 2.52 | |
| Ecrou M.5 | ||||
| 156 | 302012@1417 | 1.05 | 1.26 | |
| Handle Holder (a) | ||||
| 157 | 6696972@1417 | 1.20 | 1.44 | |
| Bolt (black) M6 | ||||
| 158 | 6696974@1417 | 1.68 | 2.01 | |
| Loop Handle | ||||
| 160 | 6696975@1417 | 8.98 | 10.77 | |
| Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
| 161 | 949556@1417 | 1.05 | 1.26 | |
| Handle Holder (b) (old 6696577) | ||||
| 162A | 6600501@1417 | 7.20 | 8.64 | |
| Handle Holder (c) | ||||
| 163 | 6696578@1417 | 2.10 | 2.52 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 164 | 6684714@1417 | 2.15 | 2.58 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 165 | 6684709@1417 | 2.15 | 2.58 | |
| Handle Holder (a) (old 6696576) | ||||
| 166A | 6600500@1417 | 4.20 | 5.04 | |
| Handle Left | ||||
| 167 | 6698638@1417 | 22.83 | 27.39 | |
| Handle Left | ||||
| 167 | 6696595@1417 | 13.26 | 15.92 | |
| Carter | ||||
| 168 | 6696976@1417 | 88.39 | 106.06 | |
| Carter | ||||
| 168A | 6699402@1417 | 50.33 | 60.39 | |
| Bolt (black) M6 | ||||
| 169 | 6696974@1417 | 1.68 | 2.01 | |
| Cutter Holder (a) | ||||
| 176 | 6696977@1417 | 13.33 | 15.99 | |
| Cutter Holder (b) | ||||
| 177 | 6698659@1417 | 13.04 | 15.64 | |
| Pas d'informations disponibles, non commandable | ||||
| 178A | 6699188@1417 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 179A | 335759@1417 | 1.04 | 1.24 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 180 | 6695414@1417 | 1.15 | 1.38 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 181 | 949664@1417 | 3.75 | 4.50 | |
| Pas d'informations disponibles, non commandable | ||||
| 187 | 6696454@1417 | |||
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 188 | 6698794@1417 | 9.30 | 11.16 | |
| Set Screw | ||||
| 190 | 6698795@1417 | 1.35 | 1.62 | |
| Reel | ||||
| 191 | 6698796@1417 | 2.40 | 2.88 | |
| Return Spring | ||||
| 192 | 6698797@1417 | 1.05 | 1.26 | |
| Bouton (1) | ||||
| 193 | 6698798@1417 | 1.20 | 1.44 | |
| Cord Guide | ||||
| 194 | 6698799@1417 | 1.20 | 1.44 | |
| Case | ||||
| 195 | 6698800@1417 | 6.60 | 7.92 | |
| Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530 | ||||
| 201 | 6685064@1417 | 1.15 | 1.38 | |
| Rondelle M.6 (x10) Paquet de 10 For Usa | ||||
| 202 | 949455@1417 | 1.05 | 1.26 | |
| Cover Bracket Not For Europe | ||||
| 203 | 6696978@1417 | 2.10 | 2.52 | |
| Level Mark (old 923-33700-20) | ||||
| 207 | 6684851@1417 | 2.15 | 2.58 | |
| Main Pipe Comp (old 6696483) | ||||
| 208 | 6696558@1417 | 17.69 | 21.22 | |
| Drive Shaft (old 6696484) | ||||
| 209 | 6698514@1417 | 15.60 | 18.72 | |
| Hanger | ||||
| 210A | 6600504@1417 | 1.20 | 1.44 | |
| Cap (a) | ||||
| 211 | 6698515@1417 | 2.10 | 2.52 | |
| Carter Protection (1) | ||||
| 212 | 6696981@1417 | 7.35 | 8.82 | |
| Bolt Washer M4 (black) | ||||
| 213 | 323210@1417 | 1.05 | 1.26 | |
| Bague | ||||
| 214 | 6685068@1417 | 1.15 | 1.38 | |
| MOER M4 ( 10 STUKS ) | ||||
| 215 | 949554@1417 | 1.05 | 1.26 | |
| Mesje | ||||
| 216 | 6696584@1417 | 2.10 | 2.52 | |
| Fuel Grommet | ||||
| 217A | 6698931@1417 | 3.45 | 4.14 | |
| Fuel Grommet | ||||
| 217B | 6600358@1417 | 1.04 | 1.24 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 218 | 6684714@1417 | 2.15 | 2.58 | |
| COVER BRACKET NEW OCT | ||||
| 219 | 6699011@1417 | 1.65 | 1.98 | |
| COVER ASS'Y | ||||
| 220 | 6697880@1417 | 17.88 | 21.45 | |
| COVER HOLDER | ||||
| 221 | 6698813@1417 | 2.10 | 2.52 | |
| Safety Cover, 24 Dia. (old 441-38150-20) | ||||
| 222 | 6690272@1417 | 13.20 | 15.84 | |
| Mesje (oud 797-38150-20) | ||||
| 223 | 6693388@1417 | 6.28 | 7.53 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 224 | 6684753@1417 | 2.15 | 2.58 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 240 | 6600499@1417 | 10.65 | 12.78 | |
| Vis M.5*10 (paquet de 10) For Irl | ||||
| 241 | 949236@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 501 | 6684764@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 502 | 6696596@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 503 | 944458@1417 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504B | 6684768@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 505 | 6698711@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 506 | 875769@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 507A | 6601420@1417 | |||
