Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CG24EBDP'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

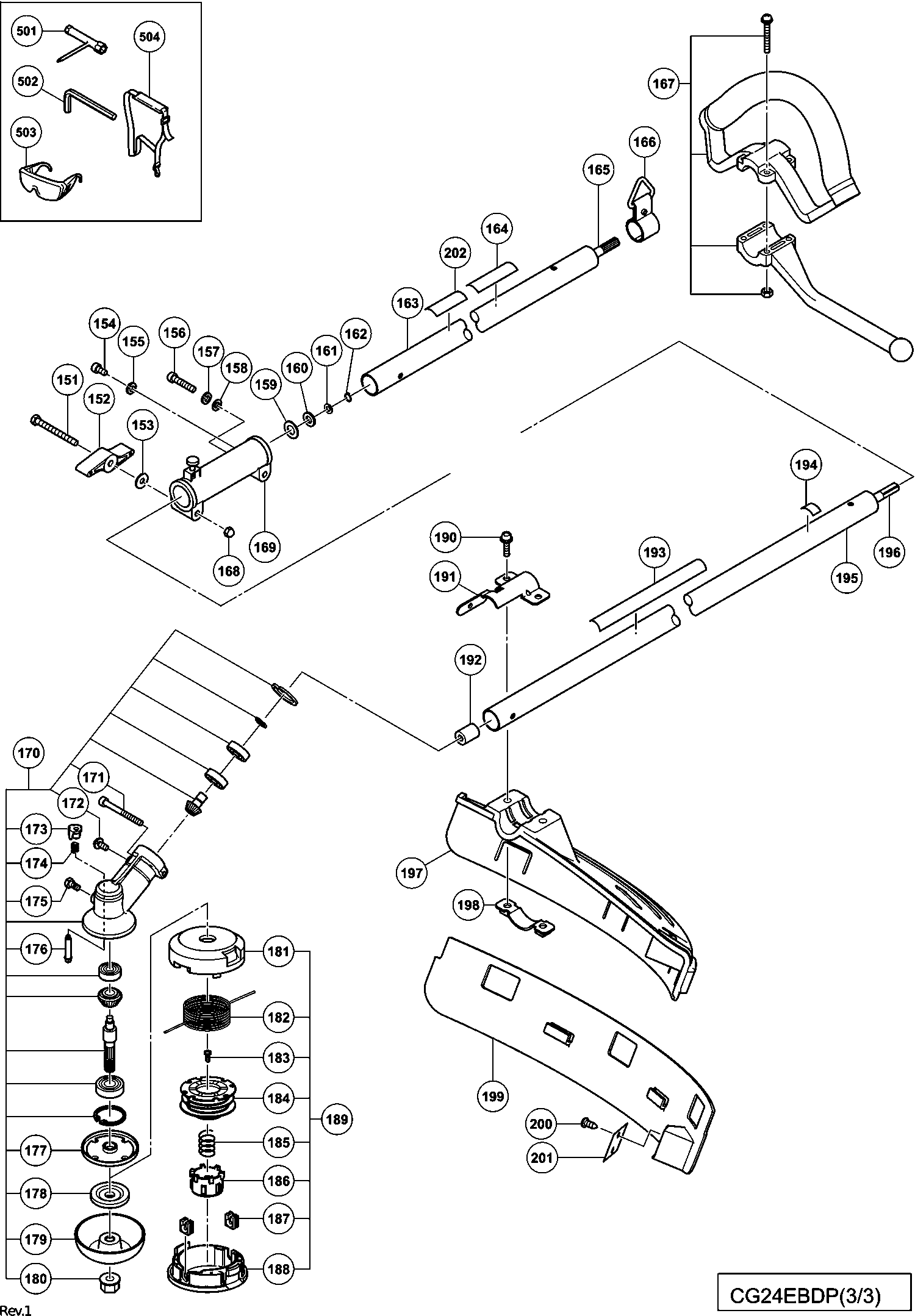

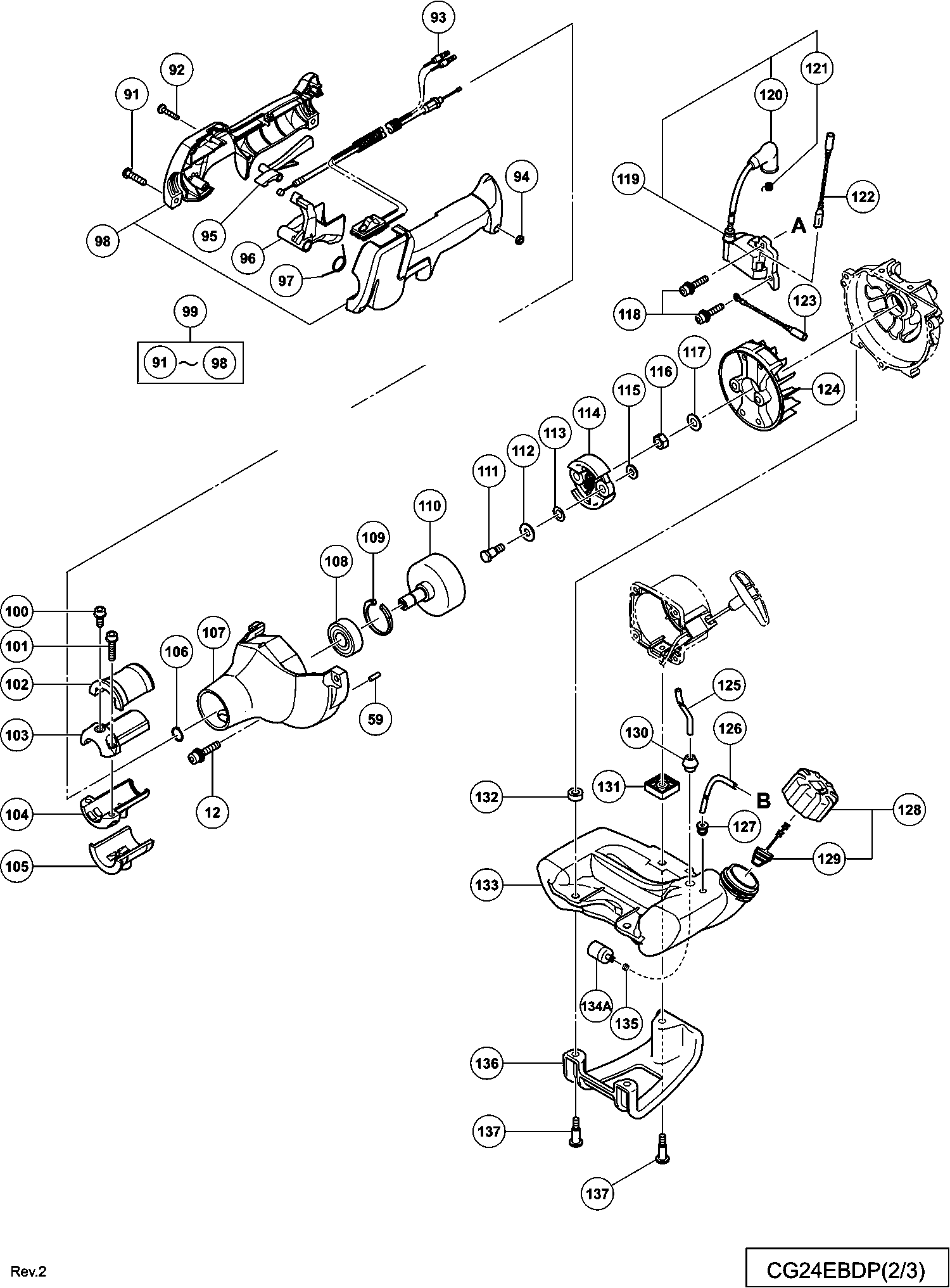

Dessins des Hikoki CG24EBDP
Liste de pièces de rechange des Hikoki CG24EBDP
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 1 | 6698950 | 1.20 | 1.44 | |
| Knaldemper Afdekkap | ||||
| 2 | 6600319 | 6.30 | 7.56 | |
| Hex. Socket Hd. Bolt M4x18 (w/washers) | ||||
| 3 | 6696326 | 1.20 | 1.44 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 4 | 6698384 | 1.05 | 1.26 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 5 | 949432 | 1.05 | 1.26 | |
| Muffler (b) | ||||
| 6 | 6600004 | 25.85 | 31.02 | |
| Hitteschild | ||||
| 7 | 6600320 | 1.35 | 1.62 | |
| Épuisé | ||||
| 8 | 6698386 | |||
| Cilinder Afdekkap | ||||
| 9 | 6699454 | 6.90 | 8.28 | |
| Collar (b) | ||||
| 10 | 6600008 | 1.04 | 1.24 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 12 | 6698844 | 1.20 | 1.44 | |
| Bougie Bmr7a | ||||
| 13 | 6699316 | 8.91 | 10.70 | |
| Cover Packing | ||||
| 14 | 6698468 | 1.05 | 1.26 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698469 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385 | 1.05 | 1.26 | |
| Bague | ||||
| 17 | 6698700 | 1.20 | 1.44 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 18 | 6698470 | 1.05 | 1.26 | |
| Cylindre | ||||
| 19 | 6698465 | 32.31 | 38.78 | |
| Joint | ||||
| 20 | 6699437 | 1.04 | 1.24 | |
| Carburetor Insulator | ||||
| 21 | 6698387 | 3.15 | 3.78 | |
| Carbureteur Pakking | ||||
| 22 | 6698405 | 2.10 | 2.52 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 23 | 6691337 | 1.15 | 1.38 | |
| Carburator Wyc-36 | ||||
| 24 | 6600321 | 29.98 | 35.97 | |
| Cable Adjust Stay | ||||
| 25 | 6699287 | 4.13 | 4.95 | |
| Swivel | ||||
| 26 | 6696830 | 4.45 | 5.34 | |
| Stop Ring (oud 489-25100-20) | ||||
| 27 | 6684696 | 2.15 | 2.58 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 28 | 6684692 | 29.19 | 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 29 | 6684693 | 8.58 | 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 30 | 6691242 | 2.31 | 2.78 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 31 | 6685222 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 32 | 6691312 | 1.15 | 1.38 | |
| Set Screw M3x12 | ||||
| 33 | 6696829 | 1.04 | 1.24 | |
| O-RING (OUD 550-25100-20) | ||||
| 34 | 6684695 | 4.29 | 5.14 | |
| Circuit Plate (old 522-25100-20) | ||||
| 36 | 6691234 | 3.30 | 3.96 | |
| Pump Body | ||||
| 37 | 6696828 | 13.36 | 16.04 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 38 | 6685220 | 2.31 | 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 39 | 6684690 | 18.00 | 21.60 | |
| Vis M.5*60 | ||||
| 40 | 307224 | 1.05 | 1.26 | |
| Épuisé | ||||
| 41A | 6601329 | |||
| Fuel Pipe | ||||
| 41B | 6601443 | 1.04 | 1.24 | |
| Épuisé | ||||
| 42 | 6696832 | |||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 43 | 6685139 | 5.94 | 7.12 | |
| Élément de filtre à air | ||||
| 44 | 6690347 | 4.45 | 5.34 | |
| Luchtfilterkap | ||||
| 45 | 6699185 | 7.20 | 8.64 | |
| Épuisé | ||||
| 46 | 6699132 | |||
| Cylinder Gasket (old 017-52200-20) | ||||
| 47 | 6684587 | 2.15 | 2.58 | |
| Zuiger Ring | ||||
| 48 | 6698404 | 4.20 | 5.04 | |
| Piston | ||||
| 49 | 6699456 | 7.80 | 9.36 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 50 | 6684590 | 2.15 | 2.58 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 51 | 6684899 | 2.15 | 2.58 | |
| Goupille | ||||
| 52 | 6684591 | 4.29 | 5.14 | |
| Crank Case Ass'y (old 072-52200-90) | ||||
| 53 | 6684606 | 54.45 | 65.34 | |
| Crank Case Gasket (old 090-52200-20) | ||||
| 54 | 6684609 | 2.15 | 2.58 | |
| Olie Keerring | ||||
| 55 | 6684607 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 56 | 6684608 | 3.80 | 4.56 | |
| Shim | ||||
| 57 | 6696945 | 1.68 | 2.01 | |
| Shim | ||||
| 57 | 6696946 | 1.68 | 2.01 | |
| Krukas | ||||
| 58 | 6696533 | 32.31 | 38.78 | |
| Knock Pin 4x12 | ||||
| 59 | 6696947 | 1.05 | 1.26 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 60 | 6684681 | 13.20 | 15.84 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 61 | 6685101 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 62 | 6684684 | 4.29 | 5.14 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 63 | 6684685 | 4.29 | 5.14 | |
| Épuisé | ||||
| 64 | 6699995 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 65 | 6684679 | 2.15 | 2.58 | |
| Cam Plate | ||||
| 66 | 6699996 | 2.55 | 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 67 | 6684677 | 8.58 | 10.29 | |
| Starter Rope Reel | ||||
| 68 | 6699997 | 8.41 | 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 69 | 6684675 | 11.55 | 13.86 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 70 | 6684673 | 19.06 | 22.88 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 71 | 6684674 | 4.29 | 5.14 | |
| Starthendel | ||||
| 72 | 6684680 | 2.15 | 2.58 | |
| Tank Mark Label | ||||
| 74 | 6698921 | 1.20 | 1.44 | |
| Muffler Heat Cover | ||||
| 75A | 6600422 | 5.70 | 6.84 | |
| Tapping Screw D4x10 | ||||
| 76 | 6600325 | 1.04 | 1.24 | |
| Mark Plate (t) | ||||
| 77 | 6600327 | 1.04 | 1.24 | |
| Primer Label | ||||
| 78 | 6699000 | 1.04 | 1.24 | |
| Machine Screw M5x20 (black) | ||||
| 91 | 6699195 | 1.20 | 1.44 | |
| P Tight Screw D4x20 (black) | ||||
| 92 | 6699194 | 1.20 | 1.44 | |
| Switch Wire Set | ||||
| 93 | 6699197 | 10.20 | 12.24 | |
| Ecrou M5 | ||||
| 94 | 6699196 | 1.04 | 1.24 | |
| Stop Lever | ||||
| 95 | 6699192 | 1.65 | 1.98 | |
| Long Lever | ||||
| 96 | 6699191 | 2.55 | 3.06 | |
| Return Spring | ||||
| 97 | 6699193 | 1.04 | 1.24 | |
| Stay Set | ||||
| 98 | 6699190 | 16.36 | 19.64 | |
| Regulateur | ||||
| 99 | 6699133 | 21.18 | 25.41 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 100 | 6699176 | 1.04 | 1.24 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 101 | 6695492 | 1.15 | 1.38 | |
| Anti Vibe Rubber (a) | ||||
| 102 | 6696963 | 3.33 | 3.99 | |
| Pipe Holder (a) | ||||
| 103 | 6698643 | 2.10 | 2.52 | |
| Pipe Holder (b) | ||||
| 104 | 6698644 | 2.10 | 2.52 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964 | 3.33 | 3.99 | |
| Circlips Ø12 (x10) paquet de 10 | ||||
| 106 | 939542 | 1.50 | 1.80 | |
| Enveloppe De Ventilateur | ||||
| 107 | 6699457 | 14.99 | 17.98 | |
| BALL BEARING 6301ZZC3 | ||||
| 108 | 6699435 | 2.55 | 3.06 | |
| VEERRING 37MM | ||||
| 109 | 322813 | 1.65 | 1.98 | |
| CLUTCH SHAFT | ||||
| 110 | 6699434 | 7.20 | 8.64 | |
| Step Bolt | ||||
| 111 | 6696469 | 1.04 | 1.24 | |
| Bague | ||||
| 112 | 6684648 | 2.15 | 2.58 | |
| Clutch Plate (a) | ||||
| 113 | 6696546 | 1.05 | 1.26 | |
| Épuisé | ||||
| 114 | 6699130 | |||
| Rondelle | ||||
| 115 | 6699131 | 1.04 | 1.24 | |
| Ecrou | ||||
| 116 | 6685337 | 1.05 | 1.26 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 117 | 323212 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 118 | 6698388 | 1.05 | 1.26 | |
| Bobine | ||||
| 119 | 6699458 | 26.40 | 31.68 | |
| Épuisé | ||||
| 120A | 6601421 | |||
| Metal Fitting Of Plug Cap | ||||
| 121 | 6699933 | 1.65 | 1.98 | |
| Cord | ||||
| 122 | 6696544 | 1.05 | 1.26 | |
| Earth Cord | ||||
| 123 | 6696545 | 1.05 | 1.26 | |
| Vliegwiel | ||||
| 124 | 6699289 | 25.71 | 30.86 | |
| Brandstofleiding | ||||
| 125 | 6698716 | 3.45 | 4.14 | |
| Épuisé | ||||
| 126 | 6698401 | |||
| Brandstofleiding L70 | ||||
| 126A | 6699014 | 1.65 | 1.98 | |
| Return Grommet (old 6684627) | ||||
| 127 | 6697846 | 1.04 | 1.24 | |
| Tank Dop Compleet | ||||
| 128 | 6698402 | 4.20 | 5.04 | |
| Tank Cap Chain | ||||
| 129 | 6698732 | 1.20 | 1.44 | |
| Fuel Grommet | ||||
| 130 | 6698931 | 3.45 | 4.14 | |
| Fuel Grommet | ||||
| 130A | 6600358 | 1.04 | 1.24 | |
| Entretoise (1) | ||||
| 131 | 6699558 | 1.04 | 1.24 | |
| Spacer (b) | ||||
| 132 | 6699459 | 1.04 | 1.24 | |
| Resevoir | ||||
| 133 | 6600317 | 7.95 | 9.54 | |
| Tank (c) | ||||
| 133A | 6600354 | 3.45 | 4.14 | |
| Pomp Filter | ||||
| 134A | 6600351 | 2.70 | 3.24 | |
| Clip | ||||
| 135 | 6696949 | 1.68 | 2.01 | |
| Stand (old 940-07350-20) | ||||
| 136 | 6694787 | 3.30 | 3.96 | |
| Bout L27.8 | ||||
| 137 | 6698991 | 1.20 | 1.44 | |
| Hex.bolt 6x50 (old 990-21060-504) | ||||
| 151 | 6684824 | 2.15 | 2.58 | |
| Handle Knob (old 512-3338p-20) | ||||
| 152 | 6684823 | 4.29 | 5.14 | |
| Bague | ||||
| 153 | 6684822 | 2.15 | 2.58 | |
| Hex. Socket Hd. Bolt M5x12 (old 990-51050-123) | ||||
| 154 | 6684829 | 2.15 | 2.58 | |
| Spring Washer M5 | ||||
| 155 | 6698884 | 1.80 | 2.16 | |
| Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3 | ||||
| 156 | 6684825 | 2.15 | 2.58 | |
| Rondelle M.6 (x10) Paquet de 10 For Usa | ||||
| 157 | 949455 | 1.05 | 1.26 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 158 | 949425 | 1.05 | 1.26 | |
| Spacer 1.6 (old 320-3331l-20/6684818) | ||||
| 159 | 6689139 | 1.15 | 1.38 | |
| Spacer (old 360-33315-20) | ||||
| 160 | 6684819 | 4.29 | 5.14 | |
| Bague | ||||
| 161 | 6684820 | 2.15 | 2.58 | |
| Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
| 162 | 939540 | 1.95 | 2.34 | |
| Main Pipe (a) | ||||
| 163 | 6699460 | 14.16 | 17.00 | |
| Level Mark(old 923-3738f-20) | ||||
| 164 | 6684852 | 2.15 | 2.58 | |
| Drive Shaft | ||||
| 165 | 6699462 | 17.88 | 21.45 | |
| Épuisé | ||||
| 166 | 6696493 | |||
| Hanger | ||||
| 166A | 6600504 | 1.20 | 1.44 | |
| Loop Handle (w/barrier) | ||||
| 167 | 6699448 | 10.80 | 12.96 | |
| Cap Nut 6 (old 991-42060-012) | ||||
| 168 | 6684828 | 2.15 | 2.58 | |
| Joint Case Ass'y (old 280-38466-90) | ||||
| 169 | 6684817 | 38.58 | 46.29 | |
| Carter | ||||
| 170 | 6699439 | 46.61 | 55.94 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 171 | 949664 | 3.75 | 4.50 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 172 | 6695414 | 1.15 | 1.38 | |
| Chapeau (1) | ||||
| 173 | 6600005 | 2.70 | 3.24 | |
| Ressort (1) | ||||
| 174 | 6600006 | 3.60 | 4.32 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 175 | 6684737 | 2.15 | 2.58 | |
| Lock Pin | ||||
| 176 | 6600007 | 11.25 | 13.50 | |
| Cutter Holder (a) | ||||
| 177 | 6699441 | 8.25 | 9.90 | |
| Cutter Holder (b) | ||||
| 178 | 6698659 | 13.04 | 15.64 | |
| Épuisé | ||||
| 179 | 6699188 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 180 | 335759 | 1.04 | 1.24 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 181 | 6698794 | 9.30 | 11.16 | |
| Set Screw | ||||
| 183 | 6698795 | 1.35 | 1.62 | |
| Reel | ||||
| 184 | 6698796 | 2.40 | 2.88 | |
| Return Spring | ||||
| 185 | 6698797 | 1.05 | 1.26 | |
| Bouton (1) | ||||
| 186 | 6698798 | 1.20 | 1.44 | |
| Cord Guide | ||||
| 187 | 6698799 | 1.20 | 1.44 | |
| Case | ||||
| 188 | 6698800 | 6.60 | 7.92 | |
| Épuisé | ||||
| 189 | 6696454 | |||
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 190 | 6684714 | 2.15 | 2.58 | |
| Cover Bracket | ||||
| 191 | 6699442 | 1.50 | 1.80 | |
| Bushing (old 347-38466-20) | ||||
| 192 | 6684833 | 2.15 | 2.58 | |
| Caution Mark Hitachi (old 6684850) | ||||
| 193 | 6697625 | 1.98 | 2.37 | |
| Level Mark (old 923-33700-20) | ||||
| 194 | 6684851 | 2.15 | 2.58 | |
| Main Pipe (a) | ||||
| 195 | 6699461 | 14.16 | 17.00 | |
| Drive Shaft B 783l (old 036-38190-20) | ||||
| 196 | 6684832 | 20.73 | 24.87 | |
| Épuisé | ||||
| 197 | 6696980 | |||
| Safety Cover Holder | ||||
| 198 | 6696951 | 3.33 | 3.99 | |
| Cover Guard | ||||
| 199 | 6696950 | 10.98 | 13.17 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 200 | 6684751 | 2.15 | 2.58 | |
| Mesje (oud 797-37714-20) | ||||
| 201 | 6684750 | 4.29 | 5.14 | |
| Caution Label (hedge) | ||||
| 202 | 6600328 | 1.04 | 1.24 | |
| Vis M.5*10 (paquet de 10) For Irl | ||||
| 203 | 949236 | 1.05 | 1.26 | |
| Épuisé | ||||
| 501 | 6684764 | |||
| Épuisé | ||||
| 502 | 944458 | |||
| Épuisé | ||||
| 503 | 875769 | |||
| Épuisé | ||||
| 504A | 6601420 | |||
