Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CG24ECP'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

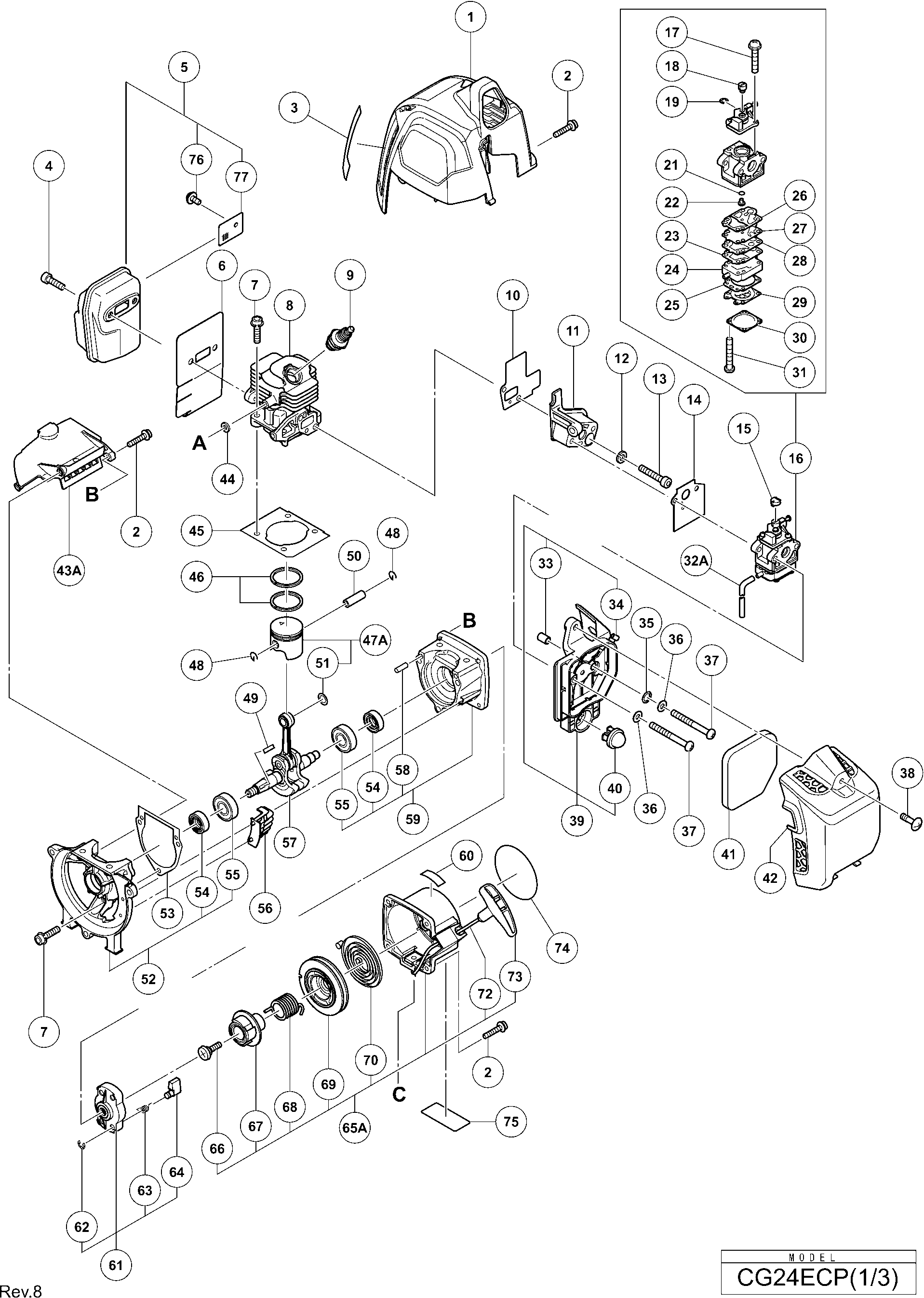

Dessins des Hikoki CG24ECP
Liste de pièces de rechange des Hikoki CG24ECP
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Cylinder Cover | ||||
| 1 | 6600543 | 8.85 | 10.62 | |
| Seal Lock Hex. Socket Hd. Bolt M4 | ||||
| 2 | 6600918 | 1.04 | 1.24 | |
| Seal Lock Hex. Socket Hd. Bolt M6x16 | ||||
| 4 | 6600518 | 1.04 | 1.24 | |
| Muffler | ||||
| 5 | 6600908 | 27.36 | 32.84 | |
| Heat Protection Panel | ||||
| 6 | 6600517 | 1.20 | 1.44 | |
| Hex. Socket Hd. Bolt M5x22 (w/sp.washer) | ||||
| 7 | 6601339 | 1.05 | 1.26 | |
| Cylinder N24 | ||||
| 8 | 6600902 | 29.98 | 35.97 | |
| Ignition Plug (torch L7rtc) | ||||
| 9 | 6600542 | 6.00 | 7.20 | |
| Intake Packing | ||||
| 10 | 6600524 | 1.04 | 1.24 | |
| Carburetor Insulater | ||||
| 11 | 6600525 | 5.10 | 6.12 | |
| Spring Washer D6 | ||||
| 12 | 6600910 | 1.04 | 1.24 | |
| Seal Lock Hex. Socket Hd. Bolt M6x27 | ||||
| 13 | 6601358 | 1.04 | 1.24 | |
| Carbureteur Pakking | ||||
| 14 | 6698405 | 2.10 | 2.52 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 15 | 6691337 | 1.15 | 1.38 | |
| Carburetor Ass'y Wyc-43 | ||||
| 16 | 6600526 | 29.01 | 34.82 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 17 | 6684698 | 4.29 | 5.14 | |
| Swivel | ||||
| 18 | 6696830 | 4.45 | 5.34 | |
| Stop Ring (oud 489-25100-20) | ||||
| 19 | 6684696 | 2.15 | 2.58 | |
| O-RING (OUD 550-25100-20) | ||||
| 21 | 6684695 | 4.29 | 5.14 | |
| Circuit Plate (old 522-25100-20) | ||||
| 23 | 6691234 | 3.30 | 3.96 | |
| Pump Body | ||||
| 24 | 6696828 | 13.36 | 16.04 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 25 | 6685220 | 2.31 | 2.78 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 26 | 6684692 | 29.19 | 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 27 | 6684693 | 8.58 | 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 28 | 6691242 | 2.31 | 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 29 | 6684690 | 18.00 | 21.60 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 30 | 6685222 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 31 | 6691312 | 1.15 | 1.38 | |
| Fuel Pipe | ||||
| 32A | 6601444 | 1.04 | 1.24 | |
| Collar M5 | ||||
| 33 | 6601340 | 1.95 | 2.34 | |
| Choke Valve | ||||
| 34 | 6601341 | 2.85 | 3.42 | |
| Wave Washer 8 | ||||
| 35 | 334242 | 1.73 | 2.07 | |
| Bague | ||||
| 36 | 6685407 | 1.05 | 1.26 | |
| Screw 5x55 (old 990-11050-552) | ||||
| 37 | 6694914 | 1.15 | 1.38 | |
| Special Screw M5 | ||||
| 38 | 6600532 | 1.04 | 1.24 | |
| Air Cleaner Base Ass'y | ||||
| 39 | 6600911 | 12.30 | 14.76 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 40 | 6685139 | 5.94 | 7.12 | |
| Air Cleaner Element | ||||
| 41 | 6600529 | 1.04 | 1.24 | |
| Air Cleaner Cover | ||||
| 42 | 6600530 | 1.35 | 1.62 | |
| MUFFLER TANK PARTITION | ||||
| 43A | 6601430 | 2.55 | 3.06 | |
| Bague | ||||
| 44 | 6698700 | 1.20 | 1.44 | |
| Cylinder Packing | ||||
| 45 | 6600510 | 1.04 | 1.24 | |
| Zuiger Ring | ||||
| 46 | 6698404 | 4.20 | 5.04 | |
| PISTON SET | ||||
| 47A | 6601476 | 7.80 | 9.36 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 48 | 6684590 | 2.15 | 2.58 | |
| Woodruff Key 3x13x4.5 | ||||
| 49 | 6601343 | 1.95 | 2.34 | |
| Piston Pin | ||||
| 50 | 6601344 | 2.85 | 3.42 | |
| Shim | ||||
| 51 | 6600909 | 1.04 | 1.24 | |
| Épuisé | ||||
| 52 | 6600907 | |||
| Crank Case Packing | ||||
| 53 | 6600514 | 1.04 | 1.24 | |
| Olie Keerring | ||||
| 54 | 6684607 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 55 | 6684608 | 3.80 | 4.56 | |
| Crank Case Guard | ||||
| 56 | 6600924 | 1.04 | 1.24 | |
| Crank Shaft | ||||
| 57 | 6600511 | 26.81 | 32.18 | |
| Knock Pin 4x12 | ||||
| 58 | 6696947 | 1.05 | 1.26 | |
| Crank Case (r) Ass'y | ||||
| 59 | 6600906 | 13.95 | 16.74 | |
| Tank Mark Label | ||||
| 60 | 6698921 | 1.20 | 1.44 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 61 | 6684681 | 13.20 | 15.84 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 62 | 6685101 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 63 | 6684684 | 4.29 | 5.14 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 64 | 6684685 | 4.29 | 5.14 | |
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 65A | 6601570 | 15.81 | 18.98 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 66 | 6684679 | 2.15 | 2.58 | |
| Cam Plate | ||||
| 67 | 6699996 | 2.55 | 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 68 | 6684677 | 8.58 | 10.29 | |
| Starter Rope Reel | ||||
| 69 | 6699997 | 8.41 | 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 70 | 6684675 | 11.55 | 13.86 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 72 | 6684674 | 4.29 | 5.14 | |
| Starthendel | ||||
| 73 | 6684680 | 2.15 | 2.58 | |
| Machine Screw M4x8 (w/washers) Black | ||||
| 76 | 6601439 | 1.04 | 1.24 | |
| Spark Arrester | ||||
| 77 | 6601438 | 1.04 | 1.24 | |
| Vis | ||||
| 81 | 995096 | 1.05 | 1.26 | |
| Vis Ø 4*16 Noir | ||||
| 82 | 305812 | 1.04 | 1.24 | |
| Handle (b) | ||||
| 83 | 6600566 | 1.80 | 2.16 | |
| Throttle Lever | ||||
| 84 | 6600568 | 1.35 | 1.62 | |
| Spring (a) | ||||
| 85 | 6696489 | 1.04 | 1.24 | |
| Trigger Lockout | ||||
| 86 | 6600567 | 1.04 | 1.24 | |
| Stop Switch | ||||
| 87 | 6601275 | 1.35 | 1.62 | |
| Stop Switch Cord | ||||
| 88 | 6696491 | 1.80 | 2.16 | |
| Protection Tube | ||||
| 89 | 6696967 | 1.05 | 1.26 | |
| Throttle Wire Comp | ||||
| 90 | 6600569 | 1.35 | 1.62 | |
| Handle (a) | ||||
| 91 | 6600565 | 2.10 | 2.52 | |
| Grip (loop) | ||||
| 92 | 6600538 | 4.65 | 5.58 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5 | ||||
| 93 | 6600919 | 1.04 | 1.24 | |
| Hex. Socket Hd. Bolt M5 (w/washers) | ||||
| 94 | 6600372 | 1.80 | 2.16 | |
| Metal Fitting (old 361-00990-20) | ||||
| 95 | 6689664 | 3.30 | 3.96 | |
| Pipe Holder | ||||
| 96 | 6600551 | 2.70 | 3.24 | |
| Damper (holder) | ||||
| 97 | 6600552 | 2.85 | 3.42 | |
| Tapping Screw D4.5x16 | ||||
| 98 | 6698878 | 1.20 | 1.44 | |
| Fan Case | ||||
| 99 | 6600548 | 14.44 | 17.32 | |
| Clutch Shaft | ||||
| 100 | 6600549 | 6.60 | 7.92 | |
| Step Bolt | ||||
| 101 | 6696469 | 1.04 | 1.24 | |
| Bague | ||||
| 102 | 6684648 | 2.15 | 2.58 | |
| Clutch | ||||
| 103 | 6696948 | 11.64 | 13.96 | |
| Rondelle | ||||
| 104 | 6696547 | 1.05 | 1.26 | |
| Ecrou | ||||
| 105 | 6685337 | 1.05 | 1.26 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 106 | 323212 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 107 | 6698388 | 1.05 | 1.26 | |
| Ignition Coil | ||||
| 108 | 6600515 | 23.10 | 27.72 | |
| Cord Insulation Tube L100 | ||||
| 109 | 6600051 | 1.04 | 1.24 | |
| Épuisé | ||||
| 110 | 6699186 | |||
| Épuisé | ||||
| 111A | 6601421 | |||
| Band | ||||
| 112 | 6698943 | 1.20 | 1.44 | |
| Protection Tube L50 | ||||
| 113 | 6601345 | 1.05 | 1.26 | |
| Cord | ||||
| 114 | 6698495 | 2.10 | 2.52 | |
| Earth Cord | ||||
| 115 | 6696545 | 1.05 | 1.26 | |
| Vliegwiel | ||||
| 116 | 6699289 | 25.71 | 30.86 | |
| Machine Screw (w/washers) M5x18 | ||||
| 117 | 6600920 | 1.04 | 1.24 | |
| Resevoir | ||||
| 118 | 6600519 | 4.95 | 5.94 | |
| Bolt (w/flange) | ||||
| 119 | 6696574 | 1.05 | 1.26 | |
| Pomp Filter | ||||
| 120 | 6600351 | 2.70 | 3.24 | |
| Clip | ||||
| 121 | 6696949 | 1.68 | 2.01 | |
| Bout L23.8 | ||||
| 122 | 6698512 | 1.05 | 1.26 | |
| Entretoise (1) | ||||
| 123 | 6699558 | 1.04 | 1.24 | |
| Brandstofleiding L70 | ||||
| 124A | 6699014 | 1.65 | 1.98 | |
| Fuel Grommet | ||||
| 125 | 6600358 | 1.04 | 1.24 | |
| Fuel Pipe L140 | ||||
| 126 | 6600521 | 1.04 | 1.24 | |
| Tank Dop Compleet | ||||
| 127 | 6698402 | 4.20 | 5.04 | |
| Tank Cap Chain | ||||
| 128 | 6698732 | 1.20 | 1.44 | |
| Vis 4x20 Noir | ||||
| 131 | 302086 | 1.05 | 1.26 | |
| Tapping Screw (w/flange) D4x30 | ||||
| 132 | 323837 | 1.68 | 2.01 | |
| Machine Screw M5x30 (black) | ||||
| 133 | 323041 | 1.05 | 1.26 | |
| Handle Collar | ||||
| 134 | 6600503 | 1.04 | 1.24 | |
| Handle (b) | ||||
| 135 | 6696590 | 3.13 | 3.75 | |
| Lock Lever | ||||
| 136 | 6696490 | 1.04 | 1.24 | |
| Throttle Wire Comp. | ||||
| 137 | 6600900 | 2.10 | 2.52 | |
| Protection Tube L70 | ||||
| 138 | 6601347 | 2.85 | 3.42 | |
| Stop Switch Cord | ||||
| 139 | 6696592 | 2.10 | 2.52 | |
| Stop Switch | ||||
| 140A | 6601275 | 1.35 | 1.62 | |
| Band | ||||
| 141 | 6698943 | 1.20 | 1.44 | |
| Levier (1) | ||||
| 142 | 6696488 | 1.04 | 1.24 | |
| Spring (a) | ||||
| 143 | 6696489 | 1.04 | 1.24 | |
| Handle (a) | ||||
| 144 | 6696588 | 2.10 | 2.52 | |
| Ecrou M.5 | ||||
| 145 | 302012 | 1.05 | 1.26 | |
| Barrier | ||||
| 146 | 6696973 | 3.33 | 3.99 | |
| Bolt (black) M6 | ||||
| 147 | 6696974 | 1.68 | 2.01 | |
| Loop Handle | ||||
| 148 | 6601348 | 11.40 | 13.68 | |
| Cushion Rubber | ||||
| 149 | 6601349 | 1.95 | 2.34 | |
| Bout L23.8 | ||||
| 150 | 6698512 | 1.05 | 1.26 | |
| Loop Handle Ass'y | ||||
| 151 | 6600922 | 11.10 | 13.32 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 152 | 6684709 | 2.15 | 2.58 | |
| Handle Holder (a) | ||||
| 153 | 6600561 | 1.80 | 2.16 | |
| U-handle | ||||
| 154 | 6600896 | 19.25 | 23.10 | |
| Handle Holder (b) | ||||
| 155 | 6600562 | 3.00 | 3.60 | |
| Gear Case Ass'y 3bb (d) | ||||
| 156 | 6600553 | 29.84 | 35.80 | |
| Vis M5x25 (paquet de 10) | ||||
| 157 | 949662 | 2.10 | 2.52 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 158 | 6695414 | 1.15 | 1.38 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 159 | 6684737 | 2.15 | 2.58 | |
| Cutter Holder (a) | ||||
| 160 | 6601354 | 4.80 | 5.76 | |
| Cutter Holder (b) | ||||
| 161 | 6601355 | 4.05 | 4.86 | |
| Épuisé | ||||
| 162 | 6699188 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 163 | 335759 | 1.04 | 1.24 | |
| Épuisé | ||||
| 164A | 6601432 | |||
| Set Screw | ||||
| 167 | 6698795 | 1.35 | 1.62 | |
| Reel | ||||
| 168 | 6698796 | 2.40 | 2.88 | |
| Return Spring | ||||
| 169 | 6698797 | 1.05 | 1.26 | |
| Bouton (1) | ||||
| 170 | 6698798 | 1.20 | 1.44 | |
| Cord Guide | ||||
| 171 | 6698799 | 1.20 | 1.44 | |
| Handle Holder (c) | ||||
| 173 | 6600563 | 1.35 | 1.62 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 174 | 6684714 | 2.15 | 2.58 | |
| Cover Bracket | ||||
| 175 | 6699443 | 2.10 | 2.52 | |
| Caution Mark Hitachi | ||||
| 176 | 6600450 | 1.80 | 2.16 | |
| Level Mark (b) | ||||
| 177 | 6600446 | 1.80 | 2.16 | |
| Épuisé | ||||
| 178 | 6600556 | |||
| Drive Shaft | ||||
| 179 | 6600558 | 10.80 | 12.96 | |
| Hanger | ||||
| 180 | 6600504 | 1.20 | 1.44 | |
| Vis M.5*10 (paquet de 10) For Irl | ||||
| 181 | 949236 | 1.05 | 1.26 | |
| Guard Ass'y (eu) | ||||
| 182 | 6600528 | 4.50 | 5.40 | |
| Cover Guard (eu) Ass'y | ||||
| 183 | 6601356 | 6.30 | 7.56 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 184 | 6684751 | 2.15 | 2.58 | |
| Mesje (oud 797-37714-20) | ||||
| 185 | 6684750 | 4.29 | 5.14 | |
| Ignition Coil Ass'y | ||||
| 202 | 6601380 | 34.65 | 41.58 | |
| Fan Case (a) Ass'y | ||||
| 203 | 6601378 | 30.53 | 36.63 | |
| Épuisé | ||||
| 501 | 6684764 | |||
| Épuisé | ||||
| 502 | 944458 | |||
| Épuisé | ||||
| 503 | 875769 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504 | 6684768 | 2.15 | 2.58 | |
| Tool Bag | ||||
| 505 | 6600923 | 1.65 | 1.98 | |
| Épuisé | ||||
| 506A | 6601420 | |||
| Épuisé | ||||
| 507 | 6696184 | |||
| Épuisé | ||||
| 508 | 6698711 | |||
| AIR CLEANER ELEMENT | ||||
| 601 | 6601389 | 96.25 | 115.50 | |
