Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CG27EBSP'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

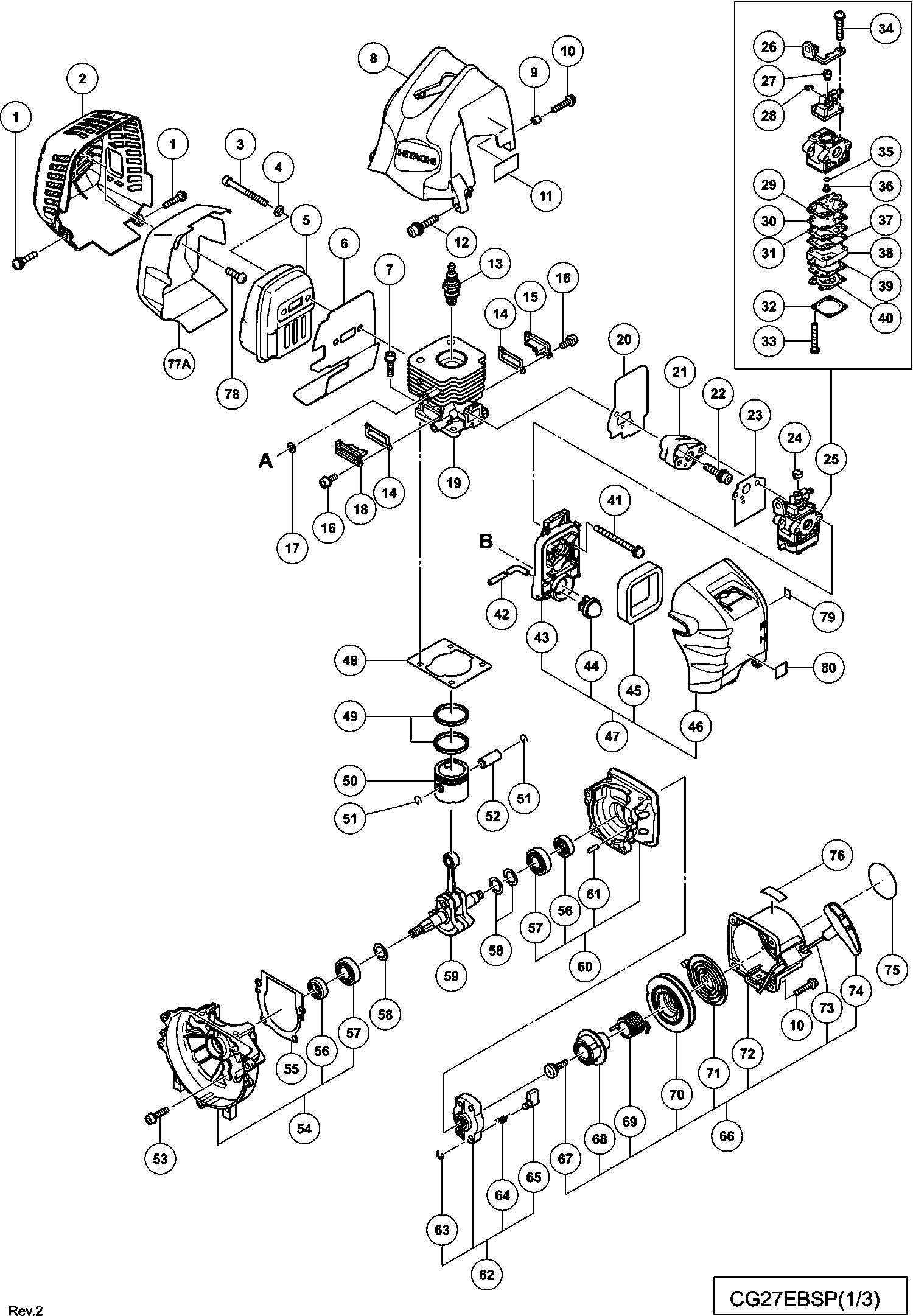

Dessins des Hikoki CG27EBSP
Liste de pièces de rechange des Hikoki CG27EBSP
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Pas d'informations disponibles, non commandable | ||||
| 1 | 887021@1417 | |||
| Knaldemper Afdekkap | ||||
| 2 | 6600322@1417 | 6.90 | 8.28 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 3 | 6698384@1417 | 1.05 | 1.26 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 4 | 949432@1417 | 1.05 | 1.26 | |
| Muffler (b) | ||||
| 5 | 6600004@1417 | 25.85 | 31.02 | |
| Hitteschild | ||||
| 6 | 6600324@1417 | 1.35 | 1.62 | |
| Hex. Socket Bolt M5 | ||||
| 7 | 6696958@1417 | 2.10 | 2.52 | |
| Cilinder Afdekkap | ||||
| 8 | 6699430@1417 | 7.05 | 8.46 | |
| Collar (b) | ||||
| 9 | 6600008@1417 | 1.04 | 1.24 | |
| Hex. Socket Hd. Bolt M4x18 (w/washers) | ||||
| 10 | 6696326@1417 | 1.20 | 1.44 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 12 | 6698950@1417 | 1.20 | 1.44 | |
| Bougie Bmr7a | ||||
| 13 | 6699316@1417 | 8.91 | 10.70 | |
| Cover Packing | ||||
| 14 | 6698365@1417 | 1.05 | 1.26 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698484@1417 | 2.10 | 2.52 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385@1417 | 1.05 | 1.26 | |
| Bague | ||||
| 17 | 6698700@1417 | 1.20 | 1.44 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 18 | 6698485@1417 | 2.10 | 2.52 | |
| Cylindre | ||||
| 19 | 6698480@1417 | 45.65 | 54.78 | |
| Joint | ||||
| 20 | 6699437@1417 | 1.04 | 1.24 | |
| Carburetor Insulator | ||||
| 21 | 6698387@1417 | 3.15 | 3.78 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 22 | 6698844@1417 | 1.20 | 1.44 | |
| Carbureteur Pakking | ||||
| 23 | 6698405@1417 | 2.10 | 2.52 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 24 | 6691337@1417 | 1.15 | 1.38 | |
| Carburator Wyc-37 | ||||
| 25 | 6600326@1417 | 29.84 | 35.80 | |
| Cable Adjust Stay | ||||
| 26 | 6699287@1417 | 4.13 | 4.95 | |
| Swivel | ||||
| 27 | 6696830@1417 | 4.45 | 5.34 | |
| Stop Ring (oud 489-25100-20) | ||||
| 28 | 6684696@1417 | 2.15 | 2.58 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 29 | 6684692@1417 | 29.19 | 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 30 | 6684693@1417 | 8.58 | 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 31 | 6691242@1417 | 2.31 | 2.78 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 32 | 6685222@1417 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 33 | 6691312@1417 | 1.15 | 1.38 | |
| Set Screw M3x12 | ||||
| 34 | 6696829@1417 | 1.04 | 1.24 | |
| O-RING (OUD 550-25100-20) | ||||
| 35 | 6684695@1417 | 4.29 | 5.14 | |
| Circuit Plate (old 522-25100-20) | ||||
| 37 | 6691234@1417 | 3.30 | 3.96 | |
| Pump Body | ||||
| 38 | 6696828@1417 | 13.36 | 16.04 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 39 | 6685220@1417 | 2.31 | 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 40 | 6684690@1417 | 18.00 | 21.60 | |
| Vis M.5*60 | ||||
| 41 | 307224@1417 | 1.05 | 1.26 | |
| Brandstofleiding L70 | ||||
| 42 | 6699014@1417 | 1.65 | 1.98 | |
| Fuel Pipe | ||||
| 42B | 6601444@1417 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 43 | 6696832@1417 | |||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 44 | 6685139@1417 | 5.94 | 7.12 | |
| Élément de filtre à air | ||||
| 45 | 6690347@1417 | 4.45 | 5.34 | |
| Luchtfilterkap | ||||
| 46 | 6699185@1417 | 7.20 | 8.64 | |
| Pas d'informations disponibles, non commandable | ||||
| 47 | 6699132@1417 | |||
| Cylinder Packing | ||||
| 48 | 6698366@1417 | 1.05 | 1.26 | |
| Piston Ring (old 041-01700-20) | ||||
| 49 | 6686121@1417 | 4.45 | 5.34 | |
| Piston | ||||
| 50 | 6699432@1417 | 8.10 | 9.72 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 51 | 6684590@1417 | 2.15 | 2.58 | |
| Goupille | ||||
| 52 | 6684591@1417 | 4.29 | 5.14 | |
| Pas d'informations disponibles, non commandable | ||||
| 53 | 6698386@1417 | |||
| Crank Case Ass'y (b) | ||||
| 54 | 6698370@1417 | 15.68 | 18.81 | |
| Crank Case Packing | ||||
| 55 | 6698371@1417 | 1.05 | 1.26 | |
| Olie Keerring | ||||
| 56 | 6684607@1417 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 57 | 6684608@1417 | 3.80 | 4.56 | |
| Pas d'informations disponibles, non commandable | ||||
| 58 | 6698490@1417 | |||
| Krukas | ||||
| 59 | 6699438@1417 | 34.10 | 40.92 | |
| Crank Case Ass'y (a) | ||||
| 60 | 6698369@1417 | 13.35 | 16.02 | |
| Knock Pin 4x12 | ||||
| 61 | 6696947@1417 | 1.05 | 1.26 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 62 | 6684681@1417 | 13.20 | 15.84 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 63 | 6684683@1417 | 2.15 | 2.58 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 63 | 6685101@1417 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 64 | 6684684@1417 | 4.29 | 5.14 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 65 | 6684685@1417 | 4.29 | 5.14 | |
| Pas d'informations disponibles, non commandable | ||||
| 66 | 6699995@1417 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 67 | 6684679@1417 | 2.15 | 2.58 | |
| Cam Plate | ||||
| 68 | 6699996@1417 | 2.55 | 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 69 | 6684677@1417 | 8.58 | 10.29 | |
| Starter Rope Reel | ||||
| 70 | 6699997@1417 | 8.41 | 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 71 | 6684675@1417 | 11.55 | 13.86 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 72 | 6684673@1417 | 19.06 | 22.88 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 73 | 6684674@1417 | 4.29 | 5.14 | |
| Starthendel | ||||
| 74 | 6684680@1417 | 2.15 | 2.58 | |
| Tank Mark Label | ||||
| 76 | 6698921@1417 | 1.20 | 1.44 | |
| Pas d'informations disponibles, non commandable | ||||
| 77 | 6600323@1417 | |||
| Muffler Heat Cover | ||||
| 77A | 6600422@1417 | 5.70 | 6.84 | |
| Tapping Screw D4x10 | ||||
| 78 | 6600325@1417 | 1.04 | 1.24 | |
| Mark Plate (t) | ||||
| 79 | 6600327@1417 | 1.04 | 1.24 | |
| Primer Label | ||||
| 80 | 6699000@1417 | 1.04 | 1.24 | |
| Machine Screw M5x20 (black) | ||||
| 91 | 6699195@1417 | 1.20 | 1.44 | |
| P Tight Screw D4x20 (black) | ||||
| 92 | 6699194@1417 | 1.20 | 1.44 | |
| Switch Wire Set | ||||
| 93 | 6699197@1417 | 10.20 | 12.24 | |
| Ecrou M5 | ||||
| 94 | 6699196@1417 | 1.04 | 1.24 | |
| Stop Lever | ||||
| 95 | 6699192@1417 | 1.65 | 1.98 | |
| Long Lever | ||||
| 96 | 6699191@1417 | 2.55 | 3.06 | |
| Return Spring | ||||
| 97 | 6699193@1417 | 1.04 | 1.24 | |
| Stay Set | ||||
| 98 | 6699190@1417 | 16.36 | 19.64 | |
| Regulateur | ||||
| 99 | 6699133@1417 | 21.18 | 25.41 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 100 | 6699176@1417 | 1.04 | 1.24 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 101 | 6695492@1417 | 1.15 | 1.38 | |
| Anti Vibe Rubber (a) | ||||
| 102 | 6696963@1417 | 3.33 | 3.99 | |
| Pipe Holder (a) | ||||
| 103 | 6698643@1417 | 2.10 | 2.52 | |
| Pipe Holder (b) | ||||
| 104 | 6698644@1417 | 2.10 | 2.52 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964@1417 | 3.33 | 3.99 | |
| Circlips Ø12 (x10) paquet de 10 | ||||
| 106 | 939542@1417 | 1.50 | 1.80 | |
| Enveloppe De Ventilateur | ||||
| 107 | 6699433@1417 | 14.99 | 17.98 | |
| BALL BEARING 6301ZZC3 | ||||
| 108 | 6699435@1417 | 2.55 | 3.06 | |
| VEERRING 37MM | ||||
| 109 | 322813@1417 | 1.65 | 1.98 | |
| CLUTCH SHAFT | ||||
| 110 | 6699434@1417 | 7.20 | 8.64 | |
| Step Bolt | ||||
| 111 | 6696469@1417 | 1.04 | 1.24 | |
| Bague | ||||
| 112 | 6684648@1417 | 2.15 | 2.58 | |
| Clutch Plate (a) | ||||
| 113 | 6696546@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 114 | 6699130@1417 | |||
| Rondelle | ||||
| 115 | 6699131@1417 | 1.04 | 1.24 | |
| Ecrou | ||||
| 116 | 6685337@1417 | 1.05 | 1.26 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 117 | 323212@1417 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 118 | 6698388@1417 | 1.05 | 1.26 | |
| Bobine | ||||
| 119 | 6699436@1417 | 26.40 | 31.68 | |
| Pas d'informations disponibles, non commandable | ||||
| 120 | 6699932@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 120A | 6601421@1417 | |||
| Metal Fitting Of Plug Cap | ||||
| 121 | 6699933@1417 | 1.65 | 1.98 | |
| Cord | ||||
| 122 | 6696544@1417 | 1.05 | 1.26 | |
| Earth Cord | ||||
| 123 | 6696545@1417 | 1.05 | 1.26 | |
| Magneto Rotor | ||||
| 124 | 6698396@1417 | 8.70 | 10.44 | |
| Brandstofleiding | ||||
| 125 | 6698716@1417 | 3.45 | 4.14 | |
| Pas d'informations disponibles, non commandable | ||||
| 126 | 6698401@1417 | |||
| Brandstofleiding L70 | ||||
| 126A | 6699014@1417 | 1.65 | 1.98 | |
| Return Grommet (old 6684627) | ||||
| 127 | 6697846@1417 | 1.04 | 1.24 | |
| Tank Dop Compleet | ||||
| 128 | 6698402@1417 | 4.20 | 5.04 | |
| Tank Cap Chain | ||||
| 129 | 6698732@1417 | 1.20 | 1.44 | |
| Fuel Grommet | ||||
| 130 | 6698931@1417 | 3.45 | 4.14 | |
| Fuel Grommet | ||||
| 130A | 6600358@1417 | 1.04 | 1.24 | |
| Entretoise (1) | ||||
| 131 | 6699558@1417 | 1.04 | 1.24 | |
| Resevoir | ||||
| 132 | 6600317@1417 | 7.95 | 9.54 | |
| Tank (c) | ||||
| 132A | 6600354@1417 | 3.45 | 4.14 | |
| Pas d'informations disponibles, non commandable | ||||
| 133 | 6684620@1417 | |||
| Pomp Filter | ||||
| 133A | 6600351@1417 | 2.70 | 3.24 | |
| Clip | ||||
| 134 | 6696949@1417 | 1.68 | 2.01 | |
| Stand (old 940-07350-20) | ||||
| 135 | 6694787@1417 | 3.30 | 3.96 | |
| Flange Bolt | ||||
| 136 | 6696557@1417 | 1.05 | 1.26 | |
| Bout L27.8 | ||||
| 137 | 6698991@1417 | 1.20 | 1.44 | |
| Regulateur | ||||
| 151 | 6699446@1417 | 21.18 | 25.41 | |
| Loop Handle (w/barrier) | ||||
| 152 | 6699448@1417 | 10.80 | 12.96 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 153 | 6684709@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 154 | 6696576@1417 | |||
| Handle Holder (a) (old 6696576) | ||||
| 154A | 6600500@1417 | 4.20 | 5.04 | |
| Handle Left | ||||
| 155 | 6698638@1417 | 22.83 | 27.39 | |
| Handle Right | ||||
| 156 | 6699447@1417 | 5.25 | 6.30 | |
| Pas d'informations disponibles, non commandable | ||||
| 157 | 6696577@1417 | |||
| Handle Holder (b) (old 6696577) | ||||
| 157A | 6600501@1417 | 7.20 | 8.64 | |
| Handle Holder (c) | ||||
| 158 | 6696578@1417 | 2.10 | 2.52 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 159 | 6684714@1417 | 2.15 | 2.58 | |
| Carter | ||||
| 160 | 6699439@1417 | 46.61 | 55.94 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 161 | 949664@1417 | 3.75 | 4.50 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 162 | 6695414@1417 | 1.15 | 1.38 | |
| Chapeau (1) | ||||
| 163 | 6600005@1417 | 2.70 | 3.24 | |
| Ressort (1) | ||||
| 164 | 6600006@1417 | 3.60 | 4.32 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 165 | 6684737@1417 | 2.15 | 2.58 | |
| Lock Pin | ||||
| 166 | 6600007@1417 | 11.25 | 13.50 | |
| Cutter Holder (a) | ||||
| 167 | 6699441@1417 | 8.25 | 9.90 | |
| Cutter Holder (b) | ||||
| 168 | 6698659@1417 | 13.04 | 15.64 | |
| Pas d'informations disponibles, non commandable | ||||
| 169 | 6699188@1417 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 170 | 335759@1417 | 1.04 | 1.24 | |
| Couvercle (1) | ||||
| 171 | 6698937@1417 | 16.78 | 20.13 | |
| Set Screw | ||||
| 173 | 6698795@1417 | 1.35 | 1.62 | |
| Reel | ||||
| 174 | 6698939@1417 | 7.35 | 8.82 | |
| Return Spring | ||||
| 175 | 6698941@1417 | 1.95 | 2.34 | |
| Bouton (1) | ||||
| 176 | 6698940@1417 | 5.55 | 6.66 | |
| Cord Guide | ||||
| 177 | 6698942@1417 | 3.75 | 4.50 | |
| Case | ||||
| 178 | 6698938@1417 | 13.65 | 16.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 179 | 6698639@1417 | |||
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 180 | 6684714@1417 | 2.15 | 2.58 | |
| Cover Bracket | ||||
| 181 | 6699442@1417 | 1.50 | 1.80 | |
| Caution Mark Hitachi (old 6684850) | ||||
| 182 | 6697625@1417 | 1.98 | 2.37 | |
| Level Mark(old 923-3738f-20) | ||||
| 183 | 6684852@1417 | 2.15 | 2.58 | |
| Level Mark (old 923-33700-20) | ||||
| 184 | 6684851@1417 | 2.15 | 2.58 | |
| Main Pipe | ||||
| 185 | 6699445@1417 | 21.86 | 26.24 | |
| Drive Shaft (old 6696484) | ||||
| 186 | 6698514@1417 | 15.60 | 18.72 | |
| Pas d'informations disponibles, non commandable | ||||
| 187 | 6696493@1417 | |||
| Hanger | ||||
| 187A | 6600504@1417 | 1.20 | 1.44 | |
| Cap (a) | ||||
| 188 | 6698515@1417 | 2.10 | 2.52 | |
| Pas d'informations disponibles, non commandable | ||||
| 189 | 6699450@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 190 | 6696980@1417 | |||
| Safety Cover Holder | ||||
| 191 | 6696951@1417 | 3.33 | 3.99 | |
| Cover Guard | ||||
| 192 | 6696950@1417 | 10.98 | 13.17 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 193 | 6684751@1417 | 2.15 | 2.58 | |
| Mesje (oud 797-37714-20) | ||||
| 194 | 6684750@1417 | 4.29 | 5.14 | |
| Caution Label (hedge) | ||||
| 195 | 6600328@1417 | 1.04 | 1.24 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 196 | 6600499@1417 | 10.65 | 12.78 | |
| Vis M.5*10 (paquet de 10) For Irl | ||||
| 197 | 949236@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 501 | 6684764@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 502 | 6696596@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 503 | 944458@1417 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504 | 6684768@1417 | 2.15 | 2.58 | |
| Cutter Cover | ||||
| 504A | 6699756@1417 | 1.15 | 1.38 | |
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504B | 6684768@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 505 | 875769@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 506 | 6696448@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 506A | 6601420@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 507 | 6698711@1417 | |||
