Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CG47EF'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

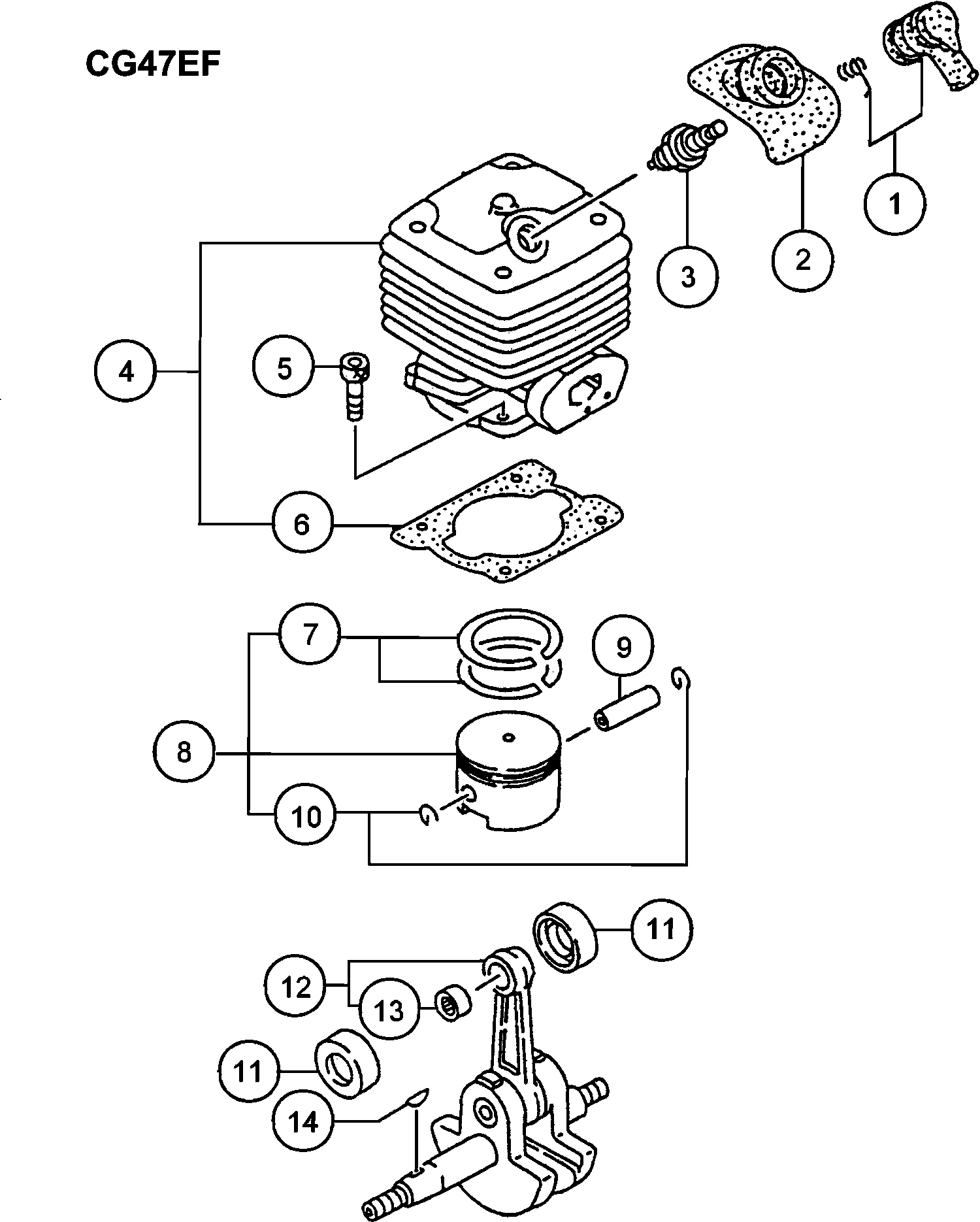

Dessins des Hikoki CG47EF
Liste de pièces de rechange des Hikoki CG47EF
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
| 1 | 6687468@1417 | 2.31 | 2.78 | |
| Spark Plug Rubber Cover (old 255-04200-20) | ||||
| 2 | 6688336@1417 | 3.30 | 3.96 | |
| Bougie (oud 6685086) | ||||
| 3 | 6699319@1417 | 8.91 | 10.70 | |
| Cylinder Set (old 001-0422u-90) | ||||
| 4 | 6685470@1417 | 72.30 | 86.76 | |
| Vis Ø5x18 | ||||
| 5 | 6684586@1417 | 2.15 | 2.58 | |
| Cylinder Gasket (old 017-04220-21) | ||||
| 6 | 6685738@1417 | 1.15 | 1.38 | |
| Piston Ring (old 041-04090-21) | ||||
| 7 | 6686126@1417 | 7.75 | 9.30 | |
| Piston Set (old 030-0422u-90) | ||||
| 8 | 6685887@1417 | 19.21 | 23.06 | |
| Piston Pin 10x35 (old 037-10100-20 & 6686012) | ||||
| 9 | 6686019@1417 | 2.31 | 2.78 | |
| Piston Pin Circlip (old 039-01000-20) | ||||
| 10 | 6686026@1417 | 1.15 | 1.38 | |
| Piston Pin Collar (old 036-04090-20) | ||||
| 11 | 6685993@1417 | 5.28 | 6.33 | |
| Crank Shaft Comp. (old 046-04220-80) | ||||
| 12 | 6686190@1417 | 88.33 | 105.99 | |
| Needle Bearing, 2x8.8 (old 999-62101-480) | ||||
| 13 | 6695602@1417 | 5.28 | 6.33 | |
| Wood-ruff Key 3x13x5 (old 068-02000-20/790118) | ||||
| 14 | 6686457@1417 | 1.15 | 1.38 | |
| Small Nut 10 (old 991-11100-013/6695138/790215/669 | ||||
| 31 | 6695139@1417 | 1.05 | 1.26 | |
| Crank Case Ass'y (old 072-04220-91) | ||||
| 32 | 6686553@1417 | 60.35 | 72.42 | |
| Crank Case Gasket (old 090-04200-21/6686712) | ||||
| 33 | 6686713@1417 | 1.15 | 1.38 | |
| Olie Keerring | ||||
| 34 | 6695637@1417 | 3.30 | 3.96 | |
| Pas d'informations disponibles, non commandable | ||||
| 35 | 6695557@1417 | |||
| Bague | ||||
| 36 | 6686463@1417 | 1.15 | 1.38 | |
| Crank Shaft Shim 0.20 (old 071-02007-23) | ||||
| 37 | 6686472@1417 | 1.15 | 1.38 | |
| Crank Shaft Shim 0.30 (old 071-02007-24) | ||||
| 37 | 6686473@1417 | 1.15 | 1.38 | |
| Hex Hole Button Screw 6x45 (old 990-53060-453) | ||||
| 38 | 6695084@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 39 | 6684826@1417 | 2.15 | 2.58 | |
| Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3 | ||||
| 40 | 6684825@1417 | 2.15 | 2.58 | |
| Lock Nut M6 (oud 991-01060-013) | ||||
| 41 | 6684872@1417 | 2.15 | 2.58 | |
| Outer Receiver (old 894-01401-20) | ||||
| 42 | 6694043@1417 | 3.30 | 3.96 | |
| Magnet Rotor Comp. (old 155-20537-80) | ||||
| 43 | 6687371@1417 | 22.24 | 26.68 | |
| Bague | ||||
| 44 | 6695185@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 45 | 6695138@1417 | |||
| Bobine | ||||
| 46 | 6687649@1417 | 42.20 | 50.64 | |
| Screw 5x18/s (old 994-14050-181) | ||||
| 47 | 6695339@1417 | 1.15 | 1.38 | |
| Ring 5 (oud 992-00050-011) | ||||
| 48 | 6684864@1417 | 2.15 | 2.58 | |
| Primary Cord Grommet (old 203-06000-20) | ||||
| 49 | 6688049@1417 | 1.15 | 1.38 | |
| Cord Clamp Comp. (old 198-05015-80/6687996/6688012 | ||||
| 50 | 6688004@1417 | 1.15 | 1.38 | |
| Enveloppe De Ventilateur | ||||
| 51 | 6686974@1417 | 26.16 | 31.40 | |
| Screw 6x20/s (old 994-14060-202) | ||||
| 52 | 6695361@1417 | 1.15 | 1.38 | |
| Primary Cord Grommet (old 203-10000-20) | ||||
| 53 | 6688055@1417 | 1.15 | 1.38 | |
| Plus disponible, pas de remplacement | ||||
| 55 | 6688452@1417 | |||
| Cord Clamp Comp. (old 198-10246-80) | ||||
| 56 | 6688008@1417 | 1.15 | 1.38 | |
| Stop Cord Comp. (old 178-0631a-80) New | ||||
| 57 | 6687864@1417 | 2.31 | 2.78 | |
| Fuel Tank Cushion Rubber (old 655-04200-20) | ||||
| 71 | 6692225@1417 | 1.15 | 1.38 | |
| Inlaatpakking | ||||
| 72 | 6689883@1417 | 1.15 | 1.38 | |
| Carb. Insulator Set (old 404-0422u-90) | ||||
| 73 | 6689950@1417 | 8.58 | 10.29 | |
| Carburetor Gasket (old 402-01740-20/6689844) | ||||
| 74 | 6689826@1417 | 1.15 | 1.38 | |
| Carburetor Ass'y Hda306 Walbro (old 455-0422w-90) | ||||
| 75 | 6690468@1417 | 90.45 | 108.54 | |
| Carburateurset | ||||
| 75A | 6697706@1417 | 91.96 | 110.36 | |
| Screw 5x24ws (old 994-16050-241) | ||||
| 76 | 6695423@1417 | 1.15 | 1.38 | |
| Choke Lever (old 495-04200-20) | ||||
| 77 | 6691004@1417 | 1.15 | 1.38 | |
| Fuel Pipe 2.5x4x90 (old 700-02504-09) | ||||
| 78 | 6685267@1417 | 1.15 | 1.38 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 78A | 6692347@1417 | 1.15 | 1.38 | |
| Small Nut 10 (old 991-11100-013/6695138/790215/669 | ||||
| 79 | 6695139@1417 | 1.05 | 1.26 | |
| Bague | ||||
| 80 | 6695235@1417 | 1.15 | 1.38 | |
| Priming Pump Comp. (old 422-25030-80) | ||||
| 81 | 6690080@1417 | 6.93 | 8.31 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 81A | 6685139@1417 | 5.94 | 7.12 | |
| Fuel Pipe Ass'y 3x5x230 (old 223-01251-90) | ||||
| 82 | 6688166@1417 | 4.29 | 5.14 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 83 | 6684619@1417 | 2.15 | 2.58 | |
| Pump Filter Body Ass'y (old 675-01630-90/6692277) | ||||
| 84 | 6692273@1417 | 7.10 | 8.52 | |
| Fuel Tank, White (old 591-0422p-21/6691525) | ||||
| 85 | 6691526@1417 | 11.88 | 14.25 | |
| Return Grommet (old 6684627) | ||||
| 86 | 6697846@1417 | 1.04 | 1.24 | |
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 87 | 6691763@1417 | 7.59 | 9.10 | |
| Cushion Rubber (old 652-04201-20) | ||||
| 89 | 6692193@1417 | 6.44 | 7.72 | |
| Pas d'informations disponibles, non commandable | ||||
| 92 | 6684625@1417 | |||
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 93 | 6691337@1417 | 1.15 | 1.38 | |
| Muffler Protector (old 738-04220-20) | ||||
| 111 | 6692777@1417 | 11.71 | 14.06 | |
| Screw 5x12/ps (old 994-15050-122) | ||||
| 112 | 6695383@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 113 | 6684667@1417 | 2.15 | 2.58 | |
| Rondelle Ø 5 | ||||
| 114 | 6684918@1417 | 2.15 | 2.58 | |
| Hex. Hole Button Screw 6x65 (old 990-53060-653) | ||||
| 115 | 6695088@1417 | 2.31 | 2.78 | |
| Bague | ||||
| 116 | 6684639@1417 | 2.15 | 2.58 | |
| Muffler Set, Spare (old 704-0423z-90) | ||||
| 117 | 6692465@1417 | 22.24 | 26.68 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 118 | 6692883@1417 | 1.15 | 1.38 | |
| Tail Pipe Set Pn (old 721-04290-90) | ||||
| 119 | 6692650@1417 | 4.45 | 5.34 | |
| Screw 4x8/s (old 994-14040-081) | ||||
| 120 | 6695325@1417 | 1.15 | 1.38 | |
| Muffler Gasket (old 737-04230-20) | ||||
| 121 | 6692741@1417 | 1.15 | 1.38 | |
| Warmteschild | ||||
| 122 | 6687242@1417 | 2.31 | 2.78 | |
| Fuel Tank Cushion Rubber (old 655-06100-20) | ||||
| 123 | 6692227@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 126 | 6689645@1417 | 1.15 | 1.38 | |
| Koppelingsvoering | ||||
| 127 | 6688615@1417 | 13.70 | 16.44 | |
| Clutch Spring (old 342-04270-20) | ||||
| 128 | 6689429@1417 | 3.30 | 3.96 | |
| RING | ||||
| 129 | 6695203@1417 | 1.15 | 1.38 | |
| Clutch Step Bolt (old 357-0136u-20) | ||||
| 130 | 6689628@1417 | 2.31 | 2.78 | |
| Clutch Shaft Comp. | ||||
| 131 | 6699561@1417 | 19.36 | 23.24 | |
| Tail Pipe Comp. (old 708-01028-80) | ||||
| 132 | 6692593@1417 | 3.30 | 3.96 | |
| Screw 4x12 (old 990-11040-121) | ||||
| 133 | 6694865@1417 | 1.15 | 1.38 | |
| Nut M4 (old 991-01040-011) | ||||
| 134 | 6685069@1417 | 1.15 | 1.38 | |
| Recoil Starter Body Ass'y | ||||
| 151A | 6697645@1417 | 21.78 | 26.13 | |
| Recoil Starter Body Comp. (old 772-04220-80) | ||||
| 152 | 6693025@1417 | 14.19 | 17.02 | |
| Recoil Starter Body Comp. | ||||
| 152A | 6697646@1417 | 11.71 | 14.06 | |
| Starter Rope Reel (old 769-04220-20) | ||||
| 153 | 6693007@1417 | 4.95 | 5.94 | |
| Starter Rope Reel | ||||
| 153A | 6697647@1417 | 4.13 | 4.95 | |
| Recoil Spring (old 779-04220-20) | ||||
| 154 | 6693114@1417 | 9.08 | 10.89 | |
| Pas d'informations disponibles, non commandable | ||||
| 154A | 6697648@1417 | |||
| Starter Rope (old 783-04270-20/6693164) | ||||
| 155 | 6693165@1417 | 3.30 | 3.96 | |
| Pas d'informations disponibles, non commandable | ||||
| 155A | 6697649@1417 | |||
| Starthendel | ||||
| 156 | 6693607@1417 | 2.31 | 2.78 | |
| Starthendel | ||||
| 157 | 6693232@1417 | 3.30 | 3.96 | |
| Starthendel | ||||
| 157A | 6697650@1417 | 2.80 | 3.36 | |
| Set Screw (old 839-04220-20) | ||||
| 158 | 6693634@1417 | 1.15 | 1.38 | |
| Starter Pawl (old 788-0162v-20) | ||||
| 159 | 6693302@1417 | 2.31 | 2.78 | |
| Pas d'informations disponibles, non commandable | ||||
| 159A | 6697643@1417 | |||
| D4e Retaining Ring (old 993-55040-001) | ||||
| 160 | 6685101@1417 | 1.15 | 1.38 | |
| Screw 5x25ps (old 994-15050-252) | ||||
| 161 | 6695395@1417 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-0162v-20) | ||||
| 162 | 6693345@1417 | 2.31 | 2.78 | |
| Pas d'informations disponibles, non commandable | ||||
| 162A | 6697642@1417 | |||
| Starter Pulley (old 798-04220-90) | ||||
| 163 | 6693395@1417 | 11.05 | 13.26 | |
| Starter Pulley | ||||
| 163A | 6697644@1417 | 11.05 | 13.26 | |
| Cleaner Body Set (old 6690106) | ||||
| 181 | 6699506@1417 | 14.21 | 17.06 | |
| Cleaner Body (old 423-04270-21) | ||||
| 181A | 6697705@1417 | 5.45 | 6.54 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 182 | 6692244@1417 | 1.15 | 1.38 | |
| Blow Over Check Board Comp. (old 476-0422u-80/6690 | ||||
| 183 | 6690848@1417 | 2.31 | 2.78 | |
| Élément de filtre à air | ||||
| 184 | 6690357@1417 | 2.31 | 2.78 | |
| Luchtfilterkap | ||||
| 185 | 6690149@1417 | 8.58 | 10.29 | |
| Boulon | ||||
| 186 | 6690383@1417 | 1.15 | 1.38 | |
| Screw 5x60/s (old 994-14050-601) | ||||
| 187 | 6695354@1417 | 1.15 | 1.38 | |
| Screw (old 514-25001-20) | ||||
| 201 | 6685210@1417 | 1.15 | 1.38 | |
| Pump Body (old 575-25012-20) | ||||
| 202 | 6691420@1417 | 8.25 | 9.90 | |
| Pump Gasket (old 577-25012-20) | ||||
| 203 | 6691455@1417 | 2.31 | 2.78 | |
| Pump Diaphragm (old 576-25012-20) | ||||
| 204 | 6691446@1417 | 5.28 | 6.33 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 205 | 6684700@1417 | 4.29 | 5.14 | |
| Idle Adjust Spring (old 463-25012-20) | ||||
| 206 | 6690766@1417 | 2.31 | 2.78 | |
| Idle Adjust Screw (old 462-25006-20) | ||||
| 207 | 6690736@1417 | 3.30 | 3.96 | |
| Needle Valve (old 603-25012-20) | ||||
| 208 | 6685215@1417 | 5.28 | 6.33 | |
| Valve Spring (old 477-25307-20) | ||||
| 209 | 6690874@1417 | 4.45 | 5.34 | |
| Control Lever (old 473-25012-20) | ||||
| 210 | 6690819@1417 | 4.45 | 5.34 | |
| Hinge Pin (old 605-25001-20) | ||||
| 211 | 6685219@1417 | 1.15 | 1.38 | |
| Hinge Pin Set Screw (old 546-25001-20) | ||||
| 212 | 6685218@1417 | 2.31 | 2.78 | |
| Diaphragm Gasket (old 475-25032-20) | ||||
| 213 | 6690840@1417 | 3.30 | 3.96 | |
| Diaphragm Gasket (old 475-25012-20) | ||||
| 213A | 6690838@1417 | 2.31 | 2.78 | |
| Metering Diaphragm Comp. (old 474-25032-80) | ||||
| 214 | 6690829@1417 | 11.88 | 14.25 | |
| Meterring Diaphragm Comp. (old 474-25012-80) | ||||
| 214A | 6690828@1417 | 11.88 | 14.25 | |
| Air Purge Comp. (old 454-25032-80) | ||||
| 215 | 6690434@1417 | 18.00 | 21.60 | |
| Diaphragm Cover (old 476-25032-20) | ||||
| 216 | 6690860@1417 | 6.44 | 7.72 | |
| Diaphragm Cover (old 476-25012-20) | ||||
| 216A | 6690858@1417 | 6.93 | 8.31 | |
| Set Screw (old 548-25016-20) New Jul | ||||
| 217 | 6691310@1417 | 1.15 | 1.38 | |
| Set Screw (old 548-25012-20) | ||||
| 217A | 6685223@1417 | 1.15 | 1.38 | |
| Shoulder Frame Comp (old 244-38011-80) | ||||
| 231 | 6688276@1417 | 36.15 | 43.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 232 | 6697909@1417 | |||
| Screw 5x10/ps (old 994-15050-101) | ||||
| 233 | 6695380@1417 | 1.15 | 1.38 | |
| Cushion Rubber Comp. (old 319-33390-80) | ||||
| 234 | 6689125@1417 | 4.45 | 5.34 | |
| Ecrou de bride | ||||
| 235 | 6695170@1417 | 1.15 | 1.38 | |
| Ring M8 (old 992-01080-011) | ||||
| 236 | 6684611@1417 | 2.15 | 2.58 | |
| Roulement à billes | ||||
| 237 | 6695558@1417 | 6.93 | 8.31 | |
| Bearing Holder (old 6689768) | ||||
| 238 | 6697907@1417 | 2.80 | 3.36 | |
| Bolt 5x10/s (old 994-24050-101) | ||||
| 239 | 6695438@1417 | 1.15 | 1.38 | |
| Hex. Nut 5 (old 991-01050-011) | ||||
| 240 | 6684965@1417 | 1.04 | 1.24 | |
| Engine Base Comp (old 220-38015-80) | ||||
| 241 | 6688132@1417 | 24.20 | 29.04 | |
| Shoulder Plate Holder B. (old 248-3338e-20) | ||||
| 242 | 6688304@1417 | 2.31 | 2.78 | |
| Bolt 6x25 (old 994-25060-251) | ||||
| 243 | 6696295@1417 | 1.04 | 1.24 | |
| Ecrou de bride | ||||
| 244 | 6695170@1417 | 1.15 | 1.38 | |
| Screw 5x16/s (old 994-14050-162) | ||||
| 245 | 6695338@1417 | 1.15 | 1.38 | |
| Screw 5x18/ps (old 994-15050-182) | ||||
| 246 | 6695389@1417 | 1.15 | 1.38 | |
| Nylon Lock Nut 8 (old 991-78080-010) | ||||
| 247 | 6695165@1417 | 1.15 | 1.38 | |
| Engine Base B Ass'y | ||||
| 248 | 6697935@1417 | 16.19 | 19.42 | |
| Clutch Drum Comp (old 332-04290-80) | ||||
| 261 | 6689232@1417 | 20.11 | 24.14 | |
| Roulement à billes | ||||
| 262 | 6695558@1417 | 6.93 | 8.31 | |
| Stop Ring C-15, Outer (old 993-50015-002) | ||||
| 263 | 6695285@1417 | 1.15 | 1.38 | |
| Clutch Case (old 331-33380-20) | ||||
| 264 | 6689216@1417 | 14.85 | 17.82 | |
| Bague | ||||
| 265 | 6684826@1417 | 2.15 | 2.58 | |
| Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530 | ||||
| 266 | 6685064@1417 | 1.15 | 1.38 | |
| Lock Pin Comp. (old 400-33365-81/6689815) | ||||
| 267 | 6689817@1417 | 1.15 | 1.38 | |
| Protection Tube 10x700l (old 164-10070-00) | ||||
| 268 | 6687586@1417 | 2.31 | 2.78 | |
| Protection Tube 130l (old 164-07013-01) | ||||
| 269 | 6687521@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 270 | 6697780@1417 | |||
| Cord Clamp (old 198-3332a-20) | ||||
| 271 | 6688016@1417 | 1.15 | 1.38 | |
| Flexible Shaft Ass'y (old 351-3338f-91) | ||||
| 272 | 6689591@1417 | 102.40 | 122.88 | |
| Pas d'informations disponibles, non commandable | ||||
| 273 | 6689589@1417 | |||
| Plus disponible, pas de remplacement | ||||
| 274 | 6689554@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 281 | 6688537@1417 | |||
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 282 | 6684709@1417 | 2.15 | 2.58 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 283 | 6695492@1417 | 1.15 | 1.38 | |
| Spacer (old 320-33315-20/6689137) | ||||
| 284 | 6689138@1417 | 3.30 | 3.96 | |
| Spacer (old 360-33315-20) | ||||
| 285 | 6684819@1417 | 4.29 | 5.14 | |
| Bague | ||||
| 286 | 6689638@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
| 287 | 6695042@1417 | 1.15 | 1.38 | |
| Handle (old 500-33560-20) | ||||
| 288 | 6691036@1417 | 9.74 | 11.68 | |
| Barrier, 26 Dia, Black (old 520-33398-20) | ||||
| 289 | 6691231@1417 | 5.61 | 6.74 | |
| Bolt 6x43/p (black) (old 994-23060-432) | ||||
| 290 | 6684838@1417 | 2.15 | 2.58 | |
| Stop Ring C-10, Outer (old 993-50010-002) | ||||
| 291 | 6684821@1417 | 2.15 | 2.58 | |
| Hex.nut 6 (old 6684792/991-01060-041/790444) | ||||
| 292 | 6684835@1417 | 2.15 | 2.58 | |
| Drive Shaft Comp. (old 341-33398-80) | ||||
| 293 | 6689346@1417 | 28.14 | 33.76 | |
| Bushing Ass'y (old 347-33411-91) | ||||
| 294 | 6689513@1417 | 2.31 | 2.78 | |
| Drive Shaft, 1507l (old 343-33398-20) | ||||
| 295 | 6689459@1417 | 24.20 | 29.04 | |
| Choke Shim 0.8 (old 708-32350-20) | ||||
| 296 | 6692596@1417 | 1.15 | 1.38 | |
| Verbinder | ||||
| 297 | 6694031@1417 | 1.49 | 1.78 | |
| Gaskabel | ||||
| 298 | 6693885@1417 | 4.45 | 5.34 | |
| Tapping Screw D4.5x20 (old 990-72045-204) | ||||
| 299 | 6685191@1417 | 1.15 | 1.38 | |
| Joint Cover (old 285-33386-21) | ||||
| 300 | 6688550@1417 | 4.45 | 5.34 | |
| Throttle Lever Assy 26 (old 870-38010-90) | ||||
| 311 | 6693759@1417 | 36.15 | 43.38 | |
| Throttle Wire (old 887-38010-80) | ||||
| 312 | 6694019@1417 | 14.19 | 17.02 | |
| Stop Switch (old 156-38010-80) | ||||
| 313 | 6687455@1417 | 14.68 | 17.61 | |
| Safety Lever (old 253-38400-20) | ||||
| 314 | 6684721@1417 | 6.44 | 7.72 | |
| Return Spring (old 832-07038-20) | ||||
| 315 | 6693599@1417 | 1.15 | 1.38 | |
| Blind Plug (old 322-38400-20) | ||||
| 316 | 6684724@1417 | 2.15 | 2.58 | |
| Screw M5x20 (old 994-31050-203) | ||||
| 317 | 6684803@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 318 | 6684727@1417 | |||
| Screw M4x20 (black) (old 993-46040-202) | ||||
| 319 | 6684725@1417 | 2.15 | 2.58 | |
| Protection Tube 7x130l (old 167-07013-01) | ||||
| 320 | 6687632@1417 | 1.15 | 1.38 | |
| Throttle Lever (old 880-38400-20) | ||||
| 321 | 6684804@1417 | 8.58 | 10.29 | |
| Gear Case Set Pn (old 300-3338r-00/6688696) | ||||
| 331 | 6696497@1417 | 60.35 | 72.42 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 332 | 6684709@1417 | 2.15 | 2.58 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 333 | 6695294@1417 | 1.15 | 1.38 | |
| Stop Ring Outer 10 (old 993-57010-002) | ||||
| 334 | 6695315@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 335 | 6695526@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 336 | 6695524@1417 | |||
| Gear Case 26 Dia (old 300-37480-20) | ||||
| 337 | 6688770@1417 | 15.88 | 19.05 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 338 | 6684667@1417 | 2.15 | 2.58 | |
| Oiling Bolt (old 316-38150-20) | ||||
| 339 | 6689109@1417 | 1.15 | 1.38 | |
| Roulement à billes | ||||
| 340 | 6684734@1417 | 8.58 | 10.29 | |
| Gear Shaft (old 304-3338r-20) | ||||
| 341 | 6688924@1417 | 18.15 | 21.78 | |
| Roulement à billes | ||||
| 342 | 6695554@1417 | 5.94 | 7.12 | |
| Stop Ring C-32, Inner (old 993-51032-002/791058) | ||||
| 343 | 6695295@1417 | 1.15 | 1.38 | |
| Cutter Holder (old 310-38150-20) | ||||
| 344 | 6689032@1417 | 11.71 | 14.06 | |
| Cutter Holder Cap (old 311-38150-20) | ||||
| 345 | 6689055@1417 | 5.11 | 6.14 | |
| Fixing Nut L M10x1.25 (oud 313-38150-20) | ||||
| 346 | 6689073@1417 | 4.63 | 5.55 | |
| Bague | ||||
| 347 | 6689159@1417 | 1.15 | 1.38 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 348 | 6684714@1417 | 2.15 | 2.58 | |
| Cover Bracket D26 (old 442-38331-20) | ||||
| 349 | 6690315@1417 | 4.45 | 5.34 | |
| Blade Guard 26ce (old 441-38331-20) | ||||
| 350 | 6690276@1417 | 17.55 | 21.06 | |
| Safety Cover Holder (old 445-37380-20) | ||||
| 351 | 6684748@1417 | 4.29 | 5.14 | |
| Blade Guard (old 447-38331-20) | ||||
| 352 | 6690376@1417 | 9.40 | 11.28 | |
| Mesje (oud 797-37714-20) | ||||
| 353 | 6684750@1417 | 4.29 | 5.14 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 354 | 6684751@1417 | 2.15 | 2.58 | |
| Gear/pinion Set, Spare (old 301-37480-00) | ||||
| 355 | 6688875@1417 | 22.24 | 26.68 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 356 | 6684753@1417 | 2.15 | 2.58 | |
| Mesje (oud 797-38331-20) | ||||
| 357 | 6684754@1417 | 8.58 | 10.29 | |
| Pas d'informations disponibles, non commandable | ||||
| 501 | 6684764@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 502 | 6684813@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 503 | 6699555@1417 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 503B | 6684768@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 504A | 875769@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 505 | 6695790@1417 | |||
| Protection Cover B (old 308-38150-20 & 6688993) | ||||
| 506 | 6688995@1417 | 3.30 | 3.96 | |
| Nylon Cord Cutter | ||||
| 521 | 6601148@1417 | 19.21 | 23.06 | |
| Case | ||||
| 522 | 6601149@1417 | 10.73 | 12.87 | |
| Ecrou (1) | ||||
| 523 | 6601150@1417 | 6.93 | 8.31 | |
| Reel Spring (old 793-38454-20) | ||||
| 524 | 6693380@1417 | 3.30 | 3.96 | |
| Line Holder | ||||
| 525 | 6601151@1417 | 7.59 | 9.10 | |
| Couvercle (1) | ||||
| 526 | 6601152@1417 | 7.75 | 9.30 | |
| Eyelet (old 788-37770-20) | ||||
| 527 | 6684810@1417 | 2.15 | 2.58 | |
| Name Plate Cg47ef(l) (old 906-04295-20) New | ||||
| 601 | 6694146@1417 | 1.05 | 1.26 | |
| Symbol Mark Cg47ef(l) (old 929-04295-20) New | ||||
| 602 | 6694616@1417 | 1.15 | 1.38 | |
