Dessins techniques et pièces de rechange Hikoki CH22EAP2
Type exact:
CH22EAP2
CH22EAP2

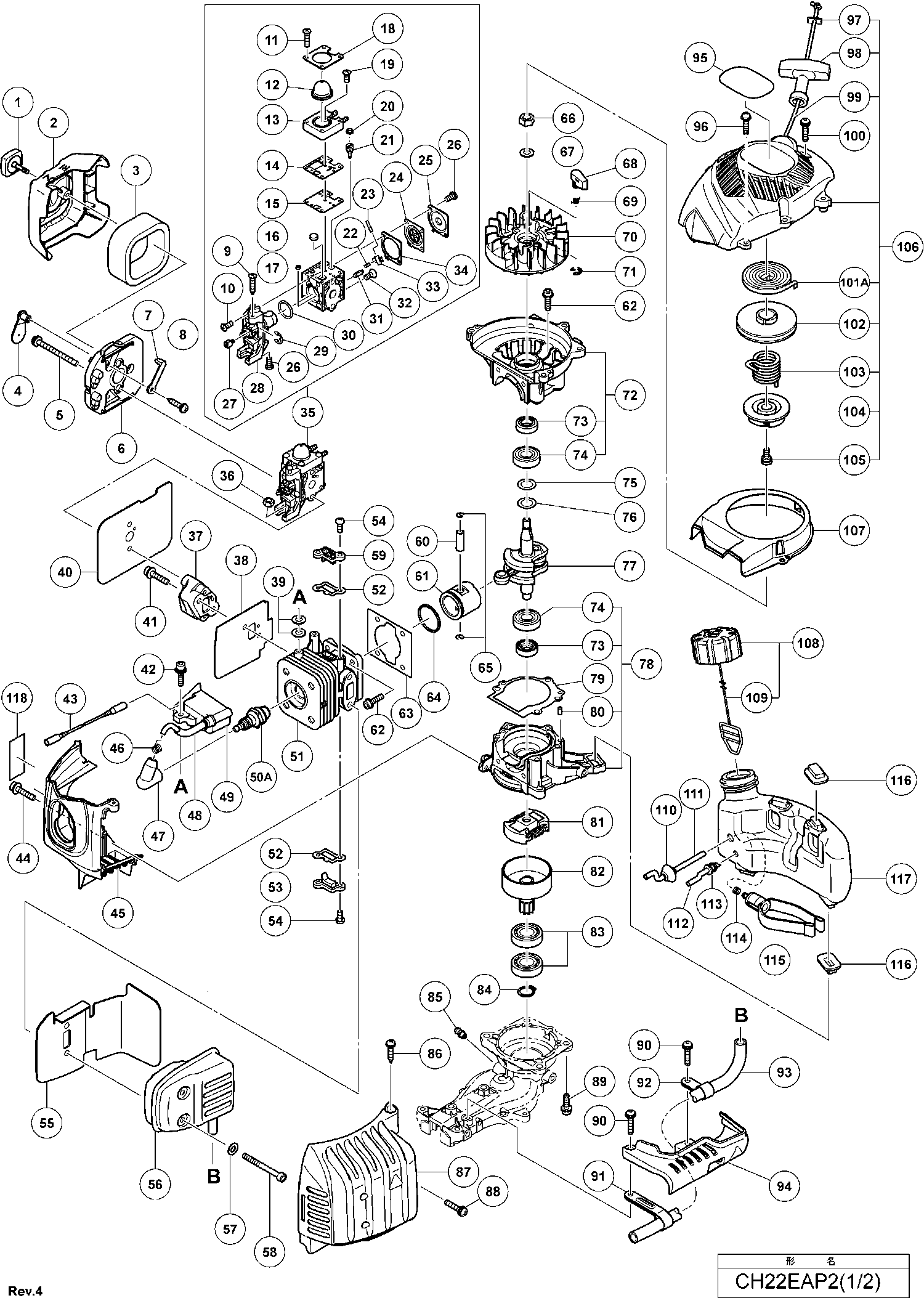

Dessins des HIKOKI CH22EAP2
Liste de pièces de rechange des HIKOKI CH22EAP2
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Cover Fixing Bolt Comp. | ||||
| 1 | 6698730 | Cover Fixing Bolt Comp. | € 3.78 | |
| Luchtfilterkap | ||||
| 2 | 6698609 | Luchtfilterkap | € 2.52 | |
| Reinigingsspons | ||||
| 3 | 6690365 | Reinigingsspons | € 1.38 | |
| Choke Valve | ||||
| 4 | 6698608 | Choke Valve | € 1.44 | |
| Vis M.5*60 | ||||
| 5 | 307224 | Vis M.5*60 | € 1.26 | |
| Cleaner Body | ||||
| 6 | 6698606 | Cleaner Body | € 2.52 | |
| Choke Handle | ||||
| 7 | 6698607 | Choke Handle | € 1.44 | |
| Épuisé | ||||
| 8 | 309470 | Épuisé | ||
| Throttle Adjust Screw | ||||
| 9 | 6699087 | Throttle Adjust Screw | € 9.36 | |
| Set Screw (b) | ||||
| 10 | 6699088 | Set Screw (b) | € 1.24 | |
| Set Screw (d) | ||||
| 11 | 6699100 | Set Screw (d) | € 1.26 | |
| Syringe | ||||
| 12 | 6699098 | Syringe | € 5.04 | |
| Primer Base | ||||
| 13 | 6699097 | Primer Base | € 33.82 | |
| Pump Gasket | ||||
| 14 | 6699096 | Pump Gasket | € 5.22 | |
| Épuisé | ||||
| 15 | 6699095 | Épuisé | ||
| Strainer | ||||
| 16 | 6699080 | Strainer | € 1.80 | |
| Guide Pin Roller | ||||
| 17 | 6699103 | Guide Pin Roller | € 3.06 | |
| Syringe Retainer | ||||
| 18 | 6699099 | Syringe Retainer | € 3.06 | |
| Set Screw (e) | ||||
| 19 | 6699101 | Set Screw (e) | € 1.26 | |
| Ball Plug Retainer | ||||
| 20 | 6699104 | Ball Plug Retainer | € 3.06 | |
| Adjusting Screw (main Mixture) | ||||
| 21 | 6699105 | Adjusting Screw (main Mixture) | € 9.90 | |
| Metering Lever Spring | ||||
| 22 | 6699083 | Metering Lever Spring | € 1.80 | |
| Broche | ||||
| 23 | 6699082 | Broche | € 1.26 | |
| Metering Diaphragm | ||||
| 24 | 6699091 | Metering Diaphragm | € 10.44 | |
| Metering Cover | ||||
| 25 | 6699093 | Metering Cover | € 7.38 | |
| Set Screw (c) | ||||
| 26 | 6699094 | Set Screw (c) | € 1.26 | |
| Post | ||||
| 27 | 6699089 | Post | € 7.20 | |
| Rotor Cover | ||||
| 28 | 6699086 | Rotor Cover | € 50.49 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 29 | 6699090 | Retaining Ring (e-type) For D2.5 Shaft | € 1.24 | |
| Joint Torique | ||||
| 30 | 6699102 | Joint Torique | € 6.30 | |
| Inlet Needle Valve | ||||
| 31 | 6699081 | Inlet Needle Valve | € 8.46 | |
| Set Screw (a) | ||||
| 32 | 6699085 | Set Screw (a) | € 1.24 | |
| Metering Lever | ||||
| 33 | 6699084 | Metering Lever | € 1.98 | |
| Metering Gasket | ||||
| 34 | 6699092 | Metering Gasket | € 5.22 | |
| Épuisé | ||||
| 35 | 6699078 | Épuisé | ||
| Moer M6 (10 Stuks) | ||||
| 36 | 949567 | Moer M6 (10 Stuks) | € 1.26 | |
| Carburetor Insulator | ||||
| 37 | 6698387 | Carburetor Insulator | € 3.78 | |
| Épuisé | ||||
| 38 | 6698605 | Épuisé | ||
| Bague | ||||
| 39 | 6698700 | Bague | € 1.44 | |
| Carbureteur Pakking | ||||
| 40 | 6698816 | Carbureteur Pakking | € 2.16 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 41 | 6698844 | Seal Lock Hex. Socket Bolt M5x25 (w/washers) | € 1.44 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 42 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 1.26 | |
| Cord | ||||
| 43 | 6699060 | Cord | € 1.24 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 | ||||
| 44 | 6698879 | Seal Lock Hex. Socket Hd. Bolt M4x12 | € 1.44 | |
| Cilinder Afdekkap | ||||
| 45 | 6698871 | Cilinder Afdekkap | € 5.04 | |
| Épuisé | ||||
| 46 | 6699180 | Épuisé | ||
| Plug Cap | ||||
| 47 | 6698548 | Plug Cap | € 2.52 | |
| Cord Insulation Tube | ||||
| 48 | 6699175 | Cord Insulation Tube | € 1.44 | |
| Bobine | ||||
| 49 | 6698602 | Bobine | € 47.85 | |
| Bougie Bmr7a | ||||
| 50A | 6699316 | Bougie Bmr7a | € 10.70 | |
| Bougie (oud 6685052) | ||||
| 50A | 6699322 | Bougie (oud 6685052) | € 2.97 | |
| Cylindre | ||||
| 51 | 6698597 | Cylindre | € 36.63 | |
| Cover Packing | ||||
| 52 | 6696534 | Cover Packing | € 1.26 | |
| Intake Cover (a) | ||||
| 53 | 6696535 | Intake Cover (a) | € 1.26 | |
| Seal Lock Screw M4x10 | ||||
| 54 | 6696835 | Seal Lock Screw M4x10 | € 1.44 | |
| Hitteschild | ||||
| 55 | 6698617 | Hitteschild | € 2.52 | |
| Uitlaat | ||||
| 56 | 6698733 | Uitlaat | € 36.63 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 57 | 949432 | Rondelle M.6 (x10) paquet de 10 | € 1.26 | |
| Épuisé | ||||
| 58 | 6696819 | Épuisé | ||
| Intake Cover (b) | ||||
| 59 | 6696536 | Intake Cover (b) | € 1.26 | |
| Zuiger Pin | ||||
| 60 | 6696944 | Zuiger Pin | € 3.99 | |
| Piston | ||||
| 61 | 6696531 | Piston | € 8.25 | |
| Épuisé | ||||
| 62 | 6698386 | Épuisé | ||
| Cylinder Packing | ||||
| 63 | 6696530 | Cylinder Packing | € 1.26 | |
| Zuiger Ring | ||||
| 64 | 6696532 | Zuiger Ring | € 2.52 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 65 | 6684590 | Piston Pin Circlip (old 039-00601-20) | € 2.58 | |
| Ecrou | ||||
| 66 | 6696879 | Ecrou | € 1.26 | |
| Ring D7 | ||||
| 67 | 6696880 | Ring D7 | € 1.26 | |
| Starter Pawl | ||||
| 68 | 6698603 | Starter Pawl | € 1.44 | |
| Ressort | ||||
| 69 | 6685335 | Ressort | € 1.26 | |
| Magneto Rotor | ||||
| 70 | 6698601 | Magneto Rotor | € 16.56 | |
| Retaining Ring D4 | ||||
| 71 | 6685336 | Retaining Ring D4 | € 1.26 | |
| Crank Case Ass'y (b) | ||||
| 72 | 6698872 | Crank Case Ass'y (b) | € 19.30 | |
| Olie Keerring | ||||
| 73 | 6684607 | Olie Keerring | € 5.14 | |
| Roulement à billes | ||||
| 74 | 6684608 | Roulement à billes | € 4.56 | |
| Shim | ||||
| 75 | 6696946 | Shim | € 2.01 | |
| Shim | ||||
| 76 | 6696945 | Shim | € 2.01 | |
| Krukas | ||||
| 77 | 6699043 | Krukas | € 38.12 | |
| Crank Case Ass'y (a) | ||||
| 78 | 6698729 | Crank Case Ass'y (a) | € 22.60 | |
| Crank Case Packing | ||||
| 79 | 6696539 | Crank Case Packing | € 1.26 | |
| Knock Pin 4x12 | ||||
| 80 | 6696947 | Knock Pin 4x12 | € 1.26 | |
| Clutch (b) | ||||
| 81 | 6699173 | Clutch (b) | € 9.00 | |
| Clutch Drum | ||||
| 82 | 6699040 | Clutch Drum | € 11.52 | |
| Roulement à billes | ||||
| 83 | 6698740 | Roulement à billes | € 5.04 | |
| Clips Pour Ø 15 (x10) paquet 10 | ||||
| 84 | 939544 | Clips Pour Ø 15 (x10) paquet 10 | € 2.55 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 85 | 6688643 | GREASE NIPPLE COMP. (OLD 300-32250-80) | € 1.38 | |
| Vis D5*20 (bm25y Vb13y) | ||||
| 86 | 302089 | Vis D5*20 (bm25y Vb13y) | € 1.26 | |
| Muffler Protector | ||||
| 87 | 6698876 | Muffler Protector | € 20.13 | |
| Épuisé | ||||
| 88 | 887021 | Épuisé | ||
| Hex. Hole Bolt 6x18/s (old 994-61060-184) | ||||
| 89 | 6695495 | Hex. Hole Bolt 6x18/s (old 994-61060-184) | € 1.38 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 90 | 6698988 | Hex. Socket Hd. Bolt M5x20 (w/button) | € 1.44 | |
| Fixation Plate (a) | ||||
| 91 | 6699047 | Fixation Plate (a) | € 1.24 | |
| Fixation Plate (b) | ||||
| 92 | 6699048 | Fixation Plate (b) | € 1.24 | |
| Tail Pipe | ||||
| 93 | 6699052 | Tail Pipe | € 3.42 | |
| Exhaust Cover | ||||
| 94 | 6699037 | Exhaust Cover | € 1.26 | |
| Tapping Screw D4.5x16 | ||||
| 96 | 6698878 | Tapping Screw D4.5x16 | € 1.44 | |
| Plate (old 795-04063-20) | ||||
| 97 | 6685189 | Plate (old 795-04063-20) | € 1.38 | |
| Starthendel | ||||
| 98 | 6693227 | Starthendel | € 3.96 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 99 | 6693168 | Starter Rope (old 783-06097-20/6693174) | € 2.78 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 100 | 6698988 | Hex. Socket Hd. Bolt M5x20 (w/button) | € 1.44 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 101A | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 13.86 | |
| Starter Rope Reel (old 774-0651h-20) | ||||
| 102 | 6693072 | Starter Rope Reel (old 774-0651h-20) | € 6.14 | |
| Damper Spring (old 758-01761-20) | ||||
| 103 | 6685183 | Damper Spring (old 758-01761-20) | € 5.34 | |
| CAM PLATE (OLD 759-0174M-20) | ||||
| 104 | 6685182 | CAM PLATE (OLD 759-0174M-20) | € 3.96 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 105 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.58 | |
| Recoil Starter Ass'y | ||||
| 106 | 6698622 | Recoil Starter Ass'y | € 29.70 | |
| Luchtkeerschot | ||||
| 107 | 6698624 | Luchtkeerschot | € 1.44 | |
| Tank Dop Compleet | ||||
| 108 | 6698402 | Tank Dop Compleet | € 5.04 | |
| Tank Cap Chain | ||||
| 109 | 6698732 | Tank Cap Chain | € 1.44 | |
| Fuel Grommet | ||||
| 110 | 6698931 | Fuel Grommet | € 4.14 | |
| Brandstofleiding | ||||
| 111 | 6698873 | Brandstofleiding | € 6.12 | |
| Épuisé | ||||
| 112 | 6698875 | Épuisé | ||
| Clip | ||||
| 114 | 6696949 | Clip | € 2.01 | |
| Pomp Filter | ||||
| 115 | 6698874 | Pomp Filter | € 14.40 | |
| Cushion Rubber | ||||
| 116 | 6698615 | Cushion Rubber | € 2.52 | |
| Resevoir | ||||
| 117 | 6698613 | Resevoir | € 6.84 | |
| Handle (old 6698748) | ||||
| 142 | 6699079 | Handle (old 6698748) | € 6.30 | |
| Seal Lock Hex. Socket Hd. Bolt M5x40 | ||||
| 143 | 6698885 | Seal Lock Hex. Socket Hd. Bolt M5x40 | € 2.16 | |
| Spring Washer M5 | ||||
| 144 | 6698884 | Spring Washer M5 | € 2.16 | |
| Brake Axis Washer | ||||
| 145 | 6698749 | Brake Axis Washer | € 1.44 | |
| Handle (a) | ||||
| 146 | 6698880 | Handle (a) | € 9.72 | |
| Spring (a) | ||||
| 148 | 6696348 | Spring (a) | € 1.26 | |
| Lock Lever | ||||
| 149 | 6699055 | Lock Lever | € 1.24 | |
| Regulateur | ||||
| 150 | 6699053 | Regulateur | € 1.24 | |
| Schakelaar Blokkering | ||||
| 151 | 6696344 | Schakelaar Blokkering | € 1.26 | |
| Throttle Lever Spring | ||||
| 152 | 6696345 | Throttle Lever Spring | € 1.26 | |
| Épuisé | ||||
| 153 | 6696940 | Épuisé | ||
| Handle (b) | ||||
| 154 | 6699051 | Handle (b) | € 4.32 | |
| Vis Ø 4*16 Noir | ||||
| 155 | 305812 | Vis Ø 4*16 Noir | € 1.24 | |
| Gaskabel | ||||
| 156 | 6698627 | Gaskabel | € 2.52 | |
| Protection Tube | ||||
| 157 | 6698738 | Protection Tube | € 1.44 | |
| Stop Switch Cord | ||||
| 158 | 6699058 | Stop Switch Cord | € 1.24 | |
| Stop Switch Cord | ||||
| 159 | 6699059 | Stop Switch Cord | € 1.44 | |
| Fixation Plate (b) | ||||
| 160 | 6699049 | Fixation Plate (b) | € 1.24 | |
| Nylon Nut M5 (old 991-78050-010) | ||||
| 161 | 305491 | Nylon Nut M5 (old 991-78050-010) | € 1.98 | |
| Ring 5 (oud 992-00050-011) | ||||
| 162 | 6684864 | Ring 5 (oud 992-00050-011) | € 2.58 | |
| SPACER | ||||
| 163 | 6699045 | SPACER | € 2.34 | |
| Hex. Socket Hd. Bolt M6x25 (w/button) | ||||
| 164 | 6699110 | Hex. Socket Hd. Bolt M6x25 (w/button) | € 1.98 | |
| U-nut M5 | ||||
| 165 | 6699108 | U-nut M5 | € 1.98 | |
| Rondelle | ||||
| 166 | 6699112 | Rondelle | € 1.24 | |
| Washer M7 | ||||
| 167 | 6699111 | Washer M7 | € 1.24 | |
| Shoulder Button Bolt M5x25 | ||||
| 168 | 6699109 | Shoulder Button Bolt M5x25 | € 1.98 | |
| Épuisé | ||||
| 169A | 6600411 | Épuisé | ||
| Blade Case (a) | ||||
| 170 | 6698731 | Blade Case (a) | € 5.04 | |
| Handle Bracket | ||||
| 171 | 6699041 | Handle Bracket | € 1.80 | |
| Clip | ||||
| 172 | 6696359 | Clip | € 1.26 | |
| Bague | ||||
| 173 | 6685407 | Bague | € 1.26 | |
| Seal Lock Hex. Socket Bolt M (w/washers) | ||||
| 174 | 6699044 | Seal Lock Hex. Socket Bolt M (w/washers) | € 1.24 | |
| Gear Case (a) | ||||
| 175 | 6699057 | Gear Case (a) | € 43.89 | |
| Geleidingsplaat (c) | ||||
| 176 | 6699035 | Geleidingsplaat (c) | € 1.24 | |
| Pignon | ||||
| 177 | 6699038 | Pignon | € 18.64 | |
| GELEIDINGSPLAAT (A) | ||||
| 178 | 6699034 | GELEIDINGSPLAAT (A) | € 1.24 | |
| FELT PACKING (A) | ||||
| 179 | 6699046 | FELT PACKING (A) | € 1.24 | |
| Gear Case Packing | ||||
| 180 | 6699042 | Gear Case Packing | € 1.24 | |
| Gear Case Cover | ||||
| 181 | 6699050 | Gear Case Cover | € 3.78 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 182 | 6699176 | Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | € 1.24 | |
| GELEIDINGSPLAAT | ||||
| 184 | 6600009 | GELEIDINGSPLAAT | € 9.72 | |
| Hedge Trimmer Blade (a) | ||||
| 185 | 6600010 | Hedge Trimmer Blade (a) | € 20.96 | |
| Hedge Trimmer Blade (b) | ||||
| 186 | 6600011 | Hedge Trimmer Blade (b) | € 20.96 | |
| Mes Geleidingsplaat | ||||
| 187 | 6600359 | Mes Geleidingsplaat | € 4.50 | |
| Support Plate | ||||
| 188 | 6600417 | Support Plate | € 1.24 | |
| Épuisé | ||||
| 501 | 6698756 | Épuisé | ||
Votre panier contient 0 de produits.
