Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CH22EB2'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

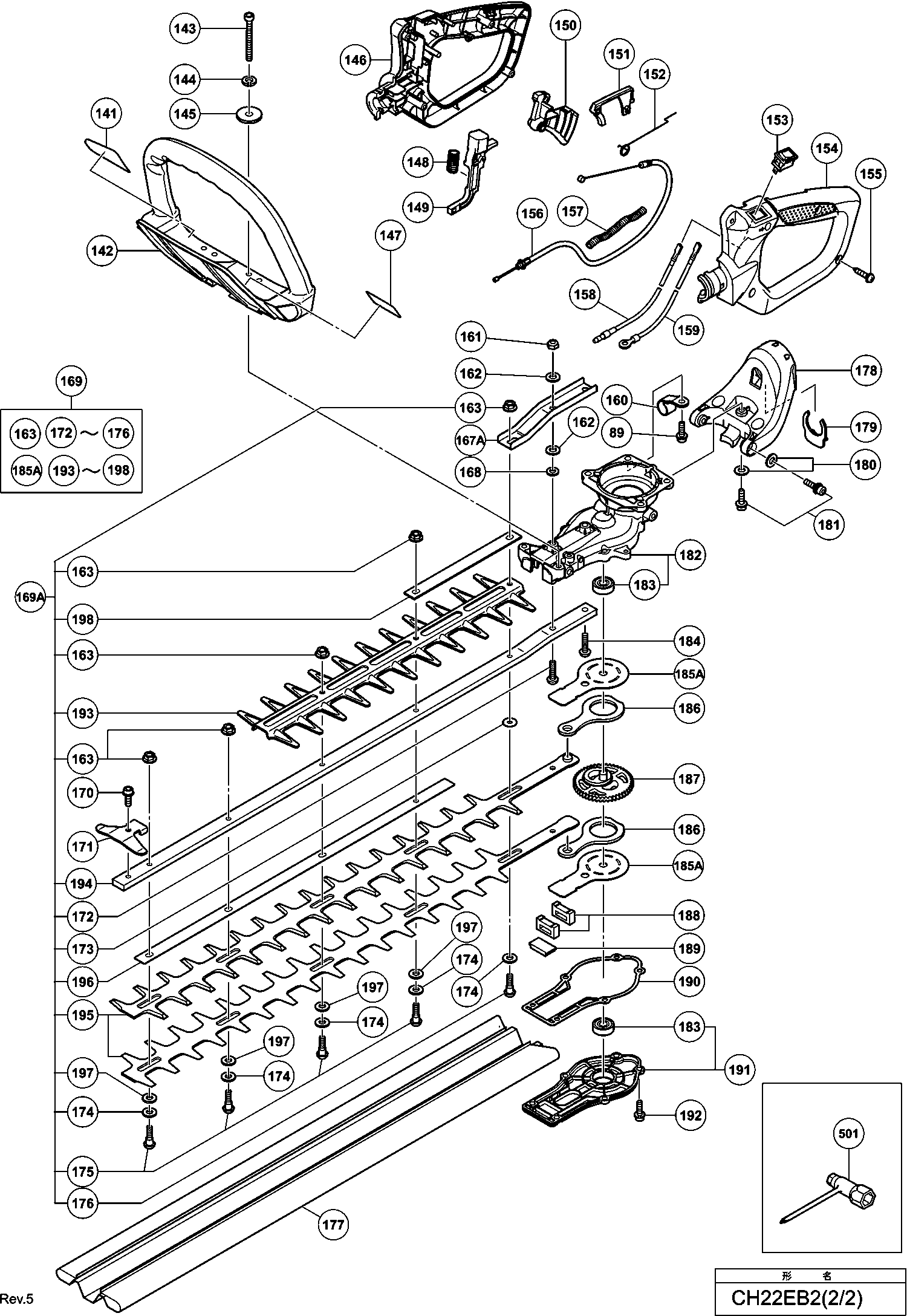

Dessins des Hikoki CH22EB2
Liste de pièces de rechange des Hikoki CH22EB2
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Cover Fixing Bolt Comp. | ||||
| 1 | 6698730@1417 | 3.15 | 3.78 | |
| Luchtfilterkap | ||||
| 2 | 6698609@1417 | 2.10 | 2.52 | |
| Reinigingsspons | ||||
| 3 | 6690365@1417 | 1.15 | 1.38 | |
| Choke Valve | ||||
| 4 | 6698608@1417 | 1.20 | 1.44 | |
| Vis M.5*60 | ||||
| 5 | 307224@1417 | 1.05 | 1.26 | |
| Cleaner Body | ||||
| 6 | 6698606@1417 | 2.10 | 2.52 | |
| Choke Handle | ||||
| 7 | 6698607@1417 | 1.20 | 1.44 | |
| Pas d'informations disponibles, non commandable | ||||
| 8 | 309470@1417 | |||
| Throttle Adjust Screw | ||||
| 9 | 6699087@1417 | 7.80 | 9.36 | |
| Set Screw (b) | ||||
| 10 | 6699088@1417 | 1.04 | 1.24 | |
| Set Screw (d) | ||||
| 11 | 6699100@1417 | 1.05 | 1.26 | |
| Syringe | ||||
| 12 | 6699098@1417 | 4.20 | 5.04 | |
| Primer Base | ||||
| 13 | 6699097@1417 | 28.19 | 33.82 | |
| Pump Gasket | ||||
| 14 | 6699096@1417 | 4.35 | 5.22 | |
| Pas d'informations disponibles, non commandable | ||||
| 15 | 6699095@1417 | |||
| Strainer | ||||
| 16 | 6699080@1417 | 1.50 | 1.80 | |
| Guide Pin Roller | ||||
| 17 | 6699103@1417 | 2.55 | 3.06 | |
| Syringe Retainer | ||||
| 18 | 6699099@1417 | 2.55 | 3.06 | |
| Set Screw (e) | ||||
| 19 | 6699101@1417 | 1.05 | 1.26 | |
| Ball Plug Retainer | ||||
| 20 | 6699104@1417 | 2.55 | 3.06 | |
| Adjusting Screw (main Mixture) | ||||
| 21 | 6699105@1417 | 8.25 | 9.90 | |
| Metering Lever Spring | ||||
| 22 | 6699083@1417 | 1.50 | 1.80 | |
| Broche | ||||
| 23 | 6699082@1417 | 1.05 | 1.26 | |
| Metering Diaphragm | ||||
| 24 | 6699091@1417 | 8.70 | 10.44 | |
| Metering Cover | ||||
| 25 | 6699093@1417 | 6.15 | 7.38 | |
| Set Screw (c) | ||||
| 26 | 6699094@1417 | 1.05 | 1.26 | |
| Post | ||||
| 27 | 6699089@1417 | 6.00 | 7.20 | |
| Rotor Cover | ||||
| 28 | 6699086@1417 | 42.08 | 50.49 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 29 | 6699090@1417 | 1.04 | 1.24 | |
| Joint Torique | ||||
| 30 | 6699102@1417 | 5.25 | 6.30 | |
| Inlet Needle Valve | ||||
| 31 | 6699081@1417 | 7.05 | 8.46 | |
| Set Screw (a) | ||||
| 32 | 6699085@1417 | 1.04 | 1.24 | |
| Metering Lever | ||||
| 33 | 6699084@1417 | 1.65 | 1.98 | |
| Metering Gasket | ||||
| 34 | 6699092@1417 | 4.35 | 5.22 | |
| Pas d'informations disponibles, non commandable | ||||
| 35 | 6699078@1417 | |||
| Moer M6 (10 Stuks) | ||||
| 36 | 949567@1417 | 1.05 | 1.26 | |
| Carburetor Insulator | ||||
| 37 | 6698387@1417 | 3.15 | 3.78 | |
| Intake Packing (a) (old 6698605) | ||||
| 38A | 6600456@1417 | 1.65 | 1.98 | |
| Bague | ||||
| 39 | 6698700@1417 | 1.20 | 1.44 | |
| Carbureteur Pakking | ||||
| 40 | 6698816@1417 | 1.80 | 2.16 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 41 | 6698844@1417 | 1.20 | 1.44 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 42 | 6698388@1417 | 1.05 | 1.26 | |
| Cord | ||||
| 43 | 6699060@1417 | 1.04 | 1.24 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 | ||||
| 44 | 6698879@1417 | 1.20 | 1.44 | |
| Cilinder Afdekkap | ||||
| 45 | 6698871@1417 | 4.20 | 5.04 | |
| Pas d'informations disponibles, non commandable | ||||
| 46 | 6699180@1417 | |||
| Plug Cap | ||||
| 47 | 6698548@1417 | 2.10 | 2.52 | |
| Cord Insulation Tube | ||||
| 48 | 6699175@1417 | 1.20 | 1.44 | |
| Bobine | ||||
| 49 | 6698602@1417 | 39.88 | 47.85 | |
| Bougie Bmr7a | ||||
| 50A | 6699316@1417 | 8.91 | 10.70 | |
| Bougie (oud 6685052) | ||||
| 50A | 6699322@1417 | 2.48 | 2.97 | |
| Cylindre | ||||
| 51 | 6698597@1417 | 30.53 | 36.63 | |
| Cover Packing | ||||
| 52 | 6696534@1417 | 1.05 | 1.26 | |
| Intake Cover (a) | ||||
| 53 | 6696535@1417 | 1.05 | 1.26 | |
| Seal Lock Screw M4x10 | ||||
| 54 | 6696835@1417 | 1.20 | 1.44 | |
| Hitteschild | ||||
| 55 | 6698617@1417 | 2.10 | 2.52 | |
| Uitlaat | ||||
| 56 | 6698734@1417 | 7.35 | 8.82 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 57 | 949432@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 58 | 6696819@1417 | |||
| Intake Cover (b) | ||||
| 59 | 6696536@1417 | 1.05 | 1.26 | |
| Zuiger Pin | ||||
| 60 | 6696944@1417 | 3.33 | 3.99 | |
| Piston | ||||
| 61 | 6696531@1417 | 6.88 | 8.25 | |
| Pas d'informations disponibles, non commandable | ||||
| 62 | 6698386@1417 | |||
| Cylinder Packing | ||||
| 63 | 6696530@1417 | 1.05 | 1.26 | |
| Zuiger Ring | ||||
| 64 | 6696532@1417 | 2.10 | 2.52 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 65 | 6684590@1417 | 2.15 | 2.58 | |
| Ecrou | ||||
| 66 | 6696879@1417 | 1.05 | 1.26 | |
| Ring D7 | ||||
| 67 | 6696880@1417 | 1.05 | 1.26 | |
| Starter Pawl | ||||
| 68 | 6698603@1417 | 1.20 | 1.44 | |
| Ressort | ||||
| 69 | 6685335@1417 | 1.05 | 1.26 | |
| Magneto Rotor | ||||
| 70 | 6698601@1417 | 13.80 | 16.56 | |
| Retaining Ring D4 | ||||
| 71 | 6685336@1417 | 1.05 | 1.26 | |
| Crank Case Ass'y (b) | ||||
| 72 | 6698872@1417 | 16.09 | 19.30 | |
| Olie Keerring | ||||
| 73 | 6684607@1417 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 74 | 6684608@1417 | 3.80 | 4.56 | |
| Shim | ||||
| 75 | 6696946@1417 | 1.68 | 2.01 | |
| Shim | ||||
| 76 | 6696945@1417 | 1.68 | 2.01 | |
| Krukas | ||||
| 77 | 6699043@1417 | 31.76 | 38.12 | |
| Crank Case Ass'y (a) | ||||
| 78 | 6698729@1417 | 18.84 | 22.60 | |
| Crank Case Packing | ||||
| 79 | 6696539@1417 | 1.05 | 1.26 | |
| Knock Pin 4x12 | ||||
| 80 | 6696947@1417 | 1.05 | 1.26 | |
| Clutch (b) | ||||
| 81 | 6699173@1417 | 7.50 | 9.00 | |
| Clutch Drum | ||||
| 82 | 6699040@1417 | 9.60 | 11.52 | |
| Roulement à billes | ||||
| 83 | 6698740@1417 | 4.20 | 5.04 | |
| Clips Pour Ø 15 (x10) paquet 10 | ||||
| 84 | 939544@1417 | 2.13 | 2.55 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 85 | 6688643@1417 | 1.15 | 1.38 | |
| Vis D5*20 (bm25y Vb13y) | ||||
| 86 | 302089@1417 | 1.05 | 1.26 | |
| Muffler Protector | ||||
| 87 | 6699174@1417 | 5.70 | 6.84 | |
| Pas d'informations disponibles, non commandable | ||||
| 88 | 887021@1417 | |||
| Hex. Hole Bolt 6x18/s (old 994-61060-184) | ||||
| 89 | 6695495@1417 | 1.15 | 1.38 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 90 | 6698988@1417 | 1.20 | 1.44 | |
| Fixation Plate (a) | ||||
| 91 | 6699047@1417 | 1.04 | 1.24 | |
| Fixation Plate (b) | ||||
| 92 | 6699048@1417 | 1.04 | 1.24 | |
| Plus disponible, pas de remplacement | ||||
| 93 | 6699052@1417 | |||
| Exhaust Cover | ||||
| 94 | 6699037@1417 | 1.05 | 1.26 | |
| Tapping Screw D4.5x16 | ||||
| 96 | 6698878@1417 | 1.20 | 1.44 | |
| Plate (old 795-04063-20) | ||||
| 97 | 6685189@1417 | 1.15 | 1.38 | |
| Starthendel | ||||
| 98 | 6693227@1417 | 3.30 | 3.96 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 99 | 6693168@1417 | 2.31 | 2.78 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 100 | 6698988@1417 | 1.20 | 1.44 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 101A | 6684675@1417 | 11.55 | 13.86 | |
| Starter Rope Reel (old 774-0651h-20) | ||||
| 102 | 6693072@1417 | 5.11 | 6.14 | |
| Damper Spring (old 758-01761-20) | ||||
| 103 | 6685183@1417 | 4.45 | 5.34 | |
| CAM PLATE (OLD 759-0174M-20) | ||||
| 104 | 6685182@1417 | 3.30 | 3.96 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 105 | 6684679@1417 | 2.15 | 2.58 | |
| Recoil Starter Ass'y | ||||
| 106 | 6698622@1417 | 24.75 | 29.70 | |
| Luchtkeerschot | ||||
| 107 | 6698624@1417 | 1.20 | 1.44 | |
| Tank Dop Compleet | ||||
| 108 | 6698402@1417 | 4.20 | 5.04 | |
| Tank Cap Chain | ||||
| 109 | 6698732@1417 | 1.20 | 1.44 | |
| Fuel Grommet | ||||
| 110 | 6698931@1417 | 3.45 | 4.14 | |
| Brandstofleiding | ||||
| 111 | 6698873@1417 | 5.10 | 6.12 | |
| Pas d'informations disponibles, non commandable | ||||
| 112 | 6698875@1417 | |||
| Clip | ||||
| 114 | 6696949@1417 | 1.68 | 2.01 | |
| Pomp Filter | ||||
| 115 | 6698874@1417 | 12.00 | 14.40 | |
| Cushion Rubber | ||||
| 116 | 6698615@1417 | 2.10 | 2.52 | |
| Resevoir | ||||
| 117 | 6698613@1417 | 5.70 | 6.84 | |
| Handle (old 6698748) | ||||
| 142 | 6699079@1417 | 5.25 | 6.30 | |
| Seal Lock Hex. Socket Hd. Bolt M5x40 | ||||
| 143 | 6698885@1417 | 1.80 | 2.16 | |
| Spring Washer M5 | ||||
| 144 | 6698884@1417 | 1.80 | 2.16 | |
| Brake Axis Washer | ||||
| 145 | 6698749@1417 | 1.20 | 1.44 | |
| Handle (a) | ||||
| 146 | 6698880@1417 | 8.10 | 9.72 | |
| Spring (a) | ||||
| 148 | 6696348@1417 | 1.05 | 1.26 | |
| Lock Lever | ||||
| 149 | 6699055@1417 | 1.04 | 1.24 | |
| Regulateur | ||||
| 150 | 6699053@1417 | 1.04 | 1.24 | |
| Schakelaar Blokkering | ||||
| 151 | 6696344@1417 | 1.05 | 1.26 | |
| Throttle Lever Spring | ||||
| 152 | 6696345@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 153 | 6696940@1417 | |||
| Handle (b) | ||||
| 154 | 6699051@1417 | 3.60 | 4.32 | |
| Vis Ø 4*16 Noir | ||||
| 155 | 305812@1417 | 1.04 | 1.24 | |
| Gaskabel | ||||
| 156 | 6698627@1417 | 2.10 | 2.52 | |
| Protection Tube | ||||
| 157 | 6698738@1417 | 1.20 | 1.44 | |
| Stop Switch Cord | ||||
| 158 | 6699058@1417 | 1.04 | 1.24 | |
| Stop Switch Cord | ||||
| 159 | 6699059@1417 | 1.20 | 1.44 | |
| Fixation Plate (b) | ||||
| 160 | 6699049@1417 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 161 | 6698766@1417 | |||
| Bague | ||||
| 162 | 6684639@1417 | 2.15 | 2.58 | |
| U-nut M5 | ||||
| 163 | 6699108@1417 | 1.65 | 1.98 | |
| Support Plate | ||||
| 167A | 6699064@1417 | 1.04 | 1.24 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 168 | 949432@1417 | 1.05 | 1.26 | |
| Blade Ass'y 620mm (old 6699061) | ||||
| 169A | 6600398@1417 | 65.86 | 79.04 | |
| Blade Ass'y 620mm | ||||
| 169B | 6600451@1417 | 65.86 | 79.04 | |
| Hex. Socket Hd. Bolt M5x8 (w/flange) | ||||
| 170 | 6699065@1417 | 1.04 | 1.24 | |
| Guard Plate | ||||
| 171 | 6699062@1417 | 1.04 | 1.24 | |
| Hex. Socket Hd. Bolt M6x25 (w/button) | ||||
| 172 | 6699113@1417 | 1.65 | 1.98 | |
| Rondelle | ||||
| 173 | 6699114@1417 | 1.04 | 1.24 | |
| Washer M7 | ||||
| 174 | 6699111@1417 | 1.04 | 1.24 | |
| Shoulder Button Bolt M5x25 | ||||
| 175 | 6699109@1417 | 1.65 | 1.98 | |
| Shoulder Button Bolt M5x31 | ||||
| 176 | 6699179@1417 | 2.10 | 2.52 | |
| Blade Case (for 620mm) | ||||
| 177 | 6698948@1417 | 4.20 | 5.04 | |
| Handle Bracket | ||||
| 178 | 6699041@1417 | 1.50 | 1.80 | |
| Clip | ||||
| 179 | 6696359@1417 | 1.05 | 1.26 | |
| Bague | ||||
| 180 | 6685407@1417 | 1.05 | 1.26 | |
| Seal Lock Hex. Socket Bolt M (w/washers) | ||||
| 181 | 6699044@1417 | 1.04 | 1.24 | |
| Tandwielkast (a) | ||||
| 182 | 6699070@1417 | 37.54 | 45.04 | |
| Pas d'informations disponibles, non commandable | ||||
| 183 | 6698772@1417 | |||
| Hex. Socket Hd. Bolt M6x25 (w/button) | ||||
| 184 | 6699113@1417 | 1.65 | 1.98 | |
| Guide Plate (b) (old 6699063) | ||||
| 185A | 6600418@1417 | 1.20 | 1.44 | |
| Cam Rod | ||||
| 186 | 6698987@1417 | 2.10 | 2.52 | |
| Pignon | ||||
| 187 | 6699066@1417 | 17.05 | 20.46 | |
| Felt Packing (b) | ||||
| 188 | 6699068@1417 | 1.04 | 1.24 | |
| Felt Packing (c) | ||||
| 189 | 6699067@1417 | 1.04 | 1.24 | |
| Gear Case Packing | ||||
| 190 | 6699042@1417 | 1.04 | 1.24 | |
| Tandwielkast (b) | ||||
| 191 | 6699071@1417 | 10.50 | 12.60 | |
| Hex. Socket Hd. Bolt M5x14 (w/sp.washer) | ||||
| 192 | 6699069@1417 | 1.04 | 1.24 | |
| Lower Plate | ||||
| 193 | 6600013@1417 | 10.05 | 12.06 | |
| Geleidingsplaat 620mm | ||||
| 194 | 6600012@1417 | 9.45 | 11.34 | |
| Hedge Trimmer Blade (c) 620 Mm | ||||
| 195 | 6600014@1417 | 22.83 | 27.39 | |
| Hedge Trimmer Blade (c) 620 Mm | ||||
| 195A | 6600452@1417 | 22.83 | 27.39 | |
| Mes Geleidingsplaat 620 Mm | ||||
| 196 | 6600360@1417 | 4.35 | 5.22 | |
| Rondelle | ||||
| 197 | 6699112@1417 | 1.04 | 1.24 | |
| Geleidingsplaat | ||||
| 198 | 6600362@1417 | 2.10 | 2.52 | |
| Pas d'informations disponibles, non commandable | ||||
| 501 | 6698756@1417 | |||
