Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CH55EB3'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

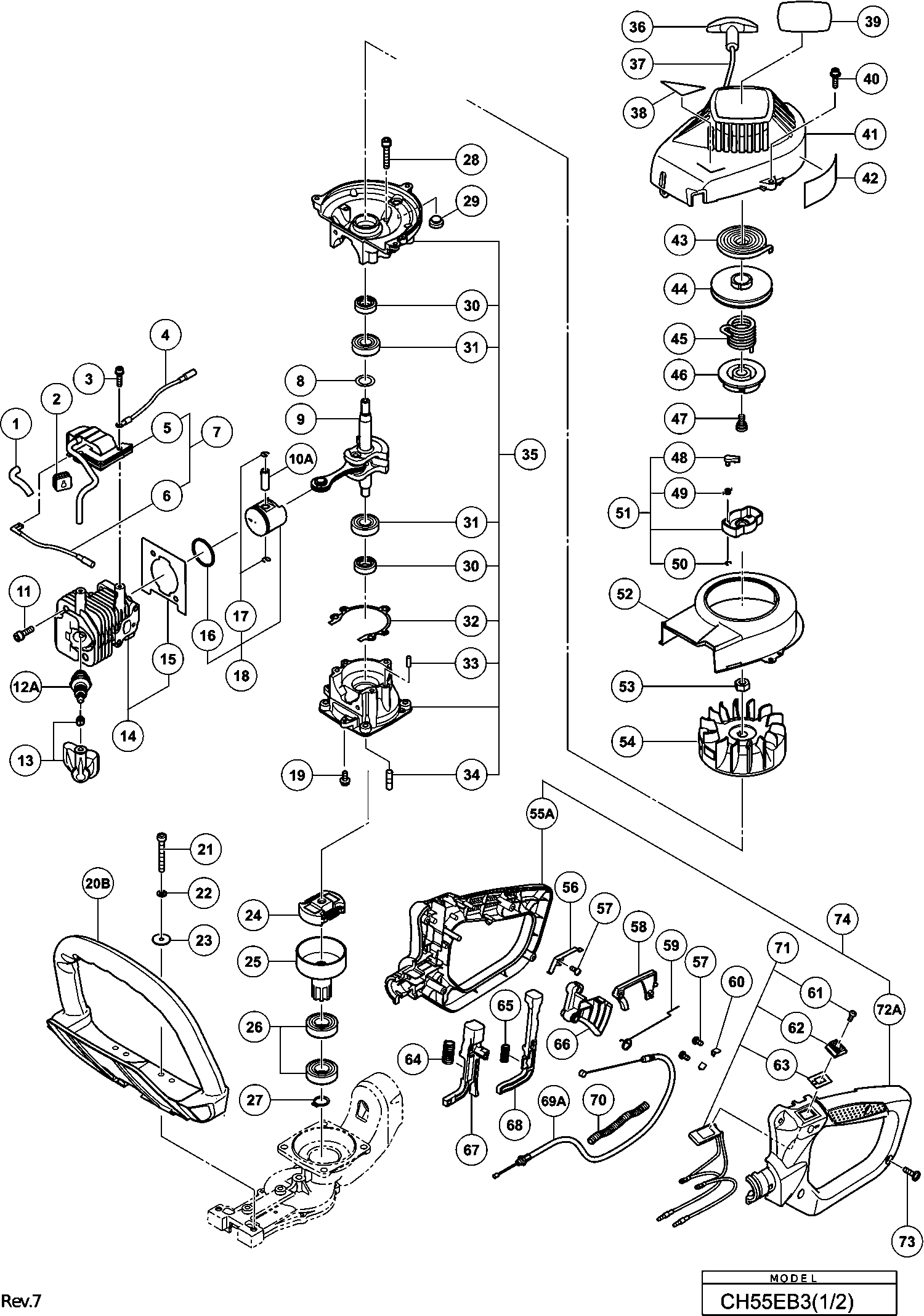

Dessins des Hikoki CH55EB3
Liste de pièces de rechange des Hikoki CH55EB3
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Insulator Tube 50l (old 250-06500-20) | ||||
| 1 | 6684597@1417 | 2.15 | 2.58 | |
| Grommet (old 203-0604a-20) | ||||
| 2 | 6688050@1417 | 1.15 | 1.38 | |
| Vis Ø4x18 Till H124040 | ||||
| 3 | 6684599@1417 | 2.15 | 2.58 | |
| Cord (old 274-51705-80) | ||||
| 4 | 6688477@1417 | 2.31 | 2.78 | |
| Cord 200m (old 178-51705-80) | ||||
| 6 | 6687918@1417 | 3.30 | 3.96 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 8 | 6684604@1417 | 2.15 | 2.58 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 8 | 6684605@1417 | 2.15 | 2.58 | |
| Crank Shaft Comp (old 046-06621-80) | ||||
| 9 | 6686208@1417 | 40.24 | 48.28 | |
| Zuiger Pin | ||||
| 10A | 6696944@1417 | 3.33 | 3.99 | |
| Vis Ø5x18 | ||||
| 11 | 6684586@1417 | 2.15 | 2.58 | |
| Bougie (oud 6685086) | ||||
| 12A | 6699319@1417 | 8.91 | 10.70 | |
| Spark Plug Cap Ass'y (old 157-06500-91) | ||||
| 13 | 6687476@1417 | 4.45 | 5.34 | |
| Cylinder Set (old 001-0650a-90) | ||||
| 14 | 6685480@1417 | 40.24 | 48.28 | |
| Cylinder Gasket (old 017-06500-20) | ||||
| 15 | 6685744@1417 | 1.15 | 1.38 | |
| Piston Ring (old 041-00601-21/ 6686117) | ||||
| 16 | 6686118@1417 | 4.45 | 5.34 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 17 | 6684590@1417 | 2.15 | 2.58 | |
| Piston Set (old 030-00070-90) | ||||
| 18 | 6685869@1417 | 15.58 | 18.69 | |
| Bolt 4x12ps (old 994-25040-128) | ||||
| 19 | 6695441@1417 | 1.15 | 1.38 | |
| Handle (old 6698748) | ||||
| 20B | 6699079@1417 | 5.25 | 6.30 | |
| Hex. Hole Bolt 5x40 (old 990-51050-403) | ||||
| 21 | 6695054@1417 | 1.15 | 1.38 | |
| Rondelle D.5 | ||||
| 22 | 6684834@1417 | 2.15 | 2.58 | |
| Bague | ||||
| 23 | 6689680@1417 | 1.15 | 1.38 | |
| Slipkoppeling Kompleet | ||||
| 24 | 6688494@1417 | 9.74 | 11.68 | |
| Clutch Drum Comp. (old 288-33180-80) | ||||
| 25 | 6688570@1417 | 17.70 | 21.24 | |
| Roulement à billes | ||||
| 26 | 6695538@1417 | 6.60 | 7.92 | |
| Stop Ring C-15, Outer (old 993-50015-002) | ||||
| 27 | 6695285@1417 | 1.15 | 1.38 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 28 | 6684786@1417 | 2.15 | 2.58 | |
| Caoutchouc anti-vibrateur | ||||
| 29 | 6691822@1417 | 1.15 | 1.38 | |
| Olie Keerring | ||||
| 30 | 6684607@1417 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 31 | 6684608@1417 | 3.80 | 4.56 | |
| Crank Case Gasket (old 090-06500-20) | ||||
| 32 | 6686720@1417 | 1.15 | 1.38 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 33 | 6695521@1417 | 1.15 | 1.38 | |
| Stud Bolt 6x22 (old 100-02100-20) | ||||
| 34 | 6686771@1417 | 1.15 | 1.38 | |
| Crank Case Ass'y (old 072-06500-90) | ||||
| 35 | 6686574@1417 | 42.20 | 50.64 | |
| Starthendel | ||||
| 36 | 6693237@1417 | 1.15 | 1.38 | |
| Rope 3x890 (old 783-0651h-20) | ||||
| 37 | 6693172@1417 | 2.31 | 2.78 | |
| Hex.hole Bolt 4x18ps (old 994-63040-184) | ||||
| 40 | 6695502@1417 | 1.15 | 1.38 | |
| Enveloppe De Ventilateur | ||||
| 41 | 6687014@1417 | 16.94 | 20.32 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 43 | 6684675@1417 | 11.55 | 13.86 | |
| Starter Rope Reel (old 774-0651h-20) | ||||
| 44 | 6693072@1417 | 5.11 | 6.14 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 45 | 6684677@1417 | 8.58 | 10.29 | |
| Cam Plate (old 759-0651h-20) | ||||
| 46 | 6684678@1417 | 6.44 | 7.72 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 47 | 6684679@1417 | 2.15 | 2.58 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 48 | 6684685@1417 | 4.29 | 5.14 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 49 | 6684684@1417 | 4.29 | 5.14 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 50 | 6684683@1417 | 2.15 | 2.58 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 50 | 6685101@1417 | 1.15 | 1.38 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 51 | 6684681@1417 | 13.20 | 15.84 | |
| Deflector (old 132-06602-20) | ||||
| 52 | 6687209@1417 | 6.44 | 7.72 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 53 | 6684612@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 54 | 6687396@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 55A | 6698868@1417 | |||
| Earth Terminal | ||||
| 56 | 6696350@1417 | 1.05 | 1.26 | |
| Tapschroef D3 | ||||
| 57 | 696352@1417 | 1.13 | 1.35 | |
| Schakelaar Blokkering | ||||
| 58 | 6696344@1417 | 1.05 | 1.26 | |
| Throttle Lever Spring | ||||
| 59 | 6696345@1417 | 1.05 | 1.26 | |
| Tab Terminal | ||||
| 60 | 6696355@1417 | 1.05 | 1.26 | |
| Screw 3x10 (old 994-31030-101) | ||||
| 61 | 6684913@1417 | 2.15 | 2.58 | |
| Button Stop (old 258-11650-20) | ||||
| 62 | 6688366@1417 | 1.15 | 1.38 | |
| Stop Button Mark (old 925-33160-20) | ||||
| 63 | 6694588@1417 | 1.15 | 1.38 | |
| Spring (a) | ||||
| 64 | 6696348@1417 | 1.05 | 1.26 | |
| Spring (b) | ||||
| 65 | 6696349@1417 | 1.05 | 1.26 | |
| Regulateur | ||||
| 66 | 6696343@1417 | 1.05 | 1.26 | |
| Lock Lever | ||||
| 67 | 6696346@1417 | 1.05 | 1.26 | |
| Release Lever | ||||
| 68 | 6696347@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 69A | 6698827@1417 | |||
| Protection Tube 130l (old 164-07013-01) | ||||
| 70 | 6687521@1417 | 1.15 | 1.38 | |
| Stop Switch Ass'y (a) | ||||
| 71 | 6696354@1417 | 14.19 | 17.02 | |
| Handle (b) | ||||
| 72A | 6698869@1417 | 4.65 | 5.58 | |
| Vis Ø 4*16 Noir | ||||
| 73 | 305812@1417 | 1.04 | 1.24 | |
| Plus disponible, pas de remplacement | ||||
| 74 | 6698870@1417 | |||
| Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
| 91 | 6684636@1417 | 2.15 | 2.58 | |
| Muffler Protector (old 738-06500-20) | ||||
| 92 | 6692795@1417 | 6.93 | 8.31 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 93 | 6685114@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 94 | 6684661@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 95 | 6692481@1417 | |||
| Warmteschild | ||||
| 96 | 6687252@1417 | 2.31 | 2.78 | |
| Muffler Gasket (old 737-06500-20) | ||||
| 97 | 6692744@1417 | 1.15 | 1.38 | |
| Intake Pipe Gasket (old 403-06500-20) | ||||
| 98 | 6689891@1417 | 1.15 | 1.38 | |
| Carb. Insulator Set,spare (old 404-06500-90) | ||||
| 99 | 6689966@1417 | 6.93 | 8.31 | |
| Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | ||||
| 100 | 6695515@1417 | 1.15 | 1.38 | |
| Carburetor Gasket (old 402-06500-20) | ||||
| 101 | 6689839@1417 | 1.15 | 1.38 | |
| Throttle Wire Fixing Plate (old 878-06620-20) | ||||
| 102 | 6684629@1417 | 4.29 | 5.14 | |
| CARBURETOR GASKET (OLD 402-0602K-21/6689836) | ||||
| 103 | 6684615@1417 | 2.15 | 2.58 | |
| Carburateurset | ||||
| 104 | 6690487@1417 | 72.30 | 86.76 | |
| Pas d'informations disponibles, non commandable | ||||
| 105 | 6684628@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 106 | 6695670@1417 | |||
| Cleaner Body Comp. (old 423-06500-81/6690118) For | ||||
| 107 | 6690119@1417 | 4.45 | 5.34 | |
| Cleaner Body Comp. (old 423-06641-80) | ||||
| 107 | 6690122@1417 | 4.45 | 5.34 | |
| Collar 7.5 (old 470-06500-20) | ||||
| 108 | 6690804@1417 | 1.15 | 1.38 | |
| Choke Valve (old 528-06500-20) | ||||
| 109 | 6691272@1417 | 2.31 | 2.78 | |
| Choke Valve (old 528-0650t-20) | ||||
| 109 | 6691274@1417 | 2.31 | 2.78 | |
| Pas d'informations disponibles, non commandable | ||||
| 110 | 6684658@1417 | |||
| Blow Over Check Board (old 476-01700-20/790189) | ||||
| 111 | 6690843@1417 | 1.15 | 1.38 | |
| Ring (oud 992-10050-012) | ||||
| 112 | 6684662@1417 | 2.15 | 2.58 | |
| Screw M5x60 (oud 990-11050-602) | ||||
| 113 | 6684660@1417 | 2.15 | 2.58 | |
| Reinigingsspons | ||||
| 114 | 6690364@1417 | 1.15 | 1.38 | |
| Luchtfilterkap | ||||
| 115 | 6690415@1417 | 5.28 | 6.33 | |
| Special Screw (old 380-0637c-20) | ||||
| 116 | 6689737@1417 | 1.15 | 1.38 | |
| Swivel (oud 539-25120-20) | ||||
| 117 | 6684697@1417 | 6.44 | 7.72 | |
| Stop Ring (oud 489-25100-20) | ||||
| 118 | 6684696@1417 | 2.15 | 2.58 | |
| O-RING (OUD 550-25100-20) | ||||
| 119 | 6684695@1417 | 4.29 | 5.14 | |
| Main Jet #34.5 (old 599-200bw-34) | ||||
| 120 | 6691888@1417 | 6.28 | 7.53 | |
| Main Jet #40 (old 599-2000w-40) | ||||
| 120 | 6691845@1417 | 4.45 | 5.34 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 121 | 6684700@1417 | 4.29 | 5.14 | |
| Pump Body Comp. (old 575-25147-80/6691428) | ||||
| 122 | 6691430@1417 | 36.15 | 43.38 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 123 | 6685222@1417 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 124 | 6691312@1417 | 1.15 | 1.38 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 125 | 6684698@1417 | 4.29 | 5.14 | |
| Throttle Valve Comp. (old 488-25145-80) | ||||
| 126 | 6684883@1417 | 18.75 | 22.50 | |
| Pump Gasket (old 577-25100-20) | ||||
| 127 | 6691457@1417 | 7.10 | 8.52 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 128 | 6684693@1417 | 8.58 | 10.29 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 129 | 6685220@1417 | 2.31 | 2.78 | |
| Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
| 130 | 6690827@1417 | 11.71 | 14.06 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 131 | 6685139@1417 | 5.94 | 7.12 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 132 | 6692347@1417 | 1.15 | 1.38 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 133 | 6692244@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt 5x18ps (old 994-63050-185) | ||||
| 134 | 6695505@1417 | 1.15 | 1.38 | |
| Resevoir | ||||
| 135 | 6696360@1417 | 4.05 | 4.86 | |
| NMLB | ||||
| 135 | 6696361@1417 | 4.05 | 4.86 | |
| Air Vent Ass'y (old 564-06611-90) | ||||
| 136 | 6691389@1417 | 10.23 | 12.27 | |
| Air Vent Valve Ass'y (old 646-06612-90) | ||||
| 138 | 6692171@1417 | 4.95 | 5.94 | |
| Pas d'informations disponibles, non commandable | ||||
| 139 | 6684625@1417 | |||
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 140 | 6691763@1417 | 7.59 | 9.10 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 141 | 6692347@1417 | 1.15 | 1.38 | |
| Return Grommet (old 6684627) | ||||
| 142A | 6697846@1417 | 1.04 | 1.24 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 143 | 6688643@1417 | 1.15 | 1.38 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 144 | 6684619@1417 | 2.15 | 2.58 | |
| Pomp Filter | ||||
| 145A | 6698874@1417 | 12.00 | 14.40 | |
| Brandstofleiding | ||||
| 146A | 6698715@1417 | 9.75 | 11.70 | |
| Cutter Cover (old 138-33168-20) | ||||
| 147 | 6687301@1417 | 8.41 | 10.10 | |
| Guard Plate (old 135-33191-20) | ||||
| 148 | 6687275@1417 | 2.31 | 2.78 | |
| Ecrou de bride | ||||
| 149 | 6695170@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 150 | 6687285@1417 | |||
| Protection Plate | ||||
| 150A | 6601209@1417 | 13.86 | 16.64 | |
| Nut 6 Ups-p (old 991-87060-001 & 6698766) | ||||
| 152 | 6695175@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 153 | 6684639@1417 | 2.15 | 2.58 | |
| Cord Clamp Comp. (old 198-10246-80) | ||||
| 154 | 6688008@1417 | 1.15 | 1.38 | |
| Spring Nut 6 (old 994-40060-011) | ||||
| 155 | 6695475@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt 6x18/s (old 994-61060-184) | ||||
| 156 | 6695495@1417 | 1.15 | 1.38 | |
| Plus disponible, pas de remplacement | ||||
| 157 | 6696359@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 158A | 6698784@1417 | |||
| Gear Case (a) | ||||
| 159A | 6699126@1417 | 18.43 | 22.11 | |
| Cutter Guide 625.5l M6 (old 122-33178-20) | ||||
| 161 | 6687137@1417 | 24.20 | 29.04 | |
| Guide Plate (old 075-33160-20) | ||||
| 162 | 6686612@1417 | 1.15 | 1.38 | |
| Cam Rod (old 101-33190-20) | ||||
| 163 | 6686811@1417 | 5.78 | 6.93 | |
| Bovenmes (a) | ||||
| 164 | 6687084@1417 | 42.20 | 50.64 | |
| Gear 2 | ||||
| 165A | 6698761@1417 | 18.15 | 21.78 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 166 | 6688909@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 167 | 6692100@1417 | |||
| Hex. Hole Flush Bolt 6x25 (old 990-52060-255) | ||||
| 168 | 6695075@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 169 | 6687187@1417 | 1.15 | 1.38 | |
| Boulon | ||||
| 170 | 6687158@1417 | 1.15 | 1.38 | |
| AFDICHT RUBBER | ||||
| 171 | 6686654@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt 4x10s (old 994-61040-104) | ||||
| 172 | 6695484@1417 | 1.15 | 1.38 | |
| Fuel Pipe Grommet (old 222-06300-20) | ||||
| 173 | 6688156@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 501 | 6684813@1417 | |||
| Combi Box Spanner 10x19 ,plus (old 036-29331-50) | ||||
| 502 | 6685997@1417 | 4.45 | 5.34 | |
