Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CJ36DAWRZ'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

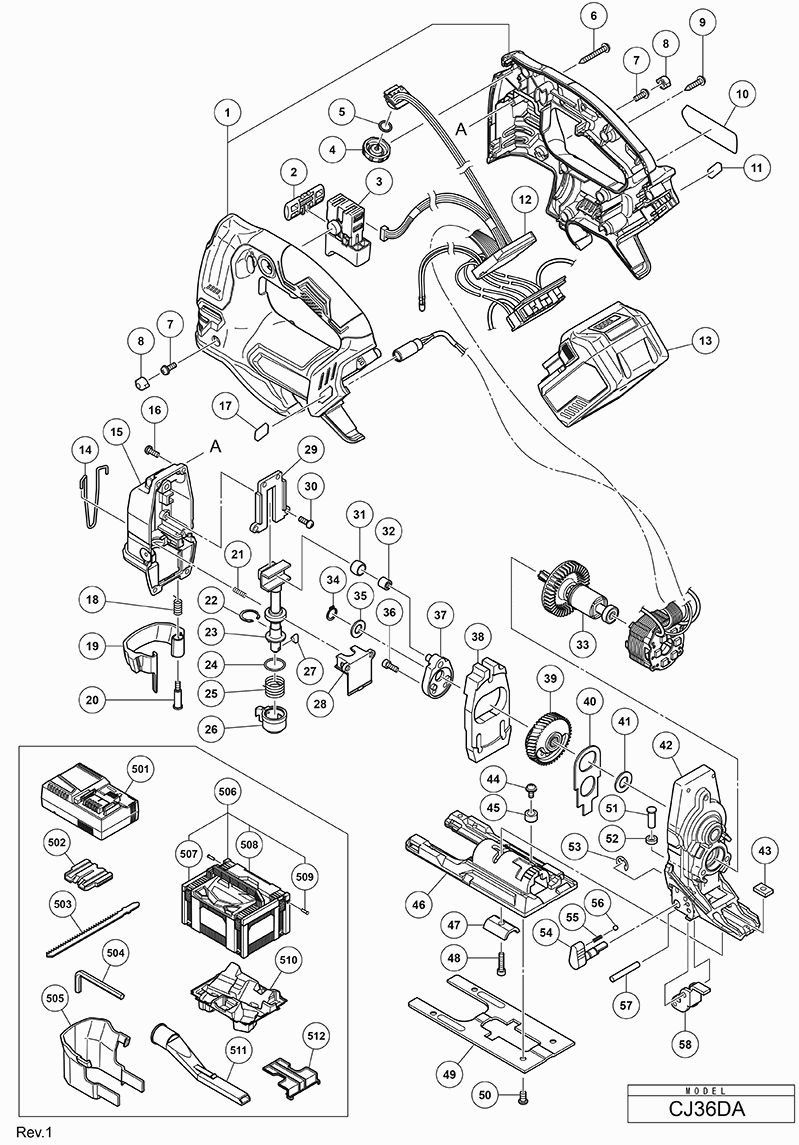

Dessins des Hikoki CJ36DAWRZ
Liste de pièces de rechange des Hikoki CJ36DAWRZ
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
HOUSING SET (A+B) | ||||
1 | 375859@1417 | 22.83 | 27.39 | |
Bouton Inverseur | ||||
2 | 319760@1417 | 1.05 | 1.26 | |
DC-SPEED CONTROL SWITCH | ||||
3 | 375863@1417 | 17.74 | 21.28 | |
DIAL | ||||
4 | 372109@1417 | 1.50 | 1.80 | |
O Ring D 6sh | ||||
5 | 987105@1417 | 1.05 | 1.26 | |
Vis D4*40 | ||||
6 | 306664@1417 | 1.05 | 1.26 | |
Vis 4x10 | ||||
7 | 321577@1417 | 2.70 | 3.24 | |
Rubber Cover | ||||
8 | 339294@1417 | 1.04 | 1.24 | |
Vis Ø4x20 | ||||
9 | 301653@1417 | 1.04 | 1.24 | |
MV LABEL (B) | ||||
11 | 373914@1417 | 1.04 | 1.24 | |
STATOR FET PCB ASS'Y | ||||
12 | 341059@1417 | 140.25 | 168.30 | |
Pas d'informations disponibles, non commandable | ||||
13 | 371750@1417 | |||
Guide Bar | ||||
14 | 339016@1417 | 1.04 | 1.24 | |
UPPER COVER | ||||
15 | 375860@1417 | 12.60 | 15.12 | |
Vis M4*12 (paquet de 10) | ||||
16 | 949217@1417 | 1.05 | 1.26 | |
MV LABEL (A) | ||||
17 | 373913@1417 | 1.04 | 1.24 | |
Lever Spring | ||||
18 | 339015@1417 | 1.04 | 1.24 | |
LEVER | ||||
19 | 375856@1417 | 2.55 | 3.06 | |
Lever Bolt | ||||
20 | 339014@1417 | 1.04 | 1.24 | |
Ressort (1) | ||||
21 | 339001@1417 | 1.04 | 1.24 | |
Retaining Ring D18 | ||||
22 | 339296@1417 | 1.35 | 1.62 | |
Arbre | ||||
23 | 339002@1417 | 23.65 | 28.38 | |
Joint | ||||
24 | 311814@1417 | 1.05 | 1.26 | |
Holder Spring | ||||
25 | 339005@1417 | 1.04 | 1.24 | |
Holder Cover | ||||
26 | 339282@1417 | 9.60 | 11.52 | |
Holder Pin | ||||
27 | 339004@1417 | 1.04 | 1.24 | |
PLUNGER COVER | ||||
28 | 375853@1417 | 4.05 | 4.86 | |
Guide Plate | ||||
29 | 339009@1417 | 2.10 | 2.52 | |
Vis Ø4x10 | ||||
30 | 326573@1417 | 1.65 | 1.98 | |
Connecting Piece | ||||
31 | 339007@1417 | 2.25 | 2.70 | |
Rlt Aiguilles Jh-60 | ||||
32 | 940917@1417 | 7.50 | 9.00 | |
ROTOR PINION ASS'Y | ||||
33 | 361125@1417 | 19.80 | 23.76 | |
Clips Cj65va2 Dh25pa/pb | ||||
34 | 940079@1417 | 1.04 | 1.24 | |
Rondelle | ||||
35 | 963351@1417 | 1.04 | 1.24 | |
Vis M4*12 For Switch Holder (t2.6 Steel Plate) | ||||
36 | 983162@1417 | 1.05 | 1.26 | |
Weight Holder | ||||
37 | 339285@1417 | 6.00 | 7.20 | |
Balance Weight | ||||
38 | 339000@1417 | 10.50 | 12.60 | |
GEAR | ||||
39 | 375852@1417 | 11.40 | 13.68 | |
Orbital Cam | ||||
40 | 338999@1417 | 1.04 | 1.24 | |
Rondelle | ||||
41 | 957540@1417 | 1.04 | 1.24 | |
GEAR COVER | ||||
42 | 375870@1417 | 16.50 | 19.80 | |
Plaatmoer | ||||
43 | 332425@1417 | 1.20 | 1.44 | |
MACHINE SCREW (W/WASHER) M4X5 | ||||
44 | 375857@1417 | 1.04 | 1.24 | |
Plaq.en Caoutchouc (1) | ||||
45 | 321576@1417 | 1.35 | 1.62 | |
BASE | ||||
46 | 375854@1417 | 7.65 | 9.18 | |
Voetplaatblokking | ||||
47 | 339663@1417 | 1.04 | 1.24 | |
Hex.socket Hd.bolt M5x18 (10 Pcs) | ||||
48 | 949658@1417 | 1.80 | 2.16 | |
BASE PLATE | ||||
49 | 375855@1417 | 4.50 | 5.40 | |
Vis Cj 120v/va | ||||
50 | 321996@1417 | 1.65 | 1.98 | |
Orbital Pin | ||||
51 | 339019@1417 | 1.80 | 2.16 | |
Feutre Cj 65va2 | ||||
52 | 305740@1417 | 1.04 | 1.24 | |
Bague | ||||
53 | 673489@1417 | 1.04 | 1.24 | |
Change Knob | ||||
54 | 338992@1417 | 1.95 | 2.34 | |
Ressort | ||||
55 | 982454@1417 | 1.04 | 1.24 | |
Stalen Kogel5/32 (10 Stuks) | ||||
56 | 335297@1417 | 1.04 | 1.24 | |
Needle Roller | ||||
57 | 338990@1417 | 1.04 | 1.24 | |
Roller Holder | ||||
58 | 339297@1417 | 9.60 | 11.52 | |
Splinter Guard | ||||
502 | 338997@1417 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
503 | 879357@1417 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 944458@1417 | |||
Chip Cover | ||||
505 | 338996@1417 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
506 | 337108@1417 | |||
Pas d'informations disponibles, non commandable | ||||
507 | 336472@1417 | |||
Pas d'informations disponibles, non commandable | ||||
508 | 336473@1417 | |||
Pas d'informations disponibles, non commandable | ||||
509 | 336474@1417 | |||
Pas d'informations disponibles, non commandable | ||||
510 | 375861@1417 | |||
Stofafzuigingset | ||||
511 | 370492@1417 | 3.75 | 4.50 | |
Beschermkapje Voor Batterij | ||||
512 | 329897@1417 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
601 | 325149@1417 | |||
Vet (500 Gram) Impact Drivers | ||||
602 | 309922@1417 | 73.01 | 87.62 | |
Pas d'informations disponibles, non commandable | ||||
603 | 930035@1417 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 321593@1417 | |||
Sub Base | ||||
606 | 339018@1417 | 1.80 | 2.16 |
