Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CM75EBP'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

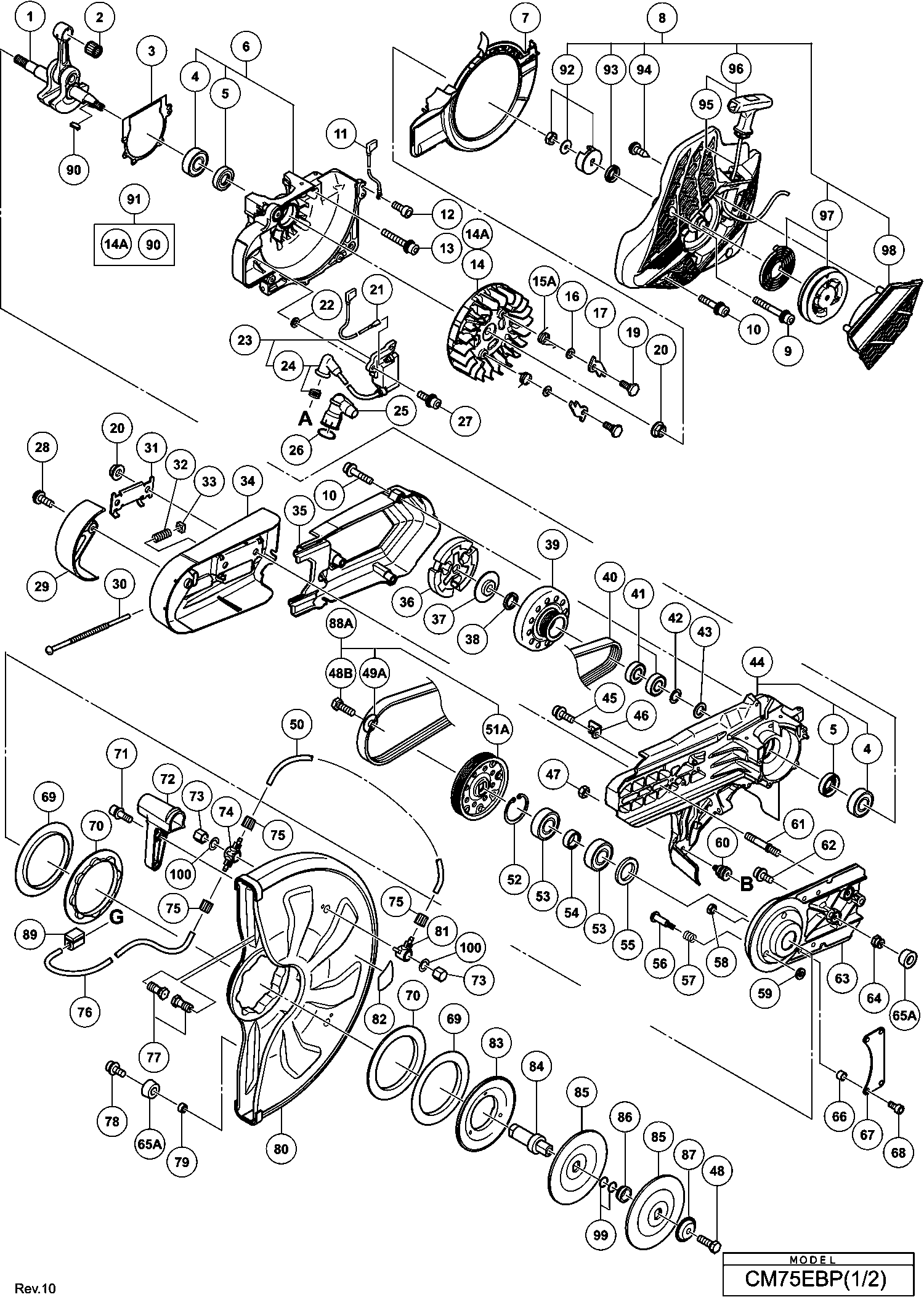

Dessins des Hikoki CM75EBP
Liste de pièces de rechange des Hikoki CM75EBP
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Krukas | ||||
| 1 | 6699801 | 30.53 | 36.63 | |
| Naaldlager (a) | ||||
| 2 | 6699803 | 3.60 | 4.32 | |
| Crank Case Packing | ||||
| 3 | 6699800 | 1.04 | 1.24 | |
| Roulement à billes | ||||
| 4 | 6202C3 | 4.35 | 5.22 | |
| Olie Keerring | ||||
| 5 | 6698914 | 3.15 | 3.78 | |
| Crank Case (a) | ||||
| 6 | 6600364 | 94.60 | 113.52 | |
| Fan Guide | ||||
| 7 | 6699875 | 3.15 | 3.78 | |
| Épuisé | ||||
| 8 | 6699876 | |||
| Set Bolt M5 | ||||
| 9 | 6600374 | 1.80 | 2.16 | |
| Set Bolt M5x25 | ||||
| 10 | 6699871 | 1.20 | 1.44 | |
| Earth Cord | ||||
| 11A | 6696567 | 2.10 | 2.52 | |
| Épuisé | ||||
| 11 | 6699813 | |||
| Vis Ø4x10 (paquet de 10) Till 12.2017 | ||||
| 12 | 949812 | 2.40 | 2.88 | |
| Seal Lock Hex. Socket Hd. Bolt M5 | ||||
| 13 | 6600365 | 1.80 | 2.16 | |
| Magneto Rotor (old 6699808) | ||||
| 14A | 6600458 | 12.90 | 15.48 | |
| Épuisé | ||||
| 14 | 6699808 | |||
| Starter Pawl Spring | ||||
| 15A | 6600477 | 1.05 | 1.26 | |
| Épuisé | ||||
| 15 | 6699810 | |||
| Ring 0.8 | ||||
| 16 | 6696857 | 1.05 | 1.26 | |
| Starter Pawl | ||||
| 17 | 6699811 | 1.04 | 1.24 | |
| Chim | ||||
| 18 | 6696434 | 1.04 | 1.24 | |
| Boulon | ||||
| 19 | 6696878 | 1.05 | 1.26 | |
| Moer M8 | ||||
| 20 | 6698581 | 1.20 | 1.44 | |
| Cord | ||||
| 21 | 6699812 | 1.04 | 1.24 | |
| Bague | ||||
| 22 | 6698700 | 1.20 | 1.44 | |
| Ignition Coil Ass'y | ||||
| 23 | 6699809 | 26.40 | 31.68 | |
| Cord Set | ||||
| 24 | 6600434 | 11.25 | 13.50 | |
| Shield Cover | ||||
| 25 | 6699814 | 2.70 | 3.24 | |
| Shield Cover Ring | ||||
| 26 | 6600373 | 1.80 | 2.16 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 27 | 6698388 | 1.05 | 1.26 | |
| Seal Lock Hex. Socket Button Bolt M5x10 | ||||
| 28 | 6699909 | 1.20 | 1.44 | |
| Cover Plate | ||||
| 29 | 6699908 | 4.20 | 5.04 | |
| Tensioner Bolt | ||||
| 30 | 6699907 | 2.10 | 2.52 | |
| Tensioner Plate | ||||
| 31 | 6699904 | 2.10 | 2.52 | |
| Tensioner Spring | ||||
| 32 | 6699906 | 1.20 | 1.44 | |
| Tension Nut | ||||
| 33 | 6699905 | 1.20 | 1.44 | |
| Arm Cover | ||||
| 34 | 6699903 | 6.60 | 7.92 | |
| Clutch Cover | ||||
| 35 | 6699878 | 8.85 | 10.62 | |
| Clutch | ||||
| 36 | 6699823 | 20.90 | 25.08 | |
| Clutch Flange | ||||
| 37 | 6699822 | 4.20 | 5.04 | |
| Feutre | ||||
| 38 | 301946 | 1.04 | 1.24 | |
| Clutch Housing | ||||
| 39 | 6699821 | 12.90 | 15.48 | |
| Belt | ||||
| 40 | 6699877 | 10.65 | 12.78 | |
| Kogellager 6001dducmps2s (oud 980925) | ||||
| 41 | 6001DD | 6.45 | 7.74 | |
| Shim | ||||
| 42 | 6696946 | 1.68 | 2.01 | |
| Bague | ||||
| 43 | 6685072 | 1.15 | 1.38 | |
| Crank Case (b) | ||||
| 44 | 6600366 | 128.01 | 153.62 | |
| Hex. Socket Hd. Bolt M5x16 (w/washers) | ||||
| 45 | 6699826 | 1.05 | 1.26 | |
| Tensioner Base | ||||
| 46 | 6699825 | 1.20 | 1.44 | |
| Moer M6 | ||||
| 47A | 329934 | 1.73 | 2.07 | |
| Épuisé | ||||
| 47 | 6698449 | |||
| Vis Ø8*15,5 | ||||
| 48A | 320971 | 1.05 | 1.26 | |
| Bolt M8 | ||||
| 48 | 6699902 | 1.20 | 1.44 | |
| Épuisé | ||||
| 49A | 6699900 | |||
| Water Supply Hose | ||||
| 50 | 6699910 | 1.20 | 1.44 | |
| Pulley (b) | ||||
| 51A | 6600436 | 12.15 | 14.58 | |
| Circlips | ||||
| 52 | 948391 | 1.65 | 1.98 | |
| Kogellager 6203dducmav2s | ||||
| 53 | 6203DD | 7.65 | 9.18 | |
| Bb Collar | ||||
| 54 | 6699880 | 2.10 | 2.52 | |
| Feutre (1) | ||||
| 55 | 6699879 | 1.20 | 1.44 | |
| Bolt M5 (s) | ||||
| 56 | 6699896 | 1.20 | 1.44 | |
| Wheel Guard Spring | ||||
| 57 | 6699895 | 1.20 | 1.44 | |
| Entretoise M5 (10 pces) | ||||
| 58 | 949566 | 1.04 | 1.24 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 59 | 949425 | 1.05 | 1.26 | |
| Spring Holder | ||||
| 60A | 6601390 | 2.85 | 3.42 | |
| Épuisé | ||||
| 60 | 6699850 | |||
| Chain Bar Bolt | ||||
| 61 | 6699881 | 2.10 | 2.52 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 62 | 6699176 | 1.04 | 1.24 | |
| Bras | ||||
| 63 | 6600367 | 64.08 | 76.89 | |
| Stopper Holder | ||||
| 64 | 6699883 | 1.20 | 1.44 | |
| Stopper Rubber (2 Pcs) (old 6600368) | ||||
| 65A | 6600442 | 2.10 | 2.52 | |
| Collar | ||||
| 66 | 6699866 | 1.20 | 1.44 | |
| Arm Plate | ||||
| 67 | 6600396 | 1.80 | 2.16 | |
| Hex. Socket Hd. Bolt M5x12 (precote) | ||||
| 68 | 6696836 | 1.20 | 1.44 | |
| Plate (a) | ||||
| 69 | 6699885 | 2.10 | 2.52 | |
| Damper (a) | ||||
| 70 | 6699886 | 2.10 | 2.52 | |
| Set Bolt M5x16 | ||||
| 71 | 6699889 | 1.20 | 1.44 | |
| Handle (w) | ||||
| 72 | 6699888 | 2.10 | 2.52 | |
| Cap Nut | ||||
| 73 | 6699892 | 2.10 | 2.52 | |
| Water Supply Joint (b) | ||||
| 74 | 6699891 | 1.20 | 1.44 | |
| Lock Nut | ||||
| 75 | 6699912 | 1.20 | 1.44 | |
| Water Supply Hose | ||||
| 76 | 6699911 | 1.20 | 1.44 | |
| Nozzle Bolt | ||||
| 77 | 6699893 | 4.20 | 5.04 | |
| Boulon | ||||
| 78 | 996399 | 1.04 | 1.24 | |
| Stopper Holder | ||||
| 79 | 6600375 | 1.80 | 2.16 | |
| Wheel Guard (14') | ||||
| 80 | 6699920 | 93.09 | 111.70 | |
| Water Supply Joint (a) | ||||
| 81 | 6699890 | 1.20 | 1.44 | |
| Wheel Mark Label (14") | ||||
| 82 | 6600377 | 1.80 | 2.16 | |
| Flange (a) | ||||
| 83 | 6699894 | 18.56 | 22.28 | |
| Broche (1) | ||||
| 84 | 6699882 | 11.85 | 14.22 | |
| Wheel Washer | ||||
| 85 | 6699897 | 5.70 | 6.84 | |
| Spindle Collar | ||||
| 86 | 6699898 | 3.15 | 3.78 | |
| Flange Washer | ||||
| 87 | 6699901 | 1.20 | 1.44 | |
| Pulley (b) Set (old 6699899) | ||||
| 88 | 6600438 | 14.70 | 17.64 | |
| Hose Holder | ||||
| 89 | 6600457 | 1.04 | 1.24 | |
| Woodruff Key | ||||
| 90 | 6600459 | 1.04 | 1.24 | |
| Magneto Rotor Set | ||||
| 91 | 6600460 | 13.65 | 16.38 | |
| Cam Complete Set | ||||
| 92 | 6600469 | 7.05 | 8.46 | |
| Starter Grommet | ||||
| 93 | 6600471 | 5.85 | 7.02 | |
| Tapping Screw D4x16 | ||||
| 94 | 6600466 | 1.04 | 1.24 | |
| Starter Rope | ||||
| 95 | 6600468 | 7.65 | 9.18 | |
| Rope Ass'y | ||||
| 96 | 6600467 | 8.85 | 10.62 | |
| Reel Complete Set | ||||
| 97 | 6600470 | 21.04 | 25.24 | |
| Fan Case Cover | ||||
| 98 | 6600464 | 19.39 | 23.26 | |
| Joint | ||||
| 99 | 875638 | 1.65 | 1.98 | |
| Pulley Washer | ||||
| 100 | 6600495 | 1.04 | 1.24 | |
| Tank Dop | ||||
| 101 | 6600369 | 5.10 | 6.12 | |
| Tank Cap Packing (old 630-3252k-20/6685386) | ||||
| 102 | 6685179 | 1.15 | 1.38 | |
| Épuisé | ||||
| 103 | 6699828 | |||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 104 | 6685139 | 5.94 | 7.12 | |
| BRANDSTOFLEIDING | ||||
| 105 | 6698722 | 9.75 | 11.70 | |
| Fuel Pipe | ||||
| 106A | 6601460 | 2.25 | 2.70 | |
| Brandstofleiding (pink) | ||||
| 106 | 6699837 | 2.10 | 2.52 | |
| Schroef D4x25 Zwart | ||||
| 107 | 304035 | 1.04 | 1.24 | |
| Tank Mark Label | ||||
| 108 | 6698921 | 1.20 | 1.44 | |
| Tank Mark Label (25:1) | ||||
| 108 | 6698922 | 1.20 | 1.44 | |
| Vis Ø 4*16 Noir | ||||
| 109 | 305812 | 1.04 | 1.24 | |
| Air Vent Cap | ||||
| 110 | 6699838 | 1.20 | 1.44 | |
| Tank Dop Compleet | ||||
| 111 | 6600370 | 14.70 | 17.64 | |
| Fuel Grommet | ||||
| 112 | 6698931 | 3.45 | 4.14 | |
| Return Grommet (old 6684627) | ||||
| 113 | 6697846 | 1.04 | 1.24 | |
| Achtergreep | ||||
| 114 | 6699827 | 26.68 | 32.01 | |
| Long Nut M6 | ||||
| 116 | 6699852 | 1.20 | 1.44 | |
| Front Handle | ||||
| 117 | 6699842 | 22.83 | 27.39 | |
| Tapschroef D6 | ||||
| 118 | 6696872 | 1.05 | 1.26 | |
| Inbus Bout M6x20 | ||||
| 119 | 881722 | 1.80 | 2.16 | |
| Anti-trilveer | ||||
| 120 | 6699849 | 1.20 | 1.44 | |
| Front Adapter | ||||
| 121 | 6699847 | 14.25 | 17.10 | |
| Grip End (b) | ||||
| 122 | 6699844 | 1.20 | 1.44 | |
| Hex. Socket Hd. Bolt M6x50 | ||||
| 123 | 6699819 | 1.04 | 1.24 | |
| Uitlaat | ||||
| 124 | 6699816 | 31.08 | 37.29 | |
| Hitteschild | ||||
| 125 | 6699815 | 1.80 | 2.16 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 126 | 6698899 | 1.20 | 1.44 | |
| Bague | ||||
| 127 | 6685068 | 1.15 | 1.38 | |
| Exhaust Pipe | ||||
| 128 | 6699818 | 1.04 | 1.24 | |
| Exhaust Gasket | ||||
| 129 | 6699817 | 1.04 | 1.24 | |
| Trigger Lockout Collar | ||||
| 130 | 6699836 | 1.20 | 1.44 | |
| Trigger Lockout | ||||
| 131 | 6699835 | 1.20 | 1.44 | |
| Needle Pin D3 | ||||
| 132 | 6699834 | 1.20 | 1.44 | |
| Throttle Lever Spring | ||||
| 133 | 6699833 | 1.20 | 1.44 | |
| Throttle Lever | ||||
| 134 | 6699832 | 1.20 | 1.44 | |
| Throttle Rod | ||||
| 135 | 6699863 | 1.20 | 1.44 | |
| Cilinder Afdekkap | ||||
| 136 | 6699865 | 9.15 | 10.98 | |
| Brandstofleiding | ||||
| 137 | 6698908 | 4.65 | 5.58 | |
| D6 Clip | ||||
| 138 | 6685311 | 1.05 | 1.26 | |
| Pump Filter Body Ass'y (old 675-11657-90/6692282/6 | ||||
| 139 | 6692285 | 7.26 | 8.72 | |
| Veerhouder | ||||
| 140 | 6699851 | 2.10 | 2.52 | |
| Anti-trilveer | ||||
| 141 | 6699824 | 2.10 | 2.52 | |
| Épuisé | ||||
| 142 | 6699320 | |||
| Decomp Cap | ||||
| 143 | 6600378 | 3.45 | 4.14 | |
| Decomp. | ||||
| 144 | 6698541 | 22.83 | 27.39 | |
| Grip End (a) | ||||
| 145 | 6699843 | 1.20 | 1.44 | |
| Épuisé | ||||
| 146 | 6600371 | |||
| Cylinder (old 6600371) | ||||
| 146A | 6600478 | 60.64 | 72.76 | |
| Insulator Clip | ||||
| 147 | 6699862 | 1.20 | 1.44 | |
| Insulator Plate | ||||
| 148 | 6699858 | 2.10 | 2.52 | |
| Carburetor Insulator | ||||
| 149 | 6699860 | 8.85 | 10.62 | |
| Brandstofleiding (fkm) | ||||
| 150 | 6699857 | 6.15 | 7.38 | |
| Carburetor Ass'y (c3m) | ||||
| 151 | 6699856 | 62.70 | 75.24 | |
| Screw (d) | ||||
| 152 | 6600385 | 3.45 | 4.14 | |
| Pump Cover | ||||
| 153 | 6600386 | 10.35 | 12.42 | |
| Pump Gasket | ||||
| 154 | 6600387 | 3.45 | 4.14 | |
| Pump Diaphragm | ||||
| 155 | 6600388 | 3.45 | 4.14 | |
| Strainer | ||||
| 156 | 6600389 | 5.10 | 6.12 | |
| Screw (e) | ||||
| 157 | 6600390 | 3.45 | 4.14 | |
| Broche | ||||
| 158 | 6699082 | 1.05 | 1.26 | |
| Metealing Lever Spring | ||||
| 159 | 6600391 | 3.45 | 4.14 | |
| Inlet Needle Valve | ||||
| 160 | 6699081 | 7.05 | 8.46 | |
| Metering Lever | ||||
| 161 | 6699084 | 1.65 | 1.98 | |
| Metealing Chamber Gasket | ||||
| 162 | 6600392 | 5.10 | 6.12 | |
| Metealing Diaphragm | ||||
| 163 | 6600393 | 9.75 | 11.70 | |
| Metealing Chamber Cover | ||||
| 164 | 6600394 | 42.76 | 51.32 | |
| Set Screw (c) | ||||
| 165 | 6699094 | 1.05 | 1.26 | |
| Brandstofleiding | ||||
| 166 | 6698873 | 5.10 | 6.12 | |
| Square Nut (b) M5 | ||||
| 167 | 6699859 | 1.20 | 1.44 | |
| Vis Dh 38ya | ||||
| 168 | 991712 | 1.05 | 1.26 | |
| Cylinder Packing | ||||
| 169 | 6600397 | 3.45 | 4.14 | |
| Piston Ring | ||||
| 170 | 6699806 | 2.10 | 2.52 | |
| Cir Clip | ||||
| 171 | 6699805 | 1.04 | 1.24 | |
| Épuisé | ||||
| 172 | 6699804 | |||
| Zuiger Pin | ||||
| 173 | 6699802 | 1.65 | 1.98 | |
| Water Supply Connector | ||||
| 174 | 6699913 | 9.60 | 11.52 | |
| Mounting Plate | ||||
| 175 | 6699914 | 1.20 | 1.44 | |
| Valve | ||||
| 176 | 6699915 | 10.65 | 12.78 | |
| Coupler | ||||
| 177 | 6699916 | 3.15 | 3.78 | |
| Grommet | ||||
| 178 | 6698787 | 1.80 | 2.16 | |
| Throttle Lock Pin | ||||
| 179 | 6699829 | 1.20 | 1.44 | |
| Carbureteur Pakking | ||||
| 180 | 6699855 | 1.20 | 1.44 | |
| Carburetor Bracket | ||||
| 181 | 6699854 | 4.20 | 5.04 | |
| Pre Filter | ||||
| 182 | 6699872 | 5.10 | 6.12 | |
| Caution Label (eng) | ||||
| 183 | 6600382 | 3.45 | 4.14 | |
| Cleaner Knob | ||||
| 184 | 6699874 | 2.10 | 2.52 | |
| Knob Packing | ||||
| 185 | 6698570 | 1.20 | 1.44 | |
| Start Label (cm75) (ex) | ||||
| 186 | 6600381 | 1.80 | 2.16 | |
| Cleaner Box (b) | ||||
| 187 | 6699873 | 10.20 | 12.24 | |
| Rubber Rope | ||||
| 188 | 6699870 | 2.10 | 2.52 | |
| Cleaner Box (a) | ||||
| 189 | 6699869 | 14.25 | 17.10 | |
| RUBBEREN PEN | ||||
| 190 | 931701 | 1.05 | 1.26 | |
| Choke Button | ||||
| 191 | 6699864 | 1.20 | 1.44 | |
| Choke Rod Rubber | ||||
| 192 | 6685369 | 1.05 | 1.26 | |
| Paper Filter | ||||
| 193 | 6699868 | 6.90 | 8.28 | |
| Nylon Filter | ||||
| 194 | 6699867 | 4.20 | 5.04 | |
| Hex. Socket Hd. Bolt M5x55 (w/washers) | ||||
| 195 | 6699861 | 1.20 | 1.44 | |
| Stop Switch | ||||
| 196A | 6601275 | 1.35 | 1.62 | |
| Épuisé | ||||
| 196 | 6696940 | |||
| Switch Cover | ||||
| 197 | 6698400 | 1.05 | 1.26 | |
| Throttle Lock Pin Spring | ||||
| 198 | 6699830 | 1.20 | 1.44 | |
| Throttle Lock Cap | ||||
| 199 | 6699831 | 1.20 | 1.44 | |
| Rear Foot | ||||
| 200 | 6699839 | 2.10 | 2.52 | |
| Anti-trilveer | ||||
| 201 | 6699840 | 1.20 | 1.44 | |
| Lower Guard | ||||
| 202 | 6699841 | 6.60 | 7.92 | |
| Muffler Guard (old 6600395) | ||||
| 203A | 6600443 | 42.49 | 50.98 | |
| Épuisé | ||||
| 204 | 6699845 | |||
| FRONT FOOT RUBBER (B) | ||||
| 205A | 6601393 | 1.50 | 1.80 | |
| Épuisé | ||||
| 205 | 6699846 | |||
| FRONT FOOT PLATE (B) | ||||
| 206A | 6601392 | 2.25 | 2.70 | |
| Front Foot Plate | ||||
| 206 | 6699848 | 4.20 | 5.04 | |
| Hex. Socket Hd. Bolt M5 (w/washers) | ||||
| 207 | 6600372 | 1.80 | 2.16 | |
| Épuisé | ||||
| 207A | 6698386 | |||
| Idle Sponge | ||||
| 208 | 6600056 | 1.05 | 1.26 | |
| Band | ||||
| 209 | 6698943 | 1.20 | 1.44 | |
| Earth Cord Set | ||||
| 210 | 6601373 | 1.35 | 1.62 | |
| Spring Holder | ||||
| 211 | 6601391 | 3.75 | 4.50 | |
| Rondelle | ||||
| 212 | 6699112 | 1.04 | 1.24 | |
| Front Foot Holder (old 6601365) | ||||
| 213 | 6601394 | 6.15 | 7.38 | |
| Combi Box Spanner 13x19 | ||||
| 501 | 6698582 | 4.65 | 5.58 | |
| Épuisé | ||||
| 502 | 6699918 | |||
| Épuisé | ||||
| 503 | 875769 | |||
| Adapter Collar | ||||
| 504 | 6699919 | 6.30 | 7.56 | |
| Épuisé | ||||
| 505 | 402328 | |||
