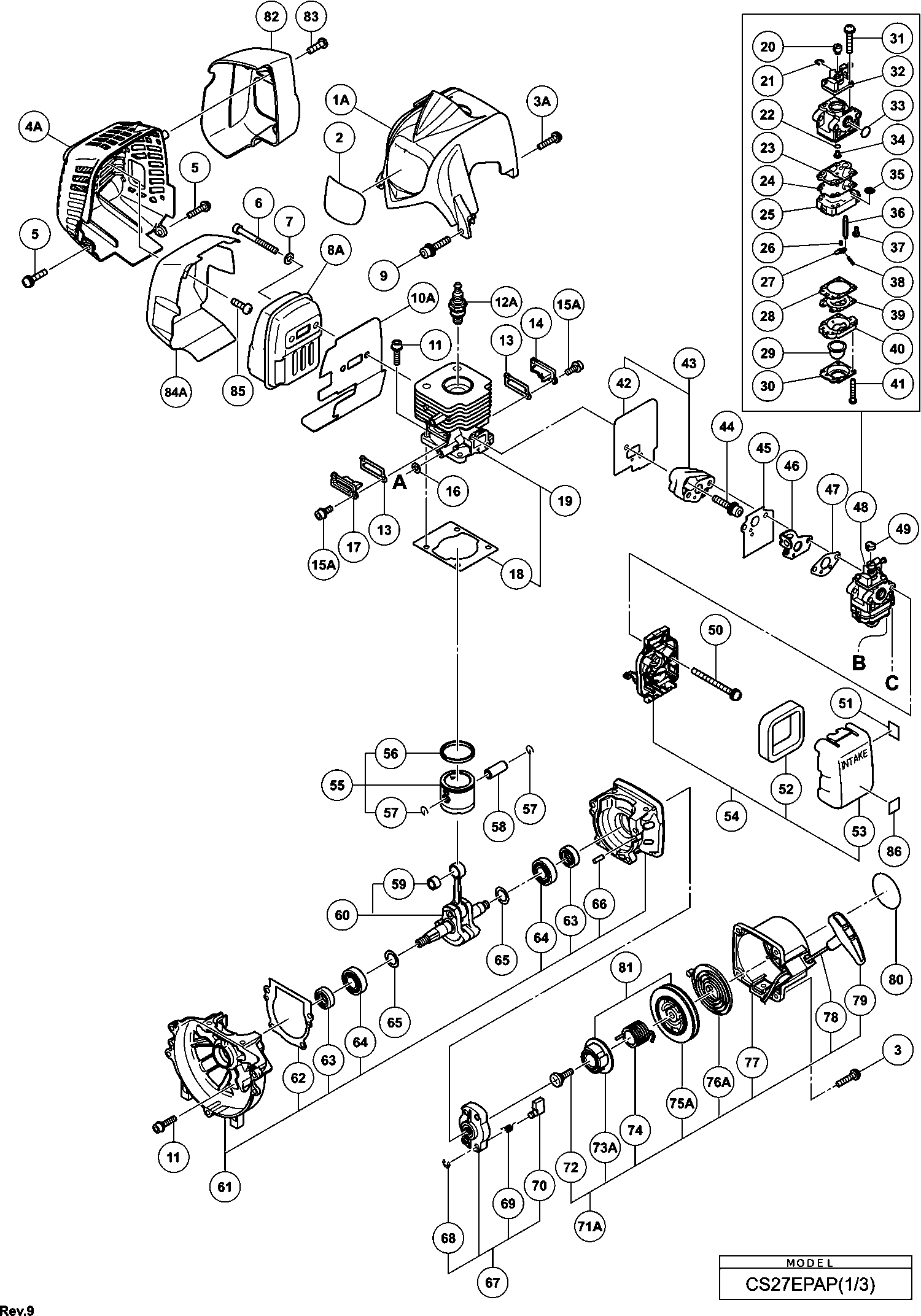

Dessins des Hikoki CS27EPAP
Liste de pièces de rechange des Hikoki CS27EPAP
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Cilinder Afdekkap | ||||
| 1 | 6698481 | 6.45 | 7.74 | |
| Cilinder Afdekkap | ||||
| 1A | 6697921 | 6.10 | 7.32 | |
| Screw M4 (black) | ||||
| 3A | 6699780 | 1.04 | 1.24 | |
| Muffler Cover Since 11 2013 (old 6698494) | ||||
| 4A | 6600336 | 6.45 | 7.74 | |
| Screw 5x16/ps (old 994-15050-162) | ||||
| 5 | 6695386 | 1.15 | 1.38 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 6 | 6695067 | 1.15 | 1.38 | |
| Bague | ||||
| 7 | 6684639 | 2.15 | 2.58 | |
| Muffler (b) | ||||
| 8A | 6600004 | 25.85 | 31.02 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 9 | 6698950 | 1.20 | 1.44 | |
| Hitteschild | ||||
| 10A | 6600324 | 1.35 | 1.62 | |
| Hex. Hole Bolt M5x20/s (old 994-61050-205/305583/6 | ||||
| 11 | 6695491 | 1.15 | 1.38 | |
| Bougie Bmr7a | ||||
| 12A | 6699316 | 8.91 | 10.70 | |
| Cover Packing | ||||
| 13 | 6697684 | 1.04 | 1.24 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 14 | 6698484 | 2.10 | 2.52 | |
| Hex. Hole Bolt M4x12/s (old 994-61040-124) | ||||
| 15A | 6684595 | 2.15 | 2.58 | |
| Ring (old 182-0186a-20) | ||||
| 16 | 6684600 | 2.15 | 2.58 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 17 | 6698485 | 2.10 | 2.52 | |
| Cilinder Pakking | ||||
| 18 | 6697681 | 1.04 | 1.24 | |
| Cylinder Set Pn | ||||
| 19 | 6697679 | 33.58 | 40.29 | |
| Swivel (oud 539-25120-20) | ||||
| 20 | 6684697 | 6.44 | 7.72 | |
| Stop Ring (oud 489-25100-20) | ||||
| 21 | 6684696 | 2.15 | 2.58 | |
| O-RING (OUD 550-25100-20) | ||||
| 22 | 6684695 | 4.29 | 5.14 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 23 | 6684692 | 29.19 | 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 24 | 6684693 | 8.58 | 10.29 | |
| Pump Body | ||||
| 25 | 6699942 | 14.38 | 17.25 | |
| Metealing Lever Spring | ||||
| 26 | 6696323 | 4.63 | 5.55 | |
| Control Lever (old 473-25001-20) | ||||
| 27 | 6685217 | 3.30 | 3.96 | |
| Diaphragm Gasket (oud 475-25153-20) | ||||
| 28 | 6684691 | 8.58 | 10.29 | |
| Priming Body (oud 447-25108-20) | ||||
| 29 | 6684689 | 6.44 | 7.72 | |
| Diaphragm Cover (oud 476-25151-20) | ||||
| 30 | 6684688 | 8.58 | 10.29 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 31 | 6684698 | 4.29 | 5.14 | |
| Throttle Valve Comp. (old 488-25145-80) | ||||
| 32 | 6684883 | 18.75 | 22.50 | |
| Épuisé | ||||
| 33 | 6695670 | |||
| Main Jet #32 | ||||
| 34 | 6699943 | 5.11 | 6.14 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 35 | 6684700 | 4.29 | 5.14 | |
| Needle Valve (old 603-25012-20) | ||||
| 36 | 6685215 | 5.28 | 6.33 | |
| Épuisé | ||||
| 37 | 6691305 | |||
| Hinge Pin (old 605-25001-20) | ||||
| 38 | 6685219 | 1.15 | 1.38 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 39 | 6684690 | 18.00 | 21.60 | |
| Priming Pump Comp. (oud 442-25151-80) | ||||
| 40 | 6684687 | 16.34 | 19.60 | |
| Set Screw (old 548-25151-20 & 6696324) | ||||
| 41 | 6684699 | 2.15 | 2.58 | |
| Intake Packing | ||||
| 42 | 6697691 | 1.04 | 1.24 | |
| Carburetor Insulator Set Pn | ||||
| 43 | 6698954 | 4.45 | 5.34 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 44 | 6698844 | 1.20 | 1.44 | |
| Carburetor Gasket (old 402-0656a-20) | ||||
| 45 | 6684616 | 2.15 | 2.58 | |
| Throttle Wire Fixing Plate (old 878-06620-20) | ||||
| 46 | 6684629 | 4.29 | 5.14 | |
| CARBURETOR GASKET (OLD 402-0602K-21/6689836) | ||||
| 47 | 6684615 | 2.15 | 2.58 | |
| Carburetor Ass'y | ||||
| 48 | 6698960 | 40.24 | 48.28 | |
| Épuisé | ||||
| 49 | 6684628 | |||
| Plus Screw 5x60ws (old 994-16050-601) | ||||
| 50 | 6695431 | 1.15 | 1.38 | |
| Mark Plate (t) | ||||
| 51 | 6600327 | 1.04 | 1.24 | |
| Élément de filtre à air | ||||
| 52 | 6690347 | 4.45 | 5.34 | |
| Air Cleaner Cap (old 424-00025-20) | ||||
| 53 | 6690139 | 4.45 | 5.34 | |
| Filtre à Air | ||||
| 54 | 6698961 | 5.45 | 6.54 | |
| Piston Set Pn | ||||
| 55 | 6697683 | 11.05 | 13.26 | |
| Piston Ring (old 041-01700-20) | ||||
| 56 | 6686121 | 4.45 | 5.34 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 57 | 6684590 | 2.15 | 2.58 | |
| Goupille | ||||
| 58 | 6684591 | 4.29 | 5.14 | |
| Needle Bearing Hk0810b (old 999-62081-277) | ||||
| 59 | 6695590 | 3.30 | 3.96 | |
| Crank Shaft Ass'y | ||||
| 60 | 6698969 | 21.78 | 26.13 | |
| Crank Case Ass'y | ||||
| 61 | 6697687 | 25.11 | 30.14 | |
| Crank Case Packing | ||||
| 62 | 6697688 | 1.04 | 1.24 | |
| Olie Keerring | ||||
| 63 | 6684607 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 64 | 6684608 | 3.80 | 4.56 | |
| Crank Shaft Washer | ||||
| 65 | 6697685 | 1.04 | 1.24 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 66 | 6695521 | 1.15 | 1.38 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 67 | 6684681 | 13.20 | 15.84 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 68 | 6684683 | 2.15 | 2.58 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 68 | 6685101 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 69 | 6684684 | 4.29 | 5.14 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 70 | 6684685 | 4.29 | 5.14 | |
| Épuisé | ||||
| 71A | 6699995 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 72 | 6684679 | 2.15 | 2.58 | |
| Cam Plate | ||||
| 73A | 6699996 | 2.55 | 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 74 | 6684677 | 8.58 | 10.29 | |
| Starter Rope Reel | ||||
| 75A | 6699997 | 8.41 | 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 76A | 6684675 | 11.55 | 13.86 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 77 | 6684673 | 19.06 | 22.88 | |
| Starthendel | ||||
| 79 | 6684680 | 2.15 | 2.58 | |
| Cam Plate Ass'y | ||||
| 81 | 6699691 | 6.10 | 7.32 | |
| Muffler Rear Cover | ||||
| 82 | 6600335 | 8.55 | 10.26 | |
| Tapping Screw D4 Since 11 2013 | ||||
| 83 | 6600332 | 1.04 | 1.24 | |
| Épuisé | ||||
| 84 | 6600323 | |||
| Muffler Heat Cover | ||||
| 84A | 6600422 | 5.70 | 6.84 | |
| Tapping Screw D4x10 | ||||
| 85 | 6600325 | 1.04 | 1.24 | |
| Primer Label | ||||
| 86 | 6699000 | 1.04 | 1.24 | |
| Tapping Screw D4 | ||||
| 101 | 6697190 | 1.04 | 1.24 | |
| Handle (b) | ||||
| 102 | 6696487 | 3.45 | 4.14 | |
| Lock Lever | ||||
| 103 | 6696490 | 1.04 | 1.24 | |
| Levier (1) | ||||
| 104 | 6696488 | 1.04 | 1.24 | |
| Ressort (1) | ||||
| 105 | 6698819 | 1.04 | 1.24 | |
| STOP SWITCH (OLD 170-04063-80) | ||||
| 106 | 6685239 | 3.30 | 3.96 | |
| Stop Switch Cord | ||||
| 107 | 6698820 | 2.80 | 3.36 | |
| Protection Tube | ||||
| 108 | 6698822 | 1.04 | 1.24 | |
| Throttle Wire | ||||
| 109 | 6698821 | 4.13 | 4.95 | |
| Handle (a) | ||||
| 110 | 6696486 | 3.45 | 4.14 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 111 | 6684667 | 2.15 | 2.58 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 112 | 6684709 | 2.15 | 2.58 | |
| Caoutchouc anti-vibrateur | ||||
| 113 | 6684666 | 4.29 | 5.14 | |
| Pipe Holder (a) | ||||
| 114 | 6698643 | 2.10 | 2.52 | |
| Pipe Holder (b) | ||||
| 115 | 6698644 | 2.10 | 2.52 | |
| Caoutchouc anti-vibrateur | ||||
| 116 | 6684665 | 4.29 | 5.14 | |
| Stop Ring C-12 Outer | ||||
| 117 | 6684664 | 2.15 | 2.58 | |
| Épuisé | ||||
| 118 | 6698486 | |||
| Ventilatorhuis (oud 6698486) | ||||
| 118A | 6697922 | 11.71 | 14.06 | |
| Clutch Drum Comp. (old 289-52200-80) | ||||
| 119 | 6684663 | 19.06 | 22.88 | |
| Step Bolt (old 357-00601-20) | ||||
| 120 | 6689627 | 1.15 | 1.38 | |
| Bague | ||||
| 121 | 6684648 | 2.15 | 2.58 | |
| Clutch Plate A (old 348-0602r-20) | ||||
| 122 | 6689528 | 1.15 | 1.38 | |
| Clutch Set | ||||
| 123 | 6697655 | 6.76 | 8.12 | |
| Épuisé | ||||
| 124 | 6697619 | |||
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 125 | 6684612 | 2.15 | 2.58 | |
| Ring M8 (old 992-01080-011) | ||||
| 126 | 6684611 | 2.15 | 2.58 | |
| Hex. Hole Bolt 4x18ws (old 994-64040-185) | ||||
| 127 | 6695508 | 1.15 | 1.38 | |
| Bobine | ||||
| 128 | 6698492 | 22.83 | 27.39 | |
| Earth Cord | ||||
| 130 | 6699940 | 2.15 | 2.58 | |
| Clip | ||||
| 131 | 6699939 | 1.98 | 2.37 | |
| Flensmoer M4 | ||||
| 132 | 6699938 | 1.04 | 1.24 | |
| Cord | ||||
| 134 | 6698964 | 1.98 | 2.37 | |
| Cord | ||||
| 135 | 6697690 | 1.98 | 2.37 | |
| Magneto Rotor | ||||
| 136 | 6698396 | 8.70 | 10.44 | |
| Fuel Pipe Ass'y (oud 223-0097a-90) | ||||
| 137 | 6684618 | 4.29 | 5.14 | |
| Fuel Pipe 3x5x80 (oud 700-03005-08) | ||||
| 138 | 6684880 | 2.15 | 2.58 | |
| Tank Dop Compleet | ||||
| 139A | 6698402 | 4.20 | 5.04 | |
| Épuisé | ||||
| 140 | 6684625 | |||
| Return Grommet (old 6684627) | ||||
| 141A | 6697846 | 1.04 | 1.24 | |
| Entretoise (1) | ||||
| 142 | 6698496 | 1.05 | 1.26 | |
| Resevoir | ||||
| 143A | 6600317 | 7.95 | 9.54 | |
| Stand (old 940-07350-20) | ||||
| 144 | 6694787 | 3.30 | 3.96 | |
| Flange Bolt | ||||
| 145 | 6696557 | 1.05 | 1.26 | |
| Épuisé | ||||
| 146 | 6684620 | |||
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 147 | 6684619 | 2.15 | 2.58 | |
| Bout L27.8 | ||||
| 148 | 6698991 | 1.20 | 1.44 | |
| Loop Handle Ass'y Anti-vib. (old 500-37286-90) | ||||
| 161 | 6696088 | 14.35 | 17.22 | |
| Handle Grip (old 503-3738e-20) | ||||
| 162 | 6691098 | 6.44 | 7.72 | |
| Hex.nut 6 (old 6684792/991-01060-041/790444) | ||||
| 163 | 6684835 | 2.15 | 2.58 | |
| Bague | ||||
| 164 | 6689681 | 1.15 | 1.38 | |
| Tapping Screw 5x20 (old 993-11052-012) | ||||
| 165 | 6695255 | 1.15 | 1.38 | |
| Cap (a) | ||||
| 166 | 6698515 | 2.10 | 2.52 | |
| Level Mark (old 923-33700-20) | ||||
| 167 | 6684851 | 2.15 | 2.58 | |
| Level Mark(old 923-3738f-20) | ||||
| 169 | 6684852 | 2.15 | 2.58 | |
| Main Pipe Comp. | ||||
| 170A | 6699654 | 48.25 | 57.90 | |
| Drive Shaft 1829l (old 343-32346-20) | ||||
| 171 | 6689443 | 17.55 | 21.06 | |
| Lifting Metal Ass'y (old 335-37526-90) | ||||
| 172 | 6689277 | 3.30 | 3.96 | |
| Handle Bracket A (old 506-37300-20) | ||||
| 173 | 6691134 | 2.31 | 2.78 | |
| Bolt 6x43/p (black) (old 994-23060-432) | ||||
| 174 | 6684838 | 2.15 | 2.58 | |
| Oil Adjustment Mark (old 922-32345-20) | ||||
| 175 | 6694578 | 1.15 | 1.38 | |
| Olie Tank Omhulsel | ||||
| 176 | 6686138 | 2.31 | 2.78 | |
| Oil Tank Gasket (old 6690084) | ||||
| 177 | 6699567 | 2.15 | 2.58 | |
| O-ring P-5 (old 999-67005-000/6698965) | ||||
| 178 | 6695661 | 1.15 | 1.38 | |
| Push Nut | ||||
| 179 | 6695239 | 1.15 | 1.38 | |
| Step Bolt A (old 382-32304-20) | ||||
| 180 | 6689757 | 4.45 | 5.34 | |
| Oil Pump Comp. (old 071-32344-80) | ||||
| 181 | 6686487 | 17.09 | 20.50 | |
| Épuisé | ||||
| 182 | 6698965 | |||
| O-ring 1.4 (old 999-67001-413) | ||||
| 183 | 6695656 | 1.15 | 1.38 | |
| Bague | ||||
| 184 | 6695187 | 1.15 | 1.38 | |
| Oil Pump Spring (old 449-32304-20) | ||||
| 185 | 6690381 | 1.15 | 1.38 | |
| Oil Pump Piston Comp. (old 073-32304-81/6686607) | ||||
| 186 | 6686608 | 2.31 | 2.78 | |
| O-ring P-15 | ||||
| 187 | 6698966 | 1.04 | 1.24 | |
| Oil Tank Cap Ass'y (old 624-32304-92) | ||||
| 188 | 6692050 | 12.05 | 14.46 | |
| Épuisé | ||||
| 189 | 6695458 | |||
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 190 | 6695492 | 1.15 | 1.38 | |
| Manual Lable (old 957-32304-20) New | ||||
| 191 | 6694831 | 1.05 | 1.26 | |
| Pignon (1) | ||||
| 192 | 6698967 | 14.19 | 17.02 | |
| Roulement à billes | ||||
| 193 | 6684734 | 8.58 | 10.29 | |
| Roulement à billes | ||||
| 194 | 6684735 | 8.58 | 10.29 | |
| Stop Ring C-9, Outer (old 993-50009-002) | ||||
| 195 | 6695281 | 1.15 | 1.38 | |
| Stop Ring C-24.inner (old 993-51024-002) | ||||
| 196 | 6684732 | 2.15 | 2.58 | |
| Bague | ||||
| 197 | 6693248 | 1.15 | 1.38 | |
| Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
| 198 | 6695042 | 1.15 | 1.38 | |
| Roulement à billes | ||||
| 199 | 6695568 | 5.61 | 6.74 | |
| Cam (old 452-32344-20) | ||||
| 200 | 6690428 | 1.15 | 1.38 | |
| Roue Dentee (1) | ||||
| 201 | 6698968 | 18.45 | 22.14 | |
| Roulement à billes | ||||
| 202 | 6697603 | 4.63 | 5.55 | |
| Stop Ring C-28.inner (old 993-51028-002) | ||||
| 203 | 6684741 | 2.15 | 2.58 | |
| Collar (old 031-32344-20) | ||||
| 204 | 6685962 | 3.30 | 3.96 | |
| Sprocket Comp.,3/8"(old 319-32304-80) | ||||
| 205 | 6689117 | 36.15 | 43.38 | |
| Ecrou de bride | ||||
| 206 | 6695170 | 1.15 | 1.38 | |
| Side Cover Comp. (old 039-32304-80) | ||||
| 207 | 6686038 | 5.11 | 6.14 | |
| Symbol Mark Hitachi (old 929-72302-20) | ||||
| 208 | 6694763 | 1.15 | 1.38 | |
| Small Screw 4x12ws (old 994-16040-126) | ||||
| 209 | 6695403 | 1.15 | 1.38 | |
| Filter Ass'y (old 486-32345-90) | ||||
| 211 | 6690913 | 2.31 | 2.78 | |
| Oil Filter (old 487-32345-20) | ||||
| 212 | 6690917 | 1.15 | 1.38 | |
| Bague | ||||
| 213 | 6684661 | 2.15 | 2.58 | |
| Fuel Pipe 3x5x60 (old 700-53005-06) | ||||
| 214 | 6692414 | 1.15 | 1.38 | |
| Fuel Pipe 3x5x75 (old 700-53005-07) | ||||
| 215 | 6692415 | 1.15 | 1.38 | |
| Banjo, Oil Pump (old 082-32304-20) | ||||
| 216 | 6686637 | 1.15 | 1.38 | |
| Oil Pump Adjuster (old 501-32304-21) | ||||
| 217 | 6691066 | 4.45 | 5.34 | |
| Stop Ring E-6 (old 993-55060-001) | ||||
| 218 | 6695311 | 1.15 | 1.38 | |
| Oil Mark (old 921-32345-20) | ||||
| 219 | 6694576 | 1.15 | 1.38 | |
| Case (old 019-32304-22) | ||||
| 220 | 6685793 | 14.35 | 17.22 | |
| Chian Tensioner Ass'y (old 116-32304-90) | ||||
| 221 | 6687063 | 4.45 | 5.34 | |
| Chain Bar Tightening Bolt (old 101-32344-21) | ||||
| 222 | 6686803 | 4.45 | 5.34 | |
| Guide Plate (old 6690726) | ||||
| 223 | 6697596 | 3.30 | 3.96 | |
| Chain Bar Knock Pin (old 122-32344-21) | ||||
| 224 | 6687130 | 4.45 | 5.34 | |
| Épuisé | ||||
| 225A | 6699679 | |||
| Épuisé | ||||
| 226 | 6686882 | |||
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 227 | 6687105 | 1.15 | 1.38 | |
| Combi Box Spanner 13x19 Minus (old 883-32600-20) | ||||
| 501 | 6693809 | 4.45 | 5.34 | |
| Épuisé | ||||
| 502 | 6684766 | |||
| Épuisé | ||||
| 503 | 6684813 | |||
| Chain Cover 10" (old 941-32333-20) | ||||
| 504 | 6694796 | 6.28 | 7.53 | |
| Épuisé | ||||
| 505 | 6692867 | |||
| Trousse de réparation | ||||
| 603 | 6600037 | 40.98 | 49.17 | |
