Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki CS35EJ'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

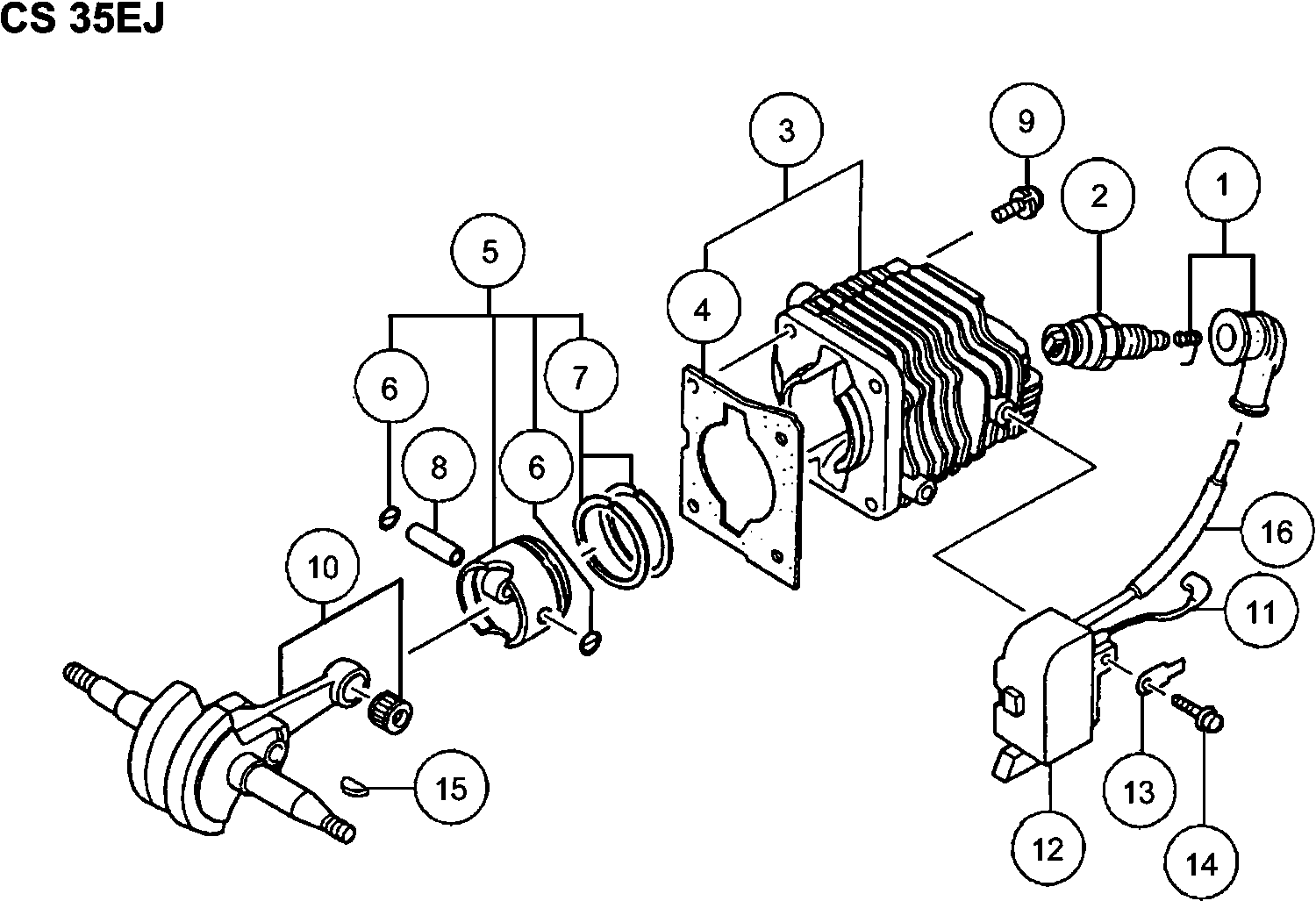

Dessins des Hikoki CS35EJ
Liste de pièces de rechange des Hikoki CS35EJ
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
1 | 6687468 | 2.31 | 2.78 | |
BOUGIE BMR6A | ||||
2 | 6699315 | 13.35 | 16.02 | |
Bougie (old 018-00562-20/6685767/6685769 | ||||
2 | 6699327 | 3.30 | 3.96 | |
Cylinder Set (old 001-01740-91/6685458) | ||||
3 | 6685457 | 44.31 | 53.18 | |
Cylinder Gasket (old 017-01740-20) | ||||
4 | 6685724 | 1.15 | 1.38 | |
Piston Set (old 030-01741-90) | ||||
5 | 6685879 | 22.24 | 26.68 | |
Circlip (old 039-00000-20) | ||||
6 | 6685078 | 1.15 | 1.38 | |
Zuiger Ring (xr1-1856) | ||||
7 | 6685331 | 4.05 | 4.86 | |
Piston Pin 9 X 31 (old 037-01400-20/791170) | ||||
8 | 6686008 | 2.31 | 2.78 | |
Hex.hole Bolt M5x16/s (old 994-61050-164) | ||||
9 | 6684903 | 2.15 | 2.58 | |
Épuisé | ||||
10 | 6697636 | |||
Cord, B 70m (old 178-01740-80) | ||||
11 | 6687837 | 2.31 | 2.78 | |
Bobine | ||||
12 | 6687700 | 44.31 | 53.18 | |
Tab (old 205-01700-20) | ||||
13 | 6688060 | 1.15 | 1.38 | |
High Tension Screw 4x18ws (old 994-16040-186) | ||||
14 | 6695407 | 1.15 | 1.38 | |
Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
15 | 6684899 | 2.15 | 2.58 | |
Cord Insulator Tube (old 755-32050-20) | ||||
16 | 6692900 | 1.15 | 1.38 | |
Crank Case Ass'y (old 072-01740-94) | ||||
20 | 6686523 | 36.15 | 43.38 | |
Olie Keerring | ||||
21 | 6684607 | 4.29 | 5.14 | |
Épuisé | ||||
22 | 6685095 | |||
Roulement à billes | ||||
23 | 6685096 | 5.28 | 6.33 | |
Crank Case Gasket (old 090-0174g-20) | ||||
24 | 6686701 | 1.15 | 1.38 | |
Épuisé | ||||
25 | 6684668 | |||
D4e Retaining Ring (old 993-55040-001) | ||||
27 | 6685101 | 1.15 | 1.38 | |
Starter Pawl Spring (old 790-01740-20) | ||||
28 | 6685105 | 1.15 | 1.38 | |
Starter Pawl | ||||
29A | 6685334 | 1.05 | 1.26 | |
Bague | ||||
30 | 6685103 | 1.15 | 1.38 | |
Flywheel Nut (old 066-00000-20) | ||||
31 | 6685104 | 1.15 | 1.38 | |
Shim S T0.2 (old 071-04063-23) | ||||
32 | 6685098 | 1.15 | 1.38 | |
Shim S T0.3 (old 071-04063-24) | ||||
32 | 6685099 | 1.15 | 1.38 | |
Shim 0.4 (old 071-04063-25) | ||||
32 | 6686475 | 1.15 | 1.38 | |
Bague | ||||
33 | 6695222 | 1.15 | 1.38 | |
Épuisé | ||||
40 | 6691361 | |||
Air Vent Valve (b) (old 562-04060-20) | ||||
41 | 6685173 | 2.31 | 2.78 | |
Air Vent Valve Set (old 6692164) | ||||
42 | 6697231 | 5.45 | 6.54 | |
Hex. Hole Bolt 5x20/ps (old 994-63050-204) | ||||
43 | 6684634 | 2.15 | 2.58 | |
Conducteur de terre | ||||
44 | 6688446 | 2.31 | 2.78 | |
Stop Switch Ass'y (old 6687502) | ||||
45A | 6601374 | 11.71 | 14.06 | |
Switch Name Plate (old 183-01300-20/6689113) | ||||
46 | 6687949 | 1.15 | 1.38 | |
Luchtfilterkap | ||||
50 | 6686299 | 3.30 | 3.96 | |
Luchtfilterkap | ||||
51 | 6689735 | 1.15 | 1.38 | |
Élément de filtre à air | ||||
52 | 6690064 | 3.30 | 3.96 | |
Insulator Set (old 404-0174g-90) | ||||
53 | 6689935 | 12.05 | 14.46 | |
Insulator Gasket (old 403-0174g-20) | ||||
54 | 6689871 | 1.15 | 1.38 | |
Carburetor Insulator Rubber (old 409-01700-20) | ||||
55 | 6690001 | 1.15 | 1.38 | |
Valve Holder (old 395-0174g-20) | ||||
56 | 6689806 | 1.15 | 1.38 | |
Reed Valve (old 394-0174g-20) | ||||
57 | 6689803 | 3.30 | 3.96 | |
Épuisé | ||||
58 | 6694964 | |||
Carburetor Gasket | ||||
59 | 6698108 | 1.80 | 2.16 | |
Carburateurset | ||||
60 | 6690667 | 84.40 | 101.28 | |
Screw 5x45s (old 994-14050-451) | ||||
61 | 6695350 | 1.15 | 1.38 | |
Choke Shim 1.0 (old 708-32911-20) New | ||||
62 | 6692597 | 1.05 | 1.26 | |
Ring 5 (oud 992-00050-011) | ||||
63 | 6684864 | 2.15 | 2.58 | |
Choke Valve (old 700-32918-20/6692409) | ||||
64 | 6692410 | 2.31 | 2.78 | |
Tapping Screw D4.5x14 (old 990-75045-144) | ||||
65 | 6685152 | 1.15 | 1.38 | |
Luchtfilterkap | ||||
66 | 6687344 | 4.45 | 5.34 | |
Épuisé | ||||
67 | 6684668 | |||
Ring 5 (oud 992-00050-011) | ||||
68 | 6684864 | 2.15 | 2.58 | |
Idle Sponge (old 191-32970-20) | ||||
69 | 6685224 | 1.15 | 1.38 | |
Aircleaner Sponge (old 446-01740-20) | ||||
71 | 6690355 | 1.15 | 1.38 | |
Seal Cover (old 129-01730-20) | ||||
72 | 6687182 | 1.15 | 1.38 | |
Muffler Set (old 704-0174c-90) | ||||
81 | 6692447 | 17.40 | 20.88 | |
Muffler Gasket (old 737-01700-20) | ||||
82 | 6692734 | 1.15 | 1.38 | |
Épuisé | ||||
83 | 6692627 | |||
Épuisé | ||||
84 | 6692677 | |||
Muffler Coupling Gasket (old 739-01709-20) | ||||
85 | 6692833 | 1.15 | 1.38 | |
Épuisé | ||||
86 | 6692607 | |||
Hex. Hole Bolt 5x40 (old 990-51050-403) | ||||
87 | 6695054 | 1.15 | 1.38 | |
Bague | ||||
88 | 6684661 | 2.15 | 2.58 | |
Oil Pipe B (old 505-32710-20) | ||||
101 | 6691121 | 4.45 | 5.34 | |
Clip 7 (old 680-04019-21) | ||||
102 | 6692312 | 1.15 | 1.38 | |
Bague | ||||
103 | 6684661 | 2.15 | 2.58 | |
Oil Filter (old 487-32712-20/6696804) | ||||
104 | 6690919 | 1.15 | 1.38 | |
Oil Filter Body Ass'y (old 486-32710-90) | ||||
105 | 6685249 | 2.31 | 2.78 | |
Gaskabel | ||||
106 | 6693873 | 5.78 | 6.93 | |
Wire Grommet (old 964-01710-20) New | ||||
107 | 6694836 | 1.15 | 1.38 | |
Priming Pump Comp. (old 442-25143-80) | ||||
108 | 6685139 | 5.94 | 7.12 | |
Épuisé | ||||
109 | 6698850 | |||
Rubber Pipe (old 678-01740-20/6692291) | ||||
110 | 6692292 | 4.45 | 5.34 | |
Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | ||||
111 | 6685199 | 4.45 | 5.34 | |
Fuel Pipe 2.5x4x150 (old 700-02504-15) | ||||
112 | 6692351 | 1.15 | 1.38 | |
Return Grommet (old 6684627) | ||||
113 | 6697846 | 1.04 | 1.24 | |
Épuisé | ||||
114 | 6697780 | |||
Adjuster Cap (old 190-3290g-20) | ||||
115 | 6687957 | 3.30 | 3.96 | |
Grommet (old 707-32710-20) | ||||
116 | 6692590 | 1.15 | 1.38 | |
Choke Button Comp. (old 704-32710-80) | ||||
117 | 6692513 | 2.31 | 2.78 | |
Grommet (old 191-32710-20) | ||||
118 | 6687976 | 1.15 | 1.38 | |
Joint Torique | ||||
119 | 6697898 | 1.04 | 1.24 | |
O-ring P-21 | ||||
119A | 6699285 | 1.04 | 1.24 | |
Oil Tank Cap Ass'y (old 642-32719-90) | ||||
120 | 6692159 | 5.11 | 6.14 | |
Tank Dop Compleet | ||||
121A | 6692121 | 9.58 | 11.49 | |
Lock Nut M6 (oud 991-01060-013) | ||||
122 | 6684872 | 2.15 | 2.58 | |
Recoil Starter Ass'y (old 756-01740-90) | ||||
131 | 6692906 | 44.31 | 53.18 | |
Tapping Screw D5x14 (old 990-72050-144) | ||||
132 | 6685275 | 1.15 | 1.38 | |
Bague | ||||
133 | 6689681 | 1.15 | 1.38 | |
Starter Pully (old 774-01740-20) | ||||
134 | 6693060 | 3.30 | 3.96 | |
Starter Rope 3 X 890 (old 783-01740-20) | ||||
135 | 6693159 | 1.15 | 1.38 | |
Recoil Spring Case Ass'y (old 778-01740-90) | ||||
136 | 6693093 | 7.75 | 9.30 | |
Starthendel | ||||
137 | 6693228 | 2.31 | 2.78 | |
Enveloppe De Ventilateur | ||||
138 | 6686947 | 8.58 | 10.29 | |
Tapping Screw D4.5x20 (old 990-72045-204) | ||||
139 | 6685191 | 1.15 | 1.38 | |
Bague | ||||
140 | 6684632 | 2.15 | 2.58 | |
Inlet Screen (oud 578-25007-20) | ||||
151 | 6684700 | 4.29 | 5.14 | |
Pump Body (old 575-25006-20) | ||||
152 | 6691416 | 8.91 | 10.70 | |
Screw (old 514-25001-20) | ||||
153 | 6685210 | 1.15 | 1.38 | |
Pump Gasket (old 577-25007-20) | ||||
154 | 6685212 | 2.31 | 2.78 | |
Pump Diaphragm (old 576-25006-20) | ||||
155 | 6685213 | 4.45 | 5.34 | |
Control Lever (old 473-25001-20) | ||||
158 | 6685217 | 3.30 | 3.96 | |
Hinge Pin Set Screw (old 546-25001-20) | ||||
159 | 6685218 | 2.31 | 2.78 | |
Valve Spring (old 477-25088-20) | ||||
160 | 6690873 | 4.45 | 5.34 | |
Hinge Pin (old 605-25001-20) | ||||
161 | 6685219 | 1.15 | 1.38 | |
Diaphragm Cover (old 476-25004-20) | ||||
162 | 6685222 | 4.45 | 5.34 | |
Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
163 | 6690827 | 11.71 | 14.06 | |
Diaphragm Packing (old 475-25038-20) | ||||
164 | 6685220 | 2.31 | 2.78 | |
Needle Valve (old 603-25012-20) | ||||
165 | 6685215 | 5.28 | 6.33 | |
Idle Adjust Spring (old 463-25006-20) | ||||
166 | 6685297 | 2.31 | 2.78 | |
Idle Adjust Screw (old 462-25016-20) | ||||
167 | 6685298 | 2.31 | 2.78 | |
Set Screw (old 548-25012-20) | ||||
170 | 6685223 | 1.15 | 1.38 | |
Screw 5x14/ws (old 994-16050-141) | ||||
191 | 6695416 | 1.15 | 1.38 | |
Oil Pump Cover (old 097-32900-20) | ||||
192 | 6686763 | 2.31 | 2.78 | |
Oil Pipe A (old 515-32710-20) | ||||
193 | 6691223 | 3.30 | 3.96 | |
Screw Gear (old 084-32900-20) | ||||
194 | 6686645 | 10.40 | 12.48 | |
Air Vent Sponge (old 567-01700-20) | ||||
195 | 6691400 | 1.15 | 1.38 | |
Oil Pump Ass'y (old 144-32902-90/6686678/6686652/6 | ||||
196 | 6687324 | 10.56 | 12.68 | |
Oil Adjust Grommet (old 488-32710-21/6690955) | ||||
197 | 6690956 | 1.15 | 1.38 | |
Oil Pump Adjuster (old 501-32710-21) | ||||
198 | 6691070 | 1.15 | 1.38 | |
O-ring P-6 (old 6695663) | ||||
199 | 6697917 | 1.04 | 1.24 | |
Oil Pump Case Set, Spare (old 088-3277a-91/6686677 | ||||
200 | 6686681 | 9.74 | 11.68 | |
O-ring P-6 (old 6695663) | ||||
201 | 6697917 | 1.04 | 1.24 | |
Tapping Screw D5x14 (old 990-72050-144) | ||||
202 | 6685275 | 1.15 | 1.38 | |
Fuel Pipe (old 700-07105-02) | ||||
203 | 6685154 | 1.15 | 1.38 | |
Chain Catcher (old 125-32710-20) | ||||
204 | 6685155 | 1.15 | 1.38 | |
Tapping Screw D4.5x14 (old 990-75045-144) | ||||
205 | 6685152 | 1.15 | 1.38 | |
Nut (old 121-32530-20) | ||||
221 | 6685166 | 2.31 | 2.78 | |
Chain Bar Clamp Nut (old 121-32600-20) | ||||
221A | 6687105 | 1.15 | 1.38 | |
Clutch Comp. (old 6688559/6685362) | ||||
222 | 6685142 | 14.38 | 17.25 | |
Needle Bearing (old 999-62101-301) | ||||
223 | 6685143 | 4.45 | 5.34 | |
Clutch Housing Comp. (old 310-32710-20/6695996) | ||||
224 | 6685144 | 14.53 | 17.43 | |
Bague | ||||
225 | 6685145 | 2.31 | 2.78 | |
Tapping Screw D4x10 (old 993-41040-101) | ||||
226 | 6685161 | 1.15 | 1.38 | |
Guide Plate A (old 6690733) | ||||
227 | 6697599 | 2.80 | 3.36 | |
Crank Shaft Collar (old 511-32900-20) | ||||
228 | 6685146 | 2.31 | 2.78 | |
Tapping Screw D4x10 (old 993-41040-101) | ||||
229 | 6685161 | 1.15 | 1.38 | |
Side Case Ass'y | ||||
230 | 6697628 | 48.55 | 58.26 | |
Guide Plate B (old 462-32911-21/6690755) | ||||
231 | 6690756 | 2.31 | 2.78 | |
Screw 2.6x5 (old 993-30026-050) | ||||
232 | 6695269 | 1.15 | 1.38 | |
Chain Puller | ||||
233B | 6698986 | 13.35 | 16.02 | |
Gear (a) (old 301-72000-20) | ||||
234 | 6685168 | 2.31 | 2.78 | |
Brake Handle (old 365-32901-80) | ||||
235 | 6689674 | 13.04 | 15.64 | |
Brake Link Cover, Black (old 375-32900-21/6689711) | ||||
236 | 6689712 | 2.31 | 2.78 | |
BRAKE SPRING | ||||
237 | 6697694 | 2.10 | 2.52 | |
Brake Support Plate Comp. (old 386-32901-80) | ||||
238 | 6685119 | 4.45 | 5.34 | |
Needle Roller 3x9.8 (old 999-05300-980) | ||||
239 | 6685141 | 1.15 | 1.38 | |
Brake Link Ass'y | ||||
240 | 6685388 | 4.05 | 4.86 | |
Remband | ||||
241 | 6689728 | 8.41 | 10.10 | |
Cleaner Fixing Collar (old 470-10246-20) | ||||
242 | 6690805 | 1.15 | 1.38 | |
Collar (old 031-32901-20) | ||||
243 | 6685120 | 1.15 | 1.38 | |
Side Cover Comp. | ||||
244 | 6697614 | 10.89 | 13.06 | |
Brake Lever Spring (old 388-32900-20) | ||||
245 | 6685122 | 2.31 | 2.78 | |
Tapping Screw D4x15 (old 993-41040-151) | ||||
246 | 6685148 | 1.15 | 1.38 | |
Screw 5x25 Ps (old 994-15050-251) | ||||
261 | 6695394 | 1.15 | 1.38 | |
U-nut 5 (old 991-74050-010) | ||||
262 | 6695157 | 1.15 | 1.38 | |
Screw 5x40/s (old 994-14050-401) | ||||
263 | 6695348 | 1.15 | 1.38 | |
Ring 5 (oud 992-00050-011) | ||||
264 | 6684864 | 2.15 | 2.58 | |
Damper Collar A (old 275-32710-20) New | ||||
265 | 6688480 | 1.15 | 1.38 | |
Damper A (old 219-32750-20) | ||||
266 | 6688117 | 1.15 | 1.38 | |
U-nut 5 (old 991-74050-010) | ||||
267 | 6695157 | 1.15 | 1.38 | |
Rear Handle B Comp. (old 011-32901-80) | ||||
268 | 6685646 | 5.28 | 6.33 | |
Push Pin Cap (old 725-32161-20) | ||||
269 | 6692680 | 1.15 | 1.38 | |
Stopper Spring (old 066-32300-20) | ||||
270 | 6686447 | 1.15 | 1.38 | |
Push Pin (old 064-33225-20) | ||||
271 | 6686433 | 1.15 | 1.38 | |
Épuisé | ||||
272 | 6688361 | |||
Épuisé | ||||
273 | 6686390 | |||
Épuisé | ||||
274 | 6697845 | |||
Nut M4 (old 991-01040-011) | ||||
275 | 6685069 | 1.15 | 1.38 | |
Rear Handle A Comp. (old 010-32750-81) | ||||
276 | 6685616 | 11.88 | 14.25 | |
Screw 4x22/ws (old 994-16040-226) | ||||
277 | 6695410 | 1.15 | 1.38 | |
Front Handle Comp. (old 209-32750-80) | ||||
278 | 6688077 | 7.93 | 9.51 | |
Damper B (old 266-32750-20/6688412) | ||||
279 | 6688412 | 1.15 | 1.38 | |
Damper Collar B (old 276-32710-20) | ||||
280 | 6688485 | 1.15 | 1.38 | |
Tapping Screw 5x35 (old 990-73050-354) | ||||
281 | 6695107 | 1.15 | 1.38 | |
Tapping Screw 5x35 (old 990-73050-354) | ||||
282 | 6695107 | 1.15 | 1.38 | |
Combi Box Spanner 10/19mm (old 013-29323-50/668566 | ||||
501 | 6685257 | 3.30 | 3.96 | |
Combi Box Spanner 13x19 Minus (old 883-32600-20) | ||||
501A | 6693809 | 4.45 | 5.34 | |
Épuisé | ||||
502 | 6685295 | |||
Minus Driver | ||||
503 | 6686632 | 3.06 | 3.68 | |
Épuisé | ||||
504 | 6697854 | |||
Chain Cover 14" (old 946-32753-20) | ||||
505 | 6685256 | 6.44 | 7.72 | |
Name Plate Cs35ej (old 906-72910-20) New | ||||
601 | 6694410 | 1.15 | 1.38 | |
Starter Mark Cs35ej (old 915-72910-20) New | ||||
602 | 6694511 | 2.10 | 2.52 |
