Dessins techniques et pièces de rechange Hikoki CS35SB

Type exact:
CS35SB
CS35SB

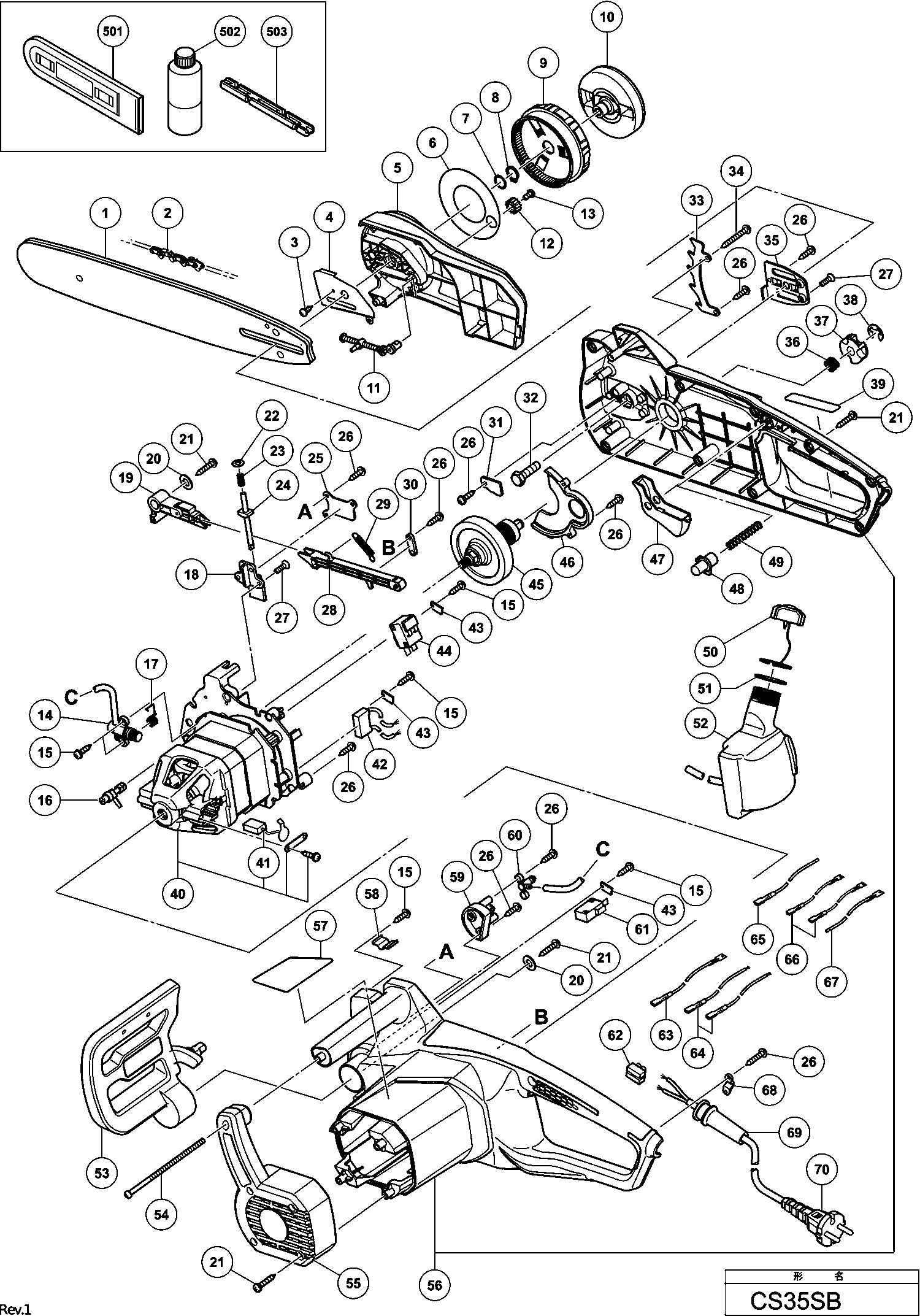

Dessins des HIKOKI CS35SB
Liste de pièces de rechange des HIKOKI CS35SB
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Épuisé | ||||
1 | 6696991 | Épuisé | ||
Épuisé | ||||
2 | 6697854 | Épuisé | ||
Tapschroef D3 | ||||
3 | 696352 | Tapschroef D3 | € 1.35 | |
Guide Plate | ||||
4 | 338943 | Guide Plate | € 1.26 | |
End Cap | ||||
5 | 338794 | End Cap | € 7.56 | |
Stofafdichting | ||||
6 | 335688 | Stofafdichting | € 1.24 | |
O Ring (1ap-12) | ||||
7 | 996407 | O Ring (1ap-12) | € 1.26 | |
Circlips Ø14 (x10)paquet de 10 | ||||
8 | 939543 | Circlips Ø14 (x10)paquet de 10 | € 3.06 | |
Spanningsregelaar | ||||
9 | 335150 | Spanningsregelaar | € 2.88 | |
Bouton | ||||
10 | 335151 | Bouton | € 8.10 | |
Chain Pulley | ||||
11 | 335966 | Chain Pulley | € 7.38 | |
Pignon | ||||
12 | 335152 | Pignon | € 1.62 | |
Vis Ø 4x8 Noir | ||||
13 | 315500 | Vis Ø 4x8 Noir | € 1.62 | |
Olie Pomp | ||||
14 | 338820 | Olie Pomp | € 7.92 | |
Tapping Screw D3 | ||||
15 | 6685415 | Tapping Screw D3 | € 1.26 | |
Adjusting Bolt | ||||
16 | 335967 | Adjusting Bolt | € 3.96 | |
Extension Spring | ||||
17 | 338821 | Extension Spring | € 1.24 | |
Frame Plate | ||||
18 | 338812 | Frame Plate | € 2.70 | |
Front Push Rod | ||||
19 | 338825 | Front Push Rod | € 3.24 | |
Flat Washer | ||||
20 | 338824 | Flat Washer | € 1.24 | |
Tapping Screw D5x16 | ||||
21 | 339124 | Tapping Screw D5x16 | € 2.16 | |
Rondelle (1) | ||||
22 | 338809 | Rondelle (1) | € 1.24 | |
Ressort (1) | ||||
23 | 338810 | Ressort (1) | € 1.24 | |
Remstang | ||||
24 | 338811 | Remstang | € 1.80 | |
Press Board (brake Lever) | ||||
25 | 338816 | Press Board (brake Lever) | € 1.24 | |
Vis | ||||
26 | 954017 | Vis | € 1.24 | |
Vis M4x12 (paquet de 10) | ||||
27 | 949323 | Vis M4x12 (paquet de 10) | € 1.26 | |
Push Rod | ||||
28 | 338830 | Push Rod | € 1.80 | |
Return Spring | ||||
29 | 338829 | Return Spring | € 1.24 | |
Press Board | ||||
30 | 338831 | Press Board | € 1.24 | |
Press Board (b) | ||||
31 | 338813 | Press Board (b) | € 1.24 | |
Machine Schroef | ||||
32 | 338814 | Machine Schroef | € 1.24 | |
Spike | ||||
33 | 338797 | Spike | € 1.80 | |
Vis G 13sb | ||||
34 | 957580 | Vis G 13sb | € 1.26 | |
Insulation Blanket | ||||
35 | 338796 | Insulation Blanket | € 1.26 | |
Ressort (1) | ||||
36 | 338798 | Ressort (1) | € 1.24 | |
Sprocket | ||||
37 | 338799 | Sprocket | € 3.60 | |
Rondelle Elastique | ||||
38 | 974577 | Rondelle Elastique | € 1.26 | |
Motor Ass'y | ||||
40 | 338818 | Motor Ass'y | € 139.26 | |
Épuisé | ||||
41 | 338946 | Épuisé | ||
Épuisé | ||||
41A | 999104 | Épuisé | ||
Condensateur (1) | ||||
42 | 338808 | Condensateur (1) | € 1.44 | |
Press Board (a) | ||||
43 | 338806 | Press Board (a) | € 1.24 | |
Commutateur | ||||
44 | 338807 | Commutateur | € 7.20 | |
Output Shaft | ||||
45 | 338819 | Output Shaft | € 24.92 | |
Dust Cover | ||||
46 | 338815 | Dust Cover | € 1.44 | |
Bouton De Commande (1) | ||||
47 | 338833 | Bouton De Commande (1) | € 1.24 | |
Lock Off Button | ||||
48 | 338832 | Lock Off Button | € 1.24 | |
Lock Off Spring | ||||
49 | 338804 | Lock Off Spring | € 1.24 | |
Olietank Kap | ||||
50 | 338801 | Olietank Kap | € 2.34 | |
Rubberen Ring | ||||
51 | 338803 | Rubberen Ring | € 1.24 | |
Olietank | ||||
52 | 338805 | Olietank | € 7.02 | |
Protection Board | ||||
53 | 338837 | Protection Board | € 14.22 | |
Tapping Screw D5x130 | ||||
54 | 339125 | Tapping Screw D5x130 | € 2.16 | |
Motor Rear Cover | ||||
55 | 338838 | Motor Rear Cover | € 6.48 | |
Carter | ||||
56 | 338802 | Carter | € 32.34 | |
Spring Leaf | ||||
58 | 338828 | Spring Leaf | € 1.24 | |
Connector Base | ||||
59 | 338823 | Connector Base | € 1.24 | |
Piece De Joint (1) | ||||
60 | 338822 | Piece De Joint (1) | € 1.44 | |
Commutateur | ||||
61 | 338827 | Commutateur | € 2.88 | |
Terminal Set | ||||
62 | 338834 | Terminal Set | € 1.24 | |
Connecting Wire 320l (blue) | ||||
63 | 338842 | Connecting Wire 320l (blue) | € 1.44 | |
Connecting Wire 65l (blue) | ||||
64 | 338841 | Connecting Wire 65l (blue) | € 2.34 | |
Connecting Wire 300l (red) | ||||
65 | 338843 | Connecting Wire 300l (red) | € 1.80 | |
Connecting Wire 390l (red) | ||||
66 | 338840 | Connecting Wire 390l (red) | € 2.52 | |
Connecting Wire 390l (blue) | ||||
67 | 338839 | Connecting Wire 390l (blue) | € 1.26 | |
Press Board (for Cord) | ||||
68 | 338835 | Press Board (for Cord) | € 1.24 | |
Cord Amor | ||||
69 | 338836 | Cord Amor | € 1.24 | |
Snoer (eu) | ||||
70 | 339121 | Snoer (eu) | € 8.46 | |
SNOER (UK) | ||||
70 | 339122 | SNOER (UK) | € 8.46 | |
CORD (SUI) | ||||
70 | 339123 | CORD (SUI) | € 7.74 | |
Épuisé | ||||
501 | 6699116 | Épuisé | ||
Plug Clip | ||||
503 | 309686 | Plug Clip | € 4.86 |
