Dessins techniques et pièces de rechange Hikoki DH36DMAWAZ
Type exact:
DH36DMAWAZ
DH36DMAWAZ

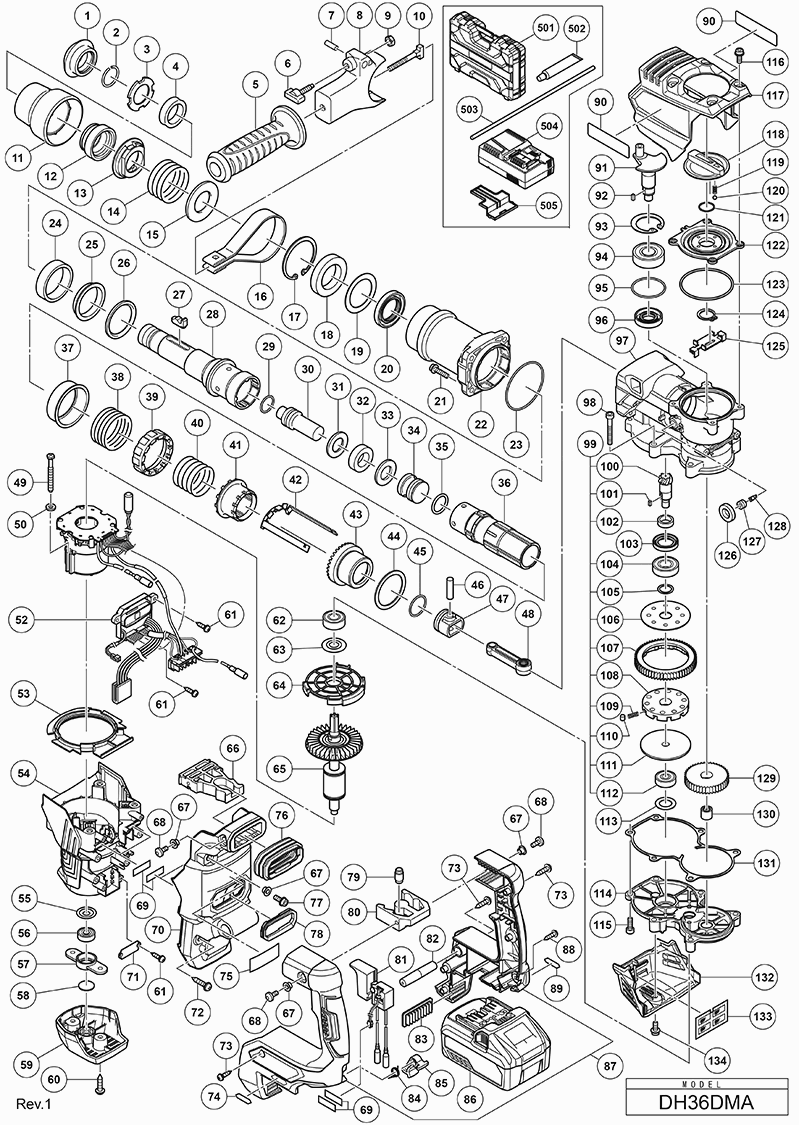

Dessins des HIKOKI DH36DMAWAZ
Liste de pièces de rechange des HIKOKI DH36DMAWAZ
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Voorkap | ||||
| 1 | 371151 | Voorkap | € 1.73 | |
| Clips Dh 38ms | ||||
| 2 | 331540 | Clips Dh 38ms | € 1.80 | |
| Retainer Washer | ||||
| 3 | 371138 | Retainer Washer | € 1.87 | |
| Retainer Damper (a) | ||||
| 4 | 371152 | Retainer Damper (a) | € 1.00 | |
| Épuisé | ||||
| 5 | 330209 | Épuisé | ||
| Wing Bolt | ||||
| 6 | 337577 | Wing Bolt | € 1.00 | |
| Goupille Ø2x8 Nr 90gc | ||||
| 7 | 949859 | Goupille Ø2x8 Nr 90gc | € 1.15 | |
| Mount | ||||
| 8 | 371135 | Mount | € 3.60 | |
| Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
| 9 | 949556 | Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | € 1.01 | |
| Bout Voor Zijhandgreep | ||||
| 10 | 331247 | Bout Voor Zijhandgreep | € 4.03 | |
| Grip | ||||
| 11 | 371133 | Grip | € 3.17 | |
| Bit Lock Holder | ||||
| 12 | 371157 | Bit Lock Holder | € 3.46 | |
| Trust Plate | ||||
| 13 | 371159 | Trust Plate | € 4.90 | |
| Retainer Spring | ||||
| 14 | 371167 | Retainer Spring | € 1.00 | |
| Spring Holder (a) | ||||
| 15 | 371145 | Spring Holder (a) | € 1.00 | |
| Anneau | ||||
| 16 | 331246 | Anneau | € 3.02 | |
| Retaining Ring D55 | ||||
| 17 | 371141 | Retaining Ring D55 | € 1.58 | |
| Kogellager 6907ddu | ||||
| 18 | 6907DD | Kogellager 6907ddu | € 3.46 | |
| Bearing Washer | ||||
| 19 | 371142 | Bearing Washer | € 1.00 | |
| Oil Seal | ||||
| 20 | 371148 | Oil Seal | € 2.74 | |
| Vis Dh 38ya | ||||
| 21 | 991712 | Vis Dh 38ya | € 1.01 | |
| Cylinder Case | ||||
| 22 | 371125 | Cylinder Case | € 9.79 | |
| O Ring (1as-60) Since 9.1979 | ||||
| 23 | 956996 | O Ring (1as-60) Since 9.1979 | € 2.88 | |
| Retainer Damper (b) | ||||
| 24 | 371153 | Retainer Damper (b) | € 1.30 | |
| Damper Sleeve | ||||
| 25 | 371144 | Damper Sleeve | € 1.00 | |
| Retainer Damper Washer | ||||
| 26 | 371161 | Retainer Damper Washer | € 1.73 | |
| Bit Lock | ||||
| 27 | 370654 | Bit Lock | € 4.75 | |
| Retainer Sleeve | ||||
| 28 | 371155 | Retainer Sleeve | € 40.79 | |
| O Ring Dh 40ma | ||||
| 29 | 313396 | O Ring Dh 40ma | € 4.61 | |
| Second Hammer | ||||
| 30 | 371160 | Second Hammer | € 6.77 | |
| Damper Washer | ||||
| 31 | 371163 | Damper Washer | € 2.74 | |
| Damper | ||||
| 32 | 371316 | Damper | € 10.51 | |
| Damper Holder | ||||
| 33 | 371164 | Damper Holder | € 1.58 | |
| Striker | ||||
| 34 | 371165 | Striker | € 3.46 | |
| Cylindre | ||||
| 36 | 371156 | Cylindre | € 23.10 | |
| Entretoise Dh 38ms | ||||
| 37 | 331533 | Entretoise Dh 38ms | € 5.33 | |
| Ressort De Maintien | ||||
| 38 | 331534 | Ressort De Maintien | € 3.60 | |
| Engrenage Dh 38ms | ||||
| 39 | 331535 | Engrenage Dh 38ms | € 3.60 | |
| Clutch Spring | ||||
| 40 | 371166 | Clutch Spring | € 1.00 | |
| Clutch | ||||
| 41 | 371137 | Clutch | € 1.00 | |
| Coulisseau (1) | ||||
| 42 | 371147 | Coulisseau (1) | € 1.87 | |
| Roue Conique (1) | ||||
| 43 | 371158 | Roue Conique (1) | € 14.65 | |
| Anneau de retenue | ||||
| 44 | 331234 | Anneau de retenue | € 1.01 | |
| Joint Torique | ||||
| 45 | 986104 | Joint Torique | € 1.01 | |
| Goupille Dh 38ms | ||||
| 46 | 331221 | Goupille Dh 38ms | € 1.01 | |
| Piston | ||||
| 47 | 326369 | Piston | € 3.17 | |
| Connecting Rod | ||||
| 48 | 371175 | Connecting Rod | € 3.60 | |
| Vis Ø 4x45 | ||||
| 49 | 981824 | Vis Ø 4x45 | € 1.01 | |
| Bolt Washer M4 (black) | ||||
| 50 | 323210 | Bolt Washer M4 (black) | € 1.01 | |
| STATOR FET PCB | ||||
| 52 | 341000 | STATOR FET PCB | € 124.34 | |
| FAN GUIDE (B) | ||||
| 53 | 373076 | FAN GUIDE (B) | € 1.15 | |
| HOUSING | ||||
| 54 | 373077 | HOUSING | € 16.37 | |
| Rondelle | ||||
| 55 | 982631 | Rondelle | € 1.00 | |
| Roulement A Billes | ||||
| 56 | 608VVM | Roulement A Billes | € 5.47 | |
| Logement De Roulement | ||||
| 57 | 331254 | Logement De Roulement | € 2.02 | |
| O Ring | ||||
| 58 | 331547 | O Ring | € 1.80 | |
| TAIL COVER | ||||
| 59 | 373090 | TAIL COVER | € 2.74 | |
| Kogellager 6201dducmav2s | ||||
| 62 | 6201DD | Kogellager 6201dducmav2s | € 6.05 | |
| Rondelle | ||||
| 63 | 325003 | Rondelle | € 1.01 | |
| FAN GUIDE (A) | ||||
| 64 | 373075 | FAN GUIDE (A) | € 1.15 | |
| ROTOR | ||||
| 65 | 361085 | ROTOR | € 97.81 | |
| JOINT | ||||
| 66 | 373093 | JOINT | € 3.60 | |
| Entretoise | ||||
| 67 | 991711 | Entretoise | € 1.01 | |
| SEAL LOCK BUTTON BOLT M5 | ||||
| 68 | 373092 | SEAL LOCK BUTTON BOLT M5 | € 1.00 | |
| PROTECTION SHEET | ||||
| 69 | 373411 | PROTECTION SHEET | € 1.00 | |
| BACK COVER | ||||
| 70 | 373409 | BACK COVER | € 7.92 | |
| PLATE NEW | ||||
| 71 | 373091 | PLATE NEW | € 1.00 | |
| Vis D5*20 (bm25y Vb13y) | ||||
| 72 | 302089 | Vis D5*20 (bm25y Vb13y) | € 1.01 | |
| Vis Ø 4*25 Since 4.2012 | ||||
| 73 | 307028 | Vis Ø 4*25 Since 4.2012 | € 1.01 | |
| BELLOWS | ||||
| 76 | 373094 | BELLOWS | € 2.59 | |
| Vis M5*16 (g23sc2/se2/sc3/vb13y) | ||||
| 77 | 994192 | Vis M5*16 (g23sc2/se2/sc3/vb13y) | € 1.00 | |
| PANEL RUBBER | ||||
| 78 | 373095 | PANEL RUBBER | € 1.00 | |
| Caoutchouc | ||||
| 79 | 310124 | Caoutchouc | € 4.03 | |
| Support | ||||
| 80 | 310123 | Support | € 11.38 | |
| SWITCH SET | ||||
| 81 | 373096 | SWITCH SET | € 28.78 | |
| Handle Shaft | ||||
| 82 | 338175 | Handle Shaft | € 1.00 | |
| LEVER SPRING (B) | ||||
| 84 | 373097 | LEVER SPRING (B) | € 2.02 | |
| STOP LEVER | ||||
| 85 | 373098 | STOP LEVER | € 1.00 | |
| BSL36B18 BATTERIJ MULTIVOLT B, MV-B [36V 4,0Ah/18V | ||||
| 86 | 372120 | BSL36B18 BATTERIJ MULTIVOLT B, MV-B [36V 4,0Ah/18V | € 154.80 | |
| HANDLE SET (A+B) | ||||
| 87 | 373100 | HANDLE SET (A+B) | € 13.73 | |
| Épuisé | ||||
| 88 | 307811 | Épuisé | ||
| Crank Shaft | ||||
| 91 | 371136 | Crank Shaft | € 13.25 | |
| Circlips | ||||
| 93 | 948391 | Circlips | € 1.58 | |
| Kogellager 6203dducmav2s | ||||
| 94 | 6203DD | Kogellager 6203dducmav2s | € 7.34 | |
| O-ring H 41sa | ||||
| 95 | 996363 | O-ring H 41sa | € 1.58 | |
| Joint Spi Dh 40mr | ||||
| 96 | 321274 | Joint Spi Dh 40mr | € 4.61 | |
| Crank Case Ass'y | ||||
| 97 | 371173 | Crank Case Ass'y | € 23.76 | |
| Vis M6*45 | ||||
| 98 | 986940 | Vis M6*45 | € 1.01 | |
| Slipkoppeling Kompleet | ||||
| 99 | 371176 | Slipkoppeling Kompleet | € 40.39 | |
| Pignon | ||||
| 100 | 331211 | Pignon | € 11.95 | |
| Clavette 3*3*8 | ||||
| 101 | 944109 | Clavette 3*3*8 | € 1.63 | |
| Bague | ||||
| 102 | 321279 | Bague | € 8.06 | |
| Joint Dh 40yb | ||||
| 103 | 313050 | Joint Dh 40yb | € 3.74 | |
| Roulement A Billes | ||||
| 104 | 6002DD | Roulement A Billes | € 6.77 | |
| Bague | ||||
| 105 | 331213 | Bague | € 1.01 | |
| Rondelle | ||||
| 106 | 331214 | Rondelle | € 1.01 | |
| Roue Dentee | ||||
| 107 | 331215 | Roue Dentee | € 18.35 | |
| Disque D Embrayage | ||||
| 108 | 321281 | Disque D Embrayage | € 17.16 | |
| Ressort | ||||
| 109 | 321282 | Ressort | € 1.58 | |
| Aiguille (10) | ||||
| 110 | 331217 | Aiguille (10) | € 1.01 | |
| Bague Entretoise | ||||
| 111 | 331219 | Bague Entretoise | € 10.94 | |
| Roulement A Bille | ||||
| 112 | 629VVM | Roulement A Bille | € 5.62 | |
| Bague Pour Palier | ||||
| 113 | 331220 | Bague Pour Palier | € 1.01 | |
| Gear Cover | ||||
| 114 | 371124 | Gear Cover | € 12.67 | |
| Vis Dh-38 | ||||
| 115 | 992803 | Vis Dh-38 | € 1.01 | |
| Hex.socket Hd.bolt M5 (w/flange) New | ||||
| 116 | 371170 | Hex.socket Hd.bolt M5 (w/flange) New | € 1.00 | |
| CRANK COVER | ||||
| 117 | 373701 | CRANK COVER | € 6.77 | |
| Crank Cover | ||||
| 118 | 371134 | Crank Cover | € 6.05 | |
| Lever Spring | ||||
| 119 | 371168 | Lever Spring | € 1.00 | |
| STALEN KOGEL D4.76 (10 STUKS) | ||||
| 120 | 959149 | STALEN KOGEL D4.76 (10 STUKS) | € 1.00 | |
| O Ring (s-18) | ||||
| 121 | 878885 | O Ring (s-18) | € 1.01 | |
| Lever Shaft Holder | ||||
| 122 | 371126 | Lever Shaft Holder | € 5.04 | |
| Joint | ||||
| 123 | 877315 | Joint | € 1.87 | |
| RING D20 (10 STUKS) | ||||
| 124 | 939547 | RING D20 (10 STUKS) | € 3.74 | |
| Change Plate | ||||
| 125 | 371146 | Change Plate | € 1.00 | |
| Felt Packing (a) | ||||
| 126 | 371178 | Felt Packing (a) | € 1.00 | |
| Cap Screw | ||||
| 127 | 371179 | Cap Screw | € 16.76 | |
| Valve | ||||
| 128 | 995396 | Valve | € 1.73 | |
| First Gear | ||||
| 129 | 371162 | First Gear | € 6.77 | |
| Naallager | ||||
| 130 | 371169 | Naallager | € 1.15 | |
| Seal Packing | ||||
| 131 | 371143 | Seal Packing | € 1.87 | |
| Hood | ||||
| 132 | 371132 | Hood | € 1.87 | |
| FILTER (C) | ||||
| 133 | 373414 | FILTER (C) | € 1.44 | |
| Vis M5*12 | ||||
| 134 | 998471 | Vis M5*12 | € 1.01 | |
| Épuisé | ||||
| 501 | 373391 | Épuisé | ||
| Vet (tube 30 Gram) | ||||
| 502 | 981840 | Vet (tube 30 Gram) | € 8.06 | |
| Épuisé | ||||
| 503 | 971786 | Épuisé | ||
| Beschermkapje Voor Batterij | ||||
| 505 | 329897 | Beschermkapje Voor Batterij | € 1.73 | |
