Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki G18DBBVLWQZ'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

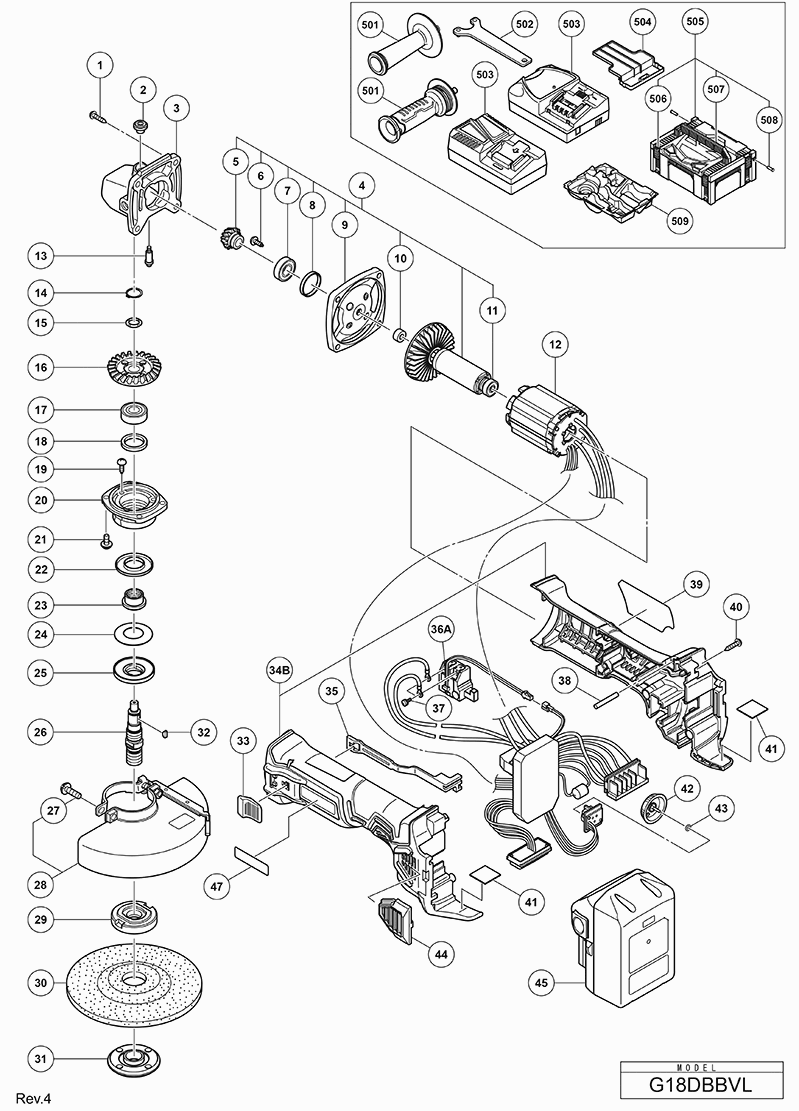

Dessins des Hikoki G18DBBVLWQZ
Liste de pièces de rechange des Hikoki G18DBBVLWQZ
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis Ø 4x23 Noir | ||||
1 | 328643@1417 | 1.05 | 1.26 | |
Bouton Bloc | ||||
2 | 301944@1417 | 1.04 | 1.24 | |
Carter | ||||
3 | 339183@1417 | 14.99 | 17.98 | |
Rotor Inner Cover Set | ||||
4 | 360991@1417 | 125.68 | 150.81 | |
Pignon (1) | ||||
5 | 371811@1417 | 4.65 | 5.58 | |
Slotted Hd. Screw M4 Seal Lock | ||||
6 | 371814@1417 | 1.04 | 1.24 | |
Roulement A Billes (1) | ||||
7 | 371033@1417 | 3.15 | 3.78 | |
Rubber Ring (a) | ||||
8 | 328453@1417 | 1.80 | 2.16 | |
Inner Cover | ||||
9 | 371816@1417 | 7.50 | 9.00 | |
Distance Ring (a) | ||||
10 | 371927@1417 | 1.04 | 1.24 | |
Kogellager 625dd | ||||
11 | 333826@1417 | 5.10 | 6.12 | |
Wiring Ass'y | ||||
12 | 371687@1417 | 140.66 | 168.80 | |
Goupille De Blocage | ||||
13 | 301943@1417 | 1.65 | 1.98 | |
Circlips Dim 11 Till 9.2012 | ||||
14 | 316487@1417 | 1.65 | 1.98 | |
Bague | ||||
15 | 316486@1417 | 1.65 | 1.98 | |
Pignon | ||||
16 | 328364@1417 | 11.70 | 14.04 | |
Kogellager 6001dducmps2s (oud 980925) | ||||
17 | 6001DD@1417 | 6.45 | 7.74 | |
FELT PACKING | ||||
18 | 372126@1417 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
19 | 301936@1417 | |||
PACKING GLAND | ||||
20 | 372124@1417 | 2.70 | 3.24 | |
Vis M4*12 | ||||
21 | 307127@1417 | 1.05 | 1.26 | |
FRINGER | ||||
22 | 372183@1417 | 1.04 | 1.24 | |
Sleeve (b) | ||||
23 | 371672@1417 | 3.45 | 4.14 | |
Belleville Spring (b) | ||||
24 | 371673@1417 | 8.40 | 10.08 | |
Support Body (b) | ||||
25 | 371674@1417 | 1.35 | 1.62 | |
Spindle (e) | ||||
26 | 371685@1417 | 6.45 | 7.74 | |
Schroef M5 | ||||
27 | 338868@1417 | 1.04 | 1.24 | |
Snelspan Beschermkap 125mm | ||||
28 | 333840@1417 | 6.15 | 7.38 | |
Wheel Washer (c) | ||||
29 | 371677@1417 | 4.35 | 5.22 | |
Pas d'informations disponibles, non commandable | ||||
30 | 316822@1417 | |||
Pas d'informations disponibles, non commandable | ||||
31 | 339579@1417 | |||
Clavette G13sd | ||||
32 | 302047@1417 | 1.05 | 1.26 | |
Bouton Interrupteur | ||||
33 | 314428@1417 | 1.04 | 1.24 | |
BEHUIZING (A+B)(OUD 371690) | ||||
34B | 373741@1417 | 25.44 | 30.52 | |
Slide Bar | ||||
35 | 371682@1417 | 1.04 | 1.24 | |
Interrupteur (1) | ||||
36A | 371322@1417 | 12.30 | 14.76 | |
Vis Ø3,5x6 | ||||
37 | 307887@1417 | 1.04 | 1.24 | |
Broche | ||||
38 | 338869@1417 | 1.04 | 1.24 | |
Vis Ø4x20 | ||||
40 | 301653@1417 | 1.04 | 1.24 | |
Rubber Cushion (b) | ||||
41 | 338871@1417 | 1.04 | 1.24 | |
Dial | ||||
42 | 337875@1417 | 2.85 | 3.42 | |
O-ring (i.d. 2.8) | ||||
43 | 338981@1417 | 1.04 | 1.24 | |
Filtre | ||||
44 | 338870@1417 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
45 | 335790@1417 | |||
Pas d'informations disponibles, non commandable | ||||
501 | 336865@1417 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 938332Z@1417 | |||
Beschermkapje Voor Batterij | ||||
504 | 329897@1417 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
505 | 336471@1417 | |||
Pas d'informations disponibles, non commandable | ||||
506 | 336472@1417 | |||
Pas d'informations disponibles, non commandable | ||||
507 | 336473@1417 | |||
Pas d'informations disponibles, non commandable | ||||
508 | 336474@1417 | |||
Pas d'informations disponibles, non commandable | ||||
509 | 338872@1417 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 937826Z@1417 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 937825Z@1417 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 314062@1417 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 314063@1417 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 314064@1417 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 314065@1417 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 314066@1417 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 314067@1417 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 314068@1417 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 314069@1417 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 314070@1417 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 314071@1417 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 314072@1417 |
