Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki G3613DB'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

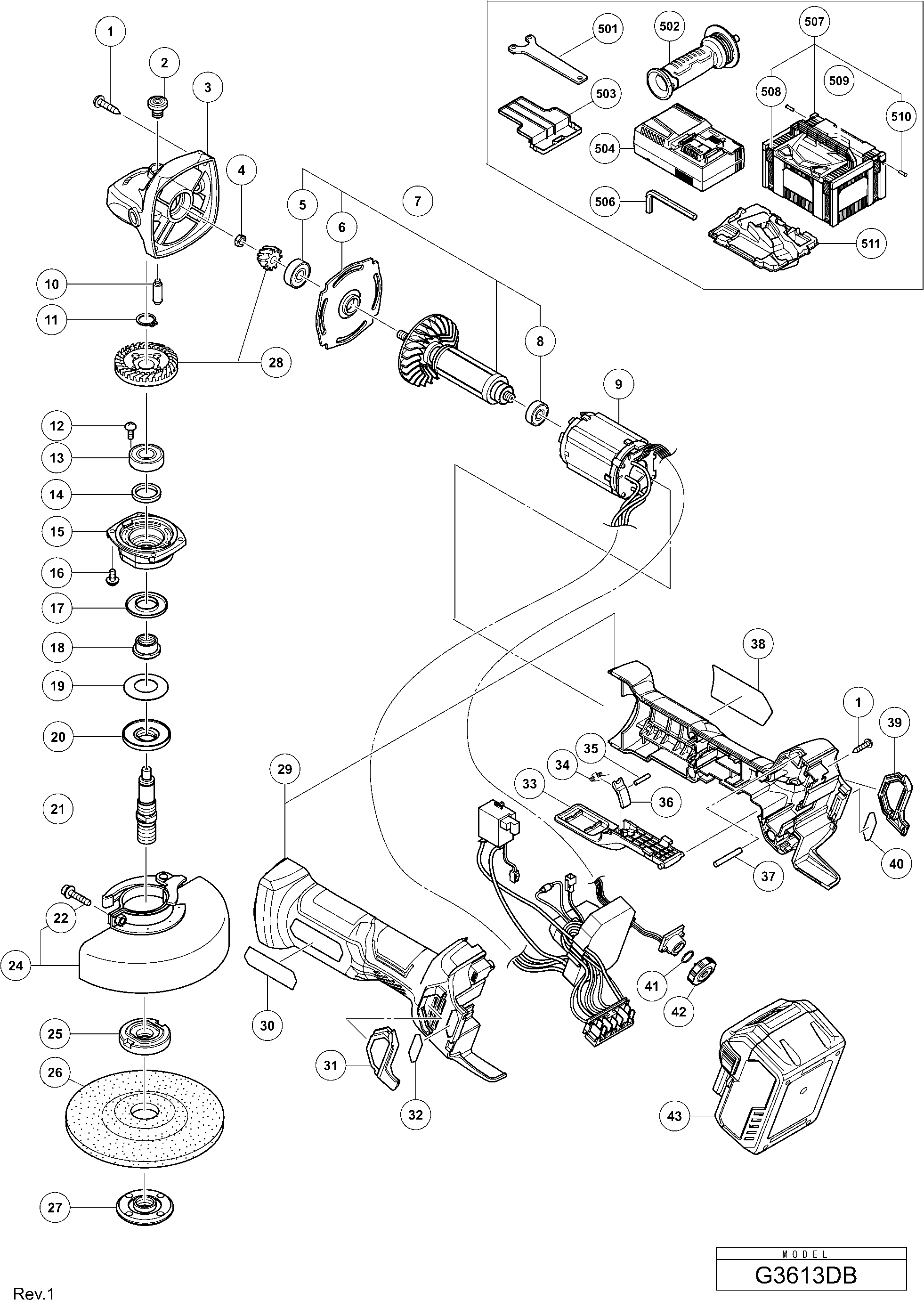

Dessins des Hikoki G3613DB
Liste de pièces de rechange des Hikoki G3613DB
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis Ø 4x23 Noir | ||||
1 | 328643@1417 | 1.05 | 1.26 | |
Bouton Bloc | ||||
2 | 301944@1417 | 1.04 | 1.24 | |
Gear Cover Ass'y | ||||
3 | 338332@1417 | 7.50 | 9.00 | |
Ecrou Frein G 15yc | ||||
4 | 309191@1417 | 1.04 | 1.24 | |
Kogellager 608s | ||||
5 | 338337@1417 | 2.25 | 2.70 | |
Gear Cover Ass'y | ||||
6 | 334940@1417 | 2.10 | 2.52 | |
ROTOR ASS'Y | ||||
7 | 361075@1417 | 75.08 | 90.09 | |
Roulement A Billes | ||||
8 | 607VVC@1417 | 5.70 | 6.84 | |
WIRING SET | ||||
9 | 340987@1417 | 108.08 | 129.69 | |
Goupille De Blocage | ||||
10 | 301943@1417 | 1.65 | 1.98 | |
Circlips Ø12 (x10) paquet de 10 | ||||
11 | 939542@1417 | 1.50 | 1.80 | |
Slotted Hd. Screw M4 (seal Lock) | ||||
12 | 334942@1417 | 1.20 | 1.44 | |
Kogellager 6001dducmps2s (oud 980925) | ||||
13 | 6001DD@1417 | 6.45 | 7.74 | |
FELT PACKING | ||||
14 | 372126@1417 | 1.04 | 1.24 | |
PACKING GLAND NEW | ||||
15 | 372123@1417 | 3.90 | 4.68 | |
Vis M4*12 | ||||
16 | 307127@1417 | 1.05 | 1.26 | |
FRINGER | ||||
17 | 372183@1417 | 1.04 | 1.24 | |
Sleeve (b) | ||||
18 | 371672@1417 | 3.45 | 4.14 | |
Belleville Spring (b) | ||||
19 | 371673@1417 | 8.40 | 10.08 | |
Support Body (b) | ||||
20 | 371674@1417 | 1.35 | 1.62 | |
SPINDLE (C) | ||||
21 | 373074@1417 | 5.70 | 6.84 | |
Vis D5*20 | ||||
22 | 316107@1417 | 1.80 | 2.16 | |
Protecteur | ||||
24 | 337231@1417 | 10.35 | 12.42 | |
Wheel Washer (c) | ||||
25 | 371677@1417 | 4.35 | 5.22 | |
Pas d'informations disponibles, non commandable | ||||
26 | 316822@1417 | |||
Pas d'informations disponibles, non commandable | ||||
27 | 339579@1417 | |||
Gear And Pinion Set | ||||
28 | 338338@1417 | 7.95 | 9.54 | |
HOUSING SET (A B) | ||||
29 | 377228@1417 | 13.50 | 16.20 | |
FILTER (A) | ||||
31 | 372107@1417 | 1.20 | 1.44 | |
PADDLE LEVER | ||||
33 | 372112@1417 | 1.05 | 1.26 | |
Ressort | ||||
34 | 337874@1417 | 1.95 | 2.34 | |
Broche | ||||
35 | 339032@1417 | 1.04 | 1.24 | |
Blokkering | ||||
36 | 337873@1417 | 1.04 | 1.24 | |
Broche | ||||
37 | 338869@1417 | 1.04 | 1.24 | |
FILTER (B) | ||||
39 | 372108@1417 | 1.20 | 1.44 | |
O Ring D 6sh | ||||
41 | 987105@1417 | 1.05 | 1.26 | |
DIAL | ||||
42 | 372109@1417 | 1.50 | 1.80 | |
Pas d'informations disponibles, non commandable | ||||
43 | 371750@1417 | |||
Pas d'informations disponibles, non commandable | ||||
501 | 938332Z@1417 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 336865@1417 | |||
Beschermkapje Voor Batterij | ||||
503 | 329897@1417 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
506 | 944458@1417 | |||
Pas d'informations disponibles, non commandable | ||||
507 | 337108@1417 | |||
Pas d'informations disponibles, non commandable | ||||
508 | 336472@1417 | |||
Pas d'informations disponibles, non commandable | ||||
509 | 336473@1417 | |||
Pas d'informations disponibles, non commandable | ||||
510 | 336474@1417 | |||
Pas d'informations disponibles, non commandable | ||||
511 | 373070@1417 |
