Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki N5008AC2'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

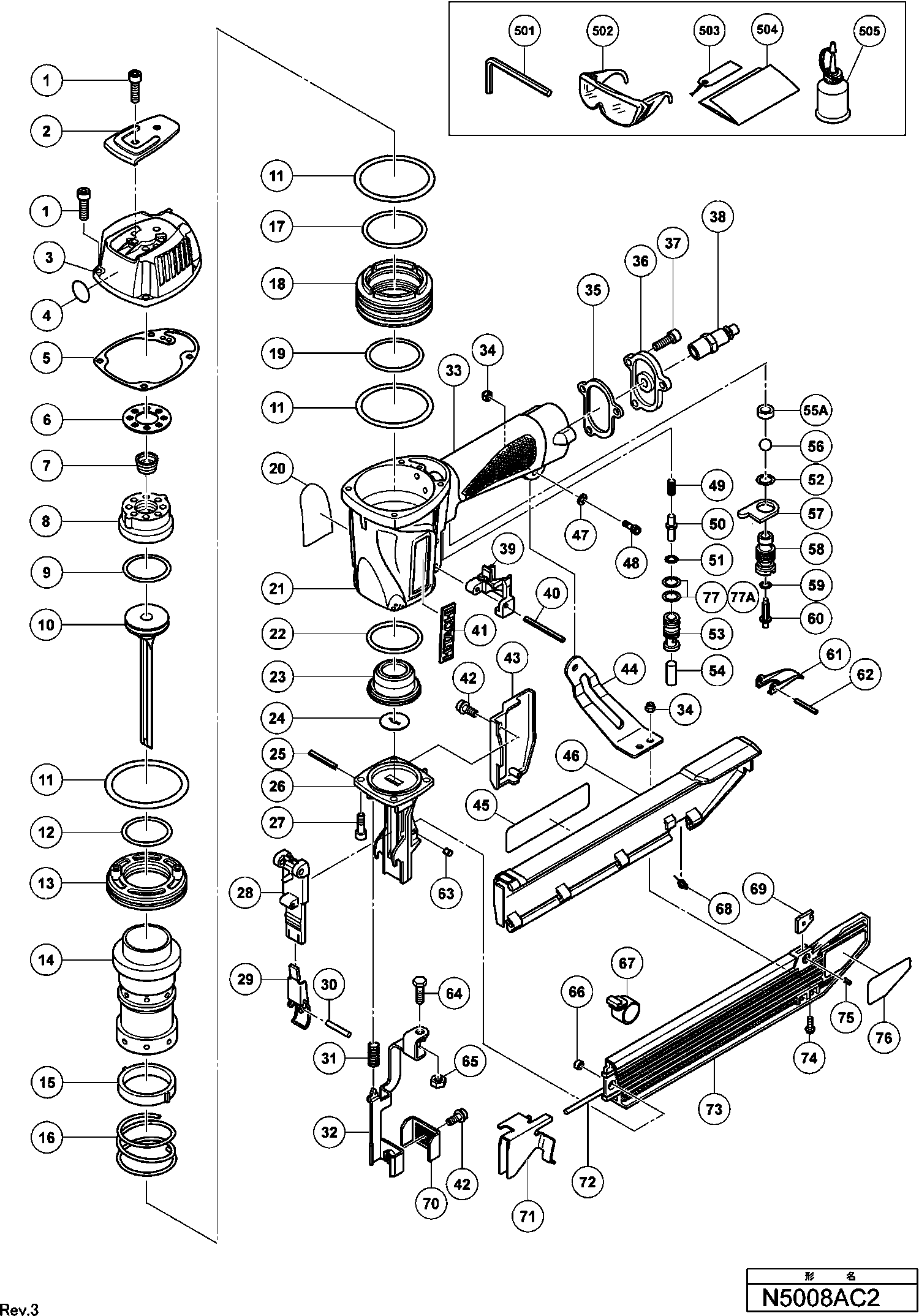

Dessins des Hikoki N5008AC2
Liste de pièces de rechange des Hikoki N5008AC2
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis M5*20 (paquet de 10) For Europe | ||||
1 | 949757@1417 | 3.00 | 3.60 | |
Top Cover | ||||
2 | 876179@1417 | 1.05 | 1.26 | |
Uitlaatkap | ||||
3 | 886444@1417 | 14.65 | 17.58 | |
Warning Label (a) | ||||
4 | 883513@1417 | 1.65 | 1.98 | |
Joint | ||||
5 | 883892@1417 | 1.65 | 1.98 | |
Pakking (c) | ||||
6 | 886466@1417 | 1.05 | 1.26 | |
Valve Nt 65a | ||||
7 | 878539@1417 | 3.75 | 4.50 | |
Tete De Piston Nt65a | ||||
8 | 878026@1417 | 73.01 | 87.62 | |
Joint De Piston Nv 50a1 | ||||
9 | 876174@1417 | 3.60 | 4.32 | |
Piston (1) | ||||
10 | 883716@1417 | 92.40 | 110.88 | |
O-ring (i.d.64.5) | ||||
11 | 885793@1417 | 2.10 | 2.52 | |
O Ring Nv 50a1 | ||||
12 | 877126@1417 | 1.65 | 1.98 | |
Cylinder Plate | ||||
13 | 876168@1417 | 10.95 | 13.14 | |
Cylindre | ||||
14 | 885792@1417 | 24.75 | 29.70 | |
Cylindre | ||||
14A | 885792@1417 | 24.75 | 29.70 | |
Cilinder Ring | ||||
15 | 876167@1417 | 1.05 | 1.26 | |
Ressort Nv 50a1 | ||||
16 | 876172@1417 | 6.60 | 7.92 | |
O Ring Nv 50a1 | ||||
17 | 877123@1417 | 2.40 | 2.88 | |
Cylinder Guide (old 876631) | ||||
18 | 877122@1417 | 17.60 | 21.12 | |
O Ring Nv 50a1 | ||||
19 | 877124@1417 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
20A | 888960@1417 | |||
Carter | ||||
21 | 886443@1417 | 58.93 | 70.71 | |
O Ring Nv 50a1 | ||||
22 | 877125@1417 | 1.95 | 2.34 | |
Piston Bumper | ||||
23 | 886434@1417 | 4.20 | 5.04 | |
Bumper Sheet | ||||
24 | 883712@1417 | 1.50 | 1.80 | |
Goupille Ø4*36 | ||||
25 | 949547@1417 | 3.90 | 4.68 | |
Nez | ||||
26 | 886717@1417 | 79.75 | 95.70 | |
Vis M.5*16 | ||||
27 | 878181@1417 | 1.05 | 1.26 | |
Piece De Guidage | ||||
28 | 886718@1417 | 10.58 | 12.69 | |
Arretoir | ||||
29 | 886441@1417 | 4.58 | 5.49 | |
Rol Pin D4x32 (10 Stuks) | ||||
30 | 949685@1417 | 2.55 | 3.06 | |
Veer (b) | ||||
31 | 877873@1417 | 1.04 | 1.24 | |
Pushing Lever | ||||
32 | 883714@1417 | 19.25 | 23.10 | |
Ecrou Plastique M5 | ||||
34 | 877371@1417 | 1.05 | 1.26 | |
Joint | ||||
35 | 886719@1417 | 1.05 | 1.26 | |
couverture | ||||
36 | 885795@1417 | 4.50 | 5.40 | |
Vis M5x16 (paquet de 10) | ||||
37 | 949821@1417 | 2.55 | 3.06 | |
Valve Guard | ||||
39 | 884356@1417 | 2.10 | 2.52 | |
Rol Pin D3x45 (10 Stuks) | ||||
40 | 884025@1417 | 1.80 | 2.16 | |
Hitachi Naamplaat | ||||
41 | 886342@1417 | 1.80 | 2.16 | |
Nylock Bout M5x8 | ||||
42 | 878540@1417 | 1.04 | 1.24 | |
Carter Protection (1) | ||||
43 | 883724@1417 | 2.10 | 2.52 | |
Handle Arm | ||||
44 | 883723@1417 | 4.20 | 5.04 | |
Waarschuwings Label | ||||
45 | 886720@1417 | 1.05 | 1.26 | |
Magazine Cover | ||||
46 | 883718@1417 | 7.20 | 8.64 | |
Plus disponible, pas de remplacement | ||||
47 | 876205@1417 | |||
WASHER (OLD 876205) | ||||
47A | 889024@1417 | 1.04 | 1.24 | |
Hex.socket Hd.bolt M5x18 (10 Pcs) | ||||
48 | 949658@1417 | 1.80 | 2.16 | |
Plunger Spring | ||||
49 | 886725@1417 | 1.05 | 1.26 | |
Plunger (a) | ||||
50 | 878542@1417 | 1.95 | 2.34 | |
O Ring Nt 65a | ||||
51 | 877705@1417 | 1.05 | 1.26 | |
Joint | ||||
52 | 875638@1417 | 1.65 | 1.98 | |
Fourreau De Valve Nt 65a | ||||
53 | 877880@1417 | 27.09 | 32.50 | |
Petit Plongeur Nt 65a | ||||
54 | 877882@1417 | 5.55 | 6.66 | |
Afsluitpakking | ||||
55A | 888151@1417 | 1.04 | 1.24 | |
Bille Plastique | ||||
56 | 875645@1417 | 3.90 | 4.68 | |
Plaque | ||||
57 | 875644@1417 | 1.05 | 1.26 | |
Fourreau De Valve | ||||
58 | 877335@1417 | 12.60 | 15.12 | |
Joint Torique | ||||
59 | 874820@1417 | 1.65 | 1.98 | |
Plongeur | ||||
60 | 878121@1417 | 1.65 | 1.98 | |
Gachette | ||||
61 | 876203@1417 | 2.55 | 3.06 | |
Goupille | ||||
62 | 949866@1417 | 3.60 | 4.32 | |
Broche | ||||
63 | 881044@1417 | 4.50 | 5.40 | |
Boulon | ||||
64 | 875650@1417 | 1.05 | 1.26 | |
MOER M5 (10 STUKS) (OUD 949555Z | ||||
65 | 949555@1417 | 1.05 | 1.26 | |
Ring Voor Schacht | ||||
66 | 881045@1417 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
67 | 881047@1417 | |||
Ressort | ||||
68 | 881043@1417 | 1.35 | 1.62 | |
Magazijn Plaatje | ||||
69 | 881039@1417 | 2.55 | 3.06 | |
Plus disponible, pas de remplacement | ||||
70 | 883715@1417 | |||
PUSHING LEVER PIECE (OLD 883715) | ||||
70A | 889337@1417 | 1.20 | 1.44 | |
Staple Feeder (old 883720) | ||||
71 | 886724@1417 | 8.33 | 9.99 | |
Axe De Chape | ||||
72 | 883719@1417 | 2.10 | 2.52 | |
Magazijn Kompleet | ||||
73 | 883717@1417 | 15.26 | 18.32 | |
Machineschroef M5x14 Zwart | ||||
74 | 678653@1417 | 1.05 | 1.26 | |
Rol Pin D3x6 | ||||
75 | 881040@1417 | 1.04 | 1.24 | |
Joint | ||||
77 | 875638@1417 | 1.65 | 1.98 | |
O-ring (i.d.10.7) | ||||
77A | 884112@1417 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
501 | 944458@1417 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 875769@1417 | |||
Caution Tag | ||||
503 | 882413@1417 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
504 | 886721@1417 | |||
Grippe Nv90ab | ||||
601 | 881768@1417 | 5.25 | 6.30 | |
Pas d'informations disponibles, non commandable | ||||
602A | 888213@1417 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 876762@1417 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 877153@1417 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 874042@1417 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 876212@1417 | |||
Vet (attolub No.2) 500g | ||||
607 | 317918@1417 | 32.18 | 38.61 |
