Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki NR1890DBCLW9Z'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

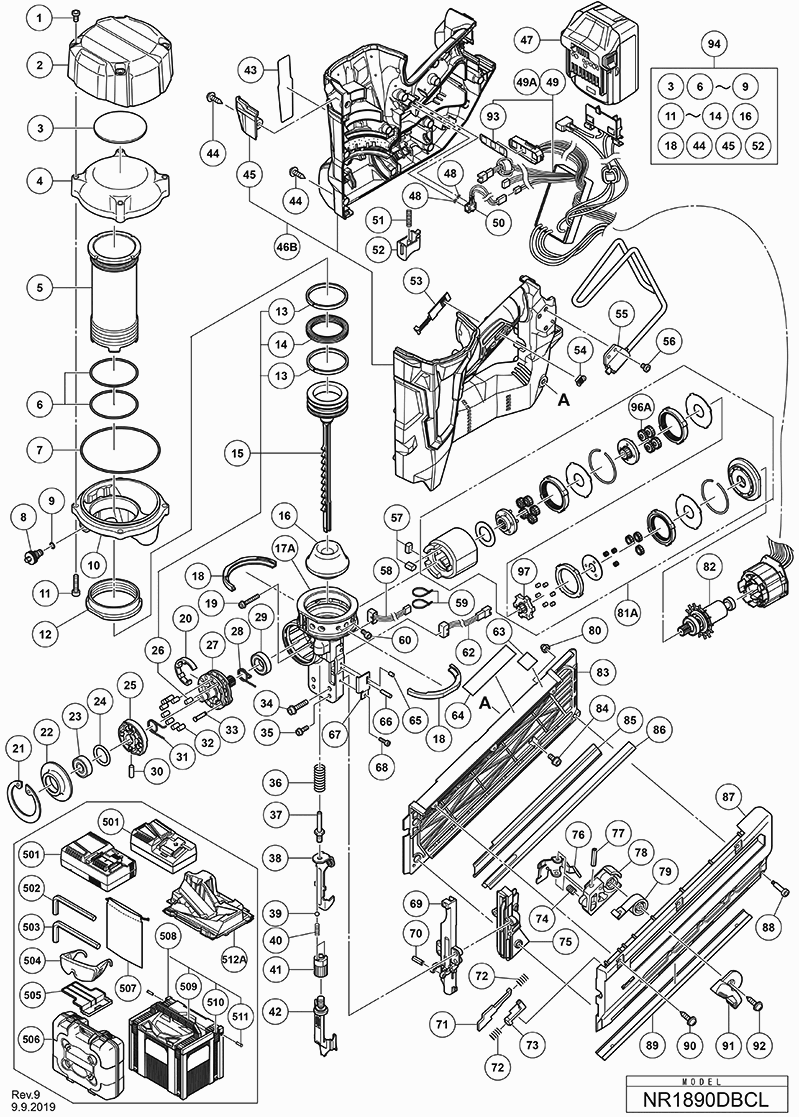

Dessins des Hikoki NR1890DBCLW9Z
Liste de pièces de rechange des Hikoki NR1890DBCLW9Z
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Hex. Socket Bolt M6 | ||||
| 1 | 372298@1417 | 1.04 | 1.24 | |
| Top Cover | ||||
| 2 | 372296@1417 | 3.75 | 4.50 | |
| RUBBER CUSHION (C) | ||||
| 3 | 371012@1417 | 1.35 | 1.62 | |
| Chamber Cover | ||||
| 4 | 372337@1417 | 19.94 | 23.92 | |
| Cylindre | ||||
| 5 | 372335@1417 | 67.93 | 81.51 | |
| O-ring (i.d 55.5) | ||||
| 6 | 372336@1417 | 1.04 | 1.24 | |
| O-ring (i.d 94.5) | ||||
| 7 | 372334@1417 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 8 | 371039@1417 | |||
| O-ring (s-5) | ||||
| 9 | 872822@1417 | 3.00 | 3.60 | |
| Chamber Base | ||||
| 10 | 372388@1417 | 39.46 | 47.36 | |
| Nylock Bolt M6 | ||||
| 11 | 372338@1417 | 1.04 | 1.24 | |
| Special Nut M58 | ||||
| 12 | 372339@1417 | 4.35 | 5.22 | |
| Slide Ring | ||||
| 13 | 372320@1417 | 8.85 | 10.62 | |
| X-ring | ||||
| 14 | 372319@1417 | 5.55 | 6.66 | |
| Piston Ass'y | ||||
| 15 | 372318@1417 | 123.61 | 148.34 | |
| Piston Bumper | ||||
| 16 | 372317@1417 | 34.79 | 41.74 | |
| NOSE | ||||
| 17A | 375366@1417 | 21.04 | 25.24 | |
| Rubber Cushion (a) | ||||
| 18 | 372343@1417 | 1.04 | 1.24 | |
| Nylock Bolt M4x25 (w/flange) | ||||
| 19 | 372310@1417 | 1.04 | 1.24 | |
| Felt (p) | ||||
| 20 | 372330@1417 | 1.04 | 1.24 | |
| Retaining Ring D52 | ||||
| 21 | 372332@1417 | 1.04 | 1.24 | |
| Bearing Holder | ||||
| 22 | 372989@1417 | 4.95 | 5.94 | |
| Roulement | ||||
| 23 | 6000VV@1417 | 6.15 | 7.38 | |
| O-ring (i.d 20.22) | ||||
| 24 | 372329@1417 | 1.04 | 1.24 | |
| Position Detector | ||||
| 25 | 372327@1417 | 4.65 | 5.58 | |
| Needle Roller D4.5 | ||||
| 26 | 372326@1417 | 4.80 | 5.76 | |
| Pin Wheel | ||||
| 27 | 372321@1417 | 69.16 | 83.00 | |
| Wheel Spring (b) | ||||
| 28 | 372323@1417 | 1.04 | 1.24 | |
| Roulement a Bille Wp 12dm | ||||
| 29 | 6902VV@1417 | 12.45 | 14.94 | |
| Needle Roller D3 | ||||
| 30 | 372328@1417 | 1.04 | 1.24 | |
| Wheel Spring (a) | ||||
| 31 | 372322@1417 | 1.04 | 1.24 | |
| Needle Roller D4 | ||||
| 32 | 372325@1417 | 1.04 | 1.24 | |
| Pin (a) | ||||
| 33 | 372324@1417 | 1.65 | 1.98 | |
| Nylock Bolt (w/flange) M5x22 | ||||
| 34 | 372355@1417 | 1.04 | 1.24 | |
| Nylock Bolt M4x14 (w/flange) | ||||
| 35 | 372311@1417 | 1.04 | 1.24 | |
| Pushing Lever Spring | ||||
| 36 | 372306@1417 | 1.04 | 1.24 | |
| Special Bolt M6 | ||||
| 37 | 372316@1417 | 2.85 | 3.42 | |
| Pushing Lever (b) | ||||
| 38 | 372305@1417 | 7.35 | 8.82 | |
| Bille Acier Ø 3.175 (x10) | ||||
| 39 | 959148@1417 | 1.05 | 1.26 | |
| Adjuster Spring | ||||
| 40 | 372315@1417 | 1.04 | 1.24 | |
| Ajusteur | ||||
| 41 | 372314@1417 | 4.65 | 5.58 | |
| Pushing Lever (a) | ||||
| 42 | 372308@1417 | 31.90 | 38.28 | |
| Vis Ø4x20 | ||||
| 44 | 301653@1417 | 1.04 | 1.24 | |
| Housing (c) | ||||
| 45 | 372297@1417 | 1.05 | 1.26 | |
| Housing Ass 'y | ||||
| 46B | 372987@1417 | 35.61 | 42.74 | |
| Pas d'informations disponibles, non commandable | ||||
| 47 | 335790@1417 | |||
| O-RING (I.D. 2.5) | ||||
| 48 | 371020@1417 | 1.04 | 1.24 | |
| Wiring | ||||
| 49 | 372292@1417 | 133.10 | 159.72 | |
| SWITCH CABLE (A) | ||||
| 50 | 371019@1417 | 10.05 | 12.06 | |
| Veer (t) | ||||
| 51 | 332000@1417 | 1.80 | 2.16 | |
| TRIGGER | ||||
| 52 | 371021@1417 | 1.04 | 1.24 | |
| Lever (c) | ||||
| 53 | 331790@1417 | 1.80 | 2.16 | |
| Curseur | ||||
| 54 | 326276@1417 | 1.05 | 1.26 | |
| Crochet (1) | ||||
| 55 | 372356@1417 | 13.75 | 16.50 | |
| Low Head Hex.socket Bolt M4x8 | ||||
| 56 | 331109@1417 | 1.80 | 2.16 | |
| Bumper (b) | ||||
| 57 | 372342@1417 | 3.00 | 3.60 | |
| Sensor (c) | ||||
| 58 | 372302@1417 | 15.54 | 18.64 | |
| Pas d'informations disponibles, non commandable | ||||
| 59 | 6696839@1417 | |||
| Hex. Socket Hd. Bolt M5 | ||||
| 60 | 372340@1417 | 1.04 | 1.24 | |
| Sensor (b) | ||||
| 62 | 372301@1417 | 22.14 | 26.56 | |
| CAUTION LABEL (EU) | ||||
| 63 | 372191@1417 | 1.04 | 1.24 | |
| Roll Pin D2.5 | ||||
| 65 | 372304@1417 | 1.04 | 1.24 | |
| Plus disponible, pas de remplacement | ||||
| 66 | 878965@1417 | |||
| Guide Plate | ||||
| 67 | 372312@1417 | 3.00 | 3.60 | |
| Nylock Hex. Socket Hd.bolt M3 | ||||
| 68 | 331184@1417 | 1.80 | 2.16 | |
| Blade Guide (a) | ||||
| 69 | 372309@1417 | 64.63 | 77.55 | |
| Rol Pin D4x32 (10 Stuks) | ||||
| 70 | 949685@1417 | 2.55 | 3.06 | |
| Pushing Lever Stopper (a) | ||||
| 71 | 372349@1417 | 2.40 | 2.88 | |
| Ressort (1) | ||||
| 72 | 372350@1417 | 1.04 | 1.24 | |
| Pushing Lever Stopper (b) | ||||
| 73 | 372351@1417 | 1.04 | 1.24 | |
| Ressort (1) | ||||
| 74 | 883687@1417 | 1.65 | 1.98 | |
| Blade Guide (b) | ||||
| 75 | 372346@1417 | 71.36 | 85.64 | |
| Poussoir Nr 90gc | ||||
| 76 | 885323@1417 | 5.85 | 7.02 | |
| Goupille Nr 90gc | ||||
| 77 | 949506@1417 | 3.00 | 3.60 | |
| Poussoir Nr 90gc | ||||
| 78 | 885324@1417 | 3.00 | 3.60 | |
| Ressort | ||||
| 79 | 885325@1417 | 7.05 | 8.46 | |
| Cap Nut M3 | ||||
| 80 | 372353@1417 | 1.04 | 1.24 | |
| GEAR BOX ASS'Y (OLD 375181) | ||||
| 81A | 376546@1417 | 38.64 | 46.36 | |
| Rotor | ||||
| 82 | 361071@1417 | 36.58 | 43.89 | |
| Magazine Cover (b) | ||||
| 83 | 372345@1417 | 6.60 | 7.92 | |
| Nylock Bolt (w/flange) M5 | ||||
| 84 | 372354@1417 | 1.04 | 1.24 | |
| Magazine Plate | ||||
| 85 | 372347@1417 | 1.95 | 2.34 | |
| Rail Nr 90gc | ||||
| 86 | 885341@1417 | 6.45 | 7.74 | |
| Magazine Cover (a) | ||||
| 87 | 372344@1417 | 6.15 | 7.38 | |
| Step Bolt M3 | ||||
| 88 | 372352@1417 | 1.04 | 1.24 | |
| Magazine Guard | ||||
| 89 | 372348@1417 | 3.30 | 3.96 | |
| Pas d'informations disponibles, non commandable | ||||
| 90 | 307811@1417 | |||
| Bouton | ||||
| 91 | 886246@1417 | 3.30 | 3.96 | |
| Vis D5*20 (bm25y Vb13y) | ||||
| 92 | 302089@1417 | 1.05 | 1.26 | |
| PANEL SHEET (A) | ||||
| 93 | 373656@1417 | 1.65 | 1.98 | |
| REPAIR PARTS SET (NR) | ||||
| 94 | 373205@1417 | 77.69 | 93.22 | |
| PLANET GEAR SET (B) (4 PCS) (OLD 374603) | ||||
| 96A | 375182@1417 | 11.10 | 13.32 | |
| PINION (B) NEW | ||||
| 97 | 374602@1417 | 5.85 | 7.02 | |
| Pas d'informations disponibles, non commandable | ||||
| 502 | 943277@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 503 | 944458@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 504 | 875769@1417 | |||
| Beschermkapje Voor Batterij | ||||
| 505 | 329897@1417 | 1.80 | 2.16 | |
| Pas d'informations disponibles, non commandable | ||||
| 506 | 373000@1417 | |||
| Pouch Cloth | ||||
| 507 | 6698667@1417 | 1.98 | 2.37 | |
| Pas d'informations disponibles, non commandable | ||||
| 508 | 337528@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 509 | 336473@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 510 | 336472@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 511 | 336474@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 512A | 375224@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 601 | 373204@1417 | |||
