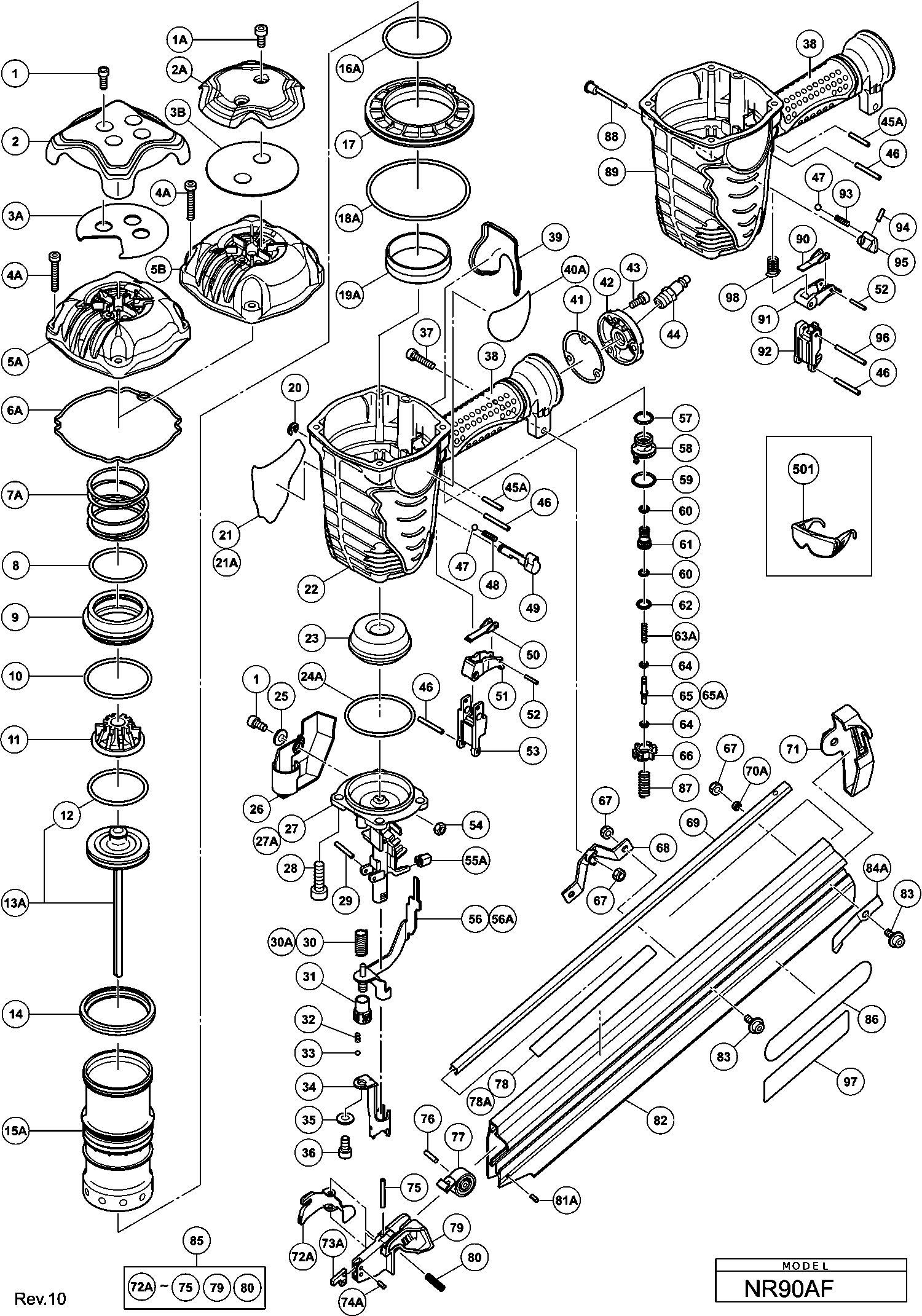

Dessins des Hikoki NR90AF
Liste de pièces de rechange des Hikoki NR90AF
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis M5*14 (paquet de 10) | ||||
1 | 949665@1417 | 2.10 | 2.52 | |
Hex. Socket Hd. Bolt M6x12 | ||||
1A | 888792@1417 | 1.04 | 1.24 | |
Head Guard | ||||
2 | 884952@1417 | 13.50 | 16.20 | |
Head Guard | ||||
2A | 888790@1417 | 9.90 | 11.88 | |
SHEET (OUD 884986) | ||||
3A | 886454@1417 | 2.10 | 2.52 | |
Sheet | ||||
3B | 888794@1417 | 1.20 | 1.44 | |
Hex. Socket Hd. Bolt M6x30 | ||||
4A | 888793@1417 | 1.04 | 1.24 | |
Uitlaatkap | ||||
5 | 886261@1417 | 41.80 | 50.16 | |
Exhaust Cover | ||||
5A | 888789@1417 | 14.44 | 17.32 | |
Pakking (a) | ||||
6A | 886455@1417 | 2.10 | 2.52 | |
Head Valve Spring | ||||
7A | 886456@1417 | 3.15 | 3.78 | |
O-ring (i.d. 49.4) | ||||
8 | 884947@1417 | 1.65 | 1.98 | |
Head Valve | ||||
9 | 884946@1417 | 18.15 | 21.78 | |
O-ring (i.d. 59.4) | ||||
10 | 884948@1417 | 1.65 | 1.98 | |
Uitlaat Rubber | ||||
11 | 884950@1417 | 13.50 | 16.20 | |
Piston O-ring | ||||
12 | 884958@1417 | 1.65 | 1.98 | |
Piston Ass'y | ||||
13A | 888768@1417 | 94.33 | 113.19 | |
Rubberen Klep | ||||
14 | 884945@1417 | 10.95 | 13.14 | |
Cylindre | ||||
15A | 886457@1417 | 36.16 | 43.40 | |
O-ring (i.d. 59.6) | ||||
16A | 886480@1417 | 1.65 | 1.98 | |
Cylinder Plate | ||||
17 | 884944@1417 | 3.30 | 3.96 | |
O-ring (i.d. 94.6) | ||||
18A | 886481@1417 | 3.30 | 3.96 | |
Cylinder Ring | ||||
19A | 886483@1417 | 1.65 | 1.98 | |
Circlips en "e" pour Ø6 | ||||
20 | 955479@1417 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
21 | 888750@1417 | |||
Pas d'informations disponibles, non commandable | ||||
21A | 888751@1417 | |||
Carter | ||||
22 | 886259@1417 | 93.09 | 111.70 | |
Piston Bumper | ||||
23 | 884959@1417 | 17.05 | 20.46 | |
O-ring (i.d.60) | ||||
24A | 886482@1417 | 1.65 | 1.98 | |
Plus disponible, pas de remplacement | ||||
25 | 876205@1417 | |||
Pas d'informations disponibles, non commandable | ||||
26 | 886269@1417 | |||
Pas d'informations disponibles, non commandable | ||||
27 | 886264@1417 | |||
Pas d'informations disponibles, non commandable | ||||
27A | 887757@1417 | |||
Vis M8*30 Since 6.1981 | ||||
28 | 306437@1417 | 1.35 | 1.62 | |
Goupille Ø 3*18 | ||||
29 | 949518@1417 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
30 | 886263@1417 | |||
Pas d'informations disponibles, non commandable | ||||
30A | 887899@1417 | |||
Ajusteur | ||||
31 | 326799@1417 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
32 | 886281@1417 | |||
Bille Acier Ø 3.175 (x10) | ||||
33 | 959148@1417 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
34 | 886267@1417 | |||
Pas d'informations disponibles, non commandable | ||||
35 | 886282@1417 | |||
Vis M6x12 (paquet de 10) | ||||
36 | 949657@1417 | 3.00 | 3.60 | |
Bout Hd. M6x22 (10 Stuks) | ||||
37 | 949670@1417 | 3.00 | 3.60 | |
Hitachi Label | ||||
40A | 888713@1417 | 1.04 | 1.24 | |
Pakking (b) | ||||
41 | 884342@1417 | 1.05 | 1.26 | |
Chapeau (1) | ||||
42 | 881949@1417 | 4.80 | 5.76 | |
Vis M5x16 (paquet de 10) | ||||
43 | 949821@1417 | 2.55 | 3.06 | |
Roll Pin D3x25 | ||||
45A | 887621@1417 | 1.20 | 1.44 | |
Rol Pin D3x32 | ||||
46 | 884975@1417 | 1.65 | 1.98 | |
Bille Ø3.97 (x10) paquet de 10 | ||||
47 | 959155@1417 | 1.04 | 1.24 | |
Ressort | ||||
48 | 982454@1417 | 1.04 | 1.24 | |
Wisselknop (c) | ||||
49 | 886265@1417 | 2.10 | 2.52 | |
Trekker (c) | ||||
50 | 885689@1417 | 2.10 | 2.52 | |
Commutateur | ||||
51 | 885657@1417 | 10.35 | 12.42 | |
Rol Pin D2.5x16 | ||||
52 | 881951@1417 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
53 | 886266@1417 | |||
Ecrou Plastique M5 | ||||
54 | 877371@1417 | 1.05 | 1.26 | |
Neus Rubber | ||||
55A | 886458@1417 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
56 | 886268@1417 | |||
Pas d'informations disponibles, non commandable | ||||
56A | 887690@1417 | |||
FEED PISTON O-RING (I.D.14) | ||||
57 | 877763@1417 | 1.05 | 1.26 | |
VALVE BUSHING B) | ||||
58 | 884963@1417 | 1.65 | 1.98 | |
O-RING (P-18 | ||||
59 | 873570@1417 | 1.35 | 1.62 | |
Joint Torique | ||||
60 | 676531@1417 | 1.04 | 1.24 | |
VALVE PISTON | ||||
61 | 884964@1417 | 1.65 | 1.98 | |
Plus disponible, pas de remplacement | ||||
62 | 872654@1417 | |||
Plunger Spring | ||||
63A | 887178@1417 | 1.20 | 1.44 | |
O-RING (I.D.1.8) | ||||
64 | 878888@1417 | 1.05 | 1.26 | |
Arbre | ||||
65 | 884965@1417 | 4.80 | 5.76 | |
Pas d'informations disponibles, non commandable | ||||
65A | 887900@1417 | |||
VALVE BUSHING (A) | ||||
66 | 884962@1417 | 1.65 | 1.98 | |
Ecrou Plastique Nr 83aa | ||||
67 | 963837@1417 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
68 | 886279@1417 | |||
Pas d'informations disponibles, non commandable | ||||
69 | 886271@1417 | |||
Douille | ||||
70A | 883499@1417 | 1.50 | 1.80 | |
Pas d'informations disponibles, non commandable | ||||
71 | 886272@1417 | |||
Pas d'informations disponibles, non commandable | ||||
72A | 886460@1417 | |||
Pas d'informations disponibles, non commandable | ||||
73A | 886459@1417 | |||
Roll Pin D3x10 (10 Pcs) | ||||
74A | 887458@1417 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
75 | 949682@1417 | |||
Goupille Ø4*20 Till 10.1987 (till 9.1987 For Aus, | ||||
76 | 943364@1417 | 1.05 | 1.26 | |
Ressort A Lame | ||||
77 | 883503@1417 | 9.00 | 10.80 | |
Label (c) | ||||
78 | 887489@1417 | 1.20 | 1.44 | |
Label (c) | ||||
78A | 887665@1417 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
79 | 886276@1417 | |||
Veer Voor Toevoermechanisme | ||||
80 | 886278@1417 | 1.05 | 1.26 | |
Roll Pin D3x8 | ||||
81A | 887619@1417 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
82 | 886270@1417 | |||
Vis Ø6*12 | ||||
83 | 984443@1417 | 1.04 | 1.24 | |
Nail Stopper | ||||
84A | 888802@1417 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
85 | 886274@1417 | |||
Trigger Arm Spring | ||||
87 | 887682@1417 | 2.10 | 2.52 | |
Pas d'informations disponibles, non commandable | ||||
88 | 887668@1417 | |||
Carter | ||||
89 | 887669@1417 | 58.99 | 70.78 | |
Trekker (d) | ||||
90 | 887755@1417 | 2.10 | 2.52 | |
Trekker (d) | ||||
91 | 887756@1417 | 4.20 | 5.04 | |
Pas d'informations disponibles, non commandable | ||||
92 | 887691@1417 | |||
Ressort | ||||
93 | 887673@1417 | 1.20 | 1.44 | |
Roll Pin D3x10 (10 Pcs) | ||||
94 | 887458@1417 | 1.20 | 1.44 | |
Wisselknop (d) | ||||
95 | 887674@1417 | 1.20 | 1.44 | |
Roll Pin D3x35 | ||||
96 | 887675@1417 | 1.20 | 1.44 | |
Label (d) | ||||
97 | 888791@1417 | 1.04 | 1.24 | |
Trigger Arm Spring | ||||
98 | 887682@1417 | 2.10 | 2.52 | |
Pas d'informations disponibles, non commandable | ||||
501 | 875769@1417 | |||
Grippe Nv90ab | ||||
601 | 881768@1417 | 5.25 | 6.30 | |
Pas d'informations disponibles, non commandable | ||||
602A | 888213@1417 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 877153@1417 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 874042@1417 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 876212@1417 | |||
Vet (attolub No.2) 500g | ||||
606 | 317918@1417 | 32.18 | 38.61 | |
O-ring Kit | ||||
607 | 884991@1417 | 16.36 | 19.64 | |
Pakking (a) | ||||
608 | 884953@1417 | 4.80 | 5.76 | |
O-ring (i.d. 49.4) | ||||
609 | 884947@1417 | 1.65 | 1.98 | |
O-ring (i.d. 59.4) | ||||
610 | 884948@1417 | 1.65 | 1.98 | |
Piston O-ring | ||||
611 | 884958@1417 | 1.65 | 1.98 | |
O-ring (i.d. 59.6) | ||||
612 | 884942@1417 | 1.65 | 1.98 | |
Cylinder Ring | ||||
613 | 877317@1417 | 1.65 | 1.98 | |
O-ring (i.d. 94.6) | ||||
614 | 884943@1417 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
616 | 886283@1417 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 886357@1417 | |||
Ressort | ||||
618 | 884994@1417 | 4.80 | 5.76 | |
Goupille Ø 3*18 | ||||
619 | 949518@1417 | 2.40 | 2.88 | |
Neuskap | ||||
620 | 886401@1417 | 10.95 | 13.14 | |
Full Sequential Actuation Mechanism Kit | ||||
621 | 888781@1417 | 13.75 | 16.50 |
