Dessins techniques et pièces de rechange Hikoki NT1865DBAL
Type exact:
NT1865DBAL
NT1865DBAL

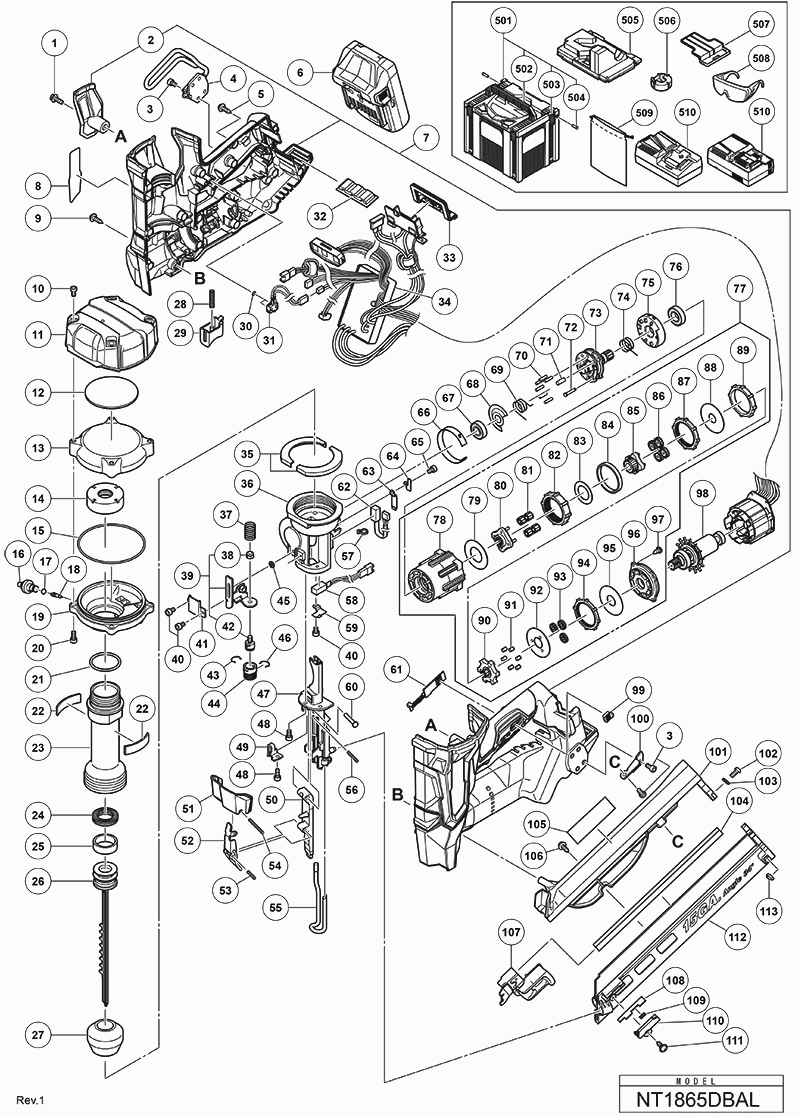

Dessins des HIKOKI NT1865DBAL
Liste de pièces de rechange des HIKOKI NT1865DBAL
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Hd. Bout M5x16 (met Ring) | ||||
| 1 | 880219 | Hd. Bout M5x16 (met Ring) | € 1.01 | |
| HOUSING (C) | ||||
| 2 | 371225 | HOUSING (C) | € 1.15 | |
| Low Head Hex.socket Bolt M4x8 | ||||
| 3 | 331109 | Low Head Hex.socket Bolt M4x8 | € 1.73 | |
| HOOK | ||||
| 4 | 371214 | HOOK | € 11.95 | |
| Vis Ø4x20 | ||||
| 5 | 301653 | Vis Ø4x20 | € 1.00 | |
| BSL1830C BATTERIJ 18V 3,0 Ah Li-Ion | ||||
| 6 | 339783 | BSL1830C BATTERIJ 18V 3,0 Ah Li-Ion | € 114.00 | |
| Épuisé | ||||
| 7 | 371009 | Épuisé | ||
| Vis Ø 4x20 Since 7.2016 | ||||
| 9 | 994806 | Vis Ø 4x20 Since 7.2016 | € 1.00 | |
| HEX.SOCKET BOLT M5 | ||||
| 10 | 371015 | HEX.SOCKET BOLT M5 | € 1.00 | |
| TOP COVER | ||||
| 11 | 371014 | TOP COVER | € 6.19 | |
| RUBBER CUSHION (C) | ||||
| 12 | 371012 | RUBBER CUSHION (C) | € 1.30 | |
| CHAMBER COVER | ||||
| 13 | 371035 | CHAMBER COVER | € 19.54 | |
| SPECIAL NUT M36 | ||||
| 14 | 371040 | SPECIAL NUT M36 | € 10.66 | |
| O-RING (I.D. 79.5) | ||||
| 15 | 371037 | O-RING (I.D. 79.5) | € 2.30 | |
| Épuisé | ||||
| 16 | 371039 | Épuisé | ||
| O-ring (s-5) | ||||
| 17 | 872822 | O-ring (s-5) | € 2.88 | |
| VALVE CORE | ||||
| 18 | 371038 | VALVE CORE | € 3.17 | |
| CHAMBER BASE | ||||
| 19 | 371036 | CHAMBER BASE | € 40.13 | |
| Hex.socket Hd.bolt M5x18 (10 Pcs) | ||||
| 20 | 949658 | Hex.socket Hd.bolt M5x18 (10 Pcs) | € 1.73 | |
| O-RING (I.D.32.99) | ||||
| 21 | 371042 | O-RING (I.D.32.99) | € 1.30 | |
| RUBBER CUSHION (B) | ||||
| 22 | 371011 | RUBBER CUSHION (B) | € 1.00 | |
| CYLINDER | ||||
| 23 | 371041 | CYLINDER | € 45.80 | |
| X-RING | ||||
| 24 | 371046 | X-RING | € 4.32 | |
| SLIDE RING | ||||
| 25 | 371047 | SLIDE RING | € 18.74 | |
| PISTON | ||||
| 26 | 371045 | PISTON | € 149.95 | |
| PISTON BUMPER | ||||
| 27 | 371048 | PISTON BUMPER | € 30.10 | |
| Veer (t) | ||||
| 28 | 332000 | Veer (t) | € 1.73 | |
| TRIGGER | ||||
| 29 | 371021 | TRIGGER | € 1.00 | |
| O-RING (I.D. 2.5) | ||||
| 30 | 371020 | O-RING (I.D. 2.5) | € 1.00 | |
| SWITCH CABLE (A) | ||||
| 31 | 371019 | SWITCH CABLE (A) | € 9.65 | |
| Rubber Cushion | ||||
| 32 | 332668 | Rubber Cushion | € 2.02 | |
| Terminal Rubber (a) | ||||
| 33 | 370728 | Terminal Rubber (a) | € 2.45 | |
| WIRING | ||||
| 34 | 372187 | WIRING | € 144.01 | |
| RUBBER CUSHION (A) | ||||
| 35 | 371010 | RUBBER CUSHION (A) | € 1.00 | |
| NOSE | ||||
| 36 | 371050 | NOSE | € 52.27 | |
| SPRING | ||||
| 37 | 371067 | SPRING | € 1.00 | |
| PUSHING LEVER ARM ASS'Y | ||||
| 39 | 371064 | PUSHING LEVER ARM ASS'Y | € 9.50 | |
| Vis Ø 3*6 | ||||
| 40 | 325077 | Vis Ø 3*6 | € 1.58 | |
| PUSHING LEVER ARM HOLDER | ||||
| 41 | 371058 | PUSHING LEVER ARM HOLDER | € 1.00 | |
| PUSHING LEVER PIECE | ||||
| 42 | 371065 | PUSHING LEVER PIECE | € 3.02 | |
| Ratchet Spring | ||||
| 43 | 881765 | Ratchet Spring | € 1.87 | |
| Ajusteur | ||||
| 44 | 887358 | Ajusteur | € 2.02 | |
| WASHER D4 | ||||
| 45 | 371062 | WASHER D4 | € 1.00 | |
| Ressort | ||||
| 46 | 886331 | Ressort | € 1.01 | |
| BLADE GUIDE | ||||
| 47 | 371057 | BLADE GUIDE | € 60.06 | |
| Vis Ø 4x12 B#9r192262 | ||||
| 48 | 886311 | Vis Ø 4x12 B#9r192262 | € 1.01 | |
| PUSHING LEVER ARM HOLDER (B) | ||||
| 49 | 371061 | PUSHING LEVER ARM HOLDER (B) | € 6.34 | |
| GUIDE PLATE | ||||
| 50 | 371070 | GUIDE PLATE | € 36.30 | |
| LOCK LEVER COVER | ||||
| 51 | 371079 | LOCK LEVER COVER | € 1.00 | |
| LOCK LEVER | ||||
| 52 | 371076 | LOCK LEVER | € 5.62 | |
| Goupille | ||||
| 53 | 949496 | Goupille | € 1.58 | |
| ROLL PIN D3X32 | ||||
| 54 | 371080 | ROLL PIN D3X32 | € 1.00 | |
| PUSHING LEVER | ||||
| 55 | 371083 | PUSHING LEVER | € 11.52 | |
| ROLL PIN D3X22 | ||||
| 56 | 371077 | ROLL PIN D3X22 | € 1.00 | |
| Épuisé | ||||
| 57 | 6696839 | Épuisé | ||
| SENSOR (B) | ||||
| 58 | 371022 | SENSOR (B) | € 11.09 | |
| SENSOR HOLDER (A) | ||||
| 59 | 371052 | SENSOR HOLDER (A) | € 1.00 | |
| GUIDE PIN | ||||
| 60 | 371073 | GUIDE PIN | € 1.00 | |
| Lever (c) | ||||
| 61 | 331790 | Lever (c) | € 1.73 | |
| SENSOR (C) | ||||
| 62 | 371023 | SENSOR (C) | € 8.35 | |
| SENSOR HOLDER (B) | ||||
| 63 | 371054 | SENSOR HOLDER (B) | € 1.00 | |
| SENSOR HOLDER (A) | ||||
| 64 | 371053 | SENSOR HOLDER (A) | € 1.00 | |
| Vis Ø 3*8 | ||||
| 65 | 325241 | Vis Ø 3*8 | € 1.58 | |
| SHIELD RING | ||||
| 66 | 371051 | SHIELD RING | € 1.00 | |
| Roulement A Billes (1) | ||||
| 67 | 371033 | Roulement A Billes (1) | € 3.02 | |
| WASHER (A) | ||||
| 68 | 371032 | WASHER (A) | € 1.00 | |
| WHEEL SPRING (A) | ||||
| 69 | 371027 | WHEEL SPRING (A) | € 1.00 | |
| NEEDLE ROLLER D3 | ||||
| 70 | 371030 | NEEDLE ROLLER D3 | € 1.00 | |
| NEEDLE ROLLER D4.5 | ||||
| 71 | 371031 | NEEDLE ROLLER D4.5 | € 1.00 | |
| PIN (A) | ||||
| 72 | 371029 | PIN (A) | € 1.15 | |
| PIN WHEEL | ||||
| 73 | 371026 | PIN WHEEL | € 74.84 | |
| WHEEL SPRING (B) | ||||
| 74 | 371028 | WHEEL SPRING (B) | € 1.00 | |
| POSITION DETECTOR | ||||
| 75 | 371034 | POSITION DETECTOR | € 4.32 | |
| KOGELLAGER 6901VVMPS2L | ||||
| 76 | 6901VV | KOGELLAGER 6901VVMPS2L | € 9.22 | |
| GEAR BOX ASS'Y | ||||
| 77 | 371025 | GEAR BOX ASS'Y | € 32.21 | |
| ROTOR | ||||
| 98 | 361054 | ROTOR | € 36.43 | |
| Curseur | ||||
| 99 | 326276 | Curseur | € 1.01 | |
| MAGAZINE COVER | ||||
| 101 | 371085 | MAGAZINE COVER | € 14.65 | |
| Vis Ø 5x15 Noir B#9r192311 | ||||
| 102 | 885997 | Vis Ø 5x15 Noir B#9r192311 | € 1.01 | |
| Rondelle Ø5 (x10) paquet de 10 | ||||
| 103 | 949431 | Rondelle Ø5 (x10) paquet de 10 | € 1.00 | |
| Nail Rail | ||||
| 104 | 886591 | Nail Rail | € 7.92 | |
| Épuisé | ||||
| 106 | 307811 | Épuisé | ||
| NAIL FEEDER (B) | ||||
| 107 | 371090 | NAIL FEEDER (B) | € 18.88 | |
| PUSHING STOPPER (A) | ||||
| 108 | 371091 | PUSHING STOPPER (A) | € 1.00 | |
| Pushing Stopper Spring | ||||
| 109 | 886619 | Pushing Stopper Spring | € 1.01 | |
| Pushing Stopper Cover | ||||
| 110 | 886616 | Pushing Stopper Cover | € 1.15 | |
| Vis 3x10 Except For Usa,can | ||||
| 111 | 306371 | Vis 3x10 Except For Usa,can | € 1.00 | |
| MAGAZINE | ||||
| 112 | 371226 | MAGAZINE | € 17.95 | |
| Ecrou Plastique M5 | ||||
| 113 | 877371 | Ecrou Plastique M5 | € 1.01 | |
| Épuisé | ||||
| 501 | 337528 | Épuisé | ||
| HANDGREEP | ||||
| 502 | 336473 | HANDGREEP | € 5.70 | |
| AFSLUITING KOFFER | ||||
| 503 | 336472 | AFSLUITING KOFFER | € 0.90 | |
| SCHARNIERPIN | ||||
| 504 | 336474 | SCHARNIERPIN | € 0.54 | |
| Épuisé | ||||
| 505 | 371895 | Épuisé | ||
| NOSE CAP BLACK 3MM | ||||
| 506 | 371094 | NOSE CAP BLACK 3MM | € 2.59 | |
| Beschermkapje Voor Batterij | ||||
| 507 | 329897 | Beschermkapje Voor Batterij | € 1.73 | |
| Épuisé | ||||
| 508 | 875769 | Épuisé | ||
| Pouch Cloth | ||||
| 509 | 6698667 | Pouch Cloth | € 1.90 | |
