Dessins techniques et pièces de rechange Hikoki RB85E
Type exact:
RB85E
RB85E

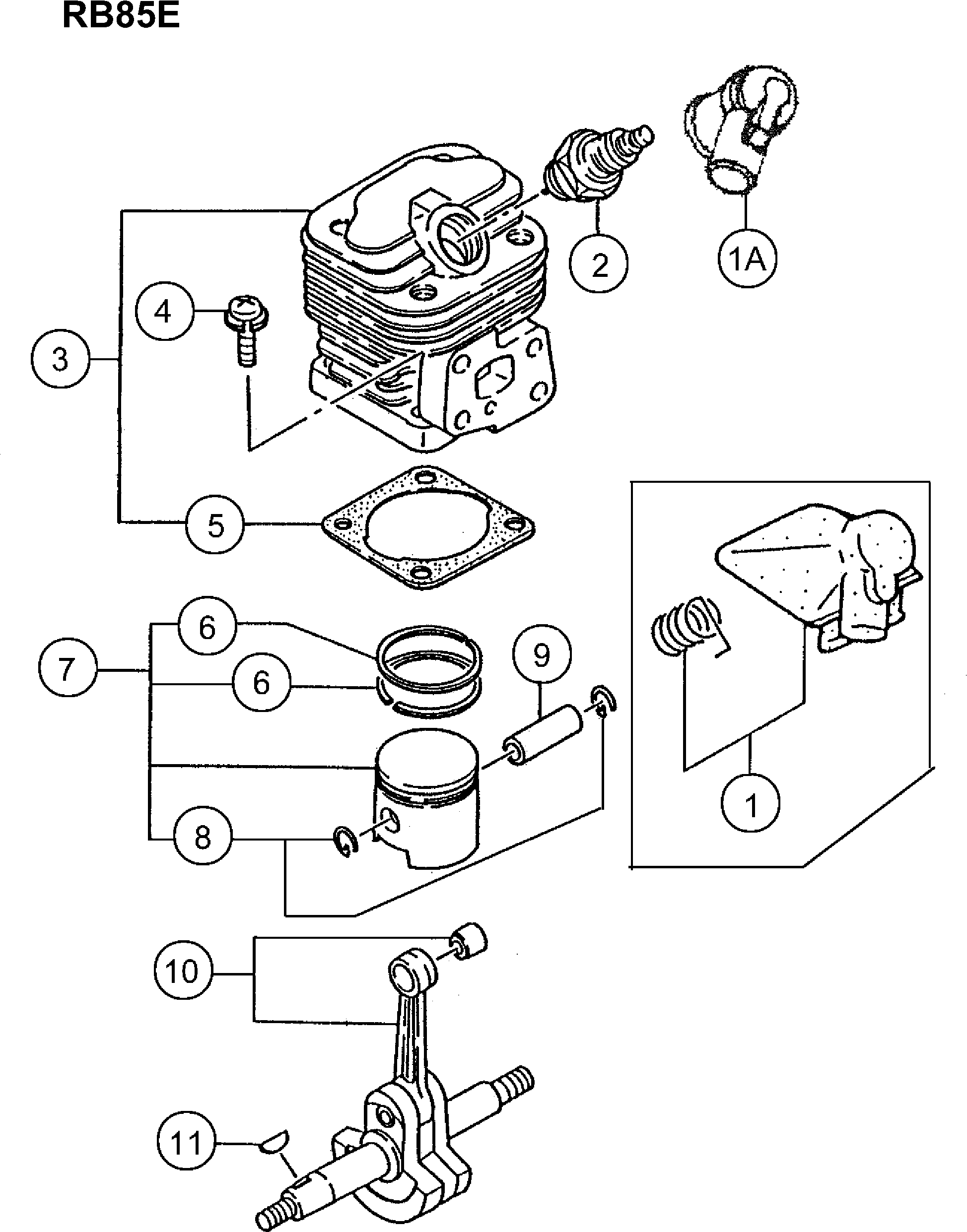

Dessins des HIKOKI RB85E
Liste de pièces de rechange des HIKOKI RB85E
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Spark Plug Cap Ass'y (old 157-0637p-91) | ||||
| 1 | 6687474 | Spark Plug Cap Ass'y (old 157-0637p-91) | € 8.72 | |
| Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
| 1A | 6687468 | Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | € 2.78 | |
| Épuisé | ||||
| 2 | 6699320 | Épuisé | ||
| Cylinder Set (old 001-0099f-90) | ||||
| 3 | 6685446 | Cylinder Set (old 001-0099f-90) | € 57.90 | |
| Vis Ø5x18 | ||||
| 4 | 6684586 | Vis Ø5x18 | € 2.58 | |
| Cylinder Gasket (old 017-00980-20 & 6685743) | ||||
| 5 | 6685709 | Cylinder Gasket (old 017-00980-20 & 6685743) | € 1.38 | |
| Piston Ring (oud 041-01601-20) | ||||
| 6 | 6684588 | Piston Ring (oud 041-01601-20) | € 10.29 | |
| Piston Set (old 030-07045-90/6685870) | ||||
| 7 | 6685899 | Piston Set (old 030-07045-90/6685870) | € 26.68 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 8 | 6684590 | Piston Pin Circlip (old 039-00601-20) | € 2.58 | |
| Goupille | ||||
| 9 | 6684591 | Goupille | € 5.14 | |
| Crank Shaft Comp. (old 046-0631a-81) | ||||
| 10 | 6686200 | Crank Shaft Comp. (old 046-0631a-81) | € 79.68 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 11 | 6684899 | Woodruff Key 3x13x4.5 (oud 068-10100-20) | € 2.58 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 21 | 6684604 | Gear Shaft Shim 0.20 (oud 330-00200-23) | € 2.58 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 21 | 6684605 | Gear Shaft Shim 0.30 (oud 330-00200-24) | € 2.58 | |
| Épuisé | ||||
| 22 | 6685842 | Épuisé | ||
| Bague | ||||
| 23 | 6689645 | Bague | € 1.38 | |
| Bague | ||||
| 24 | 6685103 | Bague | € 1.38 | |
| Crank Case Ass'y (old 072-06580-90) | ||||
| 25 | 6686578 | Crank Case Ass'y (old 072-06580-90) | € 45.92 | |
| Olie Keerring | ||||
| 26 | 6684607 | Olie Keerring | € 5.14 | |
| Roulement à billes | ||||
| 27 | 6684608 | Roulement à billes | € 4.56 | |
| Crank Case Gasket (old 090-06097-20) | ||||
| 28 | 6686718 | Crank Case Gasket (old 090-06097-20) | € 1.38 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 29 | 6684709 | Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | € 2.58 | |
| Bobine | ||||
| 30 | 6687641 | Bobine | € 57.90 | |
| Épuisé | ||||
| 31 | 6695420 | Épuisé | ||
| Bobine (167-20521-90) | ||||
| 32 | 6687642 | Bobine (167-20521-90) | € 41.02 | |
| Vliegwiel | ||||
| 33 | 6687361 | Vliegwiel | € 22.88 | |
| Rubber Beschermkapje | ||||
| 34 | 6684602 | Rubber Beschermkapje | € 2.58 | |
| High Tension Cord, 150l (old 264-20516-20) | ||||
| 35 | 6688398 | High Tension Cord, 150l (old 264-20516-20) | € 2.78 | |
| Inlaatpakking | ||||
| 41 | 6689893 | Inlaatpakking | € 1.38 | |
| Insulator Set (old 404-06580-90) | ||||
| 42 | 6689968 | Insulator Set (old 404-06580-90) | € 8.31 | |
| Screw 5x24ws (old 994-16050-241) | ||||
| 43 | 6695423 | Screw 5x24ws (old 994-16050-241) | € 1.38 | |
| Carburetor Gasket (old 402-06590-20) | ||||
| 44 | 6689841 | Carburetor Gasket (old 402-06590-20) | € 2.78 | |
| Carburateurset | ||||
| 45 | 6690489 | Carburateurset | € 110.90 | |
| Clip D6 (old 680-00070-20) | ||||
| 46 | 6685198 | Clip D6 (old 680-00070-20) | € 1.38 | |
| Épuisé | ||||
| 47 | 6684620 | Épuisé | ||
| Épuisé | ||||
| 48 | 6691714 | Épuisé | ||
| Épuisé | ||||
| 49 | 6684625 | Épuisé | ||
| Épuisé | ||||
| 50 | 6691576 | Épuisé | ||
| Fuel Pipe Ass'y (oud 223-0097a-90) | ||||
| 51 | 6684618 | Fuel Pipe Ass'y (oud 223-0097a-90) | € 5.14 | |
| Air Cleaner Body | ||||
| 52 | 6684856 | Air Cleaner Body | € 17.82 | |
| Choke Valve (oud 493-06590-20) | ||||
| 53 | 6684857 | Choke Valve (oud 493-06590-20) | € 12.27 | |
| Collar (old 470-0602k-20) | ||||
| 54 | 6684858 | Collar (old 470-0602k-20) | € 5.14 | |
| Spacer (oud 453-0602k-20) | ||||
| 55 | 6684859 | Spacer (oud 453-0602k-20) | € 2.58 | |
| Blow Over Check Board (old 476-0634c-20) | ||||
| 56 | 6684860 | Blow Over Check Board (old 476-0634c-20) | € 5.14 | |
| Reinigingsspons (oud 446-0634c-20) | ||||
| 57 | 6684861 | Reinigingsspons (oud 446-0634c-20) | € 11.28 | |
| Cleaner Cap (oud 424-06590-20) | ||||
| 58 | 6684862 | Cleaner Cap (oud 424-06590-20) | € 5.14 | |
| Air Cleaner Ass'y (oud 410-06590-91) | ||||
| 59 | 6684863 | Air Cleaner Ass'y (oud 410-06590-91) | € 23.96 | |
| Screw M5x57/s (old 994-14050-571/790190) | ||||
| 60 | 6695353 | Screw M5x57/s (old 994-14050-571/790190) | € 1.38 | |
| Ring 5 (oud 992-00050-011) | ||||
| 61 | 6684864 | Ring 5 (oud 992-00050-011) | € 2.58 | |
| Fuel Pipe 3x5x80 (oud 700-03005-08) | ||||
| 62 | 6684880 | Fuel Pipe 3x5x80 (oud 700-03005-08) | € 2.58 | |
| Return Grommet (old 6684627) | ||||
| 63 | 6697846 | Return Grommet (old 6684627) | € 1.24 | |
| Screw 4x18/ps (old 994-15040-182) | ||||
| 64 | 6695375 | Screw 4x18/ps (old 994-15040-182) | € 1.38 | |
| Screw 5x16/ps (old 994-15050-162) | ||||
| 65 | 6695386 | Screw 5x16/ps (old 994-15050-162) | € 1.38 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 66 | 6692244 | Collar 5.8 (old 659-00801-20) | € 1.38 | |
| Collar (old 659-06410-20) | ||||
| 67 | 6692245 | Collar (old 659-06410-20) | € 1.38 | |
| Fuel Tank Bracket (old 653-31850-80) | ||||
| 68 | 6692215 | Fuel Tank Bracket (old 653-31850-80) | € 5.34 | |
| Screw 6x14s (old 994-14060-141) | ||||
| 69 | 6695357 | Screw 6x14s (old 994-14060-141) | € 1.38 | |
| Air Vent Ass'y (old 564-06611-90) | ||||
| 70 | 6691389 | Air Vent Ass'y (old 564-06611-90) | € 12.27 | |
| Épuisé | ||||
| 71 | 6697800 | Épuisé | ||
| Air Vent Valve Ass'y (old 646-06612-90) | ||||
| 72 | 6692171 | Air Vent Valve Ass'y (old 646-06612-90) | € 5.94 | |
| Muffler Gasket (old 737-07000-20 & 6692743) | ||||
| 81 | 6692745 | Muffler Gasket (old 737-07000-20 & 6692743) | € 1.38 | |
| Warmteschild | ||||
| 82 | 6687255 | Warmteschild | € 2.78 | |
| Muffler Set (old 704-06590-90) | ||||
| 83 | 6692486 | Muffler Set (old 704-06590-90) | € 17.61 | |
| Hex. Hole Bolt 5x70 (old 990-51050-703) | ||||
| 84 | 6695057 | Hex. Hole Bolt 5x70 (old 990-51050-703) | € 1.38 | |
| Bague | ||||
| 85 | 6684822 | Bague | € 2.58 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 86 | 6692883 | Muffler Special Gasket (old 751-04200-20) | € 1.38 | |
| Tail Pipe Set, Spare (old 721-06590-90) | ||||
| 87 | 6692664 | Tail Pipe Set, Spare (old 721-06590-90) | € 11.28 | |
| Bague | ||||
| 88 | 6685109 | Bague | € 1.38 | |
| Recoil Starter Body Assy (old 762-06410-90) | ||||
| 101 | 6692982 | Recoil Starter Body Assy (old 762-06410-90) | € 24.14 | |
| Recoil Starter Body Comp.,blk (old 772-06097-80) | ||||
| 102 | 6693034 | Recoil Starter Body Comp.,blk (old 772-06097-80) | € 9.30 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 103 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 13.86 | |
| Starter Rope Reel (old 774-06097-20) | ||||
| 104 | 6693066 | Starter Rope Reel (old 774-06097-20) | € 3.96 | |
| Set Screw (old 839-02010-20/6693638) | ||||
| 105 | 6693633 | Set Screw (old 839-02010-20/6693638) | € 1.38 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 106 | 6693168 | Starter Rope (old 783-06097-20/6693174) | € 2.78 | |
| Starthendel | ||||
| 107 | 6693237 | Starthendel | € 1.38 | |
| Hex. Hole Bolt 4x12ws (old 994-64040-125) | ||||
| 108 | 6695507 | Hex. Hole Bolt 4x12ws (old 994-64040-125) | € 1.38 | |
| Starter Pulley Assy (old 798-06520-90) | ||||
| 109 | 6693406 | Starter Pulley Assy (old 798-06520-90) | € 9.90 | |
| Starter Pawl (old 788-06520-20) | ||||
| 110 | 6693320 | Starter Pawl (old 788-06520-20) | € 3.96 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 111 | 6684684 | Starter Pawl Spring (old 790-06097-20) | € 5.14 | |
| Pump Body Comp. (old 575-25153-80) | ||||
| 121 | 6684879 | Pump Body Comp. (old 575-25153-80) | € 74.60 | |
| Priming Pump Comp. (oud 442-25151-80) | ||||
| 122 | 6684687 | Priming Pump Comp. (oud 442-25151-80) | € 19.60 | |
| Diaphragm Cover (oud 476-25151-20) | ||||
| 123 | 6684688 | Diaphragm Cover (oud 476-25151-20) | € 10.29 | |
| Priming Body (oud 447-25108-20) | ||||
| 124 | 6684689 | Priming Body (oud 447-25108-20) | € 7.72 | |
| Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
| 125 | 6690827 | Metering Diaphragm Comp. (old 474-25001-80/6690826 | € 14.06 | |
| Diaphragm Gasket (oud 475-25153-20) | ||||
| 126 | 6684691 | Diaphragm Gasket (oud 475-25153-20) | € 10.29 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 127 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 10.29 | |
| Pump Gasket (old 577-25100-20) | ||||
| 128 | 6691457 | Pump Gasket (old 577-25100-20) | € 8.52 | |
| Main Jet #38 (old 599-2000w-38) | ||||
| 129 | 6691844 | Main Jet #38 (old 599-2000w-38) | € 5.34 | |
| O-RING (OUD 550-25100-20) | ||||
| 130 | 6684695 | O-RING (OUD 550-25100-20) | € 5.14 | |
| Stop Ring (oud 489-25100-20) | ||||
| 131 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.58 | |
| Swivel (oud 539-25120-20) | ||||
| 132 | 6684697 | Swivel (oud 539-25120-20) | € 7.72 | |
| Throttle Set Screw (oud 514-25100-20) | ||||
| 134 | 6684870 | Throttle Set Screw (oud 514-25100-20) | € 2.58 | |
| Cable Adjuster Stay (oud 544-25164-20) | ||||
| 135 | 6684873 | Cable Adjuster Stay (oud 544-25164-20) | € 7.72 | |
| Lock Nut M6 (oud 991-01060-013) | ||||
| 136 | 6684872 | Lock Nut M6 (oud 991-01060-013) | € 2.58 | |
| Cable Adjuster (oud 614-25137-20) | ||||
| 137 | 6684871 | Cable Adjuster (oud 614-25137-20) | € 5.14 | |
| Cleaner Packing (oud 431-0634c-20) | ||||
| 138 | 6684875 | Cleaner Packing (oud 431-0634c-20) | € 5.14 | |
| Set Screw (old 548-25151-20 & 6696324) | ||||
| 139 | 6684699 | Set Screw (old 548-25151-20 & 6696324) | € 2.58 | |
| Ring (oud 549-25165-20) | ||||
| 140 | 6684874 | Ring (oud 549-25165-20) | € 2.58 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 141 | 6684700 | Inlet Screen (oud 578-25007-20) | € 5.14 | |
| Enveloppe De Ventilateur | ||||
| 161 | 6685602 | Enveloppe De Ventilateur | € 33.76 | |
| Volute Case (old 052-31852-80) | ||||
| 162 | 6686322 | Volute Case (old 052-31852-80) | € 43.38 | |
| Dust Cover (old 050-31850-20) | ||||
| 163 | 6686264 | Dust Cover (old 050-31850-20) | € 7.53 | |
| Tapping Screw 5x20 (old 993-11052-012) | ||||
| 164 | 6695255 | Tapping Screw 5x20 (old 993-11052-012) | € 1.38 | |
| Throttle Lever (old 013-31800-20) | ||||
| 165 | 6685670 | Throttle Lever (old 013-31800-20) | € 1.38 | |
| Stop Switch Ass'y (old 170-31800-80) | ||||
| 166 | 6687752 | Stop Switch Ass'y (old 170-31800-80) | € 11.49 | |
| Muffler Protector (old 738-31800-21) | ||||
| 167 | 6692827 | Muffler Protector (old 738-31800-21) | € 19.60 | |
| Rondelle D.5 | ||||
| 168 | 6684834 | Rondelle D.5 | € 2.58 | |
| Tapping Screw 5x20 (old 993-11052-012) | ||||
| 169 | 6695255 | Tapping Screw 5x20 (old 993-11052-012) | € 1.38 | |
| Hex.hole Bolt M5x35 (oud 990-51050-353) | ||||
| 170 | 6684934 | Hex.hole Bolt M5x35 (oud 990-51050-353) | € 2.58 | |
| Fan (old 127-31850-21/6687171) | ||||
| 171 | 6687173 | Fan (old 127-31850-21/6687171) | € 14.06 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 172 | 6684612 | Nut M8 (old 991-01080-011/327325/332299/726603) | € 2.58 | |
| Bague | ||||
| 173 | 6685856 | Bague | € 2.78 | |
| Straight Pipe (old 269-31851-20/6688420) | ||||
| 174 | 6688422 | Straight Pipe (old 269-31851-20/6688420) | € 12.48 | |
| Fan Headed Pipe (old 273-31851-20/66884326688431) | ||||
| 175 | 6688433 | Fan Headed Pipe (old 273-31851-20/66884326688431) | € 13.47 | |
| Clamp Band Comp. (old 466-05015-80) | ||||
| 176 | 6690785 | Clamp Band Comp. (old 466-05015-80) | € 3.96 | |
| Gaskabel | ||||
| 177 | 6693915 | Gaskabel | € 3.96 | |
| Screw 3x10 (old 994-31030-101) | ||||
| 179 | 6684913 | Screw 3x10 (old 994-31030-101) | € 2.58 | |
| Special Knob (old 380-31850-20) | ||||
| 180 | 6689740 | Special Knob (old 380-31850-20) | € 1.38 | |
| Grommet (old 203-06590-20) | ||||
| 181 | 6688053 | Grommet (old 203-06590-20) | € 1.38 | |
| Cover Pin (old 053-31850-20) | ||||
| 182 | 6686332 | Cover Pin (old 053-31850-20) | € 2.78 | |
| Spring (old 790-31850-20) | ||||
| 183 | 6693356 | Spring (old 790-31850-20) | € 2.78 | |
| WASHER 5 UNI-KURO | ||||
| 184 | 334103 | WASHER 5 UNI-KURO | € 1.26 | |
| Tapping Screw 5x15 (old 993-11051-501) | ||||
| 185 | 6695252 | Tapping Screw 5x15 (old 993-11051-501) | € 1.38 | |
| Combi Box Spanner 13x19 Plus (old 829-20000-80) | ||||
| 501 | 6684979 | Combi Box Spanner 13x19 Plus (old 829-20000-80) | € 5.14 | |
| Symbol Mark Rb85e (old 929-31859-21) New | ||||
| 601 | 6694702 | Symbol Mark Rb85e (old 929-31859-21) New | € 2.52 | |
Votre panier contient 0 de produits.
