Dessins techniques et pièces de rechange Hikoki TC-47V
Type exact:
TC-47V
TC-47V

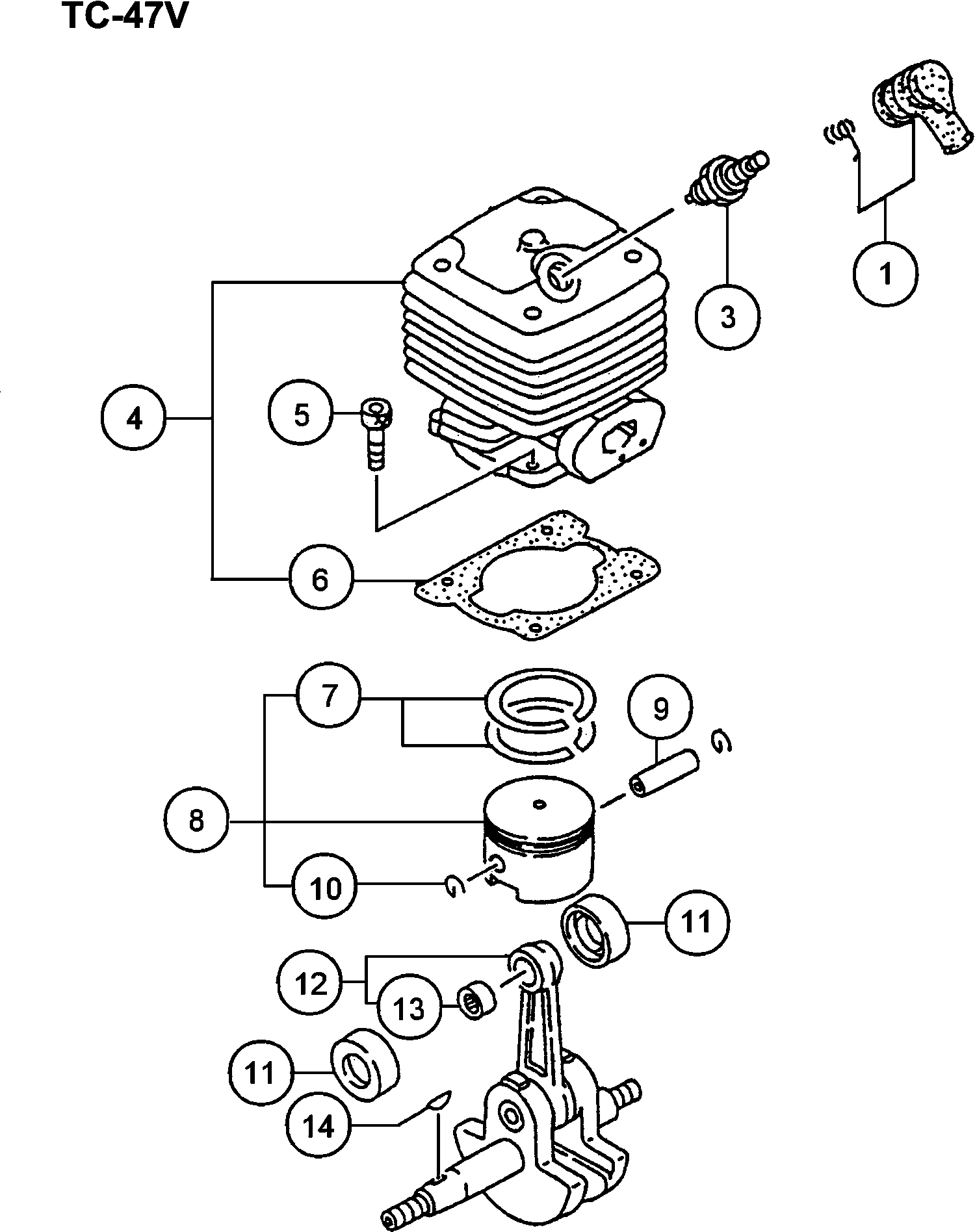

Dessins des HIKOKI TC-47V
Liste de pièces de rechange des HIKOKI TC-47V
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
| 1 | 6687468 | Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | € 2.78 | |
| Bougie (oud 6685086) | ||||
| 3 | 6699319 | Bougie (oud 6685086) | € 10.70 | |
| Cylinder Set (old 001-0422u-90) | ||||
| 4 | 6685470 | Cylinder Set (old 001-0422u-90) | € 86.76 | |
| Vis Ø5x18 | ||||
| 5 | 6684586 | Vis Ø5x18 | € 2.58 | |
| Cylinder Gasket (old 017-04220-21) | ||||
| 6 | 6685738 | Cylinder Gasket (old 017-04220-21) | € 1.38 | |
| Piston Ring (old 041-04090-21) | ||||
| 7 | 6686126 | Piston Ring (old 041-04090-21) | € 9.30 | |
| Piston Set (old 030-0422u-90) | ||||
| 8 | 6685887 | Piston Set (old 030-0422u-90) | € 23.06 | |
| Piston Pin 10x35 (old 037-10100-20 & 6686012) | ||||
| 9 | 6686019 | Piston Pin 10x35 (old 037-10100-20 & 6686012) | € 2.78 | |
| Piston Pin Circlip (old 039-01000-20) | ||||
| 10 | 6686026 | Piston Pin Circlip (old 039-01000-20) | € 1.38 | |
| Piston Pin Collar (old 036-04090-20) | ||||
| 11 | 6685993 | Piston Pin Collar (old 036-04090-20) | € 6.33 | |
| Crank Shaft Comp. (old 046-04220-80) | ||||
| 12 | 6686190 | Crank Shaft Comp. (old 046-04220-80) | € 105.99 | |
| Needle Bearing, 2x8.8 (old 999-62101-480) | ||||
| 13 | 6695602 | Needle Bearing, 2x8.8 (old 999-62101-480) | € 6.33 | |
| Wood-ruff Key 3x13x5 (old 068-02000-20/790118) | ||||
| 14 | 6686457 | Wood-ruff Key 3x13x5 (old 068-02000-20/790118) | € 1.38 | |
| Small Nut 10 (old 991-11100-013/6695138/790215/669 | ||||
| 31 | 6695139 | Small Nut 10 (old 991-11100-013/6695138/790215/669 | € 1.26 | |
| Crank Case Ass'y (old 072-04220-91) | ||||
| 32 | 6686553 | Crank Case Ass'y (old 072-04220-91) | € 72.42 | |
| Crank Case Gasket (old 090-04200-21/6686712) | ||||
| 33 | 6686713 | Crank Case Gasket (old 090-04200-21/6686712) | € 1.38 | |
| Olie Keerring | ||||
| 34 | 6695637 | Olie Keerring | € 3.96 | |
| Épuisé | ||||
| 35 | 6695557 | Épuisé | ||
| Bague | ||||
| 36 | 6686463 | Bague | € 1.38 | |
| Crank Shaft Shim 0.20 (old 071-02007-23) | ||||
| 37 | 6686472 | Crank Shaft Shim 0.20 (old 071-02007-23) | € 1.38 | |
| Crank Shaft Shim 0.30 (old 071-02007-24) | ||||
| 37 | 6686473 | Crank Shaft Shim 0.30 (old 071-02007-24) | € 1.38 | |
| Hex Hole Button Screw 6x45 (old 990-53060-453) | ||||
| 38 | 6695084 | Hex Hole Button Screw 6x45 (old 990-53060-453) | € 1.38 | |
| Bague | ||||
| 39 | 6684826 | Bague | € 2.58 | |
| Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3 | ||||
| 40 | 6684825 | Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3 | € 2.58 | |
| Lock Nut M6 (oud 991-01060-013) | ||||
| 41 | 6684872 | Lock Nut M6 (oud 991-01060-013) | € 2.58 | |
| Outer Receiver (old 894-01401-20) | ||||
| 42 | 6694043 | Outer Receiver (old 894-01401-20) | € 3.96 | |
| Magnet Rotor Comp. (old 155-20537-80) | ||||
| 43 | 6687371 | Magnet Rotor Comp. (old 155-20537-80) | € 26.68 | |
| Bague | ||||
| 44 | 6695185 | Bague | € 1.38 | |
| Épuisé | ||||
| 45 | 6695138 | Épuisé | ||
| Bobine | ||||
| 46 | 6687649 | Bobine | € 50.64 | |
| Screw 5x18/s (old 994-14050-181) | ||||
| 47 | 6695339 | Screw 5x18/s (old 994-14050-181) | € 1.38 | |
| Ring 5 (oud 992-00050-011) | ||||
| 48 | 6684864 | Ring 5 (oud 992-00050-011) | € 2.58 | |
| Primary Cord Grommet (old 203-06000-20) | ||||
| 49 | 6688049 | Primary Cord Grommet (old 203-06000-20) | € 1.38 | |
| Cord Clamp Comp. (old 198-05015-80/6687996/6688012 | ||||
| 50 | 6688004 | Cord Clamp Comp. (old 198-05015-80/6687996/6688012 | € 1.38 | |
| Enveloppe De Ventilateur | ||||
| 51 | 6686974 | Enveloppe De Ventilateur | € 31.40 | |
| Screw 6x25/s (old 994-14060-251) | ||||
| 52 | 6695363 | Screw 6x25/s (old 994-14060-251) | € 1.38 | |
| Primary Cord Grommet (old 203-10000-20) | ||||
| 53 | 6688055 | Primary Cord Grommet (old 203-10000-20) | € 1.38 | |
| Stop Cord Comp. (old 178-0631a-80) New | ||||
| 54 | 6687864 | Stop Cord Comp. (old 178-0631a-80) New | € 2.78 | |
| Épuisé | ||||
| 55 | 6688452 | Épuisé | ||
| Bague | ||||
| 56 | 6695183 | Bague | € 1.38 | |
| Fuel Tank Cushion Rubber (old 655-04200-20) | ||||
| 71 | 6692225 | Fuel Tank Cushion Rubber (old 655-04200-20) | € 1.38 | |
| Inlaatpakking | ||||
| 72 | 6689883 | Inlaatpakking | € 1.38 | |
| Carb. Insulator Set (old 404-0422u-90) | ||||
| 73 | 6689950 | Carb. Insulator Set (old 404-0422u-90) | € 10.29 | |
| Carburetor Gasket (old 402-01740-20/6689844) | ||||
| 74 | 6689826 | Carburetor Gasket (old 402-01740-20/6689844) | € 1.38 | |
| Carburateurset | ||||
| 75 | 6697706 | Carburateurset | € 110.36 | |
| Screw 5x24ws (old 994-16050-241) | ||||
| 76 | 6695423 | Screw 5x24ws (old 994-16050-241) | € 1.38 | |
| Choke Lever (old 495-04200-20) | ||||
| 77 | 6691004 | Choke Lever (old 495-04200-20) | € 1.38 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 78 | 6692347 | Fuel Pipe 2.5x4x80 (old 700-02504-08) | € 1.38 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 81 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 7.12 | |
| Fuel Pipe Ass'y 3x5x230 (old 223-01251-90) | ||||
| 82 | 6688166 | Fuel Pipe Ass'y 3x5x230 (old 223-01251-90) | € 5.14 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 83 | 6684619 | Clip.6.3 Dia. (old 680-00731-20) | € 2.58 | |
| Pump Filter Body Ass'y (old 675-01630-90/6692277) | ||||
| 84 | 6692273 | Pump Filter Body Ass'y (old 675-01630-90/6692277) | € 8.52 | |
| Fuel Tank, White (old 591-0422p-21/6691525) | ||||
| 85 | 6691526 | Fuel Tank, White (old 591-0422p-21/6691525) | € 14.25 | |
| Return Grommet (old 6684627) | ||||
| 86 | 6697846 | Return Grommet (old 6684627) | € 1.24 | |
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 87 | 6691763 | Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | € 9.10 | |
| Tank Holding Band (old 603-04201-20) | ||||
| 88 | 6691927 | Tank Holding Band (old 603-04201-20) | € 7.72 | |
| Cushion Rubber (old 652-04201-20) | ||||
| 89 | 6692193 | Cushion Rubber (old 652-04201-20) | € 7.72 | |
| Screw 5x16/ps (old 994-15050-162) | ||||
| 90 | 6695386 | Screw 5x16/ps (old 994-15050-162) | € 1.38 | |
| Épuisé | ||||
| 92 | 6684625 | Épuisé | ||
| Muffler Protector (old 738-04220-20) | ||||
| 111 | 6692777 | Muffler Protector (old 738-04220-20) | € 14.06 | |
| Screw 5x12/ps (old 994-15050-122) | ||||
| 112 | 6695383 | Screw 5x12/ps (old 994-15050-122) | € 1.38 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 113 | 6684667 | Hex. Hole Bolt M5x12/s (old 994-61050-124) | € 2.58 | |
| Rondelle Ø 5 | ||||
| 114 | 6684918 | Rondelle Ø 5 | € 2.58 | |
| Hex. Hole Button Screw 6x65 (old 990-53060-653) | ||||
| 115 | 6695088 | Hex. Hole Button Screw 6x65 (old 990-53060-653) | € 2.78 | |
| Bague | ||||
| 116 | 6684639 | Bague | € 2.58 | |
| Muffler Set, Spare (old 704-0423z-90) | ||||
| 117 | 6692465 | Muffler Set, Spare (old 704-0423z-90) | € 26.68 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 118 | 6692883 | Muffler Special Gasket (old 751-04200-20) | € 1.38 | |
| Tail Pipe Set, Spare (old 721-0423z-90) | ||||
| 119 | 6692648 | Tail Pipe Set, Spare (old 721-0423z-90) | € 3.96 | |
| Screw 4x8/s (old 994-14040-081) | ||||
| 120 | 6695325 | Screw 4x8/s (old 994-14040-081) | € 1.38 | |
| Muffler Gasket (old 737-04230-20) | ||||
| 121 | 6692741 | Muffler Gasket (old 737-04230-20) | € 1.38 | |
| Warmteschild | ||||
| 122 | 6687242 | Warmteschild | € 2.78 | |
| Screw 5x18/ps (old 994-15050-182) | ||||
| 123 | 6695389 | Screw 5x18/ps (old 994-15050-182) | € 1.38 | |
| Tank Bracket (old 653-04200-20) | ||||
| 124 | 6692205 | Tank Bracket (old 653-04200-20) | € 5.74 | |
| Fuel Tank Cushion Rubber (old 655-06100-20) | ||||
| 125 | 6692227 | Fuel Tank Cushion Rubber (old 655-06100-20) | € 1.38 | |
| Bague | ||||
| 126 | 6689645 | Bague | € 1.38 | |
| Koppelingsvoering | ||||
| 127 | 6688615 | Koppelingsvoering | € 16.44 | |
| Clutch Spring (old 342-04270-20) | ||||
| 128 | 6689429 | Clutch Spring (old 342-04270-20) | € 3.96 | |
| RING | ||||
| 129 | 6695203 | RING | € 1.38 | |
| Clutch Step Bolt (old 357-0136u-20) | ||||
| 130 | 6689628 | Clutch Step Bolt (old 357-0136u-20) | € 2.78 | |
| Clutch Shaft Comp. | ||||
| 131 | 6699561 | Clutch Shaft Comp. | € 23.24 | |
| Recoil Starter Body Ass'y | ||||
| 151 | 6697645 | Recoil Starter Body Ass'y | € 26.13 | |
| Recoil Starter Body Comp. | ||||
| 152 | 6697646 | Recoil Starter Body Comp. | € 14.06 | |
| Starter Rope Reel | ||||
| 153 | 6697647 | Starter Rope Reel | € 4.95 | |
| Épuisé | ||||
| 154 | 6697648 | Épuisé | ||
| Épuisé | ||||
| 155 | 6697649 | Épuisé | ||
| Starthendel | ||||
| 157 | 6697650 | Starthendel | € 3.36 | |
| Set Screw (old 839-04220-20) | ||||
| 158 | 6693634 | Set Screw (old 839-04220-20) | € 1.38 | |
| Épuisé | ||||
| 159 | 6697643 | Épuisé | ||
| D4e Retaining Ring (old 993-55040-001) | ||||
| 160 | 6685101 | D4e Retaining Ring (old 993-55040-001) | € 1.38 | |
| Screw 5x25ps (old 994-15050-252) | ||||
| 161 | 6695395 | Screw 5x25ps (old 994-15050-252) | € 1.38 | |
| Épuisé | ||||
| 162 | 6697642 | Épuisé | ||
| Starter Pulley | ||||
| 163 | 6697644 | Starter Pulley | € 13.26 | |
| Cleaner Body (old 423-04270-21) | ||||
| 181 | 6697705 | Cleaner Body (old 423-04270-21) | € 6.54 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 182 | 6692244 | Collar 5.8 (old 659-00801-20) | € 1.38 | |
| Blow Over Check Board Comp. (old 476-0422u-80/6690 | ||||
| 183 | 6690848 | Blow Over Check Board Comp. (old 476-0422u-80/6690 | € 2.78 | |
| Élément de filtre à air | ||||
| 184 | 6690357 | Élément de filtre à air | € 2.78 | |
| Luchtfilterkap | ||||
| 185 | 6690149 | Luchtfilterkap | € 10.29 | |
| Boulon | ||||
| 186 | 6690383 | Boulon | € 1.38 | |
| Screw 5x60/s (old 994-14050-601) | ||||
| 187 | 6695354 | Screw 5x60/s (old 994-14050-601) | € 1.38 | |
| Screw (old 514-25001-20) | ||||
| 201 | 6685210 | Screw (old 514-25001-20) | € 1.38 | |
| Pump Body (old 575-25012-20) | ||||
| 202 | 6691420 | Pump Body (old 575-25012-20) | € 9.90 | |
| Pump Gasket (old 577-25012-20) | ||||
| 203 | 6691455 | Pump Gasket (old 577-25012-20) | € 2.78 | |
| Pump Diaphragm (old 576-25012-20) | ||||
| 204 | 6691446 | Pump Diaphragm (old 576-25012-20) | € 6.33 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 205 | 6684700 | Inlet Screen (oud 578-25007-20) | € 5.14 | |
| Idle Adjust Spring (old 463-25012-20) | ||||
| 206 | 6690766 | Idle Adjust Spring (old 463-25012-20) | € 2.78 | |
| Idle Adjust Screw (old 462-25006-20) | ||||
| 207 | 6690736 | Idle Adjust Screw (old 462-25006-20) | € 3.96 | |
| Needle Valve (old 603-25012-20) | ||||
| 208 | 6685215 | Needle Valve (old 603-25012-20) | € 6.33 | |
| Valve Spring (old 477-25307-20) | ||||
| 209 | 6690874 | Valve Spring (old 477-25307-20) | € 5.34 | |
| Control Lever (old 473-25012-20) | ||||
| 210 | 6690819 | Control Lever (old 473-25012-20) | € 5.34 | |
| Hinge Pin (old 605-25001-20) | ||||
| 211 | 6685219 | Hinge Pin (old 605-25001-20) | € 1.38 | |
| Hinge Pin Set Screw (old 546-25001-20) | ||||
| 212 | 6685218 | Hinge Pin Set Screw (old 546-25001-20) | € 2.78 | |
| Diaphragm Gasket (old 475-25012-20) | ||||
| 213 | 6690838 | Diaphragm Gasket (old 475-25012-20) | € 2.78 | |
| Meterring Diaphragm Comp. (old 474-25012-80) | ||||
| 214 | 6690828 | Meterring Diaphragm Comp. (old 474-25012-80) | € 14.25 | |
| Diaphragm Cover (old 476-25012-20) | ||||
| 216 | 6690858 | Diaphragm Cover (old 476-25012-20) | € 8.31 | |
| Set Screw (old 548-25012-20) | ||||
| 217 | 6685223 | Set Screw (old 548-25012-20) | € 1.38 | |
| Plaque Du Construc. (1) | ||||
| 601 | 6601153 | Plaque Du Construc. (1) | € 1.78 | |
Votre panier contient 0 de produits.
