Dessins techniques et pièces de rechange Hikoki TCG22EAD
Type exact:
TCG22EAD
TCG22EAD

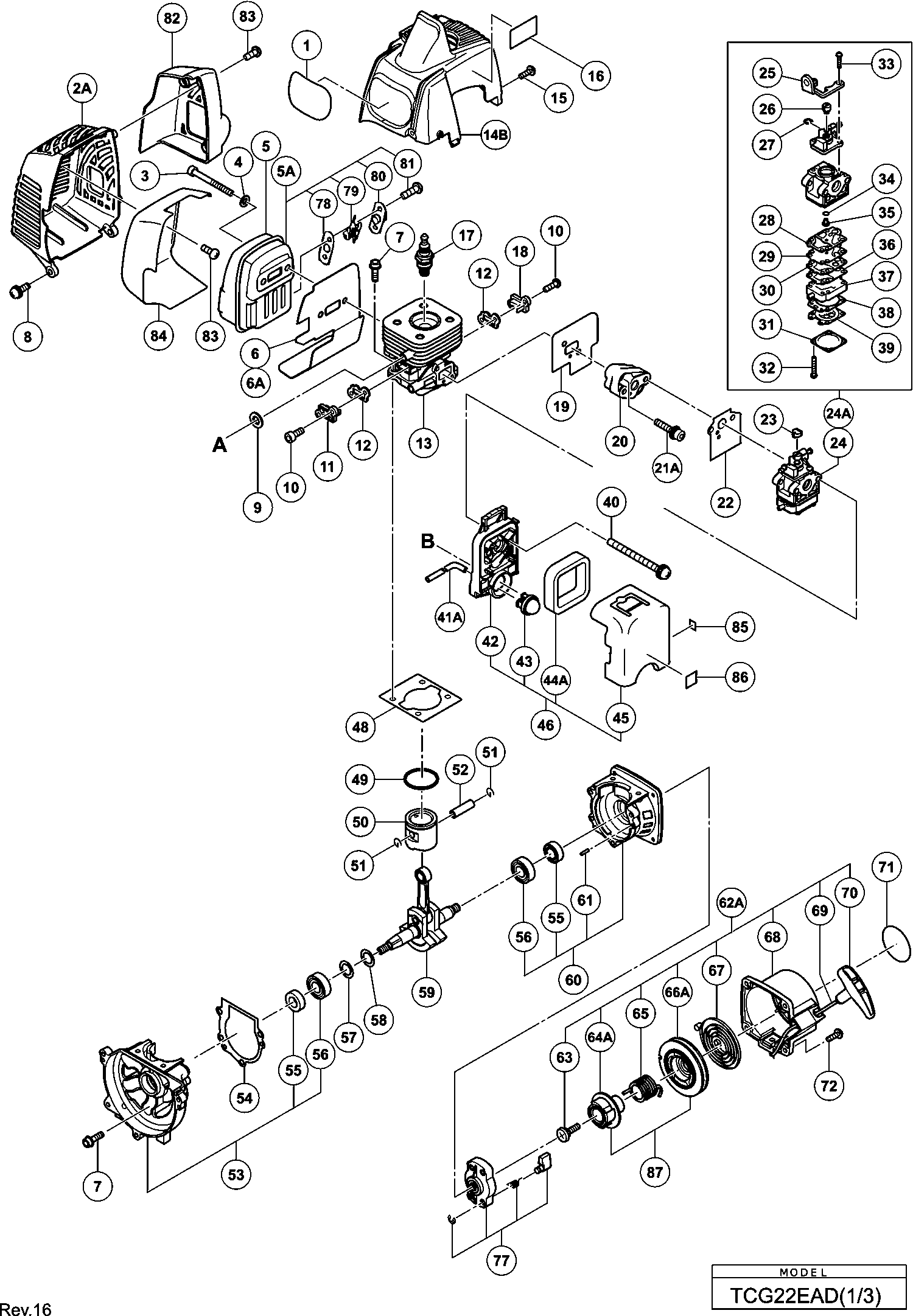

Dessins des HIKOKI TCG22EAD
Liste de pièces de rechange des HIKOKI TCG22EAD
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Muffler Protector Since 11 2013 | ||||
| 2A | 6600338 | Muffler Protector Since 11 2013 | € 3.96 | |
| Hex. Hole Bolt M6x55 (old 990-51060-553/6696819) | ||||
| 3 | 6684638 | Hex. Hole Bolt M6x55 (old 990-51060-553/6696819) | € 2.58 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 4 | 949432 | Rondelle M.6 (x10) paquet de 10 | € 1.26 | |
| Knaldemper | ||||
| 5 | 6696570 | Knaldemper | € 8.74 | |
| Uitlaat | ||||
| 5A | 6698477 | Uitlaat | € 14.22 | |
| Épuisé | ||||
| 6 | 6696553 | Épuisé | ||
| Vis Ø5x18 | ||||
| 7 | 6684586 | Vis Ø5x18 | € 2.58 | |
| Épuisé | ||||
| 8 | 887021 | Épuisé | ||
| Hex. Hole Bolt M4x12/s (old 994-61040-124) | ||||
| 10 | 6684595 | Hex. Hole Bolt M4x12/s (old 994-61040-124) | € 2.58 | |
| Intake Cover (b) | ||||
| 11 | 6696536 | Intake Cover (b) | € 1.26 | |
| Cover Packing | ||||
| 12 | 6696534 | Cover Packing | € 1.26 | |
| Cylindre | ||||
| 13 | 6696527 | Cylindre | € 29.64 | |
| Cilinder Afdekkap (oud 6699155) | ||||
| 14B | 6600424 | Cilinder Afdekkap (oud 6699155) | € 3.78 | |
| Vis Ø 4*20 | ||||
| 15 | 307606 | Vis Ø 4*20 | € 1.26 | |
| Bougie Bmr7a | ||||
| 17A | 6699316 | Bougie Bmr7a | € 10.70 | |
| Bougie (oud 6685052) | ||||
| 17A | 6699322 | Bougie (oud 6685052) | € 2.97 | |
| Intake Cover (a) | ||||
| 18 | 6696535 | Intake Cover (a) | € 1.26 | |
| Joint | ||||
| 19 | 6696548 | Joint | € 1.26 | |
| Carburetor Insulator | ||||
| 20A | 6698387 | Carburetor Insulator | € 3.78 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 21A | 6698844 | Seal Lock Hex. Socket Bolt M5x25 (w/washers) | € 1.44 | |
| Carburetor Gasket (old 402-0656a-20) | ||||
| 22 | 6684616 | Carburetor Gasket (old 402-0656a-20) | € 2.58 | |
| Épuisé | ||||
| 23 | 6684628 | Épuisé | ||
| Carburator Wyc-22 | ||||
| 24 | 6696550 | Carburator Wyc-22 | € 54.75 | |
| Carburetor Ass'y Wyc-28 | ||||
| 24A | 6698474 | Carburetor Ass'y Wyc-28 | € 66.16 | |
| Stop Ring (oud 489-25100-20) | ||||
| 27 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.58 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 28 | 6684692 | Pump Gasket (old 577-25292-20 & 6696321) | € 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 29 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 30 | 6691242 | Pump Plate (old 523-25100-20) | € 2.78 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 31 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 32 | 6691312 | Set Screw (old 548-25101-20) | € 1.38 | |
| O-RING (OUD 550-25100-20) | ||||
| 34 | 6684695 | O-RING (OUD 550-25100-20) | € 5.14 | |
| Circuit Plate (old 522-25100-20) | ||||
| 36 | 6691234 | Circuit Plate (old 522-25100-20) | € 3.96 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 38 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 39 | 6684690 | Metering Diaphragm (old 474-25601-20) | € 21.60 | |
| Vis M.5*60 | ||||
| 40 | 307224 | Vis M.5*60 | € 1.26 | |
| Brandstofleiding (oud 6696962) | ||||
| 41A | 6698720 | Brandstofleiding (oud 6696962) | € 4.14 | |
| Épuisé | ||||
| 42 | 6696832 | Épuisé | ||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 43 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 7.12 | |
| Cleaner Sponge | ||||
| 44A | 6600704 | Cleaner Sponge | € 4.56 | |
| Épuisé | ||||
| 45 | 6696831 | Épuisé | ||
| Air Cleaner Ass'y | ||||
| 46 | 6696549 | Air Cleaner Ass'y | € 10.95 | |
| Cylinder Packing | ||||
| 48 | 6696530 | Cylinder Packing | € 1.26 | |
| Zuiger Ring | ||||
| 49 | 6696532 | Zuiger Ring | € 2.52 | |
| Piston | ||||
| 50 | 6696531 | Piston | € 8.25 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 51 | 6684590 | Piston Pin Circlip (old 039-00601-20) | € 2.58 | |
| Zuiger Pin | ||||
| 52 | 6696944 | Zuiger Pin | € 3.99 | |
| Crank Case (b) Comp | ||||
| 53 | 6696538 | Crank Case (b) Comp | € 15.92 | |
| Crank Case Packing | ||||
| 54 | 6696539 | Crank Case Packing | € 1.26 | |
| Olie Keerring | ||||
| 55 | 6684607 | Olie Keerring | € 5.14 | |
| Roulement à billes | ||||
| 56 | 6684608 | Roulement à billes | € 4.56 | |
| Shim | ||||
| 57 | 6696946 | Shim | € 2.01 | |
| Shim | ||||
| 58 | 6696945 | Shim | € 2.01 | |
| Krukas | ||||
| 59 | 6696533 | Krukas | € 38.78 | |
| Carter Vilbrequin (55,56,61) Includ.55,56,61 | ||||
| 60 | 6696537 | Carter Vilbrequin (55,56,61) Includ.55,56,61 | € 16.41 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 61 | 6695521 | Knock Pin 4x12 (old 999-05041-203) | € 1.38 | |
| Épuisé | ||||
| 62A | 6699995 | Épuisé | ||
| SET SCREW (OLD 839-03045-20) | ||||
| 63 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.58 | |
| Cam Plate | ||||
| 64A | 6699996 | Cam Plate | € 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 65 | 6684677 | Dumper Spring (old 758-0651h-20) | € 10.29 | |
| Starter Rope Reel | ||||
| 66A | 6699997 | Starter Rope Reel | € 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 67 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 13.86 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 68 | 6684673 | Recoil Starter Body Comp. (old 772-07350-80) | € 22.88 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 69 | 6684674 | Starter Rope 3.5x860 (old 783-0720f-20/6697590) | € 5.14 | |
| Starthendel | ||||
| 70 | 6684680 | Starthendel | € 2.58 | |
| Vis Ø 4x16 | ||||
| 72 | 993539 | Vis Ø 4x16 | € 1.24 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 77 | 6684681 | Starter Pulley Ass'y (old 798-0651h-90) | € 15.84 | |
| Muffler Special Gasket (old751-52200-20/6684649) | ||||
| 78 | 6684650 | Muffler Special Gasket (old751-52200-20/6684649) | € 2.58 | |
| Spark Arrestor (old 732-52200-20) | ||||
| 79 | 6684652 | Spark Arrestor (old 732-52200-20) | € 5.14 | |
| Exhaust Pipe (old 734-52200-20/6684649) | ||||
| 80 | 6685047 | Exhaust Pipe (old 734-52200-20/6684649) | € 7.12 | |
| Bague | ||||
| 81 | 6685068 | Bague | € 1.38 | |
| Muffler Rear Cover | ||||
| 82 | 6600339 | Muffler Rear Cover | € 5.58 | |
| Tapping Screw D4x10 | ||||
| 83 | 6600325 | Tapping Screw D4x10 | € 1.24 | |
| Muffler Heat Cover Since 11 2013 | ||||
| 84 | 6600340 | Muffler Heat Cover Since 11 2013 | € 6.48 | |
| Mark Plate (t) | ||||
| 85 | 6600327 | Mark Plate (t) | € 1.24 | |
| Primer Label | ||||
| 86 | 6699000 | Primer Label | € 1.24 | |
| Cam Plate Ass'y | ||||
| 87 | 6699691 | Cam Plate Ass'y | € 7.32 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 91 | 6684667 | Hex. Hole Bolt M5x12/s (old 994-61050-124) | € 2.58 | |
| Épuisé | ||||
| 92 | 305583 | Épuisé | ||
| Ventilatorhuis (oud 6698725) | ||||
| 93B | 6699159 | Ventilatorhuis (oud 6698725) | € 10.98 | |
| CLUTCH SHAFT COMP | ||||
| 94B | 6696541 | CLUTCH SHAFT COMP | € 10.10 | |
| Step Bolt | ||||
| 95 | 6696469 | Step Bolt | € 1.24 | |
| Bague | ||||
| 96 | 6684648 | Bague | € 2.58 | |
| Clutch Plate (a) | ||||
| 97 | 6696546 | Clutch Plate (a) | € 1.26 | |
| Clutch | ||||
| 98 | 6696948 | Clutch | € 13.96 | |
| Ventilatorhuis (oud 6698725) | ||||
| 98B | 6699159 | Ventilatorhuis (oud 6698725) | € 10.98 | |
| Rondelle | ||||
| 99 | 6696547 | Rondelle | € 1.26 | |
| Ecrou | ||||
| 100 | 6685337 | Ecrou | € 1.26 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 101 | 323212 | Rondelle Diam 8 Noir H65sd2 | € 1.26 | |
| BOBINE | ||||
| 102B | 6699464 | BOBINE | € 21.12 | |
| Vis Ø4x18 Till H124040 | ||||
| 103 | 6684599 | Vis Ø4x18 Till H124040 | € 2.58 | |
| Cord | ||||
| 106 | 6696544 | Cord | € 1.26 | |
| Earth Cord | ||||
| 107 | 6696545 | Earth Cord | € 1.26 | |
| Épuisé | ||||
| 108 | 6696928 | Épuisé | ||
| Vliegwiel | ||||
| 108A | 6699289 | Vliegwiel | € 30.86 | |
| Anti Vibe Rubber (a) | ||||
| 109 | 6696963 | Anti Vibe Rubber (a) | € 3.99 | |
| Pipe Holder (a) | ||||
| 110 | 6696542 | Pipe Holder (a) | € 1.26 | |
| Ecrou M.5 | ||||
| 111 | 302012 | Ecrou M.5 | € 1.26 | |
| Pipe Holder (b) | ||||
| 112 | 6696543 | Pipe Holder (b) | € 1.26 | |
| Anti Vibe Rubber (b) | ||||
| 113 | 6696964 | Anti Vibe Rubber (b) | € 3.99 | |
| Circlips Ø12 (x10) paquet de 10 | ||||
| 114 | 939542 | Circlips Ø12 (x10) paquet de 10 | € 1.80 | |
| Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
| 115 | 6684636 | Tapping Screw D4.5x16 (old 990-72045-164/790451) | € 2.58 | |
| Vis Ø 4*16 Noir | ||||
| 117 | 305812 | Vis Ø 4*16 Noir | € 1.24 | |
| Handle (b) | ||||
| 118 | 6696487 | Handle (b) | € 4.14 | |
| Lock Lever | ||||
| 119 | 6696490 | Lock Lever | € 1.24 | |
| Levier (1) | ||||
| 120 | 6696488 | Levier (1) | € 1.24 | |
| Spring (a) | ||||
| 121 | 6696489 | Spring (a) | € 1.24 | |
| Stop Switch | ||||
| 122A | 6601275 | Stop Switch | € 1.62 | |
| Stop Switch Cord | ||||
| 123 | 6696491 | Stop Switch Cord | € 2.16 | |
| Protection Tube | ||||
| 124 | 6696967 | Protection Tube | € 1.26 | |
| Gaskabel | ||||
| 125 | 6696560 | Gaskabel | € 5.01 | |
| Handle (a) | ||||
| 126 | 6696486 | Handle (a) | € 4.14 | |
| Resevoir | ||||
| 127 | 6696569 | Resevoir | € 5.50 | |
| Pomp Filter | ||||
| 128A | 6600351 | Pomp Filter | € 3.24 | |
| Clip | ||||
| 129 | 6696949 | Clip | € 2.01 | |
| Bolt (w/flange) | ||||
| 131 | 6696574 | Bolt (w/flange) | € 1.26 | |
| Brandstofleiding | ||||
| 132A | 6698716 | Brandstofleiding | € 4.14 | |
| Brandstofleiding L70 | ||||
| 133A | 6699014 | Brandstofleiding L70 | € 1.98 | |
| Return Grommet (old 6684627) | ||||
| 134A | 6697846 | Return Grommet (old 6684627) | € 1.24 | |
| Tank Cap Chain | ||||
| 135A | 6698732 | Tank Cap Chain | € 1.44 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 145 | 6684899 | Woodruff Key 3x13x4.5 (oud 068-10100-20) | € 2.58 | |
| Vliegwiel (old 6696928) | ||||
| 146 | 6699463 | Vliegwiel (old 6696928) | € 28.05 | |
| Hex.bolt 6x50 (old 990-21060-504) | ||||
| 151 | 6684824 | Hex.bolt 6x50 (old 990-21060-504) | € 2.58 | |
| Handle Knob (old 512-3338p-20) | ||||
| 152 | 6684823 | Handle Knob (old 512-3338p-20) | € 5.14 | |
| Bague | ||||
| 153 | 6684822 | Bague | € 2.58 | |
| Hex. Socket Hd. Bolt M5x12 (old 990-51050-123) | ||||
| 154 | 6684829 | Hex. Socket Hd. Bolt M5x12 (old 990-51050-123) | € 2.58 | |
| Rondelle M.5 (x10) paquet de 10 | ||||
| 155 | 949454 | Rondelle M.5 (x10) paquet de 10 | € 1.24 | |
| Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3 | ||||
| 156 | 6684825 | Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3 | € 2.58 | |
| Rondelle M.6 (x10) Paquet de 10 For Usa | ||||
| 157 | 949455 | Rondelle M.6 (x10) Paquet de 10 For Usa | € 1.26 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 158 | 949425 | Rondelle M.6 (x10) paquet de 10 | € 1.26 | |
| Épuisé | ||||
| 159 | 6684818 | Épuisé | ||
| Spacer (old 360-33315-20) | ||||
| 160 | 6684819 | Spacer (old 360-33315-20) | € 5.14 | |
| Bague | ||||
| 161 | 6684820 | Bague | € 2.58 | |
| Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
| 162 | 939540 | Clips D10 (x10) paquet de 10 Till 12.2003 | € 2.34 | |
| Main Pipe Comp. (old 341-77157-80) | ||||
| 163 | 6684815 | Main Pipe Comp. (old 341-77157-80) | € 83.85 | |
| Drive Shaft A (old 035-38466-80) | ||||
| 165 | 6684814 | Drive Shaft A (old 035-38466-80) | € 46.83 | |
| Hanger (old 335-77350-80) | ||||
| 166 | 6684705 | Hanger (old 335-77350-80) | € 10.29 | |
| Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | ||||
| 168 | 949556 | Ecrou M.6 (x10) (paquet de 10) For Europe (sl),us | € 1.26 | |
| Loop Handle | ||||
| 169 | 6696975 | Loop Handle | € 10.77 | |
| Hanger Collar (old 334-77350-20) | ||||
| 170 | 6684704 | Hanger Collar (old 334-77350-20) | € 5.14 | |
| Hanger Fixing Bracket (old 337-77350-80) | ||||
| 171 | 6684706 | Hanger Fixing Bracket (old 337-77350-80) | € 7.72 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 172 | 6684709 | Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | € 2.58 | |
| Bolt (black) M6 | ||||
| 173 | 6696974 | Bolt (black) M6 | € 2.01 | |
| Barrier | ||||
| 174 | 6696973 | Barrier | € 3.99 | |
| Cap Nut 6 (old 991-42060-012) | ||||
| 175 | 6684828 | Cap Nut 6 (old 991-42060-012) | € 2.58 | |
| Joint Case Ass'y (old 280-38466-90) | ||||
| 176 | 6684817 | Joint Case Ass'y (old 280-38466-90) | € 46.29 | |
| Carter | ||||
| 177A | 6699402 | Carter | € 60.39 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 178 | 6684737 | Bolt (w/plus) M6x8 (old 990-23060-080) | € 2.58 | |
| Cutter Holder (a) | ||||
| 185 | 6696977 | Cutter Holder (a) | € 15.99 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 189 | 6695414 | Screw 5x12/w.s (old 994-16050-121) | € 1.38 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 190 | 949664 | Hex.socket Hd.bolt M5x30 (10 Pcs) | € 4.50 | |
| Cover Blacket | ||||
| 195 | 6696494 | Cover Blacket | € 2.16 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 196 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.58 | |
| Bushing (old 347-38466-20) | ||||
| 200 | 6684833 | Bushing (old 347-38466-20) | € 2.58 | |
| Level Mark (old 923-33700-20) | ||||
| 201 | 6684851 | Level Mark (old 923-33700-20) | € 2.58 | |
| Level Mark (old 923-33700-20) | ||||
| 203 | 6684851 | Level Mark (old 923-33700-20) | € 2.58 | |
| Épuisé | ||||
| 204 | 6684830 | Épuisé | ||
| Drive Shaft B 783l (old 036-38190-20) | ||||
| 205 | 6684832 | Drive Shaft B 783l (old 036-38190-20) | € 24.87 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 206 | 6698794 | Cover Comp. W/ Shaft M10x.125 Left | € 11.16 | |
| Set Screw | ||||
| 208 | 6698795 | Set Screw | € 1.62 | |
| Reel | ||||
| 209 | 6698796 | Reel | € 2.88 | |
| Return Spring | ||||
| 210 | 6698797 | Return Spring | € 1.26 | |
| Bouton (1) | ||||
| 211 | 6698798 | Bouton (1) | € 1.44 | |
| Cord Guide | ||||
| 212 | 6698799 | Cord Guide | € 1.44 | |
| Case | ||||
| 213 | 6698800 | Case | € 7.92 | |
| Épuisé | ||||
| 214 | 6696454 | Épuisé | ||
| Cover Guard | ||||
| 215 | 6696950 | Cover Guard | € 13.17 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 216 | 6684751 | Tapping Screw 4x14 (old 993-48040-142) | € 2.58 | |
| Mesje (oud 797-37714-20) | ||||
| 217 | 6684750 | Mesje (oud 797-37714-20) | € 5.14 | |
| Safety Cover Holder | ||||
| 218 | 6696951 | Safety Cover Holder | € 3.99 | |
| Épuisé | ||||
| 219 | 6696980 | Épuisé | ||
| Fuel Grommet | ||||
| 225A | 6698931 | Fuel Grommet | € 4.14 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 226 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.58 | |
| COVER BRACKET NEW OCT | ||||
| 227 | 6699011 | COVER BRACKET NEW OCT | € 1.98 | |
| COVER ASS'Y | ||||
| 228 | 6697880 | COVER ASS'Y | € 21.45 | |
| COVER HOLDER | ||||
| 229 | 6698813 | COVER HOLDER | € 2.52 | |
| Safety Cover, 24 Dia. (old 441-38150-20) | ||||
| 230 | 6690272 | Safety Cover, 24 Dia. (old 441-38150-20) | € 15.84 | |
| Mesje (oud 797-38150-20) | ||||
| 231 | 6693388 | Mesje (oud 797-38150-20) | € 7.53 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 232 | 6684753 | Tapping Screw 5x20 (old 993-17052-002) | € 2.58 | |
| Épuisé | ||||
| 233B | 6601421 | Épuisé | ||
| Épuisé | ||||
| 234 | 6699186 | Épuisé | ||
| Épuisé | ||||
| 501 | 6684764 | Épuisé | ||
| Épuisé | ||||
| 502 | 944458 | Épuisé | ||
| Épuisé | ||||
| 503 | 875769 | Épuisé | ||
| Épuisé | ||||
| 504A | 6601420 | Épuisé | ||
| Cutter Holder (b) | ||||
| 601 | 6698659 | Cutter Holder (b) | € 15.64 | |
| Épuisé | ||||
| 602 | 6698660 | Épuisé | ||
| Épuisé | ||||
| 603 | 6698658 | Épuisé | ||
| Trousse de réparation | ||||
| 604 | 6600027 | Trousse de réparation | € 37.29 | |
Votre panier contient 0 de produits.
