Dessins techniques et pièces de rechange Hikoki TCG23EC
Type exact:
TCG23EC
TCG23EC

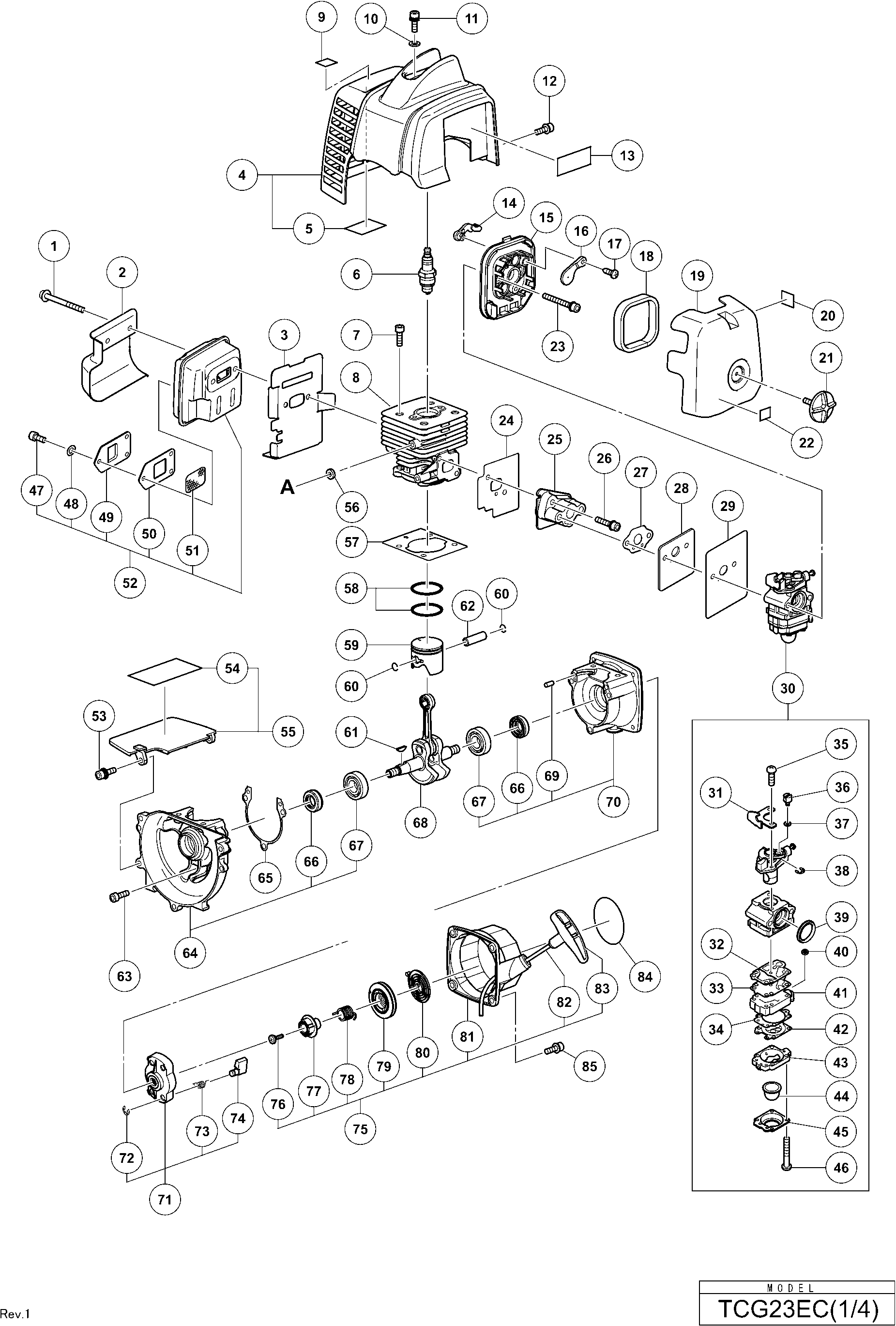

Dessins des HIKOKI TCG23EC
Liste de pièces de rechange des HIKOKI TCG23EC
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Hex.socket Bolt M5x55 | ||||
| 1 | 6600706 | Hex.socket Bolt M5x55 | € 1.24 | |
| Heat Shield | ||||
| 2 | 6600707 | Heat Shield | € 7.72 | |
| Muffler Packing | ||||
| 3 | 6600710 | Muffler Packing | € 6.33 | |
| Top Cover | ||||
| 4 | 6601290 | Top Cover | € 11.68 | |
| Aluminum Tape | ||||
| 5 | 6600714 | Aluminum Tape | € 1.24 | |
| Ignition Plug (ac6ar) | ||||
| 6 | 6600713 | Ignition Plug (ac6ar) | € 9.90 | |
| Hex. Socket Hd. Bolt M5x16 | ||||
| 7 | 6600712 | Hex. Socket Hd. Bolt M5x16 | € 1.24 | |
| Cylindre | ||||
| 8 | 6600711 | Cylindre | € 42.28 | |
| Caution Label (hot) | ||||
| 9 | 6698864 | Caution Label (hot) | € 1.44 | |
| Entretoise (1) | ||||
| 10 | 6600715 | Entretoise (1) | € 1.24 | |
| Hex. Socket Hd. Bolt (w/washers) M5x18 | ||||
| 11 | 6600716 | Hex. Socket Hd. Bolt (w/washers) M5x18 | € 1.24 | |
| Hex. Socket Hd. Bolt (w/washers) M5x16 | ||||
| 12 | 6600720 | Hex. Socket Hd. Bolt (w/washers) M5x16 | € 1.24 | |
| Choke Lever | ||||
| 14 | 6600721 | Choke Lever | € 1.24 | |
| Cleaner Base | ||||
| 15 | 6600722 | Cleaner Base | € 3.16 | |
| Choke Plate | ||||
| 16 | 6600723 | Choke Plate | € 1.24 | |
| Tapping Screw St 4.2x9.5 | ||||
| 17 | 6600724 | Tapping Screw St 4.2x9.5 | € 1.24 | |
| Élément de filtre à air | ||||
| 18 | 6600725 | Élément de filtre à air | € 1.24 | |
| Cleaner Cover | ||||
| 19 | 6600726 | Cleaner Cover | € 2.37 | |
| Primer Label | ||||
| 20 | 6699000 | Primer Label | € 1.24 | |
| Cleaner Knob | ||||
| 21 | 6600727 | Cleaner Knob | € 1.24 | |
| Mark Plate (t) | ||||
| 22 | 6600327 | Mark Plate (t) | € 1.24 | |
| Hex. Socket Hd. Bolt (w/washers) M5x60 | ||||
| 23 | 6600728 | Hex. Socket Hd. Bolt (w/washers) M5x60 | € 1.24 | |
| Intake Packing | ||||
| 24 | 6600729 | Intake Packing | € 1.98 | |
| Carburetor Insulator | ||||
| 25 | 6600730 | Carburetor Insulator | € 7.12 | |
| Hex. Socket Hd. Bolt (w/washers) M5x25 | ||||
| 26 | 6600731 | Hex. Socket Hd. Bolt (w/washers) M5x25 | € 1.24 | |
| Carburetor Packing (a) | ||||
| 27 | 6600732 | Carburetor Packing (a) | € 1.24 | |
| Heat Insulation Packing | ||||
| 28 | 6600733 | Heat Insulation Packing | € 2.97 | |
| Carburetor Packing (b) | ||||
| 29 | 6600734 | Carburetor Packing (b) | € 2.18 | |
| Carburetor Ass'y (wyk-483) | ||||
| 30 | 6600735 | Carburetor Ass'y (wyk-483) | € 109.08 | |
| Cable Adjust Stay | ||||
| 31 | 6601292 | Cable Adjust Stay | € 14.46 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 32 | 6684692 | Pump Gasket (old 577-25292-20 & 6696321) | € 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 33 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 10.29 | |
| Diaphragm Gasket (oud 475-25153-20) | ||||
| 34 | 6684691 | Diaphragm Gasket (oud 475-25153-20) | € 10.29 | |
| Throttle Set Screw (oud 514-25100-20) | ||||
| 35 | 6684870 | Throttle Set Screw (oud 514-25100-20) | € 2.58 | |
| Swivel | ||||
| 36 | 6601293 | Swivel | € 12.27 | |
| Ring (oud 549-25165-20) | ||||
| 37 | 6684874 | Ring (oud 549-25165-20) | € 2.58 | |
| Stop Ring (oud 489-25100-20) | ||||
| 38 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.58 | |
| Cleaner Packing (oud 431-0634c-20) | ||||
| 39 | 6684875 | Cleaner Packing (oud 431-0634c-20) | € 5.14 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 40 | 6684700 | Inlet Screen (oud 578-25007-20) | € 5.14 | |
| Pump Body | ||||
| 41 | 6601294 | Pump Body | € 92.38 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 42 | 6684690 | Metering Diaphragm (old 474-25601-20) | € 21.60 | |
| Priming Pump Comp. (oud 442-25151-80) | ||||
| 43 | 6684687 | Priming Pump Comp. (oud 442-25151-80) | € 19.60 | |
| Priming Body (oud 447-25108-20) | ||||
| 44 | 6684689 | Priming Body (oud 447-25108-20) | € 7.72 | |
| Diaphragm Cover (oud 476-25151-20) | ||||
| 45 | 6684688 | Diaphragm Cover (oud 476-25151-20) | € 10.29 | |
| Set Screw (old 548-25151-20 & 6696324) | ||||
| 46 | 6684699 | Set Screw (old 548-25151-20 & 6696324) | € 2.58 | |
| Hex. Socket Hd. Bolt M4x10 | ||||
| 47 | 6600755 | Hex. Socket Hd. Bolt M4x10 | € 1.24 | |
| Bolt Washer D4 | ||||
| 48 | 6600756 | Bolt Washer D4 | € 1.24 | |
| Exhaust Pipe | ||||
| 49 | 6600757 | Exhaust Pipe | € 5.94 | |
| Exhaust Packing | ||||
| 50 | 6600758 | Exhaust Packing | € 5.94 | |
| Spark Arrester | ||||
| 51 | 6600759 | Spark Arrester | € 1.24 | |
| Muffler | ||||
| 52 | 6600709 | Muffler | € 54.45 | |
| Hex. Socket Hd. Bolt (w/washers) M5x14 | ||||
| 53 | 6600742 | Hex. Socket Hd. Bolt (w/washers) M5x14 | € 1.24 | |
| Aluminum Tape | ||||
| 54 | 6600744 | Aluminum Tape | € 1.24 | |
| Insulation Plate | ||||
| 55 | 6601291 | Insulation Plate | € 4.35 | |
| Ignition Coil Spacer | ||||
| 56 | 6600660 | Ignition Coil Spacer | € 1.24 | |
| Cylinder Packing | ||||
| 57 | 6600738 | Cylinder Packing | € 12.87 | |
| Piston Ring | ||||
| 58 | 6600739 | Piston Ring | € 4.76 | |
| Piston (1) | ||||
| 59 | 6600740 | Piston (1) | € 13.86 | |
| Circlip (1) | ||||
| 60 | 6600736 | Circlip (1) | € 1.24 | |
| Woodruff Key | ||||
| 61 | 6600741 | Woodruff Key | € 1.24 | |
| Piston Pin | ||||
| 62 | 6600737 | Piston Pin | € 1.59 | |
| Hex. Socket Hd. Bolt M5x16 | ||||
| 63 | 6600712 | Hex. Socket Hd. Bolt M5x16 | € 1.24 | |
| Crank Case (a) | ||||
| 64 | 6600745 | Crank Case (a) | € 17.61 | |
| Crank Case Packing | ||||
| 65 | 6600746 | Crank Case Packing | € 1.38 | |
| Oil Seal | ||||
| 66 | 6600747 | Oil Seal | € 1.59 | |
| Roulement A Billes (1) | ||||
| 67 | 6600594 | Roulement A Billes (1) | € 6.33 | |
| Crank Shaft | ||||
| 68 | 6600748 | Crank Shaft | € 56.26 | |
| Knock Pin | ||||
| 69 | 6600749 | Knock Pin | € 1.24 | |
| Crank Case (b) | ||||
| 70 | 6600750 | Crank Case (b) | € 15.04 | |
| Poulie (1) | ||||
| 71 | 6600752 | Poulie (1) | € 5.34 | |
| Clip De Retenue (1) | ||||
| 72 | 6601321 | Clip De Retenue (1) | € 1.24 | |
| Starter Pawl Spring | ||||
| 73 | 6601322 | Starter Pawl Spring | € 1.24 | |
| Starter Pawl | ||||
| 74 | 6601323 | Starter Pawl | € 1.38 | |
| Recoil Starter (s) | ||||
| 75 | 6600753 | Recoil Starter (s) | € 23.42 | |
| Set Screw | ||||
| 76 | 6601307 | Set Screw | € 1.24 | |
| Cam (s) | ||||
| 77 | 6601309 | Cam (s) | € 2.78 | |
| Damper Spring (s) | ||||
| 78 | 6601311 | Damper Spring (s) | € 4.16 | |
| Reel (s) | ||||
| 79 | 6601313 | Reel (s) | € 3.96 | |
| Spiral Spring (s) | ||||
| 80 | 6601315 | Spiral Spring (s) | € 8.72 | |
| Starter Case (s) | ||||
| 81 | 6601317 | Starter Case (s) | € 9.10 | |
| Starter Rope (s) | ||||
| 82 | 6601319 | Starter Rope (s) | € 2.18 | |
| Starter Handle | ||||
| 83 | 6601320 | Starter Handle | € 2.37 | |
| Hex. Socket Hd. Bolt (w/washers) M5x16 | ||||
| 85 | 6600720 | Hex. Socket Hd. Bolt (w/washers) M5x16 | € 1.24 | |
| Hex. Socket Hd. Bolt (w/washers) M5x12 | ||||
| 111 | 6600760 | Hex. Socket Hd. Bolt (w/washers) M5x12 | € 1.24 | |
| Hex. Socket Hd. Bolt (w/washers) M5x25 | ||||
| 112 | 6600731 | Hex. Socket Hd. Bolt (w/washers) M5x25 | € 1.24 | |
| Holder (a) | ||||
| 113 | 6600761 | Holder (a) | € 1.98 | |
| Holder (b) | ||||
| 114 | 6600762 | Holder (b) | € 1.98 | |
| Anti Vibration Rubber | ||||
| 115 | 6600763 | Anti Vibration Rubber | € 2.78 | |
| Fan Case | ||||
| 116 | 6600764 | Fan Case | € 12.87 | |
| Hex. Socket Hd. Bolt (w/washers) M5x18 | ||||
| 117 | 6600716 | Hex. Socket Hd. Bolt (w/washers) M5x18 | € 1.24 | |
| Ignition Coil | ||||
| 118 | 6600765 | Ignition Coil | € 25.41 | |
| Cord Insulation Tube | ||||
| 119 | 6600766 | Cord Insulation Tube | € 4.35 | |
| Plug Cap | ||||
| 120 | 6600767 | Plug Cap | € 2.18 | |
| Plug Clip Metal | ||||
| 121 | 6600768 | Plug Clip Metal | € 2.18 | |
| Cord | ||||
| 122 | 6601296 | Cord | € 2.58 | |
| Hex. Socket Hd. Bolt (w/washers) M4x20 | ||||
| 123 | 6600775 | Hex. Socket Hd. Bolt (w/washers) M4x20 | € 1.24 | |
| Clip De Retenue (1) | ||||
| 124 | 6600770 | Clip De Retenue (1) | € 1.24 | |
| Clutch Shaft (s) | ||||
| 125 | 6600771 | Clutch Shaft (s) | € 13.86 | |
| Clutch Shaft (f) | ||||
| 125 | 6600772 | Clutch Shaft (f) | € 13.86 | |
| Step Bolt | ||||
| 126 | 6600661 | Step Bolt | € 1.38 | |
| Bent Washer 8 | ||||
| 127 | 6600662 | Bent Washer 8 | € 1.24 | |
| Clutch | ||||
| 128 | 6600773 | Clutch | € 8.72 | |
| Clutch Washer (b) | ||||
| 129 | 6600664 | Clutch Washer (b) | € 1.24 | |
| Fly Wheel Nut | ||||
| 130 | 6600658 | Fly Wheel Nut | € 1.24 | |
| Magneto Rotor | ||||
| 131 | 6600774 | Magneto Rotor | € 25.41 | |
| Fuel Pipe | ||||
| 132A | 6601401 | Fuel Pipe | € 1.24 | |
| Fuel Pipe | ||||
| 133A | 6601400 | Fuel Pipe | € 1.24 | |
| Fuel Grommet | ||||
| 134A | 6600671 | Fuel Grommet | € 1.24 | |
| Tank Cap Retainer | ||||
| 135 | 6600782 | Tank Cap Retainer | € 1.24 | |
| Tank Cap Retainer Holder | ||||
| 136 | 6600781 | Tank Cap Retainer Holder | € 1.24 | |
| Tank Cap Packing | ||||
| 137 | 6600780 | Tank Cap Packing | € 1.24 | |
| Valve Holder | ||||
| 138 | 6600779 | Valve Holder | € 1.24 | |
| Valve | ||||
| 139 | 6600778 | Valve | € 1.59 | |
| Tank Cap | ||||
| 140 | 6600777 | Tank Cap | € 1.59 | |
| Tank Cap Ass'y | ||||
| 141A | 6600776 | Tank Cap Ass'y | € 2.78 | |
| Resevoir | ||||
| 142 | 6600788 | Resevoir | € 14.46 | |
| Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | ||||
| 143A | 6685199 | Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | € 5.34 | |
| Clip | ||||
| 144 | 6601295 | Clip | € 1.24 | |
| Stand | ||||
| 145 | 6600791 | Stand | € 3.36 | |
| Hex. Socket Hd. Bolt (w/washers) M5x18 | ||||
| 146 | 6600716 | Hex. Socket Hd. Bolt (w/washers) M5x18 | € 1.24 | |
| Tank Mark Label | ||||
| 147 | 6698921 | Tank Mark Label | € 1.44 | |
| Tank Mark Label (25:1) | ||||
| 147 | 6698922 | Tank Mark Label (25:1) | € 1.44 | |
| Filter Element | ||||
| 148 | 6601396 | Filter Element | € 1.24 | |
| Fuel Pipe Set | ||||
| 149 | 6601403 | Fuel Pipe Set | € 2.37 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5x35 | ||||
| 161 | 6600873 | Hex. Socket Hd. Bolt (w/sp.washer) M5x35 | € 1.24 | |
| Loop Handle | ||||
| 162 | 6600800 | Loop Handle | € 9.10 | |
| Barrier | ||||
| 163 | 6600802 | Barrier | € 3.96 | |
| Gear Case (s) | ||||
| 164 | 6600803 | Gear Case (s) | € 67.88 | |
| Bolt (w/washer) M6x8 | ||||
| 165 | 6600856 | Bolt (w/washer) M6x8 | € 1.24 | |
| Hex. Socket Hd. Bolt M5x12 | ||||
| 166 | 6600855 | Hex. Socket Hd. Bolt M5x12 | € 1.24 | |
| Holder (a) | ||||
| 167 | 6600857 | Holder (a) | € 4.95 | |
| Holder (b) | ||||
| 168 | 6600858 | Holder (b) | € 2.37 | |
| Nut Cover | ||||
| 169 | 6600859 | Nut Cover | € 5.74 | |
| U-nut (left Hand) M10 | ||||
| 170 | 6600860 | U-nut (left Hand) M10 | € 1.98 | |
| Hex. Socket Hd. Bolt M5x30 | ||||
| 171 | 6600854 | Hex. Socket Hd. Bolt M5x30 | € 1.24 | |
| Épuisé | ||||
| 172 | 6600570 | Épuisé | ||
| Nylon Head Cover | ||||
| 173 | 6600806 | Nylon Head Cover | € 3.76 | |
| Reel Spring | ||||
| 174 | 6600809 | Reel Spring | € 1.38 | |
| Poulie (1) | ||||
| 175 | 6600808 | Poulie (1) | € 23.42 | |
| Épuisé | ||||
| 176 | 6600807 | Épuisé | ||
| Cord Guide | ||||
| 177 | 6600810 | Cord Guide | € 3.76 | |
| Nylon Head Cap | ||||
| 178 | 6600811 | Nylon Head Cap | € 1.24 | |
| Throttle Lever | ||||
| 179 | 6600822 | Throttle Lever | € 28.14 | |
| Grip | ||||
| 180 | 6600852 | Grip | € 2.37 | |
| Throttle Coller | ||||
| 181 | 6601306 | Throttle Coller | € 2.78 | |
| Nut M5 | ||||
| 182 | 6600825 | Nut M5 | € 1.24 | |
| Handle Grip | ||||
| 183 | 6600853 | Handle Grip | € 1.38 | |
| Screw (w/washers) M5x25 | ||||
| 184 | 6600839 | Screw (w/washers) M5x25 | € 1.24 | |
| Handle (b) | ||||
| 185 | 6600850 | Handle (b) | € 2.78 | |
| Stop Switch Comp. | ||||
| 186 | 6600851 | Stop Switch Comp. | € 5.94 | |
| Handle Clamp | ||||
| 187 | 6600843 | Handle Clamp | € 1.24 | |
| Throttle Lever | ||||
| 188 | 6600841 | Throttle Lever | € 1.24 | |
| Spring (c) | ||||
| 189 | 6600842 | Spring (c) | € 1.24 | |
| Connection Laber | ||||
| 190 | 6600849 | Connection Laber | € 1.24 | |
| Spring (d) | ||||
| 191 | 6600847 | Spring (d) | € 1.24 | |
| Trriger Lockout | ||||
| 192 | 6600846 | Trriger Lockout | € 1.24 | |
| Spring (e) | ||||
| 193 | 6600848 | Spring (e) | € 1.24 | |
| Throttle Wire Comp. | ||||
| 194 | 6600840 | Throttle Wire Comp. | € 3.36 | |
| Handle (a) | ||||
| 195 | 6600845 | Handle (a) | € 2.18 | |
| Screw (w/washers) M5x30 | ||||
| 196 | 6600844 | Screw (w/washers) M5x30 | € 1.24 | |
| Loop Handle Rubber | ||||
| 197 | 6600821 | Loop Handle Rubber | € 2.18 | |
| Hanger | ||||
| 198 | 6600818 | Hanger | € 5.74 | |
| Hanger Clamp | ||||
| 199 | 6600838 | Hanger Clamp | € 1.24 | |
| Hanger | ||||
| 200 | 6600837 | Hanger | € 2.37 | |
| Hex. Hole Button Screw M6x25 | ||||
| 201 | 6600813 | Hex. Hole Button Screw M6x25 | € 1.24 | |
| Cover Braket | ||||
| 202 | 6600812 | Cover Braket | € 6.14 | |
| Épuisé | ||||
| 203 | 6600449 | Épuisé | ||
| Level Mark(a) | ||||
| 204 | 6601305 | Level Mark(a) | € 2.97 | |
| Main Pipe | ||||
| 205 | 6600816 | Main Pipe | € 49.00 | |
| Drive Shaft | ||||
| 206 | 6600817 | Drive Shaft | € 11.88 | |
| Carter Protection (1) | ||||
| 207 | 6601299 | Carter Protection (1) | € 10.70 | |
| Cover Guard (eu) | ||||
| 208 | 6601333 | Cover Guard (eu) | € 14.25 | |
| Épuisé | ||||
| 209 | 6601301 | Épuisé | ||
| Knife | ||||
| 210 | 6601302 | Knife | € 1.38 | |
| Flexible Shaft | ||||
| 251 | 6698325 | Flexible Shaft | € 16.56 | |
| Main Pipe Ass'y | ||||
| 252 | 6601405 | Main Pipe Ass'y | € 224.70 | |
| Cutter Case (old 6698810) | ||||
| 253 | 6600494 | Cutter Case (old 6698810) | € 30.52 | |
| Bague | ||||
| 254 | 6698331 | Bague | € 3.78 | |
| Vis M.5*10 (paquet de 10) | ||||
| 255 | 949819 | Vis M.5*10 (paquet de 10) | € 3.06 | |
| Bolt M6 | ||||
| 256 | 6698334 | Bolt M6 | € 3.78 | |
| Safety Cover Bracket | ||||
| 257 | 6698335 | Safety Cover Bracket | € 3.78 | |
| Vis M5x25 (paquet de 10) | ||||
| 258 | 949662 | Vis M5x25 (paquet de 10) | € 2.52 | |
| Guard (oud 6698332) | ||||
| 259 | 6698809 | Guard (oud 6698332) | € 22.28 | |
| MACHINESCHROEF M5X14 (10 STUKS) | ||||
| 260 | 949238 | MACHINESCHROEF M5X14 (10 STUKS) | € 1.26 | |
| Rondelle M5 (x10) paquet de 10 | ||||
| 261 | 949424 | Rondelle M5 (x10) paquet de 10 | € 1.26 | |
| Mesje | ||||
| 262 | 6698333 | Mesje | € 7.74 | |
| Rondelle M.5 (x10) paquet de 10 | ||||
| 263 | 949454 | Rondelle M.5 (x10) paquet de 10 | € 1.24 | |
| MOER M5 (10 STUKS) (OUD 949555Z | ||||
| 264 | 949555 | MOER M5 (10 STUKS) (OUD 949555Z | € 1.26 | |
| Épuisé | ||||
| 265 | 6601376 | Épuisé | ||
| Nylon Head Cover (b) | ||||
| 266 | 6601375 | Nylon Head Cover (b) | € 3.57 | |
| Box Spanner 16x17mm | ||||
| 501 | 6600574 | Box Spanner 16x17mm | € 12.08 | |
| Épuisé | ||||
| 502 | 944458 | Épuisé | ||
| Tool Bag | ||||
| 503 | 6600863 | Tool Bag | € 6.93 | |
| Épuisé | ||||
| 504 | 6600576 | Épuisé | ||
| Hanging Strap (s) | ||||
| 505 | 6600579 | Hanging Strap (s) | € 10.50 | |
| Épuisé | ||||
| 506 | 6600577 | Épuisé | ||
Votre panier contient 0 de produits.
