Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki TCG24EAP2'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

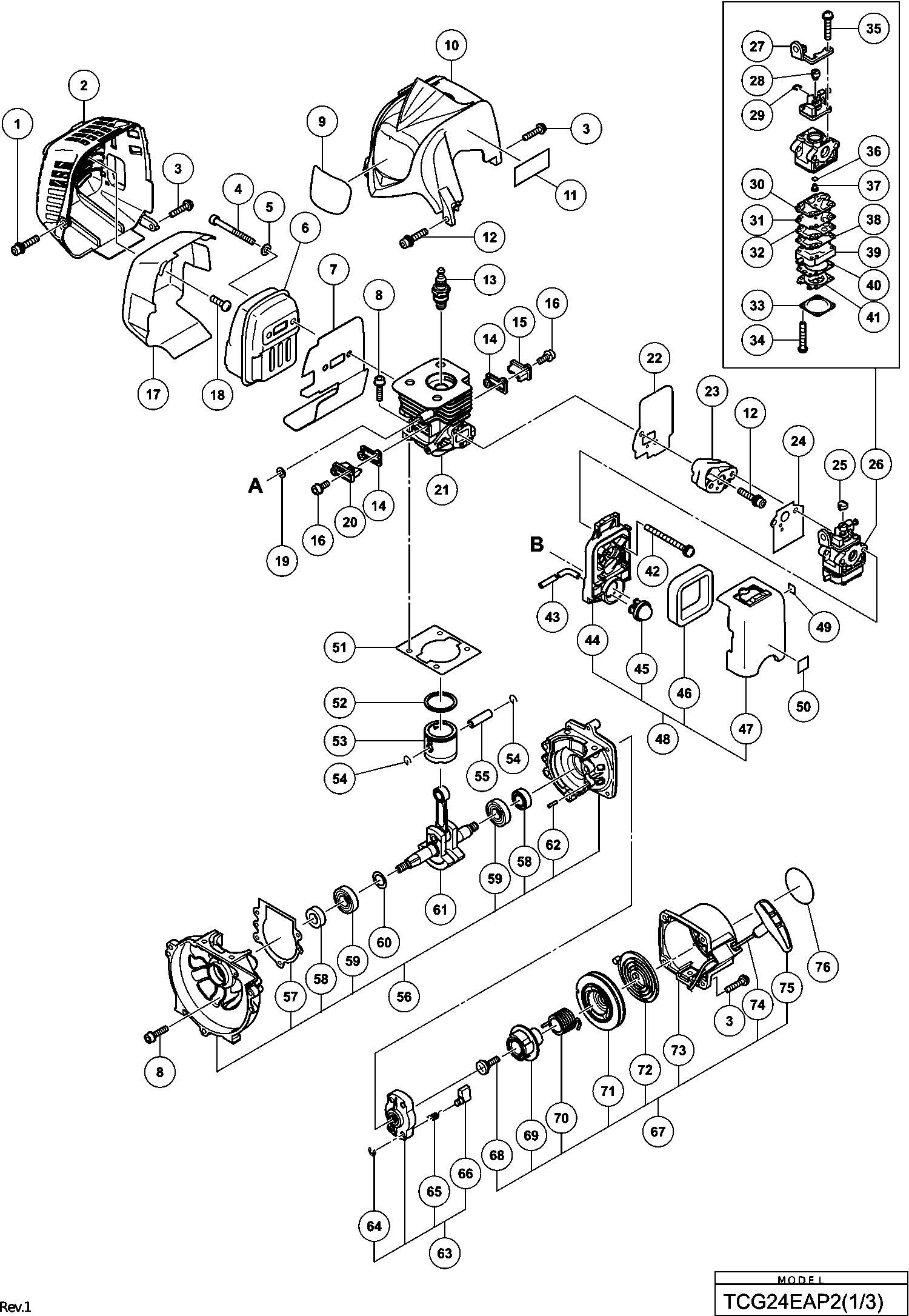

Dessins des Hikoki TCG24EAP2
Liste de pièces de rechange des Hikoki TCG24EAP2
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 1 | 6698950 | 1.20 | 1.44 | |
| Knaldemper Afdekkap | ||||
| 2 | 6600319 | 6.30 | 7.56 | |
| Vis Ø 4*20 | ||||
| 3 | 307606 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 4 | 6698384 | 1.05 | 1.26 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 5 | 949432 | 1.05 | 1.26 | |
| Muffler (b) | ||||
| 6 | 6600004 | 25.85 | 31.02 | |
| Hitteschild | ||||
| 7 | 6600320 | 1.35 | 1.62 | |
| Épuisé | ||||
| 8 | 6698386 | |||
| Tanaka Label New | ||||
| 9 | 6696339 | 1.20 | 1.44 | |
| Cilinder Afdekkap | ||||
| 10 | 6699128 | 4.35 | 5.22 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 12 | 6698844 | 1.20 | 1.44 | |
| Bougie Bmr7a | ||||
| 13 | 6699316 | 8.91 | 10.70 | |
| Cover Packing | ||||
| 14 | 6698468 | 1.05 | 1.26 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698469 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385 | 1.05 | 1.26 | |
| Muffler Heat Cover | ||||
| 17 | 6600422 | 5.70 | 6.84 | |
| Tapping Screw D4x10 | ||||
| 18 | 6600325 | 1.04 | 1.24 | |
| Bague | ||||
| 19 | 6698700 | 1.20 | 1.44 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 20 | 6698470 | 1.05 | 1.26 | |
| Cylindre | ||||
| 21 | 6698465 | 32.31 | 38.78 | |
| Joint | ||||
| 22 | 6699437 | 1.04 | 1.24 | |
| Carburetor Insulator | ||||
| 23 | 6698387 | 3.15 | 3.78 | |
| Carbureteur Pakking | ||||
| 24 | 6698405 | 2.10 | 2.52 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 25 | 6691337 | 1.15 | 1.38 | |
| Carburetor Ass'y Wyc-28 | ||||
| 26 | 6698474 | 55.14 | 66.16 | |
| Cable Adjust Stay | ||||
| 27 | 6699287 | 4.13 | 4.95 | |
| Swivel | ||||
| 28 | 6696830 | 4.45 | 5.34 | |
| Stop Ring (oud 489-25100-20) | ||||
| 29 | 6684696 | 2.15 | 2.58 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 30 | 6684692 | 29.19 | 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 31 | 6684693 | 8.58 | 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 32 | 6691242 | 2.31 | 2.78 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 33 | 6685222 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 34 | 6691312 | 1.15 | 1.38 | |
| Set Screw M3x12 | ||||
| 35 | 6696829 | 1.04 | 1.24 | |
| O-RING (OUD 550-25100-20) | ||||
| 36 | 6684695 | 4.29 | 5.14 | |
| Épuisé | ||||
| 37 | 6697842 | |||
| Circuit Plate (old 522-25100-20) | ||||
| 38 | 6691234 | 3.30 | 3.96 | |
| Pump Body | ||||
| 39 | 6696828 | 13.36 | 16.04 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 40 | 6685220 | 2.31 | 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 41 | 6684690 | 18.00 | 21.60 | |
| Vis M.5*60 | ||||
| 42 | 307224 | 1.05 | 1.26 | |
| Fuel Pipe | ||||
| 43B | 6601444 | 1.04 | 1.24 | |
| Épuisé | ||||
| 44 | 6696832 | |||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 45 | 6685139 | 5.94 | 7.12 | |
| Cleaner Sponge | ||||
| 46 | 6600704 | 3.80 | 4.56 | |
| Épuisé | ||||
| 47 | 6696831 | |||
| Air Cleaner Ass'y | ||||
| 48 | 6696549 | 9.13 | 10.95 | |
| Mark Plate (t) | ||||
| 49 | 6600327 | 1.04 | 1.24 | |
| Primer Label | ||||
| 50 | 6699000 | 1.04 | 1.24 | |
| Cylinder Gasket (old 017-52200-20) | ||||
| 51 | 6684587 | 2.15 | 2.58 | |
| Zuiger Ring | ||||
| 52 | 6698404 | 4.20 | 5.04 | |
| Piston | ||||
| 53 | 6698368 | 7.28 | 8.73 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 54 | 6684590 | 2.15 | 2.58 | |
| Goupille | ||||
| 55 | 6684591 | 4.29 | 5.14 | |
| Crank Case Ass'y (old 072-52200-90) | ||||
| 56 | 6684606 | 54.45 | 65.34 | |
| Crank Case Gasket (old 090-52200-20) | ||||
| 57 | 6684609 | 2.15 | 2.58 | |
| Olie Keerring | ||||
| 58 | 6684607 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 59 | 6684608 | 3.80 | 4.56 | |
| Shim | ||||
| 60 | 6696945 | 1.68 | 2.01 | |
| Shim | ||||
| 60 | 6696946 | 1.68 | 2.01 | |
| Krukas | ||||
| 61 | 6696533 | 32.31 | 38.78 | |
| Knock Pin 4x12 | ||||
| 62 | 6696947 | 1.05 | 1.26 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 63 | 6684681 | 13.20 | 15.84 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 64 | 6684683 | 2.15 | 2.58 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 65 | 6684684 | 4.29 | 5.14 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 66 | 6684685 | 4.29 | 5.14 | |
| Épuisé | ||||
| 67 | 6699995 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 68 | 6684679 | 2.15 | 2.58 | |
| Cam Plate | ||||
| 69 | 6699996 | 2.55 | 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 70 | 6684677 | 8.58 | 10.29 | |
| Starter Rope Reel | ||||
| 71 | 6699997 | 8.41 | 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 72 | 6684675 | 11.55 | 13.86 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 73 | 6684673 | 19.06 | 22.88 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 74 | 6684674 | 4.29 | 5.14 | |
| Starthendel | ||||
| 75 | 6684680 | 2.15 | 2.58 | |
| Vis 4x20 Noir | ||||
| 101 | 302086 | 1.05 | 1.26 | |
| Vis Ø 4*16 Noir | ||||
| 101 | 305812 | 1.04 | 1.24 | |
| Handle (b) | ||||
| 102 | 6696487 | 3.45 | 4.14 | |
| Lock Lever | ||||
| 103 | 6696490 | 1.04 | 1.24 | |
| Levier (1) | ||||
| 104 | 6696488 | 1.04 | 1.24 | |
| Spring (a) | ||||
| 105 | 6696489 | 1.04 | 1.24 | |
| Stop Switch | ||||
| 106A | 6601275 | 1.35 | 1.62 | |
| Stop Switch Cord | ||||
| 107 | 6696491 | 1.80 | 2.16 | |
| Stop Switch Cord | ||||
| 107 | 6696592 | 2.10 | 2.52 | |
| Protection Tube | ||||
| 108 | 6696594 | 2.10 | 2.52 | |
| Protection Tube | ||||
| 108 | 6696967 | 1.05 | 1.26 | |
| Gaskabel | ||||
| 109 | 6696560 | 4.18 | 5.01 | |
| Gaskabel | ||||
| 109 | 6696593 | 5.10 | 6.12 | |
| Handle (a) | ||||
| 110 | 6696486 | 3.45 | 4.14 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 111 | 6699176 | 1.04 | 1.24 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 112 | 6695492 | 1.15 | 1.38 | |
| Anti Vibe Rubber (a) | ||||
| 113 | 6696963 | 3.33 | 3.99 | |
| Pipe Holder (a) | ||||
| 114 | 6698643 | 2.10 | 2.52 | |
| Pipe Holder (b) | ||||
| 115 | 6698644 | 2.10 | 2.52 | |
| Anti Vibe Rubber (b) | ||||
| 116 | 6696964 | 3.33 | 3.99 | |
| Circlips Ø12 (x10) paquet de 10 | ||||
| 117 | 939542 | 1.50 | 1.80 | |
| Enveloppe De Ventilateur | ||||
| 118 | 6699129 | 8.25 | 9.90 | |
| Clutch Shaft | ||||
| 119 | 6699400 | 8.85 | 10.62 | |
| Step Bolt | ||||
| 120 | 6696469 | 1.04 | 1.24 | |
| Bague | ||||
| 121 | 6684648 | 2.15 | 2.58 | |
| Clutch Plate (a) | ||||
| 122 | 6696546 | 1.05 | 1.26 | |
| Clutch | ||||
| 123 | 6696948 | 11.64 | 13.96 | |
| Rondelle | ||||
| 124 | 6696547 | 1.05 | 1.26 | |
| Ecrou | ||||
| 125 | 6685337 | 1.05 | 1.26 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 126 | 323212 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 127 | 6698388 | 1.05 | 1.26 | |
| BOBINE | ||||
| 128 | 6699464 | 17.60 | 21.12 | |
| Épuisé | ||||
| 129A | 6601421 | |||
| Épuisé | ||||
| 130 | 6699186 | |||
| Cord | ||||
| 131 | 6696544 | 1.05 | 1.26 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 132 | 6684899 | 2.15 | 2.58 | |
| Earth Cord | ||||
| 133 | 6696545 | 1.05 | 1.26 | |
| Vliegwiel | ||||
| 134 | 6699289 | 25.71 | 30.86 | |
| Entretoise (1) | ||||
| 135 | 6699558 | 1.04 | 1.24 | |
| Fuel Grommet | ||||
| 136 | 6600358 | 1.04 | 1.24 | |
| Brandstofleiding | ||||
| 137 | 6698716 | 3.45 | 4.14 | |
| Brandstofleiding L70 | ||||
| 138A | 6699014 | 1.65 | 1.98 | |
| Tank Dop Compleet | ||||
| 140 | 6698402 | 4.20 | 5.04 | |
| Tank Cap Chain | ||||
| 141 | 6698732 | 1.20 | 1.44 | |
| Tank (c) | ||||
| 142 | 6600354 | 3.45 | 4.14 | |
| Pomp Filter | ||||
| 143 | 6600351 | 2.70 | 3.24 | |
| Clip | ||||
| 144 | 6696949 | 1.68 | 2.01 | |
| Stand (old 940-07350-20) | ||||
| 145 | 6694787 | 3.30 | 3.96 | |
| Bout L27.8 | ||||
| 146 | 6698991 | 1.20 | 1.44 | |
| Tapping Screw (w/flange) D4x30 | ||||
| 161 | 323837 | 1.68 | 2.01 | |
| Machine Screw M5x30 (black) | ||||
| 162 | 323041 | 1.05 | 1.26 | |
| Handle Right | ||||
| 163 | 6698637 | 19.11 | 22.94 | |
| Handle (b) | ||||
| 164 | 6696590 | 3.13 | 3.75 | |
| Handle (a) | ||||
| 165 | 6696588 | 2.10 | 2.52 | |
| Ecrou M.5 | ||||
| 166 | 302012 | 1.05 | 1.26 | |
| Barrier | ||||
| 169 | 6696973 | 3.33 | 3.99 | |
| Handle Holder (b) (old 6696577) | ||||
| 172 | 6600501 | 7.20 | 8.64 | |
| Handle Holder (c) | ||||
| 173 | 6696578 | 2.10 | 2.52 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 174 | 6684714 | 2.15 | 2.58 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 175 | 6684709 | 2.15 | 2.58 | |
| Handle Holder (a) (old 6696576) | ||||
| 176 | 6600500 | 4.20 | 5.04 | |
| Handle Left | ||||
| 177 | 6698638 | 22.83 | 27.39 | |
| Carter | ||||
| 178 | 6699402 | 50.33 | 60.39 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 179 | 6684737 | 2.15 | 2.58 | |
| Cutter Holder (a) | ||||
| 180 | 6696977 | 13.33 | 15.99 | |
| Cutter Holder (b) | ||||
| 181 | 6698659 | 13.04 | 15.64 | |
| Épuisé | ||||
| 182 | 6699188 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 183 | 335759 | 1.04 | 1.24 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 184 | 6695414 | 1.15 | 1.38 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 185 | 949664 | 3.75 | 4.50 | |
| Cover Blacket | ||||
| 186 | 6696494 | 1.80 | 2.16 | |
| Caution Label (hedge) | ||||
| 187 | 6600328 | 1.04 | 1.24 | |
| Épuisé | ||||
| 188 | 6600448 | |||
| Épuisé | ||||
| 188 | 6600449 | |||
| Level Mark (old 923-33700-20) | ||||
| 193 | 6684851 | 2.15 | 2.58 | |
| Main Pipe Comp (old 6696483) | ||||
| 194 | 6696558 | 17.69 | 21.22 | |
| Drive Shaft (old 6696484) | ||||
| 195 | 6698514 | 15.60 | 18.72 | |
| Hanger | ||||
| 196A | 6600504 | 1.20 | 1.44 | |
| Cap (a) | ||||
| 197 | 6698515 | 2.10 | 2.52 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 198 | 6698794 | 9.30 | 11.16 | |
| Set Screw | ||||
| 200 | 6698795 | 1.35 | 1.62 | |
| Reel | ||||
| 201 | 6698796 | 2.40 | 2.88 | |
| Return Spring | ||||
| 202 | 6698797 | 1.05 | 1.26 | |
| Bouton (1) | ||||
| 203 | 6698798 | 1.20 | 1.44 | |
| Cord Guide | ||||
| 204 | 6698799 | 1.20 | 1.44 | |
| Case | ||||
| 205 | 6698800 | 6.60 | 7.92 | |
| Épuisé | ||||
| 206 | 6696454 | |||
| Épuisé | ||||
| 207 | 6696980 | |||
| Safety Cover Holder | ||||
| 208 | 6696951 | 3.33 | 3.99 | |
| Cover Guard | ||||
| 209 | 6696950 | 10.98 | 13.17 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 210 | 6684751 | 2.15 | 2.58 | |
| Mesje (oud 797-37714-20) | ||||
| 211 | 6684750 | 4.29 | 5.14 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 217 | 6600499 | 10.65 | 12.78 | |
| Vis M.5*10 (paquet de 10) For Irl | ||||
| 218 | 949236 | 1.05 | 1.26 | |
| Épuisé | ||||
| 501 | 6684764 | |||
| Épuisé | ||||
| 502 | 6696596 | |||
| Épuisé | ||||
| 503 | 944458 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504A | 6684768 | 2.15 | 2.58 | |
| Épuisé | ||||
| 505 | 6698711 | |||
| Épuisé | ||||
| 507 | 875769 | |||
| Épuisé | ||||
| 508A | 6601420 | |||
| Épuisé | ||||
| 509 | 6696184 | |||
