Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki TCG27EAP2'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

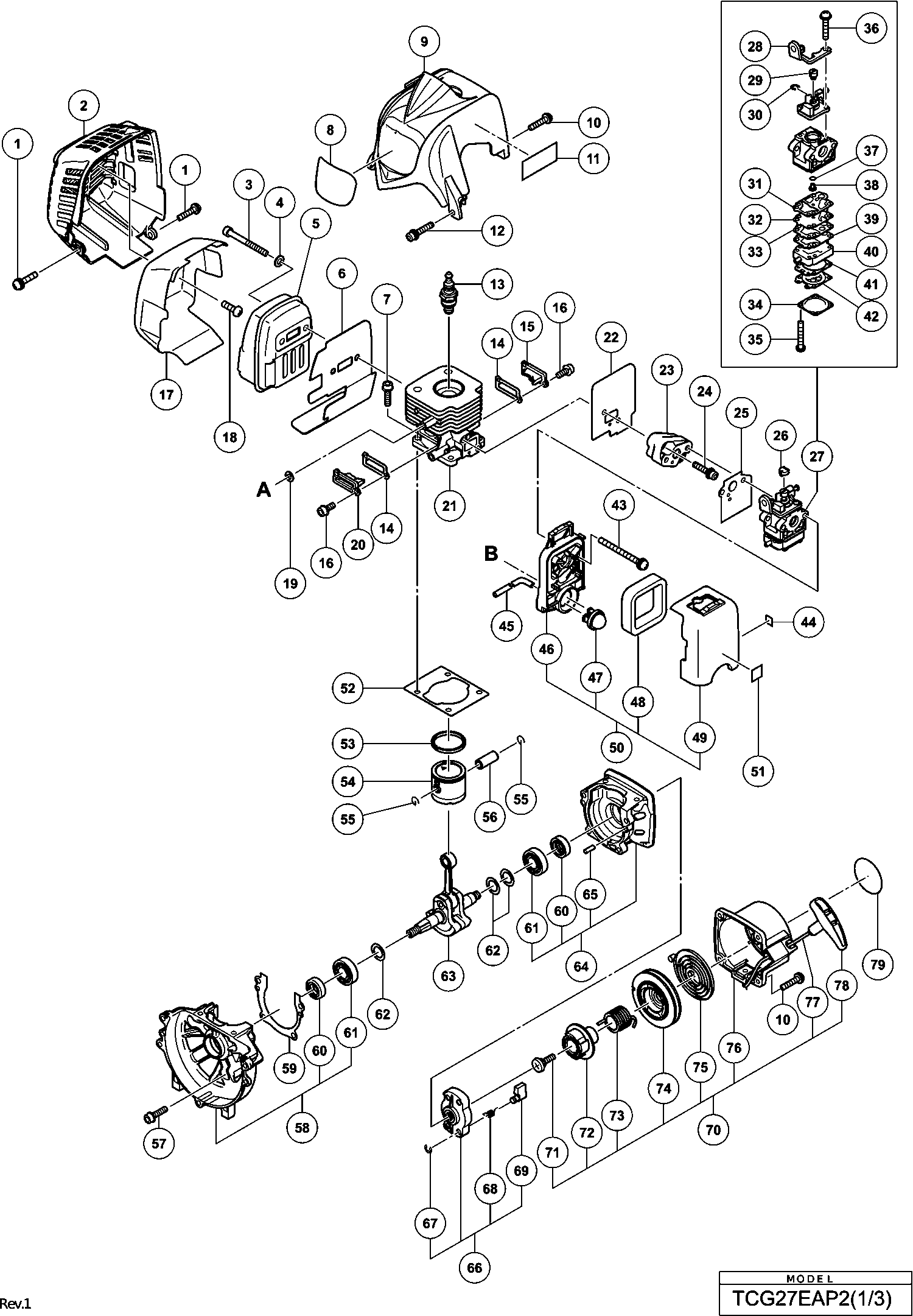

Dessins des Hikoki TCG27EAP2
Liste de pièces de rechange des Hikoki TCG27EAP2
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Épuisé | ||||
| 1 | 887021 | |||
| Knaldemper Afdekkap | ||||
| 2 | 6600322 | 6.90 | 8.28 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 3 | 6698384 | 1.05 | 1.26 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 4 | 949432 | 1.05 | 1.26 | |
| Muffler (b) | ||||
| 5 | 6600004 | 25.85 | 31.02 | |
| Hitteschild | ||||
| 6 | 6600324 | 1.35 | 1.62 | |
| Hex. Socket Bolt M5 | ||||
| 7 | 6696958 | 2.10 | 2.52 | |
| Tanaka Label New | ||||
| 8 | 6696339 | 1.20 | 1.44 | |
| Cilinder Afdekkap | ||||
| 9 | 6697921 | 6.10 | 7.32 | |
| Vis Ø 4*20 | ||||
| 10 | 307606 | 1.05 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 12 | 6698950 | 1.20 | 1.44 | |
| Bougie Bmr7a | ||||
| 13 | 6699316 | 8.91 | 10.70 | |
| Cover Packing | ||||
| 14 | 6698365 | 1.05 | 1.26 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698484 | 2.10 | 2.52 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385 | 1.05 | 1.26 | |
| Muffler Heat Cover | ||||
| 17 | 6600422 | 5.70 | 6.84 | |
| Tapping Screw D4x10 | ||||
| 18 | 6600325 | 1.04 | 1.24 | |
| Bague | ||||
| 19 | 6698700 | 1.20 | 1.44 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 20 | 6698485 | 2.10 | 2.52 | |
| Cylindre | ||||
| 21 | 6698480 | 45.65 | 54.78 | |
| Joint | ||||
| 22 | 6698473 | 1.05 | 1.26 | |
| Carburetor Insulator | ||||
| 23 | 6698387 | 3.15 | 3.78 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 24 | 6698844 | 1.20 | 1.44 | |
| Carbureteur Pakking | ||||
| 25 | 6698405 | 2.10 | 2.52 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 26 | 6691337 | 1.15 | 1.38 | |
| Carburator | ||||
| 27 | 6698489 | 58.93 | 70.71 | |
| Cable Adjust Stay | ||||
| 28 | 6699287 | 4.13 | 4.95 | |
| Swivel | ||||
| 29 | 6696830 | 4.45 | 5.34 | |
| Flange (old 311-33005-20) | ||||
| 30 | 6684969 | 2.15 | 2.58 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 31 | 6684692 | 29.19 | 35.02 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 32 | 6684693 | 8.58 | 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 33 | 6691242 | 2.31 | 2.78 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 34 | 6685222 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 35 | 6691312 | 1.15 | 1.38 | |
| Set Screw M3x12 | ||||
| 36 | 6696829 | 1.04 | 1.24 | |
| O-RING (OUD 550-25100-20) | ||||
| 37 | 6684695 | 4.29 | 5.14 | |
| Circuit Plate (old 522-25100-20) | ||||
| 39 | 6691234 | 3.30 | 3.96 | |
| Pump Body | ||||
| 40 | 6696828 | 13.36 | 16.04 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 41 | 6685220 | 2.31 | 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 42 | 6684690 | 18.00 | 21.60 | |
| Vis M.5*60 | ||||
| 43 | 307224 | 1.05 | 1.26 | |
| Mark Plate (t) | ||||
| 44 | 6600327 | 1.04 | 1.24 | |
| Fuel Pipe | ||||
| 45B | 6601444 | 1.04 | 1.24 | |
| Épuisé | ||||
| 46 | 6696832 | |||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 47 | 6685139 | 5.94 | 7.12 | |
| Cleaner Sponge | ||||
| 48 | 6600704 | 3.80 | 4.56 | |
| Épuisé | ||||
| 49 | 6696831 | |||
| Air Cleaner Ass'y | ||||
| 50 | 6696549 | 9.13 | 10.95 | |
| Primer Label | ||||
| 51 | 6699000 | 1.04 | 1.24 | |
| Cylinder Packing | ||||
| 52 | 6698366 | 1.05 | 1.26 | |
| Piston Ring (old 041-01700-20) | ||||
| 53 | 6686121 | 4.45 | 5.34 | |
| Piston | ||||
| 54 | 6698483 | 8.70 | 10.44 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 55 | 6684590 | 2.15 | 2.58 | |
| Goupille | ||||
| 56 | 6684591 | 4.29 | 5.14 | |
| Épuisé | ||||
| 57 | 6698386 | |||
| Crank Case Ass'y (b) | ||||
| 58 | 6698370 | 15.68 | 18.81 | |
| Crank Case Packing | ||||
| 59 | 6698371 | 1.05 | 1.26 | |
| Olie Keerring | ||||
| 60 | 6684607 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 61 | 6684608 | 3.80 | 4.56 | |
| Épuisé | ||||
| 62 | 6698490 | |||
| Krukas | ||||
| 63 | 6698488 | 55.14 | 66.16 | |
| Crank Case Ass'y (a) | ||||
| 64 | 6698369 | 13.35 | 16.02 | |
| Knock Pin 4x12 | ||||
| 65 | 6696947 | 1.05 | 1.26 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 66 | 6684681 | 13.20 | 15.84 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 67 | 6684683 | 2.15 | 2.58 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 68 | 6684684 | 4.29 | 5.14 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 69 | 6684685 | 4.29 | 5.14 | |
| Épuisé | ||||
| 70 | 6699995 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 71 | 6684679 | 2.15 | 2.58 | |
| Cam Plate | ||||
| 72 | 6699996 | 2.55 | 3.06 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 73 | 6684677 | 8.58 | 10.29 | |
| Starter Rope Reel | ||||
| 74 | 6699997 | 8.41 | 10.10 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 75 | 6684675 | 11.55 | 13.86 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 76 | 6684673 | 19.06 | 22.88 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 77 | 6684674 | 4.29 | 5.14 | |
| Starthendel | ||||
| 78 | 6684680 | 2.15 | 2.58 | |
| Vis 4x20 Noir | ||||
| 91 | 302086 | 1.05 | 1.26 | |
| Vis Ø 4*16 Noir | ||||
| 91 | 305812 | 1.04 | 1.24 | |
| Handle (b) | ||||
| 92 | 6696487 | 3.45 | 4.14 | |
| Lock Lever | ||||
| 93 | 6696490 | 1.04 | 1.24 | |
| Levier (1) | ||||
| 94 | 6696488 | 1.04 | 1.24 | |
| Spring (a) | ||||
| 95 | 6696489 | 1.04 | 1.24 | |
| Stop Switch | ||||
| 96A | 6601275 | 1.35 | 1.62 | |
| Stop Switch Cord | ||||
| 97 | 6696491 | 1.80 | 2.16 | |
| Stop Switch Cord | ||||
| 97 | 6696592 | 2.10 | 2.52 | |
| Protection Tube | ||||
| 98 | 6696594 | 2.10 | 2.52 | |
| Protection Tube | ||||
| 98 | 6696967 | 1.05 | 1.26 | |
| Gaskabel | ||||
| 99 | 6696560 | 4.18 | 5.01 | |
| Gaskabel | ||||
| 99 | 6696593 | 5.10 | 6.12 | |
| Handle (a) | ||||
| 100 | 6696486 | 3.45 | 4.14 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 101 | 6699176 | 1.04 | 1.24 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 102 | 6695492 | 1.15 | 1.38 | |
| Anti Vibe Rubber (a) | ||||
| 103 | 6696963 | 3.33 | 3.99 | |
| Pipe Holder (a) | ||||
| 104 | 6698643 | 2.10 | 2.52 | |
| Pipe Holder (b) | ||||
| 105 | 6698644 | 2.10 | 2.52 | |
| Anti Vibe Rubber (b) | ||||
| 106 | 6696964 | 3.33 | 3.99 | |
| Circlips Ø12 (x10) paquet de 10 | ||||
| 107 | 939542 | 1.50 | 1.80 | |
| Ventilatorhuis (oud 6698486) | ||||
| 108 | 6697922 | 11.71 | 14.06 | |
| Clutch Shaft | ||||
| 109 | 6699400 | 8.85 | 10.62 | |
| Step Bolt | ||||
| 110 | 6696469 | 1.04 | 1.24 | |
| Bague | ||||
| 111 | 6684648 | 2.15 | 2.58 | |
| Clutch Plate (a) | ||||
| 112 | 6696546 | 1.05 | 1.26 | |
| Clutch | ||||
| 113 | 6696948 | 11.64 | 13.96 | |
| Rondelle | ||||
| 114 | 6696547 | 1.05 | 1.26 | |
| Ecrou | ||||
| 115 | 6685337 | 1.05 | 1.26 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 116 | 323212 | 1.05 | 1.26 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 117 | 6698388 | 1.05 | 1.26 | |
| Bobine | ||||
| 118 | 6698492 | 22.83 | 27.39 | |
| Cord | ||||
| 119 | 6698495 | 2.10 | 2.52 | |
| Épuisé | ||||
| 120A | 6601421 | |||
| Épuisé | ||||
| 121 | 6699186 | |||
| Earth Cord | ||||
| 122 | 6696545 | 1.05 | 1.26 | |
| Magneto Rotor | ||||
| 123 | 6698396 | 8.70 | 10.44 | |
| Entretoise (1) | ||||
| 124 | 6699558 | 1.04 | 1.24 | |
| Fuel Grommet | ||||
| 125 | 6600358 | 1.04 | 1.24 | |
| Brandstofleiding | ||||
| 126 | 6698716 | 3.45 | 4.14 | |
| Brandstofleiding L70 | ||||
| 127A | 6699014 | 1.65 | 1.98 | |
| Tank Dop Compleet | ||||
| 129 | 6698402 | 4.20 | 5.04 | |
| Tank Cap Chain | ||||
| 130 | 6698732 | 1.20 | 1.44 | |
| Tank (c) | ||||
| 131 | 6600354 | 3.45 | 4.14 | |
| Pomp Filter | ||||
| 132 | 6600351 | 2.70 | 3.24 | |
| Clip | ||||
| 133 | 6696949 | 1.68 | 2.01 | |
| Stand (old 940-07350-20) | ||||
| 134 | 6694787 | 3.30 | 3.96 | |
| Flange Bolt | ||||
| 135 | 6696557 | 1.05 | 1.26 | |
| Bout L27.8 | ||||
| 136 | 6698991 | 1.20 | 1.44 | |
| Tapping Screw (w/flange) D4x30 | ||||
| 151 | 323837 | 1.68 | 2.01 | |
| Machine Screw M5x30 (black) | ||||
| 152 | 323041 | 1.05 | 1.26 | |
| Handle Right | ||||
| 153 | 6698637 | 19.11 | 22.94 | |
| Handle (b) | ||||
| 154 | 6696590 | 3.13 | 3.75 | |
| Handle (a) | ||||
| 158 | 6696588 | 2.10 | 2.52 | |
| Ecrou M.5 | ||||
| 159 | 302012 | 1.05 | 1.26 | |
| Barrier | ||||
| 161 | 6696973 | 3.33 | 3.99 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 162 | 6684709 | 2.15 | 2.58 | |
| Handle Holder (a) (old 6696576) | ||||
| 163 | 6600500 | 4.20 | 5.04 | |
| Handle Left | ||||
| 164 | 6698638 | 22.83 | 27.39 | |
| Handle Holder (b) (old 6696577) | ||||
| 165 | 6600501 | 7.20 | 8.64 | |
| Handle Holder (c) | ||||
| 166 | 6696578 | 2.10 | 2.52 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 167 | 6684714 | 2.15 | 2.58 | |
| Carter | ||||
| 168 | 6699402 | 50.33 | 60.39 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 169 | 6684737 | 2.15 | 2.58 | |
| Cutter Holder (a) | ||||
| 170 | 6696977 | 13.33 | 15.99 | |
| Cutter Holder (b) | ||||
| 171 | 6698659 | 13.04 | 15.64 | |
| Épuisé | ||||
| 172 | 6699188 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 173 | 335759 | 1.04 | 1.24 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 174 | 6695414 | 1.15 | 1.38 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 175 | 949664 | 3.75 | 4.50 | |
| Cover Blacket | ||||
| 176 | 6696494 | 1.80 | 2.16 | |
| Caution Label (hedge) | ||||
| 177 | 6600328 | 1.04 | 1.24 | |
| Épuisé | ||||
| 178 | 6600448 | |||
| Épuisé | ||||
| 178 | 6600449 | |||
| Level Mark (old 923-33700-20) | ||||
| 183 | 6684851 | 2.15 | 2.58 | |
| Main Pipe Comp (old 6696483) | ||||
| 184 | 6696558 | 17.69 | 21.22 | |
| Drive Shaft (old 6696484) | ||||
| 185 | 6698514 | 15.60 | 18.72 | |
| Hanger | ||||
| 186A | 6600504 | 1.20 | 1.44 | |
| Cap (a) | ||||
| 187 | 6698515 | 2.10 | 2.52 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 188 | 6698794 | 9.30 | 11.16 | |
| Set Screw | ||||
| 190 | 6698795 | 1.35 | 1.62 | |
| Reel | ||||
| 191 | 6698796 | 2.40 | 2.88 | |
| Return Spring | ||||
| 192 | 6698797 | 1.05 | 1.26 | |
| Bouton (1) | ||||
| 193 | 6698798 | 1.20 | 1.44 | |
| Cord Guide | ||||
| 194 | 6698799 | 1.20 | 1.44 | |
| Case | ||||
| 195 | 6698800 | 6.60 | 7.92 | |
| Épuisé | ||||
| 196 | 6696454 | |||
| Épuisé | ||||
| 197 | 6696980 | |||
| Safety Cover Holder | ||||
| 198 | 6696951 | 3.33 | 3.99 | |
| Cover Guard | ||||
| 199 | 6696950 | 10.98 | 13.17 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 200 | 6684751 | 2.15 | 2.58 | |
| Mesje (oud 797-37714-20) | ||||
| 201 | 6684750 | 4.29 | 5.14 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 207 | 6600499 | 10.65 | 12.78 | |
| Vis M.5*10 (paquet de 10) For Irl | ||||
| 208 | 949236 | 1.05 | 1.26 | |
| Épuisé | ||||
| 501 | 6684764 | |||
| Épuisé | ||||
| 502 | 6696596 | |||
| Épuisé | ||||
| 503 | 944458 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504A | 6684768 | 2.15 | 2.58 | |
| Épuisé | ||||
| 505 | 6698711 | |||
| Épuisé | ||||
| 506 | 875769 | |||
| Épuisé | ||||
| 507A | 6601420 | |||
| Épuisé | ||||
| 508 | 6696184 | |||
