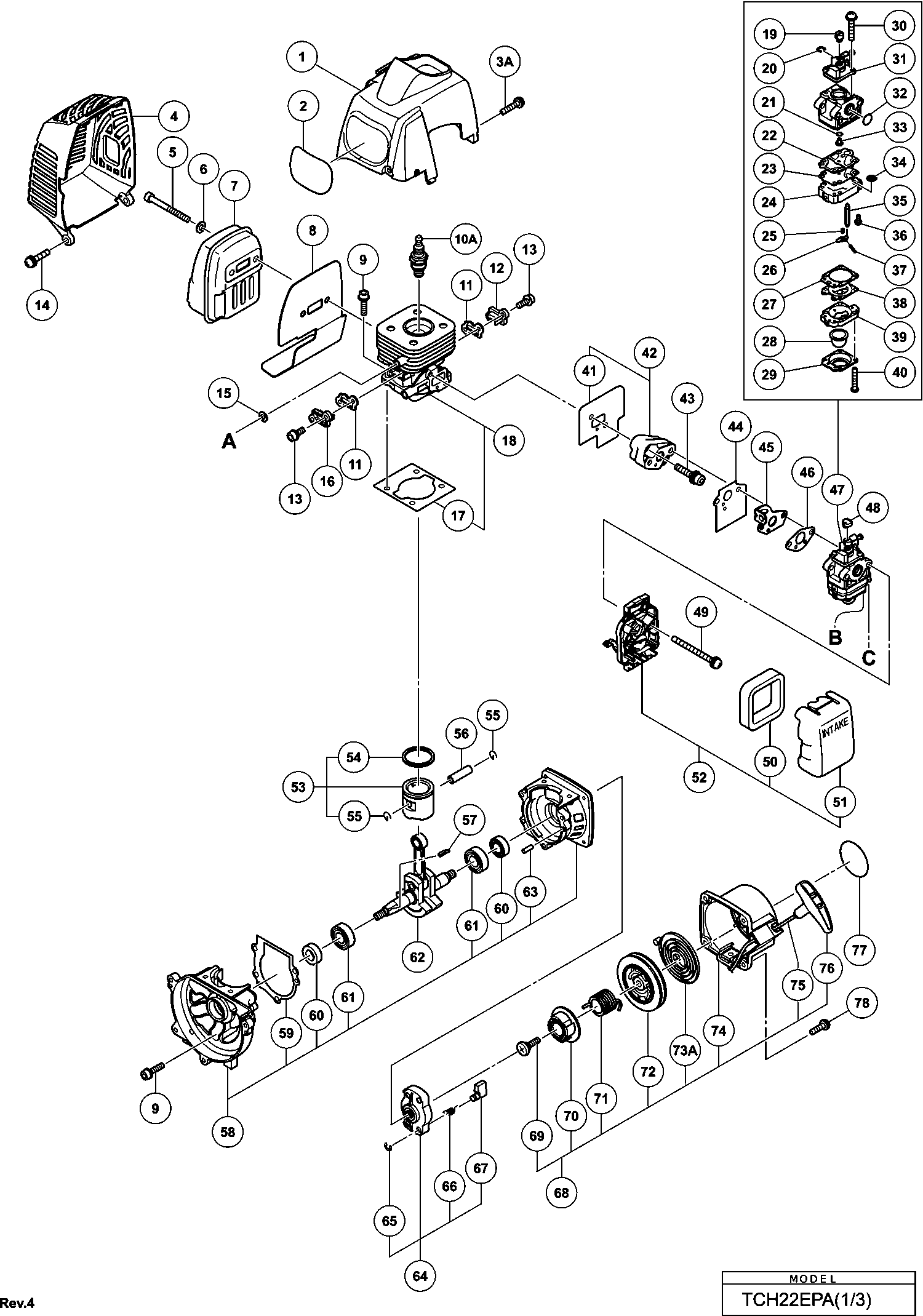

Dessins des Hikoki TCH22EPA
Liste de pièces de rechange des Hikoki TCH22EPA
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Épuisé | ||||
1 | 6697680 | |||
Tanaka Label New | ||||
2 | 6696339 | 1.20 | 1.44 | |
Screw M4 (black) | ||||
3A | 6699780 | 1.04 | 1.24 | |
Épuisé | ||||
4 | 6699015 | |||
Hex. Hole Bolt M6x55 (old 990-51060-553/6696819) | ||||
5 | 6684638 | 2.15 | 2.58 | |
Bague | ||||
6 | 6684639 | 2.15 | 2.58 | |
Uitlaat | ||||
7 | 6698477 | 11.85 | 14.22 | |
Épuisé | ||||
8 | 6696553 | |||
Hex. Hole Bolt M5x20/s (old 994-61050-205/305583/6 | ||||
9 | 6695491 | 1.15 | 1.38 | |
Bougie Bmr7a | ||||
10A | 6699316 | 8.91 | 10.70 | |
Épuisé | ||||
11 | 6696922 | |||
Intake Cover (a) | ||||
12 | 6696535 | 1.05 | 1.26 | |
Hex. Hole Bolt 4x12ws (old 994-64040-125) | ||||
13 | 6695507 | 1.15 | 1.38 | |
Screw 5x16/ps (old 994-15050-162) | ||||
14 | 6695386 | 1.15 | 1.38 | |
Ring (old 182-0186a-20) | ||||
15 | 6684600 | 2.15 | 2.58 | |
Intake Cover (b) | ||||
16 | 6696536 | 1.05 | 1.26 | |
Épuisé | ||||
17 | 6696920 | |||
Épuisé | ||||
18 | 6697962 | |||
Swivel (oud 539-25120-20) | ||||
19 | 6684697 | 6.44 | 7.72 | |
Stop Ring (oud 489-25100-20) | ||||
20 | 6684696 | 2.15 | 2.58 | |
O-RING (OUD 550-25100-20) | ||||
21 | 6684695 | 4.29 | 5.14 | |
Pump Gasket (old 577-25292-20 & 6696321) | ||||
22 | 6684692 | 29.19 | 35.02 | |
Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
23 | 6684693 | 8.58 | 10.29 | |
Pump Body | ||||
24 | 6699942 | 14.38 | 17.25 | |
Metealing Lever Spring | ||||
25 | 6696323 | 4.63 | 5.55 | |
Control Lever (old 473-25001-20) | ||||
26 | 6685217 | 3.30 | 3.96 | |
Diaphragm Gasket (oud 475-25153-20) | ||||
27 | 6684691 | 8.58 | 10.29 | |
Priming Body (oud 447-25108-20) | ||||
28 | 6684689 | 6.44 | 7.72 | |
Diaphragm Cover (oud 476-25151-20) | ||||
29 | 6684688 | 8.58 | 10.29 | |
Throttle Set Screw (old 548-25140-20) | ||||
30 | 6684698 | 4.29 | 5.14 | |
Throttle Valve Comp. (old 488-25145-80) | ||||
31 | 6684883 | 18.75 | 22.50 | |
Épuisé | ||||
32 | 6695670 | |||
Main Jet #32 | ||||
33 | 6699943 | 5.11 | 6.14 | |
Inlet Screen (oud 578-25007-20) | ||||
34 | 6684700 | 4.29 | 5.14 | |
Needle Valve (old 603-25012-20) | ||||
35 | 6685215 | 5.28 | 6.33 | |
Épuisé | ||||
36 | 6691305 | |||
Hinge Pin (old 605-25001-20) | ||||
37 | 6685219 | 1.15 | 1.38 | |
Metering Diaphragm (old 474-25601-20) | ||||
38 | 6684690 | 18.00 | 21.60 | |
Priming Pump Comp. (oud 442-25151-80) | ||||
39 | 6684687 | 16.34 | 19.60 | |
Set Screw (old 548-25151-20 & 6696324) | ||||
40 | 6684699 | 2.15 | 2.58 | |
Épuisé | ||||
41 | 6696933 | |||
Épuisé | ||||
42 | 6699016 | |||
Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
43 | 6698844 | 1.20 | 1.44 | |
Carburetor Gasket (old 402-0656a-20) | ||||
44 | 6684616 | 2.15 | 2.58 | |
Throttle Wire Fixing Plate (old 878-06620-20) | ||||
45 | 6684629 | 4.29 | 5.14 | |
CARBURETOR GASKET (OLD 402-0602K-21/6689836) | ||||
46 | 6684615 | 2.15 | 2.58 | |
Carburetor Ass'y | ||||
47 | 6698960 | 40.24 | 48.28 | |
Swivel Cap (old 560-07120-21/6684628) | ||||
48 | 6691337 | 1.15 | 1.38 | |
Plus Screw 5x60ws (old 994-16050-601) | ||||
49 | 6695431 | 1.15 | 1.38 | |
Élément de filtre à air | ||||
50 | 6690347 | 4.45 | 5.34 | |
Air Cleaner Cap (old 424-00025-20) | ||||
51 | 6690139 | 4.45 | 5.34 | |
Filtre à Air | ||||
52 | 6698961 | 5.45 | 6.54 | |
Épuisé | ||||
53 | 6697682 | |||
Piston Ring (old 041-00601-21/ 6686117) | ||||
54 | 6686118 | 4.45 | 5.34 | |
Piston Pin Circlip (old 039-00601-20) | ||||
55 | 6684590 | 2.15 | 2.58 | |
Zuiger Pin | ||||
56 | 6696944 | 3.33 | 3.99 | |
Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
57 | 6684899 | 2.15 | 2.58 | |
Épuisé | ||||
58 | 6697686 | |||
Épuisé | ||||
59 | 6696925 | |||
Olie Keerring | ||||
60 | 6684607 | 4.29 | 5.14 | |
Roulement à billes | ||||
61 | 6684608 | 3.80 | 4.56 | |
Épuisé | ||||
62 | 6699017 | |||
Knock Pin 4x12 (old 999-05041-203) | ||||
63 | 6695521 | 1.15 | 1.38 | |
Starter Pulley Ass'y (old 798-0651h-90) | ||||
64 | 6684681 | 13.20 | 15.84 | |
D4e Retaining Ring (old 993-55040-001) | ||||
65 | 6685101 | 1.15 | 1.38 | |
Starter Pawl Spring (old 790-06097-20) | ||||
66 | 6684684 | 4.29 | 5.14 | |
Starter Pawl (old 788-0651h-20) | ||||
67 | 6684685 | 4.29 | 5.14 | |
SET SCREW (OLD 839-03045-20) | ||||
69 | 6684679 | 2.15 | 2.58 | |
Cam Plate (old 759-0651h-20) | ||||
70 | 6684678 | 6.44 | 7.72 | |
Dumper Spring (old 758-0651h-20) | ||||
71 | 6684677 | 8.58 | 10.29 | |
Recoil Spring (old 780-06097-20/6697591) | ||||
73A | 6684675 | 11.55 | 13.86 | |
Recoil Starter Body Comp. (old 772-07350-80) | ||||
74 | 6684673 | 19.06 | 22.88 | |
Starthendel | ||||
76 | 6684680 | 2.15 | 2.58 | |
Screw 4x16/ps (old 994-15040-162) | ||||
78 | 6695374 | 1.15 | 1.38 | |
Tapping Screw D4 | ||||
101 | 6697190 | 1.04 | 1.24 | |
Handle (b) | ||||
102 | 6696487 | 3.45 | 4.14 | |
Lock Lever | ||||
103 | 6696490 | 1.04 | 1.24 | |
Levier (1) | ||||
104 | 6696488 | 1.04 | 1.24 | |
Ressort (1) | ||||
105 | 6698819 | 1.04 | 1.24 | |
STOP SWITCH (OLD 170-04063-80) | ||||
106 | 6685239 | 3.30 | 3.96 | |
Stop Switch Cord | ||||
107 | 6698820 | 2.80 | 3.36 | |
Protection Tube | ||||
108 | 6698822 | 1.04 | 1.24 | |
Throttle Wire | ||||
109 | 6698821 | 4.13 | 4.95 | |
Handle (a) | ||||
110 | 6696486 | 3.45 | 4.14 | |
Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
111 | 6684667 | 2.15 | 2.58 | |
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
112 | 6684709 | 2.15 | 2.58 | |
Caoutchouc anti-vibrateur | ||||
113 | 6684666 | 4.29 | 5.14 | |
Pipe Holder (a) | ||||
114 | 6698643 | 2.10 | 2.52 | |
Pipe Holder (b) | ||||
115 | 6698644 | 2.10 | 2.52 | |
Caoutchouc anti-vibrateur | ||||
116 | 6684665 | 4.29 | 5.14 | |
Clutch Drum Comp. (old 289-52200-80) | ||||
118 | 6684663 | 19.06 | 22.88 | |
Step Bolt (old 357-00601-20) | ||||
119 | 6689627 | 1.15 | 1.38 | |
Bague | ||||
120 | 6684648 | 2.15 | 2.58 | |
Clutch Plate A (old 348-0602r-20) | ||||
121 | 6689528 | 1.15 | 1.38 | |
Clutch Set | ||||
122 | 6697655 | 6.76 | 8.12 | |
Épuisé | ||||
123 | 6697619 | |||
Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
124 | 6684612 | 2.15 | 2.58 | |
Ring M8 (old 992-01080-011) | ||||
125 | 6684611 | 2.15 | 2.58 | |
Hex. Hole Bolt 4x18ws (old 994-64040-185) | ||||
126 | 6695508 | 1.15 | 1.38 | |
Bobine | ||||
127 | 6699286 | 37.66 | 45.20 | |
Épuisé | ||||
128A | 6601421 | |||
Metal Fitting Of Plug Cap | ||||
129 | 6699933 | 1.65 | 1.98 | |
Cord | ||||
130 | 6698992 | 1.98 | 2.37 | |
Cord | ||||
131 | 6697690 | 1.98 | 2.37 | |
Vliegwiel | ||||
132 | 6699289 | 25.71 | 30.86 | |
Stop Ring C-12 Outer | ||||
133 | 6684664 | 2.15 | 2.58 | |
Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
134 | 6684636 | 2.15 | 2.58 | |
Fuel Pipe Ass'y (oud 223-0097a-90) | ||||
135 | 6684618 | 4.29 | 5.14 | |
Fuel Pipe 3x5x90 (old 700-03005-09) New | ||||
136 | 6692358 | 1.15 | 1.38 | |
Return Grommet (old 6684627) | ||||
137 | 6697846 | 1.04 | 1.24 | |
Tank Dop Compleet | ||||
138A | 6698402 | 4.20 | 5.04 | |
Épuisé | ||||
139 | 6684625 | |||
Resevoir | ||||
140 | 6696569 | 4.59 | 5.50 | |
Épuisé | ||||
141 | 6684620 | |||
Clip.6.3 Dia. (old 680-00731-20) | ||||
142 | 6684619 | 2.15 | 2.58 | |
Stand | ||||
143 | 6696556 | 2.10 | 2.52 | |
Flange Bolt | ||||
144 | 6696557 | 1.05 | 1.26 | |
Nut 6 Ups-p (old 991-87060-001 & 6698766) | ||||
161 | 6695175 | 1.15 | 1.38 | |
Bague | ||||
162 | 6684639 | 2.15 | 2.58 | |
Support Plate (old 462-32286-20) | ||||
163 | 6690744 | 11.23 | 13.47 | |
Hex. Hole Bolt 6x12 (old 990-53060-125) | ||||
164 | 6695078 | 1.15 | 1.38 | |
Bague | ||||
165 | 6684822 | 2.15 | 2.58 | |
GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
166 | 6688643 | 1.15 | 1.38 | |
Afdicht Rubber | ||||
167 | 6686659 | 1.15 | 1.38 | |
Plus Bolt 6x14 (old 990-23060-141) | ||||
168 | 6695016 | 1.15 | 1.38 | |
Waarschuwingssticker (a) | ||||
170 | 6694538 | 2.10 | 2.52 | |
Hex. Hole Bolt 4x8 (old 990-51040-085) | ||||
171 | 6695035 | 1.15 | 1.38 | |
Gear Case Cover A (old 327-32280-20) | ||||
172 | 6689167 | 1.15 | 1.38 | |
Handle (old 210-32286-20) | ||||
173 | 6688089 | 4.45 | 5.34 | |
Hex Hole Button Screw 6x15 (old 990-53060-153) | ||||
174 | 6695079 | 1.15 | 1.38 | |
Roulement | ||||
175 | 608DDM | 5.55 | 6.66 | |
STOP RING C-22, INNER (OLD 993-51022-002) | ||||
176 | 6695293 | 1.15 | 1.38 | |
Gear Shaft | ||||
177 | 6698957 | 45.23 | 54.27 | |
Kogellager 608vv | ||||
178 | 333945 | 1.80 | 2.16 | |
Loop Handle Ass'y Anti-vib. (old 500-37286-90) | ||||
179 | 6696088 | 14.35 | 17.22 | |
Handle Grip (old 503-3738e-20) | ||||
180 | 6691098 | 6.44 | 7.72 | |
Hex.nut 6 (old 6684792/991-01060-041/790444) | ||||
181 | 6684835 | 2.15 | 2.58 | |
Bague | ||||
182 | 6689681 | 1.15 | 1.38 | |
Tapping Screw 5x20 (old 993-11052-012) | ||||
183 | 6695255 | 1.15 | 1.38 | |
Front Handle (old 210-33160-22/6688095/6688094) | ||||
184 | 6688096 | 7.75 | 9.30 | |
Hex. Hole Bolt 5x55 (old 990-51050-553) | ||||
186 | 6695056 | 1.15 | 1.38 | |
Rondelle D.5 | ||||
187 | 6684834 | 2.15 | 2.58 | |
Rondelle Ø 5 | ||||
188 | 6684918 | 2.15 | 2.58 | |
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
189 | 6684714 | 2.15 | 2.58 | |
Bague | ||||
190 | 6695194 | 1.15 | 1.38 | |
Bracket A (old 215-32243-20) | ||||
191 | 6688103 | 2.31 | 2.78 | |
Level Mark (old 923-33700-20) | ||||
192 | 6684851 | 2.15 | 2.58 | |
Level Mark(old 923-3738f-20) | ||||
194 | 6684852 | 2.15 | 2.58 | |
Main Pipe L=945 | ||||
195 | 6699930 | 32.53 | 39.03 | |
Main Pipe L=600 | ||||
195 | 6699931 | 28.29 | 33.94 | |
Drive Shaft 633l (old 343-32243-20) | ||||
196 | 6689439 | 12.88 | 15.45 | |
Drive Shaft, 978l (old 343-32292-20) | ||||
196 | 6689440 | 14.68 | 17.61 | |
Lifting Metal Ass'y (old 335-37526-90) | ||||
197 | 6689277 | 3.30 | 3.96 | |
Cap (a) | ||||
198 | 6698515 | 2.10 | 2.52 | |
Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
199 | 6695042 | 1.15 | 1.38 | |
Afdicht Rubber | ||||
200 | 6686669 | 1.15 | 1.38 | |
ANGLE LIMITTER (OLD 222-32286-20) | ||||
201 | 6688159 | 2.31 | 2.78 | |
Handle Knob A Comp. (old 512-32286-80) | ||||
202 | 6691200 | 3.30 | 3.96 | |
Gear Case A,24 Dia (old 300-32287-21) | ||||
203 | 6688653 | 30.25 | 36.30 | |
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
204 | 6684709 | 2.15 | 2.58 | |
Pignon (1) | ||||
205 | 6698958 | 13.70 | 16.44 | |
STOP RING S-12, OUTER (OLD 993-52012-002) | ||||
207 | 6695302 | 1.15 | 1.38 | |
Stop Ring C-24.inner (old 993-51024-002) | ||||
208 | 6684732 | 2.15 | 2.58 | |
Handle Bracket A (old 506-37300-20) | ||||
209 | 6691134 | 2.31 | 2.78 | |
Bolt 6x43/p (black) (old 994-23060-432) | ||||
210 | 6684838 | 2.15 | 2.58 | |
Cutter Cover (old 138-33168-20) | ||||
211 | 6687301 | 8.41 | 10.10 | |
Protection Plate | ||||
212A | 6601208 | 13.86 | 16.64 | |
Cutter Guide 625.5mm (old 122-32286-21) | ||||
213 | 6687125 | 24.20 | 29.04 | |
Cutter (old 120-32287-21/6696516) | ||||
214 | 6687079 | 46.29 | 55.54 | |
Bague | ||||
215 | 6687187 | 1.15 | 1.38 | |
Boulon | ||||
216 | 6687162 | 1.15 | 1.38 | |
Ecrou de bride | ||||
217 | 6695170 | 1.15 | 1.38 | |
Bracket B (old 216-32243-20/6686103) | ||||
218 | 6688104 | 3.30 | 3.96 | |
Hex.nut 6 (old 6684792/991-01060-041/790444) | ||||
219 | 6684835 | 2.15 | 2.58 | |
Épuisé | ||||
220 | 6685075 | |||
Spacer (old 296-32286-20) | ||||
221 | 6688633 | 1.15 | 1.38 | |
Hex. Hole Flush Bolt 6x25 (old 990-52060-255) | ||||
222 | 6695075 | 1.15 | 1.38 | |
Afdicht Rubber | ||||
223 | 6686647 | 1.15 | 1.38 | |
Cam-rod Holding Plate (old 105-32280-20) | ||||
224 | 6686826 | 1.15 | 1.38 | |
Hex. Hole Bolt 4x10s (old 994-61040-104) | ||||
225 | 6695484 | 1.15 | 1.38 | |
Boulon | ||||
226 | 6687158 | 1.15 | 1.38 | |
Stop Ring E-6 (old 993-55060-000) | ||||
227 | 6695310 | 1.15 | 1.38 | |
Roue Dentee (1) | ||||
228 | 6698959 | 21.78 | 26.13 | |
STOP RING C-26, INNER (OLD 993-51026-002) | ||||
229 | 6695294 | 1.15 | 1.38 | |
Roulement à billes | ||||
230 | 6695525 | 6.93 | 8.31 | |
Hex Hole Flush Screw 6x16 (old 990-52060-165) | ||||
231 | 6695073 | 1.15 | 1.38 | |
Afdicht Rubber | ||||
232 | 6686666 | 1.15 | 1.38 | |
Cam-rod Guide Plate (old 075-32280-20) | ||||
233 | 6686611 | 1.15 | 1.38 | |
Cam Shaft Comp. (old 100-32282-81 & 6686789) | ||||
235 | 6686790 | 36.15 | 43.38 | |
Épuisé | ||||
236 | 6698772 | |||
Gear Case Cover (b) | ||||
237 | 6699737 | 20.11 | 24.14 | |
Hex. Hole Bolt M4x12/s (old 994-61040-124) | ||||
238 | 6684595 | 2.15 | 2.58 | |
Special Washer | ||||
239 | 6699934 | 1.04 | 1.24 | |
Gear Case Packing | ||||
240 | 6699733 | 1.04 | 1.24 | |
Combi Box Spanner 10x19 ,plus (old 036-29331-50) | ||||
501 | 6685997 | 4.45 | 5.34 | |
Épuisé | ||||
502 | 6684813 | |||
Épuisé | ||||
503 | 6692867 |
