Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki TCP-25B'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

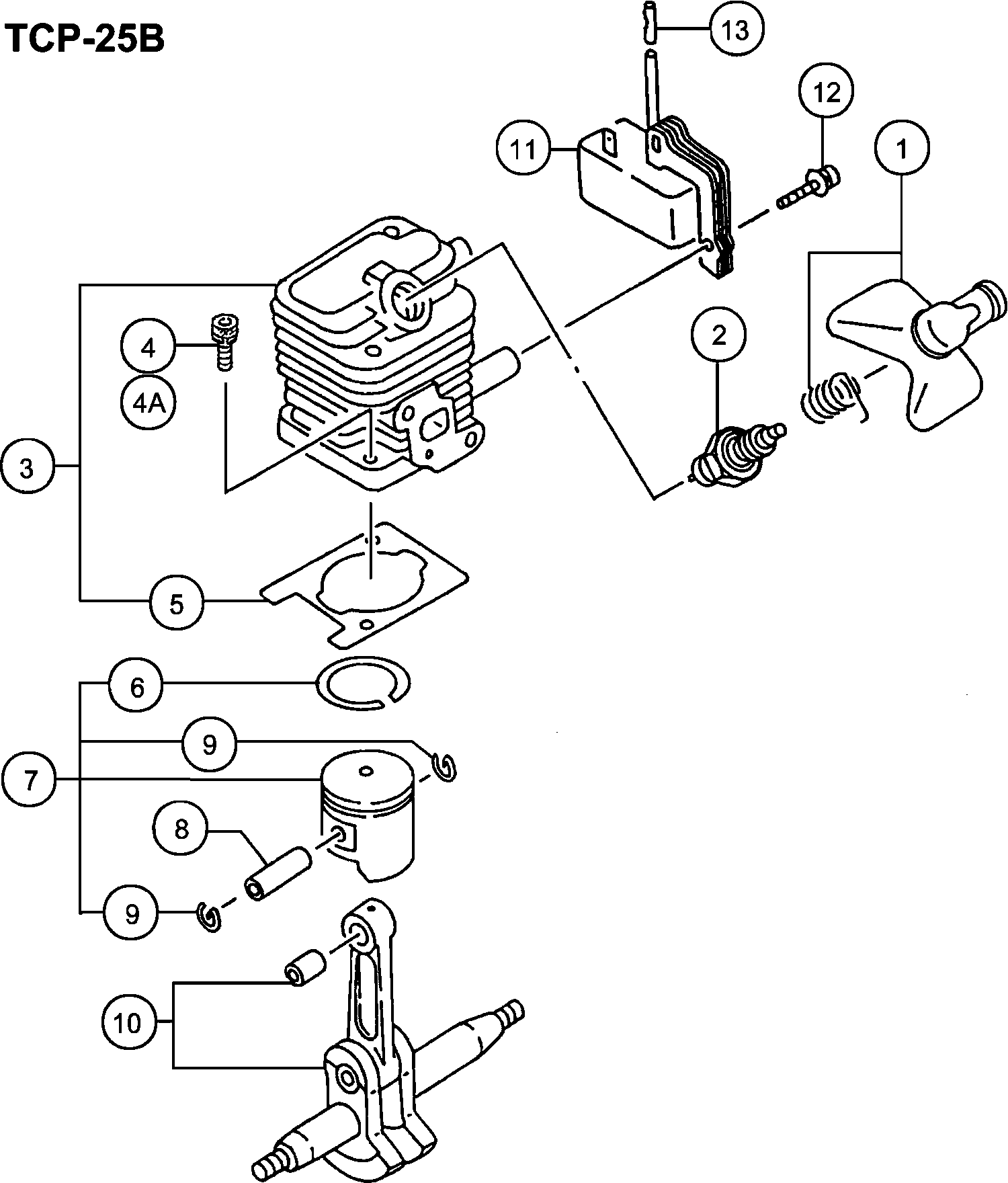

Dessins des Hikoki TCP-25B
Liste de pièces de rechange des Hikoki TCP-25B
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Spark Plug Cap Ass'y (old 157-06500-91) | ||||
| 1 | 6687476@1417 | 4.45 | 5.34 | |
| Spark Plug Ass'y Bpm7a | ||||
| 2 | 6699318@1417 | 6.76 | 8.12 | |
| Cylinder Set (old 001-0650a-90) | ||||
| 3 | 6685480@1417 | 40.24 | 48.28 | |
| Vis Ø5x18 | ||||
| 4 | 6684586@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 4A | 6684668@1417 | |||
| Cylinder Gasket (old 017-06500-20) | ||||
| 5 | 6685744@1417 | 1.15 | 1.38 | |
| Piston Ring (old 041-00601-21/ 6686117) | ||||
| 6 | 6686118@1417 | 4.45 | 5.34 | |
| Piston Set (old 030-0650a-90) | ||||
| 7 | 6685892@1417 | 20.11 | 24.14 | |
| Zuiger Pin | ||||
| 8 | 6696944@1417 | 3.33 | 3.99 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 9 | 6686028@1417 | 1.15 | 1.38 | |
| Crank Shaft Comp. (old 046-0650a-80) | ||||
| 10 | 6686206@1417 | 80.31 | 96.38 | |
| Bobine | ||||
| 11 | 6695939@1417 | 38.26 | 45.92 | |
| High Tension Screw 4x18ws (old 994-16040-186) | ||||
| 12 | 6695407@1417 | 1.15 | 1.38 | |
| Insulator Tube 50l (old 250-06500-20) | ||||
| 13 | 6684597@1417 | 2.15 | 2.58 | |
| Crank Case Ass'y (old 072-0650a-90) | ||||
| 21 | 6686576@1417 | 40.24 | 48.28 | |
| Crank Case Gasket (old 090-06500-20) | ||||
| 22 | 6686720@1417 | 1.15 | 1.38 | |
| Olie Keerring | ||||
| 23 | 6684607@1417 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 24 | 6684608@1417 | 3.80 | 4.56 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 25 | 6684604@1417 | 2.15 | 2.58 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 25 | 6684605@1417 | 2.15 | 2.58 | |
| Gear Shaft Shim 0.10 (old 330-00200-21) | ||||
| 25 | 6689177@1417 | 1.15 | 1.38 | |
| Gear Shaft Shim 0.15 (old 330-00200-22) | ||||
| 25 | 6689178@1417 | 1.15 | 1.38 | |
| Caoutchouc anti-vibrateur | ||||
| 26 | 6691822@1417 | 1.15 | 1.38 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 27 | 6684786@1417 | 2.15 | 2.58 | |
| Vliegwiel | ||||
| 28 | 6687389@1417 | 26.16 | 31.40 | |
| Ring M8 (old 992-01080-011) | ||||
| 29 | 6684611@1417 | 2.15 | 2.58 | |
| Bague | ||||
| 30 | 6684971@1417 | 1.04 | 1.24 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 31 | 6684612@1417 | 2.15 | 2.58 | |
| Intake Pipe Gasket (old 403-06500-20) | ||||
| 41 | 6689891@1417 | 1.15 | 1.38 | |
| Carb. Insulator Set,spare (old 404-06500-90) | ||||
| 42 | 6689966@1417 | 6.93 | 8.31 | |
| Machine Screw M5x25 (w/washers) Black | ||||
| 43 | 6696988@1417 | 1.04 | 1.24 | |
| Carburetor Gasket (old 402-06500-20) | ||||
| 44 | 6689839@1417 | 1.15 | 1.38 | |
| O-ring P-15 | ||||
| 45 | 6698966@1417 | 1.04 | 1.24 | |
| Cleaner Body Comp. (old 423-06500-81/6690118) For | ||||
| 46 | 6690119@1417 | 4.45 | 5.34 | |
| Collar 7.5 (old 470-06500-20) | ||||
| 47 | 6690804@1417 | 1.15 | 1.38 | |
| Choke Valve (old 528-06500-20) | ||||
| 48 | 6691272@1417 | 2.31 | 2.78 | |
| Pas d'informations disponibles, non commandable | ||||
| 49 | 6684658@1417 | |||
| Blow Over Check Board (old 476-01700-20/790189) | ||||
| 50 | 6690843@1417 | 1.15 | 1.38 | |
| Ring (oud 992-10050-012) | ||||
| 51 | 6684662@1417 | 2.15 | 2.58 | |
| Screw M5x60 (oud 990-11050-602) | ||||
| 52 | 6684660@1417 | 2.15 | 2.58 | |
| Reinigingsspons | ||||
| 53 | 6690364@1417 | 1.15 | 1.38 | |
| Luchtfilterkap | ||||
| 54 | 6690415@1417 | 5.28 | 6.33 | |
| Special Screw (old 380-0637c-20) | ||||
| 55 | 6689737@1417 | 1.15 | 1.38 | |
| Carburateurset | ||||
| 56 | 6690483@1417 | 54.30 | 65.16 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 57 | 6685247@1417 | 2.31 | 2.78 | |
| Clip D6 (old 680-00070-20) | ||||
| 58 | 6685198@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 59 | 6684620@1417 | |||
| Fuel Tank, White (old 591-0650d-21/6691566) | ||||
| 60 | 6691569@1417 | 9.40 | 11.28 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 61 | 6692244@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt 5x18ps (old 994-63050-185) | ||||
| 62 | 6695505@1417 | 1.15 | 1.38 | |
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 63 | 6691763@1417 | 7.59 | 9.10 | |
| Pas d'informations disponibles, non commandable | ||||
| 64 | 6684625@1417 | |||
| Muffler Protector (old 738-0650a-20) | ||||
| 71 | 6692796@1417 | 6.28 | 7.53 | |
| Muffler Gasket (old 737-06500-20) | ||||
| 72 | 6692744@1417 | 1.15 | 1.38 | |
| Warmteschild | ||||
| 73 | 6687252@1417 | 2.31 | 2.78 | |
| Muffler Set (old 704-0650b-90) | ||||
| 76 | 6692478@1417 | 15.28 | 18.33 | |
| Bague | ||||
| 77 | 6684661@1417 | 2.15 | 2.58 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 78 | 6685114@1417 | 1.15 | 1.38 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 79 | 6692883@1417 | 1.15 | 1.38 | |
| Tale Pipe Set (old 721-0650c-90) New | ||||
| 80 | 6692663@1417 | 4.79 | 5.74 | |
| Screw 4x8/s (old 994-14040-081) | ||||
| 81 | 6695325@1417 | 1.15 | 1.38 | |
| Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
| 82 | 6684636@1417 | 2.15 | 2.58 | |
| Bolt 4x12ps (old 994-25040-128) | ||||
| 83 | 6695441@1417 | 1.15 | 1.38 | |
| Enveloppe De Ventilateur | ||||
| 84 | 6687012@1417 | 16.79 | 20.14 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 85 | 6684675@1417 | 11.55 | 13.86 | |
| Starter Rope Reel (old 774-06097-20) | ||||
| 86 | 6693066@1417 | 3.30 | 3.96 | |
| Set Screw (old 839-02010-20/6693638) | ||||
| 87 | 6693633@1417 | 1.15 | 1.38 | |
| Starter Pulley Ass'y (old 798-06500-90 & 6693401) | ||||
| 88 | 6693405@1417 | 4.45 | 5.34 | |
| Grommet (old 203-0604a-20) | ||||
| 89 | 6688050@1417 | 1.15 | 1.38 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 90 | 6693168@1417 | 2.31 | 2.78 | |
| Starthendel | ||||
| 91 | 6693237@1417 | 1.15 | 1.38 | |
| Screw 4x16/ps (old 994-15040-162) | ||||
| 92 | 6695374@1417 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 93 | 6684684@1417 | 4.29 | 5.14 | |
| Starter Pawl (old 788-06500-20) | ||||
| 94 | 6693319@1417 | 2.31 | 2.78 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 101 | 6684698@1417 | 4.29 | 5.14 | |
| Swivel (oud 539-25120-20) | ||||
| 102 | 6684697@1417 | 6.44 | 7.72 | |
| Stop Ring (oud 489-25100-20) | ||||
| 103 | 6684696@1417 | 2.15 | 2.58 | |
| Throttle Valve Comp. (old 488-25146-80) | ||||
| 104 | 6690935@1417 | 20.11 | 24.14 | |
| O-RING (OUD 550-25100-20) | ||||
| 105 | 6684695@1417 | 4.29 | 5.14 | |
| Main Jet #41.5 (old 599-200aw-41/6691846) | ||||
| 106 | 6691885@1417 | 5.11 | 6.14 | |
| Pump Gasket (old 577-25100-20) | ||||
| 107 | 6691457@1417 | 7.10 | 8.52 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 108 | 6684693@1417 | 8.58 | 10.29 | |
| Pump Plate (old 523-25100-20) | ||||
| 109 | 6691242@1417 | 2.31 | 2.78 | |
| Circuit Plate (old 522-25100-20) | ||||
| 110 | 6691234@1417 | 3.30 | 3.96 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 111 | 6684700@1417 | 4.29 | 5.14 | |
| Pump Body Comp. (old 575-25140-80) | ||||
| 112 | 6691429@1417 | 14.21 | 17.06 | |
| Diaphragm Gasket (old 475-25001-20) | ||||
| 113 | 6690837@1417 | 2.31 | 2.78 | |
| Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
| 114 | 6690827@1417 | 11.71 | 14.06 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 115 | 6685222@1417 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 116 | 6691312@1417 | 1.15 | 1.38 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 121 | 6684698@1417 | 4.29 | 5.14 | |
| Swivel (oud 539-25120-20) | ||||
| 122 | 6684697@1417 | 6.44 | 7.72 | |
| Stop Ring (oud 489-25100-20) | ||||
| 123 | 6684696@1417 | 2.15 | 2.58 | |
| O-RING (OUD 550-25100-20) | ||||
| 124 | 6684695@1417 | 4.29 | 5.14 | |
| Main Jet #40 (old 599-2000w-40) | ||||
| 125 | 6691845@1417 | 4.45 | 5.34 | |
| Pump Gasket (old 577-25100-20) | ||||
| 126 | 6691457@1417 | 7.10 | 8.52 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 127 | 6684693@1417 | 8.58 | 10.29 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 128 | 6684700@1417 | 4.29 | 5.14 | |
| Pump Body Comp. (old 575-25152-80) | ||||
| 129 | 6691432@1417 | 34.19 | 41.02 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 130 | 6685220@1417 | 2.31 | 2.78 | |
| Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
| 131 | 6690827@1417 | 11.71 | 14.06 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 132 | 6685222@1417 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 133 | 6691312@1417 | 1.15 | 1.38 | |
| End Plate A (old 300-31249-20) | ||||
| 151 | 6688640@1417 | 34.19 | 41.02 | |
| O-ring G140 (old 999-67140-010) | ||||
| 152 | 6695688@1417 | 4.45 | 5.34 | |
| Handle A (old 090-31249-20) | ||||
| 153 | 6686732@1417 | 19.36 | 23.24 | |
| Bolt 5x25 (old 990-21050-250) | ||||
| 154 | 6694976@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 155 | 6689684@1417 | 2.31 | 2.78 | |
| Ecrou de bride | ||||
| 156 | 6695171@1417 | 1.15 | 1.38 | |
| Coupling Flange (old 333-0650a-20) New | ||||
| 157 | 6689247@1417 | 5.78 | 6.93 | |
| Pas d'informations disponibles, non commandable | ||||
| 158 | 6695358@1417 | |||
| Gaskabel | ||||
| 159 | 6693909@1417 | 4.45 | 5.34 | |
| Throttle Lever, 16 Dia. (old 870-02201-91) | ||||
| 160 | 6693683@1417 | 5.11 | 6.14 | |
| Casing A (old 330-31249-20) | ||||
| 171 | 6689180@1417 | 56.26 | 67.52 | |
| Volute Chamber A (old 310-31249-20) | ||||
| 172 | 6689002@1417 | 24.20 | 29.04 | |
| Impeller A (old 031-31249-20) | ||||
| 173 | 6685958@1417 | 24.20 | 29.04 | |
| Pas d'informations disponibles, non commandable | ||||
| 174 | 6689132@1417 | |||
| Mechanical Seal Ass'y A (old 160-31249-90) | ||||
| 175 | 6687496@1417 | 24.20 | 29.04 | |
| Volute Chamber Gasket A (old 311-31249-20/6689038) | ||||
| 176 | 6689039@1417 | 4.95 | 5.94 | |
| Suction Palte Packing (old 350-31249-80) | ||||
| 177 | 6689535@1417 | 11.55 | 13.86 | |
| Priming Plug Ass'y (old 360-31249-90/6689659) | ||||
| 178 | 6689660@1417 | 13.36 | 16.04 | |
| Flange Bolt 8x35 (old 994-51080-350) | ||||
| 179 | 6695480@1417 | 1.15 | 1.38 | |
| Flange Bolt 6x16 (old 994-51060-160) | ||||
| 180 | 6695477@1417 | 1.15 | 1.38 | |
| Water Coupling Ass'y A (old 050-31249-90/6686318+6 | ||||
| 181 | 6686258@1417 | 14.06 | 16.88 | |
| Impeller Shaft Shim A 0.3 (old 034-31249-20) | ||||
| 182 | 6685978@1417 | 2.31 | 2.78 | |
| Bed A (old 080-31249-20) | ||||
| 201 | 6686629@1417 | 28.14 | 33.76 | |
| Cushion Rubber A (old 312-31249-20) | ||||
| 202 | 6689060@1417 | 2.31 | 2.78 | |
| Tapping Screw 5x14 (old 993-11051-402) | ||||
| 203 | 6695251@1417 | 1.15 | 1.38 | |
| Wire Band 33 (old 132-31223-20/6687219) | ||||
| 204 | 6687218@1417 | 1.15 | 1.38 | |
| Filter Comp. (old 100-31240-80) | ||||
| 205 | 6686781@1417 | 9.08 | 10.89 | |
| Suction Hose A 3m (old 180-31251-20) | ||||
| 206 | 6687937@1417 | 62.01 | 74.42 | |
| Combi Box Spanner 13x19 Plus (old 829-20000-80) | ||||
| 501 | 6684979@1417 | 4.29 | 5.14 | |
| Pas d'informations disponibles, non commandable | ||||
| 601 | 6699700@1417 | |||
