Dessins techniques et pièces de rechange Hikoki TCS33EDP
Type exact:
TCS33EDP
TCS33EDP

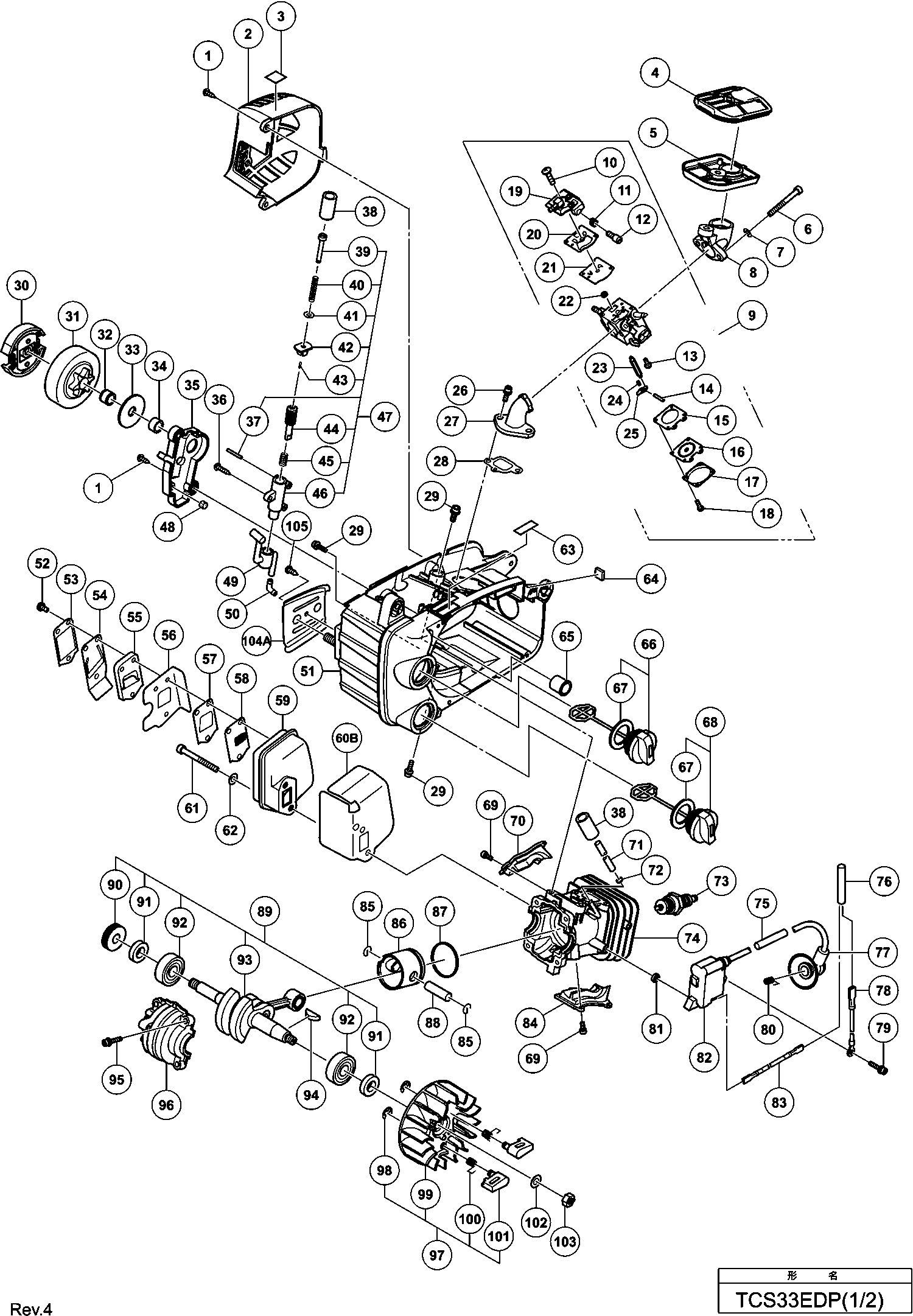

Dessins des HIKOKI TCS33EDP
Liste de pièces de rechange des HIKOKI TCS33EDP
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Vis Ø 4*16 Noir | ||||
| 1 | 305812 | Vis Ø 4*16 Noir | € 1.24 | |
| Knaldemper Afdekkap | ||||
| 2 | 6696821 | Knaldemper Afdekkap | € 9.54 | |
| Caution Label (hot) | ||||
| 3 | 6698864 | Caution Label (hot) | € 1.44 | |
| Luchtfilter Element (b) | ||||
| 4 | 6699969 | Luchtfilter Element (b) | € 4.14 | |
| Luchtfilter Element (a) | ||||
| 5 | 6699968 | Luchtfilter Element (a) | € 3.96 | |
| Hex Socket Hd. Bolt M5x45 (10 Pcs) | ||||
| 6 | 949824 | Hex Socket Hd. Bolt M5x45 (10 Pcs) | € 4.68 | |
| Bague | ||||
| 7 | 6685408 | Bague | € 1.26 | |
| Cleaner Support | ||||
| 8 | 6699966 | Cleaner Support | € 1.24 | |
| Carburator Ass'y | ||||
| 9 | 6699976 | Carburator Ass'y | € 59.07 | |
| Screw (old 514-25001-20) | ||||
| 10 | 6685210 | Screw (old 514-25001-20) | € 1.38 | |
| Idle Adjust Spring (old 463-25006-20) | ||||
| 11 | 6685297 | Idle Adjust Spring (old 463-25006-20) | € 2.78 | |
| Idle Adjust Screw (old 462-25016-20) | ||||
| 12 | 6685298 | Idle Adjust Screw (old 462-25016-20) | € 2.78 | |
| Hinge Pin Set Screw (old 546-25001-20) | ||||
| 13 | 6685218 | Hinge Pin Set Screw (old 546-25001-20) | € 2.78 | |
| Hinge Pin (old 605-25001-20) | ||||
| 14 | 6685219 | Hinge Pin (old 605-25001-20) | € 1.38 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 15 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 16 | 6684690 | Metering Diaphragm (old 474-25601-20) | € 21.60 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 17 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 5.34 | |
| Set Screw (old 548-25012-20) | ||||
| 18 | 6685223 | Set Screw (old 548-25012-20) | € 1.38 | |
| Pump Cover | ||||
| 19 | 6600091 | Pump Cover | € 13.26 | |
| Pump Gasket (old 577-25007-20) | ||||
| 20 | 6685212 | Pump Gasket (old 577-25007-20) | € 2.78 | |
| Pump Diaphragm (old 576-25006-20) | ||||
| 21 | 6685213 | Pump Diaphragm (old 576-25006-20) | € 5.34 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 22 | 6684700 | Inlet Screen (oud 578-25007-20) | € 5.14 | |
| Needle Valve (old 603-25012-20) | ||||
| 23 | 6685215 | Needle Valve (old 603-25012-20) | € 6.33 | |
| Valve Spring (old 477-25343-20) | ||||
| 24 | 6685216 | Valve Spring (old 477-25343-20) | € 2.78 | |
| Control Lever (old 473-25001-20) | ||||
| 25 | 6685217 | Control Lever (old 473-25001-20) | € 3.96 | |
| Hex. Hole Bolt M4 | ||||
| 26 | 6698792 | Hex. Hole Bolt M4 | € 1.44 | |
| Intake | ||||
| 27 | 6699951 | Intake | € 5.58 | |
| Joint | ||||
| 28 | 6699952 | Joint | € 1.24 | |
| Seal Lock Hex. Socket Bolt M (w/washers) | ||||
| 29 | 6699044 | Seal Lock Hex. Socket Bolt M (w/washers) | € 1.24 | |
| Clutch (old 6696809) | ||||
| 30 | 6600316 | Clutch (old 6696809) | € 13.14 | |
| Clutch Housing Comp. (old 310-32710-20/6695996) | ||||
| 31 | 6685144 | Clutch Housing Comp. (old 310-32710-20/6695996) | € 17.43 | |
| Roulement A Aiguilles | ||||
| 32 | 6685361 | Roulement A Aiguilles | € 4.86 | |
| Bague | ||||
| 33 | 6685414 | Bague | € 1.26 | |
| Krukas Ring | ||||
| 34 | 6685360 | Krukas Ring | € 2.52 | |
| Oliepomp Deksel | ||||
| 35 | 6699610 | Oliepomp Deksel | € 3.36 | |
| Vis 4x20 Noir | ||||
| 36 | 302086 | Vis 4x20 Noir | € 1.26 | |
| Naaldroller | ||||
| 37 | 6685356 | Naaldroller | € 1.26 | |
| Idol Sponge | ||||
| 38 | 6696793 | Idol Sponge | € 1.44 | |
| Oil Pump Adjuster | ||||
| 39 | 6699960 | Oil Pump Adjuster | € 1.98 | |
| Adjuster Spring | ||||
| 40 | 6699961 | Adjuster Spring | € 1.24 | |
| Bolt Washer M4 (black) | ||||
| 41 | 323210 | Bolt Washer M4 (black) | € 1.26 | |
| Adjuster Cap | ||||
| 42 | 6699959 | Adjuster Cap | € 1.24 | |
| Naaldroller | ||||
| 43 | 6600046 | Naaldroller | € 1.24 | |
| Pump Gear (ed) | ||||
| 44 | 6699957 | Pump Gear (ed) | € 2.34 | |
| Pump Gear Spring (ed) | ||||
| 45 | 6699958 | Pump Gear Spring (ed) | € 1.24 | |
| Pump Case (old 6685353) | ||||
| 46 | 6699119 | Pump Case (old 6685353) | € 9.00 | |
| Pump Ass'y | ||||
| 47 | 6600085 | Pump Ass'y | € 18.64 | |
| Filtre | ||||
| 48 | 6685371 | Filtre | € 1.26 | |
| Olieleiding | ||||
| 49 | 6696811 | Olieleiding | € 2.52 | |
| Pipe Joint | ||||
| 50 | 6685358 | Pipe Joint | € 1.26 | |
| Carter De Moteur | ||||
| 51 | 6600084 | Carter De Moteur | € 42.74 | |
| Screw M4 (w/washers) Black | ||||
| 52 | 6600048 | Screw M4 (w/washers) Black | € 1.24 | |
| Packing Plate | ||||
| 53 | 6698861 | Packing Plate | € 1.44 | |
| Muffler Special Packing (s) | ||||
| 54 | 6698862 | Muffler Special Packing (s) | € 1.44 | |
| Exhaust Pipe | ||||
| 55 | 6696816 | Exhaust Pipe | € 1.44 | |
| Muffler Special Packing | ||||
| 56 | 6696818 | Muffler Special Packing | € 1.44 | |
| Gauze Fixing Plate | ||||
| 57 | 6696817 | Gauze Fixing Plate | € 1.44 | |
| Uitlaatgaasje | ||||
| 58 | 6696815 | Uitlaatgaasje | € 1.44 | |
| Muffler | ||||
| 59 | 6600049 | Muffler | € 25.74 | |
| Muffler Packing | ||||
| 60B | 6600445 | Muffler Packing | € 1.80 | |
| Épuisé | ||||
| 61 | 6696819 | Épuisé | ||
| Rondelle M.6 (x10) paquet de 10 | ||||
| 62 | 949432 | Rondelle M.6 (x10) paquet de 10 | € 1.26 | |
| Tank Mark Label | ||||
| 63 | 6698921 | Tank Mark Label | € 1.44 | |
| Protection Sheet | ||||
| 64 | 6600047 | Protection Sheet | € 1.24 | |
| Inner Cap Ass'y | ||||
| 65 | 6685351 | Inner Cap Ass'y | € 5.40 | |
| Tank Dop Compleet | ||||
| 66 | 6698854 | Tank Dop Compleet | € 5.04 | |
| Tank Cap Packing (old 630-3252k-20/6685386) | ||||
| 67 | 6685179 | Tank Cap Packing (old 630-3252k-20/6685386) | € 1.38 | |
| Tank Dop Compleet | ||||
| 68 | 6698358 | Tank Dop Compleet | € 5.04 | |
| Vis Ø4x10 (paquet de 10) Till 12.2017 | ||||
| 69 | 949812 | Vis Ø4x10 (paquet de 10) Till 12.2017 | € 2.88 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 70 | 6696766 | Uitlaatgas Ventiel Deksel (b) | € 2.52 | |
| Brandstofleiding (fkm) | ||||
| 71 | 6698907 | Brandstofleiding (fkm) | € 9.54 | |
| D6 Clip | ||||
| 72 | 6685311 | D6 Clip | € 1.26 | |
| Épuisé | ||||
| 73 | 6699320 | Épuisé | ||
| Cylindre | ||||
| 74 | 6600083 | Cylindre | € 65.50 | |
| Cord Insulation Tube L100 | ||||
| 75 | 6600051 | Cord Insulation Tube L100 | € 1.24 | |
| Cord Insulation Tube | ||||
| 76 | 6699175 | Cord Insulation Tube | € 1.44 | |
| Épuisé | ||||
| 77 | 6696771 | Épuisé | ||
| Cord | ||||
| 78 | 6600052 | Cord | € 1.24 | |
| Hex. Socket Hd. Bolt M4x18 (w/washers) | ||||
| 79 | 6696326 | Hex. Socket Hd. Bolt M4x18 (w/washers) | € 1.44 | |
| Metal Fitting Of Plug Cap (a) | ||||
| 80 | 6696772 | Metal Fitting Of Plug Cap (a) | € 1.44 | |
| Bague | ||||
| 81 | 6698700 | Bague | € 1.44 | |
| Bobine | ||||
| 82 | 6699977 | Bobine | € 31.52 | |
| Cord (a) | ||||
| 83 | 6699948 | Cord (a) | € 1.24 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 84 | 6696765 | Uitlaatgas Ventiel Deksel (a) | € 2.52 | |
| Cir Clip | ||||
| 85 | 6685326 | Cir Clip | € 1.26 | |
| Piston | ||||
| 86 | 6698806 | Piston | € 16.04 | |
| Zuiger Ring (xr1-1856) | ||||
| 87 | 6685331 | Zuiger Ring (xr1-1856) | € 4.86 | |
| Zuiger Pin (oud 6685079) | ||||
| 88 | 6696764 | Zuiger Pin (oud 6685079) | € 1.44 | |
| Crank Worm Ass'y | ||||
| 89 | 6698853 | Crank Worm Ass'y | € 79.86 | |
| Worm | ||||
| 90 | 6685330 | Worm | € 5.40 | |
| Olie Keerring | ||||
| 91 | 6685329 | Olie Keerring | € 2.52 | |
| Roulement A Billes (1) | ||||
| 92 | 6685328 | Roulement A Billes (1) | € 3.60 | |
| Épuisé | ||||
| 93 | 6696762 | Épuisé | ||
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 94 | 6684899 | Woodruff Key 3x13x4.5 (oud 068-10100-20) | € 2.58 | |
| Épuisé | ||||
| 95 | 6698386 | Épuisé | ||
| Crank Case | ||||
| 96 | 6696767 | Crank Case | € 6.84 | |
| Magneto Sub Ass'y | ||||
| 97 | 6600090 | Magneto Sub Ass'y | € 44.06 | |
| Retaining Ring D4 | ||||
| 98 | 6685336 | Retaining Ring D4 | € 1.26 | |
| Magneto Rotor Comp. | ||||
| 99 | 6600053 | Magneto Rotor Comp. | € 10.62 | |
| Ressort | ||||
| 100 | 6685335 | Ressort | € 1.26 | |
| Starter Pawl | ||||
| 101 | 6685334 | Starter Pawl | € 1.26 | |
| Ring D7 | ||||
| 102 | 6696880 | Ring D7 | € 1.26 | |
| Ecrou | ||||
| 103 | 6696879 | Ecrou | € 1.26 | |
| Geleidingsplaat (c) | ||||
| 104A | 6600346 | Geleidingsplaat (c) | € 1.98 | |
| Vis | ||||
| 105 | 958715 | Vis | € 1.24 | |
| Zijdeksel | ||||
| 121 | 6600088 | Zijdeksel | € 16.74 | |
| Brake Support Plate | ||||
| 122 | 6696782 | Brake Support Plate | € 5.04 | |
| Brake Lever Spring | ||||
| 123 | 6696783 | Brake Lever Spring | € 1.44 | |
| Brake Handle | ||||
| 124 | 6699972 | Brake Handle | € 6.12 | |
| Brake Link Cover | ||||
| 126 | 6696779 | Brake Link Cover | € 1.44 | |
| Épuisé | ||||
| 127 | 6600075 | Épuisé | ||
| Chain Bar Clamp Nut (eu) | ||||
| 128 | 6600057 | Chain Bar Clamp Nut (eu) | € 1.24 | |
| Nut Holder | ||||
| 129 | 6600058 | Nut Holder | € 1.24 | |
| Chain Puller | ||||
| 130 | 6698986 | Chain Puller | € 16.02 | |
| Geleidingsplaat (b) (oud 6685157) | ||||
| 131 | 6696784 | Geleidingsplaat (b) (oud 6685157) | € 2.52 | |
| Épuisé | ||||
| 132 | 6697854 | Épuisé | ||
| Épuisé | ||||
| 132 | 6697889 | Épuisé | ||
| Épuisé | ||||
| 133 | 6696994 | Épuisé | ||
| Épuisé | ||||
| 133 | 6696995 | Épuisé | ||
| Vis | ||||
| 134 | 958715 | Vis | € 1.24 | |
| Tapschroef D3 | ||||
| 135 | 696352 | Tapschroef D3 | € 1.35 | |
| Remveer | ||||
| 136 | 6600054 | Remveer | € 1.24 | |
| Brake Link Ass'y | ||||
| 137 | 6685388 | Brake Link Ass'y | € 4.86 | |
| Remband | ||||
| 138 | 6685140 | Remband | € 17.43 | |
| D3 Needle Roller | ||||
| 139 | 6685391 | D3 Needle Roller | € 1.26 | |
| Vis Ø 4*16 Noir | ||||
| 140 | 305812 | Vis Ø 4*16 Noir | € 1.24 | |
| Luchtfilterkap | ||||
| 141 | 6699970 | Luchtfilterkap | € 3.24 | |
| Cleaner Knob | ||||
| 142 | 6699971 | Cleaner Knob | € 1.24 | |
| Rear Handle Grip | ||||
| 143 | 6699965 | Rear Handle Grip | € 1.98 | |
| Schakelaar Blokkering | ||||
| 144 | 6685350 | Schakelaar Blokkering | € 1.26 | |
| Throttle Lever Spring (old 6685349) | ||||
| 145A | 6600341 | Throttle Lever Spring (old 6685349) | € 1.24 | |
| Goupille | ||||
| 146 | 6685282 | Goupille | € 1.38 | |
| Stop Switch | ||||
| 147A | 6601275 | Stop Switch | € 1.62 | |
| Start Label (cs33ed) Ex | ||||
| 148 | 6600082 | Start Label (cs33ed) Ex | € 1.26 | |
| Damper (a) | ||||
| 150 | 6696327 | Damper (a) | € 5.04 | |
| Entretoise | ||||
| 151 | 696314 | Entretoise | € 4.14 | |
| Damper Set Bolt | ||||
| 152 | 6685413 | Damper Set Bolt | € 1.26 | |
| Choke Lever (old 495-56300-20) | ||||
| 153 | 6685206 | Choke Lever (old 495-56300-20) | € 1.38 | |
| Trekstang | ||||
| 154 | 6699964 | Trekstang | € 1.26 | |
| Grommet | ||||
| 155 | 6698787 | Grommet | € 2.16 | |
| Throttle Lever (vermilion) | ||||
| 156 | 6698916 | Throttle Lever (vermilion) | € 1.44 | |
| Motorhuis Kap | ||||
| 157 | 6699974 | Motorhuis Kap | € 1.44 | |
| Grommet | ||||
| 158 | 6698787 | Grommet | € 2.16 | |
| Veerhouder | ||||
| 159 | 6698409 | Veerhouder | € 2.52 | |
| Damper Set Bolt (a) | ||||
| 160 | 6699962 | Damper Set Bolt (a) | € 1.26 | |
| Anti-trilveer | ||||
| 161 | 6698428 | Anti-trilveer | € 2.52 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 162 | 6696167 | Fuel Grommet (old 701-72930-20) | € 1.38 | |
| Brandstofleiding | ||||
| 163 | 6699975 | Brandstofleiding | € 2.34 | |
| Fuel Pipe | ||||
| 164 | 6600055 | Fuel Pipe | € 1.26 | |
| Moer M6 | ||||
| 165 | 329934 | Moer M6 | € 2.07 | |
| Achtergreep | ||||
| 166 | 6699963 | Achtergreep | € 11.88 | |
| Idle Sponge | ||||
| 167 | 6600056 | Idle Sponge | € 1.26 | |
| Fuel Pipe 2.5x4x90 (old 700-02504-09) | ||||
| 168 | 6685267 | Fuel Pipe 2.5x4x90 (old 700-02504-09) | € 1.38 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 169 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 7.12 | |
| Protection Sheet | ||||
| 170 | 6600047 | Protection Sheet | € 1.24 | |
| Fuel Grommet | ||||
| 171 | 6685308 | Fuel Grommet | € 1.26 | |
| Valve | ||||
| 172 | 6685370 | Valve | € 2.52 | |
| Tapschroef D5x15 | ||||
| 173 | 6698456 | Tapschroef D5x15 | € 1.26 | |
| Velkam | ||||
| 174 | 6699973 | Velkam | € 2.16 | |
| Tapschroef D5x15 | ||||
| 175 | 6698456 | Tapschroef D5x15 | € 1.26 | |
| Chain Catcher | ||||
| 176 | 6699950 | Chain Catcher | € 1.24 | |
| Pomp Filter | ||||
| 177A | 6600351 | Pomp Filter | € 3.24 | |
| D6 Clip | ||||
| 178 | 6685311 | D6 Clip | € 1.26 | |
| Oil Filter Body | ||||
| 179 | 6685310 | Oil Filter Body | € 1.26 | |
| Épuisé | ||||
| 180 | 6696804 | Épuisé | ||
| Bague | ||||
| 181 | 6685407 | Bague | € 1.26 | |
| Brandstofleiding | ||||
| 182 | 6698715 | Brandstofleiding | € 11.70 | |
| Starter Handle Ass'y | ||||
| 183 | 6600061 | Starter Handle Ass'y | € 3.06 | |
| Rope Stopper | ||||
| 184 | 6699465 | Rope Stopper | € 1.24 | |
| Starter Knob | ||||
| 185 | 6699467 | Starter Knob | € 2.34 | |
| Starter Rope (ns) | ||||
| 186 | 6600060 | Starter Rope (ns) | € 1.24 | |
| Enveloppe De Ventilateur | ||||
| 187 | 6600066 | Enveloppe De Ventilateur | € 20.79 | |
| Luchtkeerschot | ||||
| 188 | 6600089 | Luchtkeerschot | € 3.06 | |
| Set Screw (ns) | ||||
| 189 | 6600062 | Set Screw (ns) | € 1.24 | |
| Cam Plate (ns) | ||||
| 190 | 6600064 | Cam Plate (ns) | € 2.34 | |
| Reel (ns) | ||||
| 191 | 6600065 | Reel (ns) | € 14.58 | |
| Spiral Spring (ns | ||||
| 192 | 6600063 | Spiral Spring (ns | € 7.02 | |
| Vis Ø 5*25 Noir (2) | ||||
| 193 | 305558 | Vis Ø 5*25 Noir (2) | € 1.24 | |
| Bague | ||||
| 194 | 6685408 | Bague | € 1.26 | |
| Front Handle | ||||
| 195 | 6699967 | Front Handle | € 7.56 | |
| Épuisé | ||||
| 196 | 6698865 | Épuisé | ||
| Damper Set Bolt | ||||
| 197 | 6698859 | Damper Set Bolt | € 1.44 | |
| RECOIL STARTER ASS'Y (NS) NEW SEP | ||||
| 198 | 6699955 | RECOIL STARTER ASS'Y (NS) NEW SEP | € 25.74 | |
| Épuisé | ||||
| 501 | 6685439 | Épuisé | ||
| Épuisé | ||||
| 501 | 6685440 | Épuisé | ||
| Combi Box Spanner | ||||
| 502 | 6685402 | Combi Box Spanner | € 3.78 | |
Votre panier contient 0 de produits.
