Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki TCS33EDTP'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

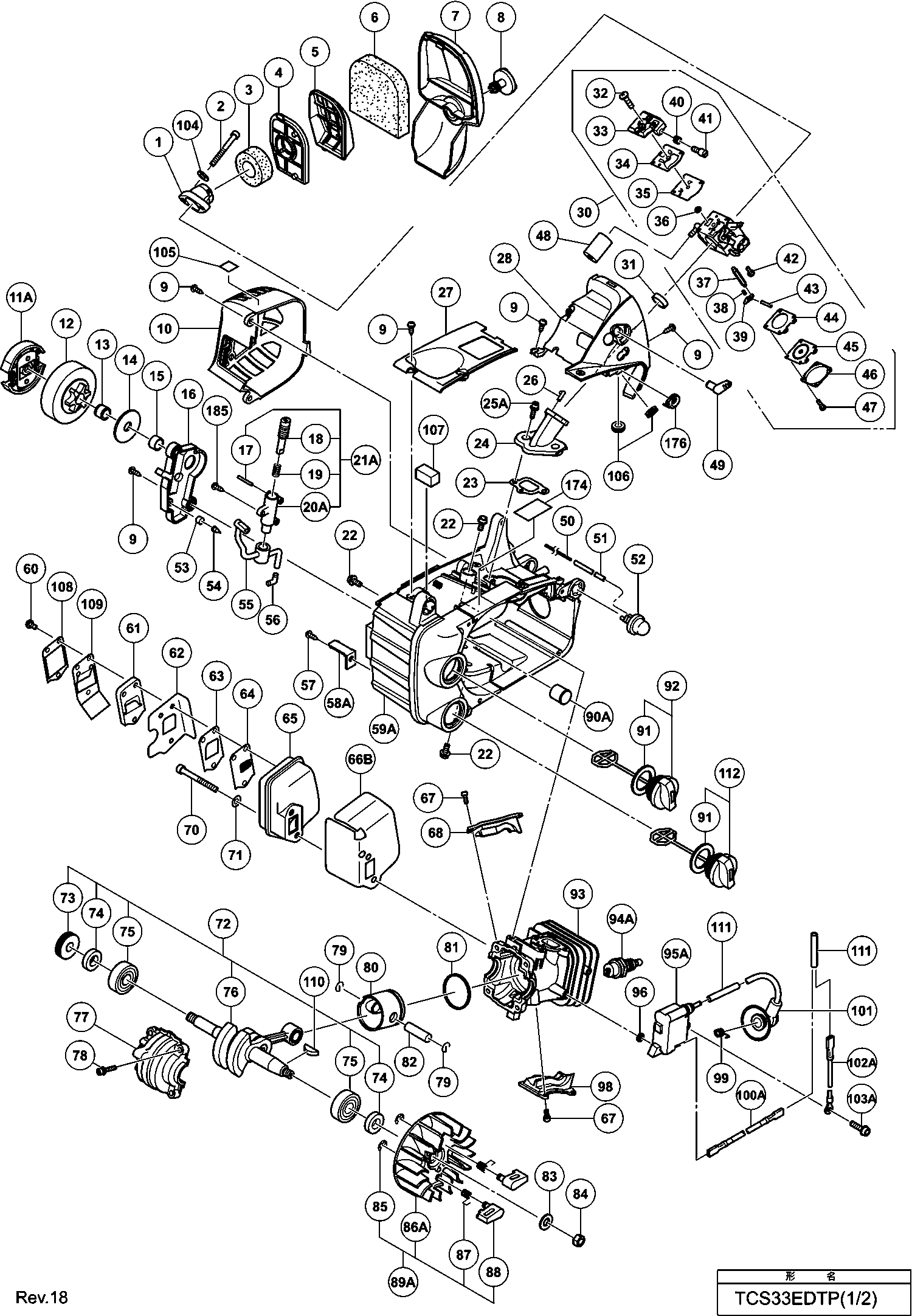

Dessins des Hikoki TCS33EDTP
Liste de pièces de rechange des Hikoki TCS33EDTP
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Air Cleaner Base (old 436-56300-20) | ||||
| 1 | 6685225 | 1.15 | 1.38 | |
| Hex Socket Hd. Bolt M5x45 (10 Pcs) | ||||
| 2 | 949824 | 3.90 | 4.68 | |
| Reinigingsspons (b) | ||||
| 3 | 6696826 | 1.20 | 1.44 | |
| Élément de filtre à air | ||||
| 4 | 6685230 | 3.30 | 3.96 | |
| Élément de filtre à air | ||||
| 5 | 6685231 | 3.30 | 3.96 | |
| Reinigingsspons | ||||
| 6 | 6696825 | 1.20 | 1.44 | |
| Luchtfilterkap | ||||
| 7 | 6696785 | 4.20 | 5.04 | |
| Cleaner Knob | ||||
| 8 | 6696786 | 1.20 | 1.44 | |
| Vis Ø 4*16 Noir | ||||
| 9 | 305812 | 1.04 | 1.24 | |
| Knaldemper Afdekkap | ||||
| 10 | 6696821 | 7.95 | 9.54 | |
| Clutch (old 6696809) | ||||
| 11A | 6600316 | 10.95 | 13.14 | |
| Clutch Housing | ||||
| 12 | 6698856 | 14.25 | 17.10 | |
| Roulement A Aiguilles | ||||
| 13 | 6685361 | 4.05 | 4.86 | |
| Bague | ||||
| 14 | 6685414 | 1.05 | 1.26 | |
| Krukas Ring | ||||
| 15 | 6685360 | 2.10 | 2.52 | |
| Oliepomp Deksel | ||||
| 16A | 6699610 | 2.80 | 3.36 | |
| Naaldroller | ||||
| 17 | 6685356 | 1.05 | 1.26 | |
| Pump Gear | ||||
| 18 | 6685354 | 2.10 | 2.52 | |
| Pump Gear Spring | ||||
| 19 | 6685355 | 1.05 | 1.26 | |
| Pump Case (old 6685353) | ||||
| 20A | 6699119 | 7.50 | 9.00 | |
| Pump Ass'y (old 6696788) | ||||
| 21A | 6699120 | 9.30 | 11.16 | |
| Seal Lock Bolt M5x15 (old 990-54050-155) | ||||
| 22 | 6685136 | 1.15 | 1.38 | |
| Épuisé | ||||
| 23 | 6698849 | |||
| Intake | ||||
| 24 | 6696794 | 4.20 | 5.04 | |
| Hex. Hole Bolt M4 | ||||
| 25A | 6698792 | 1.20 | 1.44 | |
| Pulse Guide (old 431-32970-20) | ||||
| 26 | 6685203 | 1.15 | 1.38 | |
| Motorhuis Kap | ||||
| 27 | 6696812 | 3.15 | 3.78 | |
| Cleaner Body | ||||
| 28 | 6696792 | 4.65 | 5.58 | |
| Carburator Ass'y | ||||
| 30 | 6696795 | 83.60 | 100.32 | |
| Inlet Spacer | ||||
| 31 | 6698857 | 1.20 | 1.44 | |
| Screw (old 514-25001-20) | ||||
| 32 | 6685210 | 1.15 | 1.38 | |
| Pump Body (old 575-25028-20/6696844) | ||||
| 33 | 6685211 | 8.41 | 10.10 | |
| Pump Gasket (old 577-25007-20) | ||||
| 34 | 6685212 | 2.31 | 2.78 | |
| Pump Diaphragm (old 576-25006-20) | ||||
| 35 | 6685213 | 4.45 | 5.34 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 36 | 6684700 | 4.29 | 5.14 | |
| Needle Valve (old 603-25012-20) | ||||
| 37 | 6685215 | 5.28 | 6.33 | |
| Valve Spring (old 477-25343-20) | ||||
| 38 | 6685216 | 2.31 | 2.78 | |
| Control Lever (old 473-25001-20) | ||||
| 39 | 6685217 | 3.30 | 3.96 | |
| Idle Adjust Spring (old 463-25006-20) | ||||
| 40 | 6685297 | 2.31 | 2.78 | |
| Idle Adjust Screw (old 462-25016-20) | ||||
| 41 | 6685298 | 2.31 | 2.78 | |
| Hinge Pin Set Screw (old 546-25001-20) | ||||
| 42 | 6685218 | 2.31 | 2.78 | |
| Hinge Pin (old 605-25001-20) | ||||
| 43 | 6685219 | 1.15 | 1.38 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 44 | 6685220 | 2.31 | 2.78 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 45 | 6684690 | 18.00 | 21.60 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 46 | 6685222 | 4.45 | 5.34 | |
| Set Screw (old 548-25012-20) | ||||
| 47 | 6685223 | 1.15 | 1.38 | |
| Idol Sponge | ||||
| 48 | 6696793 | 1.20 | 1.44 | |
| Choke Lever (old 495-56300-20) | ||||
| 49 | 6685206 | 1.15 | 1.38 | |
| Protective Coil | ||||
| 50 | 6698699 | 1.20 | 1.44 | |
| Épuisé | ||||
| 51 | 6698850 | |||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 52 | 6685139 | 5.94 | 7.12 | |
| Filtre | ||||
| 53 | 6685371 | 1.05 | 1.26 | |
| Valve | ||||
| 54 | 6685370 | 2.10 | 2.52 | |
| Olieleiding | ||||
| 55 | 6696811 | 2.10 | 2.52 | |
| Pipe Joint | ||||
| 56 | 6685358 | 1.05 | 1.26 | |
| Tapschroef D5x15 | ||||
| 57 | 6698456 | 1.05 | 1.26 | |
| Chain Catcher | ||||
| 58A | 6699950 | 1.04 | 1.24 | |
| Carter De Moteur | ||||
| 59A | 6696807 | 34.24 | 41.08 | |
| Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | ||||
| 60 | 935196 | 1.04 | 1.24 | |
| Exhaust Pipe | ||||
| 61 | 6696816 | 1.20 | 1.44 | |
| Muffler Special Packing | ||||
| 62 | 6696818 | 1.20 | 1.44 | |
| Gauze Fixing Plate | ||||
| 63 | 6696817 | 1.20 | 1.44 | |
| Uitlaatgaasje | ||||
| 64 | 6696815 | 1.20 | 1.44 | |
| Muffler (w/catalyzer) | ||||
| 65 | 6696813 | 32.31 | 38.78 | |
| Muffler Packing | ||||
| 66B | 6600445 | 1.50 | 1.80 | |
| Vis Ø4x10 (paquet de 10) Till 12.2017 | ||||
| 67 | 949812 | 2.40 | 2.88 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 68 | 6696766 | 2.10 | 2.52 | |
| Épuisé | ||||
| 70 | 6696819 | |||
| Rondelle M.6 (x10) paquet de 10 | ||||
| 71 | 949432 | 1.05 | 1.26 | |
| Crank Worm Ass'y | ||||
| 72 | 6698853 | 66.55 | 79.86 | |
| Worm | ||||
| 73 | 6685330 | 4.50 | 5.40 | |
| Olie Keerring | ||||
| 74 | 6685329 | 2.10 | 2.52 | |
| Roulement A Billes (1) | ||||
| 75 | 6685328 | 3.00 | 3.60 | |
| Épuisé | ||||
| 76 | 6696762 | |||
| Crank Case | ||||
| 77 | 6696767 | 5.70 | 6.84 | |
| Épuisé | ||||
| 78 | 6698386 | |||
| Cir Clip | ||||
| 79 | 6685326 | 1.05 | 1.26 | |
| Piston | ||||
| 80 | 6698806 | 13.36 | 16.04 | |
| Zuiger Ring (xr1-1856) | ||||
| 81 | 6685331 | 4.05 | 4.86 | |
| Zuiger Pin (oud 6685079) | ||||
| 82 | 6696764 | 1.20 | 1.44 | |
| Bague | ||||
| 83 | 6685103 | 1.15 | 1.38 | |
| Flywheel Nut (old 066-00000-20) | ||||
| 84 | 6685104 | 1.15 | 1.38 | |
| Retaining Ring D4 | ||||
| 85 | 6685336 | 1.05 | 1.26 | |
| Magneto Rotor Comp. | ||||
| 86A | 6600053 | 8.85 | 10.62 | |
| Ressort | ||||
| 87 | 6685335 | 1.05 | 1.26 | |
| Starter Pawl | ||||
| 88 | 6685334 | 1.05 | 1.26 | |
| Magneto Sub Ass'y | ||||
| 89A | 6600090 | 36.71 | 44.06 | |
| Inner Cap Ass'y | ||||
| 90A | 6685351 | 4.50 | 5.40 | |
| Tank Cap Packing (old 630-3252k-20/6685386) | ||||
| 91 | 6685179 | 1.15 | 1.38 | |
| Tank Dop Compleet | ||||
| 92 | 6698854 | 4.20 | 5.04 | |
| Cylindre | ||||
| 93A | 6601440 | 44.55 | 53.46 | |
| Épuisé | ||||
| 94A | 6699320 | |||
| Bobine | ||||
| 95A | 6699999 | 38.64 | 46.36 | |
| Bague | ||||
| 96 | 6698700 | 1.20 | 1.44 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 98 | 6696765 | 2.10 | 2.52 | |
| Metal Fitting Of Plug Cap (a) | ||||
| 99 | 6696772 | 1.20 | 1.44 | |
| Cord (a) | ||||
| 100A | 6696787 | 1.20 | 1.44 | |
| Épuisé | ||||
| 101 | 6696771 | |||
| Cord (b) | ||||
| 102A | 6696791 | 1.20 | 1.44 | |
| Hex. Socket Hd. Bolt M4x18 (w/washers) | ||||
| 103A | 6696326 | 1.20 | 1.44 | |
| Bague | ||||
| 104 | 6685226 | 1.15 | 1.38 | |
| Caution Label (hot) | ||||
| 105 | 6698864 | 1.20 | 1.44 | |
| Grommet | ||||
| 106 | 6698787 | 1.80 | 2.16 | |
| Protection Sheet | ||||
| 107 | 6698860 | 1.20 | 1.44 | |
| Packing Plate | ||||
| 108 | 6698861 | 1.20 | 1.44 | |
| Muffler Special Packing (s) | ||||
| 109 | 6698862 | 1.20 | 1.44 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 110 | 6684899 | 2.15 | 2.58 | |
| Épuisé | ||||
| 111 | 6698863 | |||
| Tank Dop Compleet | ||||
| 112 | 6698358 | 4.20 | 5.04 | |
| Ignition Coil Ass'y | ||||
| 113 | 6601441 | 32.59 | 39.10 | |
| Épuisé | ||||
| 115 | 6601514 | |||
| Épuisé | ||||
| 116 | 6601520 | |||
| Tapping Screw (w/flange) D5x40 | ||||
| 121A | 6699403 | 1.04 | 1.24 | |
| Ring 1.0 | ||||
| 122 | 6698858 | 1.20 | 1.44 | |
| Collar 28.2 (old 6685235) | ||||
| 123 | 6696800 | 2.10 | 2.52 | |
| Damper | ||||
| 124 | 6696775 | 1.20 | 1.44 | |
| Achtergreep | ||||
| 125 | 6696774 | 4.65 | 5.58 | |
| Schakelaar Blokkering | ||||
| 126A | 6685244 | 1.15 | 1.38 | |
| Gaskabel | ||||
| 127 | 6696797 | 2.10 | 2.52 | |
| Épuisé | ||||
| 128 | 6696940 | |||
| Épuisé | ||||
| 129 | 6698449 | |||
| Throttle Lever Spring | ||||
| 130 | 6698691 | 1.20 | 1.44 | |
| Throttle Lever (old 060-72930-20) | ||||
| 131 | 6685242 | 1.15 | 1.38 | |
| Veerhouder | ||||
| 132 | 6698409 | 2.10 | 2.52 | |
| Damper Set Bolt | ||||
| 133 | 6698859 | 1.20 | 1.44 | |
| Anti-trilveer | ||||
| 134 | 6698428 | 2.10 | 2.52 | |
| Moer M8 | ||||
| 136 | 6698581 | 1.20 | 1.44 | |
| Zijdeksel | ||||
| 137A | 6696776 | 10.65 | 12.78 | |
| Brake Support Plate | ||||
| 138 | 6696782 | 4.20 | 5.04 | |
| Brake Lever Spring | ||||
| 139 | 6696783 | 1.20 | 1.44 | |
| Brake Link Ass'y | ||||
| 140 | 6685388 | 4.05 | 4.86 | |
| Remband | ||||
| 141 | 6685140 | 14.53 | 17.43 | |
| D3 Needle Roller | ||||
| 142 | 6685391 | 1.05 | 1.26 | |
| Brake Spring (old 6685167) | ||||
| 143 | 6685389 | 1.05 | 1.26 | |
| Chain Puller | ||||
| 144A | 6698986 | 13.35 | 16.02 | |
| Geleidingsplaat (b) (oud 6685157) | ||||
| 145 | 6696784 | 2.10 | 2.52 | |
| Tapschroef D3 | ||||
| 146 | 696352 | 1.13 | 1.35 | |
| Vis | ||||
| 147 | 958715 | 1.04 | 1.24 | |
| Épuisé | ||||
| 148A | 6697852 | |||
| Épuisé | ||||
| 149 | 6696993 | |||
| Brandstofleiding | ||||
| 150 | 6698715 | 9.75 | 11.70 | |
| Fuel Pipe (fkm) L240 | ||||
| 151 | 6698851 | 11.55 | 13.86 | |
| Fuel Pipe (fkm) L260 | ||||
| 153 | 6698852 | 12.05 | 14.46 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 154 | 6696167 | 1.15 | 1.38 | |
| Achtergreep (a) | ||||
| 155 | 6696773 | 4.20 | 5.04 | |
| Épuisé | ||||
| 156A | 6600026 | |||
| Épuisé | ||||
| 157A | 6696798 | |||
| Brake Handle (old 6696778) | ||||
| 158 | 6698866 | 6.60 | 7.92 | |
| Brake Link Cover | ||||
| 160 | 6696779 | 1.20 | 1.44 | |
| Pomp Filter | ||||
| 161A | 6600351 | 2.70 | 3.24 | |
| D6 Clip | ||||
| 162 | 6685311 | 1.05 | 1.26 | |
| Oil Filter Body | ||||
| 163 | 6685310 | 1.05 | 1.26 | |
| Épuisé | ||||
| 164 | 6696804 | |||
| Bague | ||||
| 165 | 6685407 | 1.05 | 1.26 | |
| Luchtkeerschot | ||||
| 166 | 6696790 | 2.10 | 2.52 | |
| Recoil Starter (s) | ||||
| 167C | 6699417 | 17.46 | 20.96 | |
| Vis 4x20 Noir | ||||
| 168 | 302086 | 1.05 | 1.26 | |
| Tanaka Label New | ||||
| 169 | 6696340 | 1.20 | 1.44 | |
| Cord Insulation Tube | ||||
| 171 | 6698457 | 1.05 | 1.26 | |
| Épuisé | ||||
| 172 | 6698865 | |||
| Fuel Grommet | ||||
| 173 | 6685308 | 1.05 | 1.26 | |
| Grommet (a) | ||||
| 176 | 6699404 | 1.04 | 1.24 | |
| Set Screw | ||||
| 177 | 6699475 | 1.04 | 1.24 | |
| Épuisé | ||||
| 178 | 6699483 | |||
| Épuisé | ||||
| 179 | 6699480 | |||
| Starter Rope | ||||
| 180 | 6699469 | 1.04 | 1.24 | |
| Rope Stopper | ||||
| 181 | 6699465 | 1.04 | 1.24 | |
| Starter Knob | ||||
| 182 | 6699467 | 1.95 | 2.34 | |
| Starter Handle Ass'y | ||||
| 183 | 6699473 | 3.15 | 3.78 | |
| Enveloppe De Ventilateur | ||||
| 184 | 6699490 | 10.35 | 12.42 | |
| Tapping Screw (w/flange) D4 | ||||
| 185 | 6699947 | 1.04 | 1.24 | |
| Set Screw | ||||
| 186 | 6699476 | 1.04 | 1.24 | |
| Épuisé | ||||
| 187 | 6699478 | |||
| Damper Spring | ||||
| 188 | 6699479 | 1.65 | 1.98 | |
| Reel | ||||
| 189 | 6699484 | 2.40 | 2.88 | |
| Épuisé | ||||
| 501 | 6685401 | |||
| Combi Box Spanner 13x19 | ||||
| 502 | 6698582 | 4.65 | 5.58 | |
| Velkam | ||||
| 601 | 6696827 | 2.10 | 2.52 | |
