Dessins techniques et pièces de rechange Hikoki TED-250DLS
Type exact:
TED-250DLS
TED-250DLS

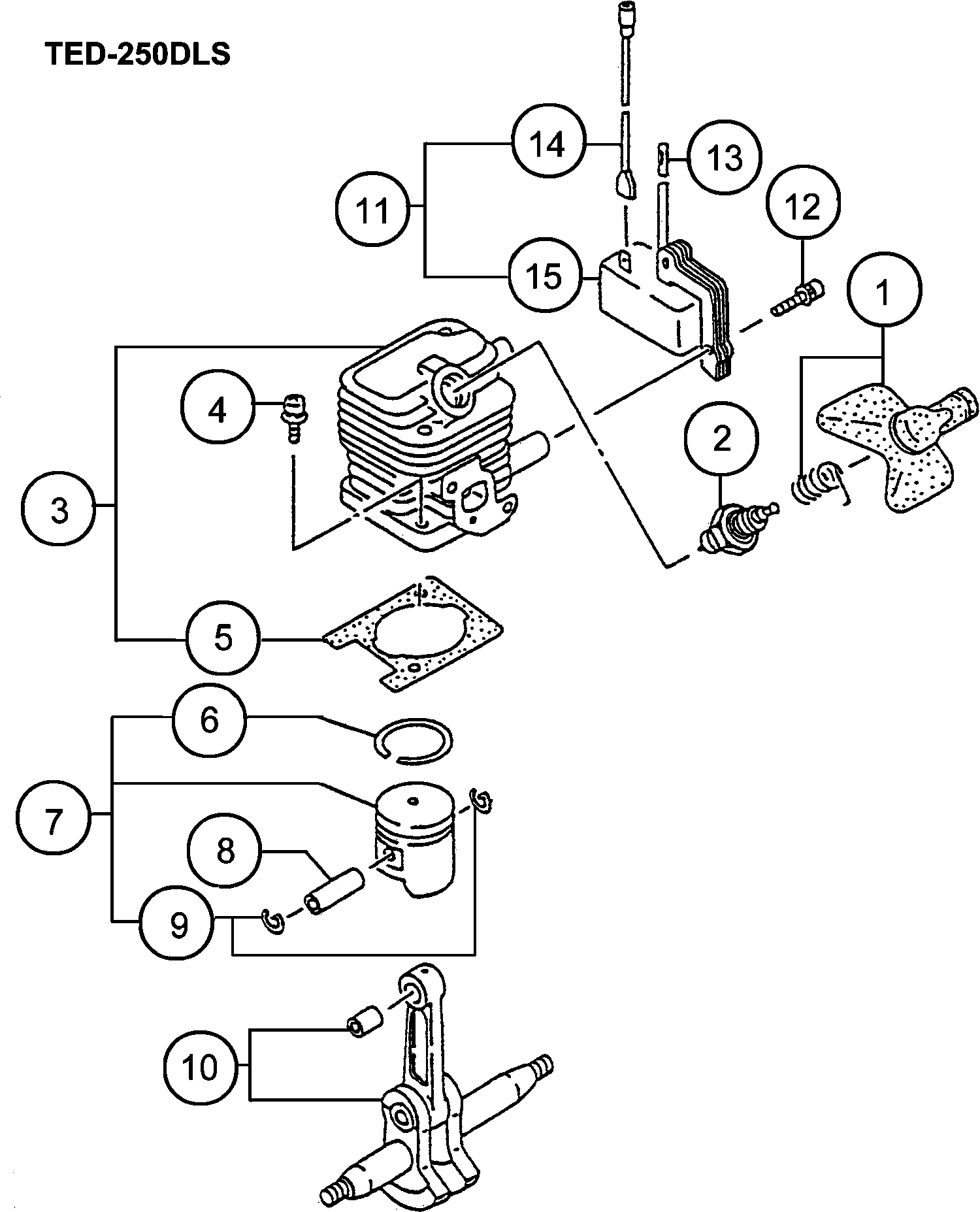

Dessins des HIKOKI TED-250DLS
Liste de pièces de rechange des HIKOKI TED-250DLS
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Spark Plug Cap Ass'y (old 157-06500-91) | ||||
| 1 | 6687476 | Spark Plug Cap Ass'y (old 157-06500-91) | € 5.34 | |
| Bougie Rcj8y | ||||
| 2 | 6699328 | Bougie Rcj8y | € 3.96 | |
| Cylinder Set (old 001-06600-90) | ||||
| 3 | 6685481 | Cylinder Set (old 001-06600-90) | € 53.18 | |
| Vis Ø5x18 | ||||
| 4 | 6684586 | Vis Ø5x18 | € 2.58 | |
| Cylinder Gasket (old 017-06500-20) | ||||
| 5 | 6685744 | Cylinder Gasket (old 017-06500-20) | € 1.38 | |
| Piston Ring (oud 041-01601-20) | ||||
| 6 | 6684588 | Piston Ring (oud 041-01601-20) | € 10.29 | |
| Piston Set, Spare (old 030-06600-90) | ||||
| 7 | 6685893 | Piston Set, Spare (old 030-06600-90) | € 26.68 | |
| Goupille | ||||
| 8 | 6684591 | Goupille | € 5.14 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 9 | 6686028 | Piston Pin Circlip (old 039-01620-20) | € 1.38 | |
| Crank Shaft Comp. (old 046-06500-80) | ||||
| 10 | 6686205 | Crank Shaft Comp. (old 046-06500-80) | € 86.76 | |
| Ignition Coil Ass'y (old 153-21532-92 & 6687694) | ||||
| 11 | 6695927 | Ignition Coil Ass'y (old 153-21532-92 & 6687694) | € 41.02 | |
| Vis Ø4x18 Till H124040 | ||||
| 12 | 6684599 | Vis Ø4x18 Till H124040 | € 2.58 | |
| Insulator Tube 50l (old 250-06500-20) | ||||
| 13 | 6684597 | Insulator Tube 50l (old 250-06500-20) | € 2.58 | |
| Cord (old 178-06500-80) | ||||
| 14 | 6687866 | Cord (old 178-06500-80) | € 3.96 | |
| Bobine | ||||
| 15 | 6695939 | Bobine | € 45.92 | |
| Crank Case Gasket (old 090-06500-20) | ||||
| 22 | 6686720 | Crank Case Gasket (old 090-06500-20) | € 1.38 | |
| Olie Keerring | ||||
| 23 | 6684607 | Olie Keerring | € 5.14 | |
| Roulement à billes | ||||
| 24 | 6684608 | Roulement à billes | € 4.56 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 25 | 6684604 | Gear Shaft Shim 0.20 (oud 330-00200-23) | € 2.58 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 25 | 6684605 | Gear Shaft Shim 0.30 (oud 330-00200-24) | € 2.58 | |
| Gear Shaft Shim 0.10 (old 330-00200-21) | ||||
| 25 | 6689177 | Gear Shaft Shim 0.10 (old 330-00200-21) | € 1.38 | |
| Gear Shaft Shim 0.15 (old 330-00200-22) | ||||
| 25 | 6689178 | Gear Shaft Shim 0.15 (old 330-00200-22) | € 1.38 | |
| Caoutchouc anti-vibrateur | ||||
| 26 | 6691822 | Caoutchouc anti-vibrateur | € 1.38 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 27 | 6684786 | Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | € 2.58 | |
| Vliegwiel | ||||
| 28 | 6687389 | Vliegwiel | € 31.40 | |
| Ring M8 (old 992-01080-011) | ||||
| 29 | 6684611 | Ring M8 (old 992-01080-011) | € 2.58 | |
| Bague | ||||
| 30 | 6684971 | Bague | € 1.24 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 31 | 6684612 | Nut M8 (old 991-01080-011/327325/332299/726603) | € 2.58 | |
| Épuisé | ||||
| 32 | 6686778 | Épuisé | ||
| Intake Pipe Gasket (old 403-06500-20) | ||||
| 41 | 6689891 | Intake Pipe Gasket (old 403-06500-20) | € 1.38 | |
| Carb. Insulator Set,spare (old 404-06500-90) | ||||
| 42 | 6689966 | Carb. Insulator Set,spare (old 404-06500-90) | € 8.31 | |
| Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | ||||
| 43 | 6695515 | Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | € 1.38 | |
| Carburetor Gasket (old 402-06500-20) | ||||
| 44 | 6689839 | Carburetor Gasket (old 402-06500-20) | € 1.38 | |
| O-ring P-15 | ||||
| 45 | 6698966 | O-ring P-15 | € 1.24 | |
| Cleaner Body Comp. (old 423-06500-81/6690118) For | ||||
| 46 | 6690119 | Cleaner Body Comp. (old 423-06500-81/6690118) For | € 5.34 | |
| Collar 7.5 (old 470-06500-20) | ||||
| 47 | 6690804 | Collar 7.5 (old 470-06500-20) | € 1.38 | |
| Choke Valve (old 528-06500-20) | ||||
| 48 | 6691272 | Choke Valve (old 528-06500-20) | € 2.78 | |
| Épuisé | ||||
| 49 | 6684658 | Épuisé | ||
| Blow Over Check Board (old 476-01700-20/790189) | ||||
| 50 | 6690843 | Blow Over Check Board (old 476-01700-20/790189) | € 1.38 | |
| Ring (oud 992-10050-012) | ||||
| 51 | 6684662 | Ring (oud 992-10050-012) | € 2.58 | |
| Screw M5x60 (oud 990-11050-602) | ||||
| 52 | 6684660 | Screw M5x60 (oud 990-11050-602) | € 2.58 | |
| Reinigingsspons | ||||
| 53 | 6690364 | Reinigingsspons | € 1.38 | |
| Luchtfilterkap | ||||
| 54 | 6690417 | Luchtfilterkap | € 7.12 | |
| Special Screw (old 380-0637c-20) | ||||
| 55 | 6689737 | Special Screw (old 380-0637c-20) | € 1.38 | |
| Épuisé | ||||
| 56 | 6690482 | Épuisé | ||
| Carburateurset | ||||
| 56A | 6690493 | Carburateurset | € 72.42 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 57 | 6685247 | Shield Tube Ass'y (old 223-06500-90) | € 2.78 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 58 | 6684619 | Clip.6.3 Dia. (old 680-00731-20) | € 2.58 | |
| Épuisé | ||||
| 59 | 6684620 | Épuisé | ||
| Tank White (old 591-0664a-20) | ||||
| 60 | 6691582 | Tank White (old 591-0664a-20) | € 11.68 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 61 | 6692244 | Collar 5.8 (old 659-00801-20) | € 1.38 | |
| Hex. Hole Bolt 5x18ps (old 994-63050-185) | ||||
| 62 | 6695505 | Hex. Hole Bolt 5x18ps (old 994-63050-185) | € 1.38 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 63 | 6691337 | Swivel Cap (old 560-07120-21/6684628) | € 1.38 | |
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 64 | 6691763 | Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | € 9.10 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 65 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 7.12 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 66 | 6692347 | Fuel Pipe 2.5x4x80 (old 700-02504-08) | € 1.38 | |
| Fuel Pipe 2.5x4x70 (old 700-02504-07) | ||||
| 67 | 6692346 | Fuel Pipe 2.5x4x70 (old 700-02504-07) | € 1.38 | |
| Return Grommet (old 6684627) | ||||
| 68 | 6697846 | Return Grommet (old 6684627) | € 1.24 | |
| Épuisé | ||||
| 69 | 6684625 | Épuisé | ||
| Muffler Protector (old 738-06600-20) | ||||
| 81 | 6692799 | Muffler Protector (old 738-06600-20) | € 6.74 | |
| Muffler Gasket (old 737-06500-20) | ||||
| 82 | 6692744 | Muffler Gasket (old 737-06500-20) | € 1.38 | |
| Warmteschild | ||||
| 83 | 6687252 | Warmteschild | € 2.78 | |
| Épuisé | ||||
| 84 | 6692480 | Épuisé | ||
| Bague | ||||
| 85 | 6684661 | Bague | € 2.58 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 86 | 6685114 | Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | € 1.38 | |
| Grommet (old 203-0604a-20) | ||||
| 87 | 6688050 | Grommet (old 203-0604a-20) | € 1.38 | |
| Hex.hole Bolt 4x18ps (old 994-63040-184) | ||||
| 88 | 6695502 | Hex.hole Bolt 4x18ps (old 994-63040-184) | € 1.38 | |
| Slipkoppeling Kompleet | ||||
| 89 | 6688494 | Slipkoppeling Kompleet | € 11.68 | |
| Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
| 90 | 6684636 | Tapping Screw D4.5x16 (old 990-72045-164/790451) | € 2.58 | |
| Bolt 4x12ps (old 994-25040-128) | ||||
| 91 | 6695441 | Bolt 4x12ps (old 994-25040-128) | € 1.38 | |
| Enveloppe De Ventilateur | ||||
| 92 | 6687014 | Enveloppe De Ventilateur | € 20.32 | |
| Starter Rope Reel (old 774-0651h-20) | ||||
| 93 | 6693072 | Starter Rope Reel (old 774-0651h-20) | € 6.14 | |
| Cam Plate (old 759-0651h-20) | ||||
| 94 | 6684678 | Cam Plate (old 759-0651h-20) | € 7.72 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 95 | 6684677 | Dumper Spring (old 758-0651h-20) | € 10.29 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 96 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 13.86 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 97 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.58 | |
| Rope 3x890 (old 783-0651h-20) | ||||
| 98 | 6693172 | Rope 3x890 (old 783-0651h-20) | € 2.78 | |
| Starthendel | ||||
| 99 | 6693237 | Starthendel | € 1.38 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 100 | 6684681 | Starter Pulley Ass'y (old 798-0651h-90) | € 15.84 | |
| Deflector (old 132-06602-20) | ||||
| 101 | 6687209 | Deflector (old 132-06602-20) | € 7.72 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 102 | 6684685 | Starter Pawl (old 788-0651h-20) | € 5.14 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 103 | 6684684 | Starter Pawl Spring (old 790-06097-20) | € 5.14 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 104 | 6684683 | Stop Ring E-5 (old 993-55050-000) | € 2.58 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 111 | 6684698 | Throttle Set Screw (old 548-25140-20) | € 5.14 | |
| Swivel (oud 539-25120-20) | ||||
| 112 | 6684697 | Swivel (oud 539-25120-20) | € 7.72 | |
| Stop Ring (oud 489-25100-20) | ||||
| 113 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.58 | |
| O-RING (OUD 550-25100-20) | ||||
| 114 | 6684695 | O-RING (OUD 550-25100-20) | € 5.14 | |
| Main Jet #40 (old 599-2000w-40) | ||||
| 115 | 6691845 | Main Jet #40 (old 599-2000w-40) | € 5.34 | |
| Épuisé | ||||
| 115A | 6691872 | Épuisé | ||
| Pump Gasket (old 577-25100-20) | ||||
| 116 | 6691457 | Pump Gasket (old 577-25100-20) | € 8.52 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 117 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 10.29 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 118 | 6684700 | Inlet Screen (oud 578-25007-20) | € 5.14 | |
| Pump Body Comp. (old 575-25147-80/6691428) | ||||
| 119 | 6691430 | Pump Body Comp. (old 575-25147-80/6691428) | € 43.38 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 120 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.78 | |
| Metering Diaphragm Comp. (old 474-25241-80) | ||||
| 121 | 6690830 | Metering Diaphragm Comp. (old 474-25241-80) | € 14.25 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 122 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 123 | 6691312 | Set Screw (old 548-25101-20) | € 1.38 | |
| Throttle Valve Comp. (old 488-25145-80) | ||||
| 124 | 6684883 | Throttle Valve Comp. (old 488-25145-80) | € 22.50 | |
| Gear Case A Comp. (old 002-32182-80) | ||||
| 151 | 6685578 | Gear Case A Comp. (old 002-32182-80) | € 33.76 | |
| Épuisé | ||||
| 152 | 6685593 | Épuisé | ||
| Clutch Housing Comp. (old 226-32149-80) | ||||
| 153 | 6688201 | Clutch Housing Comp. (old 226-32149-80) | € 20.50 | |
| Gear 2 (old 012-32120-20) | ||||
| 154 | 6685655 | Gear 2 (old 012-32120-20) | € 36.30 | |
| Gear 2 (old 012-32191-20) | ||||
| 154A | 6685656 | Gear 2 (old 012-32191-20) | € 34.12 | |
| Épuisé | ||||
| 155A | 6685702 | Épuisé | ||
| Wood-ruff Key 3x10x3.7 (old 068-00300-20) | ||||
| 156 | 6686454 | Wood-ruff Key 3x10x3.7 (old 068-00300-20) | € 1.38 | |
| Roulement à billes | ||||
| 157 | 6695532 | Roulement à billes | € 7.92 | |
| Roulement à billes | ||||
| 158 | 6684608 | Roulement à billes | € 4.56 | |
| Épuisé | ||||
| 158A | 6695534 | Épuisé | ||
| Stop Ring C-12 Outer | ||||
| 159 | 6684664 | Stop Ring C-12 Outer | € 2.58 | |
| Stop Ring C 11, Outer (old 993-50011-002) | ||||
| 159A | 6695282 | Stop Ring C 11, Outer (old 993-50011-002) | € 1.38 | |
| Gear 4 (old 018-32182-20) | ||||
| 160 | 6685787 | Gear 4 (old 018-32182-20) | € 26.68 | |
| Gear 4 (old 018-32192-20) | ||||
| 160A | 6685788 | Gear 4 (old 018-32192-20) | € 60.26 | |
| Roulement à billes | ||||
| 161 | 6695587 | Roulement à billes | € 17.06 | |
| Washer C 5.0 (old 040-32120-20) | ||||
| 162 | 6686065 | Washer C 5.0 (old 040-32120-20) | € 3.96 | |
| Roulement à billes | ||||
| 163 | 6695559 | Roulement à billes | € 7.72 | |
| Bague | ||||
| 164 | 6695206 | Bague | € 1.38 | |
| Stop Ring C-35, Inner (old 993-51035-002/791059) | ||||
| 165 | 6695296 | Stop Ring C-35, Inner (old 993-51035-002/791059) | € 1.38 | |
| Wood-ruff Key 3x13x5 (old 068-01006-20) | ||||
| 166 | 6686455 | Wood-ruff Key 3x13x5 (old 068-01006-20) | € 1.38 | |
| Drive Shaft (old 022-32183-20) | ||||
| 167 | 6685824 | Drive Shaft (old 022-32183-20) | € 125.42 | |
| Screw 5x18/s (old 994-14050-181) | ||||
| 168 | 6695339 | Screw 5x18/s (old 994-14050-181) | € 1.38 | |
| Stop Ring C-13, Outer (old 993-50013-002) | ||||
| 169 | 6695283 | Stop Ring C-13, Outer (old 993-50013-002) | € 1.38 | |
| Lock Lever Spring (old 406-32182-20) | ||||
| 171 | 6689998 | Lock Lever Spring (old 406-32182-20) | € 5.34 | |
| Bague | ||||
| 172 | 6687942 | Bague | € 1.38 | |
| Bague | ||||
| 173 | 6685103 | Bague | € 1.38 | |
| Step Bolt (old 793-10200-20) | ||||
| 174 | 6693366 | Step Bolt (old 793-10200-20) | € 1.38 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 175 | 6688643 | GREASE NIPPLE COMP. (OLD 300-32250-80) | € 1.38 | |
| Bague | ||||
| 176 | 6695219 | Bague | € 1.38 | |
| Épuisé | ||||
| 177 | 6684792 | Épuisé | ||
| Protection Tube 10x420l (old 164-10042-00) | ||||
| 191 | 6687577 | Protection Tube 10x420l (old 164-10042-00) | € 1.38 | |
| Handle Comp. (old 047-32175-82) | ||||
| 192 | 6686247 | Handle Comp. (old 047-32175-82) | € 166.26 | |
| Bague | ||||
| 193 | 6684639 | Bague | € 2.58 | |
| Bague | ||||
| 194 | 6695219 | Bague | € 1.38 | |
| Plus Bolt 6x12 (old 990-23060-121) New | ||||
| 195 | 6695015 | Plus Bolt 6x12 (old 990-23060-121) New | € 1.38 | |
| Bague | ||||
| 196 | 6695198 | Bague | € 1.38 | |
| Bague | ||||
| 197 | 6695225 | Bague | € 1.38 | |
| Bolt 10x20 (old 990-21100-201) New | ||||
| 198 | 6695005 | Bolt 10x20 (old 990-21100-201) New | € 1.38 | |
| Throttle Lever Ass'y (old 101-32175-90) | ||||
| 199 | 6686800 | Throttle Lever Ass'y (old 101-32175-90) | € 11.28 | |
| Épuisé | ||||
| 200 | 6693916 | Épuisé | ||
| Stop Button Comp. (old 170-32475-80) | ||||
| 201 | 6687759 | Stop Button Comp. (old 170-32475-80) | € 11.28 | |
| Cord Clamp Comp. (old 198-10246-80) | ||||
| 202 | 6688008 | Cord Clamp Comp. (old 198-10246-80) | € 1.38 | |
| Stop Button Bracket (old 640-32465-21) | ||||
| 203 | 6692138 | Stop Button Bracket (old 640-32465-21) | € 3.96 | |
| Button Stop (old 258-11650-20) | ||||
| 204 | 6688366 | Button Stop (old 258-11650-20) | € 1.38 | |
| Stop Button Mark (old 925-33176-20) | ||||
| 205 | 6694589 | Stop Button Mark (old 925-33176-20) | € 2.78 | |
| Screw 3x10 (old 994-31030-101) | ||||
| 206 | 6684913 | Screw 3x10 (old 994-31030-101) | € 2.58 | |
| Cord Clamp (old 198-33130-20) | ||||
| 207 | 6688015 | Cord Clamp (old 198-33130-20) | € 1.38 | |
| Cord B 130m (old 274-0700d-80) | ||||
| 208 | 6688461 | Cord B 130m (old 274-0700d-80) | € 1.38 | |
| Spanner 17x19 (old 049-29321-75) New | ||||
| 501 | 6686251 | Spanner 17x19 (old 049-29321-75) New | € 5.22 | |
| Épuisé | ||||
| 502 | 6684764 | Épuisé | ||
| Épuisé | ||||
| 503 | 6693647 | Épuisé | ||
Votre panier contient 0 de produits.
