Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki THT-2540'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

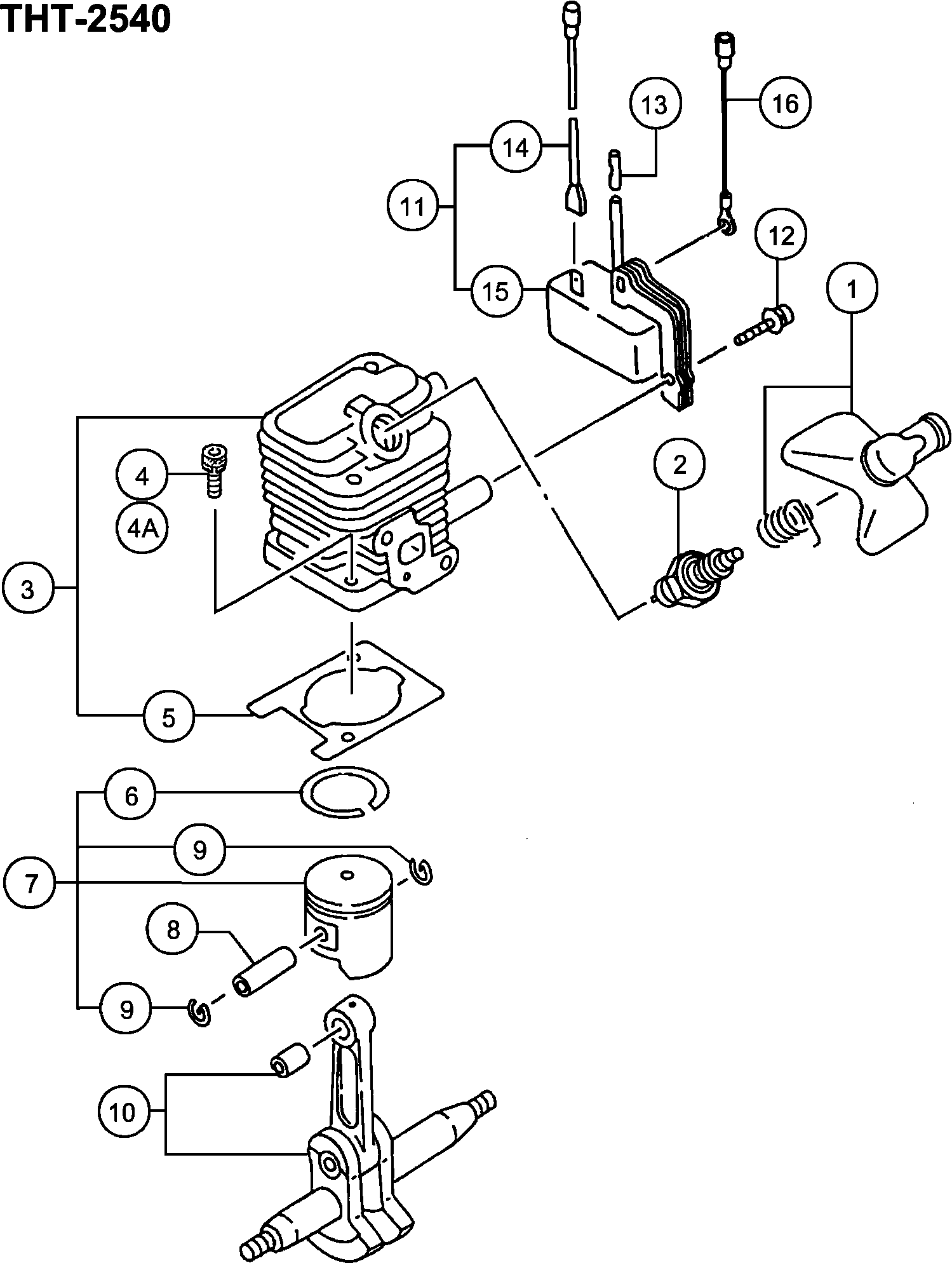

Dessins des Hikoki THT-2540
Liste de pièces de rechange des Hikoki THT-2540
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Spark Plug Cap Ass'y (old 157-06500-91) | ||||
| 1 | 6687476@1417 | 4.45 | 5.34 | |
| Bougie Rcj8y | ||||
| 2 | 6699328@1417 | 3.30 | 3.96 | |
| Cylinder Set (old 001-06600-90) | ||||
| 3 | 6685481@1417 | 44.31 | 53.18 | |
| Vis Ø5x18 | ||||
| 4 | 6684586@1417 | 2.15 | 2.58 | |
| Pas d'informations disponibles, non commandable | ||||
| 4A | 6684668@1417 | |||
| Cylinder Gasket (old 017-06500-20) | ||||
| 5 | 6685744@1417 | 1.15 | 1.38 | |
| Piston Ring (oud 041-01601-20) | ||||
| 6 | 6684588@1417 | 8.58 | 10.29 | |
| Piston Set, Spare (old 030-06600-90) | ||||
| 7 | 6685893@1417 | 22.24 | 26.68 | |
| Goupille | ||||
| 8 | 6684591@1417 | 4.29 | 5.14 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 9 | 6686028@1417 | 1.15 | 1.38 | |
| Crank Shaft Comp. (old 046-06500-80) | ||||
| 10 | 6686205@1417 | 72.30 | 86.76 | |
| Ignition Coil Ass'y (old 153-21532-92 & 6687694) | ||||
| 11 | 6695927@1417 | 34.19 | 41.02 | |
| Vis Ø4x18 Till H124040 | ||||
| 12 | 6684599@1417 | 2.15 | 2.58 | |
| Insulator Tube 50l (old 250-06500-20) | ||||
| 13 | 6684597@1417 | 2.15 | 2.58 | |
| Cord (old 178-06500-80) | ||||
| 14 | 6687866@1417 | 3.30 | 3.96 | |
| Bobine | ||||
| 15 | 6695939@1417 | 38.26 | 45.92 | |
| Cord (old 274-51705-80) | ||||
| 16 | 6688477@1417 | 2.31 | 2.78 | |
| Crank Case Ass'y | ||||
| 21 | 6601159@1417 | 44.46 | 53.36 | |
| Crank Case Gasket (old 090-06500-20) | ||||
| 22 | 6686720@1417 | 1.15 | 1.38 | |
| Olie Keerring | ||||
| 23 | 6684607@1417 | 4.29 | 5.14 | |
| Roulement à billes | ||||
| 24 | 6684608@1417 | 3.80 | 4.56 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 25 | 6684604@1417 | 2.15 | 2.58 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 25 | 6684605@1417 | 2.15 | 2.58 | |
| Gear Shaft Shim 0.10 (old 330-00200-21) | ||||
| 25 | 6689177@1417 | 1.15 | 1.38 | |
| Gear Shaft Shim 0.15 (old 330-00200-22) | ||||
| 25 | 6689178@1417 | 1.15 | 1.38 | |
| Caoutchouc anti-vibrateur | ||||
| 26 | 6691822@1417 | 1.15 | 1.38 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 27 | 6684786@1417 | 2.15 | 2.58 | |
| Vliegwiel | ||||
| 28 | 6687389@1417 | 26.16 | 31.40 | |
| Ring M8 (old 992-01080-011) | ||||
| 29 | 6684611@1417 | 2.15 | 2.58 | |
| Bague | ||||
| 30 | 6684971@1417 | 1.04 | 1.24 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 31 | 6684612@1417 | 2.15 | 2.58 | |
| Stud Bolt 6x22 (old 100-02100-20) | ||||
| 32 | 6686771@1417 | 1.15 | 1.38 | |
| Intake Pipe Gasket (old 403-06500-20) | ||||
| 41 | 6689891@1417 | 1.15 | 1.38 | |
| Carb. Insulator Set,spare (old 404-06500-90) | ||||
| 42 | 6689966@1417 | 6.93 | 8.31 | |
| Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | ||||
| 43 | 6695515@1417 | 1.15 | 1.38 | |
| Carburetor Gasket (old 402-06500-20) | ||||
| 44 | 6689839@1417 | 1.15 | 1.38 | |
| O-ring P-15 | ||||
| 45 | 6698966@1417 | 1.04 | 1.24 | |
| Cleaner Body Comp. (old 423-06500-81/6690118) For | ||||
| 46 | 6690119@1417 | 4.45 | 5.34 | |
| Collar 7.5 (old 470-06500-20) | ||||
| 47 | 6690804@1417 | 1.15 | 1.38 | |
| Choke Valve (old 528-06500-20) | ||||
| 48 | 6691272@1417 | 2.31 | 2.78 | |
| Choke Valve (old 528-0650t-20) | ||||
| 48A | 6691274@1417 | 2.31 | 2.78 | |
| Pas d'informations disponibles, non commandable | ||||
| 49 | 6684658@1417 | |||
| Blow Over Check Board (old 476-01700-20/790189) | ||||
| 50 | 6690843@1417 | 1.15 | 1.38 | |
| Ring (oud 992-10050-012) | ||||
| 51 | 6684662@1417 | 2.15 | 2.58 | |
| Screw M5x60 (oud 990-11050-602) | ||||
| 52 | 6684660@1417 | 2.15 | 2.58 | |
| Reinigingsspons | ||||
| 53 | 6690364@1417 | 1.15 | 1.38 | |
| Luchtfilterkap | ||||
| 54 | 6690417@1417 | 5.94 | 7.12 | |
| Special Screw (old 380-0637c-20) | ||||
| 55 | 6689737@1417 | 1.15 | 1.38 | |
| Plus disponible, pas de remplacement | ||||
| 56 | 6690482@1417 | |||
| Carburateurset | ||||
| 56A | 6690487@1417 | 72.30 | 86.76 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 57 | 6685247@1417 | 2.31 | 2.78 | |
| Clip D6 (old 680-00070-20) | ||||
| 58 | 6685198@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 59 | 6684620@1417 | |||
| Tank White (old 591-0664a-20) | ||||
| 60 | 6691582@1417 | 9.74 | 11.68 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 61 | 6692244@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt 5x18ps (old 994-63050-185) | ||||
| 62 | 6695505@1417 | 1.15 | 1.38 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 63 | 6691337@1417 | 1.15 | 1.38 | |
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 64 | 6691763@1417 | 7.59 | 9.10 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 65 | 6685139@1417 | 5.94 | 7.12 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 66 | 6692347@1417 | 1.15 | 1.38 | |
| Fuel Pipe 2.5x4x70 (old 700-02504-07) | ||||
| 67 | 6692346@1417 | 1.15 | 1.38 | |
| Return Grommet (old 6684627) | ||||
| 68 | 6697846@1417 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 69 | 6684625@1417 | |||
| Muffler Protector (old 738-06600-20) | ||||
| 81 | 6692799@1417 | 5.61 | 6.74 | |
| Muffler Gasket (old 737-06500-20) | ||||
| 82 | 6692744@1417 | 1.15 | 1.38 | |
| Warmteschild | ||||
| 83 | 6687252@1417 | 2.31 | 2.78 | |
| Muffler Set (old 704-06504-91) | ||||
| 84 | 6692477@1417 | 13.04 | 15.64 | |
| Bague | ||||
| 85 | 6684661@1417 | 2.15 | 2.58 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 86 | 6685114@1417 | 1.15 | 1.38 | |
| Enveloppe De Ventilateur | ||||
| 87 | 6687010@1417 | 16.79 | 20.14 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 88 | 6684675@1417 | 11.55 | 13.86 | |
| Starter Rope Reel (old 774-06097-20) | ||||
| 89 | 6693066@1417 | 3.30 | 3.96 | |
| Set Screw (old 839-02010-20/6693638) | ||||
| 90 | 6693633@1417 | 1.15 | 1.38 | |
| Starter Pulley Ass'y (old 798-06500-90 & 6693401) | ||||
| 91 | 6693405@1417 | 4.45 | 5.34 | |
| Grommet (old 203-0604a-20) | ||||
| 92 | 6688050@1417 | 1.15 | 1.38 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 93 | 6693168@1417 | 2.31 | 2.78 | |
| Starthendel | ||||
| 94 | 6693237@1417 | 1.15 | 1.38 | |
| Hex.hole Bolt 4x15/ps (old 994-63040-154) | ||||
| 95 | 6684682@1417 | 2.15 | 2.58 | |
| Slipkoppeling Kompleet | ||||
| 96 | 6688494@1417 | 9.74 | 11.68 | |
| Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
| 97 | 6684636@1417 | 2.15 | 2.58 | |
| Bolt 4x12ps (old 994-25040-128) | ||||
| 98 | 6695441@1417 | 1.15 | 1.38 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 99 | 6684684@1417 | 4.29 | 5.14 | |
| Starter Pawl (old 788-06500-20) | ||||
| 100 | 6693319@1417 | 2.31 | 2.78 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 111 | 6684698@1417 | 4.29 | 5.14 | |
| Swivel (oud 539-25120-20) | ||||
| 112 | 6684697@1417 | 6.44 | 7.72 | |
| Stop Ring (oud 489-25100-20) | ||||
| 113 | 6684696@1417 | 2.15 | 2.58 | |
| Throttle Valve Comp. (old 488-25145-80) | ||||
| 114 | 6684883@1417 | 18.75 | 22.50 | |
| O-RING (OUD 550-25100-20) | ||||
| 115 | 6684695@1417 | 4.29 | 5.14 | |
| Main Jet #40 (old 599-2000w-40) | ||||
| 116 | 6691845@1417 | 4.45 | 5.34 | |
| Main Jet #34.5 (old 599-200bw-34) | ||||
| 116A | 6691888@1417 | 6.28 | 7.53 | |
| Pump Gasket (old 577-25100-20) | ||||
| 117 | 6691457@1417 | 7.10 | 8.52 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 118 | 6684693@1417 | 8.58 | 10.29 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 119 | 6684700@1417 | 4.29 | 5.14 | |
| Pump Body Comp. (old 575-25147-80/6691428) | ||||
| 120 | 6691430@1417 | 36.15 | 43.38 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 121 | 6685220@1417 | 2.31 | 2.78 | |
| Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
| 122 | 6690827@1417 | 11.71 | 14.06 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 123 | 6685222@1417 | 4.45 | 5.34 | |
| Set Screw (old 548-25101-20) | ||||
| 124 | 6691312@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 131 | 6688672@1417 | |||
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 132 | 6695294@1417 | 1.15 | 1.38 | |
| Pas d'informations disponibles, non commandable | ||||
| 133 | 6695524@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 134 | 6695526@1417 | |||
| Clutch Housing Comp. (old 288-33185-80) | ||||
| 135 | 6688571@1417 | 17.40 | 20.88 | |
| Gear 1 (old 306-33185-20) New Jun | ||||
| 136 | 6688967@1417 | 20.11 | 24.14 | |
| Gear 1 (old 306-33280-20) | ||||
| 136A | 6688968@1417 | 19.36 | 23.24 | |
| Gear 2 (old 307-33280-20) New | ||||
| 137A | 6688978@1417 | 14.38 | 17.25 | |
| Cam-rod Comp. (old 101-33185-80) | ||||
| 138 | 6686810@1417 | 34.19 | 41.02 | |
| Cam Shaft (old 100-33185-20) | ||||
| 139 | 6686791@1417 | 50.21 | 60.26 | |
| Gear Case Gasket (old 303-33185-20) | ||||
| 140 | 6688910@1417 | 1.15 | 1.38 | |
| Roulement à billes | ||||
| 141 | 6684738@1417 | 8.58 | 10.29 | |
| Afdicht Rubber | ||||
| 142 | 6686655@1417 | 1.15 | 1.38 | |
| Collar (old 247-33185-20) | ||||
| 143 | 6688293@1417 | 3.30 | 3.96 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 144 | 6684709@1417 | 2.15 | 2.58 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 145 | 6688643@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt 6x18/s (old 994-61060-184) | ||||
| 146 | 6695495@1417 | 1.15 | 1.38 | |
| Hex Hole Button Screw 6x15 (old 990-53060-153) | ||||
| 147 | 6695079@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 148 | 6695183@1417 | 1.15 | 1.38 | |
| Fixing Plate (old 070-33185-21/6686466) | ||||
| 149 | 6686467@1417 | 2.31 | 2.78 | |
| Support Plate (old 462-33185-20) New Jun | ||||
| 150 | 6690758@1417 | 2.31 | 2.78 | |
| Hex. Socket Hd. Bolt M4x10 (old 990-51040-103) | ||||
| 151 | 6685093@1417 | 1.15 | 1.38 | |
| Spring Nut 6 (old 994-40060-011) | ||||
| 152 | 6695475@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 154 | 6695219@1417 | 1.15 | 1.38 | |
| Spring Nut 6 (old 994-40060-011) | ||||
| 155 | 6695475@1417 | 1.15 | 1.38 | |
| Cutter Guide (old 122-33185-20) | ||||
| 171 | 6687140@1417 | 50.21 | 60.26 | |
| Cuter Guide 1105l M6 (old 122-33186-20) | ||||
| 171A | 6687141@1417 | 50.21 | 60.26 | |
| Protection Plate (old 136-3318b-20) | ||||
| 172 | 6687288@1417 | 17.40 | 20.88 | |
| Hex. Hole Screw 6x25 (old 990-52060-253) | ||||
| 173 | 6695074@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 174 | 6684822@1417 | 2.15 | 2.58 | |
| Cutter B 1132l (old 121-33185-21/6687110) | ||||
| 175 | 6687111@1417 | 78.35 | 94.02 | |
| Bovenmes (a) | ||||
| 176 | 6687089@1417 | 78.35 | 94.02 | |
| Bague | ||||
| 177 | 6687187@1417 | 1.15 | 1.38 | |
| Boulon | ||||
| 178 | 6687160@1417 | 1.15 | 1.38 | |
| Boulon | ||||
| 178A | 6687158@1417 | 1.15 | 1.38 | |
| Blade Holder (old 128-33202-20) | ||||
| 179 | 6687180@1417 | 2.31 | 2.78 | |
| Boulon | ||||
| 180 | 6687167@1417 | 1.15 | 1.38 | |
| Boulon | ||||
| 180A | 6687168@1417 | 1.15 | 1.38 | |
| Handle B Comp. (old 051-33185-81 & 6686310) | ||||
| 181 | 6686311@1417 | 14.21 | 17.06 | |
| Handle Grip (old 165-37590-20) | ||||
| 182 | 6684708@1417 | 6.44 | 7.72 | |
| Cutter Fixing Nut (old 123-33202-20) | ||||
| 183 | 6687156@1417 | 1.15 | 1.38 | |
| Ecrou de bride | ||||
| 183A | 6695170@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 184 | 6684639@1417 | 2.15 | 2.58 | |
| Bague | ||||
| 185 | 6695219@1417 | 1.15 | 1.38 | |
| Bague | ||||
| 186 | 6684639@1417 | 2.15 | 2.58 | |
| Cutter Cover (old 138-33185-21) | ||||
| 187 | 6687303@1417 | 12.88 | 15.45 | |
| Blade Cover (old 138-33186-20) | ||||
| 187A | 6687304@1417 | 7.59 | 9.10 | |
| Gathering Plate, Oblong (old 350-33210-20) | ||||
| 188 | 6689539@1417 | 17.55 | 21.06 | |
| Bague | ||||
| 189 | 6684822@1417 | 2.15 | 2.58 | |
| Handle Grip A (old 053-33231-22) New | ||||
| 201 | 6686338@1417 | 4.95 | 5.94 | |
| Handle Grip B (old 054-33231-23) New | ||||
| 202 | 6686349@1417 | 4.95 | 5.94 | |
| Throttle Lever (old 230-33210-20) | ||||
| 203 | 6688229@1417 | 2.31 | 2.78 | |
| Safety Lever (old 231-33210-20) | ||||
| 204 | 6688238@1417 | 2.31 | 2.78 | |
| Throttle Lever Spring (old 061-32600-20) | ||||
| 205 | 6686414@1417 | 2.31 | 2.78 | |
| Stop Switch Comp. (old 170-32465-80) | ||||
| 206 | 6687758@1417 | 8.91 | 10.70 | |
| Stop Button Mark (old 925-32530-20) | ||||
| 207 | 6694585@1417 | 1.15 | 1.38 | |
| Cap (old 765-32120-20) | ||||
| 208 | 6693002@1417 | 1.15 | 1.38 | |
| Screw 4x30/ws (old 994-16040-301) | ||||
| 209 | 6695412@1417 | 1.15 | 1.38 | |
| Screw 4x25/ws (old 994-16040-251) | ||||
| 210 | 6695411@1417 | 1.15 | 1.38 | |
| Handle Grip Ass'y (old 055-33185-90) | ||||
| 211 | 6686354@1417 | 28.14 | 33.76 | |
| Handle A Comp. (old 050-33185-80) | ||||
| 212 | 6686275@1417 | 22.24 | 26.68 | |
| Throttle Wire 270+49 (old 885-03014-80 & 6693877) | ||||
| 213 | 6693877@1417 | 4.45 | 5.34 | |
| Protection Tube 10x150l (old 164-10015-00/6687556/ | ||||
| 214 | 6687558@1417 | 1.15 | 1.38 | |
| Screw 4x16ws (old 994-16040-161) | ||||
| 215 | 6695404@1417 | 1.15 | 1.38 | |
| Nylon Lock Nut 4 (old 991-78040-010) | ||||
| 216 | 6695163@1417 | 1.15 | 1.38 | |
| Screw 3x10 (old 994-31030-101) | ||||
| 217 | 6684913@1417 | 2.15 | 2.58 | |
| Button Stop (old 258-11650-20) | ||||
| 218 | 6688366@1417 | 1.15 | 1.38 | |
| Cord Clamp (old 198-33130-20) | ||||
| 219 | 6688015@1417 | 1.15 | 1.38 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 220 | 6684667@1417 | 2.15 | 2.58 | |
| Handle Bracket (old 058-33185-20) | ||||
| 221 | 6686370@1417 | 6.28 | 7.53 | |
| Handle Dumper Rubber (old 060-33185-20) | ||||
| 222 | 6686396@1417 | 2.31 | 2.78 | |
| Combi Box Spanner 10/19mm (old 013-29323-50/668566 | ||||
| 501 | 6685257@1417 | 3.30 | 3.96 | |
| Pas d'informations disponibles, non commandable | ||||
| 502 | 6684813@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 601 | 6699688@1417 | |||
