Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki TPS-200H'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

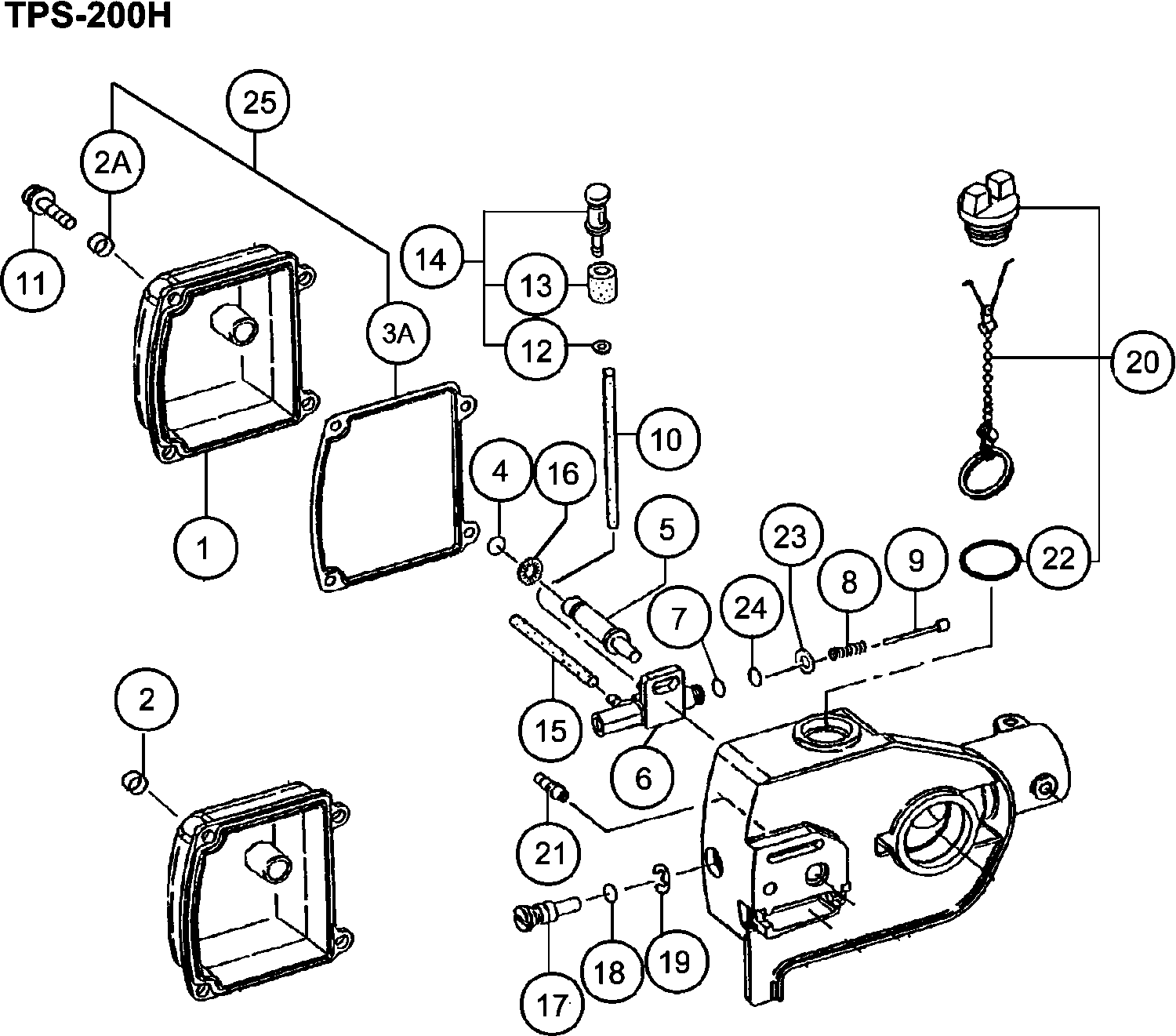

Dessins des Hikoki TPS-200H
Liste de pièces de rechange des Hikoki TPS-200H
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Olie Tank Omhulsel | ||||
| 1 | 6686138 | 2.31 | 2.78 | |
| Collar 3 (old 031-32304-20) | ||||
| 2 | 6685961 | 1.15 | 1.38 | |
| Collar 3 | ||||
| 2A | 6699273 | 1.15 | 1.38 | |
| Oil Tank Gasket (old 6690084) | ||||
| 3A | 6699567 | 2.15 | 2.58 | |
| O-ring P-5 (old 999-67005-000/6698965) | ||||
| 4 | 6695661 | 1.15 | 1.38 | |
| Step Bolt A (old 382-32304-20) | ||||
| 5 | 6689757 | 4.45 | 5.34 | |
| Oil Pump Comp. (old 071-32344-80) | ||||
| 6 | 6686487 | 17.09 | 20.50 | |
| O-ring P-5 (old 999-67005-000/6698965) | ||||
| 7 | 6695661 | 1.15 | 1.38 | |
| Oil Pump Spring (old 449-32304-20) | ||||
| 8 | 6690381 | 1.15 | 1.38 | |
| Oil Pump Piston Comp. (old 073-32304-81/6686607) | ||||
| 9 | 6686608 | 2.31 | 2.78 | |
| Fuel Pipe 3x5x60 (old 700-53005-06) | ||||
| 10 | 6692414 | 1.15 | 1.38 | |
| Small Screw 4x12ws (old 994-16040-126) | ||||
| 11 | 6695403 | 1.15 | 1.38 | |
| Bague | ||||
| 12 | 6684661 | 2.15 | 2.58 | |
| Oil Filter (old 487-32345-20) | ||||
| 13 | 6690917 | 1.15 | 1.38 | |
| Filter Ass'y (old 486-32345-90) | ||||
| 14 | 6690913 | 2.31 | 2.78 | |
| Fuel Pipe 3x5x75 (old 700-53005-07) | ||||
| 15 | 6692415 | 1.15 | 1.38 | |
| Push Nut | ||||
| 16 | 6695239 | 1.15 | 1.38 | |
| Oil Pump Adjuster (old 501-32304-21) | ||||
| 17 | 6691066 | 4.45 | 5.34 | |
| O-ring P-5 (old 999-67005-000/6698965) | ||||
| 18 | 6695661 | 1.15 | 1.38 | |
| Stop Ring E-6 (old 993-55060-001) | ||||
| 19 | 6695311 | 1.15 | 1.38 | |
| Oil Tank Cap Ass'y (old 624-32304-92) | ||||
| 20 | 6692050 | 12.05 | 14.46 | |
| Banjo, Oil Pump (old 082-32304-20) | ||||
| 21 | 6686637 | 1.15 | 1.38 | |
| O-ring P-15 | ||||
| 22 | 6698966 | 1.04 | 1.24 | |
| Bague | ||||
| 23 | 6695187 | 1.15 | 1.38 | |
| O-ring 1.4 (old 999-67001-413) | ||||
| 24 | 6695656 | 1.15 | 1.38 | |
| Tank Packing Ass'y | ||||
| 25 | 6699566 | 2.31 | 2.78 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 41 | 6695492 | 1.15 | 1.38 | |
| Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
| 42 | 6695042 | 1.15 | 1.38 | |
| Épuisé | ||||
| 43 | 6695458 | |||
| Case (old 019-32304-22) | ||||
| 44 | 6685793 | 14.35 | 17.22 | |
| Gear Pinion Set Spare (old 301-32344-00) | ||||
| 45 | 6688836 | 36.15 | 43.38 | |
| Roulement à billes | ||||
| 46 | 6684734 | 8.58 | 10.29 | |
| Roulement à billes | ||||
| 47 | 6684735 | 8.58 | 10.29 | |
| Stop Ring C-9, Outer (old 993-50009-002) | ||||
| 48 | 6695281 | 1.15 | 1.38 | |
| Stop Ring C-24.inner (old 993-51024-002) | ||||
| 49 | 6684732 | 2.15 | 2.58 | |
| Bague | ||||
| 50 | 6693248 | 1.15 | 1.38 | |
| Roulement à billes | ||||
| 51 | 6695568 | 5.61 | 6.74 | |
| Roulement à billes | ||||
| 52 | 6697603 | 4.63 | 5.55 | |
| Stop Ring C-28.inner (old 993-51028-002) | ||||
| 53 | 6684741 | 2.15 | 2.58 | |
| Sprocket Comp.,3/8"(old 319-32304-80) | ||||
| 54 | 6689117 | 36.15 | 43.38 | |
| Ecrou de bride | ||||
| 55 | 6695170 | 1.15 | 1.38 | |
| Side Cover Comp. (old 039-32304-80) | ||||
| 56 | 6686038 | 5.11 | 6.14 | |
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 57 | 6687105 | 1.15 | 1.38 | |
| Chain Bar Knock Pin (old 122-32344-21) | ||||
| 58 | 6687130 | 4.45 | 5.34 | |
| Guide Plate (old 6690726) | ||||
| 59 | 6697596 | 3.30 | 3.96 | |
| Chain Bar Tightening Bolt (old 101-32344-21) | ||||
| 60 | 6686803 | 4.45 | 5.34 | |
| Chian Tensioner Ass'y (old 116-32304-90) | ||||
| 61 | 6687063 | 4.45 | 5.34 | |
| Cam (old 452-32344-20) | ||||
| 62 | 6690428 | 1.15 | 1.38 | |
| Collar (old 031-32344-20) | ||||
| 63 | 6685962 | 3.30 | 3.96 | |
| Épuisé | ||||
| 64 | 6699679 | |||
| Épuisé | ||||
| 65 | 6686875 | |||
| Drive Shaft Comp. (old 343-32331-80) | ||||
| 81 | 6689441 | 24.20 | 29.04 | |
| Stuurbuis | ||||
| 82 | 6689311 | 18.30 | 21.96 | |
| Épuisé | ||||
| 83 | 6684831 | |||
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 84 | 6684709 | 2.15 | 2.58 | |
| Handle Knob (old 512-3338p-20) | ||||
| 85 | 6684823 | 4.29 | 5.14 | |
| Joint Case (old 280-32331-22/6697615) | ||||
| 86 | 6688517 | 32.21 | 38.66 | |
| Lock Pin Comp. (old 352-32331-80) | ||||
| 87 | 6689601 | 7.93 | 9.51 | |
| Hex.bolt 6x50 (old 990-21060-504) | ||||
| 88 | 6684824 | 2.15 | 2.58 | |
| Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
| 89 | 6695042 | 1.15 | 1.38 | |
| Épuisé | ||||
| 90 | 6685075 | |||
| Stop Ring C-10, Outer (old 993-50010-002) | ||||
| 91 | 6684821 | 2.15 | 2.58 | |
| Roulement à billes | ||||
| 92 | 6695578 | 7.59 | 9.10 | |
| Collar B (old 348-33130-20) | ||||
| 93 | 6689530 | 4.45 | 5.34 | |
| Bague | ||||
| 94 | 6684642 | 2.15 | 2.58 | |
| Épuisé | ||||
| 95 | 6684792 | |||
| Cap Nut 6 (old 991-42060-012) | ||||
| 96 | 6684828 | 2.15 | 2.58 | |
| Combi Box Spanner 13x19 Minus (old 883-32600-20) | ||||
| 501 | 6693809 | 4.45 | 5.34 | |
| Chain Cover 10" (old 941-32333-20) | ||||
| 502 | 6694796 | 6.28 | 7.53 | |
