Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki UM22VYSTUAZ'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

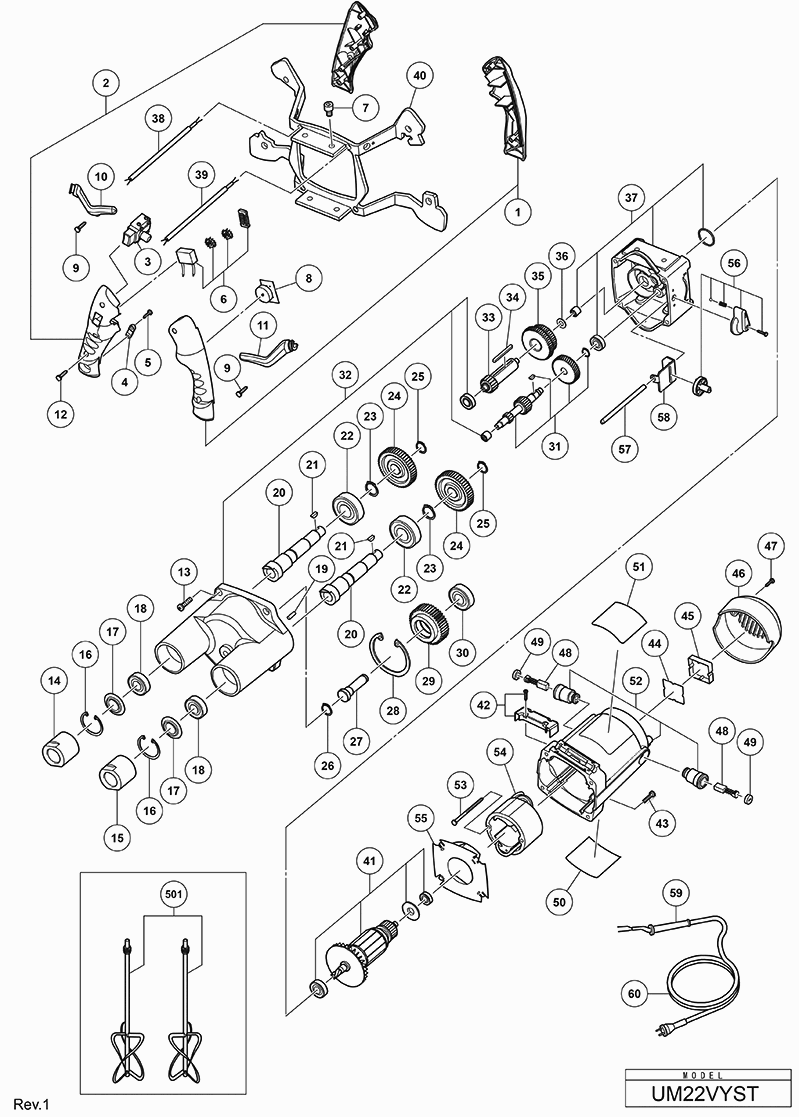

Dessins des Hikoki UM22VYSTUAZ
Liste de pièces de rechange des Hikoki UM22VYSTUAZ
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| HANDLE ASS'Y (L) | ||||
| 1 | 375046 | 8.40 | 10.08 | |
| HANDLE ASS'Y (R) | ||||
| 2 | 375047 | 8.40 | 10.08 | |
| SWITCH | ||||
| 3 | 375067 | 5.55 | 6.66 | |
| Collier (1) | ||||
| 4 | 333609 | 1.04 | 1.24 | |
| SCREW ST4.2X12 (2 PCS.) | ||||
| 5 | 375060 | 1.04 | 1.24 | |
| INDUCTANCE UNIT | ||||
| 6 | 375058 | 3.60 | 4.32 | |
| SCREW M8X14 (4 PCS.) | ||||
| 7 | 375056 | 2.85 | 3.42 | |
| CIRCUITRY BOARD | ||||
| 8 | 375068 | 6.45 | 7.74 | |
| SCREW ST3X14 (2 PCS.) NEW | ||||
| 9 | 375059 | 1.04 | 1.24 | |
| WIRING GROOVE (R) | ||||
| 10 | 375049 | 1.50 | 1.80 | |
| WIRING GROOVE (L) | ||||
| 11 | 375048 | 1.50 | 1.80 | |
| SCREW ST3.9X16 (6 PCS.) | ||||
| 12 | 375053 | 1.04 | 1.24 | |
| Screw M5x20 (4 Pcs) | ||||
| 13 | 333615 | 1.04 | 1.24 | |
| SLEEVE (R) | ||||
| 14 | 375083 | 8.40 | 10.08 | |
| SLEEVE (L) | ||||
| 15 | 375084 | 8.40 | 10.08 | |
| SHAFT RING D40 | ||||
| 16 | 375091 | 1.04 | 1.24 | |
| DUST COVER | ||||
| 17 | 375092 | 1.50 | 1.80 | |
| BEARING 6203RS | ||||
| 18 | 375094 | 6.00 | 7.20 | |
| Broche | ||||
| 19 | 333620 | 1.04 | 1.24 | |
| SPINDLE | ||||
| 20 | 375086 | 10.35 | 12.42 | |
| KEY | ||||
| 21 | 375087 | 1.04 | 1.24 | |
| BEARING 6002Z | ||||
| 22 | 375093 | 3.90 | 4.68 | |
| SHAFT RING D17 | ||||
| 23 | 375088 | 1.04 | 1.24 | |
| SPINDLE GEAR | ||||
| 24 | 375089 | 8.40 | 10.08 | |
| SHAFT RING D12 | ||||
| 25 | 375090 | 1.04 | 1.24 | |
| SHAFT RING D9 | ||||
| 26 | 375075 | 1.04 | 1.24 | |
| SHAFT | ||||
| 27 | 375077 | 5.55 | 6.66 | |
| SHAFT RING D26 | ||||
| 28 | 375078 | 1.04 | 1.24 | |
| GEAR | ||||
| 29 | 375079 | 10.95 | 13.14 | |
| BEARING 6000Z | ||||
| 30 | 375080 | 3.60 | 4.32 | |
| SECOND PINION ASS'Y | ||||
| 31 | 375102 | 13.75 | 16.50 | |
| BEARING COVER ASS'Y | ||||
| 32 | 375085 | 39.33 | 47.19 | |
| PINION | ||||
| 33 | 375095 | 10.80 | 12.96 | |
| PARALLEL KEY | ||||
| 34 | 375096 | 1.04 | 1.24 | |
| DOUBLE GEAR | ||||
| 35 | 375097 | 12.75 | 15.30 | |
| WASHER M16 | ||||
| 36 | 375098 | 1.04 | 1.24 | |
| GEAR BOX ASS'Y | ||||
| 37 | 375076 | 29.15 | 34.98 | |
| CABLE 0.75 (5 PCS.) | ||||
| 38 | 375682 | 4.20 | 5.04 | |
| CABLE 3X0.5X0.23 | ||||
| 39 | 375050 | 2.10 | 2.52 | |
| HOB | ||||
| 40 | 375057 | 26.54 | 31.84 | |
| ARMATURE ASS'Y | ||||
| 41 | 375081 | 68.34 | 82.00 | |
| CABLE COVER ASS'Y | ||||
| 42 | 375055 | 1.65 | 1.98 | |
| Screw M5x25 (4 Pcs) | ||||
| 43 | 333630 | 1.04 | 1.24 | |
| CONTROLLER | ||||
| 44 | 375069 | 32.73 | 39.27 | |
| Protective Guard Um16vst | ||||
| 45 | 333634 | 1.05 | 1.26 | |
| Rear Cover Um16vst | ||||
| 46 | 333635 | 3.60 | 4.32 | |
| SCREW ST3.5X16 (2 PCS.) | ||||
| 47 | 375061 | 1.04 | 1.24 | |
| CARBON BRUSH (2 PCS.) | ||||
| 48 | 375072 | 9.00 | 10.80 | |
| Koolborstel Dop (2 Stuks) Um16vst | ||||
| 49 | 333632 | 1.04 | 1.24 | |
| MOTOR BOX ASS'Y | ||||
| 52 | 375071 | 21.45 | 25.74 | |
| SCREW ST5X65 (2 PCS.) | ||||
| 53 | 375070 | 1.04 | 1.24 | |
| STATOR UM22VYST | ||||
| 54 | 375101 | 33.41 | 40.10 | |
| AIR GUIDE SHIM | ||||
| 55 | 375054 | 1.50 | 1.80 | |
| LEVER ASS'Y | ||||
| 56 | 375082 | 2.85 | 3.42 | |
| PIVOT D6X90 | ||||
| 57 | 375099 | 1.04 | 1.24 | |
| COULISSE | ||||
| 58 | 375100 | 1.50 | 1.80 | |
| Douille (1) | ||||
| 59 | 333636 | 1.20 | 1.44 | |
| Épuisé | ||||
| 60 | 333637 | |||
| Épuisé | ||||
| 501 | 375615 | |||
