Dessins techniques et pièces de rechange Hikoki UR18DSDL
Type exact:
UR18DSDL
UR18DSDL

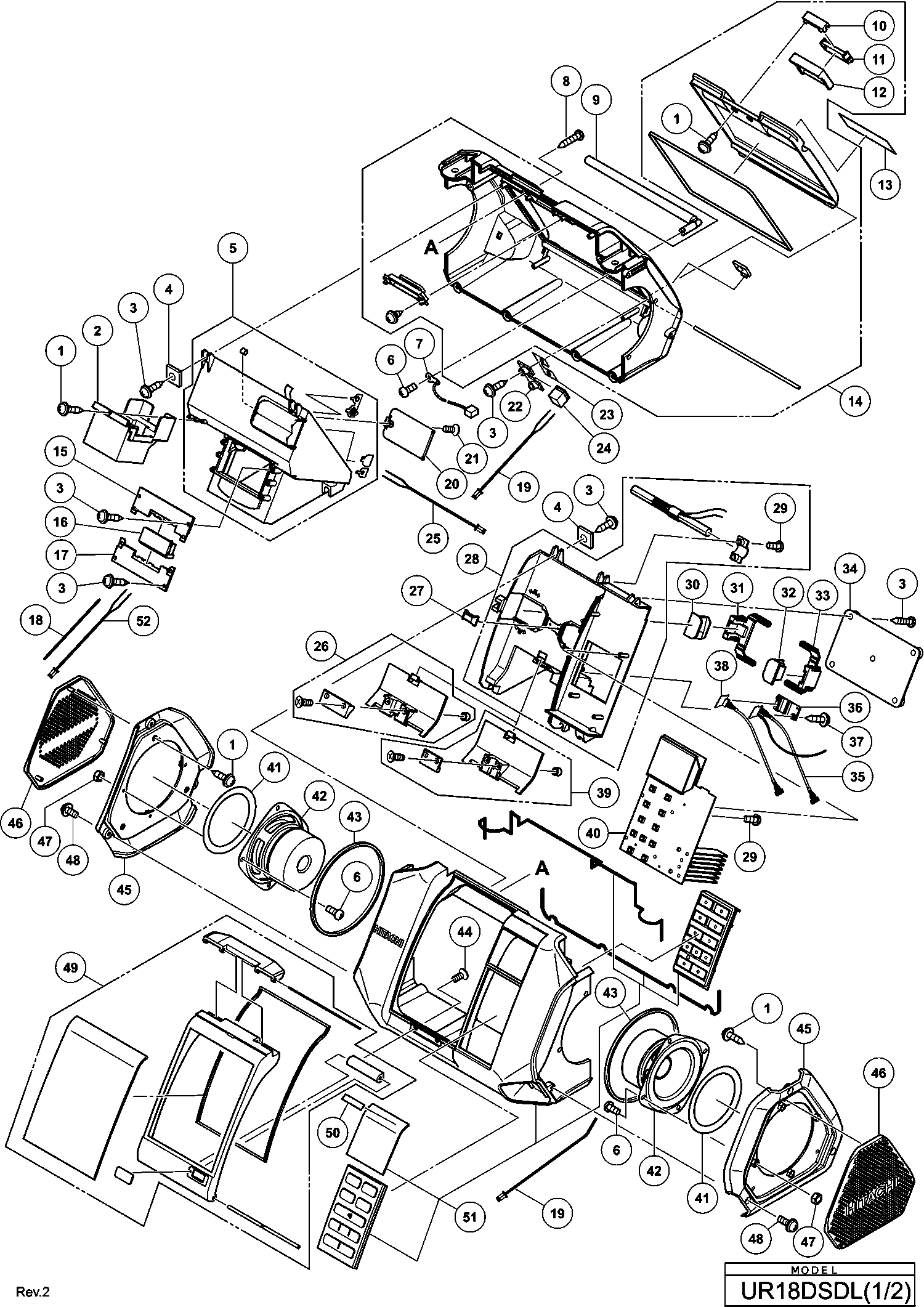

Dessins des HIKOKI UR18DSDL
Liste de pièces de rechange des HIKOKI UR18DSDL
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Tapschroef D2x8 | ||||
| 1 | 338364 | Tapschroef D2x8 | € 1.24 | |
| Adapter Storage Case | ||||
| 2 | 338392 | Adapter Storage Case | € 3.24 | |
| Tapschroef D2.3x8 | ||||
| 3 | 338399 | Tapschroef D2.3x8 | € 3.06 | |
| Square Washer | ||||
| 4 | 338409 | Square Washer | € 1.24 | |
| Battery Compartment Set | ||||
| 5 | 338365 | Battery Compartment Set | € 11.52 | |
| Machine Schroef M3x8 | ||||
| 6 | 338398 | Machine Schroef M3x8 | € 1.24 | |
| Connector A | ||||
| 7 | 338374 | Connector A | € 2.16 | |
| Tapschroef D4x18 | ||||
| 8 | 338397 | Tapschroef D4x18 | € 3.06 | |
| Rubber Antenne | ||||
| 9 | 338390 | Rubber Antenne | € 14.22 | |
| Lower Back Cover Button | ||||
| 10 | 338363 | Lower Back Cover Button | € 1.24 | |
| Upper Back Cover Button | ||||
| 11 | 338362 | Upper Back Cover Button | € 1.24 | |
| Back Cover Latching B | ||||
| 12 | 338361 | Back Cover Latching B | € 1.24 | |
| Back Cabinet Set | ||||
| 14 | 338360 | Back Cabinet Set | € 60.06 | |
| Upper Contact Bracket | ||||
| 15 | 338388 | Upper Contact Bracket | € 1.80 | |
| Battery Terminal | ||||
| 16 | 339154 | Battery Terminal | € 2.16 | |
| Lower Contact Bracket | ||||
| 17 | 338389 | Lower Contact Bracket | € 1.80 | |
| Internal Wire (b) | ||||
| 18 | 338407 | Internal Wire (b) | € 1.98 | |
| Connector C | ||||
| 19 | 338405 | Connector C | € 2.16 | |
| Battery Cover | ||||
| 20 | 338387 | Battery Cover | € 1.24 | |
| Schroef M3 | ||||
| 21 | 338410 | Schroef M3 | € 3.06 | |
| Dc Jack Bracket | ||||
| 22 | 338394 | Dc Jack Bracket | € 1.24 | |
| Rubber Sheet (dc Jack) | ||||
| 23 | 339155 | Rubber Sheet (dc Jack) | € 1.24 | |
| Dc Jack | ||||
| 24 | 338396 | Dc Jack | € 1.26 | |
| Connector B | ||||
| 25 | 338404 | Connector B | € 2.16 | |
| Cable Holder (android) | ||||
| 26 | 338372 | Cable Holder (android) | € 2.16 | |
| Support | ||||
| 27 | 338385 | Support | € 1.24 | |
| Bracket Set | ||||
| 28 | 338366 | Bracket Set | € 16.38 | |
| Tapschroef D2x6 | ||||
| 29 | 338400 | Tapschroef D2x6 | € 1.24 | |
| Left Latching | ||||
| 30 | 338383 | Left Latching | € 1.24 | |
| Left Latching Mounting | ||||
| 31 | 338378 | Left Latching Mounting | € 1.24 | |
| Right Latching | ||||
| 32 | 338384 | Right Latching | € 1.24 | |
| Right Latching Mounting | ||||
| 33 | 338379 | Right Latching Mounting | € 1.24 | |
| Latching Plate | ||||
| 34 | 338386 | Latching Plate | € 2.70 | |
| Pcb Ass'y (usb) | ||||
| 35 | 338408 | Pcb Ass'y (usb) | € 7.02 | |
| Pcb Plate | ||||
| 36 | 338403 | Pcb Plate | € 2.70 | |
| Épuisé | ||||
| 37 | 339113 | Épuisé | ||
| Pcb Ass'y (aux) | ||||
| 38 | 338391 | Pcb Ass'y (aux) | € 7.38 | |
| Cable Holder (apple) | ||||
| 39 | 338371 | Cable Holder (apple) | € 1.98 | |
| Pcb Ass'y (a) | ||||
| 40 | 338376 | Pcb Ass'y (a) | € 167.48 | |
| Speaker Resistance Strip | ||||
| 41 | 338402 | Speaker Resistance Strip | € 12.24 | |
| Speaker (dsdl) | ||||
| 42 | 338395 | Speaker (dsdl) | € 22.11 | |
| Water Resisitance Strip E | ||||
| 43 | 339115 | Water Resisitance Strip E | € 2.16 | |
| Tapping Screw D2x8 | ||||
| 44 | 338401 | Tapping Screw D2x8 | € 3.06 | |
| Side Plate | ||||
| 45 | 338377 | Side Plate | € 3.96 | |
| Speaker Grill Set | ||||
| 46 | 338370 | Speaker Grill Set | € 3.60 | |
| Ecrou Ø 3 (x10) | ||||
| 47 | 949553 | Ecrou Ø 3 (x10) | € 1.24 | |
| Vis M4x8 (paquet de 10) | ||||
| 48 | 949811 | Vis M4x8 (paquet de 10) | € 1.80 | |
| Front Cover Set | ||||
| 49 | 338367 | Front Cover Set | € 28.05 | |
| Front Cabinet Set A | ||||
| 51 | 338359 | Front Cabinet Set A | € 37.12 | |
| Connector D | ||||
| 52 | 338406 | Connector D | € 2.16 | |
| Hex.socket Hd.bolt M5x18 (10 Pcs) | ||||
| 71 | 949658 | Hex.socket Hd.bolt M5x18 (10 Pcs) | € 2.16 | |
| Vis M.5*10 (paquet de 10) | ||||
| 72 | 949819 | Vis M.5*10 (paquet de 10) | € 3.06 | |
| Rondelle Ø5 (x10) paquet de 10 | ||||
| 73 | 949431 | Rondelle Ø5 (x10) paquet de 10 | € 1.24 | |
| Upper Protector | ||||
| 74 | 338380 | Upper Protector | € 6.66 | |
| Short Laver Set | ||||
| 75 | 338369 | Short Laver Set | € 3.24 | |
| Upper Protector | ||||
| 76 | 338381 | Upper Protector | € 5.58 | |
| Ecrou M.5 | ||||
| 77 | 302012 | Ecrou M.5 | € 1.26 | |
| Long Lever Set | ||||
| 78 | 338368 | Long Lever Set | € 4.86 | |
| Absorber Set | ||||
| 79 | 338373 | Absorber Set | € 12.42 | |
| Rubber Washer | ||||
| 80 | 339114 | Rubber Washer | € 1.24 | |
| Oplader Europa | ||||
| 501 | 338412 | Oplader Europa | € 26.07 | |
| Oplader Uk | ||||
| 501 | 338413 | Oplader Uk | € 59.40 | |
