Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki UR18DSML'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

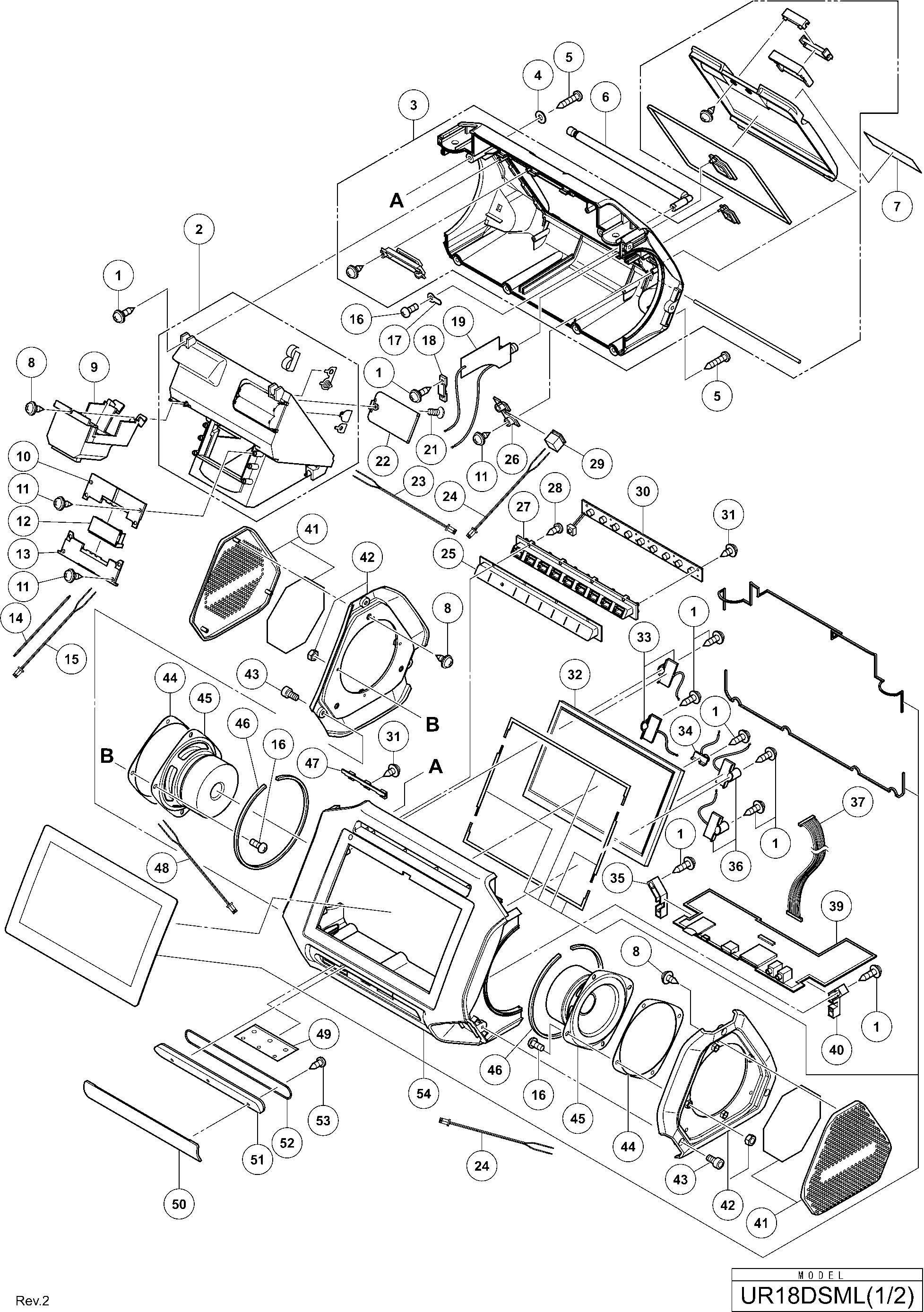

Dessins des Hikoki UR18DSML
Liste de pièces de rechange des Hikoki UR18DSML
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| PWA SCREW D8 3X10 | ||||
| 1 | 370845@1417 | 1.04 | 1.24 | |
| BATTERY COMPARTMENT SET | ||||
| 2 | 370868@1417 | 10.35 | 12.42 | |
| BACK HOUSING SET | ||||
| 3 | 370867@1417 | 26.54 | 31.84 | |
| RUBBER WASHER NEW | ||||
| 4 | 371878@1417 | 1.04 | 1.24 | |
| TAPPING SCREW D4X18 (W/FLANGE) | ||||
| 5 | 372723@1417 | 1.20 | 1.44 | |
| ROD ANTENNA | ||||
| 6 | 371876@1417 | 6.45 | 7.74 | |
| Tapschroef D2x8 | ||||
| 8 | 338364@1417 | 1.04 | 1.24 | |
| ADAPTER STORAGE CASE | ||||
| 9 | 370863@1417 | 2.85 | 3.42 | |
| Upper Contact Bracket | ||||
| 10 | 338388@1417 | 1.50 | 1.80 | |
| Tapschroef D2.3x8 | ||||
| 11 | 338399@1417 | 2.55 | 3.06 | |
| Battery Terminal | ||||
| 12 | 339154@1417 | 1.80 | 2.16 | |
| Lower Contact Bracket | ||||
| 13 | 338389@1417 | 1.50 | 1.80 | |
| Internal Wire (b) | ||||
| 14 | 338407@1417 | 1.65 | 1.98 | |
| Connector D | ||||
| 15 | 338406@1417 | 1.80 | 2.16 | |
| Machine Schroef M3x8 | ||||
| 16 | 338398@1417 | 1.04 | 1.24 | |
| WASHER D7XD4.2X 0.3 | ||||
| 17 | 372786@1417 | 1.20 | 1.44 | |
| PRESSING PLATE G | ||||
| 18 | 370843@1417 | 1.04 | 1.24 | |
| PAL TERMINAL PCBA | ||||
| 19 | 370844@1417 | 6.15 | 7.38 | |
| Schroef M3 | ||||
| 21 | 338410@1417 | 2.55 | 3.06 | |
| Battery Cover | ||||
| 22 | 338387@1417 | 1.04 | 1.24 | |
| Connector B | ||||
| 23 | 338404@1417 | 1.80 | 2.16 | |
| CONNECTOR E | ||||
| 24 | 371881@1417 | 1.04 | 1.24 | |
| SILICON KEYPAD | ||||
| 25 | 370859@1417 | 7.50 | 9.00 | |
| Dc Jack Bracket | ||||
| 26 | 338394@1417 | 1.04 | 1.24 | |
| KEY PLATE | ||||
| 27 | 370860@1417 | 1.65 | 1.98 | |
| TAPPING SCREW D1.4X8 (W/FLANGE) | ||||
| 28 | 372722@1417 | 1.20 | 1.44 | |
| Dc Jack | ||||
| 29 | 338396@1417 | 1.05 | 1.26 | |
| KEYPAD PCB | ||||
| 30 | 370865@1417 | 9.30 | 11.16 | |
| TAPPING SCREW D2X7 (W/FLANGE) | ||||
| 31 | 371879@1417 | 1.04 | 1.24 | |
| LCD | ||||
| 32 | 370851@1417 | 158.95 | 190.74 | |
| PRESSING PLATE A (OLD 370849) | ||||
| 33 | 373455@1417 | 1.50 | 1.80 | |
| PRESSING PLATE C (OLD 370862) | ||||
| 34 | 373457@1417 | 1.95 | 2.34 | |
| PRESSING PLATE E | ||||
| 35 | 370864@1417 | 1.04 | 1.24 | |
| PRESSING PLATE A (OLD 370849) | ||||
| 36 | 373456@1417 | 1.50 | 1.80 | |
| CONNECTOR CABLE | ||||
| 37 | 371882@1417 | 3.90 | 4.68 | |
| PCB (OLD 370846) | ||||
| 39 | 373469@1417 | 308.00 | 369.60 | |
| PRESSING PLATE D | ||||
| 40 | 370847@1417 | 1.04 | 1.24 | |
| Speaker Grill Set | ||||
| 41 | 338370@1417 | 3.00 | 3.60 | |
| Side Plate | ||||
| 42 | 338377@1417 | 3.30 | 3.96 | |
| Vis M4x8 (paquet de 10) | ||||
| 43 | 949811@1417 | 1.50 | 1.80 | |
| Speaker Resistance Strip | ||||
| 44 | 338402@1417 | 10.20 | 12.24 | |
| Speaker (dsdl) | ||||
| 45 | 338395@1417 | 18.43 | 22.11 | |
| WATER RESISTANCE STRIP F | ||||
| 46 | 371880@1417 | 1.04 | 1.24 | |
| RUBBER HINGE HOLDER | ||||
| 47 | 371883@1417 | 1.04 | 1.24 | |
| Connector C | ||||
| 48 | 338405@1417 | 1.80 | 2.16 | |
| RUBBER HINGE | ||||
| 49 | 371877@1417 | 1.65 | 1.98 | |
| FRONT TERMINAL COVER | ||||
| 50 | 370857@1417 | 1.05 | 1.26 | |
| PRESSING PLATE F | ||||
| 51 | 370855@1417 | 1.20 | 1.44 | |
| WATER RESISTANCE RING | ||||
| 52 | 370854@1417 | 1.20 | 1.44 | |
| PA SCREW D3.2 1.7X7 | ||||
| 53 | 370861@1417 | 1.04 | 1.24 | |
| FRONT HOUSING SET | ||||
| 54 | 371884@1417 | 29.29 | 35.14 | |
| HEX. SOCKET HD. BOLT M5X18 | ||||
| 71 | 372724@1417 | 1.20 | 1.44 | |
| HEX. SOCKET HD. BOLT M5X10 | ||||
| 72 | 372725@1417 | 1.20 | 1.44 | |
| Rondelle Ø5 (x10) paquet de 10 | ||||
| 73 | 949431@1417 | 1.04 | 1.24 | |
| Upper Protector | ||||
| 74 | 338380@1417 | 5.55 | 6.66 | |
| SHORT LEVER SET | ||||
| 75 | 371885@1417 | 5.25 | 6.30 | |
| Upper Protector | ||||
| 76 | 338381@1417 | 4.65 | 5.58 | |
| Ecrou M.5 | ||||
| 77 | 302012@1417 | 1.05 | 1.26 | |
| Long Lever Set | ||||
| 78 | 338368@1417 | 4.05 | 4.86 | |
| Absorber Set | ||||
| 79 | 338373@1417 | 10.35 | 12.42 | |
| Rubber Washer | ||||
| 80 | 339114@1417 | 1.04 | 1.24 | |
| AC-ADAPTER (EURO) | ||||
| 501 | 371887@1417 | 42.90 | 51.48 | |
| Pas d'informations disponibles, non commandable | ||||
| 502 | 373458@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 505 | 371891@1417 | |||
| Pas d'informations disponibles, non commandable | ||||
| 506 | 371893@1417 | |||
