Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki WF4H2'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

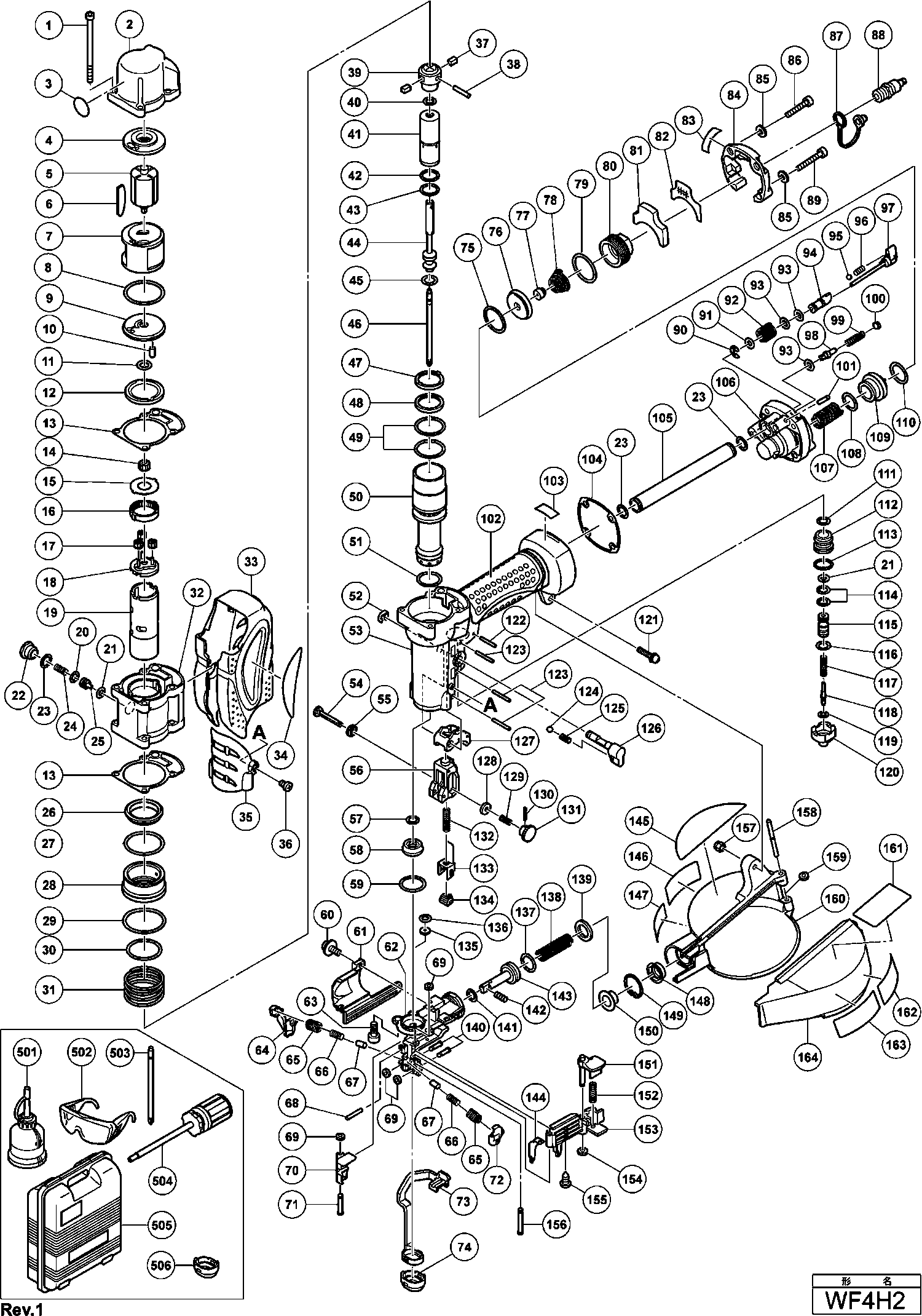

Dessins des Hikoki WF4H2
Liste de pièces de rechange des Hikoki WF4H2
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Hex. Socket Hd. Bolt M5x80 | ||||
| 1 | 305481 | 1.80 | 2.16 | |
| Casing (a) Gold | ||||
| 2 | 886560 | 67.10 | 80.52 | |
| Warning Label (a) | ||||
| 3 | 883513 | 1.65 | 1.98 | |
| Side Cover (a) | ||||
| 4 | 886097 | 55.00 | 66.00 | |
| Rotor | ||||
| 5 | 886095 | 97.63 | 117.15 | |
| Motor Cylinder | ||||
| 6 | 886096 | 6.75 | 8.10 | |
| Motor Cylinder | ||||
| 7 | 886094 | 118.94 | 142.72 | |
| O-ring H 41sa | ||||
| 8 | 996363 | 1.65 | 1.98 | |
| Side Cover (b) | ||||
| 9 | 886098 | 58.03 | 69.63 | |
| Pin (b) | ||||
| 10 | 886092 | 3.45 | 4.14 | |
| O-ring (p-8) | ||||
| 11 | 315382 | 1.80 | 2.16 | |
| Packing (c) | ||||
| 12 | 316390 | 7.05 | 8.46 | |
| Packing (c) | ||||
| 13 | 884504 | 1.80 | 2.16 | |
| Pignon (1) | ||||
| 14 | 886091 | 21.73 | 26.07 | |
| Rondelle | ||||
| 15 | 884515 | 1.80 | 2.16 | |
| Ring Gear | ||||
| 16 | 886089 | 1.80 | 2.16 | |
| Idle Gear | ||||
| 17 | 886090 | 3.45 | 4.14 | |
| Spindle Head | ||||
| 18 | 886088 | 18.70 | 22.44 | |
| Broche (1) | ||||
| 19 | 886087 | 5.10 | 6.12 | |
| O-ring | ||||
| 20 | 992912 | 1.05 | 1.26 | |
| O-RING (S-4) | ||||
| 21 | 981317 | 1.05 | 1.26 | |
| Bushing | ||||
| 22 | 884521 | 14.10 | 16.92 | |
| Joint | ||||
| 23 | 875638 | 1.65 | 1.98 | |
| Veer D4.2 | ||||
| 24 | 884520 | 1.80 | 2.16 | |
| Lock Pin | ||||
| 25 | 884519 | 3.45 | 4.14 | |
| Rubberen Klep | ||||
| 26 | 884503 | 11.40 | 13.68 | |
| O-ring H 41sa | ||||
| 27 | 996363 | 1.65 | 1.98 | |
| Sleeve Valve | ||||
| 28 | 884502 | 33.55 | 40.26 | |
| O-ring Cm-6 | ||||
| 29 | 983852 | 1.95 | 2.34 | |
| O Ring (s-36) | ||||
| 30 | 984483 | 1.65 | 1.98 | |
| Valve Spring | ||||
| 31 | 882221 | 5.10 | 6.12 | |
| Casing (b) Gold | ||||
| 32 | 886561 | 85.39 | 102.46 | |
| Bouclier Protecteur | ||||
| 33 | 886117 | 14.10 | 16.92 | |
| Protector (a) | ||||
| 35 | 886235 | 8.70 | 10.44 | |
| Flat Fillister Hd. Screw M4 | ||||
| 36 | 886234 | 1.80 | 2.16 | |
| Feather Key | ||||
| 37 | 884512 | 1.80 | 2.16 | |
| Broche | ||||
| 38 | 884511 | 1.80 | 2.16 | |
| Coulisseau (1) | ||||
| 39 | 884510 | 14.10 | 16.92 | |
| O-ring (p-8) | ||||
| 40 | 315382 | 1.80 | 2.16 | |
| Piston (b) | ||||
| 41 | 886086 | 33.55 | 40.26 | |
| O-ring (i.d. 16.8) | ||||
| 42 | 884509 | 1.80 | 2.16 | |
| Joint Torique | ||||
| 43 | 886227 | 5.10 | 6.12 | |
| Slagpen (a) | ||||
| 44 | 886085 | 61.05 | 73.26 | |
| O-ring (i.d. 10.8) | ||||
| 45 | 884507 | 1.80 | 2.16 | |
| Épuisé | ||||
| 46 | 884480 | |||
| Metalen Ring | ||||
| 47 | 884501 | 3.45 | 4.14 | |
| Bague | ||||
| 48 | 884500 | 3.45 | 4.14 | |
| O-ring (i.d. 31.2) | ||||
| 49 | 884498 | 1.80 | 2.16 | |
| Cylindre | ||||
| 50 | 886083 | 82.36 | 98.84 | |
| O-ring (i.d. 24.7) | ||||
| 51 | 884499 | 1.80 | 2.16 | |
| Circlips en "e" pour Ø6 | ||||
| 52 | 955479 | 1.05 | 1.26 | |
| Carter | ||||
| 53 | 886562 | 176.83 | 212.19 | |
| Adjuster Shaft | ||||
| 54 | 881846 | 7.65 | 9.18 | |
| Latch (oud 881847) | ||||
| 55 | 886101 | 5.10 | 6.12 | |
| Pushing Lever Guide | ||||
| 56 | 316389 | 3.30 | 3.96 | |
| Joint Torique | ||||
| 57 | 886229 | 1.80 | 2.16 | |
| Piston Bumper | ||||
| 58 | 886230 | 13.75 | 16.50 | |
| O'ring | ||||
| 59 | 306353 | 1.04 | 1.24 | |
| Vis Ø 4x8 Noir | ||||
| 60 | 315500 | 1.35 | 1.62 | |
| Couvercle (1) | ||||
| 61 | 887975 | 6.75 | 8.10 | |
| Épuisé | ||||
| 62 | 886104 | |||
| Vis M6x16 (paquet de 10) | ||||
| 63 | 949755 | 3.00 | 3.60 | |
| VERTICAL GUIDE | ||||
| 64 | 886111 | 18.70 | 22.44 | |
| Ressort | ||||
| 65 | 884533 | 1.80 | 2.16 | |
| Veer (b) | ||||
| 66 | 884534 | 1.80 | 2.16 | |
| Kunststofpin | ||||
| 67 | 886233 | 3.45 | 4.14 | |
| Goupille Ø 3*18 | ||||
| 68 | 949518 | 2.40 | 2.88 | |
| Joint | ||||
| 69 | 877826 | 2.55 | 3.06 | |
| Toevoermechanisme | ||||
| 70 | 884527 | 30.53 | 36.63 | |
| As Voor Toevoermechanisme | ||||
| 71 | 882236 | 6.75 | 8.10 | |
| Vertical Guide | ||||
| 72 | 886110 | 18.70 | 22.44 | |
| Pushing Lever (a) | ||||
| 73 | 886109 | 39.74 | 47.68 | |
| Neuskap | ||||
| 74 | 886103 | 5.10 | 6.12 | |
| O-RING (S-26) | ||||
| 75 | 872470 | 1.65 | 1.98 | |
| Scheidingsplaatje | ||||
| 76 | 886119 | 36.71 | 44.06 | |
| Rubberen Klep (h) | ||||
| 77 | 884847 | 6.75 | 8.10 | |
| Veer (i.d.d13) | ||||
| 78 | 884848 | 1.80 | 2.16 | |
| O-ring Dh 25v/vtp 18 | ||||
| 79 | 872767 | 1.65 | 1.98 | |
| Cap (r) | ||||
| 80 | 887983 | 25.71 | 30.86 | |
| Muffler | ||||
| 81 | 886079 | 3.45 | 4.14 | |
| Plaatgaas | ||||
| 82 | 886080 | 5.10 | 6.12 | |
| Uitlaatkap | ||||
| 84 | 886081 | 3.45 | 4.14 | |
| RING | ||||
| 85 | 940178 | 1.05 | 1.26 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 86 | 949664 | 3.75 | 4.50 | |
| Stofkapje | ||||
| 87 | 877914 | 1.95 | 2.34 | |
| Air Plug L-pt 1/4 | ||||
| 88 | 883135 | 14.99 | 17.98 | |
| Hex. Socket Hd. Bolt M5x40 | ||||
| 89 | 886082 | 1.80 | 2.16 | |
| Clips Cj-65 | ||||
| 90 | 874759 | 1.04 | 1.24 | |
| O-ring (i.d. 1.8) | ||||
| 91 | 886078 | 1.80 | 2.16 | |
| Veer D8.4 | ||||
| 92 | 886077 | 1.80 | 2.16 | |
| O-ring (i.d. 4.8) | ||||
| 93 | 884861 | 1.80 | 2.16 | |
| Plunger (r) | ||||
| 94 | 886076 | 1.80 | 2.16 | |
| Bille Acier Ø 3.175 (x10) | ||||
| 95 | 959148 | 1.05 | 1.26 | |
| Lock Spring | ||||
| 96 | 882923 | 1.80 | 2.16 | |
| Bouton | ||||
| 97 | 886075 | 6.75 | 8.10 | |
| Relief Valve | ||||
| 98 | 886122 | 6.75 | 8.10 | |
| Veer D6.6 | ||||
| 99 | 884852 | 1.80 | 2.16 | |
| Entretoise (1) | ||||
| 100 | 886121 | 1.80 | 2.16 | |
| Rol Pin D2x12 (10 Stuks) | ||||
| 101 | 949861 | 1.65 | 1.98 | |
| Packing (d) | ||||
| 104 | 884484 | 1.80 | 2.16 | |
| Uitlaatpijp | ||||
| 105 | 886240 | 5.10 | 6.12 | |
| Cap (gold) | ||||
| 106 | 886563 | 109.86 | 131.84 | |
| Ressort | ||||
| 107 | 886071 | 6.75 | 8.10 | |
| O-RING (P-18 | ||||
| 108 | 873570 | 1.35 | 1.62 | |
| Piston (r) | ||||
| 109 | 886072 | 3.45 | 4.14 | |
| O-ring (ap-24) | ||||
| 110 | 997392 | 1.05 | 1.26 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 111 | 877699 | 1.05 | 1.26 | |
| Valve Bushing (b) | ||||
| 112 | 882925 | 18.01 | 21.62 | |
| O Ring (s-18) | ||||
| 113 | 878885 | 1.05 | 1.26 | |
| O-RING (I.D. 8.8) | ||||
| 114 | 878925 | 1.05 | 1.26 | |
| Valve Nv65ad2/50ah | ||||
| 115 | 880672 | 32.18 | 38.61 | |
| O-RING (I.D.11) | ||||
| 116 | 878887 | 1.65 | 1.98 | |
| Ressort | ||||
| 117 | 878884 | 1.65 | 1.98 | |
| Plongeur Nv65ad2/50ah | ||||
| 118 | 880673 | 14.71 | 17.66 | |
| O-RING (I.D.1.8) | ||||
| 119 | 878888 | 1.05 | 1.26 | |
| Valve Bushing (a) | ||||
| 120 | 882920 | 29.56 | 35.48 | |
| Vis Ø 5*25 | ||||
| 121 | 880734 | 1.04 | 1.24 | |
| Rol Pin D3x22 (10 Stuks) | ||||
| 122 | 949864 | 1.65 | 1.98 | |
| Goupille Ø 3*25 | ||||
| 123 | 949539 | 2.25 | 2.70 | |
| Bille Ø3.97 (x10) paquet de 10 | ||||
| 124 | 959155 | 1.04 | 1.24 | |
| Ressort | ||||
| 125 | 982454 | 1.04 | 1.24 | |
| Wisselknop | ||||
| 126 | 886102 | 5.10 | 6.12 | |
| Gachette Nv65ad2/50ah | ||||
| 127 | 880674 | 11.85 | 14.22 | |
| Rondelle M4 (x10) Paquet de 10 | ||||
| 128 | 949429 | 1.05 | 1.26 | |
| Adjuster Spring | ||||
| 129 | 887949 | 1.80 | 2.16 | |
| Roll Pin D1.6x10 | ||||
| 130 | 886228 | 1.80 | 2.16 | |
| Adjuster Knob | ||||
| 131 | 887948 | 3.45 | 4.14 | |
| Ressort (1) | ||||
| 132 | 881882 | 2.25 | 2.70 | |
| Pushing Lever (b) | ||||
| 133 | 886099 | 12.00 | 14.40 | |
| Ajusteur | ||||
| 134 | 886564 | 7.80 | 9.36 | |
| Bague | ||||
| 135 | 878279 | 1.05 | 1.26 | |
| Joint | ||||
| 136 | 874436 | 1.05 | 1.26 | |
| O-RING (P-18 | ||||
| 137 | 873570 | 1.35 | 1.62 | |
| Ressort (1) | ||||
| 138 | 880409 | 2.40 | 2.88 | |
| Amortisseur | ||||
| 139 | 877476 | 2.40 | 2.88 | |
| Guide Shaft | ||||
| 140 | 886112 | 6.75 | 8.10 | |
| Y-packing | ||||
| 141 | 887196 | 1.80 | 2.16 | |
| Veer D4.7 | ||||
| 142 | 882235 | 1.80 | 2.16 | |
| Feed Piston | ||||
| 143 | 886231 | 29.70 | 35.64 | |
| Carter Protection (1) | ||||
| 144 | 886106 | 7.80 | 9.36 | |
| Waarschuwings Label | ||||
| 146 | 887174 | 5.10 | 6.12 | |
| Waarschuwings Label | ||||
| 147 | 887175 | 5.10 | 6.12 | |
| Bouchon | ||||
| 148 | 880177 | 1.65 | 1.98 | |
| Clips Pour Ø 24mm | ||||
| 149 | 983748 | 1.05 | 1.26 | |
| Couvercle | ||||
| 150 | 880170 | 2.25 | 2.70 | |
| Guide Lock Nv50ae | ||||
| 151 | 886107 | 5.10 | 6.12 | |
| Veer D5.6 | ||||
| 152 | 883008 | 1.80 | 2.16 | |
| Screw Guide | ||||
| 153 | 886105 | 25.44 | 30.52 | |
| Bague Nv90ab | ||||
| 154 | 880319 | 1.65 | 1.98 | |
| Vis Ø 3x10 | ||||
| 155 | 306945 | 1.04 | 1.24 | |
| Screw Guide Shaft | ||||
| 156 | 886108 | 7.80 | 9.36 | |
| Ecrou Plastique M5 | ||||
| 157 | 877371 | 1.05 | 1.26 | |
| Épuisé | ||||
| 158 | 882246 | |||
| Joint | ||||
| 159 | 877826 | 2.55 | 3.06 | |
| Reservoir | ||||
| 160 | 886114 | 12.00 | 14.40 | |
| Magazijn Deksel | ||||
| 164 | 886115 | 7.80 | 9.36 | |
| Épuisé | ||||
| 501 | 883136 | |||
| Épuisé | ||||
| 502 | 875769 | |||
| Épuisé | ||||
| 503 | 884480 | |||
| Épuisé | ||||
| 504 | 884538 | |||
| Épuisé | ||||
| 505 | 884857 | |||
| Neuskap | ||||
| 506 | 886103 | 5.10 | 6.12 | |
| Grippe Nv90ab | ||||
| 601 | 881768 | 5.25 | 6.30 | |
| Épuisé | ||||
| 602 | 880407 | |||
| Épuisé | ||||
| 603 | 328428 | |||
