Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita 1911B'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

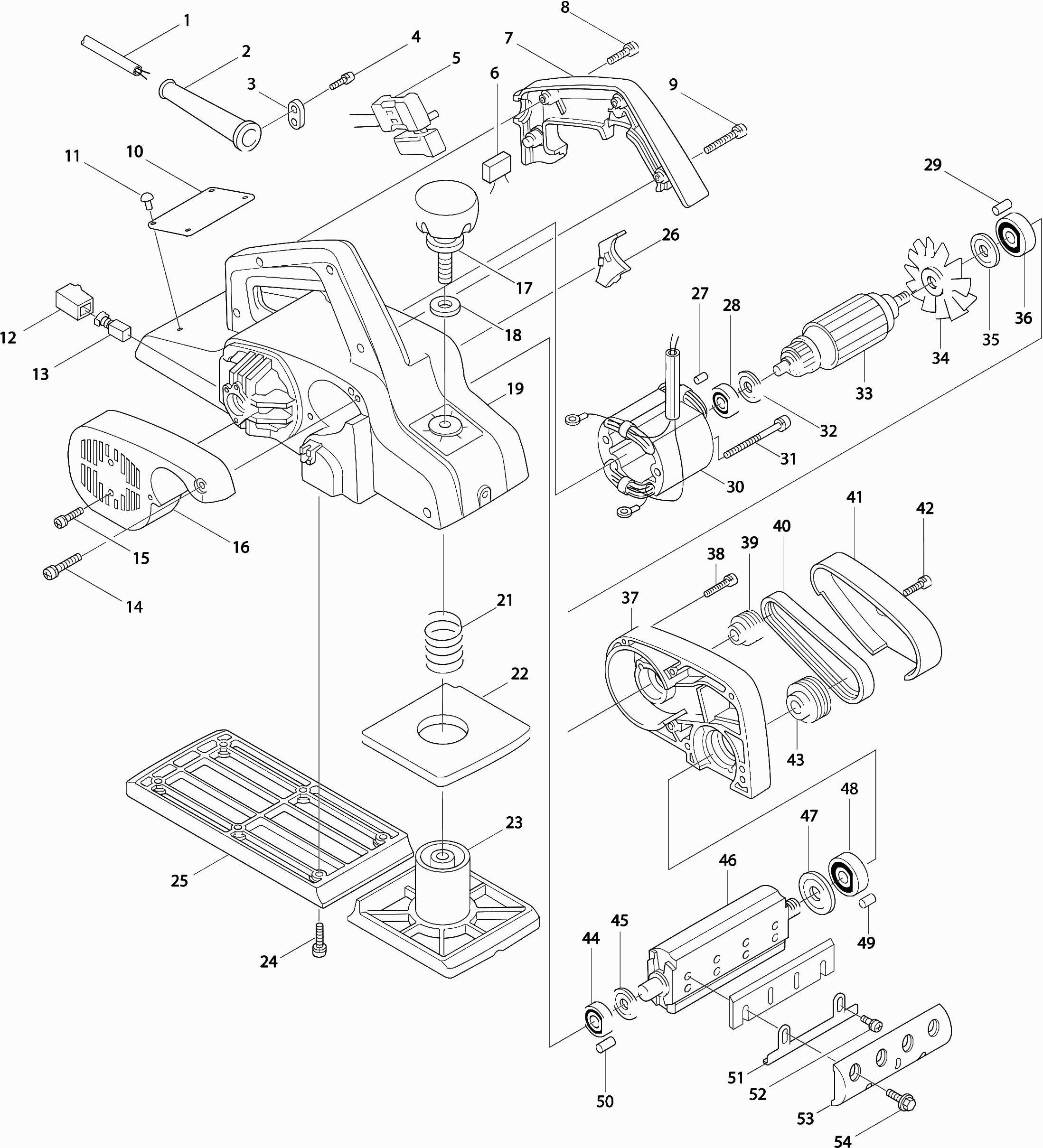

Dessins des Makita 1911B
Liste de pièces de rechange des Makita 1911B
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Netsnoer 2x1.50 4.0mtr | ||||
001 | 695123-3 | 20.08 | 24.10 | |
Kabeltule 10-85 | ||||
002 | 682504-0 | 1.58 | 1.90 | |
Klemstrip | ||||
003 | 687001-1 | 0.83 | 1.00 | |
Schroef 4x18 | ||||
004 | 911131-9 | 0.83 | 1.00 | |
Commutateur | ||||
005 | 651225-5 | 10.00 | 12.00 | |
Schroef 3.5X7 | ||||
005A | 652008-6 | 0.83 | 1.00 | |
Handgreepdeksel | ||||
007 | 414273-3 | 5.42 | 6.50 | |
Schroef 4x30 | ||||
008 | 911156-3 | 0.83 | 1.00 | |
Schroef 4x28 | ||||
009 | 911151-3 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
012 | 643601-7 | 1.58 | 1.90 | |
Koolborstel set Cb-106 | ||||
013 | 181410-1 | 4.24 | 5.09 | |
Schroef 4X40 * | ||||
014 | 911170-9 | 0.83 | 1.00 | |
Schroef 4x14 | ||||
015 | 911123-8 | 0.83 | 1.00 | |
Achter deksel | ||||
016 | 410438-5 | 11.15 | 13.38 | |
Knop 50 | ||||
017 | 271226-3 | 6.08 | 7.30 | |
Sluitring 10Xx1,6Mm 1901/02 | ||||
018 | 941251-5 | 0.83 | 1.00 | |
Motorframe | ||||
019 | 159652-5 | 41.67 | 50.00 | |
Vastzetschroef M5X10 | ||||
020 | 251812-6 | 0.95 | 1.14 | |
Drukveer 18 | ||||
021 | 231004-3 | 0.94 | 1.13 | |
Rubber pakking | ||||
022 | 421147-1 | 2.58 | 3.10 | |
Voorzool | ||||
023 | 312951-8 | 59.08 | 70.90 | |
Schroef 5x18 | ||||
024 | 911230-7 | 0.83 | 1.00 | |
Plaque De Base | ||||
025 | 312952-6 | 51.71 | 62.05 | |
Tussenplaat 1911B * | ||||
026 | 411428-1 | 0.83 | 1.00 | |
Rubber pen 4 | ||||
027 | 263002-9 | 0.83 | 1.00 | |
Kogellager 608llb | ||||
028 | 210043-6 | 1.58 | 1.90 | |
Rubber pen 4 | ||||
029 | 263002-9 | 0.83 | 1.00 | |
Épuisé | ||||
030 | 522418-0 | |||
Schroef 5x65 | ||||
031 | 911290-9 | 0.83 | 1.00 | |
Isolatiering | ||||
032 | 681613-2 | 0.83 | 1.00 | |
Induit | ||||
033 | 516083-5 | 63.52 | 76.22 | |
Stofafdichting 10 | ||||
035 | 213051-6 | 0.94 | 1.13 | |
Kogellager 6200llb | ||||
036 | 211066-7 | 4.24 | 5.09 | |
Palier | ||||
037 | 152362-3 | 11.78 | 14.14 | |
Schroef 4x30 | ||||
038 | 911156-3 | 0.83 | 1.00 | |
V-snaarschijf 4-24l | ||||
039 | 222050-7 | 5.05 | 6.06 | |
V-snaar 4-272 | ||||
040 | 225069-5 | 10.00 | 12.00 | |
Protecteur | ||||
041 | 411426-5 | 3.28 | 3.94 | |
Schroef 4x16 | ||||
042 | 911126-2 | 0.83 | 1.00 | |
V-snaarschijf 4-38 | ||||
043 | 222063-8 | 6.37 | 7.64 | |
Kogellager 6000llb | ||||
044 | 211061-7 | 6.88 | 8.26 | |
Ring 10 | ||||
045 | 341389-0 | 0.83 | 1.00 | |
Beitelwals | ||||
046B | 161119-1 | 31.76 | 38.11 | |
Ring 12 1805B | ||||
047 | 341377-7 | 1.39 | 1.67 | |
Kogellager 6201dw1 | ||||
048 | 211129-9 | 6.88 | 8.26 | |
Rubber pen 6 | ||||
049 | 263005-3 | 0.83 | 1.00 | |
Rubber pen 4 | ||||
050 | 263002-9 | 0.83 | 1.00 | |
Instelplaat 110mm | ||||
051B | 341601-8 | 1.67 | 2.00 | |
Beitelhouder | ||||
051A | 345157-3 | 3.54 | 4.25 | |
Schroef M4x5 | ||||
052B | 265132-2 | 0.83 | 1.00 | |
Schroef 4x8 | ||||
052A | 911106-8 | 0.83 | 1.00 | |
Épuisé | ||||
053 | 345156-5 | |||
Flensbout M6x17 | ||||
054 | 251609-3 | 0.83 | 1.00 | |
Bladveer * | ||||
055 | 232065-6 | 0.83 | 1.00 | |
Pen * | ||||
056 | 321346-4 | 5.42 | 6.50 | |
Stopring E-3 | ||||
057 | 961017-7 | 0.83 | 1.00 | |
Stop Pen * | ||||
058 | 321347-2 | 3.37 | 4.04 | |
Drukveer 5 * | ||||
059 | 231303-3 | 0.83 | 1.00 | |
Pen 2 * | ||||
060 | 256714-1 | 0.83 | 1.00 | |
Moer M4-12 * | ||||
061 | 252415-9 | 1.90 | 2.28 |
