Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita 2414B'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

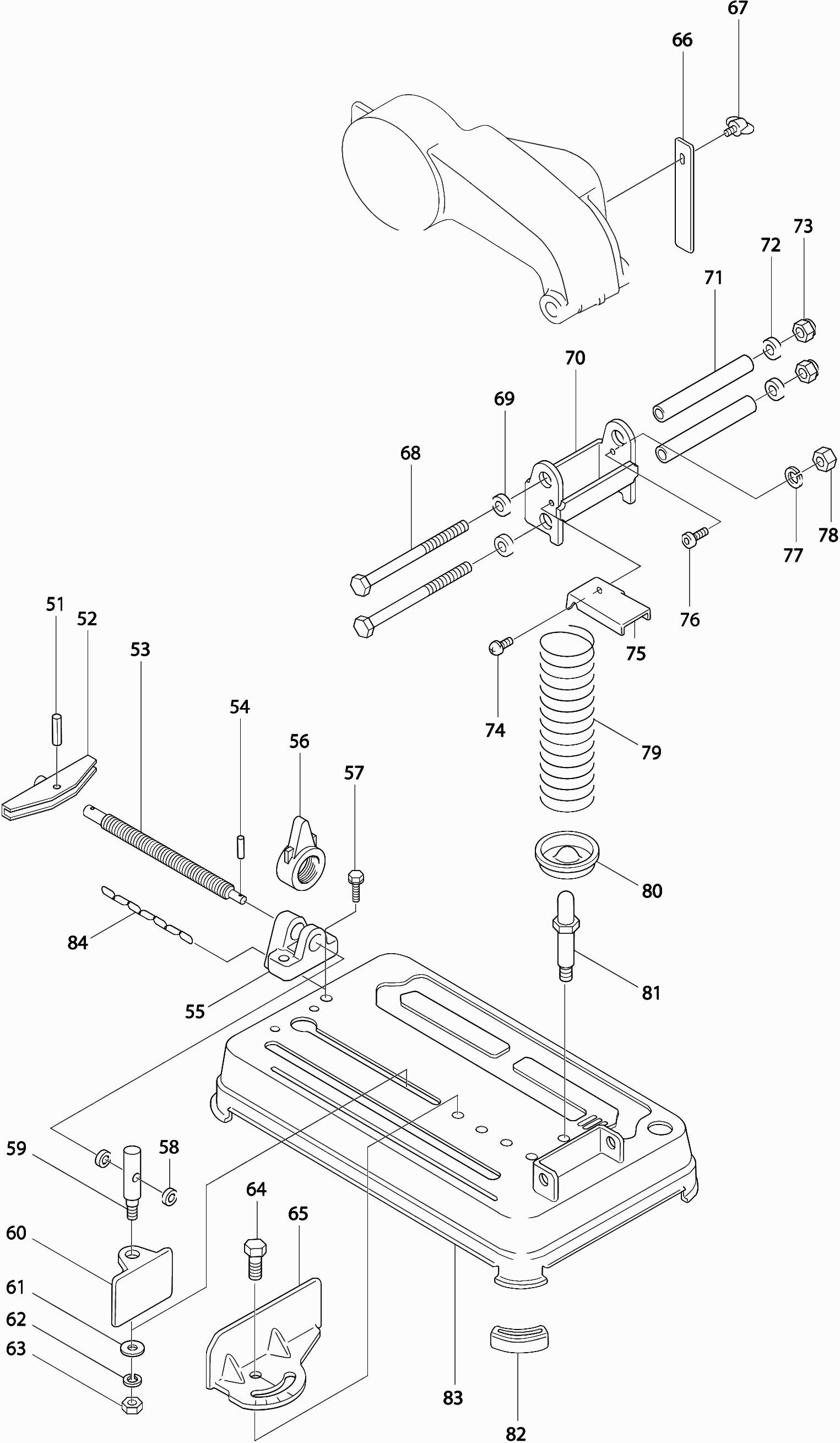

Dessins des Makita 2414B
Liste de pièces de rechange des Makita 2414B
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vleugelbout 6x10 | ||||
001 | 924306-1@141 | 0.83 | 1.00 | |
Afdekplaat 2414B * | ||||
002 | 344085-9@141 | 6.58 | 7.90 | |
Zeskantbout+Revet M10X25 | ||||
003 | 251680-7@141 | 3.22 | 3.86 | |
Pas d'informations disponibles, non commandable | ||||
004 | 224300-6@141 | |||
Pas d'informations disponibles, non commandable | ||||
004-1 | 224299-5@141 | |||
Schroef 6x20 | ||||
005 | 911333-7@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
006 | 265020-3@141 | |||
Schroef M6 | ||||
006-1 | 265121-7@141 | 0.83 | 1.00 | |
O-ring 14 | ||||
007 | 213162-7@141 | 0.83 | 1.00 | |
Ring 17 | ||||
008 | 257185-5@141 | 2.56 | 3.07 | |
Buiten/Binnenflens 2414En A | ||||
009 | 224456-5@141 | 4.08 | 4.90 | |
Ring 17 | ||||
010 | 257185-5@141 | 2.56 | 3.07 | |
Vaste beschermkap | ||||
011 | 165126-6@141 | 26.12 | 31.34 | |
Vaste beschermkap | ||||
011A | 165126-6@141 | 26.12 | 31.34 | |
Vaste beschermkap | ||||
011A1 | 165126-6@141 | 26.12 | 31.34 | |
Kogellager 6203dw | ||||
012 | 211278-2@141 | 9.52 | 11.42 | |
Logement De Palier | ||||
013 | 316527-3@141 | 11.68 | 14.02 | |
Tandwiel 41 | ||||
014 | 226415-5@141 | 21.70 | 26.04 | |
As 2414B | ||||
015 | 322633-4@141 | 2.56 | 3.07 | |
Kogellager 6000 | ||||
016 | 211064-1@141 | 5.88 | 7.06 | |
Handgreep set | ||||
017 | 182628-7@141 | 20.76 | 24.91 | |
Pas d'informations disponibles, non commandable | ||||
018B1 | 645200-1@141 | |||
Schakelaar Sw-131 | ||||
019 | 651922-3@141 | 11.16 | 13.39 | |
Drukveer 4 | ||||
020 | 231397-8@141 | 0.83 | 1.00 | |
Deblokkeerknop | ||||
021 | 417113-4@141 | 1.20 | 1.44 | |
Deblokkeerknop | ||||
021-1 | 417113-4@141 | 1.20 | 1.44 | |
Hanger | ||||
022 | 281216-8@141 | 0.83 | 1.00 | |
Hanger | ||||
022-1 | 281216-8@141 | 0.83 | 1.00 | |
Pen 6 | ||||
023 | 256012-3@141 | 0.83 | 1.00 | |
Handgreep set | ||||
024 | 182628-7@141 | 20.76 | 24.91 | |
Tapschroef 4x18 | ||||
025 | 265A48-7@141 | 0.90 | 1.08 | |
Schroef 5x50 | ||||
026 | 911273-9@141 | 0.83 | 1.00 | |
Bouton De Commande | ||||
027 | 152463-7@141 | 3.22 | 3.86 | |
Bouton De Commande | ||||
027A | 152463-7@141 | 3.22 | 3.86 | |
Blokkeerknop 2414B | ||||
028 | 415366-9@141 | 1.21 | 1.45 | |
Kabeltule 8-90 | ||||
029 | 682503-2@141 | 1.43 | 1.72 | |
Kabeltule 8-90 | ||||
029B | 682503-2@141 | 1.43 | 1.72 | |
Netsnoer 2x1.50 4.0mtr | ||||
030 | 695123-3@141 | 21.70 | 26.04 | |
Pas d'informations disponibles, non commandable | ||||
030N | 666066-6@141 | |||
Klemstrip | ||||
031 | 687124-5@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
031C1 | 687063-9@141 | |||
Tapschroef 4x18 | ||||
032 | 265A48-7@141 | 0.90 | 1.08 | |
Crochet | ||||
033 | 322049-3@141 | 0.83 | 1.00 | |
Drukveer 7 | ||||
034 | 231240-1@141 | 0.83 | 1.00 | |
Blokkeerknop | ||||
035 | 322665-1@141 | 2.08 | 2.50 | |
Rubber pen 6 | ||||
036 | 263005-3@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
037 | 159674-5@141 | |||
Pas d'informations disponibles, non commandable | ||||
037-1 | 159672-9@141 | |||
Carter | ||||
037-2 | 150916-0@141 | 102.31 | 122.77 | |
Kogellager 6202llb | ||||
038 | 211228-7@141 | 7.44 | 8.93 | |
Kogellager 6202llb | ||||
038-1 | 211228-7@141 | 7.44 | 8.93 | |
Sluitring 15 | ||||
039 | 267714-6@141 | 1.21 | 1.45 | |
Pas d'informations disponibles, non commandable | ||||
040 | 518729-9@141 | |||
Pas d'informations disponibles, non commandable | ||||
040C | 516563-1@141 | |||
Isolatiering | ||||
041 | 681633-6@141 | 1.72 | 2.06 | |
Kogellager 629llb | ||||
042 | 210042-8@141 | 2.44 | 2.93 | |
Kogellager 629llb | ||||
042-2 | 210042-8@141 | 2.44 | 2.93 | |
Plaque Intermediaire | ||||
043 | 415369-3@141 | 2.56 | 3.07 | |
Zelftapper Pt 5x75 | ||||
044 | 266059-9@141 | 1.27 | 1.52 | |
Zelftapper Pt 5x75 | ||||
044-1 | 266059-9@141 | 1.27 | 1.52 | |
Inducteur | ||||
045 | 636008-4@141 | 43.10 | 51.72 | |
Inducteur | ||||
045C | 636008-4@141 | 43.10 | 51.72 | |
Carter De Moteur | ||||
046 | 159750-5@141 | 20.76 | 24.91 | |
Carter De Moteur | ||||
046-1 | 159750-5@141 | 20.76 | 24.91 | |
Schroef 5x50 | ||||
047 | 911273-9@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
048 | 857417-6@141 | |||
Koolborstel set Cb-203 | ||||
049 | 191953-5@141 | 6.58 | 7.90 | |
Koolborstelhouderdop | ||||
050 | 643700-5@141 | 1.01 | 1.21 | |
Spanstift 5-20 | ||||
051 | 951163-4@141 | 0.83 | 1.00 | |
Draaihandel 120 * | ||||
052 | 272021-4@141 | 2.16 | 2.59 | |
Pas d'informations disponibles, non commandable | ||||
053 | 322239-8@141 | |||
Spanstift 3-18 | ||||
054 | 951066-2@141 | 0.83 | 1.00 | |
Spindelblok 2414B * | ||||
055 | 134733-6@141 | 53.39 | 64.07 | |
Snelspan moer | ||||
056 | 322209-7@141 | 11.16 | 13.39 | |
Schroef 8x30 | ||||
057 | 911451-1@141 | 0.83 | 1.00 | |
Sluitring 8 | ||||
058 | 253731-2@141 | 0.83 | 1.00 | |
Centreerbout M8 | ||||
059 | 321680-2@141 | 4.81 | 5.77 | |
Aandrukplaat | ||||
060 | 342679-4@141 | 4.26 | 5.11 | |
Sluitring 8 | ||||
061 | 253752-4@141 | 0.83 | 1.00 | |
Veerring M8 | ||||
062 | 942201-3@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
063 | 931401-0@141 | |||
Moer M8 | ||||
063-1 | 931402-8@141 | 0.83 | 1.00 | |
Zeskant bout 10x25 | ||||
064 | 265201-9@141 | 1.01 | 1.21 | |
Plaque De Guidage | ||||
065 | 344087-5@141 | 4.26 | 5.11 | |
Plaque De Butee | ||||
066 | 344089-1@141 | 2.44 | 2.93 | |
Vleugelbout 6x10 | ||||
067 | 924306-1@141 | 0.83 | 1.00 | |
Vleugelbout M6X10mm | ||||
067 | 251887-5@141 | 0.83 | 1.00 | |
Zeskant bout 10x130 | ||||
068 | 265406-1@141 | 4.58 | 5.50 | |
Schotelring 10 | ||||
069 | 267713-8@141 | 1.01 | 1.21 | |
Scharnierstuk 2414B * | ||||
070 | 344086-7@141 | 16.13 | 19.36 | |
Bus 16-113 | ||||
071 | 331428-4@141 | 5.88 | 7.06 | |
Bus 16-113 | ||||
071-1 | 331428-4@141 | 5.88 | 7.06 | |
Schotelring 10 | ||||
072 | 267713-8@141 | 1.01 | 1.21 | |
Moer M10-17 | ||||
073 | 264005-6@141 | 1.43 | 1.72 | |
Met.schroef M6x10mm | ||||
074 | 911308-6@141 | 0.83 | 1.00 | |
Vonkenvanger | ||||
075 | 344088-3@141 | 3.37 | 4.04 | |
Inusbout M6X12 | ||||
076 | 922311-2@141 | 0.83 | 1.00 | |
Inbusbout M6x12 | ||||
076 | 922312-0@141 | 0.83 | 1.00 | |
Veerring 6 A | ||||
077 | 253903-9@141 | 0.83 | 1.00 | |
Zeskant moer M6 | ||||
078 | 931302-2@141 | 0.83 | 1.00 | |
Drukveer 45 | ||||
079 | 233113-4@141 | 13.19 | 15.83 | |
Drukveer 45 | ||||
079A | 233113-4@141 | 13.19 | 15.83 | |
Veerhouder | ||||
080 | 165066-8@141 | 6.90 | 8.28 | |
Veersteunbout M10 | ||||
081 | 265407-9@141 | 7.80 | 9.36 | |
Beschermhoek 2414N/Nb | ||||
082 | 421487-7@141 | 1.21 | 1.45 | |
Voet 2414B * | ||||
083 | 165064-2@141 | 65.59 | 78.71 | |
Pas d'informations disponibles, non commandable | ||||
083-2 | 165361-6@141 | |||
Chaine | ||||
084 | 282016-9@141 | 1.51 | 1.81 | |
Chaine | ||||
084-1 | 282016-9@141 | 1.51 | 1.81 | |
Schroef 5x36 | ||||
085 | 911258-5@141 | 0.83 | 1.00 | |
Verende beschermkap | ||||
0900 | 168320-9@141 | 18.76 | 22.51 | |
Verende beschermkap | ||||
900-1 | 168320-9@141 | 18.76 | 22.51 |
