Dessins techniques et pièces de rechange Makita 4304

Type exact:
4304
4304

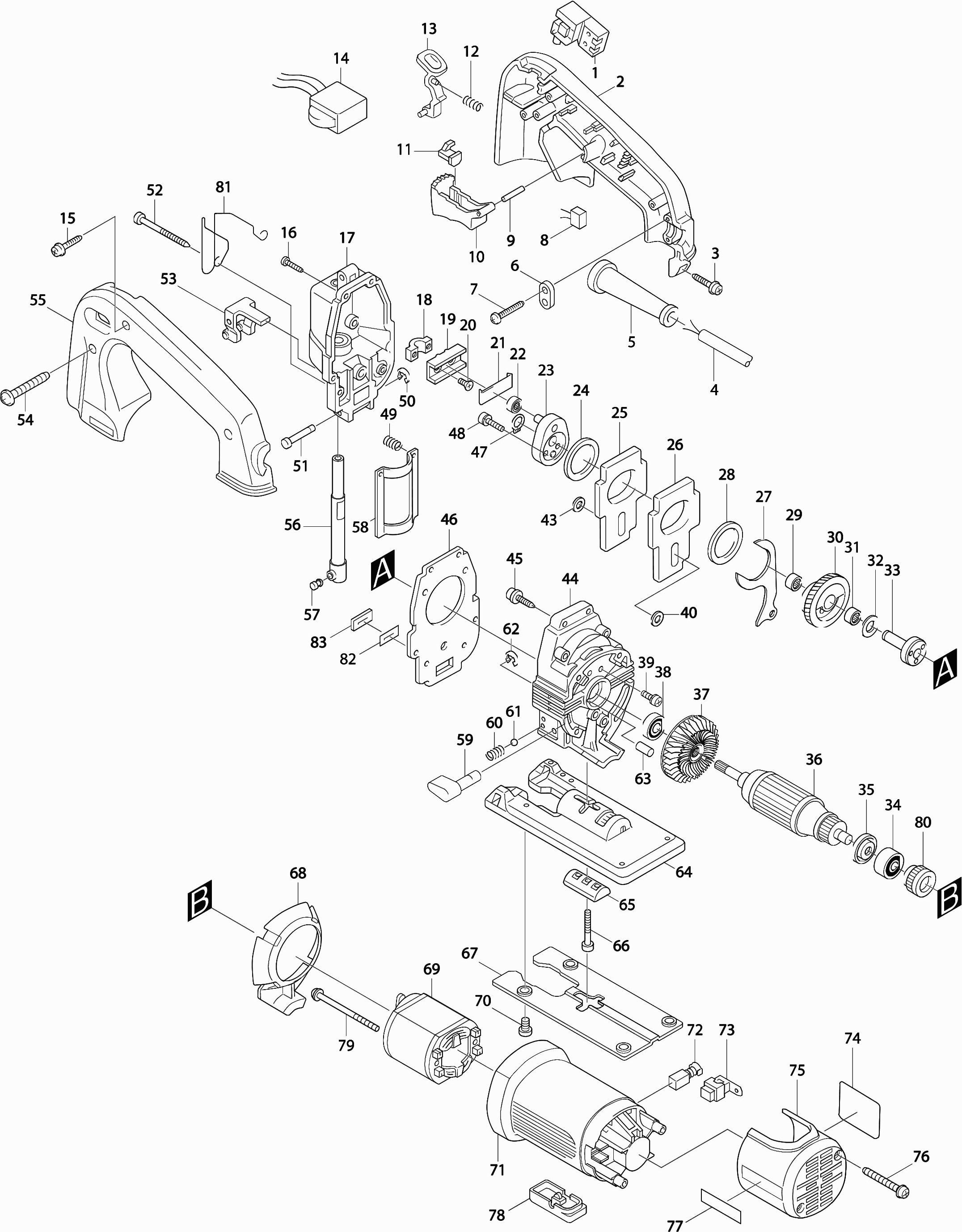

Dessins des MAKITA 4304
Liste de pièces de rechange des MAKITA 4304
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Schakelaar Sw-131 | ||||
001 | 651922-3 | Schakelaar Sw-131 | € 12.24 | |
Handgreep Set 4304 * | ||||
002 | 182680-5 | Handgreep Set 4304 * | € 18.02 | |
Tapschroef Pt4x20 | ||||
003 | 266045-0 | Tapschroef Pt4x20 | € 1.00 | |
Netsnoer 2x1.00 2.2mtr | ||||
004 | 665383-1 | Netsnoer 2x1.00 2.2mtr | € 10.87 | |
Kabeltule 8-85 | ||||
005 | 682502-4 | Kabeltule 8-85 | € 1.73 | |
Klemstrip | ||||
006 | 687053-2 | Klemstrip | € 1.00 | |
Tapschroef 4x18 | ||||
007 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
Pen 3 | ||||
009 | 256221-4 | Pen 3 | € 1.00 | |
Bouton De Commande | ||||
010 | 415158-6 | Bouton De Commande | € 3.24 | |
Afstandhouder 4304 * | ||||
011 | 415159-4 | Afstandhouder 4304 * | € 1.73 | |
Drukveer 4 | ||||
012 | 233101-1 | Drukveer 4 | € 1.00 | |
Blokkeerhandel | ||||
013 | 415534-4 | Blokkeerhandel | € 1.00 | |
Toerenregelingsunit | ||||
014 | 631678-4 | Toerenregelingsunit | € 21.84 | |
Tapschroef Pt4x20 | ||||
015 | 266045-0 | Tapschroef Pt4x20 | € 1.00 | |
Tapschroef Ct4x16 | ||||
016 | 266034-5 | Tapschroef Ct4x16 | € 1.00 | |
Tandwielh. deksel | ||||
017 | 153389-6 | Tandwielh. deksel | € 50.16 | |
Glijlager 8 | ||||
017A | 214005-6 | Glijlager 8 | € 1.22 | |
Glijlager 10 | ||||
017B | 214061-6 | Glijlager 10 | € 1.44 | |
Spanstift 3-12 | ||||
017C | 951057-3 | Spanstift 3-12 | € 1.00 | |
Afdichting 8 | ||||
017D | 421821-1 | Afdichting 8 | € 1.01 | |
Brughouder | ||||
018 | 316608-3 | Brughouder | € 10.87 | |
Brug nieuw | ||||
019 | 310028-3 | Brug nieuw | € 12.24 | |
Verzonken schroef M4x12 | ||||
020 | 251263-3 | Verzonken schroef M4x12 | € 1.00 | |
Plaque Intermediaire | ||||
021 | 344232-2 | Plaque Intermediaire | € 1.00 | |
Naaldlager 607 | ||||
022 | 212010-7 | Naaldlager 607 | € 13.82 | |
Excentrique | ||||
023 | 152454-8 | Excentrique | € 8.50 | |
Pen 6 | ||||
023A | 256033-5 | Pen 6 | € 1.00 | |
Sluitring 26 | ||||
024 | 253792-2 | Sluitring 26 | € 1.00 | |
Balansplaat | ||||
025 | 344330-2 | Balansplaat | € 6.62 | |
Balansplaat | ||||
026 | 344330-2 | Balansplaat | € 6.62 | |
Drukplaat 4304 | ||||
027 | 344134-2 | Drukplaat 4304 | € 4.61 | |
Sluitring 26 | ||||
028 | 253792-2 | Sluitring 26 | € 1.00 | |
Naaldlager 810 | ||||
029 | 212043-2 | Naaldlager 810 | € 2.81 | |
Tandwiel 51 | ||||
030 | 226428-6 | Tandwiel 51 | € 23.89 | |
Naaldlager 810 | ||||
031 | 212043-2 | Naaldlager 810 | € 2.81 | |
Sluitring 8x0,5mm | ||||
032 | 253139-0 | Sluitring 8x0,5mm | € 1.00 | |
Arbre De Transmission | ||||
033 | 322691-0 | Arbre De Transmission | € 19.93 | |
Kogellager 607llb | ||||
034 | 211021-9 | Kogellager 607llb | € 4.61 | |
Isolatiering | ||||
035 | 681636-0 | Isolatiering | € 1.22 | |
Induit | ||||
036 | 517098-5 | Induit | € 57.42 | |
Waaier 54 | ||||
037 | 240039-3 | Waaier 54 | € 2.81 | |
Kogellager 608ddw | ||||
038 | 210005-4 | Kogellager 608ddw | € 4.61 | |
Schroef 4x12 | ||||
039 | 911116-5 | Schroef 4x12 | € 1.00 | |
Sluitring 6 | ||||
040 | 253715-0 | Sluitring 6 | € 1.00 | |
Sluitring 6 | ||||
043 | 253715-0 | Sluitring 6 | € 1.00 | |
Carter | ||||
044 | 151594-9 | Carter | € 53.72 | |
Tapschroef Pt4x20 | ||||
045 | 266045-0 | Tapschroef Pt4x20 | € 1.00 | |
Tandwielh. deks. pakking | ||||
046 | 442123-2 | Tandwielh. deks. pakking | € 1.22 | |
Borgring S-8 | ||||
047 | 961004-6 | Borgring S-8 | € 1.00 | |
Inbusbout M4x16 | ||||
048 | 922126-7 | Inbusbout M4x16 | € 1.00 | |
Drukveer 4 | ||||
049 | 231314-8 | Drukveer 4 | € 1.00 | |
Stopring E-3 | ||||
050 | 961017-7 | Stopring E-3 | € 1.00 | |
Pin 4 | ||||
051 | 256693-3 | Pin 4 | € 2.45 | |
Tapschroef Pf 4x55 | ||||
052 | 266147-2 | Tapschroef Pf 4x55 | € 1.00 | |
Steunwiel compl. | ||||
053 | 152947-5 | Steunwiel compl. | € 14.33 | |
Pin 4 | ||||
053A | 268074-9 | Pin 4 | € 2.09 | |
Roller | ||||
053B | 152950-6 | Roller | € 8.50 | |
Stopring E-3 | ||||
053C | 961017-7 | Stopring E-3 | € 1.00 | |
Schroef 4x35 | ||||
054 | 266351-3 | Schroef 4x35 | € 1.00 | |
Handgreep Set 4304 * | ||||
055 | 182680-5 | Handgreep Set 4304 * | € 18.02 | |
Plongeur | ||||
056 | 165089-6 | Plongeur | € 26.27 | |
Inwendig zeskant bout M6x8 | ||||
057 | 265894-2 | Inwendig zeskant bout M6x8 | € 1.00 | |
Plaque De Guidage | ||||
058 | 344137-6 | Plaque De Guidage | € 2.45 | |
Verstelknop | ||||
059 | 272231-3 | Verstelknop | € 7.49 | |
Drukveer 4 | ||||
060 | 231314-8 | Drukveer 4 | € 1.00 | |
Stalen kogel 4 | ||||
061 | 216008-6 | Stalen kogel 4 | € 1.00 | |
Stopring E-5 | ||||
062 | 961018-5 | Stopring E-5 | € 1.00 | |
Rubber pen 4 | ||||
063 | 263002-9 | Rubber pen 4 | € 1.00 | |
Voetzool | ||||
064 | 316883-1 | Voetzool | € 23.89 | |
Tole De Maintien | ||||
065 | 331435-7 | Tole De Maintien | € 2.09 | |
Inbusbout 4x25 | ||||
066 | 922146-1 | Inbusbout 4x25 | € 1.00 | |
Afdekplaat voor voetzool | ||||
067 | 344443-9 | Afdekplaat voor voetzool | € 7.49 | |
Tussenplaat 4304 * | ||||
068 | 415535-2 | Tussenplaat 4304 * | € 1.01 | |
Inducteur | ||||
069 | 633288-3 | Inducteur | € 18.02 | |
Zeskant bout 5x8 | ||||
070 | 266055-7 | Zeskant bout 5x8 | € 1.00 | |
Motorhuis 4304 * | ||||
071 | 415748-5 | Motorhuis 4304 * | € 13.82 | |
Koolborstel set Cb-419 | ||||
072 | 191962-4 | Koolborstel set Cb-419 | € 4.61 | |
S/e Porte Balais | ||||
073 | 643923-5 | S/e Porte Balais | € 1.22 | |
Couvercle | ||||
075 | 415532-8 | Couvercle | € 7.49 | |
Tapschroef Pt4x30 | ||||
076 | 266050-7 | Tapschroef Pt4x30 | € 1.00 | |
Afdekkap 4304 * | ||||
078 | 415538-6 | Afdekkap 4304 * | € 2.09 | |
Tapschroef Pt4X60 * | ||||
079 | 266052-3 | Tapschroef Pt4X60 * | € 1.00 | |
Rubber ring 19 | ||||
080 | 421494-0 | Rubber ring 19 | € 4.10 | |
Beschermveer | ||||
081 | 322893-8 | Beschermveer | € 2.09 | |
Plateau De Retenue | ||||
082 | 344784-3 | Plateau De Retenue | € 1.00 | |
Afdichting vilt | ||||
083 | 443106-5 | Afdichting vilt | € 1.00 |
