Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita 9901'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

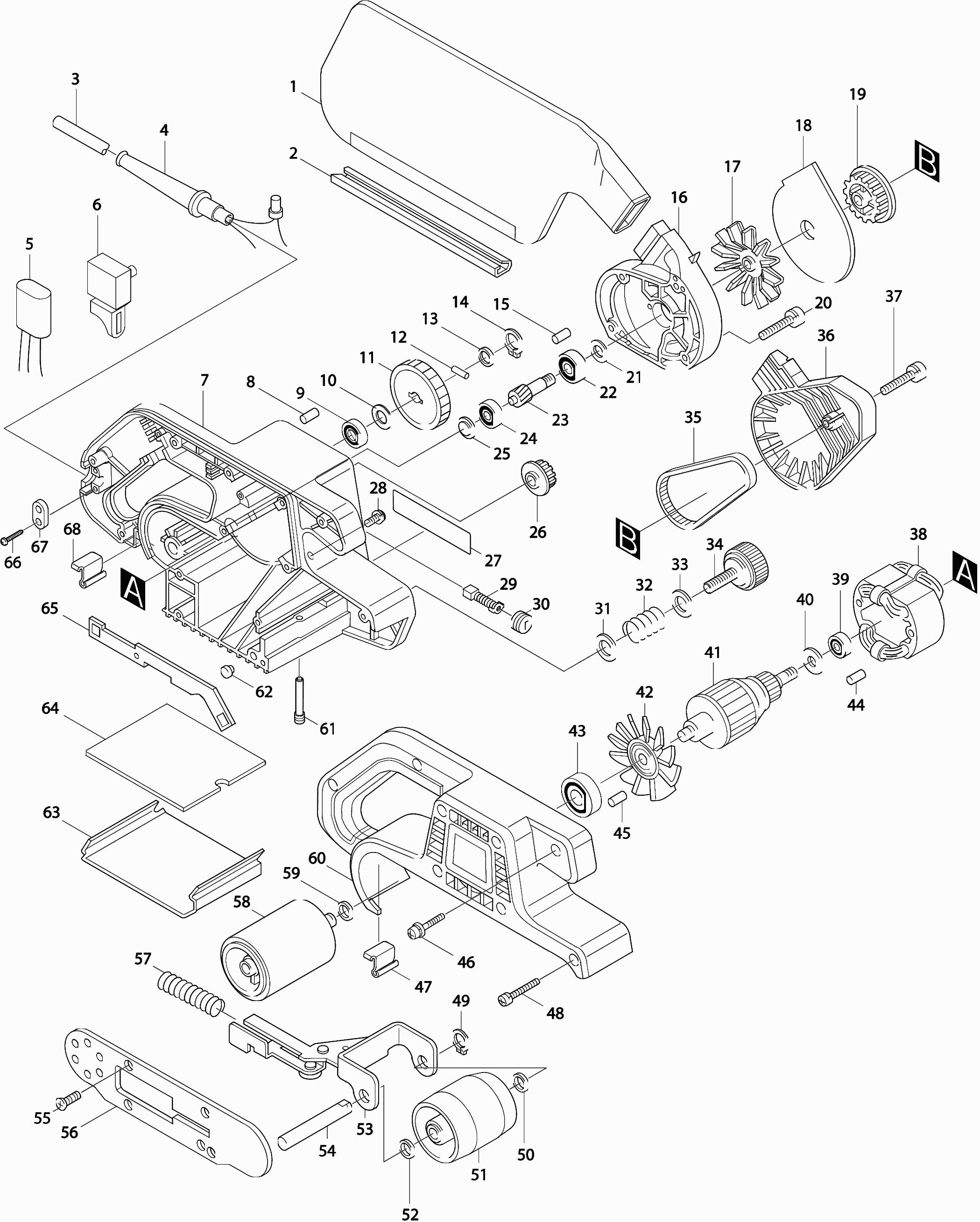

Dessins des Makita 9901
Liste de pièces de rechange des Makita 9901
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Netsnoer 2x1.00 2.2mtr | ||||
003 | 665383-1 | 10.00 | 12.00 | |
Kabeltule 10-85 | ||||
004 | 682504-0 | 1.58 | 1.90 | |
Commutateur | ||||
006 | 651225-5 | 10.00 | 12.00 | |
Schroef 3.5X7 | ||||
006A | 652008-6 | 0.83 | 1.00 | |
Carter De Moteur | ||||
007 | 159773-3 | 51.71 | 62.05 | |
Rubber pen 4 | ||||
008 | 263002-9 | 0.83 | 1.00 | |
Kogellager 6000 | ||||
009 | 211064-1 | 5.44 | 6.53 | |
Sluitring 10 | ||||
010 | 253758-2 | 0.83 | 1.00 | |
Tandwiel 67 | ||||
011 | 221749-1 | 17.34 | 20.81 | |
Pen 3 | ||||
012 | 256101-4 | 0.83 | 1.00 | |
Dunne sluitring 10 | ||||
013 | 253310-6 | 0.83 | 1.00 | |
Borgring S-10 | ||||
014 | 961006-2 | 0.83 | 1.00 | |
Rubber pen 4 | ||||
015 | 263002-9 | 0.83 | 1.00 | |
Tussenlagerstuk | ||||
016 | 152384-3 | 10.00 | 12.00 | |
Waaier 72 | ||||
017 | 241856-4 | 6.08 | 7.30 | |
Stofplaat | ||||
018 | 343356-1 | 1.39 | 1.67 | |
Pulley 10-38.3 | ||||
019 | 222122-8 | 10.00 | 12.00 | |
Schroef 4x22 | ||||
020 | 911143-2 | 0.83 | 1.00 | |
Sluitring 8x0,5mm | ||||
021 | 253139-0 | 0.83 | 1.00 | |
Kogellager 608ddw | ||||
022 | 210005-4 | 4.24 | 5.09 | |
Tandwiel 11 9901 | ||||
023 | 221786-5 | 13.78 | 16.54 | |
Kogellager 626llb | ||||
024 | 211016-2 | 5.44 | 6.53 | |
Kapje 18 | ||||
025 | 286026-8 | 0.83 | 1.00 | |
Pulley 10-22.1 | ||||
026 | 222121-0 | 11.26 | 13.51 | |
Schroef 5x10 | ||||
028 | 911209-8 | 0.83 | 1.00 | |
Koolborstel set Cb-100 | ||||
029 | 181030-1 | 3.37 | 4.04 | |
Koolborstelhouderdop | ||||
030 | 643600-9 | 0.94 | 1.13 | |
Sluitring 16 A | ||||
031 | 267323-1 | 0.83 | 1.00 | |
Épuisé | ||||
032 | 231225-7 | |||
Sluitring 16 A | ||||
033 | 267323-1 | 0.83 | 1.00 | |
Vastzetschroef M6x25 | ||||
034 | 265763-7 | 0.94 | 1.13 | |
Courroie D’entrainement | ||||
035 | 225064-5 | 6.88 | 8.26 | |
Protecteur | ||||
036 | 410787-0 | 5.69 | 6.83 | |
Schroef 5x25 | ||||
037 | 911243-8 | 0.83 | 1.00 | |
Veld 9901 * | ||||
038 | 522643-3 | 36.90 | 44.28 | |
Kogellager 608ddw | ||||
039 | 210005-4 | 4.24 | 5.09 | |
Stofafdichting 8 | ||||
040 | 213002-9 | 0.97 | 1.16 | |
Induit | ||||
041 | 518618-8 | 44.86 | 53.83 | |
Waaier 70 | ||||
042 | 241833-6 | 6.88 | 8.26 | |
Kogellager 608ddw | ||||
043 | 210005-4 | 4.24 | 5.09 | |
Rubber pen 4 | ||||
044 | 263002-9 | 0.83 | 1.00 | |
Rubber pen 4 | ||||
045 | 263002-9 | 0.83 | 1.00 | |
Schroef 5x25 | ||||
046 | 911243-8 | 0.83 | 1.00 | |
Épuisé | ||||
047 | 232092-3 | |||
Schroef 5x40 | ||||
048 | 911263-2 | 0.83 | 1.00 | |
Borgring S-10 | ||||
049 | 961006-2 | 0.83 | 1.00 | |
Schotelring M10 * | ||||
050 | 253981-9 | 0.94 | 1.13 | |
Spanrol | ||||
051 | 152319-4 | 11.26 | 13.51 | |
Schotelring M10 * | ||||
052 | 253981-9 | 0.94 | 1.13 | |
Spanrolarm 9901 * | ||||
053 | 163257-5 | 13.17 | 15.80 | |
Spanrolas 9901 * | ||||
054 | 321979-5 | 6.08 | 7.30 | |
Verzonken schroef M4x18 | ||||
055 | 912131-2 | 0.83 | 1.00 | |
Beschermplaat 9901 * | ||||
056 | 343353-7 | 13.17 | 15.80 | |
Drukveer 11 | ||||
057 | 231033-6 | 0.94 | 1.13 | |
Aandrijfrol 9901 | ||||
058 | 168157-4 | 25.29 | 30.35 | |
Sluitring 10 | ||||
059 | 253758-2 | 0.83 | 1.00 | |
Motorhuisdeksel 9901 Re * | ||||
060 | 157669-2 | 18.32 | 21.98 | |
Goupille | ||||
061 | 321980-0 | 2.00 | 2.40 | |
Plateau De Pression | ||||
062 | 411594-4 | 0.83 | 1.00 | |
Stalen plaat | ||||
063 | 343355-3 | 2.98 | 3.58 | |
Kurkplaat | ||||
064 | 423149-3 | 2.26 | 2.71 | |
Slijtstrip | ||||
065 | 155873-7 | 3.78 | 4.54 | |
Tapschroef 4x18 | ||||
066 | 265995-6 | 0.83 | 1.00 | |
Klemstrip | ||||
067 | 687053-2 | 0.83 | 1.00 | |
Épuisé | ||||
068 | 232092-3 |
