Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita AF550H'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

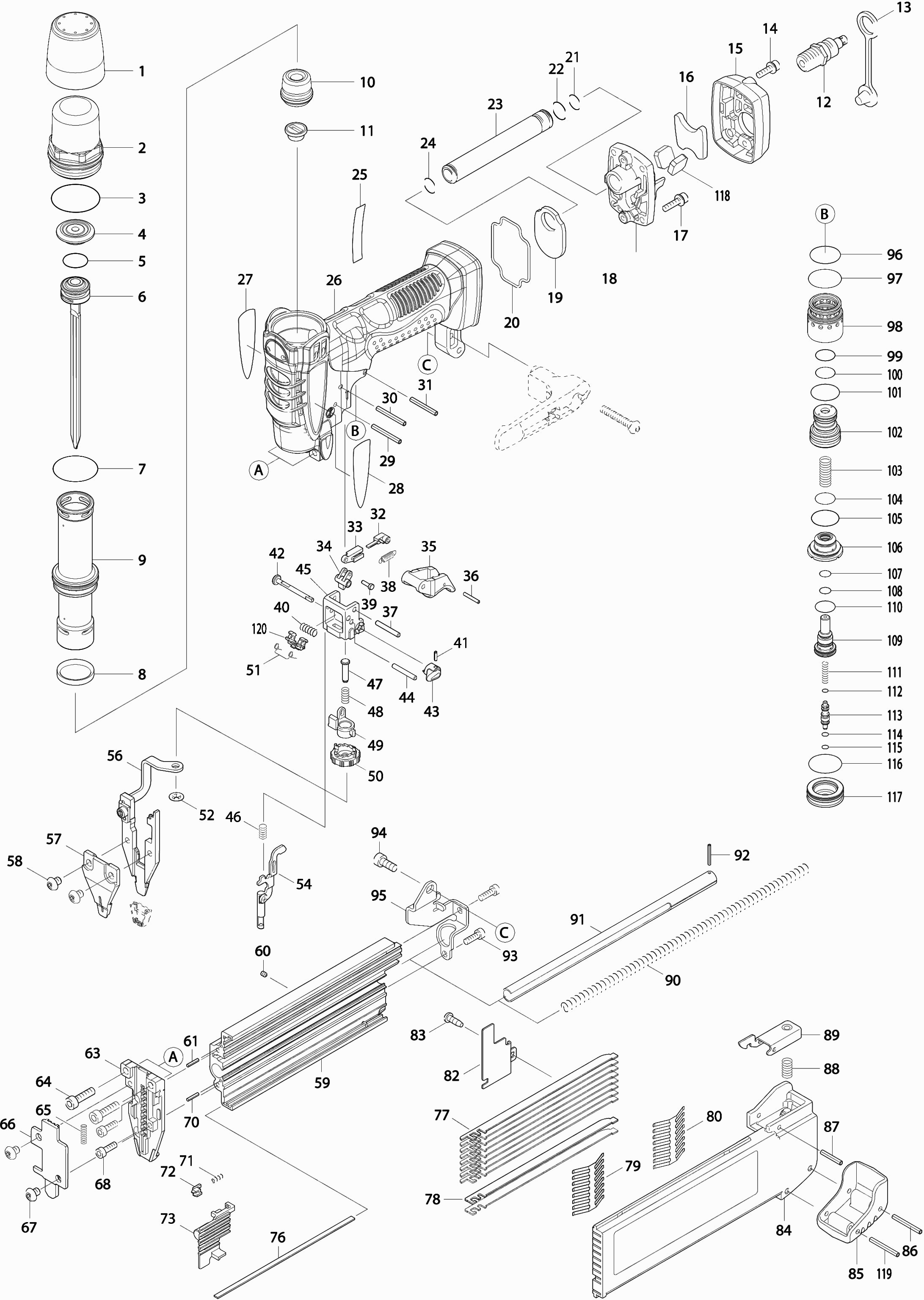

Dessins des Makita AF550H
Liste de pièces de rechange des Makita AF550H
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Capot de recouvrement | ||||
| 001 | 450630-1 | 5.22 | 6.26 | |
| Bovendeksel | ||||
| 002 | 318286-5 | 7.43 | 8.92 | |
| O-ring 31 | ||||
| 003 | 213883-1 | 0.83 | 1.00 | |
| Stootkussen achter | ||||
| 004 | 424120-0 | 11.68 | 14.02 | |
| O-ring 14 | ||||
| 005 | 213189-7 | 5.46 | 6.55 | |
| Slagpen | ||||
| 006 | 158686-5 | 61.09 | 73.31 | |
| O-Ring 29 Af500Hp/Sr2600 | ||||
| 007 | 213412-0 | 0.83 | 1.00 | |
| D-ring | ||||
| 008 | 424116-1 | 1.80 | 2.16 | |
| Cylindre | ||||
| 009 | 331830-1 | 28.73 | 34.48 | |
| Stootkussen voor | ||||
| 010 | 424119-5 | 11.16 | 13.39 | |
| Afdichtplug A | ||||
| 011 | 424233-7 | 3.22 | 3.86 | |
| Insteeknippel Orion | ||||
| 012 | 243105-5 | 16.07 | 19.28 | |
| Capuchon | ||||
| 013 | 286280-4 | 1.27 | 1.52 | |
| Inbusbout 4x12 | ||||
| 014 | 265353-6 | 0.83 | 1.00 | |
| Uitlaatkap | ||||
| 015 | 450632-7 | 4.08 | 4.90 | |
| Filtre | ||||
| 016 | 413123-9 | 3.22 | 3.86 | |
| Inbusbout 4x16 | ||||
| 017 | 922127-5 | 0.83 | 1.00 | |
| Inlaatdeksel Af500Hp | ||||
| 018 | 318287-3 | 6.16 | 7.39 | |
| Inlaatfilter | ||||
| 019 | 413122-1 | 3.65 | 4.38 | |
| Pakkingring | ||||
| 020 | 424117-9 | 1.51 | 1.81 | |
| O-ring 9,5 | ||||
| 021 | 213194-4 | 1.27 | 1.52 | |
| O-ring 11 | ||||
| 022 | 213105-9 | 0.83 | 1.00 | |
| Tuyau | ||||
| 023 | 331832-7 | 8.52 | 10.22 | |
| O-ring 9,5 | ||||
| 024 | 213194-4 | 1.27 | 1.52 | |
| Naamplaat "af550h" | ||||
| 025 | 865254-4 | 2.80 | 3.36 | |
| Carter | ||||
| 026 | 188601-5 | 108.68 | 130.42 | |
| Makita logo label r | ||||
| 027 | 819313-6 | 2.80 | 3.36 | |
| Makita logo label l | ||||
| 028 | 819314-4 | 2.80 | 3.36 | |
| Borgpen 3-28 | ||||
| 029 | 951075-1 | 0.83 | 1.00 | |
| Borgpen 3-28 | ||||
| 030 | 951075-1 | 0.83 | 1.00 | |
| Spanstift 3-26 | ||||
| 031 | 258037-3 | 0.83 | 1.00 | |
| Axe De Blocage | ||||
| 032 | 310263-3 | 3.22 | 3.86 | |
| Blokkeerpengeleiding | ||||
| 033 | 310296-8 | 2.80 | 3.36 | |
| Verbindingblok | ||||
| 034 | 310312-6 | 3.20 | 3.84 | |
| Schakelknop | ||||
| 035 | 450633-5 | 4.08 | 4.90 | |
| Spanstift 2-14 | ||||
| 036 | 951010-9 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 037 | 256221-4 | 0.83 | 1.00 | |
| Trekveer 4 | ||||
| 038 | 231856-2 | 1.01 | 1.21 | |
| Pen 2 | ||||
| 039 | 268218-1 | 4.08 | 4.90 | |
| Drukveer 5 | ||||
| 040 | 231309-1 | 0.83 | 1.00 | |
| Spanstift 2-8 | ||||
| 041 | 951001-0 | 0.83 | 1.00 | |
| Blokkeerpin | ||||
| 042 | 324948-5 | 4.08 | 4.90 | |
| Bouton | ||||
| 043 | 450786-0 | 4.08 | 4.90 | |
| Pen 3 | ||||
| 044 | 256221-4 | 0.83 | 1.00 | |
| Schakel montageplaat | ||||
| 045 | 451332-2 | 2.08 | 2.50 | |
| Drukveer 5 | ||||
| 046 | 234067-8 | 0.83 | 1.00 | |
| Pen 4 | ||||
| 047 | 268243-2 | 1.24 | 1.49 | |
| Drukveer 5 | ||||
| 048 | 234069-4 | 4.57 | 5.48 | |
| Drukveer 5 | ||||
| 048-1 | 234100-6 | 0.83 | 1.00 | |
| Épuisé | ||||
| 049 | 310313-4 | |||
| Piece De Reglage | ||||
| 050 | 310266-7 | 13.65 | 16.38 | |
| Ressort De Torsion | ||||
| 051 | 233533-2 | 10.81 | 12.97 | |
| Drukmoer M3 | ||||
| 052 | 259009-1 | 0.83 | 1.00 | |
| Bras | ||||
| 054 | 165568-4 | 10.81 | 12.97 | |
| Contactarm, compleet | ||||
| 056 | 158687-3 | 31.62 | 37.94 | |
| Slagpengeleider voor | ||||
| 057 | 310268-3 | 17.90 | 21.48 | |
| Met.schroef Ck Inb M5x6mm | ||||
| 058 | 266577-7 | 0.83 | 1.00 | |
| Reservoir | ||||
| 059 | 331833-5 | 26.11 | 31.33 | |
| Stelschroef M3x4mm | ||||
| 060 | 266999-1 | 0.83 | 1.00 | |
| Spanstift 2-10 | ||||
| 061 | 951004-4 | 0.83 | 1.00 | |
| Neusplaat | ||||
| 063 | 310270-6 | 43.02 | 51.62 | |
| Inbusbout 5x20 | ||||
| 064 | 266369-4 | 0.83 | 1.00 | |
| Drukveer 3 | ||||
| 065 | 234099-5 | 0.83 | 1.00 | |
| Slagpengeleider achter | ||||
| 066 | 310271-4 | 20.59 | 24.71 | |
| Met.schroef Ck Inb M5x6mm | ||||
| 067 | 266577-7 | 0.83 | 1.00 | |
| Inbusbout 4x12 | ||||
| 068 | 265353-6 | 0.83 | 1.00 | |
| Spanstift 2-10 | ||||
| 070 | 951004-4 | 0.83 | 1.00 | |
| Drukveer 3 | ||||
| 071 | 233018-8 | 0.83 | 1.00 | |
| Afslag Bpt350 | ||||
| 072 | 310176-8 | 3.22 | 3.86 | |
| Plateau De Pression | ||||
| 073 | 310269-1 | 23.23 | 27.88 | |
| Nagelplaat | ||||
| 076 | 345955-5 | 4.08 | 4.90 | |
| Nagelgeleidingsplaat A | ||||
| 077 | 345951-3 | 4.08 | 4.90 | |
| Nagelgeleidingsplaat B | ||||
| 078 | 345956-3 | 4.08 | 4.90 | |
| Ressort A Lame | ||||
| 079 | 232244-6 | 4.08 | 4.90 | |
| Ressort A Lame | ||||
| 080 | 232244-6 | 4.08 | 4.90 | |
| Plaque De Recouvrement | ||||
| 082 | 345952-1 | 4.08 | 4.90 | |
| Tapschroef 4x12 | ||||
| 083 | 266451-9 | 0.83 | 1.00 | |
| Schroef Pt4x12mm | ||||
| 083-1 | 266020-6 | 0.83 | 1.00 | |
| Schuifdeksel compleet | ||||
| 084 | 158750-2 | 23.74 | 28.49 | |
| Magazijnbumper | ||||
| 085 | 424122-6 | 4.08 | 4.90 | |
| Borgpen 3-28 | ||||
| 086 | 951075-1 | 0.83 | 1.00 | |
| Borgpen 3-22 A | ||||
| 087 | 258033-1 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 088 | 233097-6 | 0.83 | 1.00 | |
| Blokkeerhandel | ||||
| 089 | 345954-7 | 4.08 | 4.90 | |
| Drukveer 6 | ||||
| 090 | 234071-7 | 4.08 | 4.90 | |
| Douille De Guidage | ||||
| 091 | 345957-1 | 11.16 | 13.39 | |
| Borgpen 2-16 | ||||
| 092 | 951013-3 | 0.83 | 1.00 | |
| Inbusbout 4x12 | ||||
| 093 | 265353-6 | 0.83 | 1.00 | |
| Inbusbout m5x14 | ||||
| 094 | 265909-5 | 0.83 | 1.00 | |
| Koppelplaat | ||||
| 095 | 345953-9 | 4.09 | 4.91 | |
| O-ring 20 | ||||
| 096 | 213310-8 | 0.83 | 1.00 | |
| O-ring 22 | ||||
| 097 | 213373-4 | 1.21 | 1.45 | |
| Schakelklepgeleiding | ||||
| 098 | 331831-9 | 8.46 | 10.15 | |
| O-ring 11,2 | ||||
| 099 | 213137-6 | 1.72 | 2.06 | |
| O-ring 12,5 | ||||
| 100 | 213191-0 | 1.72 | 2.06 | |
| O-ring 18 | ||||
| 101 | 213262-3 | 1.01 | 1.21 | |
| Hoofdklep | ||||
| 102 | 412091-3 | 39.92 | 47.90 | |
| Drukveer 7 | ||||
| 103 | 234070-9 | 1.01 | 1.21 | |
| O-ring 14 | ||||
| 104 | 213162-7 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 105 | 213275-4 | 0.83 | 1.00 | |
| Schakelklepgeleiding | ||||
| 106 | 324912-6 | 9.52 | 11.42 | |
| O-ring 6 | ||||
| 107 | 213998-4 | 2.44 | 2.93 | |
| O-ring 6 | ||||
| 108 | 213998-4 | 2.44 | 2.93 | |
| Regelklep | ||||
| 109 | 451026-9 | 37.16 | 44.59 | |
| O-ring 14 | ||||
| 110 | 213162-7 | 0.83 | 1.00 | |
| Drukveer 3 | ||||
| 111 | 234068-6 | 0.83 | 1.00 | |
| O-ring 3 | ||||
| 112 | 213034-6 | 0.83 | 1.00 | |
| Schakelklepsteel | ||||
| 113 | 325634-1 | 5.87 | 7.04 | |
| O-ring 3 | ||||
| 114 | 213979-8 | 1.51 | 1.81 | |
| O-ring 3 | ||||
| 115 | 213979-8 | 1.51 | 1.81 | |
| O-ring 22 | ||||
| 116 | 213373-4 | 1.21 | 1.45 | |
| Schakelklephuis | ||||
| 117 | 325633-3 | 12.68 | 15.22 | |
| Filtre | ||||
| 118 | 413125-5 | 2.08 | 2.50 | |
| Borgpen 3-28 | ||||
| 119 | 951075-1 | 0.83 | 1.00 | |
| Verbindingsschakel | ||||
| 120 | 310284-5 | 16.07 | 19.28 | |
