Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita BHR262'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

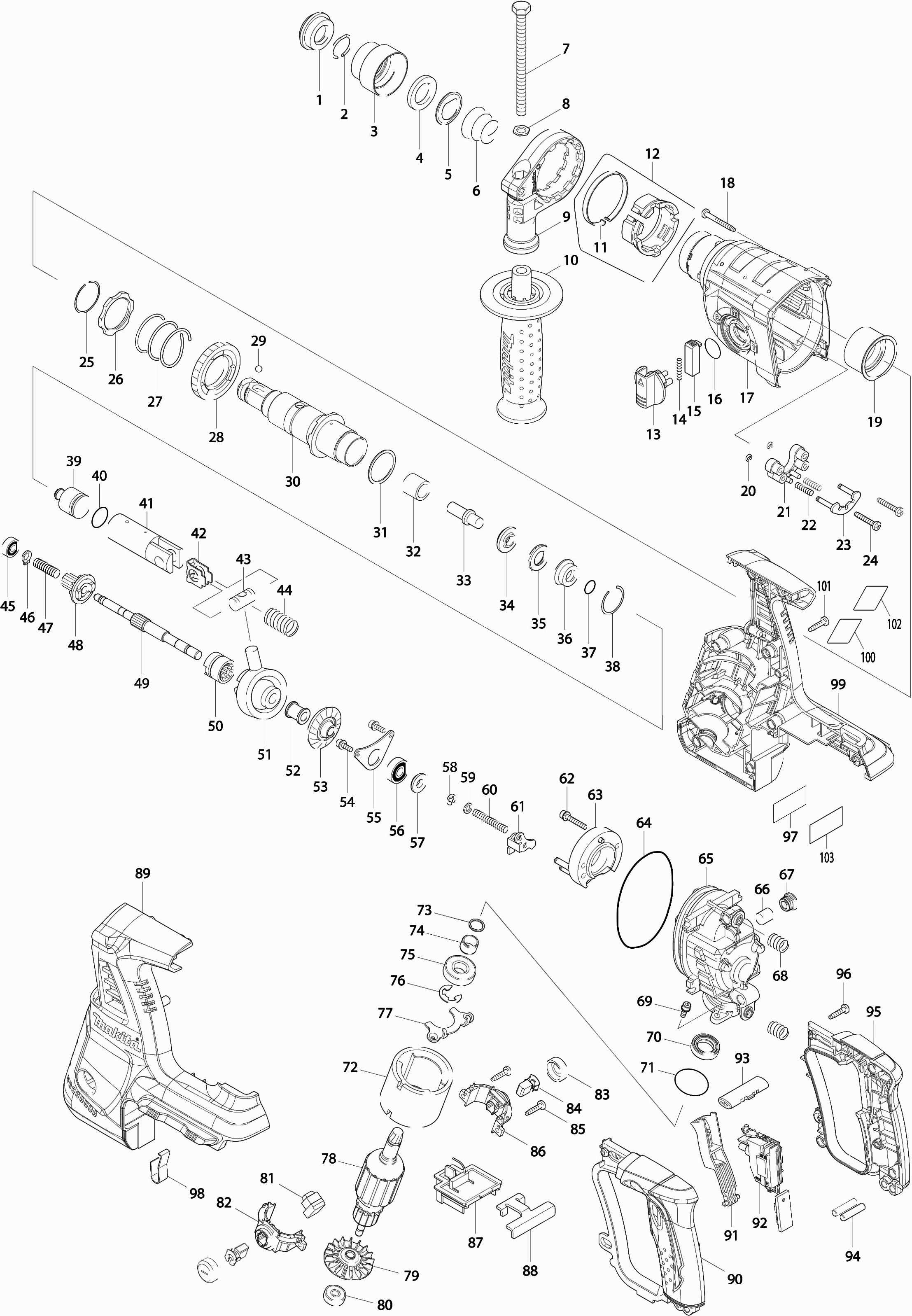

Dessins des Makita BHR262
Liste de pièces de rechange des Makita BHR262
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Rubber stofkap 35 | ||||
| 001 | 286263-4 | 0.94 | 1.13 | |
| Borgring 19 | ||||
| 002 | 233940-9 | 0.94 | 1.13 | |
| Boorhouderkap | ||||
| 003 | 417629-9 | 0.83 | 1.00 | |
| Ring 21 | ||||
| 004 | 257241-1 | 1.12 | 1.34 | |
| Geleidering | ||||
| 005 | 345187-4 | 0.83 | 1.00 | |
| Drukveer 21-29 | ||||
| 006 | 233916-6 | 0.83 | 1.00 | |
| Zeskant bout 8x120 | ||||
| 007 | 265583-9 | 1.12 | 1.34 | |
| Rondelle | ||||
| 008 | 345280-4 | 0.83 | 1.00 | |
| Épuisé | ||||
| 009 | 417630-4 | |||
| Poignee | ||||
| 010 | 158057-6 | 8.80 | 10.56 | |
| Verstelknop | ||||
| 013 | 450980-4 | 2.98 | 3.58 | |
| Drukveer 4 | ||||
| 014 | 233279-0 | 0.83 | 1.00 | |
| Schakelknop | ||||
| 015 | 453706-3 | 0.83 | 1.00 | |
| O-ring 17 | ||||
| 016 | 213278-8 | 0.83 | 1.00 | |
| Tandwielkast compleet | ||||
| 017 | 158945-7 | 10.00 | 12.00 | |
| Keerring 25 | ||||
| 017A | 213345-9 | 1.32 | 1.58 | |
| Schroef 4x35 | ||||
| 018 | 266351-3 | 0.83 | 1.00 | |
| Roulement A Aiguilles | ||||
| 019 | 153290-5 | 6.08 | 7.30 | |
| Stopring E-3 | ||||
| 020 | 961017-7 | 0.83 | 1.00 | |
| Geleide Basis Hr2450 | ||||
| 021 | 417796-0 | 0.83 | 1.00 | |
| Drukveer 4 Hr2450 Zwart | ||||
| 022 | 233344-5 | 0.83 | 1.00 | |
| Blokkeerplaat | ||||
| 023 | 163430-7 | 1.32 | 1.58 | |
| Tapschroef 4X25 Ga7020 | ||||
| 024 | 266374-1 | 0.83 | 1.00 | |
| Borgring 29 | ||||
| 025 | 233929-7 | 0.83 | 1.00 | |
| Revet 31 | ||||
| 026 | 267460-1 | 1.12 | 1.34 | |
| Drukveer 32 | ||||
| 027 | 233401-9 | 1.32 | 1.58 | |
| Tandwiel 51 | ||||
| 028 | 227109-5 | 10.00 | 12.00 | |
| Stalen kogel 7.0 | ||||
| 029 | 216022-2 | 0.83 | 1.00 | |
| Épuisé | ||||
| 030 | 122881-3 | |||
| Sluitring 28 | ||||
| 031 | 267229-3 | 0.83 | 1.00 | |
| Douille | ||||
| 032 | 331769-8 | 1.58 | 1.90 | |
| Slagstuk | ||||
| 033 | 324669-9 | 1.92 | 2.30 | |
| Ring 10 | ||||
| 034 | 324402-9 | 1.32 | 1.58 | |
| Stootring | ||||
| 035 | 421955-0 | 1.12 | 1.34 | |
| O-ring huis | ||||
| 036 | 324216-6 | 4.82 | 5.78 | |
| O-ring 9 | ||||
| 037 | 213073-6 | 0.83 | 1.00 | |
| Veerring 28 | ||||
| 038 | 233917-4 | 0.83 | 1.00 | |
| Slagstuk | ||||
| 039 | 324214-0 | 2.98 | 3.58 | |
| O-ring 16 | ||||
| 040 | 213227-5 | 1.12 | 1.34 | |
| Zuiger cilinder | ||||
| 041 | 318132-2 | 11.64 | 13.97 | |
| Geleidingsplaat | ||||
| 042 | 346036-8 | 0.83 | 1.00 | |
| Zuigerpen Hr2440/50 A | ||||
| 043 | 324215-8 | 1.92 | 2.30 | |
| Drukveer 14 | ||||
| 044 | 234098-7 | 0.83 | 1.00 | |
| Kogellager 606Zz A | ||||
| 045 | 210137-7 | 0.94 | 1.13 | |
| Borgring S-7 | ||||
| 046 | 961003-8 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 047 | 233343-7 | 0.83 | 1.00 | |
| Tandwiel 10 | ||||
| 048 | 227179-4 | 16.56 | 19.87 | |
| Embrayage | ||||
| 049 | 325976-3 | 6.88 | 8.26 | |
| Koppelingsplaat Bhr262 A | ||||
| 050 | 331992-5 | 6.08 | 7.30 | |
| Schommellager 10 Bhr200 A | ||||
| 051 | 219014-0 | 42.81 | 51.37 | |
| Bus 9 | ||||
| 052 | 325640-6 | 0.83 | 1.00 | |
| Tandwiel 26 | ||||
| 053 | 227549-7 | 5.44 | 6.53 | |
| Zeskant bout 4x12 | ||||
| 054 | 266273-7 | 0.83 | 1.00 | |
| Lagerborging B | ||||
| 055 | 346038-4 | 0.83 | 1.00 | |
| Kogellager 608Zz A | ||||
| 056 | 210046-0 | 0.83 | 1.00 | |
| Ring 8 | ||||
| 057 | 324212-4 | 4.24 | 5.09 | |
| Stopring E-4 | ||||
| 058 | 961011-9 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 059 | 941102-2 | 0.83 | 1.00 | |
| Drukveer 6 | ||||
| 060 | 233342-9 | 0.83 | 1.00 | |
| Wisselplaat | ||||
| 061 | 345220-2 | 0.83 | 1.00 | |
| Zeskantbout Hr5210C | ||||
| 062 | 922148-7 | 0.83 | 1.00 | |
| Vastzetblok, binnen- | ||||
| 063 | 158944-9 | 7.81 | 9.37 | |
| O-ring 68 | ||||
| 064 | 213728-3 | 0.94 | 1.13 | |
| Binnenhuis | ||||
| 065 | 318392-6 | 20.08 | 24.10 | |
| Filtre | ||||
| 066 | 443143-9 | 0.83 | 1.00 | |
| Couvercle | ||||
| 067 | 424185-2 | 0.83 | 1.00 | |
| Drukveer 10 | ||||
| 068 | 234097-9 | 0.83 | 1.00 | |
| Zeskant bout 4x12 | ||||
| 069 | 266273-7 | 0.83 | 1.00 | |
| Keerring 10 | ||||
| 070 | 213231-4 | 5.44 | 6.53 | |
| O-Ring 28 | ||||
| 071 | 213437-4 | 0.83 | 1.00 | |
| Magneet houder | ||||
| 072 | 632828-4 | 21.96 | 26.35 | |
| Ring voor borgpen Wr12 | ||||
| 073 | 961082-6 | 1.32 | 1.58 | |
| Bus 12 | ||||
| 074 | 331596-3 | 4.82 | 5.78 | |
| Kogellager 6001dw | ||||
| 075 | 211131-2 | 8.80 | 10.56 | |
| Stopring E-10 | ||||
| 076 | 961016-9 | 0.83 | 1.00 | |
| Lagerborging A | ||||
| 077 | 346037-6 | 1.18 | 1.42 | |
| Induit | ||||
| 078 | 519235-7 | 29.24 | 35.09 | |
| Waaier 44 | ||||
| 079 | 240037-7 | 2.58 | 3.10 | |
| KOGELLAGER 626DDW | ||||
| 080 | 210022-4 | 2.58 | 3.10 | |
| Lichtcircuit | ||||
| 081 | 631850-8 | 6.08 | 7.30 | |
| Koolborstelhouder cpl | ||||
| 082 | 638945-8 | 11.78 | 14.14 | |
| Lijn filter | ||||
| 082A | 688165-4 | 0.83 | 1.00 | |
| Lijn filter | ||||
| 082B | 688172-7 | 0.83 | 1.00 | |
| Koolborsteldop | ||||
| 083 | 643829-7 | 0.83 | 1.00 | |
| Koolborstelset Cb-442 | ||||
| 084 | 194928-3 | 3.37 | 4.04 | |
| Tapschroef 4x18 | ||||
| 085 | 266326-2 | 0.83 | 1.00 | |
| Koolborstelhouder cpl | ||||
| 086 | 638945-8 | 11.78 | 14.14 | |
| Lijn filter | ||||
| 086A | 688165-4 | 0.83 | 1.00 | |
| Lijn filter | ||||
| 086B | 688172-7 | 0.83 | 1.00 | |
| Verbinder | ||||
| 087 | 638978-3 | 5.44 | 6.53 | |
| Plaque d’appui | ||||
| 088 | 346039-2 | 0.95 | 1.14 | |
| Carter | ||||
| 089 | 187231-9 | 20.08 | 24.10 | |
| Rubber pen 6 | ||||
| 089A | 263005-3 | 0.83 | 1.00 | |
| Rubber pen 4 | ||||
| 089B | 263025-7 | 0.83 | 1.00 | |
| Handgreep set | ||||
| 090 | 188639-0 | 7.81 | 9.37 | |
| Schakelaarhandel Bhr261Rde | ||||
| 091 | 450981-2 | 0.95 | 1.14 | |
| Schakelaar C3hz-2a-pblm | ||||
| 092 | 650619-1 | 36.87 | 44.24 | |
| L/r verstelhendel | ||||
| 093 | 450979-9 | 0.83 | 1.00 | |
| Pen 6 | ||||
| 094 | 256261-2 | 0.83 | 1.00 | |
| Handgreep set | ||||
| 095 | 188639-0 | 7.81 | 9.37 | |
| Tapschroef 4x18 | ||||
| 096 | 266326-2 | 0.83 | 1.00 | |
| Serienummer label | ||||
| 097 | 897473-4 | 2.58 | 3.10 | |
| Vibratieplaat | ||||
| 098 | 344903-1 | 1.58 | 1.90 | |
| Carter | ||||
| 099 | 187231-9 | 20.08 | 24.10 | |
| Rubber pen 6 | ||||
| 099A | 263005-3 | 0.83 | 1.00 | |
| Rubber pen 4 | ||||
| 099B | 263025-7 | 0.83 | 1.00 | |
| Étiquette | ||||
| 100 | 897459-8 | 2.58 | 3.10 | |
| Tapschroef 4x18 | ||||
| 101 | 266326-2 | 0.83 | 1.00 | |
| Épuisé | ||||
| 102 | 893038-0 | |||
| Épuisé | ||||
| 103 | 893072-0 | |||
