Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DHR281'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

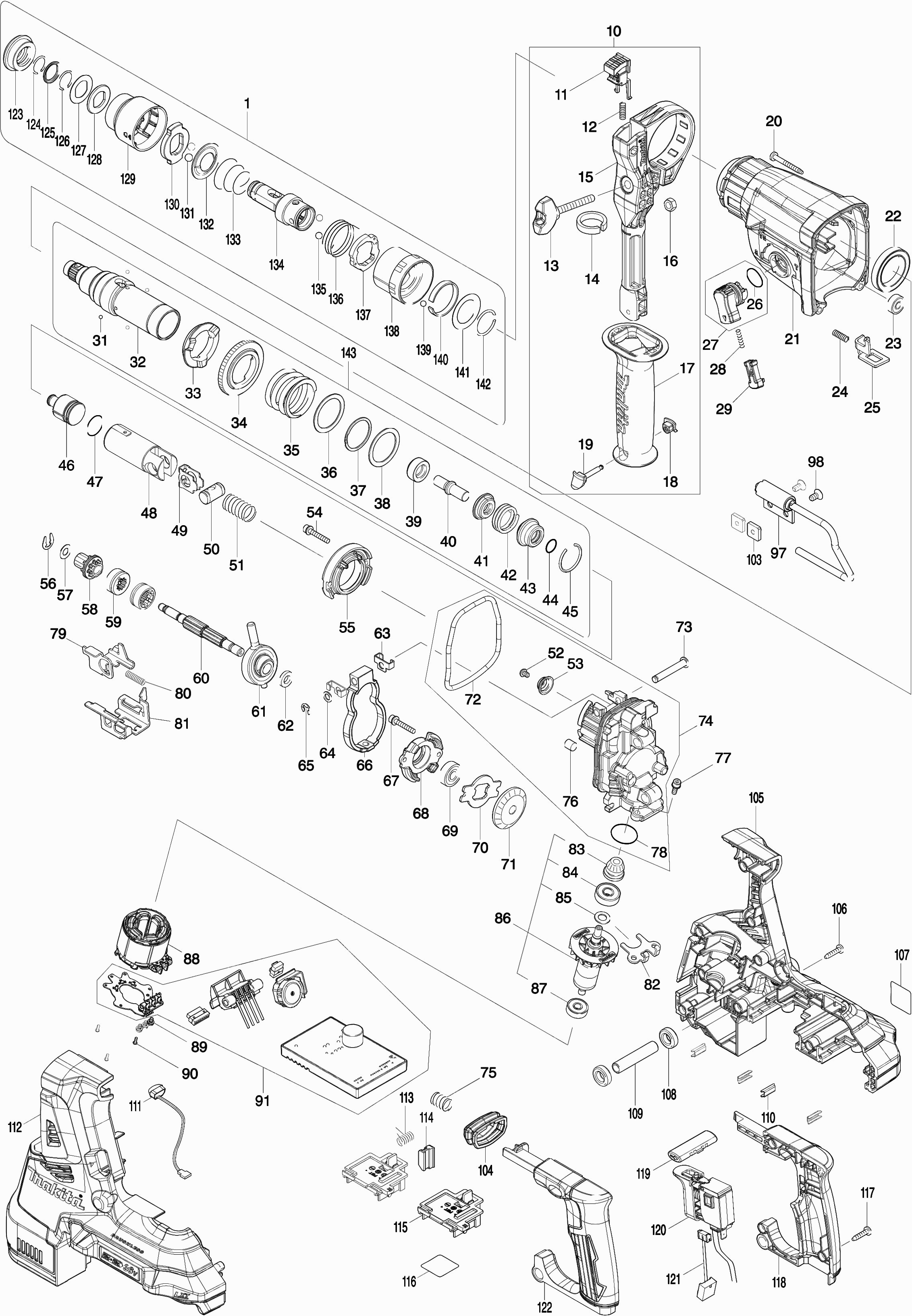

Dessins des Makita DHR281
Liste de pièces de rechange des Makita DHR281
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
SDS-PLUS boorkop | ||||
001 | 199138-7 | 17.50 | 21.00 | |
Handgreep anti-vibratie DHR281/283 | ||||
010 | 126882-3 | 17.50 | 21.00 | |
Blokkeerknop DHR281/283 | ||||
011 | 144959-2 | 0.95 | 1.14 | |
Drukveer 4 | ||||
012 | 233360-7 | 0.83 | 1.00 | |
Vleugelbout M6x50mm | ||||
013 | 265625-9 | 0.94 | 1.13 | |
Sponsrubber DHR281 | ||||
014 | 422258-5 | 0.83 | 1.00 | |
Épuisé | ||||
015 | 458355-1 | |||
Zeskant moer M6 | ||||
016 | 931302-2 | 0.83 | 1.00 | |
Épuisé | ||||
017 | 458357-7 | |||
Afdekkap handgrp DHR281/283 | ||||
018 | 422255-1 | 0.94 | 1.13 | |
Montagepin h-gr DHR281/283 | ||||
019 | 161838-9 | 2.98 | 3.58 | |
Schroef 4x35 | ||||
020 | 266351-3 | 0.83 | 1.00 | |
Tandwielhuis DHR281/283 | ||||
021 | 144965-7 | 11.26 | 13.51 | |
Keerring 25 | ||||
021C10 | 213345-9 | 1.32 | 1.58 | |
Douille | ||||
021C20 | 331890-3 | 2.58 | 3.10 | |
Kogellager 6806llu | ||||
022 | 211294-4 | 7.81 | 9.37 | |
Épuisé | ||||
023 | 211012-0 | |||
Drukveer 4 | ||||
024 | 233360-7 | 0.83 | 1.00 | |
Blokkeerplaat | ||||
025 | 347228-2 | 1.12 | 1.34 | |
O-ring 17 | ||||
026 | 213278-8 | 0.83 | 1.00 | |
Schakelknop DHR281/283 | ||||
027 | 135961-6 | 1.32 | 1.58 | |
Drukveer 3x28mm | ||||
028 | 234264-6 | 0.83 | 1.00 | |
Blokkeerknop | ||||
029 | 457709-9 | 0.83 | 1.00 | |
Stalen kogel 3 | ||||
031 | 216019-1 | 0.83 | 1.00 | |
Épuisé | ||||
032 | 144966-5 | |||
Keerring 9 | ||||
032C10 | 213344-1 | 3.77 | 4.52 | |
Épuisé | ||||
033 | 332139-4 | |||
Épuisé | ||||
034 | 227360-7 | |||
Drukveer 31mm | ||||
035 | 234148-8 | 1.12 | 1.34 | |
Sluitring 30 | ||||
036 | 267153-0 | 0.83 | 1.00 | |
Borgring spiro30 | ||||
037 | 257932-4 | 2.98 | 3.58 | |
Sluitring 30 | ||||
038 | 267153-0 | 0.83 | 1.00 | |
Bus 9b | ||||
039 | 325783-4 | 0.94 | 1.13 | |
Slagstuk "b" | ||||
040 | 325791-5 | 1.58 | 1.90 | |
Ring 10 | ||||
041 | 325792-3 | 1.12 | 1.34 | |
Drukveer 20 | ||||
042 | 234149-6 | 0.94 | 1.13 | |
O-ring huis "b" | ||||
043 | 325793-1 | 2.58 | 3.10 | |
O-ring 9 | ||||
044 | 213073-6 | 0.83 | 1.00 | |
Veerring 28 | ||||
045 | 233979-2 | 0.83 | 1.00 | |
Slaghamer | ||||
046 | 325784-2 | 2.58 | 3.10 | |
O-ring 17.5 | ||||
047 | 213258-4 | 1.92 | 2.30 | |
Zuiger DHR281/283 | ||||
048 | 327079-9 | 6.08 | 7.30 | |
Geleidingsplaat | ||||
049 | 346036-8 | 0.83 | 1.00 | |
Zuigerpen Hr2440/50 A | ||||
050 | 324215-8 | 1.92 | 2.30 | |
Drukveer 14mm DHR281/283 | ||||
051 | 232449-8 | 0.83 | 1.00 | |
Bout M4x6mm DHR281/283 | ||||
052 | 265627-5 | 0.83 | 1.00 | |
Veergeleider DHR281/283 | ||||
053 | 347344-0 | 0.83 | 1.00 | |
Zeskantbout Hr5210C | ||||
054 | 922148-7 | 0.83 | 1.00 | |
Geleidering DHR281/283 | ||||
055 | 144960-7 | 3.37 | 4.04 | |
Stopring Ext-u6 | ||||
056 | 257336-0 | 0.83 | 1.00 | |
Sluitring 7 | ||||
057 | 253186-1 | 0.83 | 1.00 | |
Tandwiel 10 DHR281/283 | ||||
058 | 226170-9 | 6.08 | 7.30 | |
Koppelingsplaat | ||||
059 | 332125-5 | 4.82 | 5.78 | |
Koppeling DHR281/283 | ||||
060 | 327078-1 | 4.82 | 5.78 | |
Schommellager 10 DHR281/283 | ||||
061 | 219030-2 | 13.16 | 15.79 | |
Ring 8 | ||||
062 | 257321-3 | 0.83 | 1.00 | |
Gewichthouder | ||||
063 | 346538-4 | 0.83 | 1.00 | |
Sluitring 6 | ||||
064 | 253077-6 | 0.83 | 1.00 | |
Stopring E-5 | ||||
065 | 961018-5 | 0.83 | 1.00 | |
Balansgewicht DHR281/283 | ||||
066 | 310869-7 | 3.77 | 4.52 | |
Zeskantbout Hr5210C | ||||
067 | 922148-7 | 0.83 | 1.00 | |
Lagerhuis DHR281/283 | ||||
068 | 319674-9 | 2.26 | 2.71 | |
Kogellager 608Zz A | ||||
069 | 210046-0 | 0.83 | 1.00 | |
Lagerborging B DHR281/283 | ||||
070 | 347343-2 | 0.95 | 1.14 | |
Tandwiel 32 DHR281/283 | ||||
071 | 221599-4 | 5.42 | 6.50 | |
O-ring 74mm DHR281/283 | ||||
072 | 213850-6 | 0.94 | 1.13 | |
Platkoppin 6mm . | ||||
073 | 256536-9 | 0.94 | 1.13 | |
Binnenhuis DHR281/283 | ||||
074 | 135962-4 | 26.69 | 32.03 | |
Drukveer 10mm DHR281/283 | ||||
075 | 232436-7 | 0.83 | 1.00 | |
Dempingsvilt | ||||
076 | 443153-6 | 0.83 | 1.00 | |
Inbusbout M4x12 | ||||
077 | 922118-6 | 0.83 | 1.00 | |
O-ring 22,4 | ||||
078 | 213008-7 | 0.94 | 1.13 | |
Wisselplaat B | ||||
079 | 347230-5 | 1.58 | 1.90 | |
Drukveer 5 | ||||
080 | 234343-0 | 0.83 | 1.00 | |
Wisselplaat A | ||||
081 | 347229-0 | 2.26 | 2.71 | |
Lagerborging A | ||||
082 | 346536-8 | 1.12 | 1.34 | |
Tandwiel 11 DHR281/283 | ||||
083 | 144964-9 | 4.24 | 5.09 | |
Kogellager 608 2rs | ||||
084 | 210024-0 | 2.98 | 3.58 | |
Sluitring 8 x 14 x 1mm | ||||
085 | 253835-0 | 0.83 | 1.00 | |
Anker assy DHR281/283 | ||||
086 | 519513-5 | 60.64 | 72.77 | |
KOGELLAGER 626DDW | ||||
087 | 210022-4 | 2.58 | 3.10 | |
Veld DHR281/283 | ||||
088 | 629340-3 | 11.26 | 13.51 | |
Kruiskop Schroef M3X6 | ||||
089 | 652069-6 | 0.83 | 1.00 | |
Parker Ck 2x6mm | ||||
090 | 266490-9 | 0.83 | 1.00 | |
Wisselplaat A | ||||
091 | 347229-0 | 2.26 | 2.71 | |
Controller DHR281 | ||||
091 | 620815-5 | 187.98 | 225.58 | |
Haak assy DHR281/283 | ||||
097 | 135963-2 | 4.24 | 5.09 | |
Verzonken schroef 5x10 | ||||
098 | 912207-5 | 0.83 | 1.00 | |
Vierkant moer M5 | ||||
103 | 264002-2 | 0.83 | 1.00 | |
Bufferring DHR281/283 | ||||
104 | 422257-7 | 6.11 | 7.33 | |
Motorhuisset DHR281 | ||||
105 | 183J31-5 | 20.08 | 24.10 | |
Rubber pen 6 | ||||
105C10 | 263005-3 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
106 | 266326-2 | 0.83 | 1.00 | |
Naamplaat DHR281 | ||||
107 | 854J10-7 | 2.58 | 3.10 | |
Rubber RING 10 DHR81/283 | ||||
108 | 422256-9 | 0.83 | 1.00 | |
Bus 10 DHR281/283 | ||||
109 | 257438-2 | 1.14 | 1.37 | |
Beschermplaatplaat | ||||
110 | 346783-1 | 0.83 | 1.00 | |
Licht Circuit Dhp483 | ||||
111 | 620549-0 | 3.37 | 4.04 | |
Motorhuisset DHR281 | ||||
112 | 183J31-5 | 20.08 | 24.10 | |
Rubber pen 6 | ||||
112C10 | 263005-3 | 0.83 | 1.00 | |
Torsieveer 6mm | ||||
113 | 233598-4 | 0.83 | 1.00 | |
Blokkeerbhandel | ||||
114 | 313226-8 | 0.83 | 1.00 | |
Aansluitunit (3 contacten) | ||||
115 | 644809-6 | 3.77 | 4.52 | |
Label serienr DHR281 | ||||
116 | 854J13-1 | 2.58 | 3.10 | |
Tapschroef 4x18 | ||||
117 | 266326-2 | 0.83 | 1.00 | |
Handgreepset DHR283 | ||||
118 | 183J29-2 | 5.42 | 6.50 | |
L+r schakelhendel | ||||
119 | 453124-5 | 0.83 | 1.00 | |
Schakelaar DHR281/283 | ||||
120 | 651366-7 | 16.56 | 19.87 | |
Draadboom DHR281/283 | ||||
121 | 632L95-3 | 2.58 | 3.10 | |
Handgreepset DHR283 | ||||
122 | 183J29-2 | 5.42 | 6.50 | |
Rubber stofkap 35 | ||||
123 | 286288-8 | 0.83 | 1.00 | |
Veerring 14 | ||||
124 | 233989-9 | 0.83 | 1.00 | |
Sluitring 16 | ||||
125 | 346221-3 | 0.83 | 1.00 | |
Borgveer 15 | ||||
126 | 233992-0 | 0.83 | 1.00 | |
Sluitring 17mm | ||||
127 | 267437-6 | 0.83 | 1.00 | |
Rubber ring 16 | ||||
128 | 424364-2 | 0.83 | 1.00 | |
Beitelblokkeerkap DHR281/283 | ||||
129 | 458358-5 | 3.28 | 3.94 | |
Stopper DHR281/283 | ||||
130 | 327081-2 | 3.37 | 4.04 | |
Stalen kogel 7.0 | ||||
131 | 216022-2 | 0.83 | 1.00 | |
Geleidering | ||||
132 | 346177-0 | 0.83 | 1.00 | |
Drukveer 21-29 | ||||
133 | 233916-6 | 0.83 | 1.00 | |
Épuisé | ||||
134 | 327080-4 | |||
Stalen kogel 6 | ||||
135 | 216013-3 | 0.83 | 1.00 | |
Torsieveer 31 | ||||
136 | 231669-1 | 0.83 | 1.00 | |
Verwisselring | ||||
137 | 345334-7 | 1.32 | 1.58 | |
Blokkeerkap | ||||
138 | 418218-3 | 0.94 | 1.13 | |
Stalen kogel 5.0 | ||||
139 | 216018-3 | 0.83 | 1.00 | |
Ressort A Lame | ||||
140 | 345335-5 | 0.83 | 1.00 | |
Sluitring 24 | ||||
141 | 267270-6 | 0.83 | 1.00 | |
Borgring 21 | ||||
142 | 233924-7 | 0.83 | 1.00 | |
Boor/beitelkophoud cpl DHR281 | ||||
143 | 135965-8 | 31.78 | 38.14 |
