Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DP4011'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

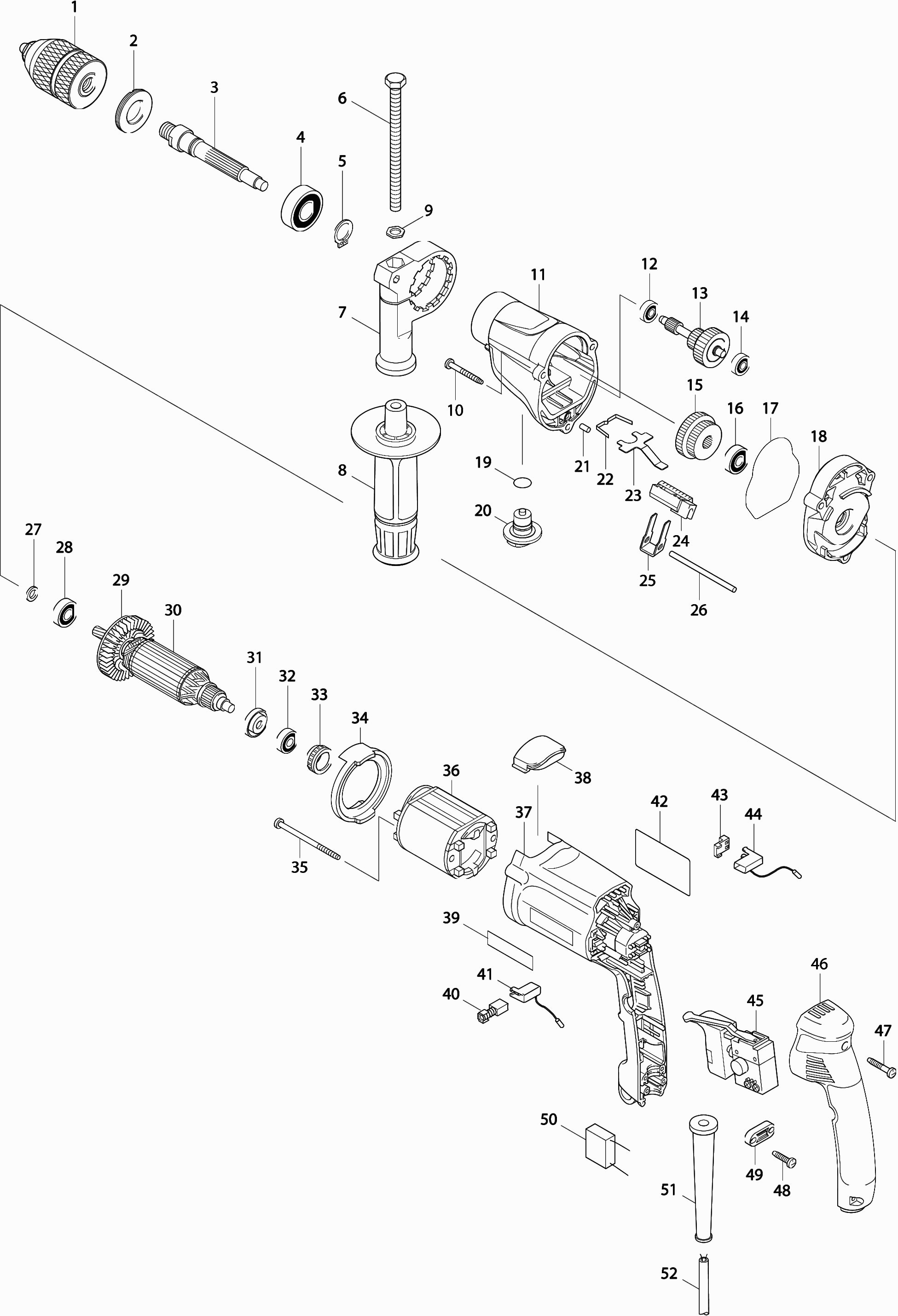

Dessins des Makita DP4011
Liste de pièces de rechange des Makita DP4011
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
boorkop | ||||
001 | 192664-5 | 45.00 | 54.00 | |
Lagerborging 19-36 * | ||||
002 | 285806-9 | 1.90 | 2.28 | |
Arbre | ||||
003 | 324835-8 | 7.87 | 9.44 | |
Kogellager 6202llb | ||||
004 | 211228-7 | 6.88 | 8.26 | |
Borgring S-15 | ||||
005 | 961055-9 | 0.83 | 1.00 | |
Zeskant bout 8x120 | ||||
006 | 265583-9 | 1.12 | 1.34 | |
Épuisé | ||||
007 | 417630-4 | |||
Épuisé | ||||
008 | 152521-9 | |||
Rondelle | ||||
009 | 345280-4 | 0.83 | 1.00 | |
Schroef 4x35 | ||||
010 | 266351-3 | 0.83 | 1.00 | |
Carter | ||||
011 | 318187-7 | 11.64 | 13.97 | |
Kogellager 606Zz A | ||||
012 | 210137-7 | 0.94 | 1.13 | |
Tandwielset | ||||
013 | 153622-6 | 21.96 | 26.35 | |
Kogellager 606Zz A | ||||
014 | 210137-7 | 0.94 | 1.13 | |
Tandwiel 29-37 | ||||
015 | 227119-2 | 8.80 | 10.56 | |
Kogellager 608Zz A | ||||
016 | 210046-0 | 0.83 | 1.00 | |
Pakkingring | ||||
017 | 421810-6 | 0.83 | 1.00 | |
Palier | ||||
018 | 158412-2 | 10.02 | 12.02 | |
O-ring 14 | ||||
019 | 213162-7 | 0.83 | 1.00 | |
Schakelknop (h/l) | ||||
020 | 417805-5 | 1.12 | 1.34 | |
Pen 4 | ||||
021 | 256251-5 | 0.83 | 1.00 | |
Ressort A Lame | ||||
022 | 232143-2 | 0.83 | 1.00 | |
Blokkeerplaat | ||||
023 | 345225-2 | 0.83 | 1.00 | |
Tole Coulissante | ||||
024 | 417804-7 | 0.83 | 1.00 | |
Schakelgaffel | ||||
025 | 345223-6 | 0.83 | 1.00 | |
Pin 4 | ||||
026 | 268092-7 | 0.83 | 1.00 | |
Ring 8 | ||||
027 | 262087-2 | 0.83 | 1.00 | |
Kogellager 608ddw | ||||
028 | 210005-4 | 4.24 | 5.09 | |
Waaier 52 | ||||
029 | 241881-5 | 1.92 | 2.30 | |
Induit | ||||
030 | 517414-1 | 42.81 | 51.37 | |
Isolatiering | ||||
031 | 681636-0 | 1.12 | 1.34 | |
Kogellager 607llb | ||||
032 | 211021-9 | 4.24 | 5.09 | |
Rubber ring 19 | ||||
033 | 421494-0 | 3.77 | 4.52 | |
Plaque Intermediaire | ||||
034 | 417803-9 | 0.83 | 1.00 | |
Tapschroef 4x65mm | ||||
035 | 266340-8 | 0.83 | 1.00 | |
Inducteur | ||||
036 | 633528-9 | 11.26 | 13.51 | |
Carter De Moteur | ||||
037 | 417807-1 | 11.26 | 13.51 | |
Capot de recouvrement | ||||
038 | 450179-1 | 1.58 | 1.90 | |
Koolborstel set Cb-419 | ||||
040 | 191962-4 | 4.24 | 5.09 | |
S/e Porte Balais | ||||
041 | 643989-5 | 2.98 | 3.58 | |
Naamplaat "dp4011" | ||||
042 | 864033-7 | 2.58 | 3.10 | |
Afstandstuk | ||||
043 | 689111-0 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
044 | 643988-7 | 2.98 | 3.58 | |
Commutateur | ||||
045 | 650524-2 | 31.78 | 38.14 | |
Handgreepdeksel | ||||
046 | 153284-0 | 11.78 | 14.14 | |
Tapschroef 4X25 Ga7020 | ||||
047 | 266374-1 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
048 | 266326-2 | 0.83 | 1.00 | |
Klemstrip | ||||
049 | 687124-5 | 0.83 | 1.00 | |
Condensator 0,22uf | ||||
050 | 645190-8 | 2.26 | 2.71 | |
Kabeltule 8-110 | ||||
051 | 682559-5 | 0.83 | 1.00 | |
Netsnoer 2x1.00 2.2mtr | ||||
052 | 665383-1 | 10.00 | 12.00 |
