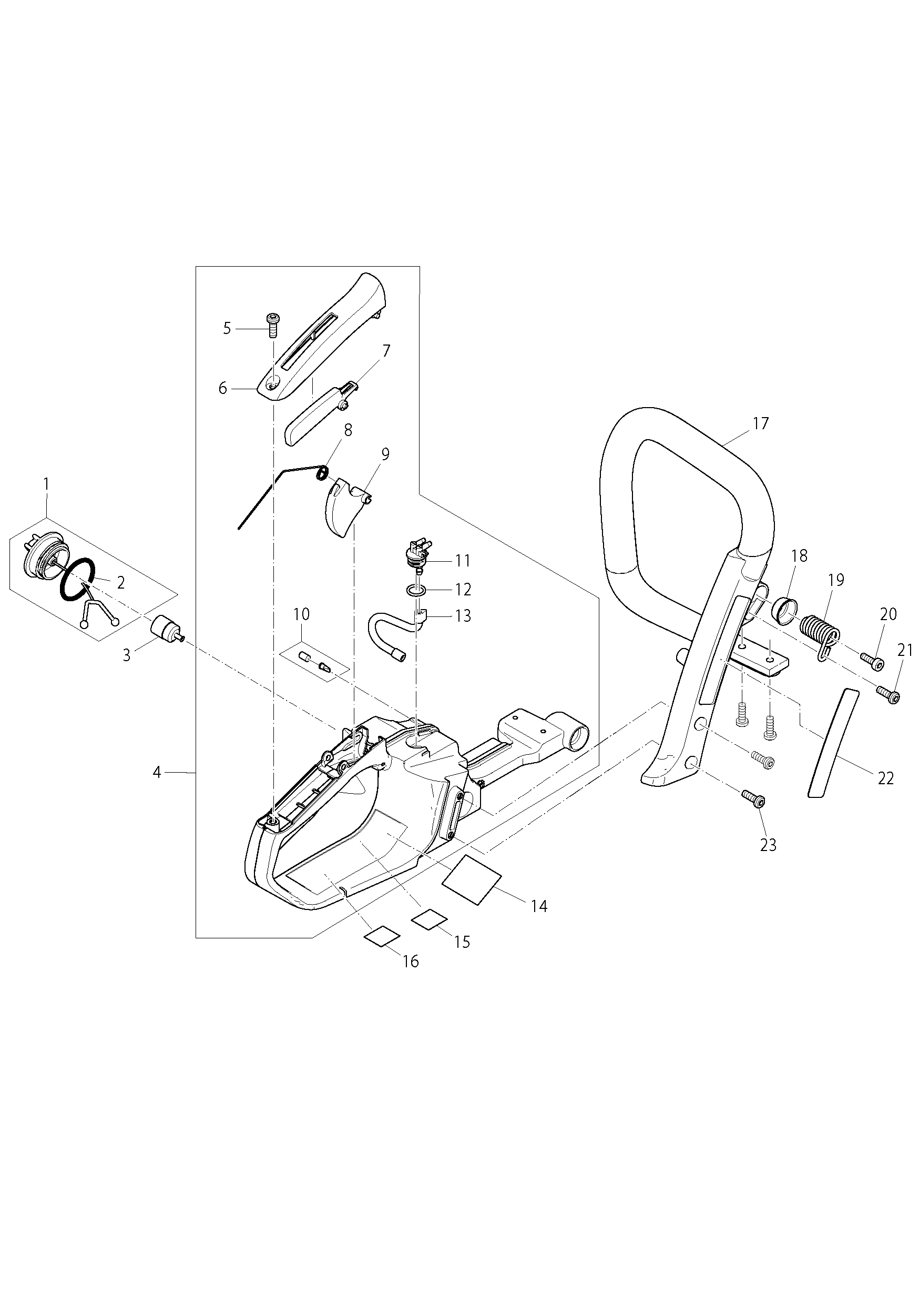

Dessins des Makita EA3201S
Liste de pièces de rechange des Makita EA3201S
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| TANKDOP ASSY EA3201S A | ||||
| 001 | 168823-3 | 2.58 | 3.10 | |
| O-Ring 29,5Mm A | ||||
| 002 | 213831-0 | 0.83 | 1.00 | |
| Brandstoffilter | ||||
| 003 | 163447-0 | 2.96 | 3.55 | |
| Tank Cpl. Ea3501S A | ||||
| 004 | 125114640 | 73.92 | 88.70 | |
| Met.schroef Ck M5,5x16mm | ||||
| 005 | 266651-1 | 0.83 | 1.00 | |
| Handgreepdeksel | ||||
| 006 | 452021-2 | 2.58 | 3.10 | |
| Levier D’enclenchement | ||||
| 007 | 452020-4 | 1.92 | 2.30 | |
| Torsieveer 10 | ||||
| 008 | 231866-9 | 0.83 | 1.00 | |
| Gashendel | ||||
| 009 | 452019-9 | 2.58 | 3.10 | |
| Beluchtingsventiel | ||||
| 010 | 195762-4 | 3.94 | 4.73 | |
| Épuisé | ||||
| 011 | 452018-1 | |||
| O-Ring 11,5 Ea4300F A | ||||
| 012 | 963211020 | 2.00 | 2.40 | |
| Aanzuigleiding A | ||||
| 013 | 195114070 | 10.00 | 12.00 | |
| Étiquette | ||||
| 014 | 869091-8 | 2.58 | 3.10 | |
| Beugelgreep | ||||
| 017 | 452036-9 | 11.78 | 14.14 | |
| Schotelring | ||||
| 018 | 346517-2 | 0.83 | 1.00 | |
| Drukveer 12 Ea3200S A | ||||
| 019 | 234189-4 | 0.83 | 1.00 | |
| Met.schroef Ck M5x16mm | ||||
| 020 | 266605-8 | 0.94 | 1.13 | |
| Met.schroef Ck M5,5x16mm | ||||
| 021 | 266651-1 | 0.83 | 1.00 | |
| Label "makita" | ||||
| 022 | 891898-4 | 2.58 | 3.10 | |
| Met.schroef Ck M5,5x16mm | ||||
| 023 | 266651-1 | 0.83 | 1.00 | |
| Luchtfilterkap | ||||
| 024 | 452031-9 | 2.58 | 3.10 | |
| Luchtfilter Ea3200S A | ||||
| 025 | 423414-0 | 6.88 | 8.26 | |
| Inlaatspruitstuk | ||||
| 026 | 452030-1 | 2.58 | 3.10 | |
| Met.schroef Ck M4x40mm | ||||
| 027 | 266604-0 | 0.83 | 1.00 | |
| Stootbuffer | ||||
| 028 | 424173-9 | 1.12 | 1.34 | |
| OPVOERPOMP DCS230T A | ||||
| 029 | 168398-2 | 4.24 | 5.09 | |
| Benzineslang 2,5x72mm | ||||
| 031 | 422065-6 | 2.00 | 2.40 | |
| Benzineslang 3,0x70mm | ||||
| 032 | 422068-0 | 1.92 | 2.30 | |
| Benzineslang 2,5x72mm | ||||
| 033 | 422065-6 | 2.00 | 2.40 | |
| Flens ring | ||||
| 034 | 318634-8 | 1.18 | 1.42 | |
| Épuisé | ||||
| 035 | 346413-4 | |||
| Bride Intermediaire | ||||
| 036 | 452024-6 | 1.92 | 2.30 | |
| Luchtinlaat | ||||
| 037 | 424340-6 | 5.05 | 6.06 | |
| Conische Ring Dcs4600 | ||||
| 038 | 181131070 | 2.36 | 2.83 | |
| Met.schroef Ck M5,5x16mm | ||||
| 039 | 266651-1 | 0.83 | 1.00 | |
| Borgmoer M5 | ||||
| 040 | 264044-6 | 0.83 | 1.00 | |
| Épuisé | ||||
| 041 | 168602-9 | |||
| Épuisé | ||||
| 041A | 168602-9 | |||
| Carburateur | ||||
| 041B | 168849-5 | 78.83 | 94.60 | |
| Schroef 3x10 | ||||
| 042 | 266421-8 | 0.83 | 1.00 | |
| Kontaktveer | ||||
| 043 | 346290-4 | 2.71 | 3.25 | |
| Met.schroef Ck M5,5x16mm | ||||
| 044 | 266651-1 | 0.83 | 1.00 | |
| Capuchon | ||||
| 045 | 452023-8 | 2.98 | 3.58 | |
| Met.Schroef Ck M5X20Mm | ||||
| 046 | 266607-4 | 0.83 | 1.00 | |
| Slangverbinder 90gr | ||||
| 047 | 325938-1 | 2.71 | 3.25 | |
| Koelplaat | ||||
| 048 | 346306-5 | 2.58 | 3.10 | |
| Afstandbus | ||||
| 049 | 325939-9 | 1.12 | 1.34 | |
| Uitlaatpakking Ea3200S A | ||||
| 050 | 346304-9 | 1.58 | 1.90 | |
| Met.schroef Ck M5x16mm | ||||
| 051 | 266605-8 | 0.94 | 1.13 | |
| Uitlaat | ||||
| 052 | 168604-5 | 34.36 | 41.23 | |
| Vonkenvanger | ||||
| 053 | 346294-6 | 0.83 | 1.00 | |
| Met.schroef Ck M4x40mm | ||||
| 054 | 266606-6 | 0.83 | 1.00 | |
| Met.schroef Ck M5x16mm | ||||
| 055 | 266605-8 | 0.94 | 1.13 | |
| Épuisé | ||||
| 056 | 195759-3 | |||
| Piston | ||||
| 057 | 195760-8 | 12.20 | 14.64 | |
| Zuigerveer | ||||
| 058 | 325991-7 | 5.69 | 6.83 | |
| Zuiger pen | ||||
| 059 | 325992-5 | 2.58 | 3.10 | |
| Borgveer 8 | ||||
| 060 | 233988-1 | 0.83 | 1.00 | |
| Keerring 12 Ea3200S P | ||||
| 061 | 213582-5 | 3.84 | 4.61 | |
| Kogellager 6201 | ||||
| 062 | 211109-5 | 4.24 | 5.09 | |
| Naaldlager 810 | ||||
| 063 | 212086-4 | 4.85 | 5.82 | |
| Épuisé | ||||
| 064 | 195956-1 | |||
| Kogellager 6201 | ||||
| 065 | 211109-5 | 4.24 | 5.09 | |
| Keerring 12 Ea3200S P | ||||
| 066 | 213582-5 | 3.84 | 4.61 | |
| Épuisé | ||||
| 067 | 424339-1 | |||
| Karterdeksel | ||||
| 068 | 318633-0 | 2.58 | 3.10 | |
| TANKDOP ASSY EA3201S A | ||||
| 069 | 168823-3 | 2.58 | 3.10 | |
| O-Ring 29,5Mm A | ||||
| 070 | 213831-0 | 0.83 | 1.00 | |
| Arret | ||||
| 071 | 452727-2 | 0.83 | 1.00 | |
| Met.schroef Ck M5,5x16mm | ||||
| 072 | 266651-1 | 0.83 | 1.00 | |
| Drukveer 12 Ea3200S A | ||||
| 073 | 234189-4 | 0.83 | 1.00 | |
| Indicatielabel Ea3200S A | ||||
| 074 | 816917-5 | 2.58 | 3.10 | |
| Choke hendel | ||||
| 075 | 452025-4 | 2.71 | 3.25 | |
| Gasstang Ea3200S A | ||||
| 076 | 452022-0 | 1.12 | 1.34 | |
| Tapschroef 5x40mm | ||||
| 077 | 266608-2 | 0.97 | 1.16 | |
| Bus 6mm | ||||
| 078 | 325946-2 | 0.83 | 1.00 | |
| Drukveer 12 Ea3200S A | ||||
| 079 | 234189-4 | 0.83 | 1.00 | |
| Met.schroef Ck M5,5x16mm | ||||
| 080 | 266651-1 | 0.83 | 1.00 | |
| Drukveer 12 Ea3200S A | ||||
| 081 | 234189-4 | 0.83 | 1.00 | |
| Met.schroef Ck M5,5x16mm | ||||
| 082 | 266651-1 | 0.83 | 1.00 | |
| Met.schroef Ck M5,5x16mm | ||||
| 083 | 266651-1 | 0.83 | 1.00 | |
| Ventielklep Ea4300F | ||||
| 084 | 010245030 | 5.69 | 6.83 | |
| Boomaanslag Ea3200 A | ||||
| 085 | 346301-5 | 8.80 | 10.56 | |
| Hitteschild | ||||
| 086 | 346385-3 | 2.58 | 3.10 | |
| Isolatiepijp 6x95mm | ||||
| 087 | 444029-0 | 1.12 | 1.34 | |
| Épuisé | ||||
| 088A1 | 326210-4 | |||
| Épuisé | ||||
| 088 | 346445-1 | |||
| Bougiedop | ||||
| 088A | 424522-0 | 5.44 | 6.53 | |
| Bougie Cmr6a | ||||
| 089 | 965603030 | 11.60 | 13.92 | |
| Isolatiering | ||||
| 090 | 452670-5 | 0.83 | 1.00 | |
| Ontsteking | ||||
| 091 | 126270-4 | 46.09 | 55.31 | |
| Épuisé | ||||
| 092 | 266631-7 | |||
| Kabel Cpl Ea3201S A | ||||
| 093 | 168601-1 | 2.58 | 3.10 | |
| Met.schroef Ck M5,5x16mm | ||||
| 094 | 266651-1 | 0.83 | 1.00 | |
| Label "ea3201s" | ||||
| 095 | 891901-1 | 2.58 | 3.10 | |
| STARTINRICHTING EA3200S A | ||||
| 096 | 161328-2 | 18.32 | 21.98 | |
| Startgreep Ps350/42 | ||||
| 097 | 195160070 | 3.95 | 4.74 | |
| Schijf Ea4300F | ||||
| 098 | 195160080 | 0.94 | 1.13 | |
| Startkoord 3.0Mmx 85Cm | ||||
| 099 | 021164010 | 4.44 | 5.33 | |
| Épuisé | ||||
| 100 | 234252-3 | |||
| Épuisé | ||||
| 101A | 195160040 | |||
| Rondelle | ||||
| 101B | 455919-2 | 3.37 | 4.04 | |
| Torsieveer 20mm | ||||
| 102 | 234253-1 | 2.58 | 3.10 | |
| Starterwiel Dcs3410/Th | ||||
| 103 | 170160780 | 3.77 | 4.52 | |
| Schroef Ps350/420 | ||||
| 104 | 195160010 | 0.94 | 1.13 | |
| Luchtgeleideplaat Ea3200 A | ||||
| 105 | 452026-2 | 1.92 | 2.30 | |
| Zeskantmoer M8X1 A | ||||
| 106 | 264022-6 | 0.94 | 1.13 | |
| Épuisé | ||||
| 107 | 926208001 | |||
| Vliegwiel | ||||
| 108 | 140480-9 | 12.20 | 14.64 | |
| Vliegwielpal | ||||
| 109 | 195761-6 | 2.00 | 2.40 | |
| Épuisé | ||||
| 110 | 452032-7 | |||
| Etiquette Info. | ||||
| 111 | 810075-9 | 2.58 | 3.10 | |
| Met.schroef Ck M4,7x16mm | ||||
| 112 | 266627-8 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 113 | 267066-5 | 0.83 | 1.00 | |
| Geleider Ea3200S A | ||||
| 114 | 313212-9 | 0.83 | 1.00 | |
| Drukveer 6 Ea3201S A | ||||
| 115 | 234210-9 | 0.83 | 1.00 | |
| Trekveer Ea3501S | ||||
| 116 | 165213120 | 1.32 | 1.58 | |
| Épuisé | ||||
| 117 | 163500-2 | |||
| Bus 6mm | ||||
| 118 | 325947-0 | 0.83 | 1.00 | |
| Plaque Intermediaire | ||||
| 119 | 346299-6 | 0.83 | 1.00 | |
| Stopring E-4 | ||||
| 120 | 961011-9 | 0.83 | 1.00 | |
| Capot de recouvrement | ||||
| 121 | 452033-5 | 1.18 | 1.42 | |
| Schroef 3x10 | ||||
| 122 | 266421-8 | 0.83 | 1.00 | |
| Pomp aandrijving | ||||
| 123 | 452035-1 | 4.82 | 5.78 | |
| Olieleiding Cpl. Dcs4600 A | ||||
| 124 | 181245300 | 8.80 | 10.56 | |
| Drukveer 6mm EA3201S/DUC355 | ||||
| 125 | 234207-8 | 0.83 | 1.00 | |
| Zuigkop DUC355/EA3201S A | ||||
| 126 | 452666-6 | 0.83 | 1.00 | |
| Oliedrukleiding | ||||
| 127 | 424342-2 | 2.71 | 3.25 | |
| Oliepomp Cpl | ||||
| 128 | 161346-0 | 20.08 | 24.10 | |
| Épuisé | ||||
| 129 | 195872-7 | |||
| Met.schroef Ck M4,7x16mm | ||||
| 130 | 266627-8 | 0.83 | 1.00 | |
| Revet 10mm | ||||
| 131 | 267430-0 | 0.83 | 1.00 | |
| Carr.ring 10mm | ||||
| 132 | 267431-8 | 0.83 | 1.00 | |
| Embrayage | ||||
| 133 | 168607-9 | 21.96 | 26.35 | |
| Koppelingsveer Ea3501S | ||||
| 134 | 165184020 | 0.95 | 1.14 | |
| Koppelingstrom Cpl Ea3200 A | ||||
| 135 | 140M30-8 | 14.85 | 17.82 | |
| Épuisé | ||||
| 136 | 267451-2 | |||
| Épuisé | ||||
| 137 | 259033-4 | |||
| Épuisé | ||||
| 137 | 927306000 | |||
| Remband | ||||
| 138 | 346298-8 | 2.36 | 2.83 | |
| Carter De Moteur | ||||
| 139 | 140A09-7 | 21.94 | 26.33 | |
| Épuisé | ||||
| 140 | 453784-3 | |||
| Startveer Ps350/42 A | ||||
| 141 | 195160110 | 10.02 | 12.02 | |
| Ketting afdekkap cpl | ||||
| 151 | 142783-7 | 29.24 | 35.09 | |
| Tapschroef Pt3x10 | ||||
| 152 | 266007-8 | 0.83 | 1.00 | |
| Plaque De Guidage | ||||
| 153 | 346309-9 | 3.54 | 4.25 | |
| Tapschroef Pt3x10 | ||||
| 154 | 266007-8 | 0.83 | 1.00 | |
| Plaque De Recouvrement | ||||
| 155 | 417403-5 | 4.82 | 5.78 | |
| Afstel pin | ||||
| 156 | 324068-5 | 3.37 | 4.04 | |
| Pignon | ||||
| 157 | 226681-4 | 4.24 | 5.09 | |
| Spanbout 8 | ||||
| 158 | 226534-7 | 11.26 | 13.51 | |
| Geleideplaat Dcs3501/4301 A | ||||
| 159 | 195213120 | 3.37 | 4.04 | |
| Indicatie label "ea3201s" | ||||
| 160 | 892502-8 | 2.71 | 3.25 | |
| Drukveer 4 | ||||
| 161 | 233033-2 | 0.83 | 1.00 | |
| Stalen kogel 4 | ||||
| 162 | 216008-6 | 0.83 | 1.00 | |
| Bouton Rotatif | ||||
| 163 | 419233-0 | 0.83 | 1.00 | |
| Sluitring 4 | ||||
| 164 | 253874-0 | 0.83 | 1.00 | |
| Schroef M4 | ||||
| 165 | 915106-0 | 0.83 | 1.00 | |
| Épuisé | ||||
| 166 | 264042-0 | |||
| Drukveer 8 | ||||
| 167 | 231025-5 | 0.83 | 1.00 | |
| Vleugelgreepset | ||||
| 168 | 195764-0 | 6.88 | 8.26 | |
| Vis | ||||
| 170 | WJ00096166 | 1.57 | 1.88 | |
| Vis | ||||
| 170A | WJ00096166 | 1.57 | 1.88 | |
| Épuisé | ||||
| 170B | ZJ17004010 | |||
| Pompdeksel | ||||
| 171A | WJ00213750 | 8.38 | 10.06 | |
| Pompdeksel | ||||
| 171 | WJ00213750 | 8.38 | 10.06 | |
| Épuisé | ||||
| 171B | ZJ0K017704 | |||
| Toerenreg.schroef | ||||
| 172 | WJ00096369 | 1.58 | 1.90 | |
| Ressort | ||||
| 173 | WJ00098356 | 0.95 | 1.14 | |
| Schroef Ea3201S | ||||
| 174A | WJ00096475 | 0.83 | 1.00 | |
| Épuisé | ||||
| 174B | ZJ17103004 | |||
| Chokegeleider | ||||
| 175A | WJ00183519 | 1.90 | 2.28 | |
| Épuisé | ||||
| 175B | ZJ00042706 | |||
| Ressort | ||||
| 176A | WJ00983585 | 1.58 | 1.90 | |
| Épuisé | ||||
| 176B | ZJ00013113 | |||
| Gasstang | ||||
| 177A | WJ00223556 | 8.80 | 10.56 | |
| Épuisé | ||||
| 177B | ZJ0A011716 | |||
| Ressort | ||||
| 178A | WJ00098494 | 1.57 | 1.88 | |
| Épuisé | ||||
| 178B | ZJ00013039 | |||
| Gasnaald "stationair" | ||||
| 179A | WJ01023908 | 6.88 | 8.26 | |
| Épuisé | ||||
| 179B | ZJ00031706 | |||
| Gasnaald "toeren" | ||||
| 180A | WJ01024001 | 3.22 | 3.86 | |
| Épuisé | ||||
| 180B | ZJ00030706 | |||
| Ressort | ||||
| 181 | WJ00098404 | 1.90 | 2.28 | |
| Revet | ||||
| 182 | WJ00136152 | 1.14 | 1.37 | |
| Joint Torique | ||||
| 183 | WJ00016105 | 1.92 | 2.30 | |
| Chokehefboom | ||||
| 184A | WJ00062150 | 2.58 | 3.10 | |
| Épuisé | ||||
| 184B | ZJ00043701 | |||
| Ressort | ||||
| 185A | WJ00983270 | 0.94 | 1.13 | |
| Épuisé | ||||
| 185B | ZJ00019009 | |||
| Afstel geleider | ||||
| 186A | WJ00166114 | 1.32 | 1.58 | |
| Épuisé | ||||
| 186B | ZJ00020012 | |||
| Pen Dcs230T A | ||||
| 187A | WJ00014477 | 2.58 | 3.10 | |
| Épuisé | ||||
| 187B | ZJ00021001 | |||
| Vlotternaald | ||||
| 188A | WJ00008282 | 6.88 | 8.26 | |
| Épuisé | ||||
| 188B | ZJ00018004 | |||
| Vis | ||||
| 189A | WJ00963226 | 0.95 | 1.14 | |
| Épuisé | ||||
| 189B | ZJ14803006 | |||
| Épuisé | ||||
| 190 | WJ00088271 | |||
| Deksel Ea3201S A | ||||
| 191A | WJ00021158 | 2.00 | 2.40 | |
| Épuisé | ||||
| 191B | ZJ00028704 | |||
| Épuisé | ||||
| 192A | WJ00095613 | |||
| Épuisé | ||||
| 192B | ZJ0A015049 | |||
| Pakking Ht2350/60D A | ||||
| 193A | 442183-4 | 1.92 | 2.30 | |
| Épuisé | ||||
| 193B | ZJ00016019 | |||
| Chokestang | ||||
| 194A | WJ00223784 | 11.60 | 13.92 | |
| Épuisé | ||||
| 194B | ZJ0A041704 | |||
| Revet | ||||
| 195A | WJ00013690 | 0.83 | 1.00 | |
| Épuisé | ||||
| 195B | ZJ00026037 | |||
| Gashefboom | ||||
| 196A | WJ00016682 | 2.27 | 2.72 | |
| Épuisé | ||||
| 196B | ZJ00042703 | |||
| Ressort | ||||
| 197A | WJ00983584 | 2.27 | 2.72 | |
| Épuisé | ||||
| 197B | ZJ00013149 | |||
| Borgring C | ||||
| 198A | WJ00001673 | 0.83 | 1.00 | |
| Épuisé | ||||
| 198B | ZJ19510040 | |||
| Gasgeleider | ||||
| 199A | WJ00183366 | 3.37 | 4.04 | |
| Épuisé | ||||
| 199B | ZJ00012705 | |||
| Épuisé | ||||
| 200A | WJ00983164 | |||
| Épuisé | ||||
| 200B | ZJ00054057 | |||
| Opvoerpompje | ||||
| 201A | WJ00160511 | 3.37 | 4.04 | |
| Épuisé | ||||
| 201B | ZJ0K053049 | |||
| Arret | ||||
| 202A | WJ00088229 | 0.83 | 1.00 | |
| Épuisé | ||||
| 202B | ZJ00005048 | |||
| Inlaatzeef | ||||
| 203A | WJ00014070 | 1.58 | 1.90 | |
| Épuisé | ||||
| 203B | ZJ00004011 | |||
| Gasklep | ||||
| 204A | WJ00343439 | 2.58 | 3.10 | |
| Épuisé | ||||
| 204B | ZJ00014040 | |||
| Pompdiafragma | ||||
| 205A | WJ00009589 | 3.37 | 4.04 | |
| Épuisé | ||||
| 205B | ZJ00015050 | |||
| Pomppakking | ||||
| 206A | WJ00092225 | 2.26 | 2.71 | |
| Épuisé | ||||
| 206B | ZJ00016033 | |||
| Vis | ||||
| 207A | WJ00096589 | 1.57 | 1.88 | |
| Épuisé | ||||
| 207B | ZJ17203006 | |||
| Schroef Ea3201S | ||||
| 208A | WJ00096475 | 0.83 | 1.00 | |
| Schroef carb. | ||||
| 208B | ZJ00000001 | 1.14 | 1.37 | |
| Schroef Ea3201S | ||||
| 209A | WJ00096475 | 0.83 | 1.00 | |
| Épuisé | ||||
| 209B | ZJ17103004 | |||
| Schroef Ea3201S | ||||
| 210A | WJ00096475 | 0.83 | 1.00 | |
| Schroef carb. | ||||
| 210B | ZJ00000001 | 1.14 | 1.37 | |
| Borgring C | ||||
| 211 | WJ00001673 | 0.83 | 1.00 | |
| Bougiedkap | ||||
| 212 | 424519-9 | 0.83 | 1.00 | |
| Épuisé | ||||
| 213B | ZJ0A001727 | |||
| Épuisé | ||||
| 214B | ZJ0A007710 | |||
| Épuisé | ||||
| 215B | ZJ00052019 | |||
| Épuisé | ||||
| 216B | ZJ00009030 | |||
| Épuisé | ||||
| 217B | ZJ00004002 | |||
| Épuisé | ||||
| 140980-9 | 140980-9 | |||
| Stootbuffer | ||||
| 424173-9 | 424173-9 | 1.12 | 1.34 | |
