Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita EG441A'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

Dessins des Makita EG441A

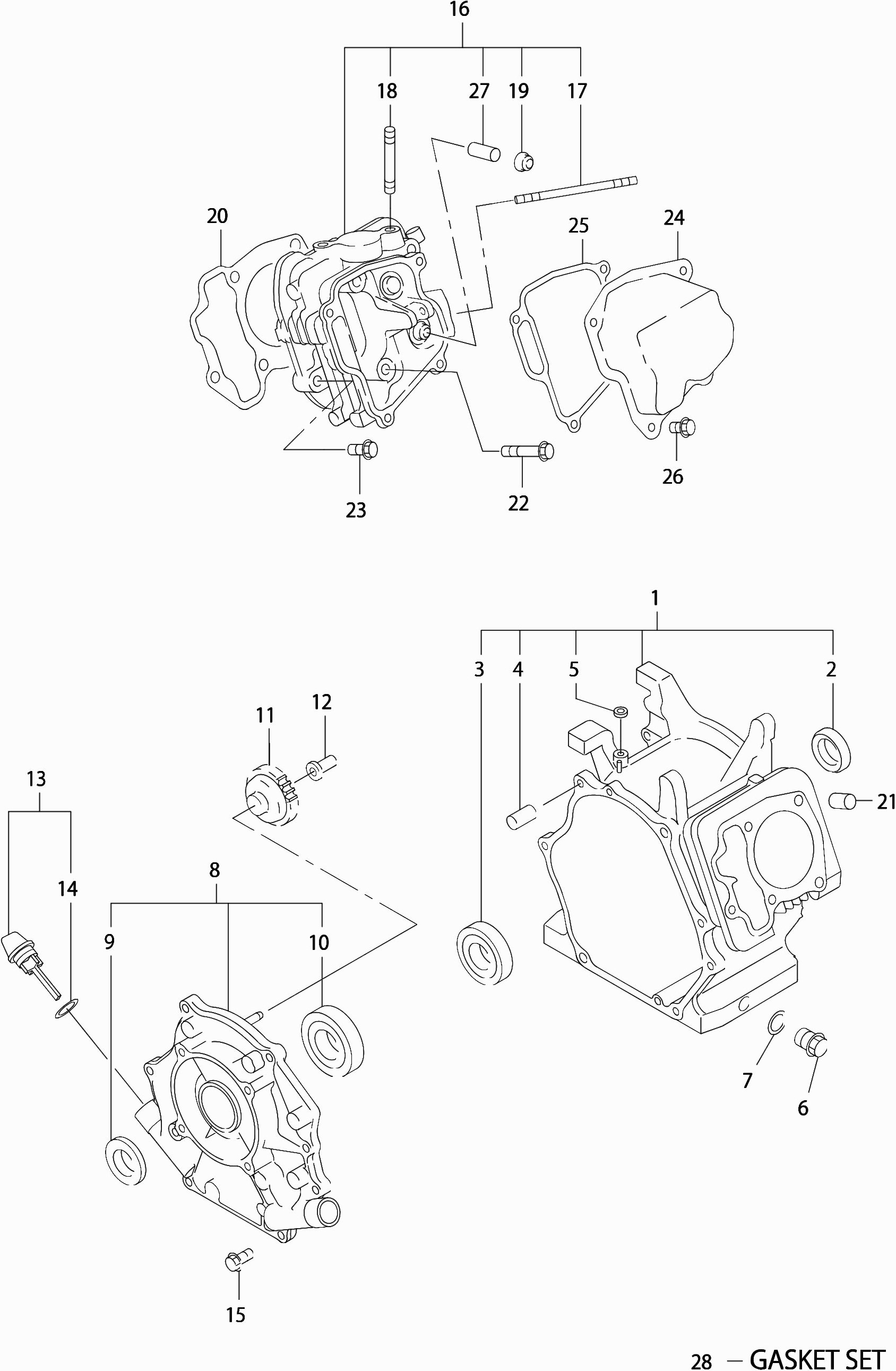

Dessins techniques 1

Dessins techniques 2

Dessins techniques 3

Dessins techniques 4

Dessins techniques 5

Dessins techniques 6

Dessins techniques 7

Dessins techniques 8

Dessins techniques 9

Dessins techniques 10

Dessins techniques 11

Liste de pièces de rechange des Makita EG441A

Pos. Description Prix hors TVA Prix ​​TTC
Les prix affichés incluent la TVA

Krukashuis
001 2911010251@141 635.81 762.97

Oliekeerring 30X45X7 G4300L
002 0440300160@141 11.19 13.43

Kogellager 6206 G4300L *
003 0600300341@141 17.92 21.50

Pasbus 10 10.3X8.5X14 Eg241 *
004 2771501103@141 0.83 1.00

Oliekeerring 6X10X2,5 G4300L
005 0440060020@141 5.24 6.29

Carterplug Eg-Series
006 0401140030@141 2.56 3.07

Pakking G2400-3500-550
007 0211140020@141 0.83 1.00

Hoofdlagerdeksel
008 2791110121@141 121.16 145.39

Oliekeerring 30X45X7 G4300L
009 0440300160@141 11.19 13.43

Kogellager 6206 G4300L
010 0600300370@141 17.92 21.50

Regulateurtandwiel
011 27745004J1@141 12.58 15.10

Regulateurbus G28/4300L A
012 2774190201@141 31.62 37.94

Oliepeilstok
013 2796360130@141 5.87 7.04

Pakking Oliepeilstok G6100R A
014 0213200050@141 2.05 2.46

Flensbout G4300L *
015 0010408350@141 1.43 1.72

Culasse
016 2791300231@141 268.56 322.27

Steun M6X107 G4300L *
017 0105060410@141 3.55 4.26

Tapeind Uitlaat *
018 0105080290@141 1.43 1.72

Kleppakking
019 2771601001@141 4.58 5.50

Koppakking
020 2791500133@141 11.68 14.02

Pasbus 10 10.3X8.5X14 Eg241 *
021 2771501103@141 0.83 1.00

Flensbout M8X68 G4300L *
022 0110080240@141 3.65 4.38

Flensbout M8X33 G4300L *
023 0110080310@141 2.08 2.50

Kleppendeksel
024 2771550301@141 34.35 41.22

Kleppendekselpakking
025 2771600113@141 3.83 4.60

Flensbout G24/35/5500
026 0110060020@141 1.72 2.06

Klepgeleider
027 2371420203@141 34.35 41.22

Pakkingset
028 2799900137@141 17.92 21.50

Krukas
029 2912070101@141 282.00 338.40

Inleg Spie G2400-3500-1R
030 0323030010@141 3.20 3.84

Bielle
031 2912250100@141 102.31 122.77

Drijfstangbout M7x13,8
032 2792300103@141 4.09 4.91

Axe De Piston
033 2792330113@141 10.84 13.01

Borgring Eg441A
034 0565180010@141 1.02 1.22

Piston
035 29123401H3@141 43.10 51.72

Zuigerveerset
036 2912350117@141 31.61 37.93

Nokkenas cpl
037 2793160211@141 89.94 107.93

Vrijloophaak
038 2793640103@141 12.55 15.06

Retourveer
039 2793870113@141 1.72 2.06

Pen 4Mm G4300L *
040 2773860103@141 1.02 1.22

Borgring 13,8Mm G4300L *
041 2773650103@141 1.24 1.49

Nokkenaspen Eg241A A
042 2773510101@141 11.19 13.43

Nokkenaspen
043 2773510103@141 8.52 10.22

O-Ring 5,8X9,6 Eg241A A
044 0240060030@141 2.21 2.65

Flensbout G24/35/5500
045 0110060020@141 1.72 2.06

Inlaatklep
046 27933401H3@141 19.88 23.86

Uitlaatklep
047 27933501H3@141 31.61 37.93

Klepveer
048 2793360103@141 3.55 4.26

Retourveer
049 2693370103@141 5.24 6.29

Tegenklep
050 13210KA031@141 1.43 1.72

Kleppentuimelaar
051 2773620100@141 26.11 31.33

Stelschroef M5 G28/4300L *
052 0149050020@141 2.80 3.36

Moer M5 G28/4300L *
053 0170050030@141 1.02 1.22

Tuimelaar
054 2773620200@141 23.74 28.49

Stelschroef M5 G28/4300L *
055 0149050020@141 2.80 3.36

Moer M5 G28/4300L *
056 0170050030@141 1.02 1.22

Tuimelaarpen
057 2773500401@141 3.65 4.38

Borgring G28/4300L *
058 0031305000@141 0.83 1.00

Nokkenasketting
059 27935602H1@141 31.61 37.93

Nokkenasketting
060 2773691103@141 3.22 3.86

Ressort De Traction
061 2773710103@141 3.22 3.86

Pen 6x13x34mm
062 2773690203@141 3.55 4.26

Kettinggeleider
063 2773691313@141 2.80 3.36

Uitlaatpijp
064 2773400101@141 37.16 44.59

Tapeind Uitlaat *
065 0105080290@141 1.43 1.72

Uitlaatpakking
066 2773520113@141 2.45 2.94

Pas d'informations disponibles, non commandable
067 0023808000@141

Uitlaat
068 2793050101@141 306.03 367.24

Uitlaatkap
069 2793470201@141 73.70 88.44

Uitlaatsteun
070 2793910111@141 7.43 8.92

Bout G2400-3500-550 *
071 0110060010@141 1.43 1.72

Bout Met Ring G3501-5501R
072 0011408200@141 0.83 1.00

Bout M/Revet Eg441A
073 0011408160@141 0.83 1.00

Uitlaatpakking T=16 28dx52p
074 2773520101@141 8.52 10.22

Pas d'informations disponibles, non commandable
075 0023808000@141

Rubber slang
076 29166001H0@141 17.92 21.50

Beugel G3501-5500-01R
077 0566000250@141 2.45 2.94

Moer M/Revet G28/6100R
078 0023806000@141 1.24 1.49

Filtre à Air
079 2793262420@141 114.92 137.90

Luchtfilterhuis
080 2793263728@141 49.85 59.82

Joint
081 2793265018@141 6.90 8.28

Luchtfilterkap
082 2793264608@141 43.10 51.72

Anneau de retenue
083 2793268308@141 3.65 4.38

Label, Choke- Eg241A A
084 0732004430@141 5.88 7.06

Luchtfilterelement
085 2793261208@141 16.84 20.21

Luchtfiltersteun
086 2793900101@141 8.52 10.22

Bout Eg241A A
087 0010406200@141 1.02 1.22

Regulateurhefboom
088 2794230160@141 12.55 15.06

Regulateurhefboom
089 2794230160@141 12.55 15.06

Bout Eg241A A
090 0010406200@141 1.02 1.22

Moer G2400-3500-550
091 0186060020@141 1.01 1.21

Regulateuras
092 2774220133@141 11.19 13.43

Borgring G28/4300L *
093 0031305000@141 0.83 1.00

Regulateurstang
094 2794270123@141 3.20 3.84

Regulateurstangveer
095 2774280123@141 2.08 2.50

Regulateurveer
096 2794250543@141 4.09 4.91

Toerenregeling
097 2774650111@141 16.13 19.36

Moer G2400R-Etc A
098 0021706000@141 0.83 1.00

Pas d'informations disponibles, non commandable
099 0043106400@141

Flensbout G24/35/5500
100 0110060020@141 1.72 2.06

Vliegwielhuis
101 2795120501@141 74.76 89.71

Spons 4
102 2795960413@141 10.84 13.01

Bout M6X1.0X14Dx14L
103 0110060030@141 1.70 2.04

Label (Trade Mark)Eg241/601A A
104 0732005820@141 4.09 4.91

Bout M/Revet Eg441A
105 0130060281@141 0.83 1.00

Tussenplaat Eg441A *
106 2795271111@141 10.84 13.01

Bout G5500R
107 0016508120@141 0.83 1.00

Plaque Intermediaire
108 2795270213@141 19.88 23.86

Flensbout G24/35/5500
109 0110060020@141 1.72 2.06

Capot de recouvrement
110 2775500121@141 14.24 17.09

Flensbout G24/35/5500
111 0110060020@141 1.72 2.06

Pas d'informations disponibles, non commandable
112 2795030120@141

Startveer
113 2265071608@141 33.12 39.74

Koordhaspel
114 2775012108@141 37.16 44.59

Detente
115 2815032508@141 7.43 8.92

Frictieveer
116 2815033008@141 5.87 7.04

Centreerschroef
117 2815035108@141 5.87 7.04

Frictieplaat
118 2815034008@141 5.87 7.04

Starterkoord
119 2795011008@141 19.88 23.86

Startkoordknop
120 2265070118@141 8.52 10.22

Startpulley
121 2795014808@141 23.74 28.49

Circuit vlotter
122 KU31107901@141 70.59 84.71

Bout M/Revet Eg441A
123 0130060281@141 0.83 1.00

Spruitstuk
124 27932902J1@141 12.55 15.06

Joint
125 27935902J3@141 1.43 1.72

Joint
126 27935903J3@141 1.24 1.49

Pas d'informations disponibles, non commandable
127 2796236400@141

Gasstang
128 2796253608@141 34.35 41.22

Chokeklep
129 2796252808@141 5.87 7.04

Ressort
130 2836235708@141 6.60 7.92

Vis
131 1066255608@141 1.43 1.72

Vis
132 2796235108@141 4.09 4.91

Plaque
133 2796236008@141 7.43 8.92

Joint Torique
134 1066238408@141 2.80 3.36

Sproeier
135 2796242208@141 16.13 19.36

Gasstang "a"
136 2796253308@141 37.16 44.59

Bague
137 2796255108@141 6.60 7.92

Joint
138 2466239008@141 3.55 4.26

Joint
139 2066254008@141 5.46 6.55

Flotteur
140 2346250608@141 30.23 36.28

Vlotterkamer
141 2796250608@141 28.73 34.48

Hoofdsproeier
142 2796240808@141 11.19 13.43

Bague
143 2076234508@141 0.83 1.00

Boulon
144 1506235808@141 3.20 3.84

Bague
145 2796254108@141 4.09 4.91

Boulon
146 2796236108@141 5.24 6.29

Vlotterpen
147 2146251508@141 5.88 7.06

Clip
148 2266270118@141 4.09 4.91

Naaldklep
149 2246230508@141 37.16 44.59

Vis
150 2096235108@141 1.24 1.49

Bague
151 2796255408@141 5.87 7.04

Chokehandel
152 2796252308@141 43.10 51.72

Joint
153 2366268008@141 5.87 7.04

Vis
154 2376245108@141 1.24 1.49

Bague
155 2776257108@141 7.43 8.92

Vliegwiel
156 2797923011@141 216.10 259.32

Ontsteking
157 2797943001@141 80.00 96.00

Bougiedop
158 X655000270@141 4.58 5.50

Bout Eg241A A
159 0010406200@141 1.02 1.22

Flensmoer M18 G4300L *
160 0180180010@141 7.43 8.92

Bougie Br6Hs
161 0650140150@141 11.32 13.58

Stopkabel
162 27773102H1@141 6.60 7.92

Oliesensor
163 2797630151@141 31.62 37.94

Flensbout Eg241A A
164 0010406140@141 1.02 1.22

Tapbout G3501R
165 0152060050@141 0.83 1.00

Serre Cable
166 2797550113@141 2.80 3.36

Veldwikkeling
167 36C2000108@141 819.65 983.58

Induit
168 36C2010108@141 983.70 1180.44

Spanningregelaar
169 36C2020108@141 102.31 122.77

Balai De Charbon
170 36A2030008@141 17.92 21.50

Support
171 36C2200008@141 85.25 102.30

Support
172 36C2210008@141 70.59 84.71

Support
173 36C2220008@141 127.41 152.89

Tole De Construction
174 36C2300008@141 31.61 37.93

Douille
175 36C2500008@141 5.24 6.29

Boulon
176 36B2100008@141 16.13 19.36

Boulon
177 36A8000508@141 5.24 6.29

Flens bout
178 36A8000108@141 2.05 2.46

Schroef en ring
179 36A8010008@141 1.02 1.22

Flens bout
180 36A8000208@141 1.72 2.06

Diode
181 36A2500108@141 28.73 34.48

Schroef en ring
182 36A8010108@141 1.43 1.72

Tuyau
183 36C2500208@141 26.11 31.33

Bague
184 36A2500308@141 9.54 11.45

Piece De Joint (1)
185 36A7000008@141 5.87 7.04

Piece De Joint (1)
186 36A7000408@141 3.55 4.26

Piece De Joint (1)
187 36A7000208@141 2.45 2.94

Anneau de retenue
188 36A7010108@141 1.70 2.04

Anneau de retenue
189 36A7010008@141 2.08 2.50

Draad (groen)
190 36A7101308@141 12.58 15.10

Draad (wit)
191 36A7100108@141 14.24 17.09

Vis
192 36A8020008@141 4.58 5.50

Verbinding
193 36A7000508@141 16.13 19.36

Boulon
194 36C2110008@141 37.16 44.59

Sponsfilter
195 36C2500408@141 21.87 26.24

Label (Trade Mark)Eg241/601A A
196 0732005820@141 4.09 4.91

Buizenframe
197 36C3000008@141 635.81 762.97

Controlekast
198 36C4000108@141 321.02 385.22

Schroef en ring
199 36A8010408@141 2.05 2.46

Schroef en ring
200 36A8010508@141 1.24 1.49

Boulon
201 36A8100208@141 2.05 2.46

Boulon
202 36A8000608@141 8.52 10.22

Etrier de blocage
203 36C3100008@141 19.88 23.86

Flens bout
204 36A8000408@141 1.43 1.72

Borgring filter
205 36A8200108@141 0.83 1.00

Boulon
206 36A8100308@141 2.45 2.94

Boulon
207 36A8100408@141 1.24 1.49

Spons
208 36A2500508@141 2.80 3.36

Spons
209 36A3500008@141 12.58 15.10

Spons
210 36C3500108@141 6.60 7.92

Draad (groen/geel)
211 36A7101908@141 16.13 19.36

Pas d'informations disponibles, non commandable
212 36C9100718@141

Benzinekraanlabel
213 36A9800308@141 16.13 19.36

Bedieningspaneel
214 36C4100108@141 121.98 146.38

Motorschakelaar
215 36A4900008@141 21.87 26.24

Prise de courant
216 36A4700108@141 27.35 32.82

Circuit onderbreker Dc 10a
217 36C4800008@141 53.39 64.07

Voltmeter
218 36A4900108@141 83.82 100.58

Dc-geheugen
219 36A4710108@141 11.19 13.43

Circuit onderbreker Dc 10a
220 36A4800108@141 31.61 37.93

Schroef en ring
221 36A8010208@141 1.43 1.72

Borgring filter
222 36A8200008@141 0.83 1.00

Boulon
223 36A8100008@141 1.24 1.49

Dop revet Eg241/321a
224 36A8210008@141 2.05 2.46

Bague
225 36A8220008@141 0.83 1.00

Rondelle Elastique
226 36A8230008@141 0.83 1.00

Ecrou Papillon
227 36A8110008@141 2.80 3.36

Piece De Joint (1)
228 36A7000308@141 3.55 4.26

Piece De Joint (1)
229 36A7000108@141 7.43 8.92

Anneau de retenue
230 36A7010108@141 1.70 2.04

Anneau de retenue
231 36A7010008@141 2.08 2.50

Schroef en ring
232 36A8010308@141 1.24 1.49

Vis
233 36A8020108@141 1.02 1.22

Boulon
234 36A8100108@141 1.24 1.49

Bague
235 36C4990008@141 7.43 8.92

Draad (wit)
236 36A7100208@141 17.92 21.50

Draad (wit)
237 36A7100308@141 17.92 21.50

Draad (zwart)
238 36A7100408@141 14.24 17.09

Draad (groen)
239 36A7101408@141 37.16 44.59

Draad (zwart)
240 36A7100608@141 17.92 21.50

Draad (groen/geel)
241 36A7101508@141 10.84 13.01

Draad (groen/geel)
242 36A7101608@141 19.88 23.86

Draad (groen)
243 36A7101708@141 11.19 13.43

Draad (blauw)
244 36A7101808@141 49.85 59.82

Label (trade mark) Eg441a
245 36C9000208@141 34.35 41.22

Chokelabel
246 36A9800408@141 3.55 4.26

Benzinetank
247 2706172201@141 190.18 228.22

Tank Dop G2800R
248 0430590011@141 37.12 44.54

Benzinefilter Eg-Series
249 0641540011@141 11.19 13.43

Benzinemeter Eg241/321A
250 0648001800@141 39.92 47.90

Schroef G2400-3500-550
251 0145050040@141 1.43 1.72

Bout Eg241A
252 0110060220@141 2.45 2.94

Rubber ring (tank)
253 3913900013@141 3.65 4.38

Bezinekraan G4100R
254 0642010001@141 20.76 24.91

Benzinefilter Eg241A A
255 0642001420@141 1.70 2.04

Pakkingring Eg441A
256 0642001430@141 1.43 1.72

Kijkglas Eg241A
257 0642001410@141 3.55 4.26

Borgmoer Eg241A
258 0642010030@141 4.09 4.91

O-Ring Eg241A
259 0642000330@141 1.70 2.04

Bout Eg241/321/441A
260 0642002790@141 0.83 1.00

Drukveer Eg241A
261 0642003230@141 1.24 1.49

Benzineslang
262 2706260311@141 9.54 11.45

Pas d'informations disponibles, non commandable
263 0561110060@141

Slang 100mm
264 36A6000108@141 12.55 15.06

Benzinekraanlabel
265 36A9800108@141 6.60 7.92

Label (symbooltank) Eg241/601a
266 36A9800208@141 16.13 19.36

Rubber slang
267 X851061421@141 12.42 14.90

Bague
268 36A8220208@141 16.13 19.36

Geluidsfilter
269 36A7500108@141 321.02 385.22

Bout met ring
270 36A8030008@141 2.45 2.94

Votre panier contient 0 de produits.
